Eachine 5.8G 3dBi Brass FPV Antenna, Omni-Directional, IPEX Port, Compatible with VTX01/VTX02/VTX03/ATX03 FPV Transmitter for RC Drones

Description

Eachine 5.8G 3dBi Brass FPV Antenna Omni Directional IPEX Port for VTX01/VTX02/VTX03/ATX03 FPV Transmitter RC Drone

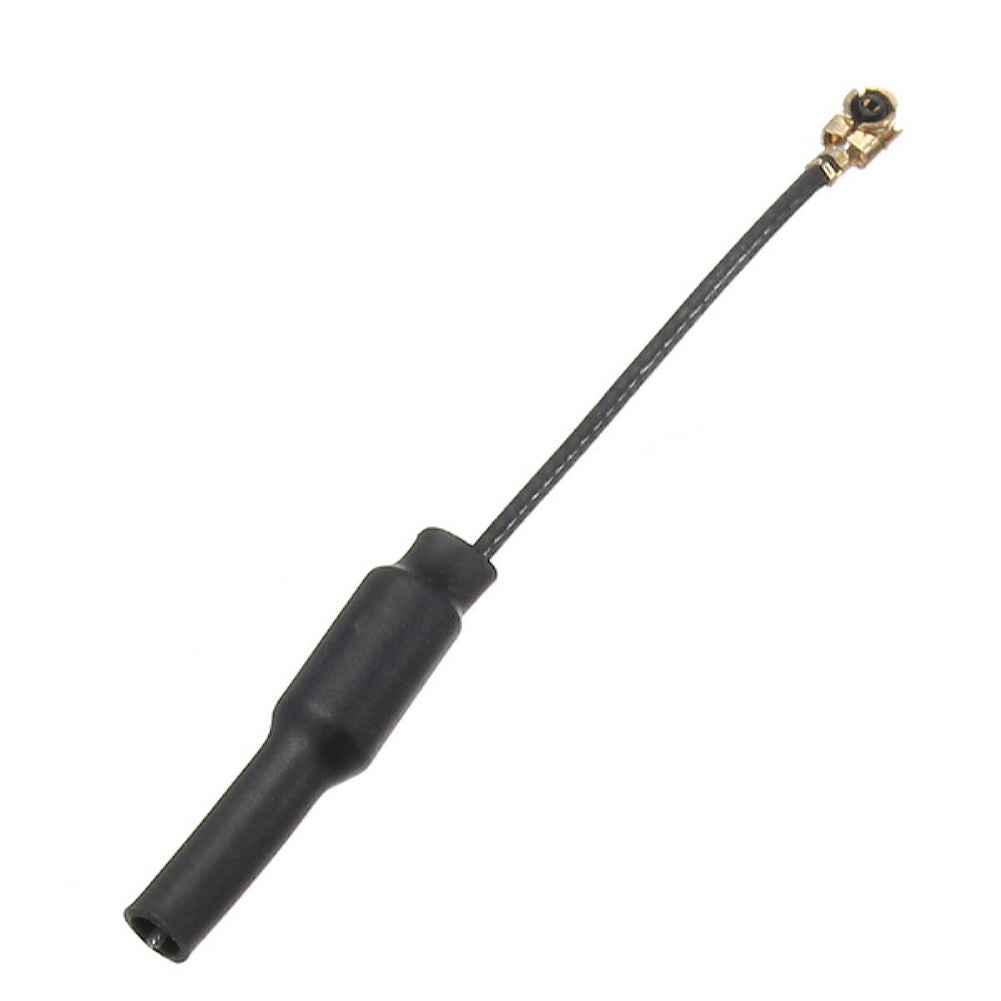

The Eachine 5.8G 3dBi Brass FPV Antenna is designed for optimal performance with RC drones. Featuring an IPEX interface, it ensures simple installation and easy replacement. This ultra-lightweight and compact antenna, weighing just 0.54g, minimizes flight burden, allowing for extended range. With vertical omnidirectional polarization, it enhances signal reception and offers 360-degree flexibility without dead spots. The antenna is protected by heat shrink technology and brass, ensuring durability and maintaining performance even when bent. It operates within a frequency range of 5725-5850MHz, supporting a maximum power of 50W with an input resistance of 50 ohms.

Specicication:S.W.R.: <2:1Gain: 3dbi
Interface: IPEXLength: 55mmWeight: 0.54gPolarization: vertical
Maximum power: 50WInput resistance: 50棒
Minimum diameter: 1.13mmThunder protection: DC groundDirectionality: OmnidirectionalThe maximum diameter: 4.4mmFrequency Range: 5725-5850Mhz
Note: the transmitter is not included
Features:1.IPEX interface installation is simple, easy to replace2. ultra-light weight ultra-small size, to the flight burden, so that flight farther and farther3. Vertical omnidirectional, receive signal sensitivity is higher, can be rotated 360 ‵,Receive no dead ends
4. Heat shrink technology, brass protection, wire flexibility is good, can be bent without damage to performance

Package Included:
1 x Brass Antenna
