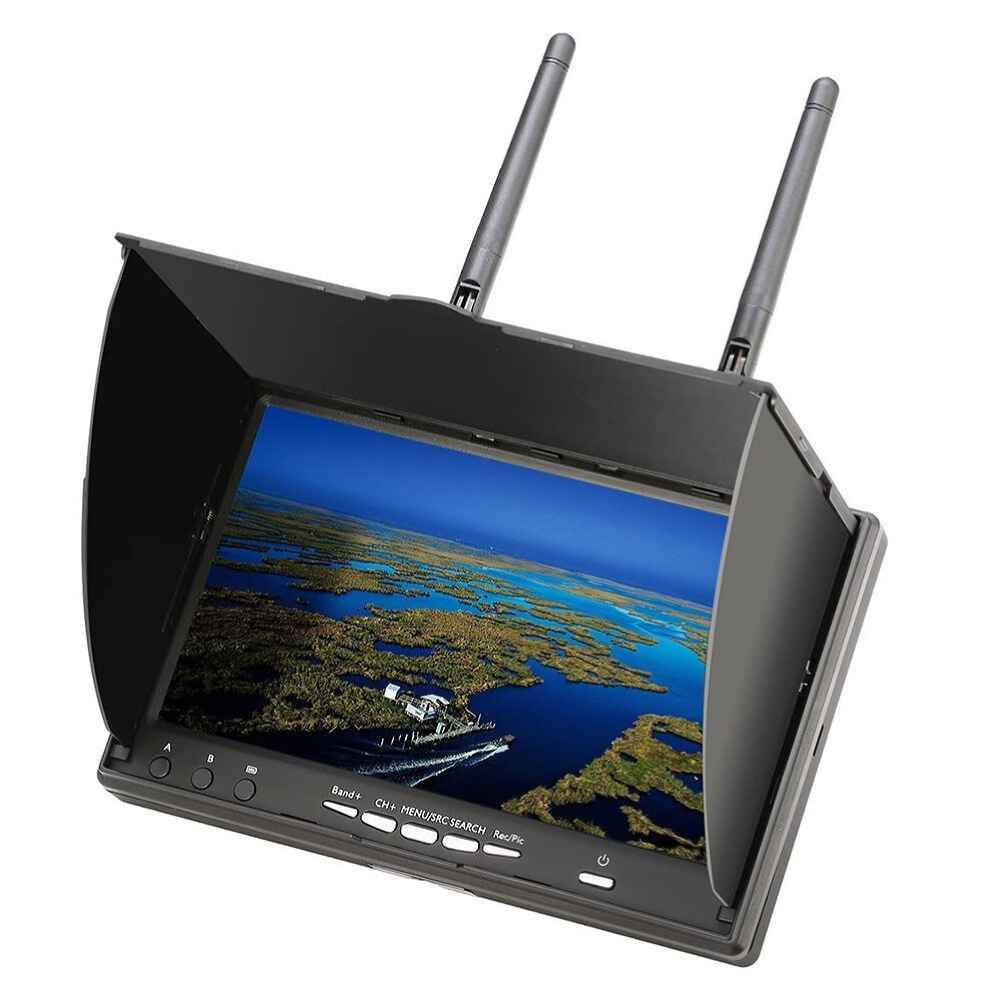

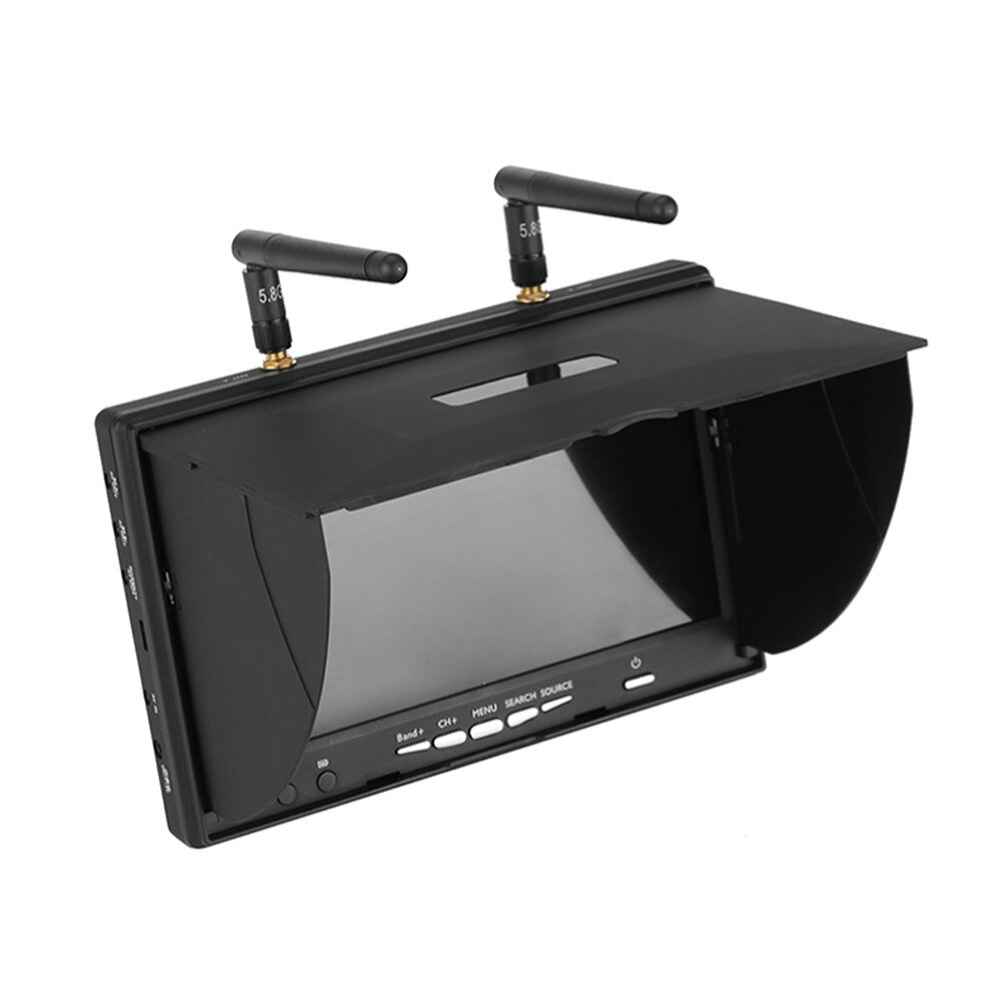

LST LT5802S 7 Inch FPV Monitor, 5.8G 40CH Dual Receiver, Built-in Battery & Antennas for RC Drones

Description

LST LT5802S 5.8G 40CH 800*480 7 Inch FPV Monitor Built in Dual Receiver Battery with Antennas for RC Drones

The LST LT5802S 7 Inch FPV Monitor is designed for optimal reception with its built-in 5.8Ghz dual receiver. It features a high-resolution 800×480 TFT LCD screen with a brightness of 600cd/m虏 and a wide viewing angle of 140/120 degrees. The monitor includes a built-in high-performance Li-Polymer battery (2000mAH/7.4V) for extended outdoor use. It supports both Chinese and English menu languages and offers an OSD display for work status, including RSSI, battery, and channel indicators. With dual buffered AV outputs and simple operation, the monitor is compatible with RC drones and unaffected by 2.4GHz R/C radios.

Specifications:
Built-in 5.8Ghz Dual receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display: RSSI indication; Battery indicator; Channel indication
A key to automatic signal search

Item Name:

LT5802S Monitor

Format:

JPEG, AVI

Screen Size:

7§

Screen Type:

TFT LCD Screen/long life, LED backlight

Menu language

Support Chinese and English menu

Resolution:

800*480

Brightness:

600cd/m2

View Angle:

140/120 degree (Horizontal/Vertical)

Size:

180mm x 120mm x 50mm(Note:Sunshield height:28mm)

Working Voltag:

DC 7~16V

Power Consumption:

max 650 mA @12V

Battery Charging Current:

850mA @12V ( max )

Working Temperature:

-10⊥~+ 65 ⊥

Connectors:

RP-SMA female(outer needle)

Antennas Connectors:

RP-SMA male (inner hole)

Features:
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operatio
Work status OSD display:Always be aware of the device working condition.
Notice: It can’t receive 2 different channels at the same time.

Package Included:
1 x 7′ LCD Screen Receiver Monitor with built-in Rechargeable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger
