Eachine EV100 HD to AV Converter Module for FPV Goggles RC Drone, 1080P Support, Plug and Play

Description

Eachine EV100 HD Port to AV Convertor Transfer Module Only For FPV Goggles RC Drone

The Eachine EV100 HD to AV Converter Module is designed for seamless integration with FPV goggles and RC drones. This compact module, measuring 66mm x 55mm x 20mm and weighing just 110g, offers a straightforward plug-and-play setup with no additional drive programs needed. It supports both NTSC and PAL formats and provides synchronized video and audio output. Compatible with HD 1.3 interfaces, it features RCA output ports and supports resolutions up to 1920×1080@60Hz. Whether you’re using 480p, 720p, or 1080p, this converter ensures high-quality video transmission for an enhanced FPV experience.

Description
Size : 66mm*55mm*20mm
Weight : 110g
Features
No need extra drive program, just plug and play
Video and Audio sync output
Support 1080P

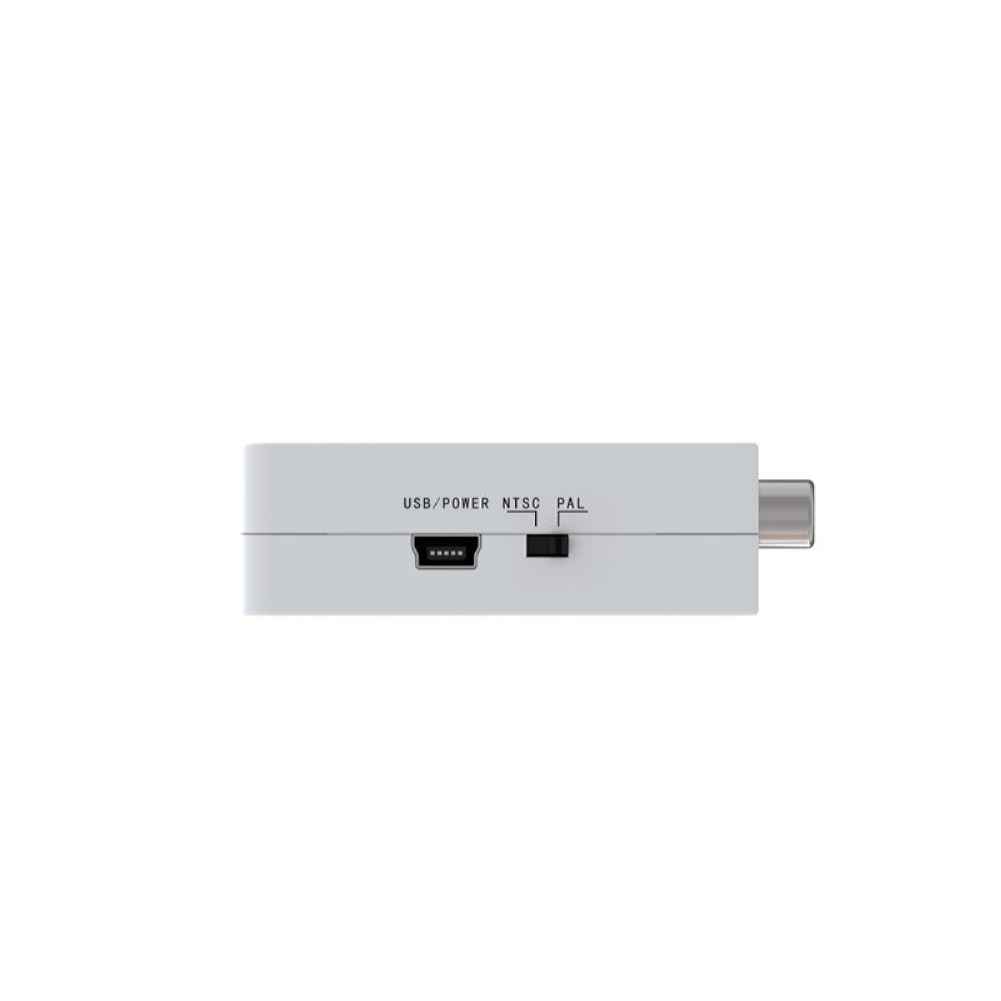

Support NTSC and PAL Format
Compatible with HD 1.3
Interface

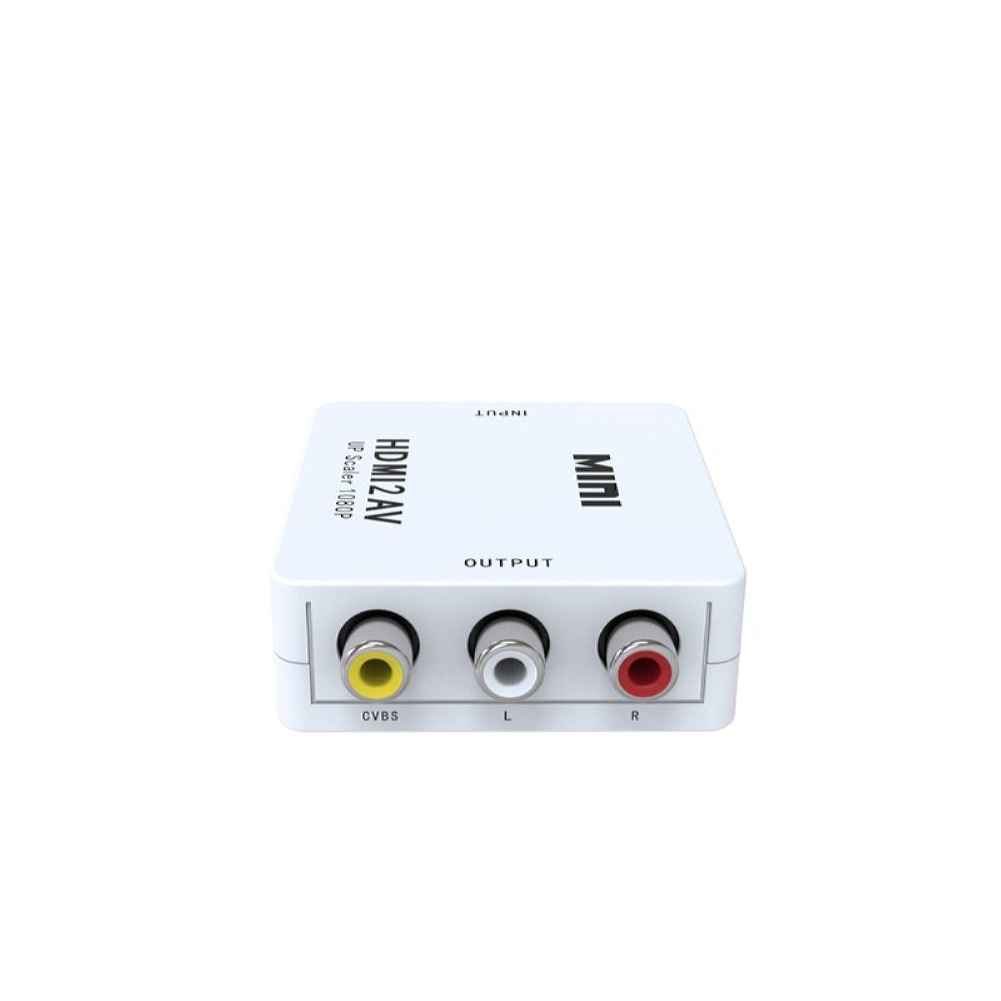

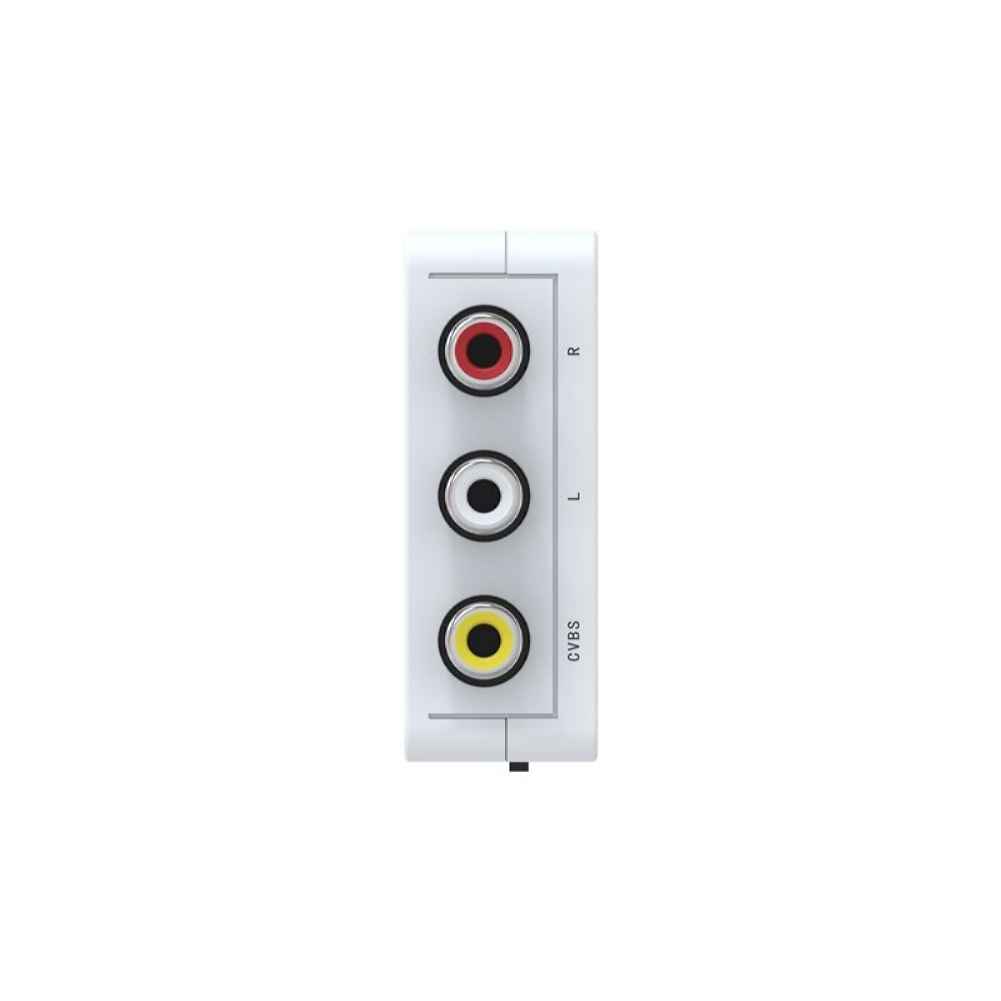

Output Port : RCA(yellow, white, red)

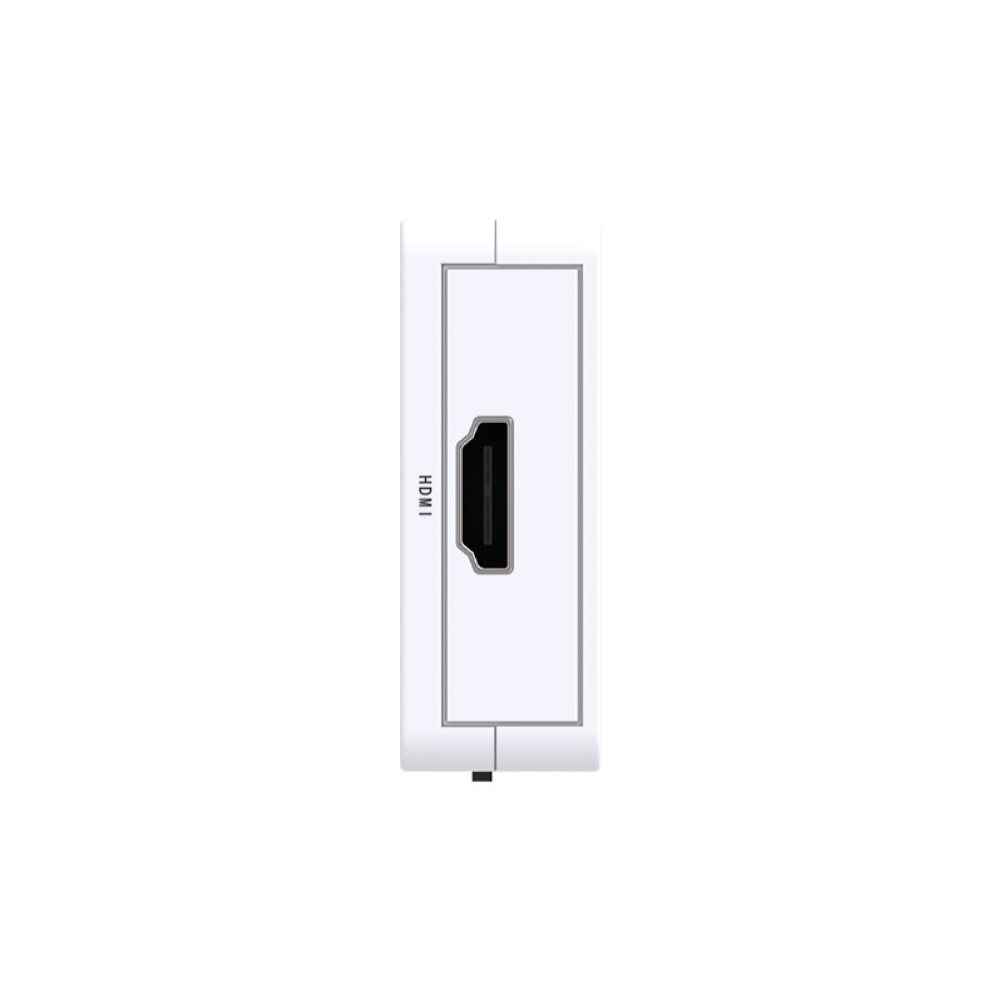

Input Port : HD
HD Input Resolution
640×480@60Hz,800×600@60Hz,1024×768@60Hz,1280×720@60Hz,1280×1024@60Hz,1360×768@60Hz,1600×1200@60Hz,1920×1080@60Hz. 180i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz
CVBS output:PAL,NTSC_M,and NTSC_J

Package Included:
1 x HD to AV Convertor
1 x User Manual
