EMAX ES09MD HV High Voltage Servo, Metal Gear, 360? Rotation, PWM Control, RC Parts

Description

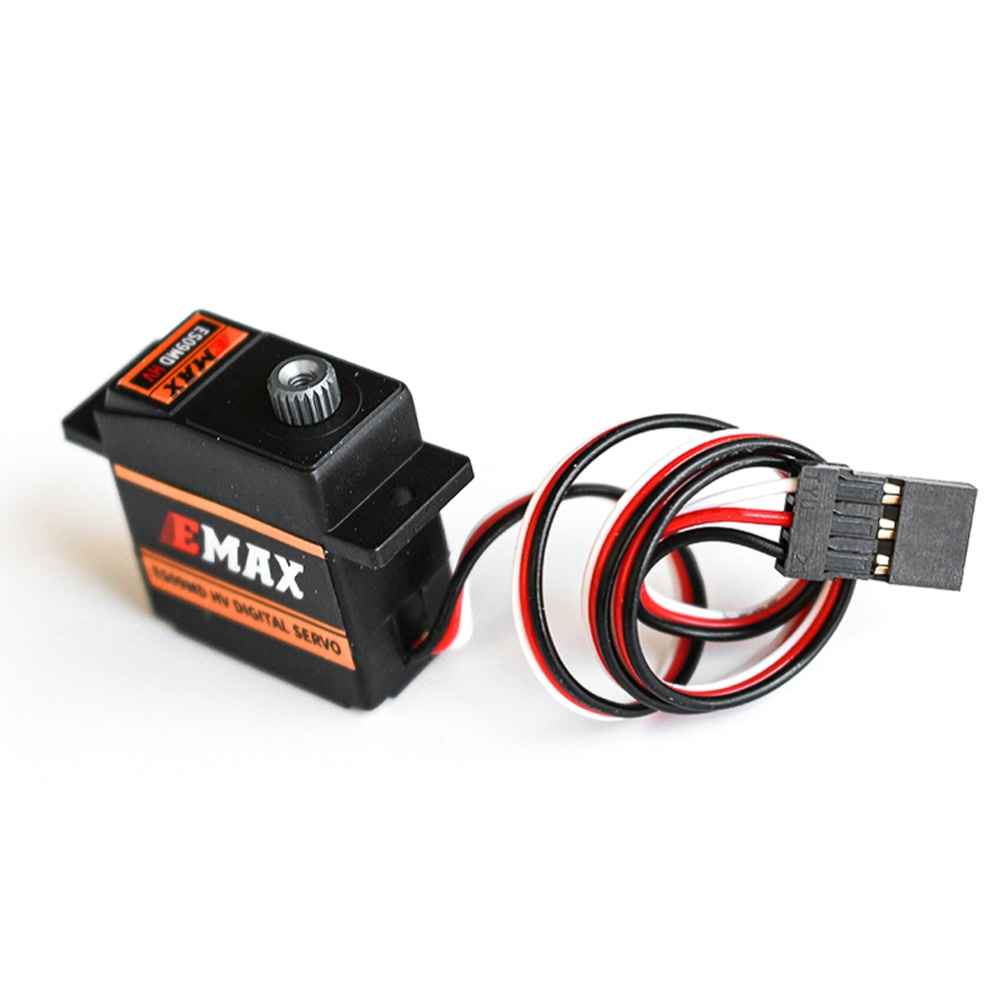

EMAX ES09MD HV High Voltage Servo

The EMAX ES09MD HV High Voltage Servo is designed for high-performance RC applications, providing precise control and durability. It features metal gears and a dual ball bearing system, ensuring smooth and reliable operation. With a wide operating voltage range, it offers a fast response time of 0.12 sec/60ç°ž at 8.4V and a stall torque of up to 3.1kg.cm. The servo is equipped with a JR connector and a 250mm wire length for easy installation. It supports a 360ç°ž extreme angle and operates with a PWM control system, making it ideal for various RC models. With its robust construction and efficient performance, this servo is perfect for hobbyists and professionals alike.

Specifications:
Storage Temperature Range:-20ï¹ ~60ï¹
Operating Temperature Range:-10ï¹ ~50C
Electrical Specification (Function of the Performance)
Operating Speed (at no load): 6.0V:0.17 sec/60‵/ 8.4V:0.12 sec/60‵
Running Current (at no load): 6.0V:2000mA Max/ 8.4V:280mA Max
Stall Torque: 6.0V:2.3kg.cm Max/ 8.4V:3.1kg.cm Max
Maximum Current: 6.0V:0.65A Max/ 8.4V:0.9A Max
Idle Current:6.0V: 9.5mA/ 8.4V:9.5mA
Overall Dimensions:See Drawing Below
Weight:13.5呼1g
Connector Wire Gauge:JR
Connector Wire Length:250呼8mm(W/O Connector)
Output Gear Spline:21T
Bearing:2BB
Gear Type:Metal
Extreme Angle:360‵
Control System:PWM
Operating Travel券90‵ 呼8‵( when 1000-2000譙 sec )
Neutral Position券1500 譙 sec
Rotating Direction:Counter Clockwise / Pulse Traveling 1500 to 1900è­™ sec
Pulse Width Range:500-2500è­™ sec
Maximum Travel:175‵呼10‵(500-2500譙 sec )

Package Included:
1 x EMAX ES09MD HV High Voltage Servo
