Emax ES9251 II Upgrade Micro Digital Servo, 3g Plastic Gear, for RC Airplane and Helicopter

Description

4PCS Emax ES9251 II Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model

The Emax ES9251 II Upgrade Version Digital Servo is a lightweight, high-performance servo designed for RC models, including airplanes and helicopters. Operating on a voltage range of 4.8V to 6.0V, it delivers a swift operating speed of 0.09 sec/60掳 at 4.8V and 0.08 sec/60掳 at 6.0V. With a stall torque of up to 0.3kg.cm, this servo is efficient and reliable. It features a combination of one metal gear and five plastic gears, ensuring durability and precision. The servo’s compact size and light weight of 3.0g make it an excellent choice for hobbyists seeking performance without added bulk. It operates with a PWM control system and offers a wide pulse width range, making it versatile for various RC applications.

Description:
Brand: Emax
Item: ES9251 II Digital Servo
Operating Voltage: 4.8V~6.0V
Operating Speed (at no load): 0.09 sec/60～(4.8v), 0.08 sec/60～(6.0v)
Running Current (at no load):25mA Max(4.8v), 315mA Max(6.0v)
Stall Torque: 0.25kg.cm Max(4.8v), 0.3kg.cm Max(6.0v)
Maximum Current: 120mA Max(4.8v),140mA Max(6.0v)
Idle Current: 2.2mA
Storage Temperature Range: -20 C~70’C
Operating Temperature Range: -10C~60C
Size: 25.49*8.25*20.25mm
Weight: 3.0㊣0.5g

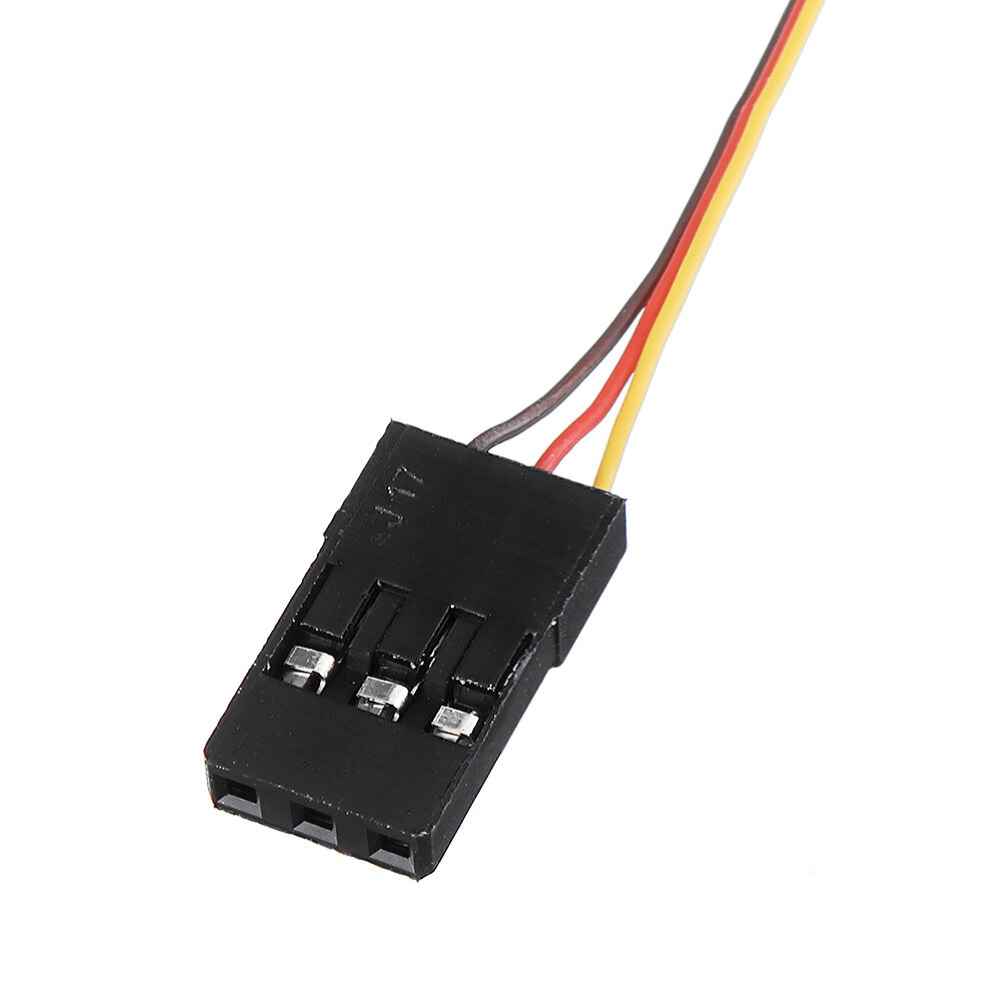

Connector Wire Gauge: JR
Connector Wire Length: 180㊣8mm
Flower Head: 15T
Bearing: NO
Gear Type: 1 metal gear + 5 plastic gear
Extreme Angle: 360～
Control System:PWM
Operating Travel: 90～㊣10～ (when 1000-2000 米sec)
Neutral Position: 1500 ç±³ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 ç±³ sec
Pulse Width Range: 700- 2300 ç±³ sec
Maximum Travel: 145～㊣10～ (700-2300米 sec )
Usage:For RC Airplane,RC Aircraft, RC Helicopter
English Manual, Click Here

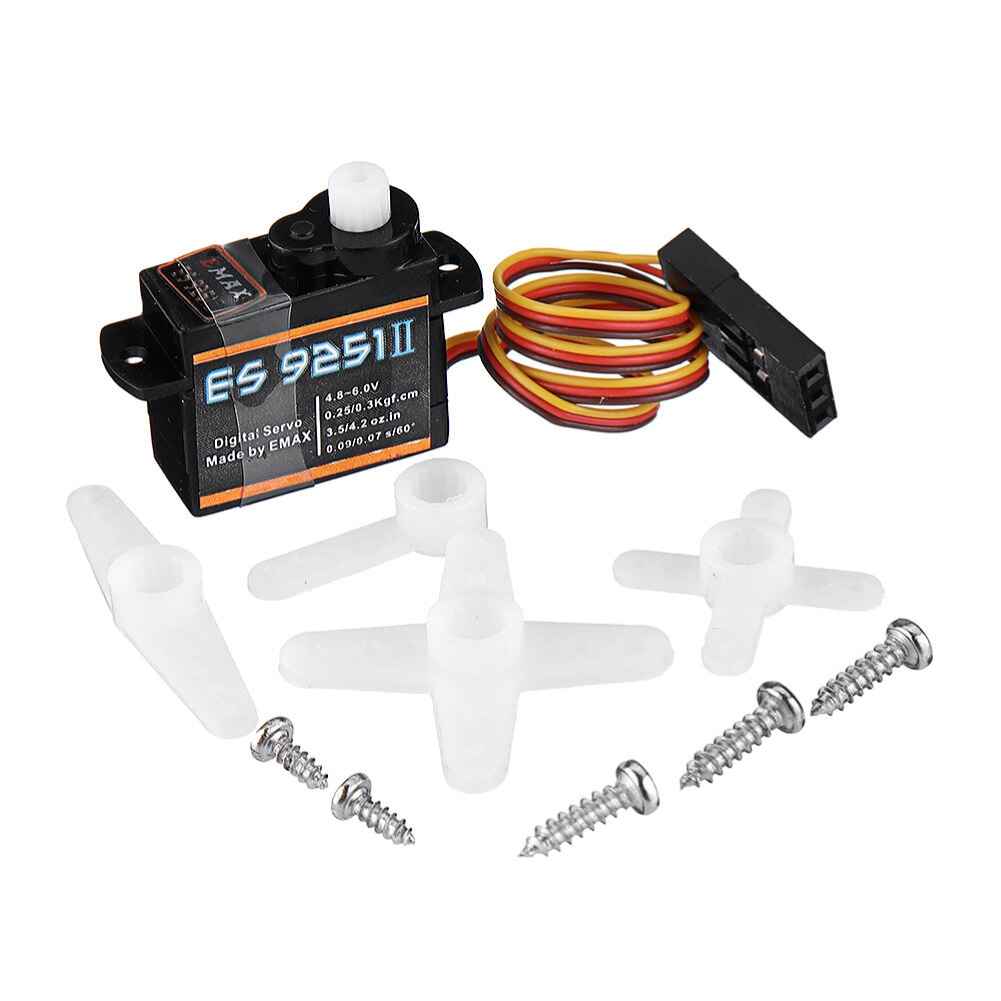

Package Included:
4 x ES9251II Digital Servo
