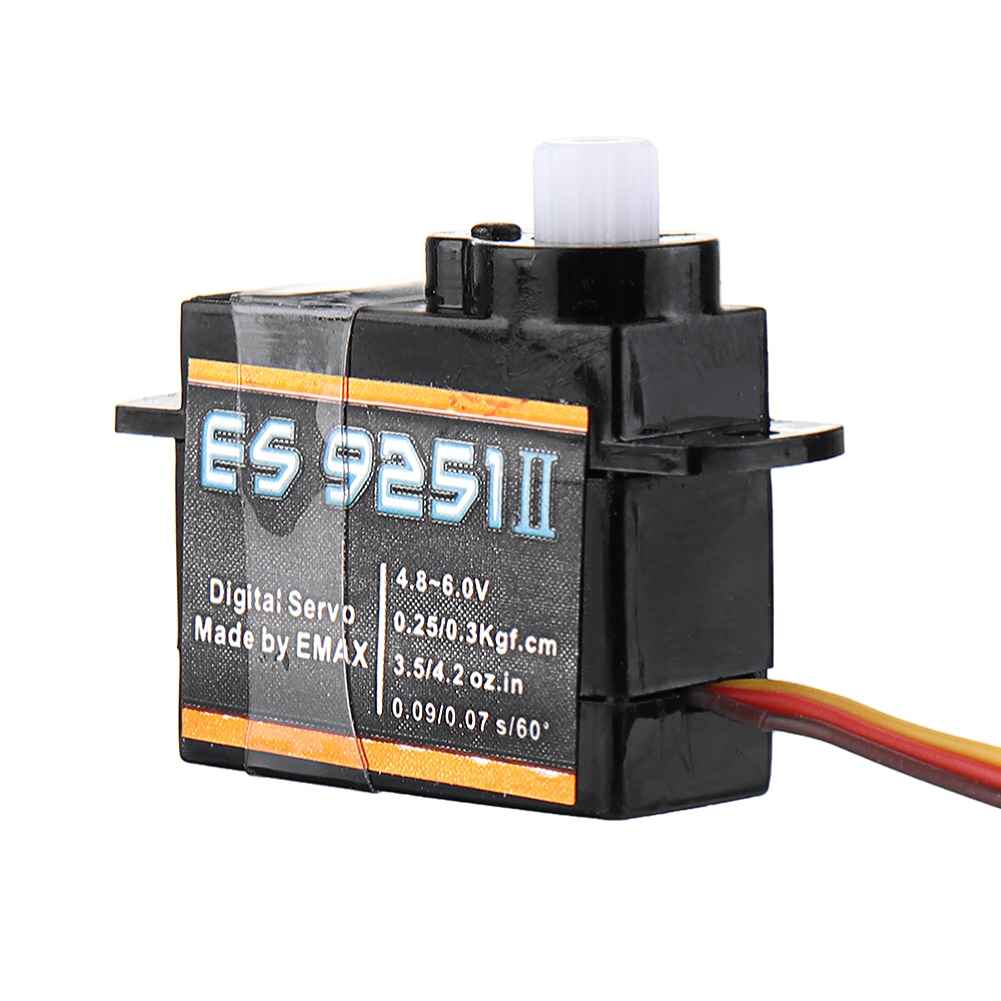

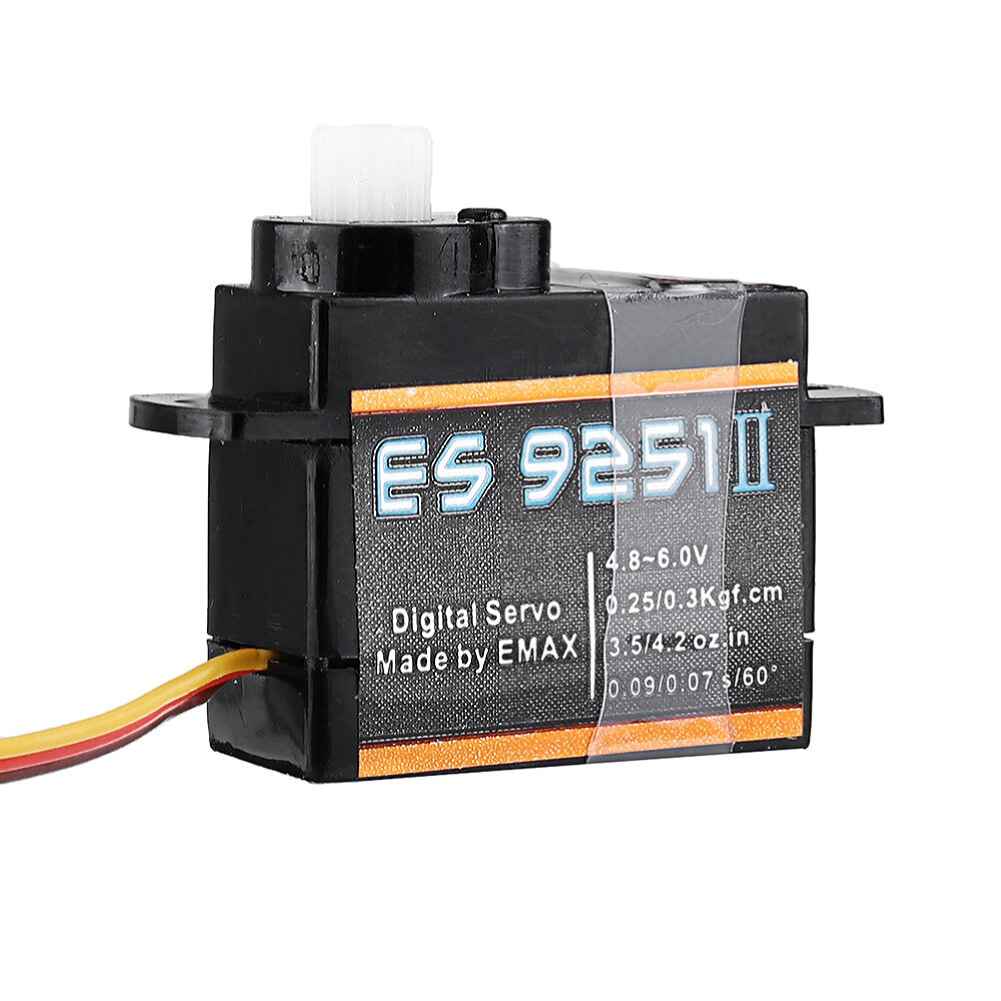

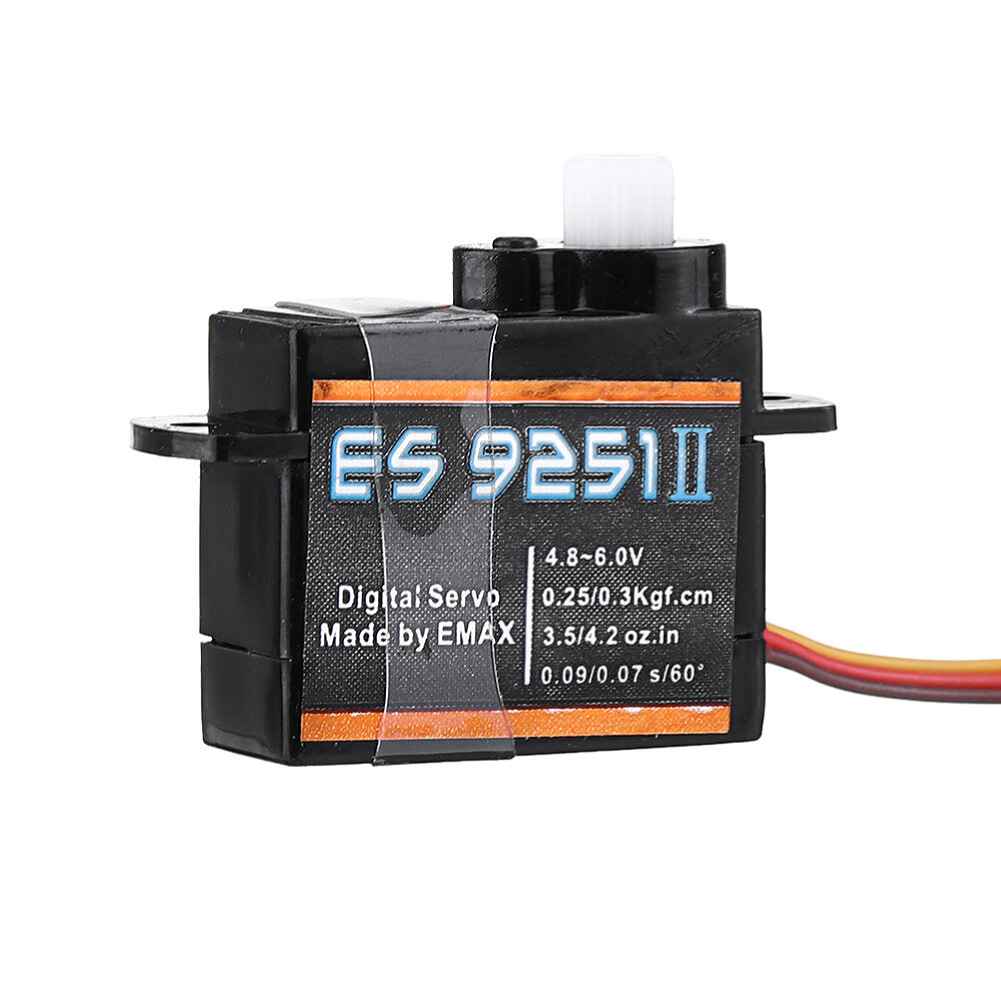

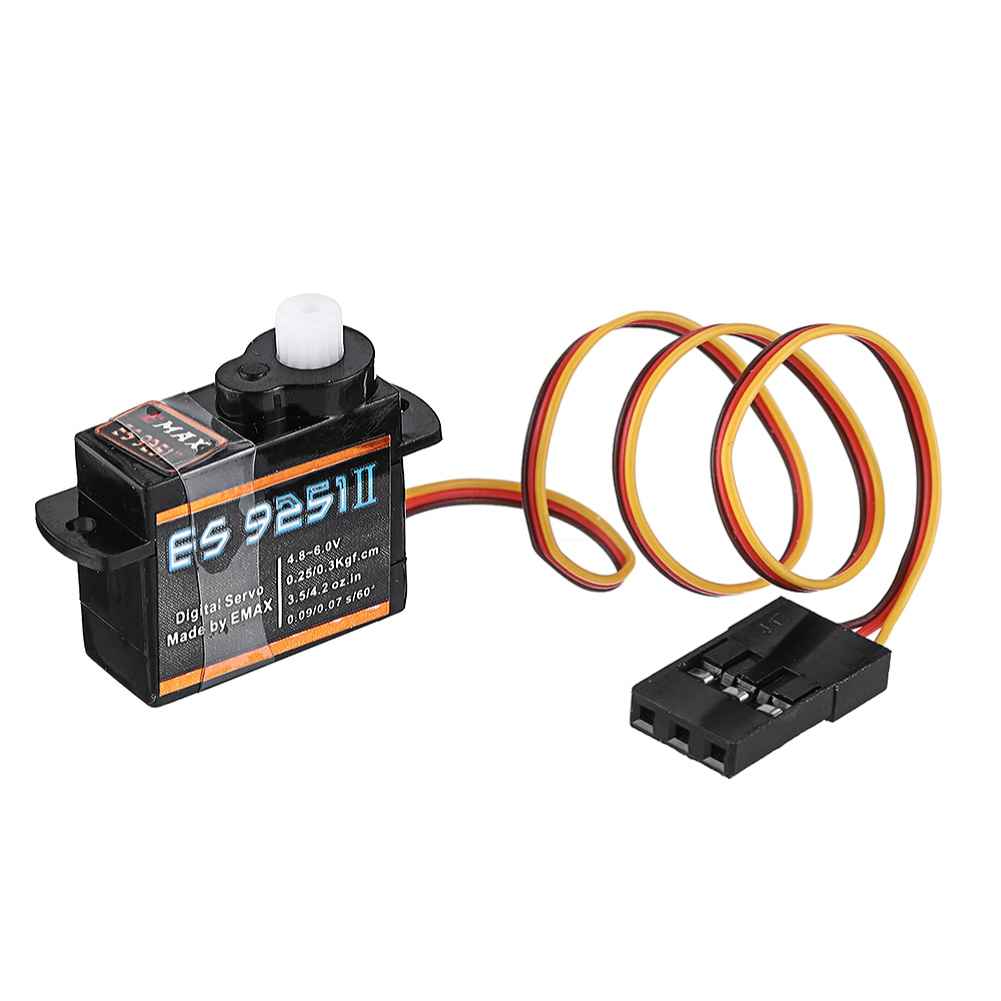

Emax ES9251II 3g Micro Digital Servo for RC Airplane, Plastic Gear, Upgrade Version

Description

Emax ES9251 Upgrade Version 3g Plastic Gear Micro Digital Servo For RC Model

The Emax ES9251II is a lightweight, 3g micro digital servo designed for RC airplanes, aircraft, and helicopters. It operates efficiently with a voltage range of 4.8V to 6.0V, offering a fast operating speed of 0.09 sec/60～ at 4.8V and 0.08 sec/60～ at 6.0V. With a stall torque of 0.25kg.cm at 4.8V and 0.3kg.cm at 6.0V, this servo ensures reliable performance. It features one metal gear and five plastic gears, with a JR connector wire length of 180mm. The servo supports PWM control systems and rotates counterclockwise with a pulse traveling range of 1500 to 1900 米s. Ideal for hobbyists seeking precision and durability in RC models.

Description:Brand: EmaxItem: ES9251II Digital ServoOperating Voltage: 4.8V~6.0V
Operating Speed (at no load): 0.09 sec/60‵(4.8v), 0.08 sec/60‵(6.0v)
Running Current (at no load):25mA Max(4.8v), 315mA Max(6.0v)
Stall Torque: 0.25kg.cm Max(4.8v), 0.3kg.cm Max(6.0v)
Maximum Current: 120mA Max(4.8v),140mA Max(6.0v)
Idle Current: 2.2mA
Storage Temperature Range: -20 C~70’C
Operating Temperature Range: -10C~60C
Size: 25.49*8.25*20.25mm
Weight: 3.0呼0.5g

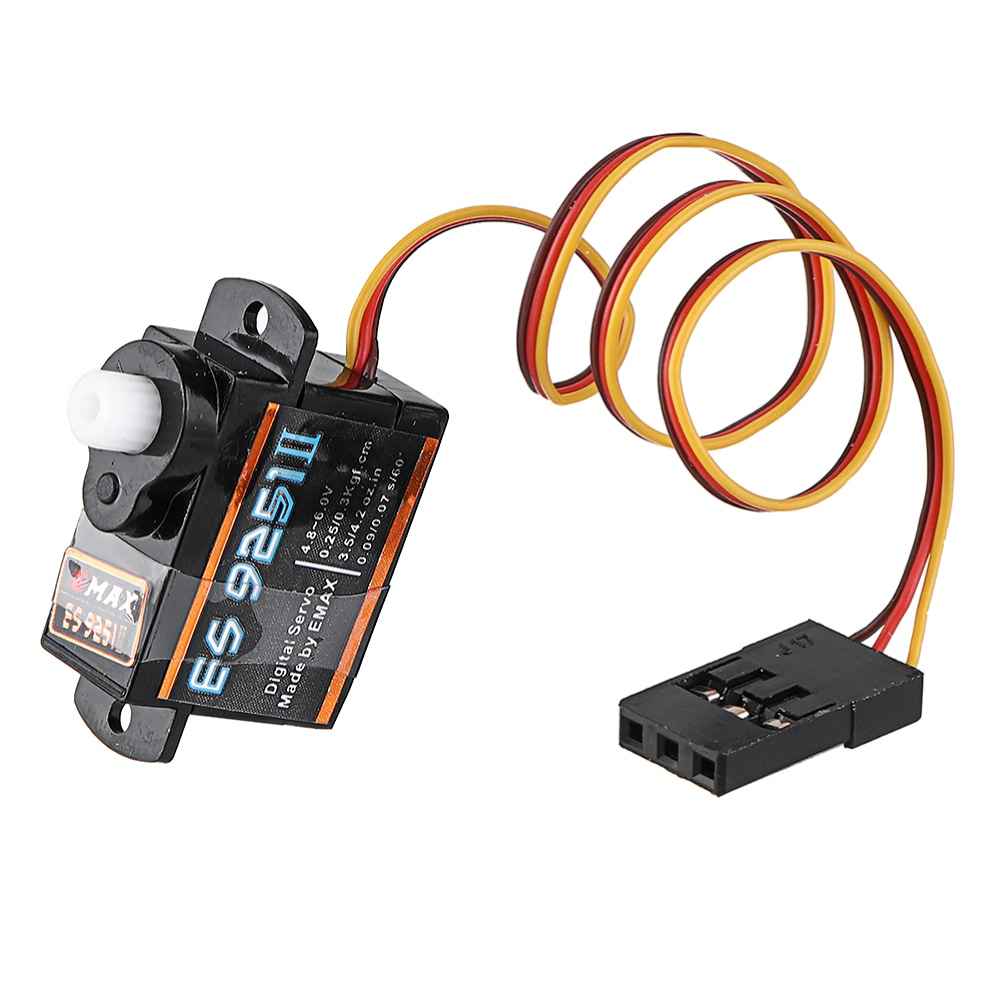

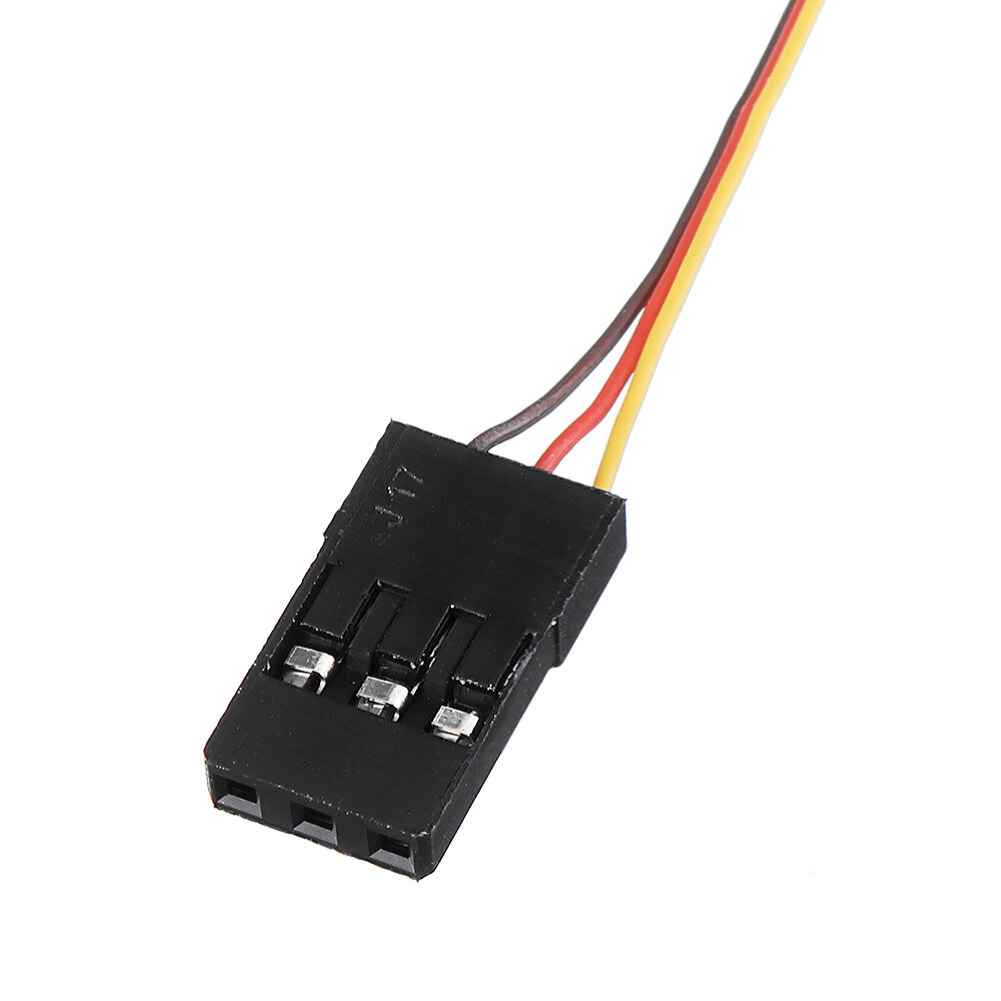

Connector Wire Gauge: JR

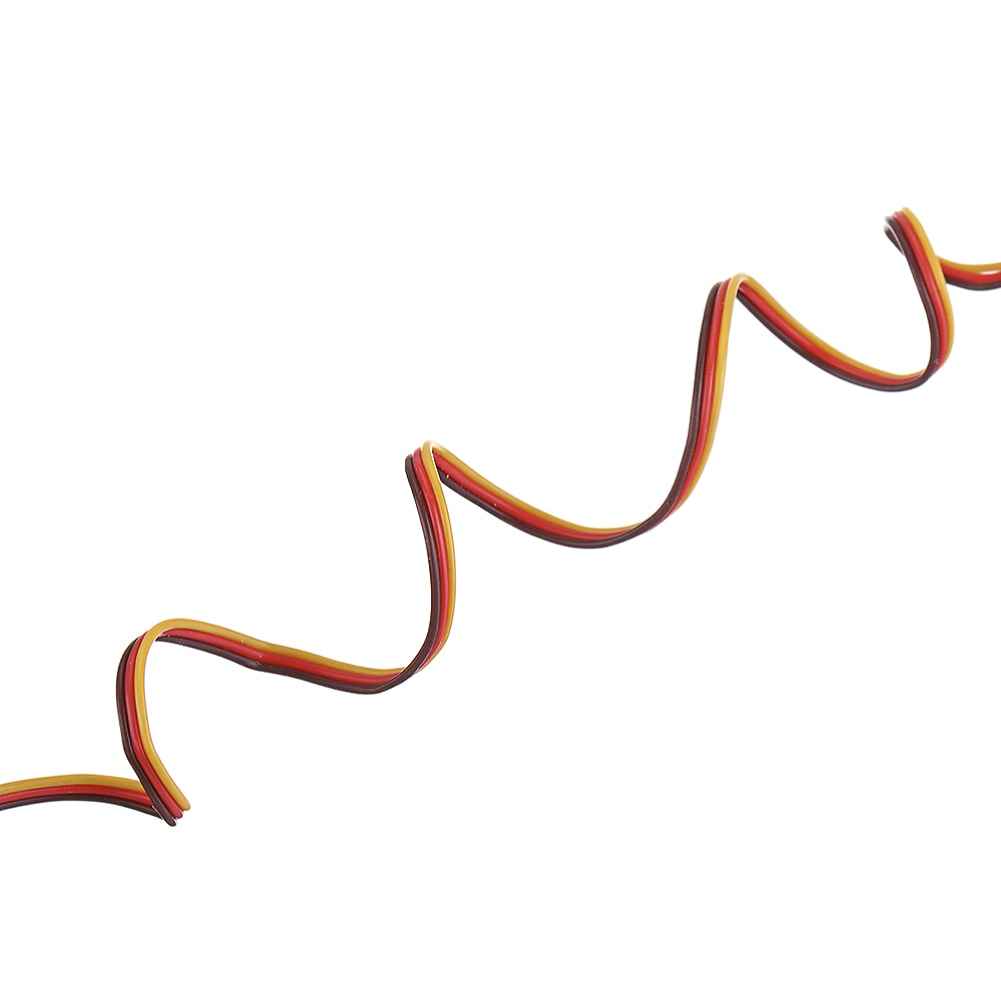

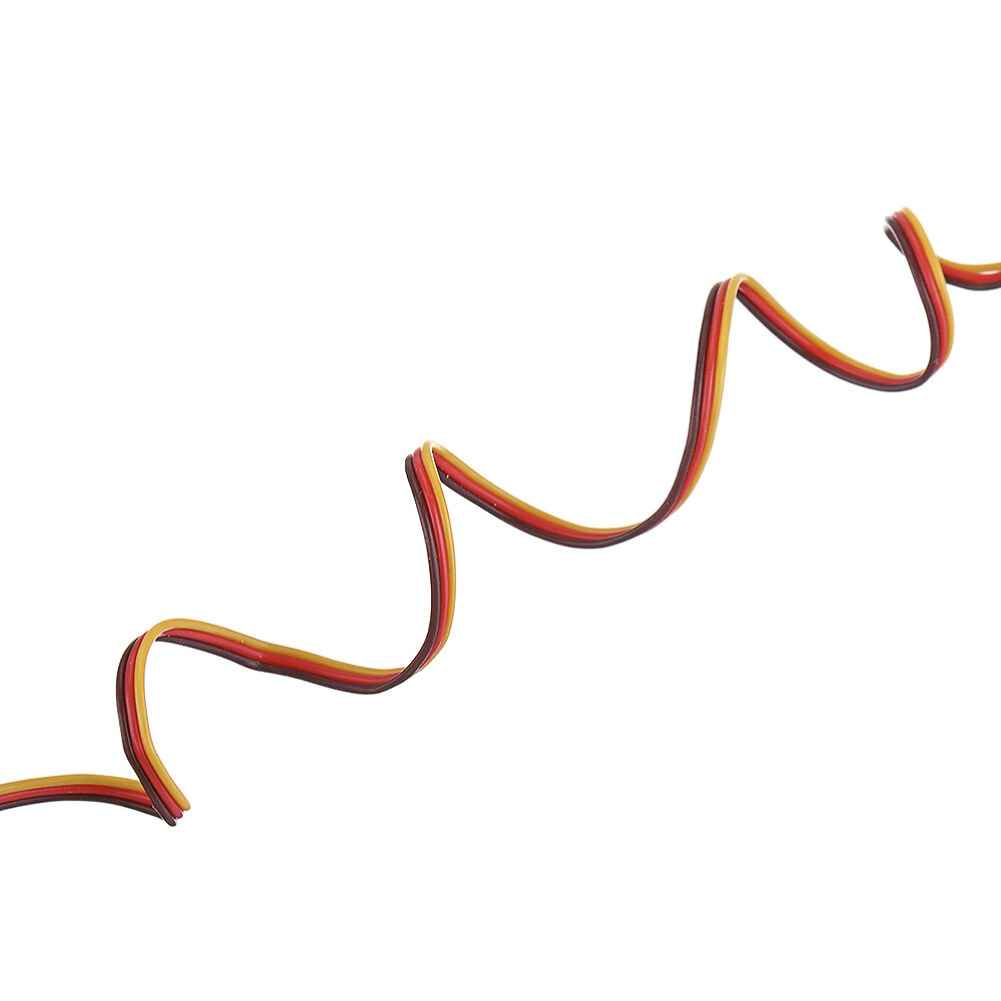

Connector Wire Length: 180呼8mm
Flower Head: 15T
Bearing: NO
Gear Type: 1 metal gear + 5 plastic gear
Extreme Angle: 360‵
Control System:PWM
Operating Travel: 90‵呼10‵ (when 1000-2000 譙sec)
Neutral Position: 1500 è­™ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 è­™ sec
Pulse Width Range: 700- 2300 è­™ sec
Maximum Travel: 145‵呼10‵ (700-2300譙 sec )
Usage:For RC Airplane,RC Aircraft, RC Helicopter
English Manual, Click Here

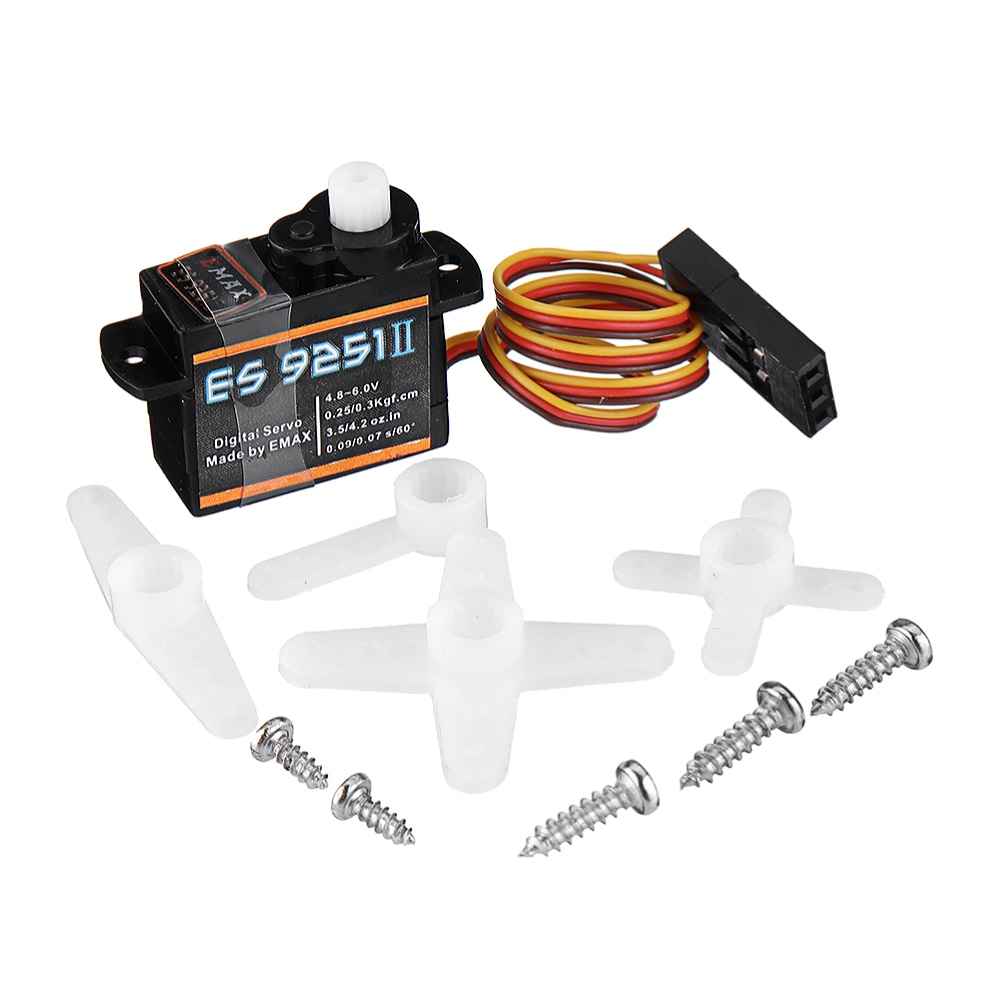

Package Included:
1 x ES9251II Digital Servo
