EWRF 5.8GHz 48CH FPV Transmitter VTX Module, 2W Ultra-high Power, Built-in Microphone, OSD Support, for Fixed Wing FPV Drone

Description

EWRF 5.8GHz 48CH 2W 30mm*30mm FPV Transmitter VTX Module Ultra-high Power 2000MW Built-in Microphone Support OSD for Fixed Wing FPV Drone Long Rang

The EWRF 5.8GHz 48CH FPV Transmitter VTX Module is designed for long-range FPV drone enthusiasts. Measuring 30mm by 30mm, this compact module supports OSD and operates on a 5.8GHz frequency with 48 channels. It accommodates a power supply range of 7-36V and includes a 5V/200mA output for cameras. The transmitter provides variable power settings at 200mW, 500mW, 1000mW, and 2000mW. Equipped with an MMCX antenna and a cooling fan, it ensures efficient heat dissipation and robust power supply shock resistance, making it an ideal choice for fixed-wing FPV drones.

Specification:
Item Name: 2W 5.8G Support OSD 30mm*30mm VTX Module

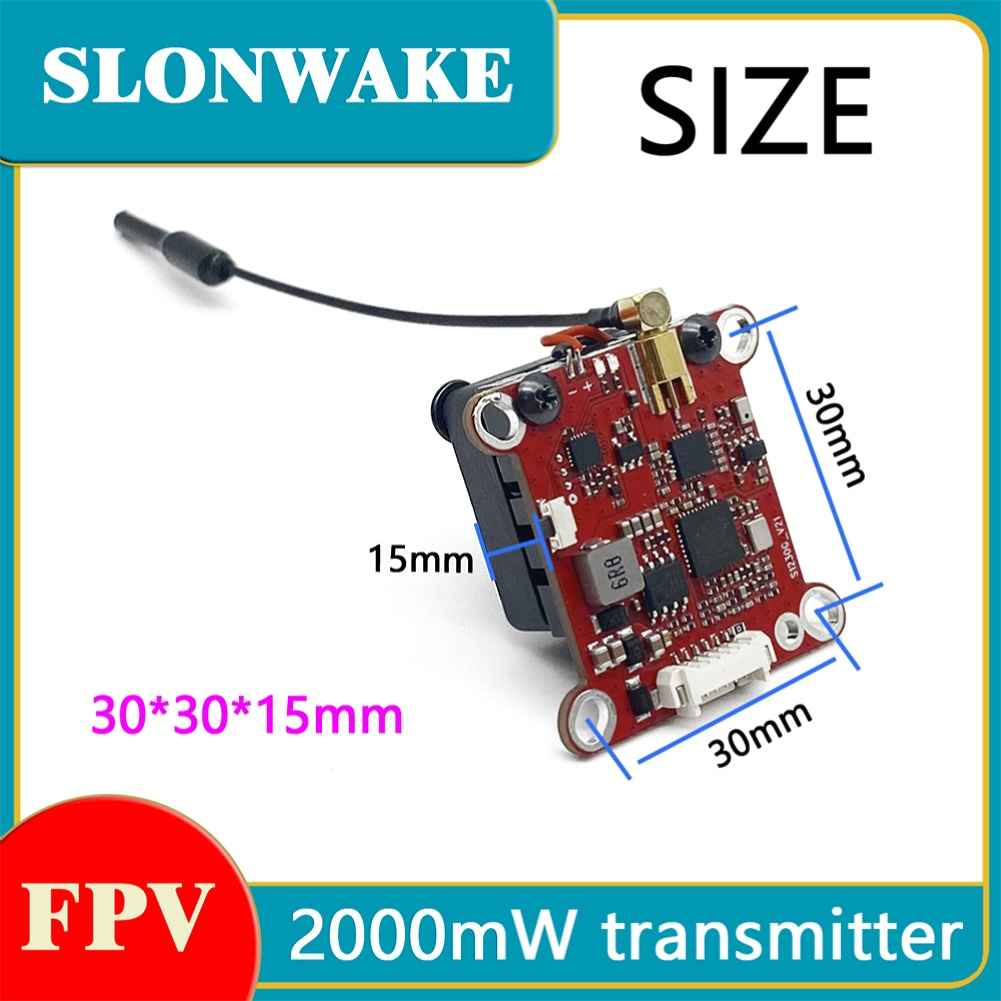

Size:30*30*15mm

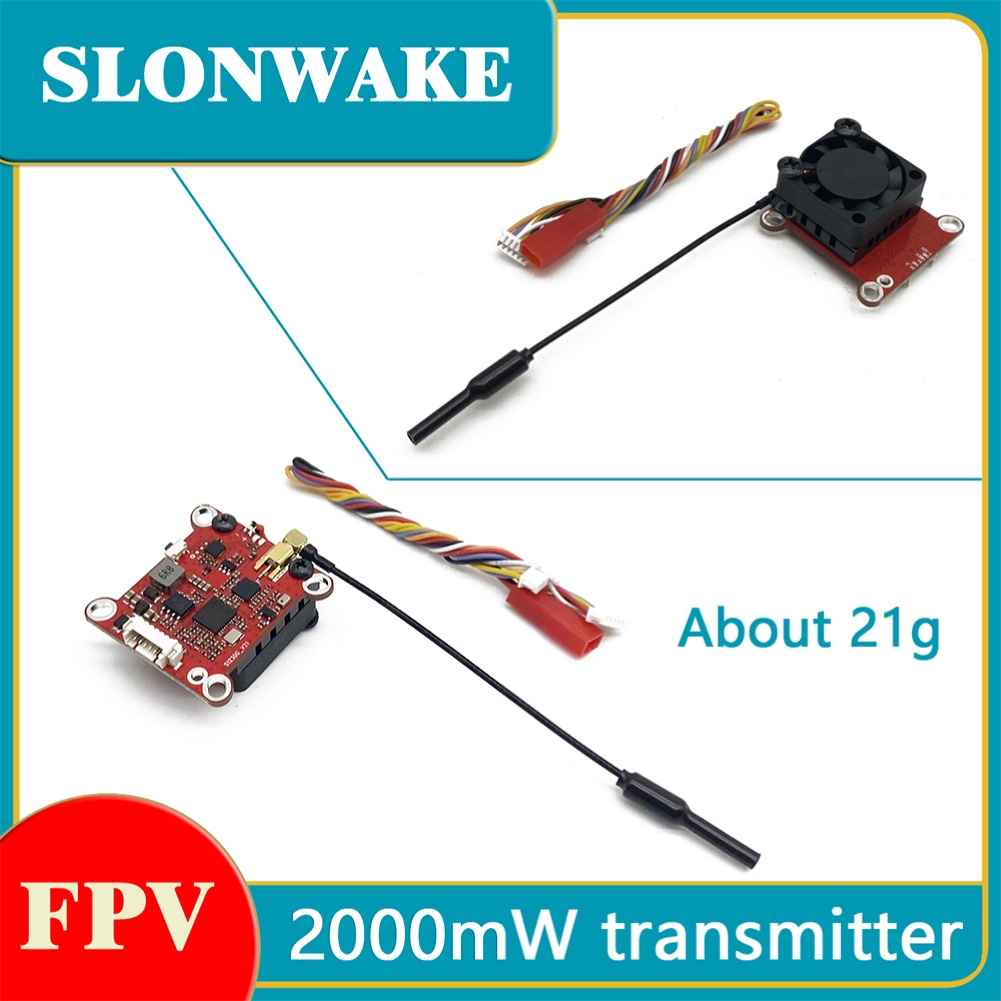

Weight:About 21g
Feature:
1.Working 5.8G 48CH;
2. Support 7-36V power supply;
3. Have 5V/200mA output to camera;
4.Current:200mW(260mA)/500mW(340mA)/1000mW(410mA)/2000mW(630mA);

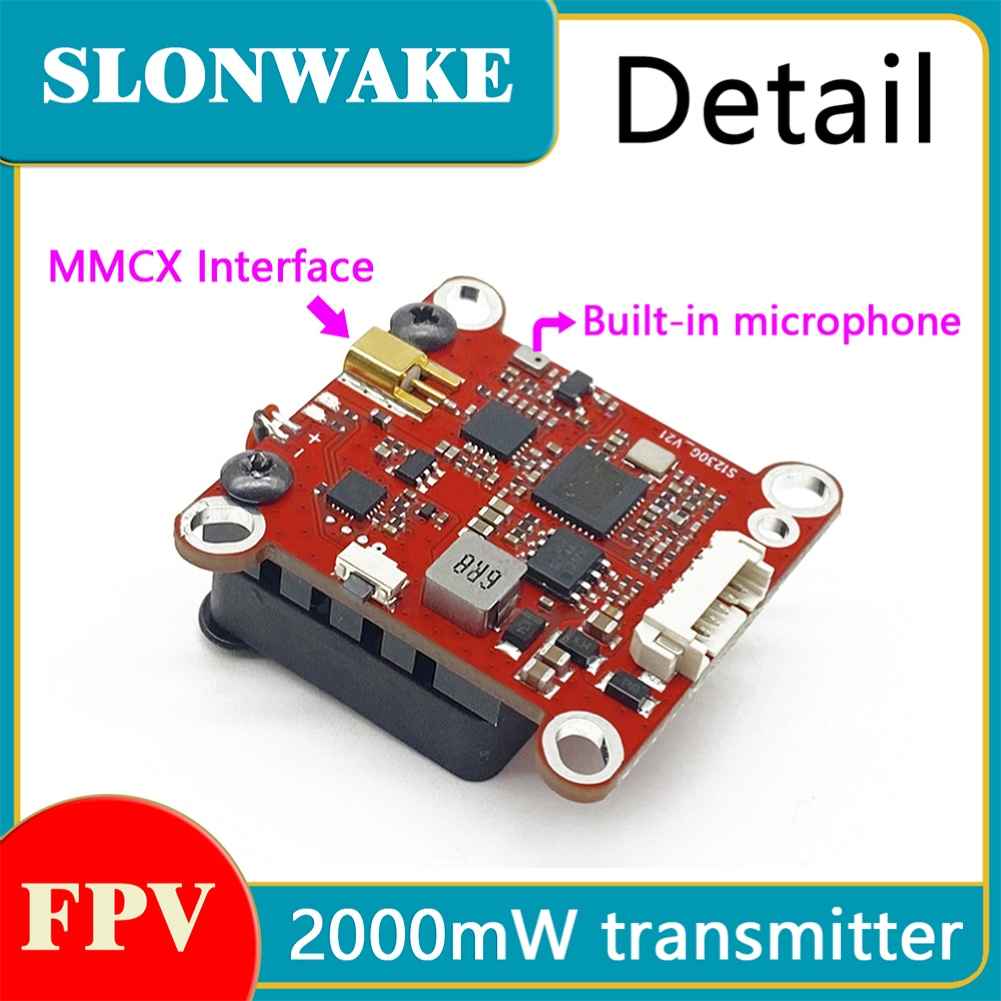

5. With MMCX Antenna;
6. Have cooling fan for radiating;
7. Strong shock resistance of power supply.

Package Included:
1 x 2W 5.8G Support OSD 30mm 30mm VTX Module Kit
