EWRF HMDVR Mini DVR Module 640×480 AV Recorder for FPV Goggles, Supports 32GB TF Card

Description

EWRF HMDVR AV Recorder 640*480 Mini DVR Module Support 32G TF for FPV Goggles Monitor Camera Receiver Drone

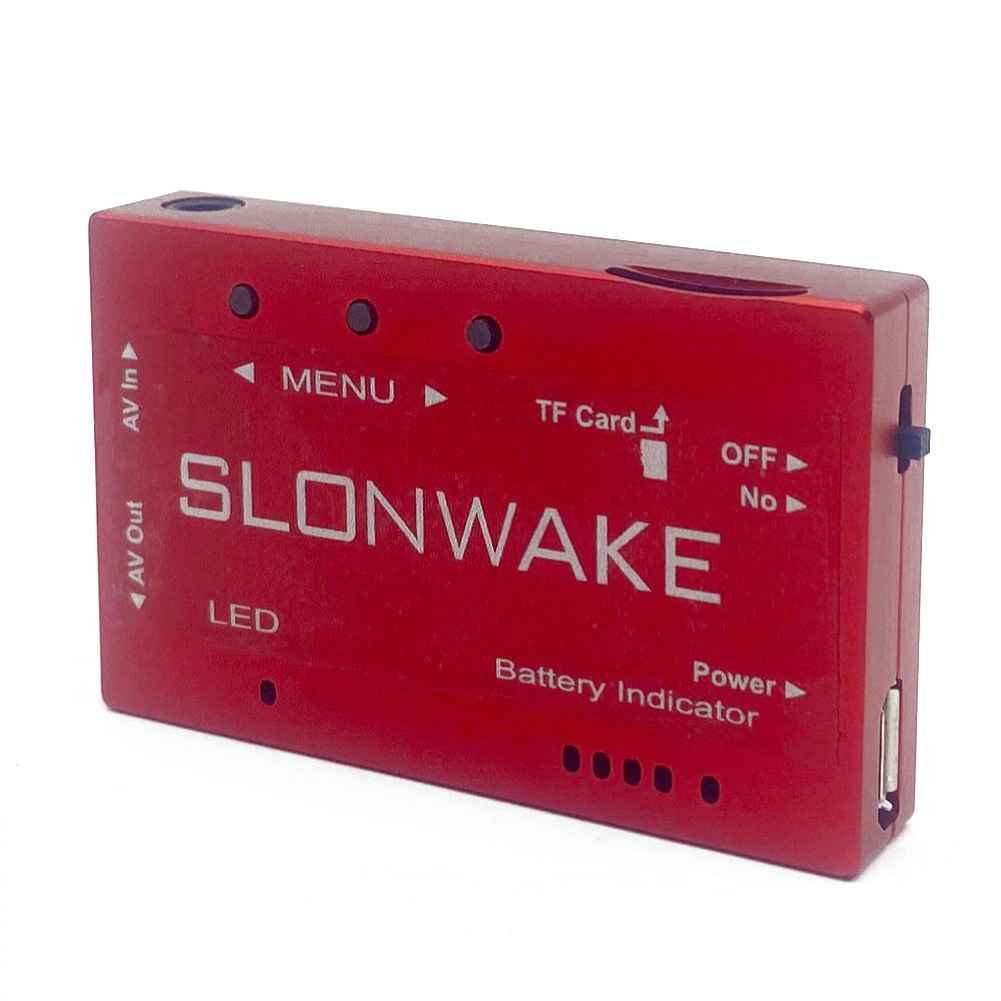

The EWRF HMDVR Mini DVR Module is a compact and lightweight AV recorder designed for FPV goggles, monitors, and drone cameras. It features a quick startup time of 3 seconds and supports both PAL and NTSC video input formats with a 75-ohm impedance. The device records high-quality VGA (640×480) video in MJPEG format and saves files as AVI. It includes a built-in 3.7V/500mAh Li-ion polymer battery, offering 1.5 to 2 hours of recording time per charge. The module supports up to a 32GB TF card and includes a universal USB charging interface. With its aluminum metal shell and low power consumption, this DVR module is ideal for FPV enthusiasts.

Specification:
System Startup time: 3 Second
Video input Format: PAL/NTSC
Video input impedance: 75棒 Typ
Video Compress Format: MJPEG
Record File Resolution: VGA (640*480)
Record File Format: AVI
Record Sound: ON
Cyclic Record time: 2min
Frame Rate: 30 Frames
Video Output Format: PAL
Video Output impedance: 75棒 Typ
Memory Card: TF-ard,Support UP to 32GB (C10 recommend)

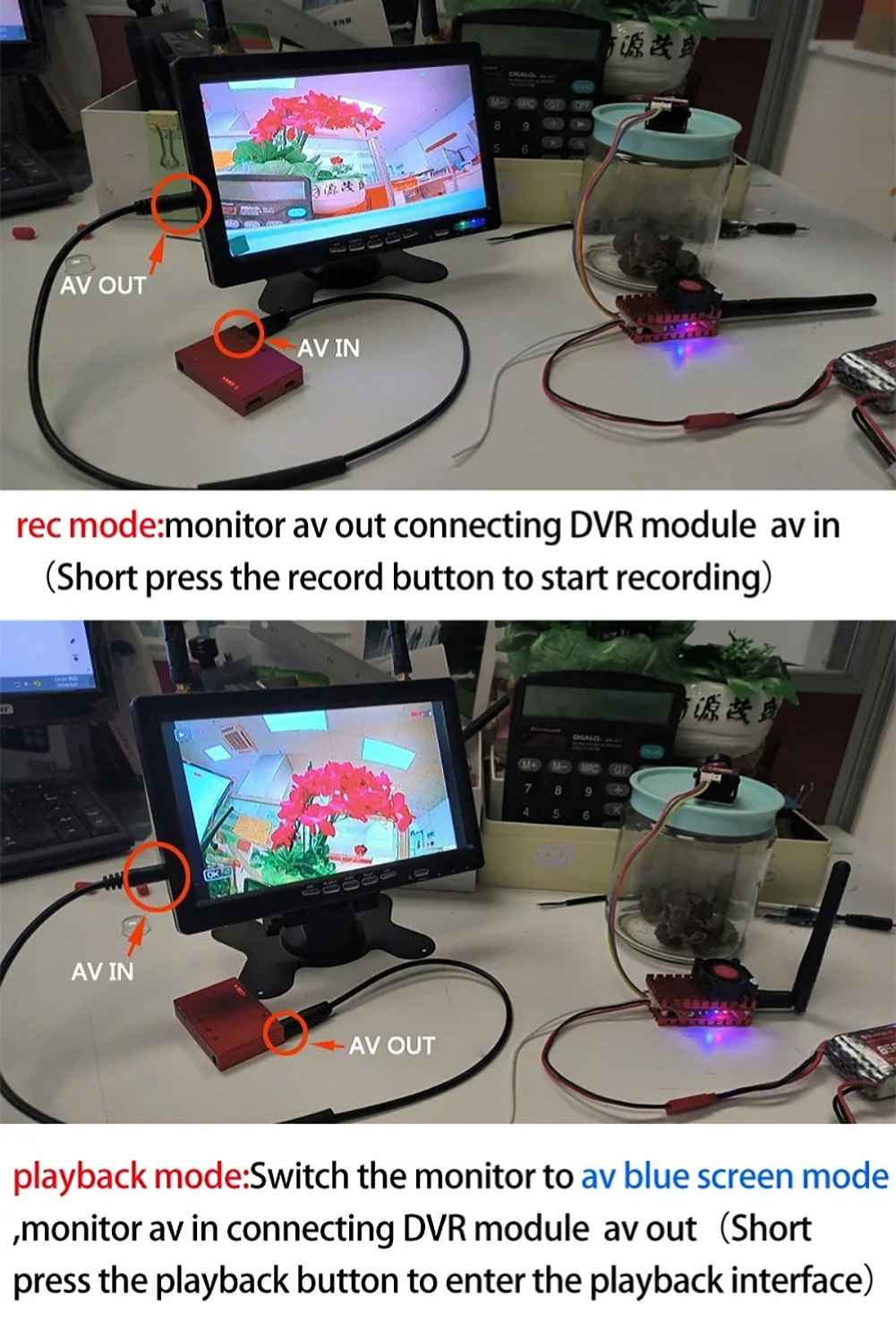

Video Playback: CVBS output (connect to monitor)

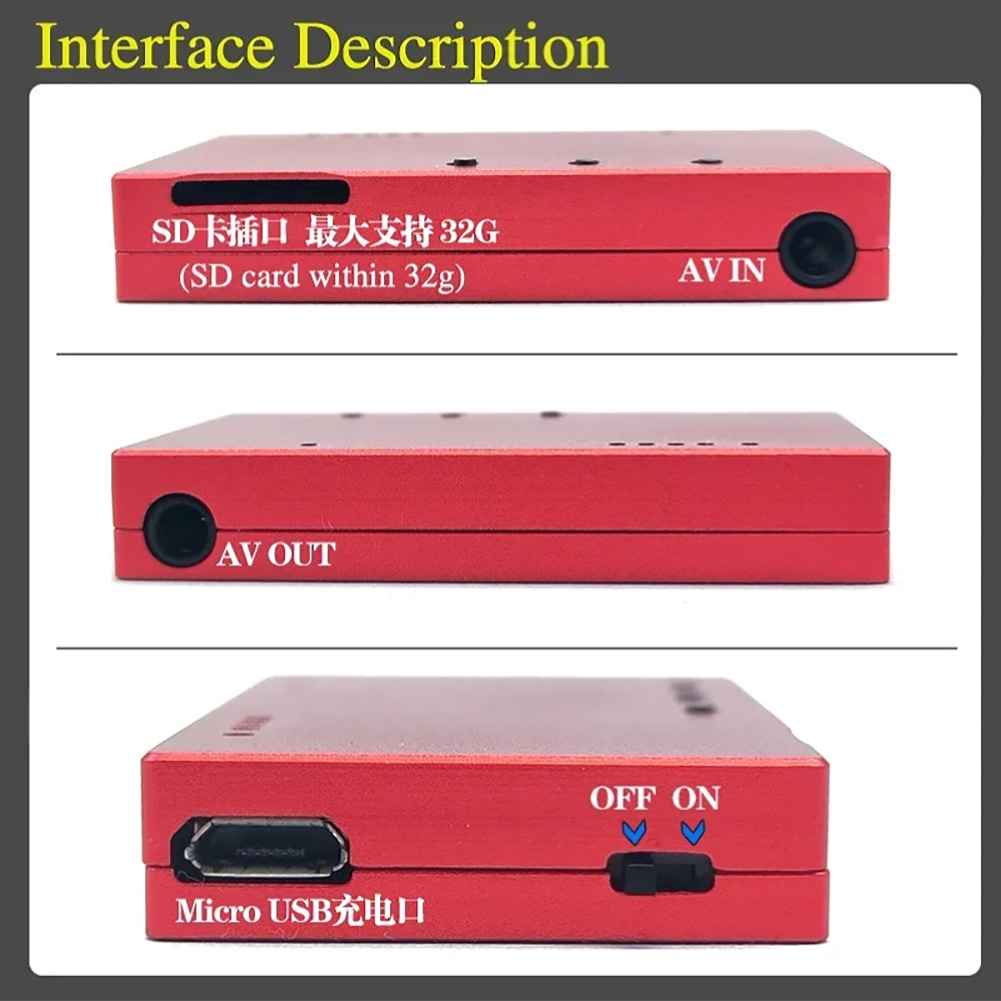

AV input interface: 3.5mm AV Jack
AV Output interface: 3.5mm AV Jack
Charging interface: Micro USB interface
Charging Voltage: 5V DC
Battery(not detachable): Build-in 3.7V/500mAh Li-ion polymer Battery Battery Life: Each full charge revive around 1.5-2 hours working time Operating Tempetature: -10~60﹠
Operating Humidity: 85% RH

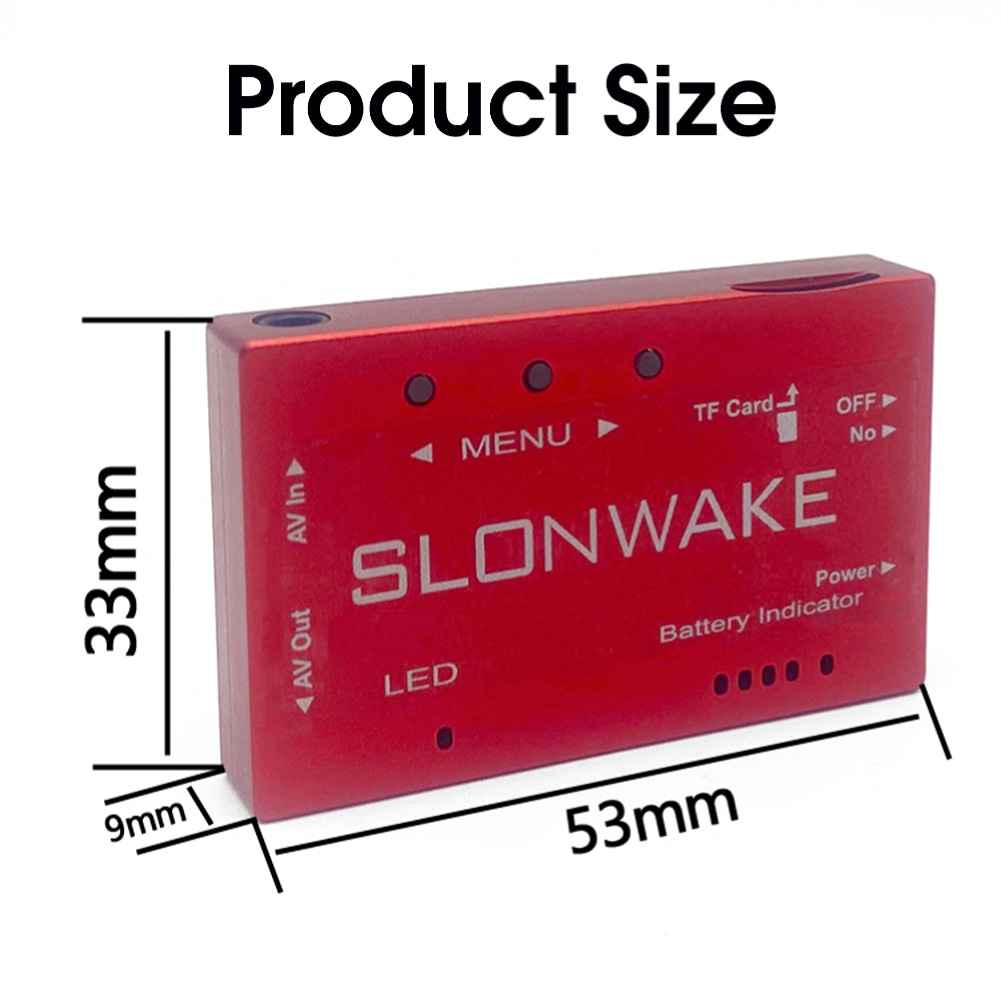

Dimension: 53mm*33mm*9mm

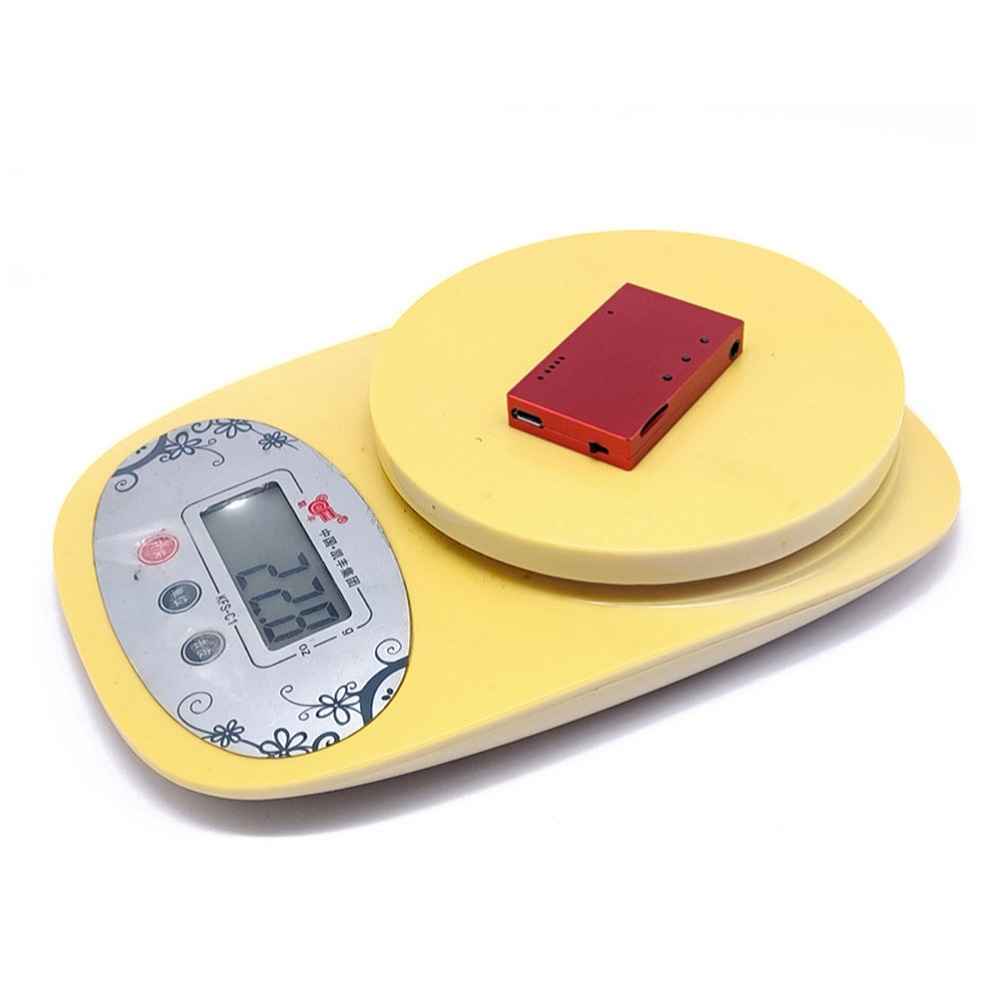

Weight: 22.8g
Features:
-Small size and light weight;
-Low power consumption,working current 200mA;

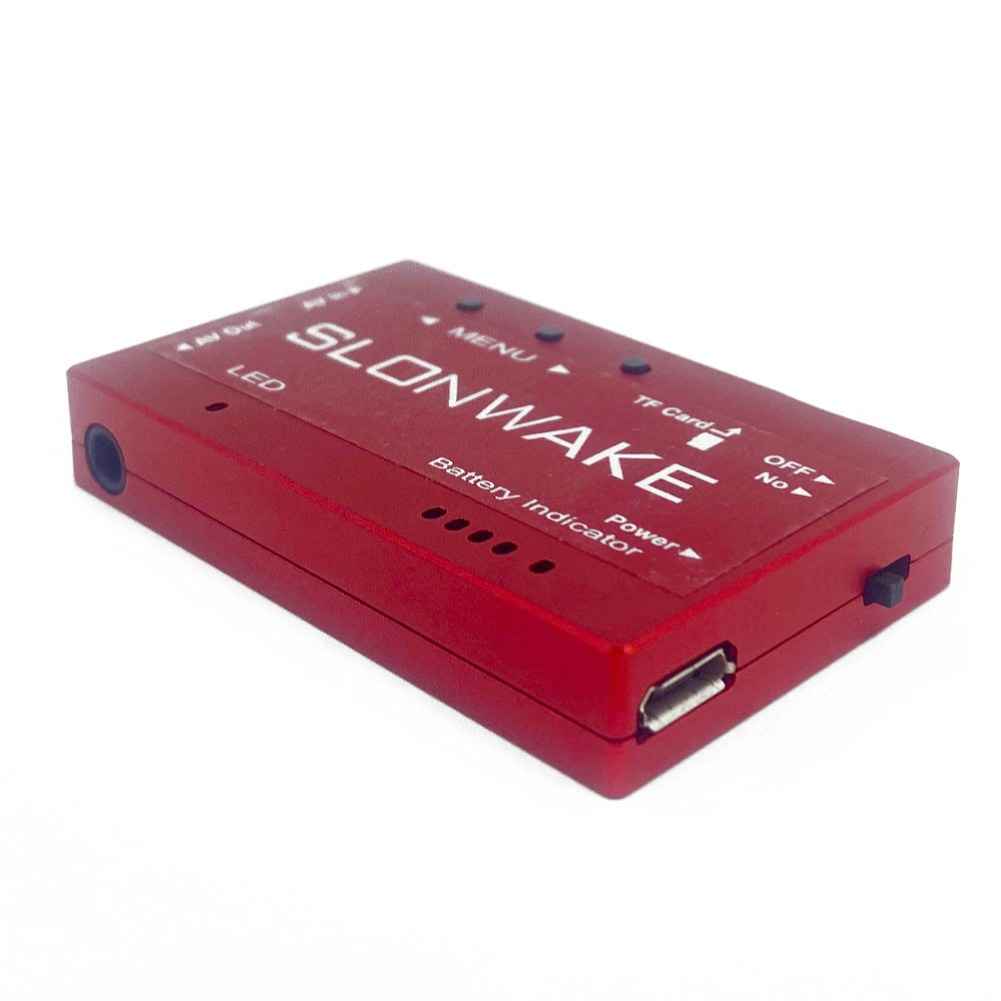

-Aluminum metal shell(CNC machine);
-Support Up to 32GB TF card(class 10 recommend);
-Built-in 3.7V/500mAh Li-ion polymer Battery;
-Universal USB charging interface;
-High precision 4 level battery power indicator;
-CVBS signal input (Built-in Video decoder);
-Support Playback and AV signal output (Built-in Video encoder);
-Working time:1.5-2hours;
-Charging time:about 1hour;

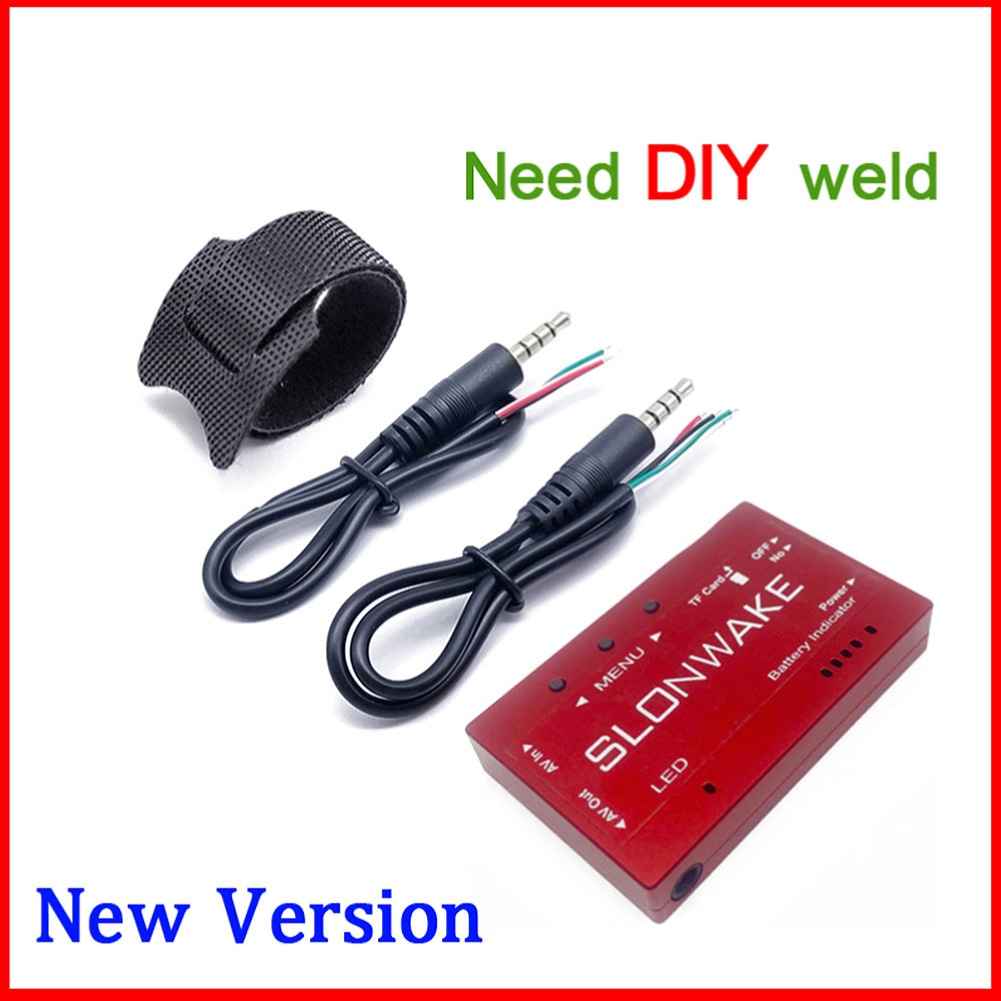

Package Included:
1 x DVR Recording Module

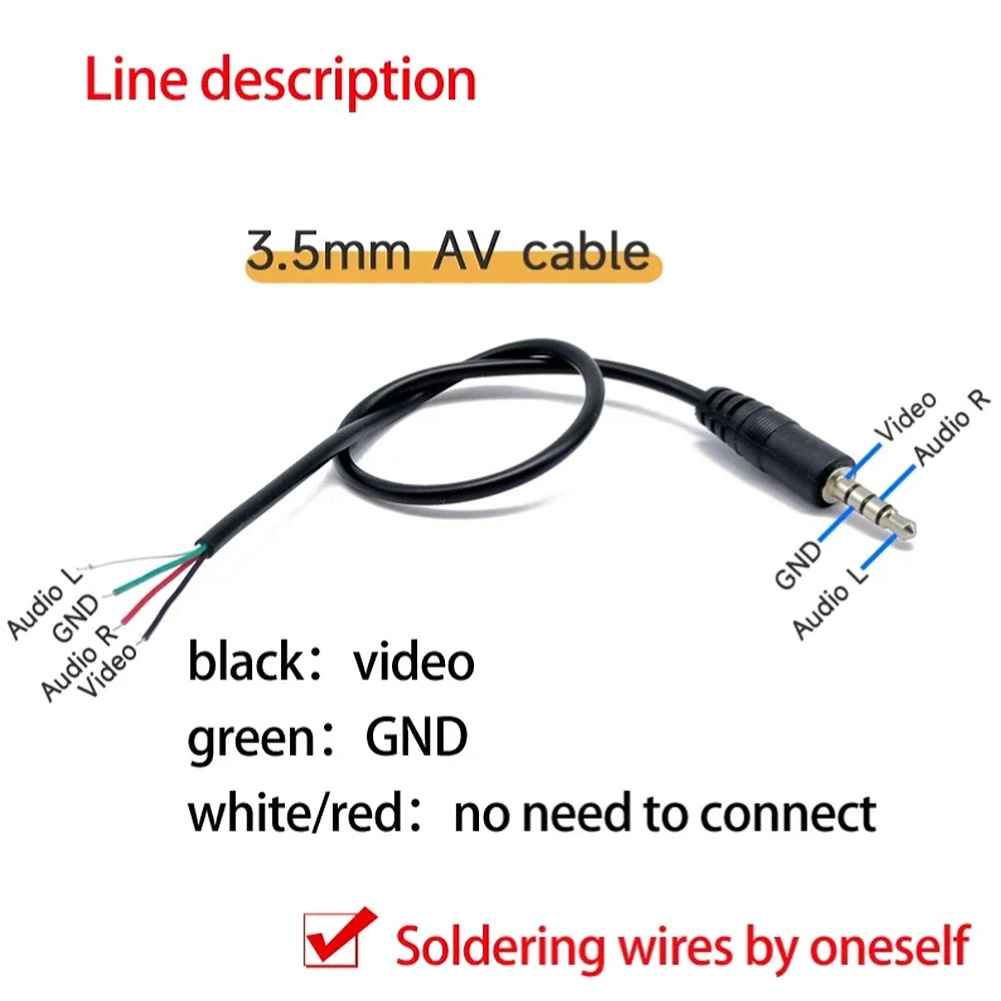

2 x Cable
