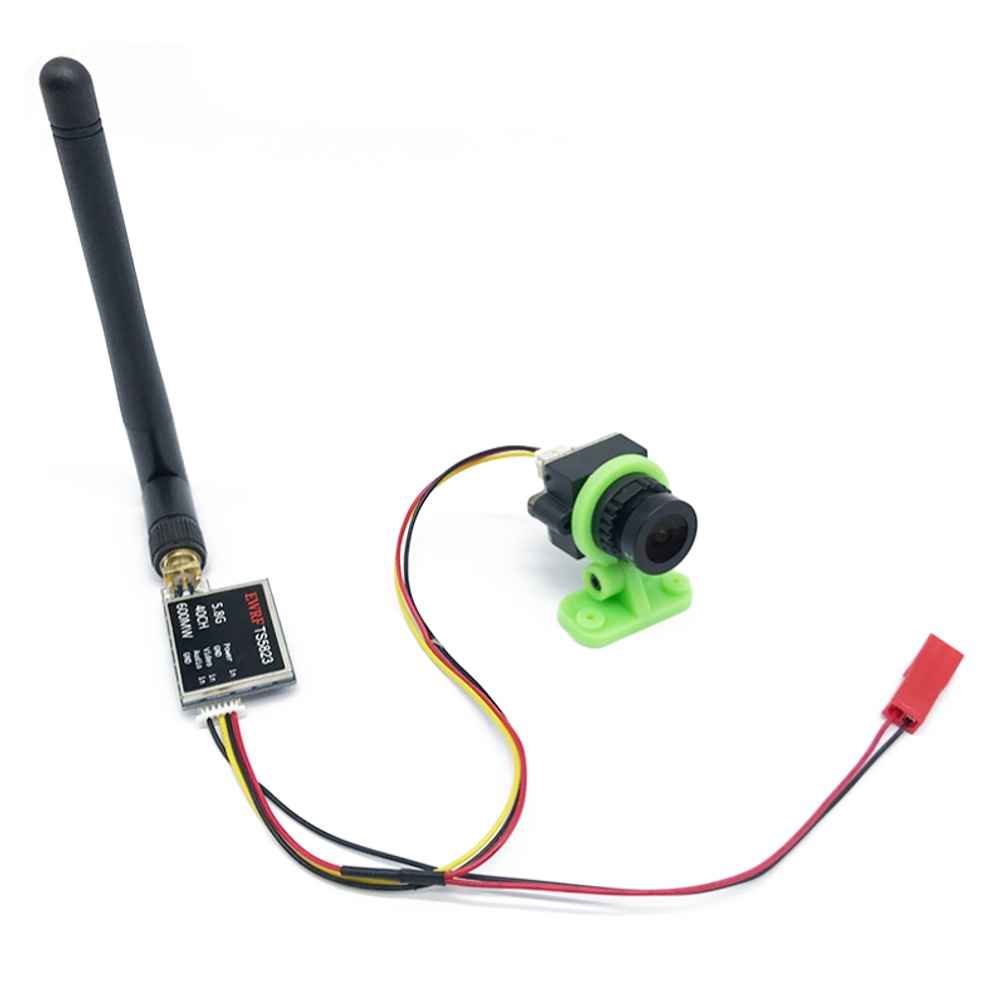

EWRF TS5823 5.8G 40CH 600mW FPV Transmitter with 1000TVL 120‵ Camera for RC Drones

Description

EWRF TS5823 5.8G 40CH 600mW FPV Transmitter VTX With COMS 1000TVL 120 Degree Camera For RC Drone

The EWRF TS5823 FPV Transmitter and Camera Combo is designed for RC drone enthusiasts seeking high-quality video transmission. The transmitter operates at a 5.8G frequency with 40 channels and a powerful 600mW output, ensuring stable and clear signal transmission. It features a compact design with a weight of just 5g and dimensions of 30x20x8mm. Paired with a 1000TVL camera, this combo provides a wide 120-degree field of view and excellent low-light performance. The camera’s automatic features include white balance, gain control, and backlight compensation, delivering crisp images in various conditions. Compatible with both PAL and NTSC signal systems, this set is ideal for seamless integration into your FPV setup.

Description:

Brand Name:

EWRF

Item Name:

FPV Transmitter + Camera Combo

FPV Transmitter:

Item Name:

TS5823

Frequency:

5.8G

Channel:

40

Transmitting Power:

600mW/OFF(Pitmode)

Working Current:

230mA (600mW version)

Power Supply:

DC 7-24V

Connector:

RP-SMA Female

Weight:

5g

Dimension:

30x20x8mm

FPV Camera:

Item Name:

Camera

Lens:

2.8mm

FOV:

120‵

Image Sensor:

1/3” CMOS

Pixels(H x V):

1280(H) x 720(V)

Synchronization:

Internal

Minimu Illumination:

0.05LUX/F 1.2

Horizontal Resolution:

1000TVL

White Balance:

Automatic

Autonatic Gain:

Automatic

Backlight Corponsation:

Automatic

Digital Noise Reduction:

(2D)/YBS(2D)

Gamma Correction:

0.45

Electronic Shutte:

1/50 – 1/100. 000 S, 1/60 – 1/100.000 S

S/N Ratio:

√ 50dB

Video Output:

1.0 Vp- P75棒

Power Supply:

DC 5-17V

Working Current:

135呼5mA

Operatio Temperature:

-40C ~ +105ï¹

Signal System:

PAL / NTSC

Specifications of FPV ROTG01 receiver: Click here
Features:Miniature and light weight design.
FPV transmitter with SMD digital display.With audio and video control interface.Ultra small size 1000TVL HD FPV camera,high definition, low illumination,low power consumption.
English Manual for EWRF TS5823, Click Here

Package Included:

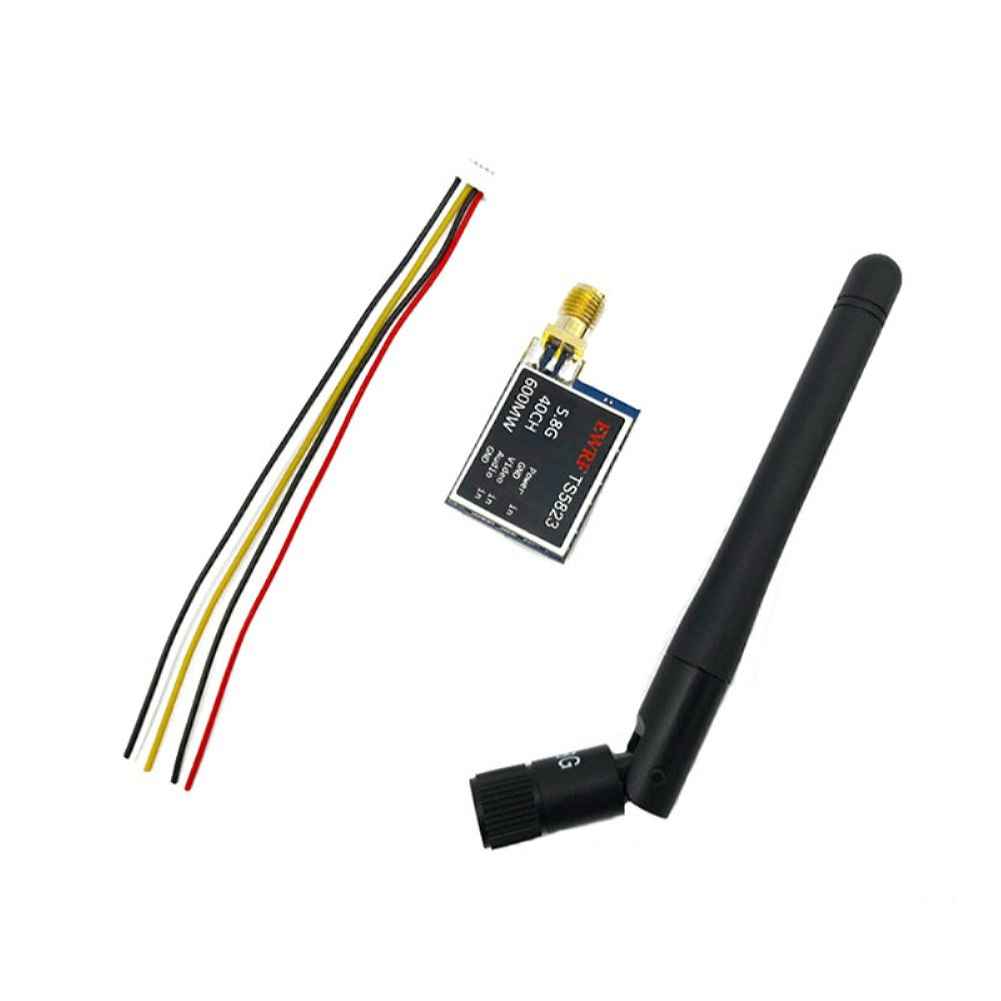

1 x EWRF TS5823 FPV Transmitter
1 x 1000TVL Camera
1 x Antenna

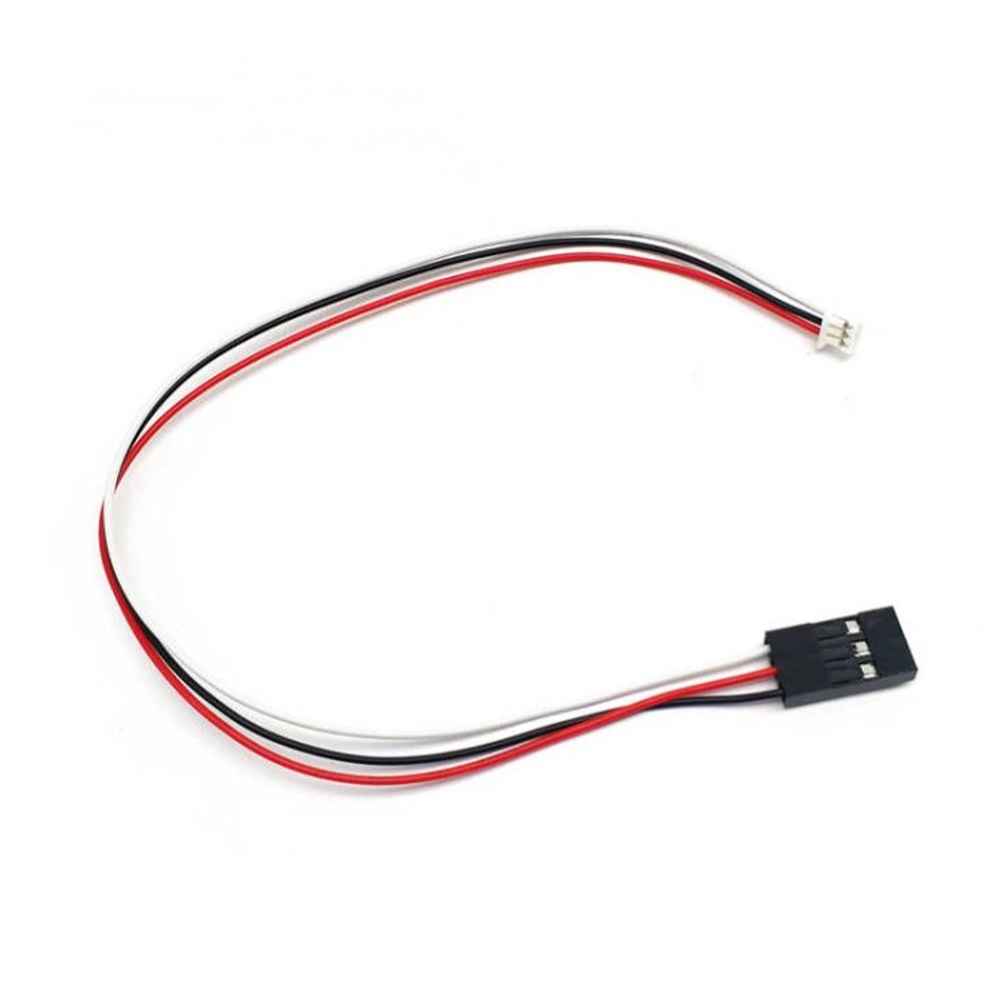

2 x Cable
