EWRF TS5823 Pro 5.8GHz 40CH 600mW FPV Transmitter with CMOS 1200TVL Camera for RC Drone

Description

Upgraded EWRF TS5823 Pro 5.8GHz 40CH 600mW FPV Transmitter VTX With CMOS 1200TVL Camera For RC Drone

The EWRF TS5823 Pro is an upgraded 5.8GHz FPV video transmitter designed for drone enthusiasts seeking superior performance. With a powerful 600mW transmission capability and 40 available channels, it ensures stable video signals in complex environments. It features a lightweight design, weighing only 5 grams, making it ideal for small drones. The included CMOS 1200TVL camera supports both PAL and NTSC formats, delivering high-definition video clarity. The transmitter is equipped with a digital display for easy channel and frequency adjustments, along with an overheat protection feature. It also offers strong compatibility with a 5V BEC output to power cameras and receivers directly, simplifying setup. Suitable for both beginners and professionals, this FPV system provides an impressive flying experience.

Due to lighting conditions during photography, there may be slight color differences. Buyers who are concerned about this should purchase with caution.
EWRF is a brand dedicated to the production of FPV transmission equipment and RC accessories. Its products are widely used in drone racing, aerial photography, and remote-controlled modeling. The Upgraded TS5823 Pro is a high-performance 5.8GHz video transmitter designed for FPV enthusiasts who seekk the ultimate flying experience. Through continuous technological upgrades and optimizations, this product delivers stable and clear video transmission, making it a reliable choice for FPV flight.
Features:
High Power and Multiple Channels: Equipped with a 600mW transmission power (with Pitmode off), it offers 40 channel options to ensure stable signals even in complex environments. Overheating protection to prevent premature damage.
Lightweight Design: Weighing only 5 grams and measuring 30x20x8mm, it is perfect for small drones and lightweight aircraft.
High-Definition Video Transmission: Paired with a CMOS 1200TVL camera, it supports both PAL and NTSC formats, providing clear and detailed image quality.

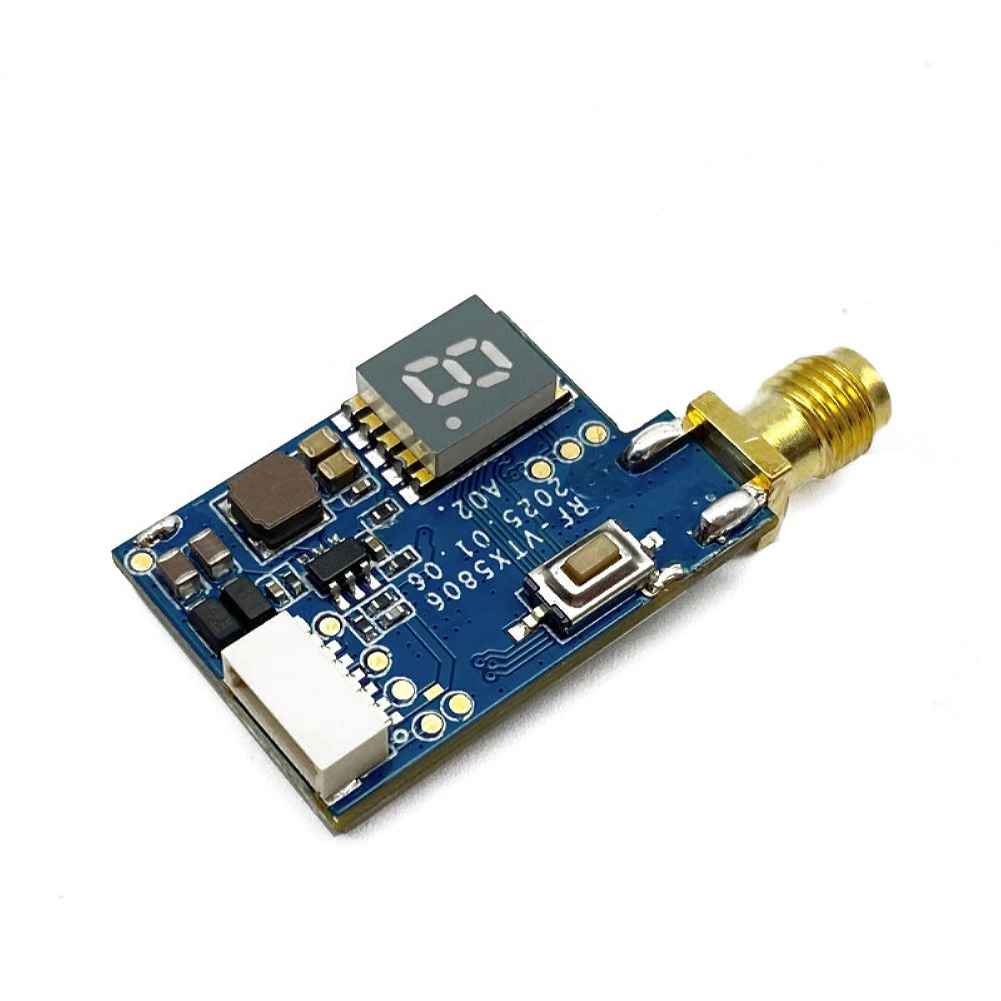

Smart Features: It features a digital display that intuitively shows channel, band, and frequency information. It also includes overheat protection to prevent device damage.
Strong Compatibility: It supports a 5V BEC output, which can directly power the camera and remote control receiver, simplifying wiring.
User-Friendly: Simple button operations allow for easy channel switching and parameter settings, suitable for both beginners and professional pilots.
Distance : (Both the transmitting and receiving antennas are used, in a relatively open and unobstructed environment) Aircraft: about 1-2 kilometers. Car and ship models: about 50-200 meters.
The Upgraded TS5823 Pro is a high-performance, lightweight, and intelligent FPV video transmitter, ideal for those who pursue the ultimate flying experience.
Description:

Brand Name:

EWRF

Item Name:

FPV Transmitter + Camera Combo

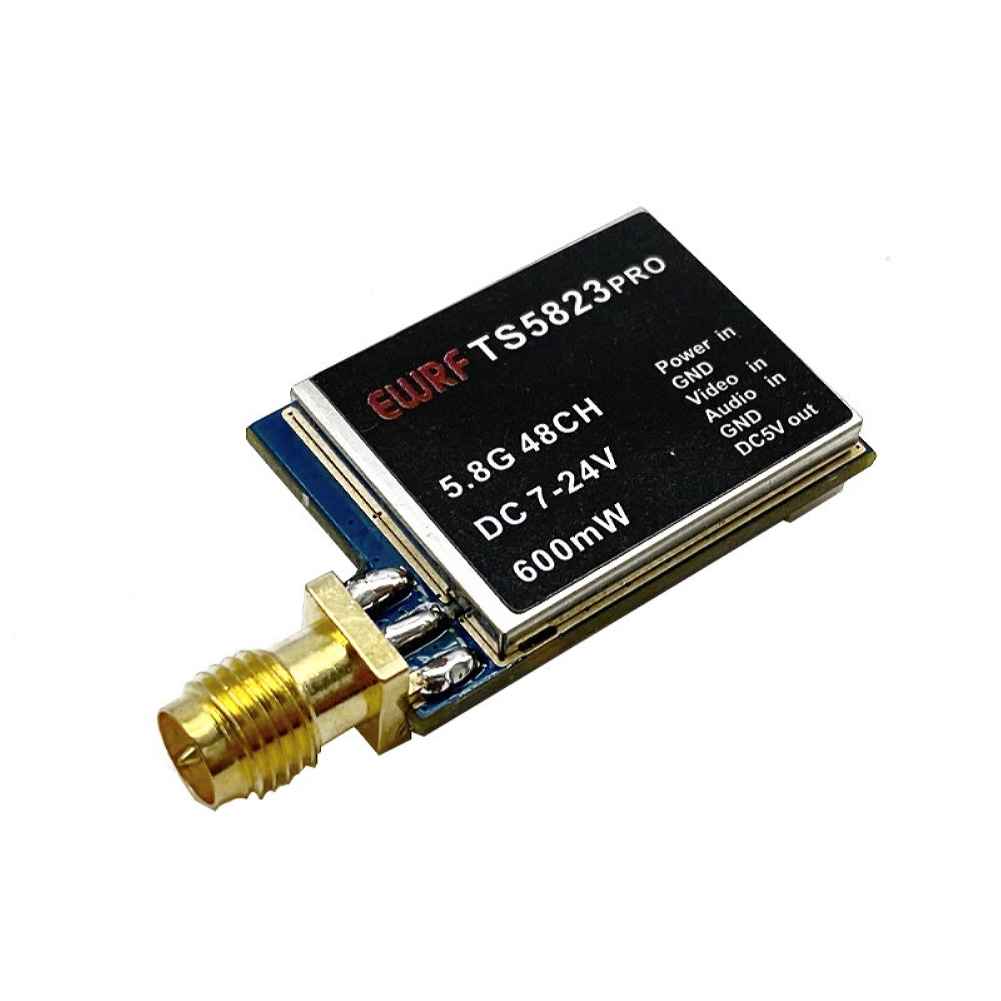

Specifications of FPV Transmitter:

Item Name:

TS5823Pro

Frequency:

5.8G

Channel:

40

Transmitting Power:

600mW/OFF(Pitmode)

Working Current:

230mA (12V)

Power Supply:

DC 7-24V

Weight:

5g

Dimension:

30x20x8mm

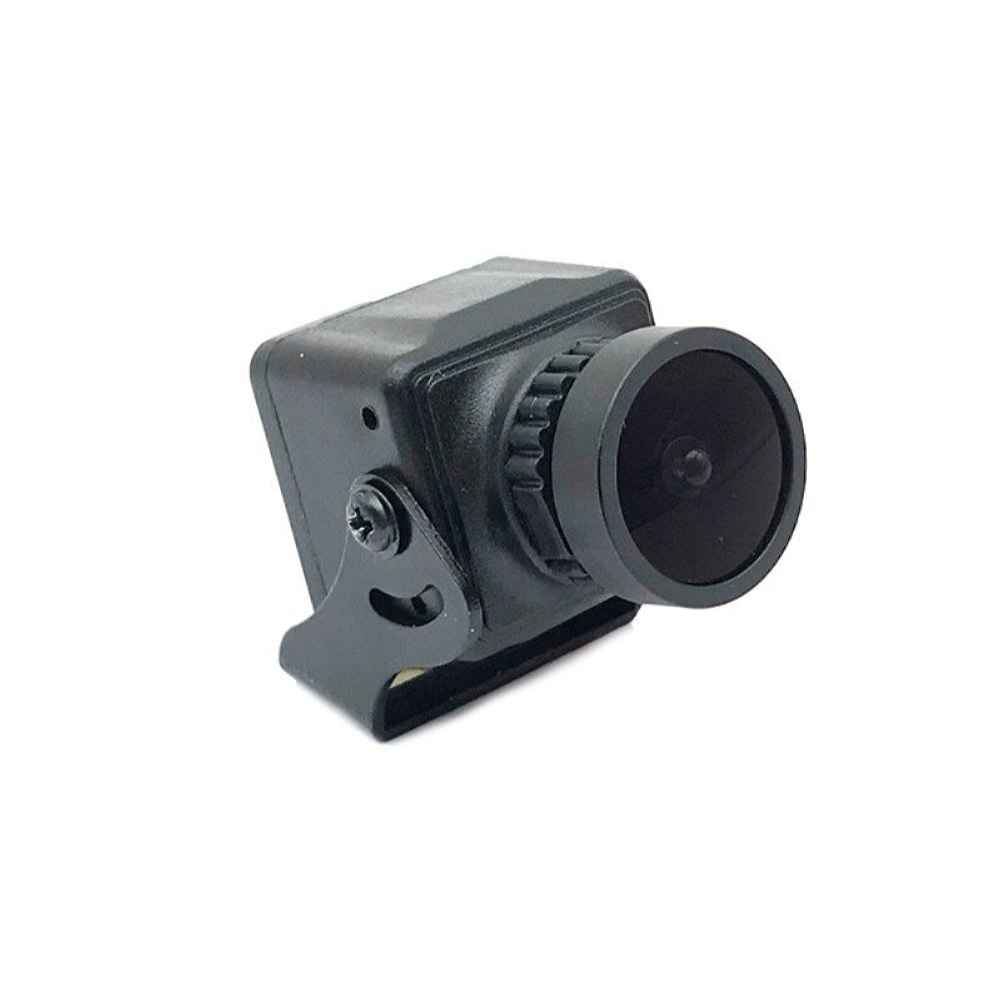

Specifications of FPV Camera:

Horizontal Resolution :

1200TVL

Format :

PAL

FOV

130‵

PAL:

1920H沁1080V(1MP)

NTSC:

1020H沁1920V (1MP)

Video Output :

1.0Vp p/75ohm

AGC :

0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB

White Balance:

ON/OFF

Exposure Type:

Electronic Exposure

Electronic Shutter :

1/50(1/60) 1/100000 Second

Gamma Correction :

0.45/1.0

Synchronization Mode :

Inter Sync

Lens:

2.5mm

Working Voltag:

DC 5 to 12V(Wide Voltag, Measured 5 to 13V)

Working Current:

70mA(ow power consumption)

Working Temp.:

-20 degree to 60 degree

Wetness:

0% ~ 98%

Size:

22mm x 22mm

User Guide
1. Setting

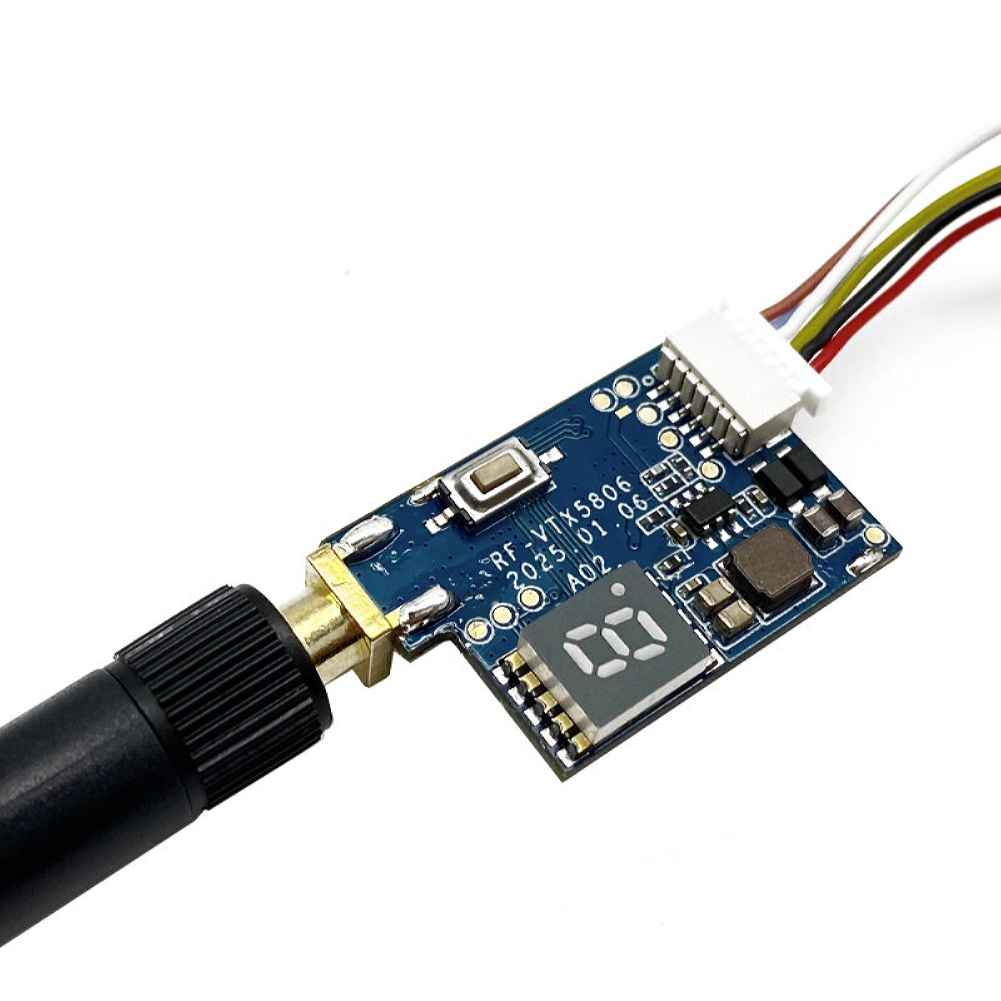

After power on, the digital display shows the following three parameters in turn: band, channel, and frequency. Press and hold the button can be entered into the parameters setting.- Press and hold the button, the digital display will shows the alphabet for band( A-B – C1- D -E) , press the button can select the bands.
– Press and hold the button again, When the digital display shows the Arabic numerals for the channel (1-8), press the button can select the channels.
– Finally, press and hold the button, VTX is back to normal working state and the band, channel, frequency will display in turn on the digital display.
2. Pitmode Work State
– Press the button twice will toggle the ON/ OFF of Pitmode.
– Pitmode work state: Press the button twice, the red dot appears on the right bottom of the digital display which means the VTX is off.
– Normal working state: Press the button twice again, the red dot disappear on the right bottom of the digital display which means the VTX is on, the VTX is back to normal working state.
– Pitmode transmits a tiny amount of power and the transmitting distance is about 2- 3 meters.
Frequency(Mhz):

Band

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

A

5865

5845

5825

5805

5785

5765

5745

5725

b

5733

5752

5771

5790

5809

5828

5847

5866

C

5705

5685

5665

5645

5885

5905

5925

5945

d

5740

5760

5780

5800

5820

5840

5860

5880

E

5658

5695

5732

5769

5806

5843

5880

5917

Note:1.Make sure that there is enough space for airflow when installing the module on the drone.
2. Please install the antenna before powering up for a longer use life.
Specifications of FPV ROTG01 receiver: Click here

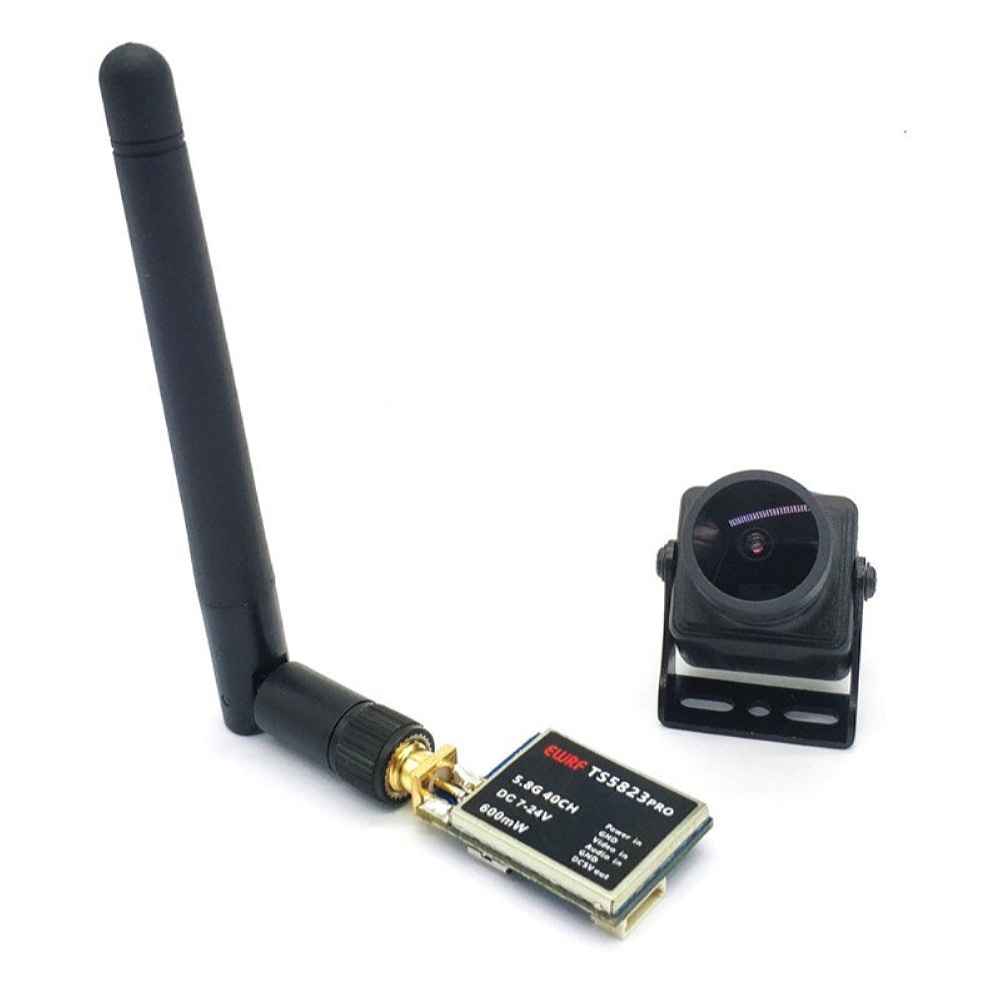

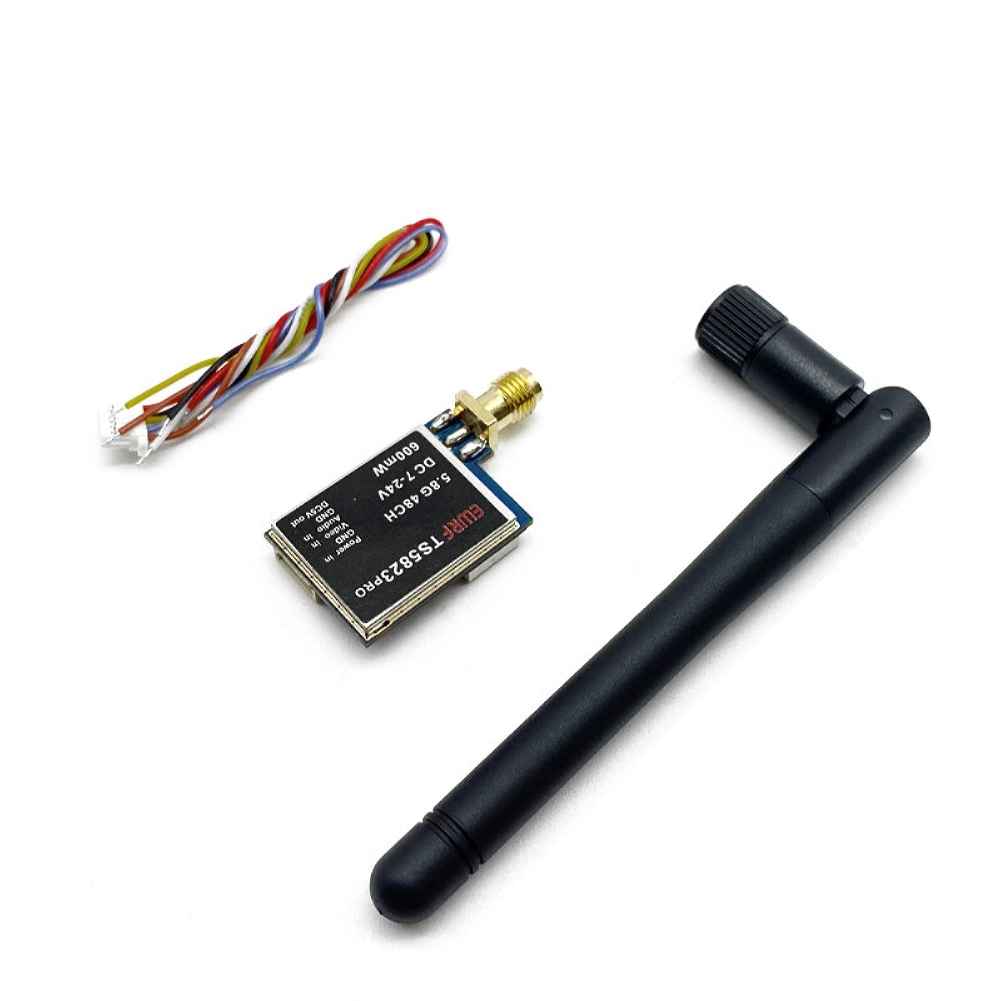

Package Included:
1 x EWRF TS5823Pro FPV Transmitter
1 x 1200TVL Camera
1 x Antenna
2 x Cable
