FatShark Dominator HDO+ FPV Goggles, Dual OLED Display, Adjustable Focus, Wide FOV, for FPV Racing Drone

Description

FatShark Dominator HDO+ DVR Analog FPV Goggles Dual OLED Display Adjustable Focus with Wide FOV for FPV Racing Drone (Inclusive of European VAT)

The FatShark Dominator HDO+ FPV Goggles offer a superior flight experience with customizable features to suit individual pilots. Equipped with a larger field of view and high-resolution OLED panels, these goggles deliver exceptional visual clarity. The updated optical engine allows for precise focus and interpupillary distance adjustments. User-friendly controls include brightness and contrast settings, channel selection, and DVR operation. The ergonomic design ensures a comfortable fit, with an adjustable headband for added convenience. Compatible with a range of input voltages, these goggles support MicroSD cards up to 32 GB for recording and playback.

Description:

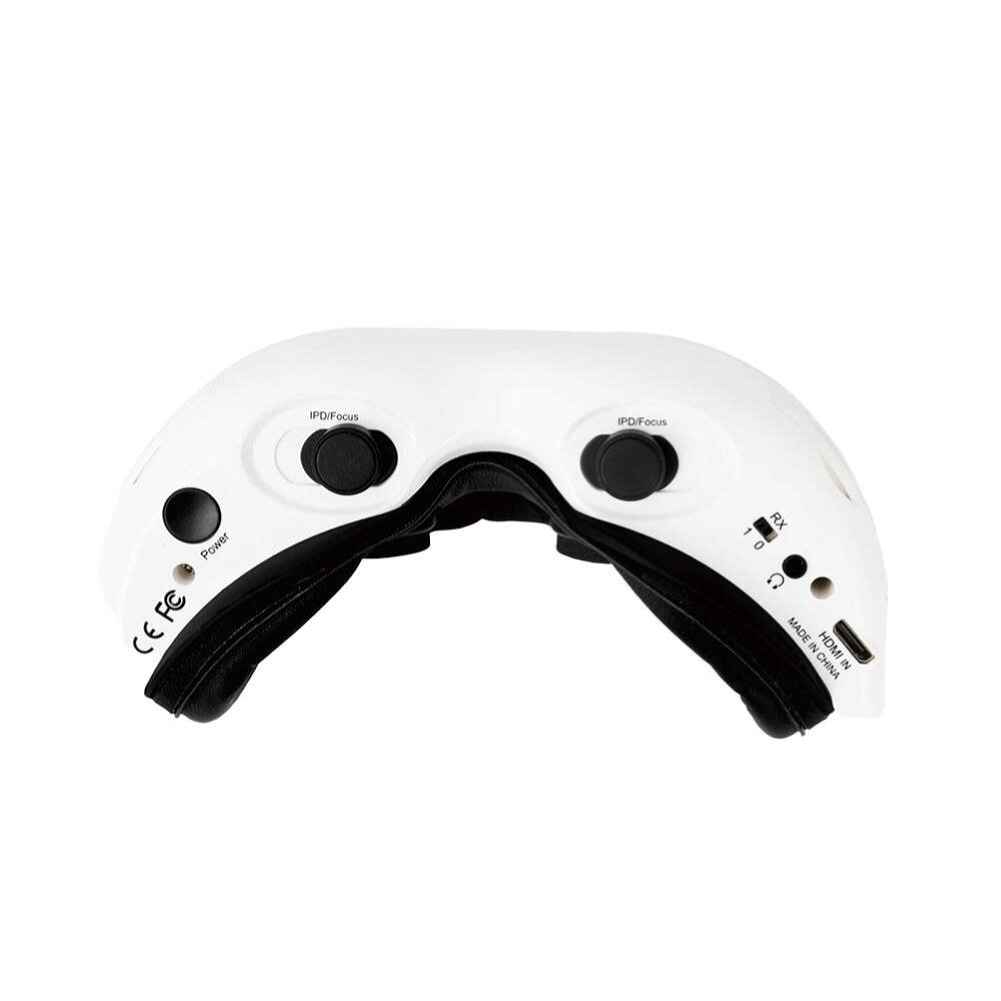

Introducing the Fat Shark Dominator HDO+ FPV Goggles. This new FPV Goggle is designed with a plethora of customizable features, ensuring an unparalleled flight experience tailored to each individual pilot. The HDO+ boasts a larger field of view and a higher resolution OLED panel, providing stunning visual clarity. Additionally, it features a fully updated optical engine that allows for precise focus and interpupillary distance (IPD) adjustments.
Features
* Brightness/Contrast Control
* Coarse Focus Adjustment
* Head Strap and Face Fit
* AV Connector Pin-Out
* Low-Battery Warning
* RX Power Switch
* DVR Operation
* Channel Select
* Compatibility
* Versatility
* Playback
User Manual
Specification:

User Controls

– Display Control (Brightness and Contrast)
– Power Button / Fan Control
– Channel Selection
– Volume Control
– Mode Selection
– DVR Control

Interface

– 3.5mm 3p earphone port
– 3.5mm AV in/out port
– Power input port
– RF Module Bay
– Power Button
– MicroSD

Audio

Stereo

ELECTRICAL

Analog DVR: MicroSD support to 32 GB, Upgradeable via SD card
Record Rate: 6 Mbps (MJPG compression, 30 fps, AVI)
Power Supply: 7 – 25V input voltage (2S – 6S Supply)
File playback: Native recording, no codec support

MECHANICAL

Headset: Ergonomic molded headset with adjustable headband
Dimensions: 169.2 x 80 x 45.5 mm
Weight: 235.8 g

OPTICS

IPD (interpupillary distance): 57 to 70 mm (adjustable)
FOV (Field of View): 50 degrees diagonal
Focus: +2 to -6 diopters (adjustable)

DISPLAY

OLED Displays: Two seeya 0.49∫
DIGITAL VIDEO IN Mode: 16:9
Auto-Selecting: NTSC/PAL
Resolution: 1920 x 1080
AV Mode: 16:9
AV Mode: 4:3

Package Included:
1 x Fat Shark Dominator HDO+ FPV Goggles
1 x Lens Cleaning Cloth

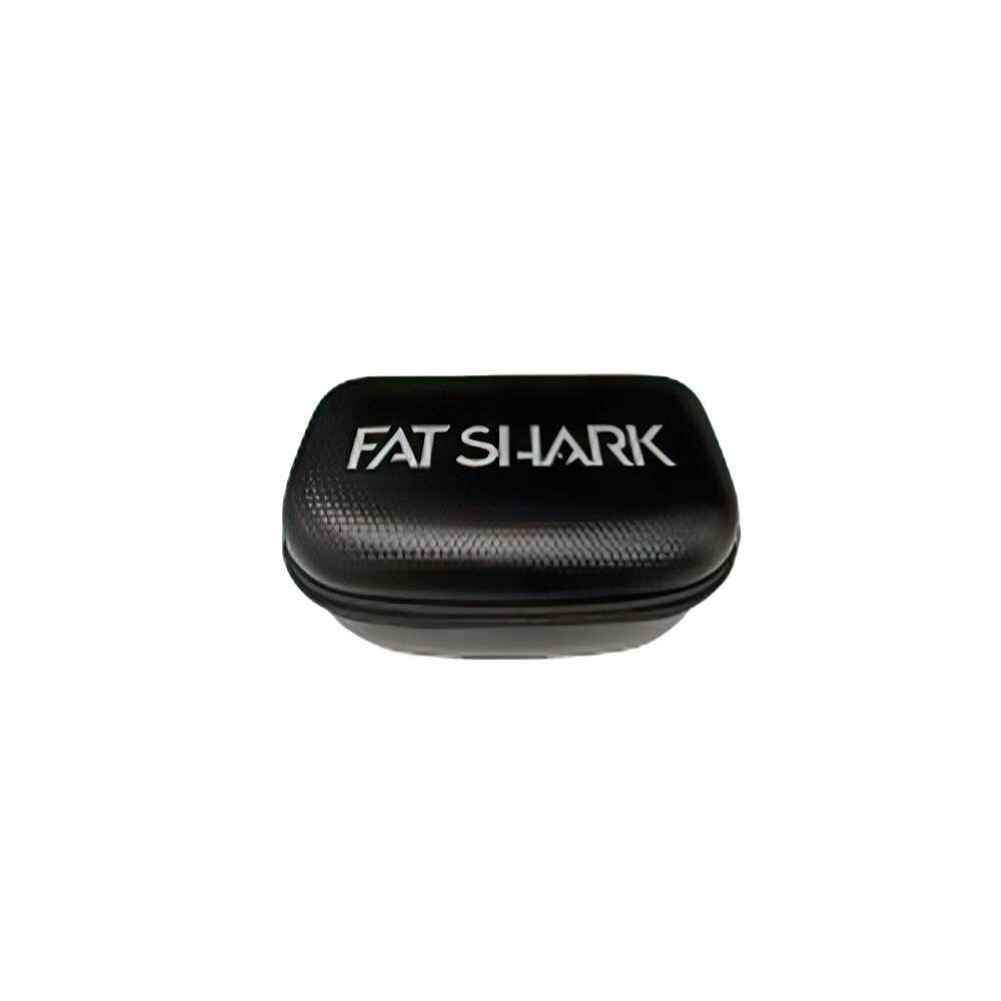

1 x Carrying Case
1 x XT60 to barrel connector power cable
