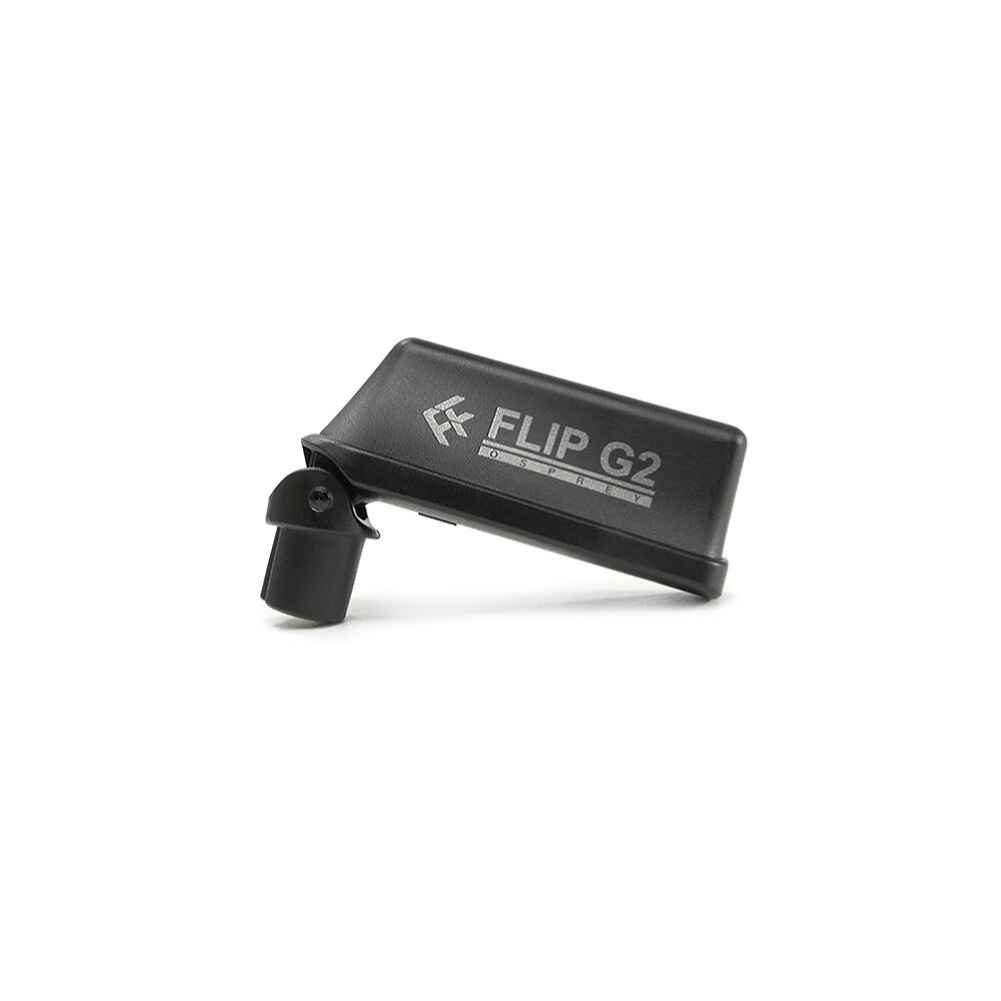

FlyFishRC Osprey FLIPG2 Dual Band 2.4/5.8GHz FPV Linear Antenna for DJI Goggles 2 RC Drone, High Stability, Precision

Description

1pair FlyFIshRC Osprey FLIPG2 2.4 5.8GHz Dual Band High Stability Precisio FPV Linear Antenna For DJI Goggles 2 RC Drone

The FlyFishRC Osprey FLIPG2 antennas are engineered for superior FPV performance with dual-band 2.4GHz and 5.8GHz technology. They offer enhanced connectivity and impressive signal reception with a gain of 4dBi at 2.4GHz and 5.8dBi at 5.8GHz. The linear polarization and MCX connector ensure seamless integration with DJI Goggles 2, providing up to 10km of range. Designed for stability and precision, these antennas outperform standard models. Their compact, foldable design allows for easy storage without frequent detachment, making them an ideal choice for RC drone enthusiasts.

Specifications:

Frequency Rang:

2.4-2.483GHz/ 5.7-5.9GHz

Gain:

4dBi (2.4GHz) / 5.8dBi (5.8GHz)

Beam Width:

Horizontal: 200‵ and Vertical: 120‵ at 2.4GHz
Horizontal: 170‵ and Vertical: 65‵ at 5.8GHz

VSWR:

沌1.8:1

Polarization:

Linear

Impedance:

50棒

Connector Type:

MCX

Distance

10Km

Weight:

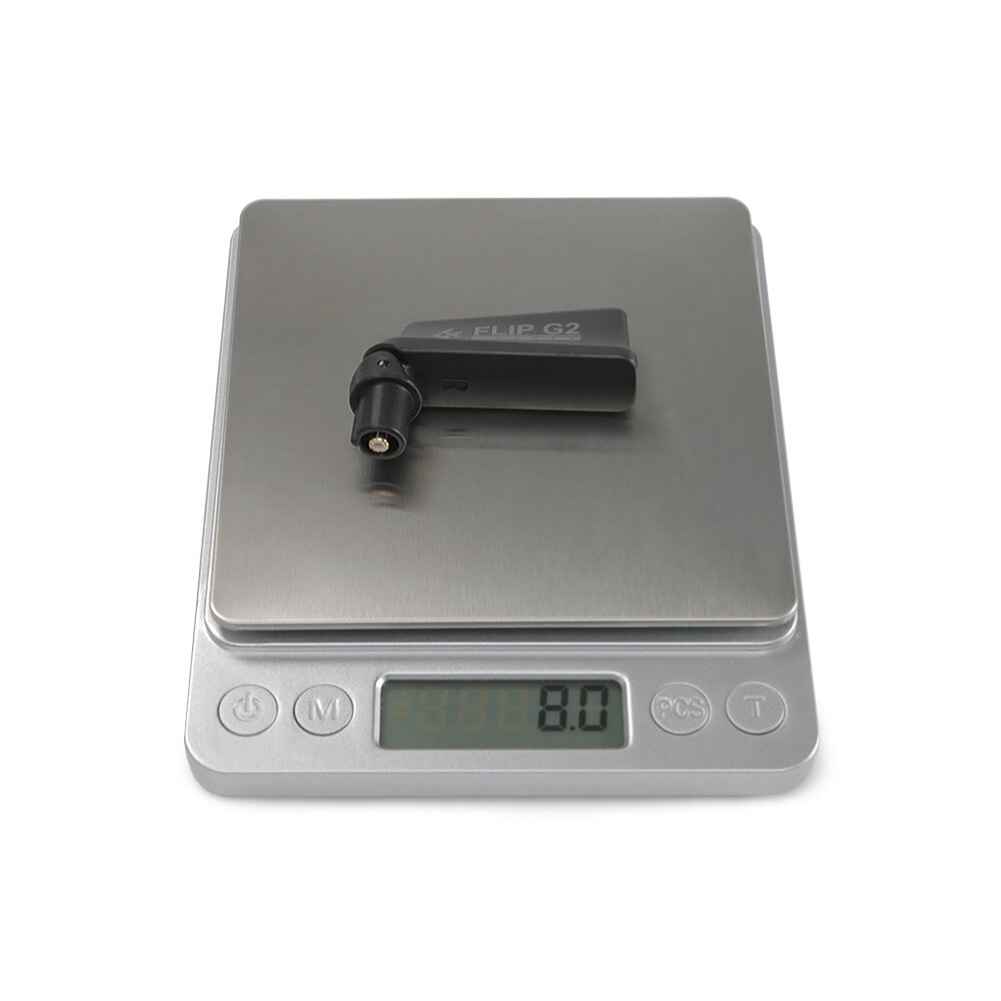

8g per antenna

Dimensions:

L5.9mm x H2.9mm x T1.4mm

Features:
Dual-Band 2.4GHz and 5.8GHz Technology for enhanced connectivity.
High-Gain Linear Antenna ensures improved signal reception and transmission.

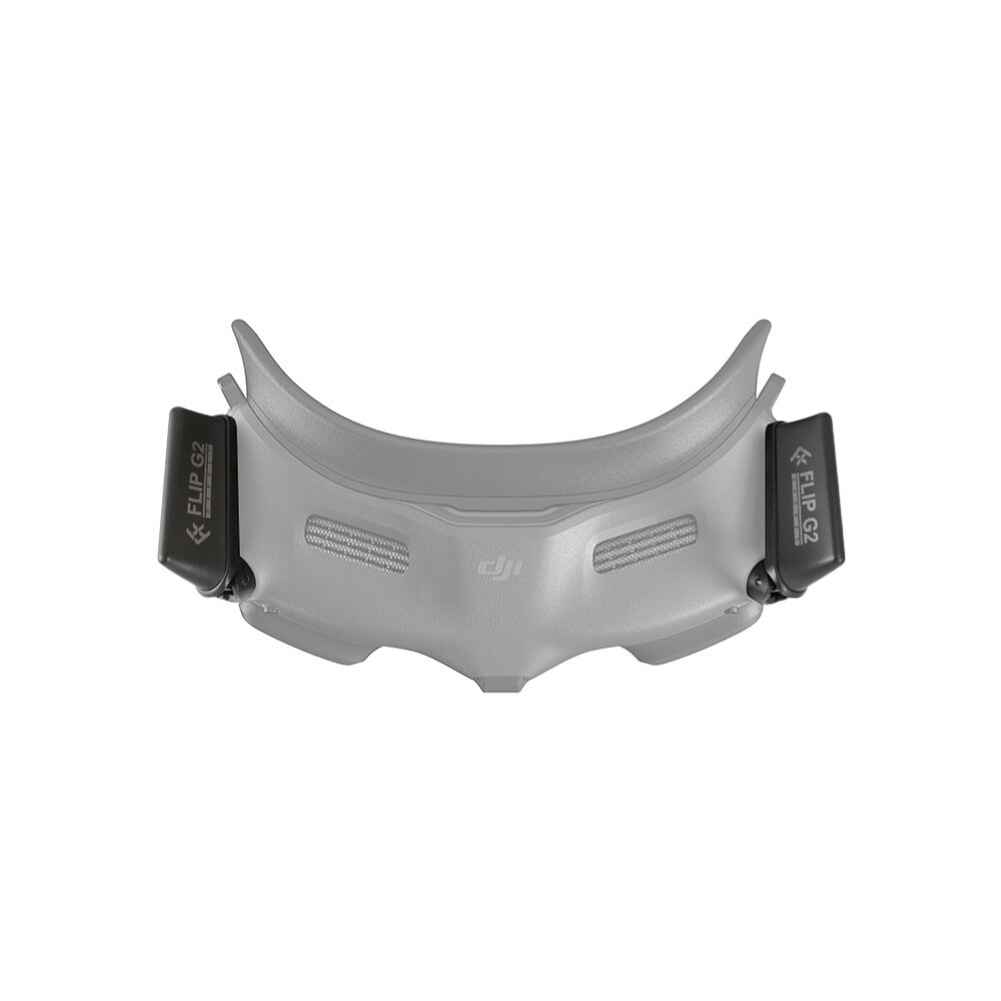

MCX Connector ensures seamless compatibility with DJI Goggles 2.
Compact and foldable design for easy storage without frequent detaching.
Outperforms stock antennas in stability and precisionn.

Package Included:

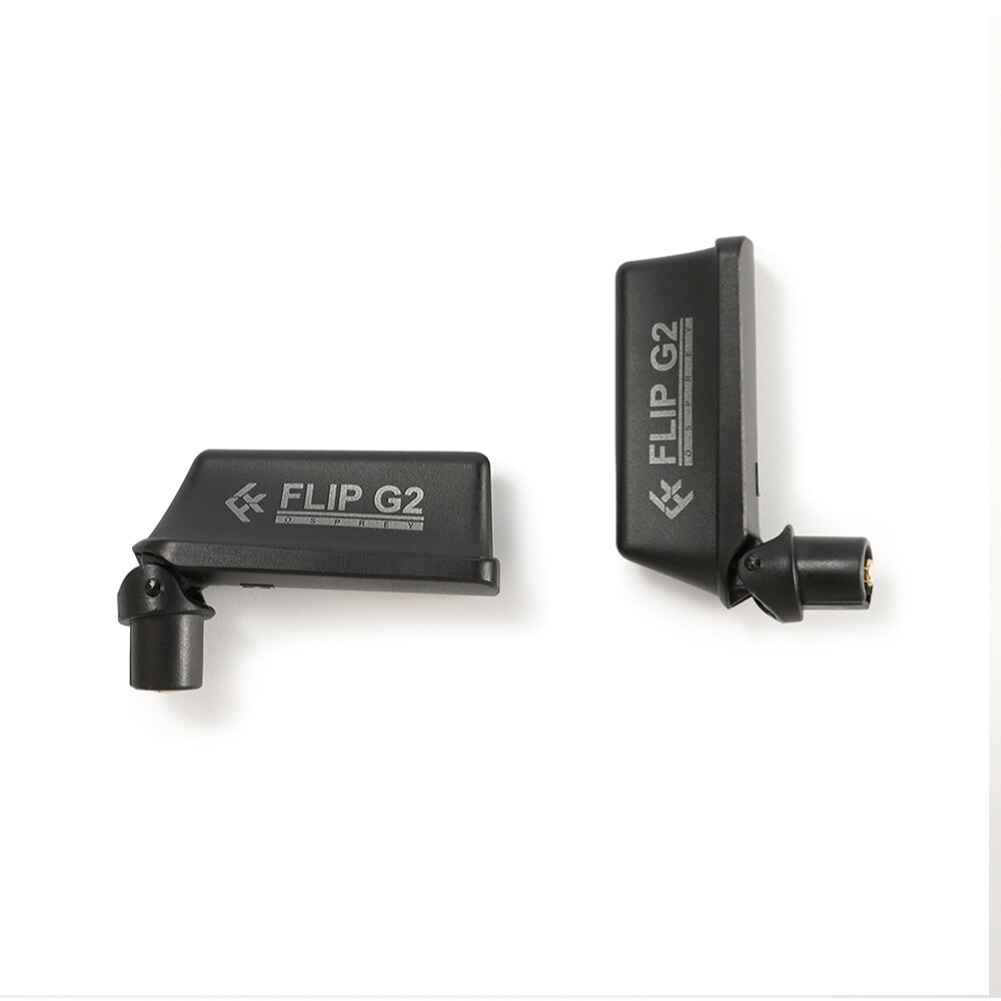

2 x FlyFishRC Osprey FLIPG2 Antennas (Left & Right)
