FrSky Archer Plus R6 Mini/R6 Mini-E 2.4GHz Receiver with Dual 5A Brushed ESC, 6/24CH PWM FBUS ACCESS & ACCST D16

Description

FrSky Archer Plus R6 Mini/R6 Mini-E 2.4GHz 6/24CH PWM FBUS ACCESS & ACCST D16 Receiver Integrated Dual 5A Brushed ESC

The FrSky Archer Plus R6 Mini/R6 Mini-E receiver is part of the enhanced Archer Plus Series, offering improved anti-RF-interference for stable performance. Compatible with both ACCESS and ACCST D16 modes, it smartly matches the RF protocol during binding. In ACCESS mode, it supports OTA firmware updates, increased range, and telemetry, with configurable telemetry power and protocol switching. This compact 6-channel receiver features a 2.4G antenna and 6 PWM output ports, adaptable to various servo connectors. The R6 Mini-E variant integrates dual 5A brushed ESC for easy motor speed control. The receiver supports 24 signal channels in FBUS mode, configurable through the ETHOS system.

FrSky Archer Plus R6 Mini/R6 Mini-E 2.4GHz 6/24CH PWM FBUS ACCESS & ACCST D16 Receiver Integrated Dual 5A Brushed ESC
The Archer line of receivers has been enhanced further with the addition of the new Archer Plus Series. The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-interference capability can offer a more solid and stable RF performance. These AP series receivers also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio. In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they also support even more functions like configurable telemetry power and protocol switching ( S.Port / F.Port / FBUS ).

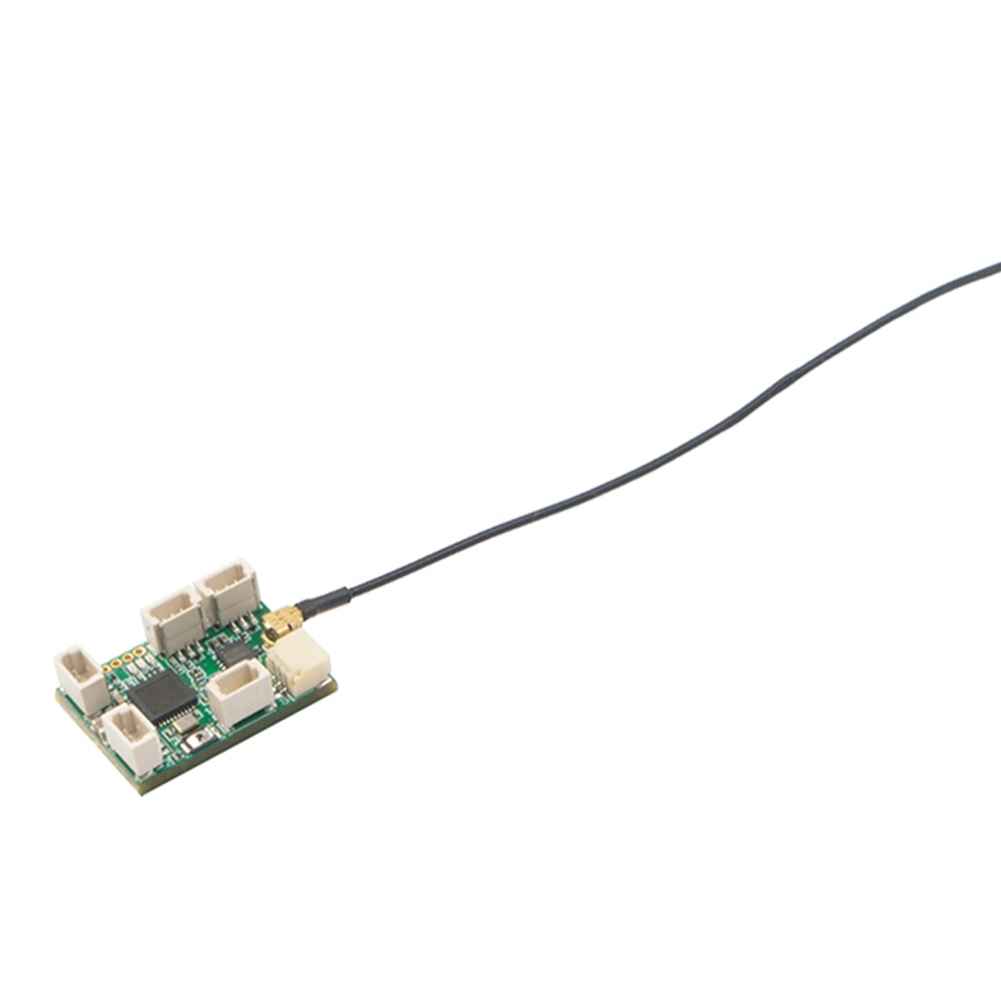

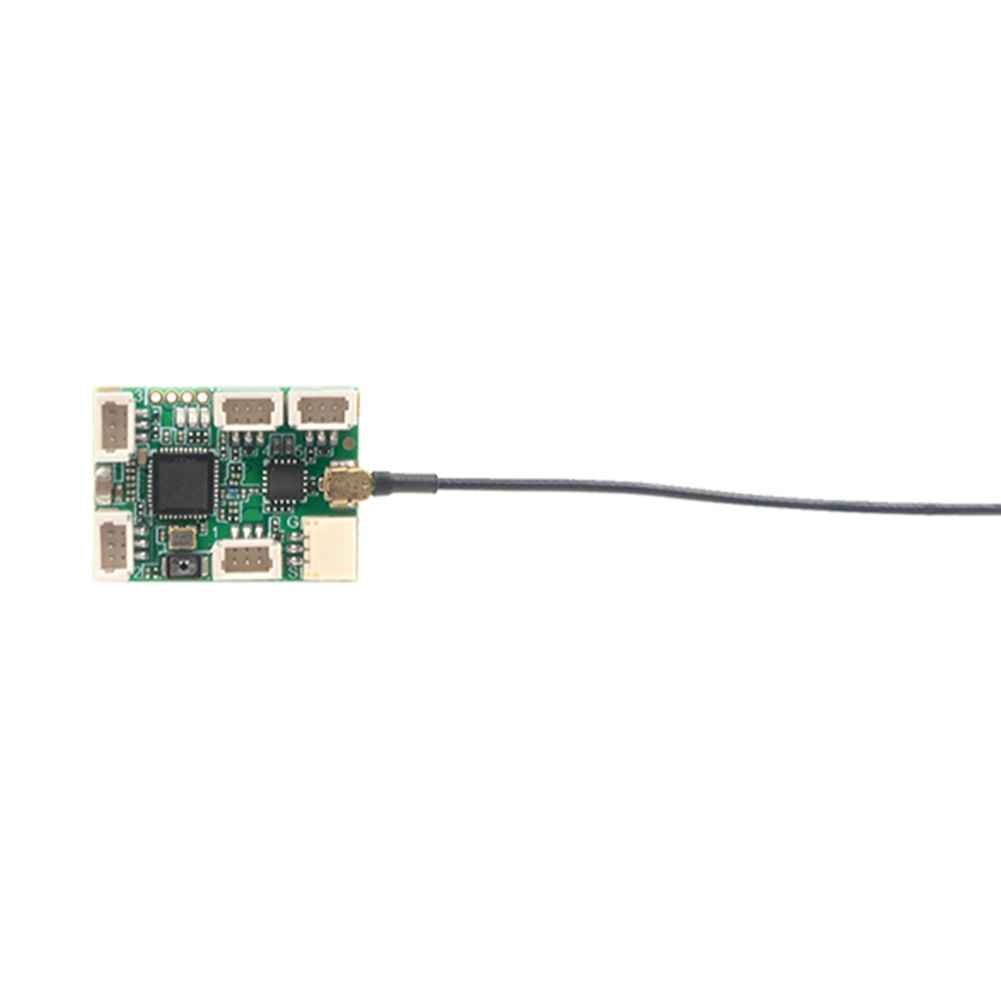

The AP Mini-series 6-channel receiver features a small form factor in lightweight. It is equipped with a 2.4G signal antenna. These receivers have 6 PWM signal output ports. By using the included servo connector adapter cable (includes 1mm to 1.25mm 3Pin conversion cable), they can flexibly meet different connectors of regular servos on the market offering multiple options for interface access.
Through the specific S.Port cable, the receivers can be easily connected to a transmitter with an S.Port for the firmware upgrade, or sensors for the telemetry. When the S.Port is set to FBUS mode through the ETHOS system, the setting features of all FBUS-capable devices in the link now can be directly configured through the ETHOS system using Lua script tools, and in FBUS mode, the receivers can output 24 signal channels in total.

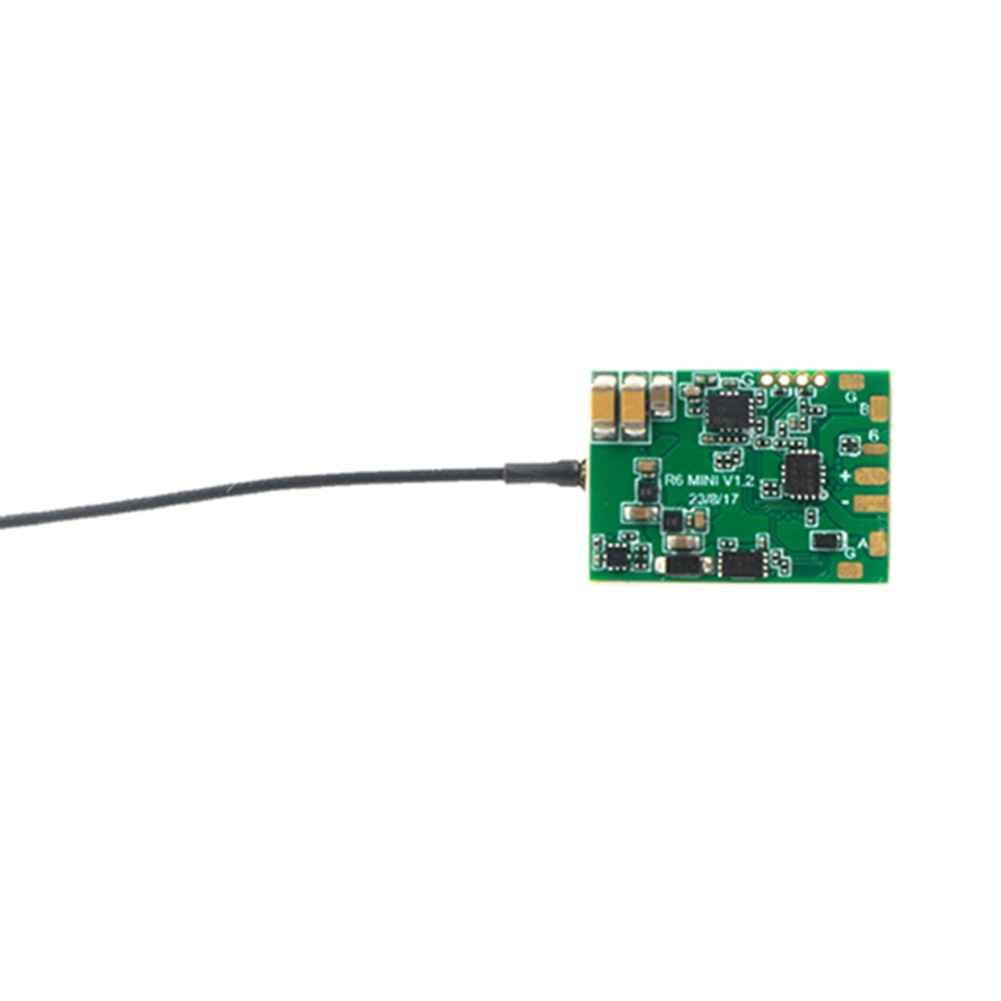

Additionally, the R6 Mini-E receiver integrates dual 5A brushed ESC function, and the speed control can be easily applied to the motors in connection.
(*Some features require the support of ACCESS and ETHOS.)
Specifications:
Brand: FrSky
Model: Archer Plus R6 Mini/R6 Mini-E (Optional)

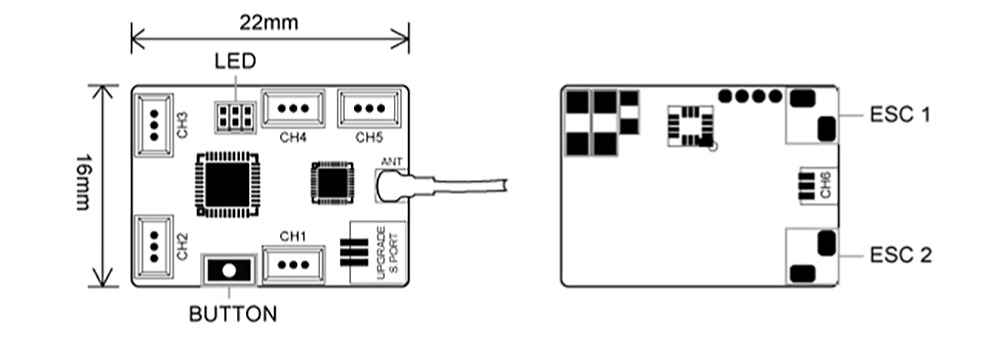

Dimension: 22沁16沁7mm (L沁W沁H)
Weight: 2.8g
Number of Channels: 6/24 Channels (6 PWM & 24 FBUS Channel Modes)
Operating Voltage Range: 3.0-8.4V (1S-2S LiPo)
(Please ensure that the receiver works within the voltage range that the connected servo is capable of.佩
Operating Current: 65mA@5V
Maximum Current: 5A (5A ESC沁2)
Operating Range: ’2km (Full range with telemetry) (*Range may vary based on local conditions.)
Antenna Connector: IPEX1
Compatibility: FrSky 2.4G ACCESS / ACCST D16 Capable Transmitters
Features:
* Enhanced Anti-RF-Interference Capability with More Solid RF Performance
* Small and Lightweight
* 6 High-Precision PWM Output Channel Ports
* S.Port / F.Port / FBUS (Configurable via S.Port)
* Over-The-Air (OTA) FW update
* Smart-Matched ACCESS & ACCST D16 Modes
* Integrated Dual 5A Brushed ESC for Brushed Motor (R6 Mini-E)

Package Included:
1 x FrSky Archer Plus R6 Mini or R6 Mini-E Receiver (Optional)
