Gaoneng GNB 2S 7.6V 550mAh 100C Lipo Battery with XT30 Plug for FPV Drones and RC Helicopters

Description

Gaoneng GNB 2S 7.6V 550mAh 100C Lipo Battery XT30 Plug for Happymodel Mobula 8 GEPRC TinyGo Crux3 Cinewhoop FPV Drone RC Helicopter

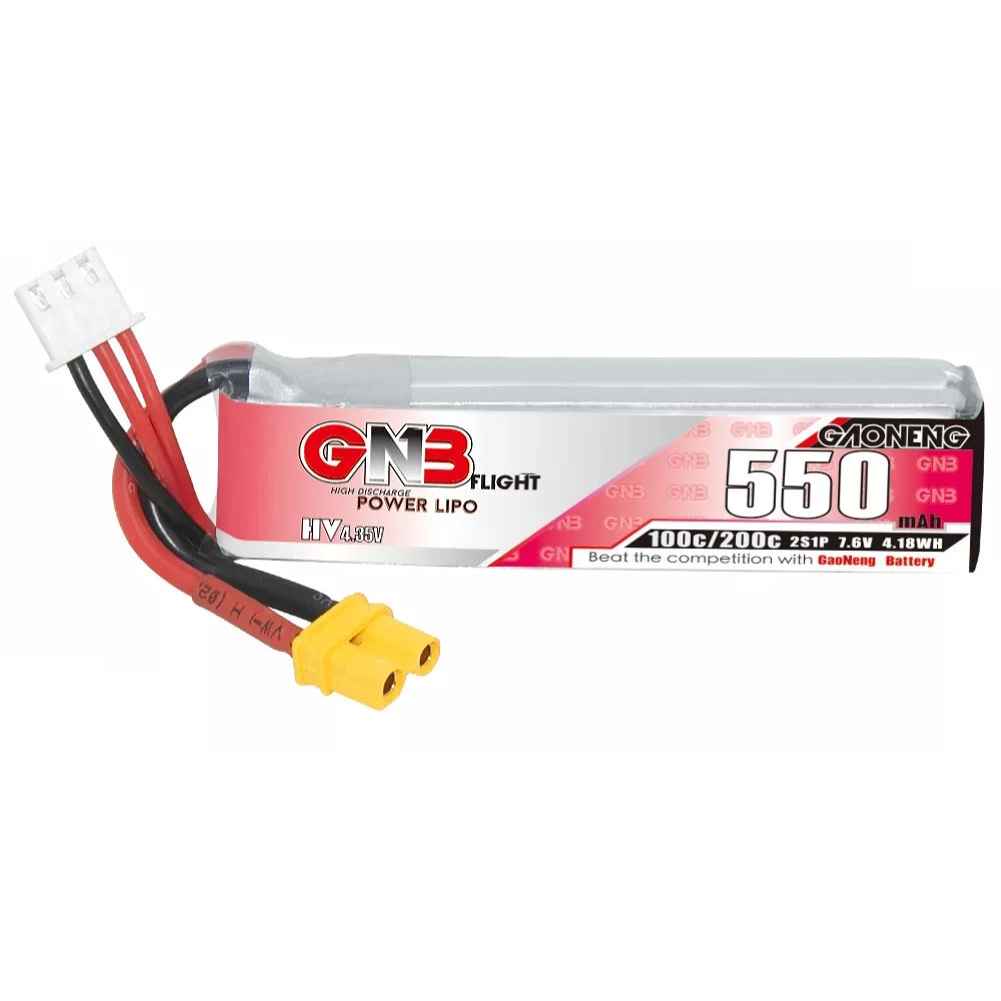

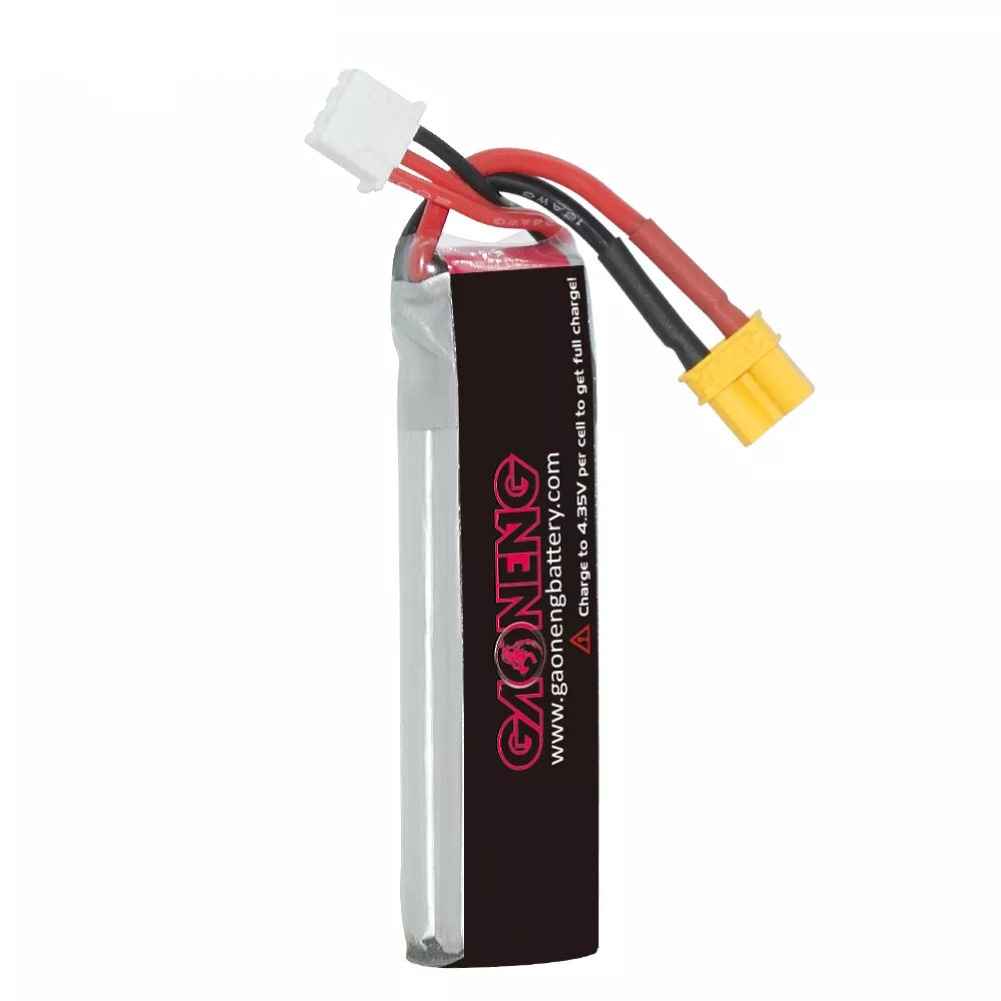

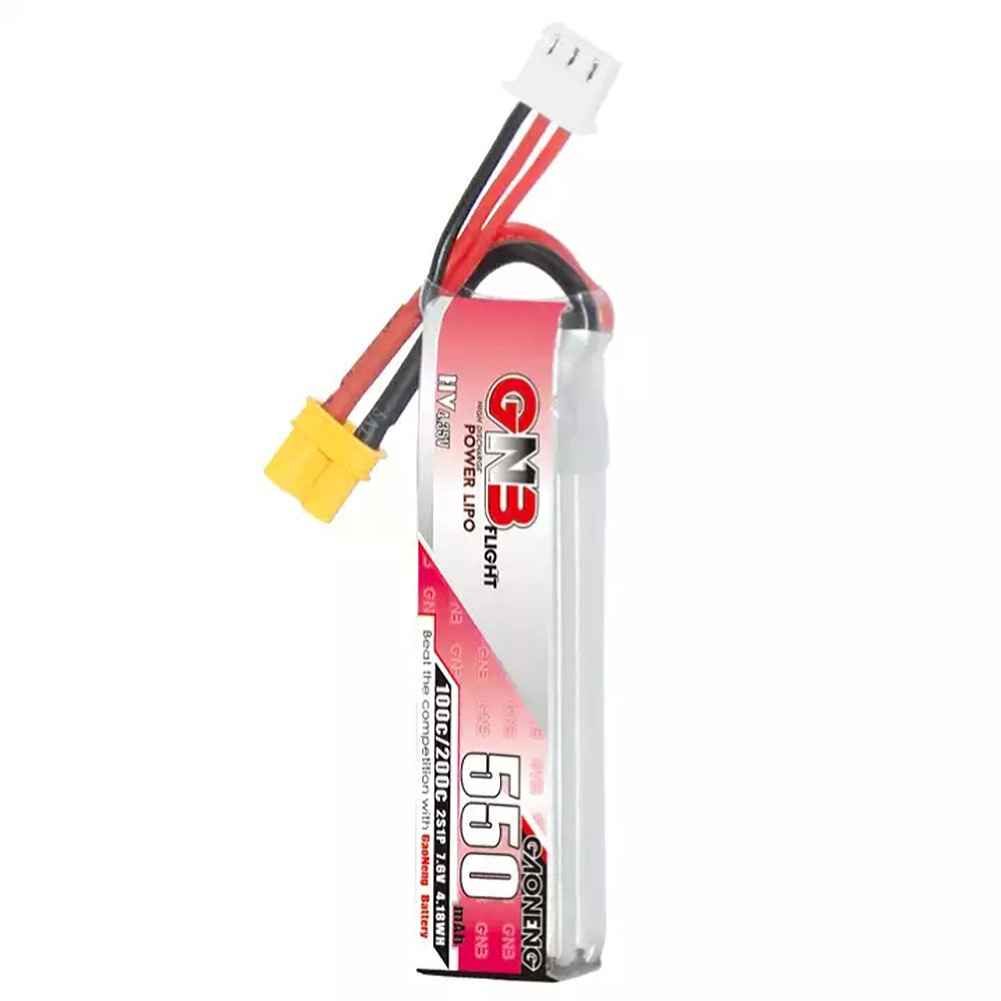

The Gaoneng GNB 2S 7.6V 550mAh 100C Lipo Battery is designed for high-performance FPV drones and RC helicopters. Featuring a 2S1P configuration and nominal voltage of 7.6V, this battery delivers a reliable power source with a maximum continuous discharge rate of 100C and a burst rate of 200C. It includes a JST-XH 3P charge connector and an XT30 discharge connector. The compact design measures 12x18x69mm and weighs approximately 29g. It operates efficiently within a wide temperature range and humidity conditions. Please handle with care, avoiding overcharging and exposure to extreme temperatures.

Specifications:
Brand: Gaoneng
Model No.: GNB5502S100AHV
Capacity: 550mAh
Configuration: 2S1P
Nominal Voltage: 7.6V

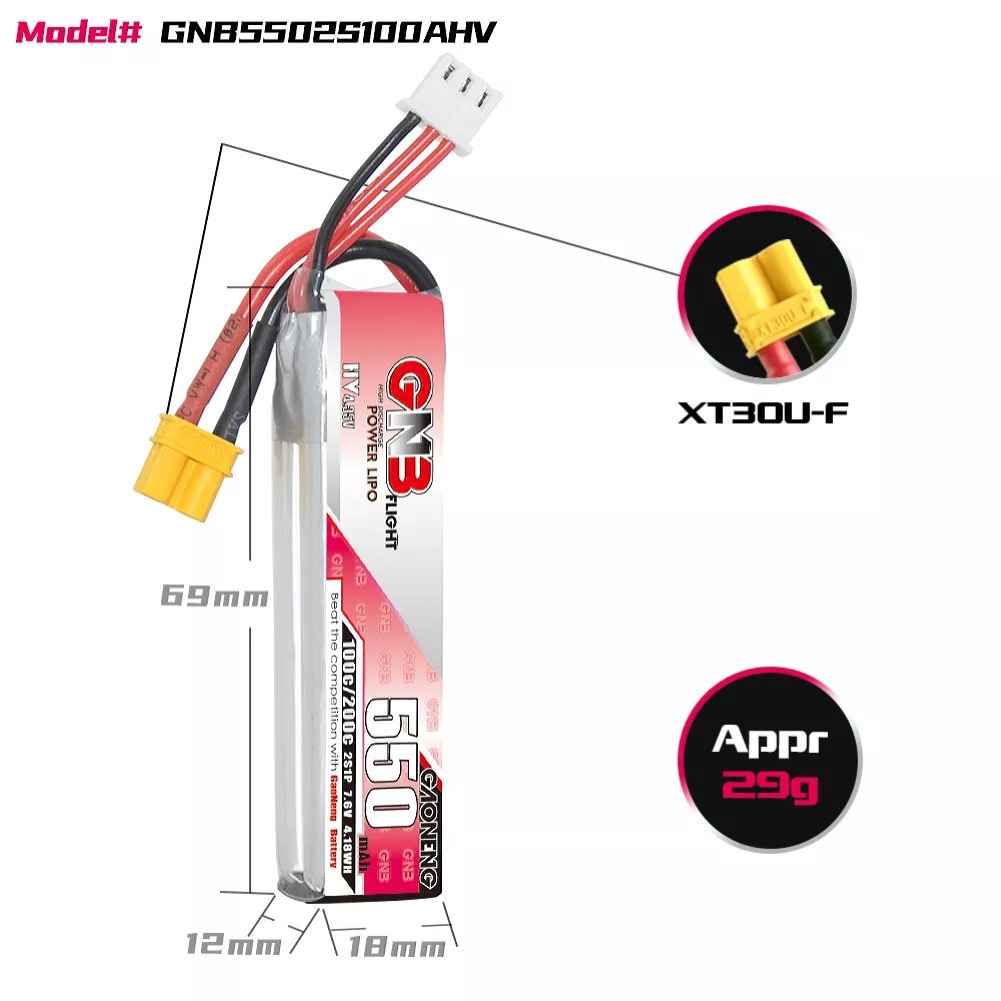

Dimension: 12*18*69mm Appr. (H*W*L)
Weight: 29g (+/-3g)
Max cont. discharge (C-rate/current): 100C
Max Burst (C-rate/current): 200C
Charge Connector: JST-XH 3P
Discharge Connector: XT30
Working Temperature Charge: 0~45‵﹠
Working Temperature Discharge: (-20~60‵﹠)
Working Humility: 65%RH +/-20%
Storage Temperature: (-20~35‵﹠)
Storage Humility: 65%RH +/-20%
Note: Due to the difference between the measurement, the battery dimension and weight may have little error.
Caution:
Don’t over-charge, or over-discharge batteries.
Don’t put it beside the high temperature condition.
Don’t throw it into fire.
Don’t throw it into water.

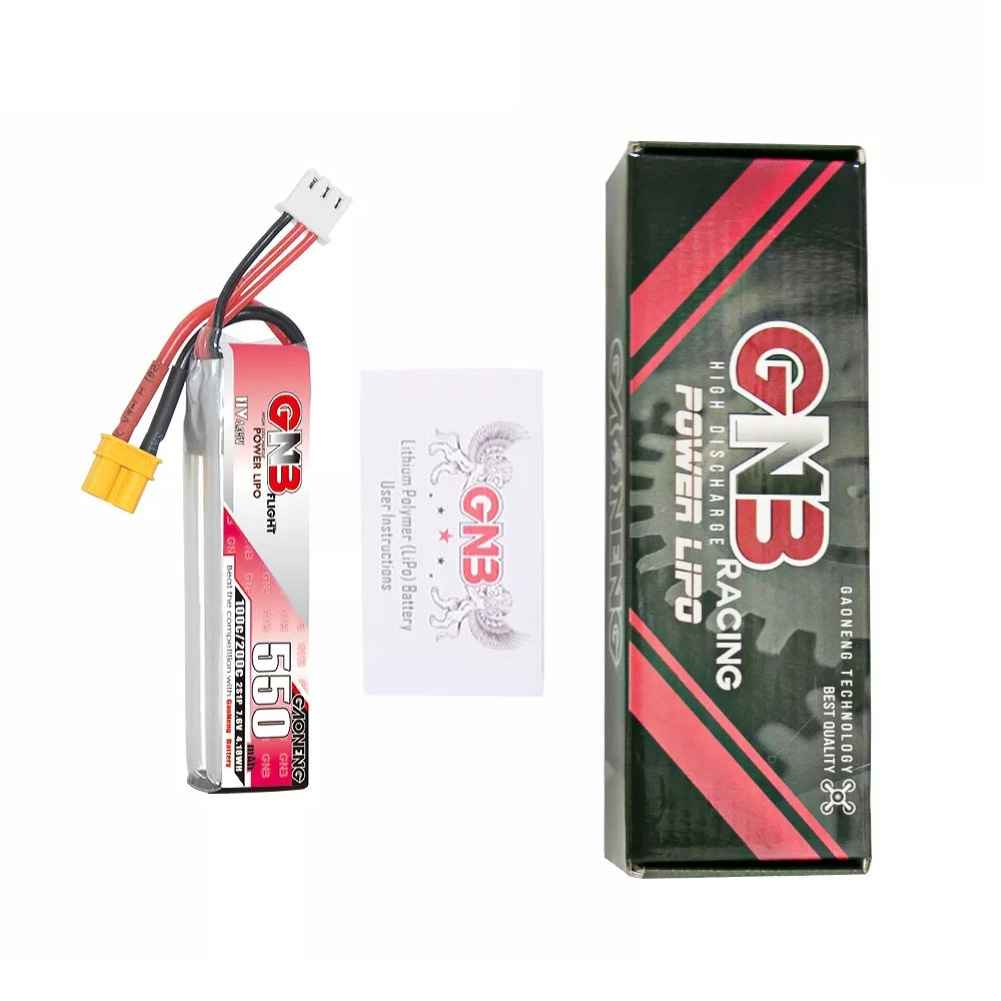

Package Included:
1 x Gaoneng GNB 7.6V 550mAh 100C 2S XT30 Plug Lipo Battery
