Geprc DS20 90mm Wheelbase 2-Inch Frame Kit for DJI O3 HD Analog VTX, DIY Whoop RC FPV Racing Drone

Description

Geprc DS20 90mm Wheelbase 2 Inch Frame Kit Support DJI O3 HD Analog VTX for DIY Whoop RC FPV Racing Drone

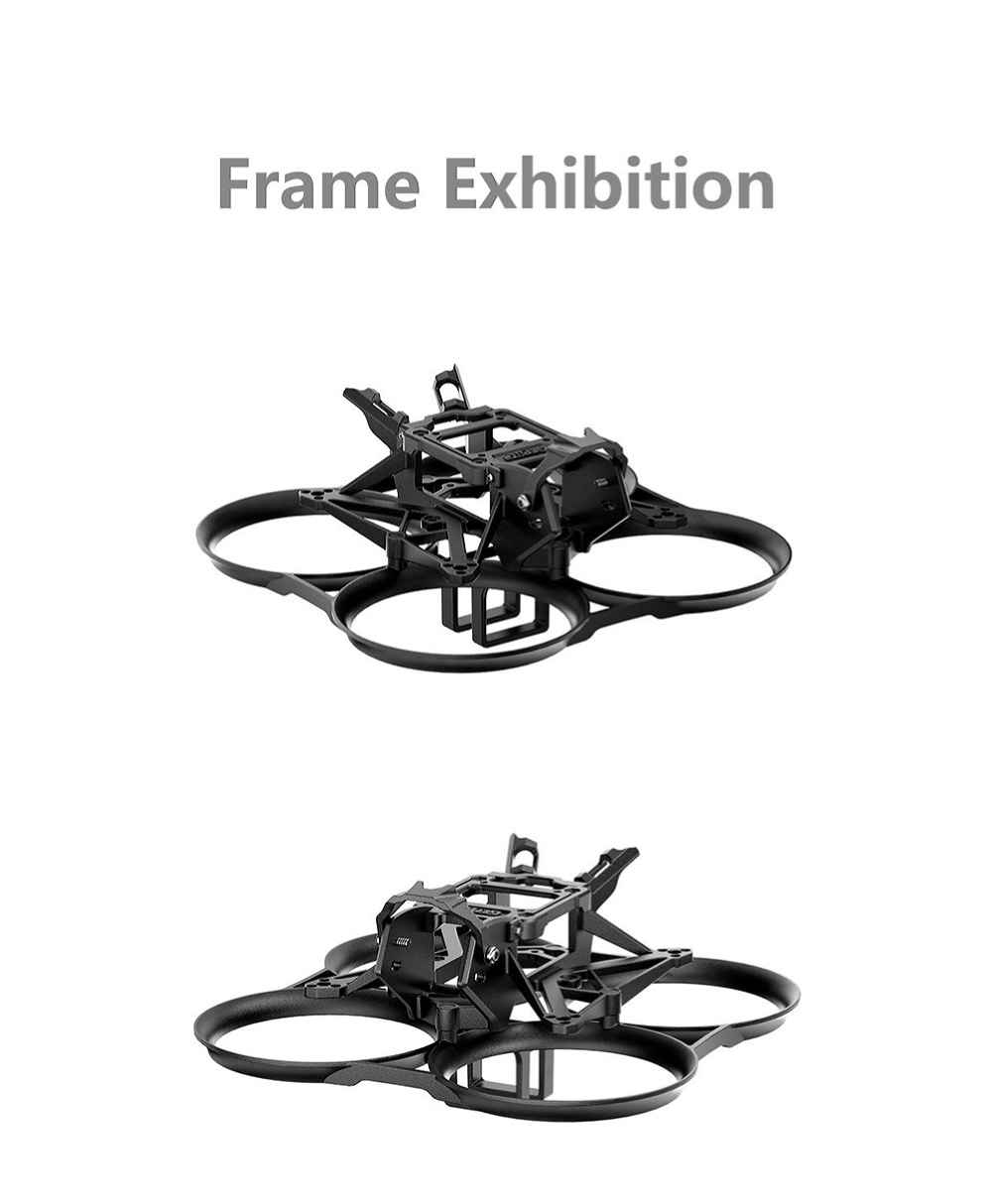

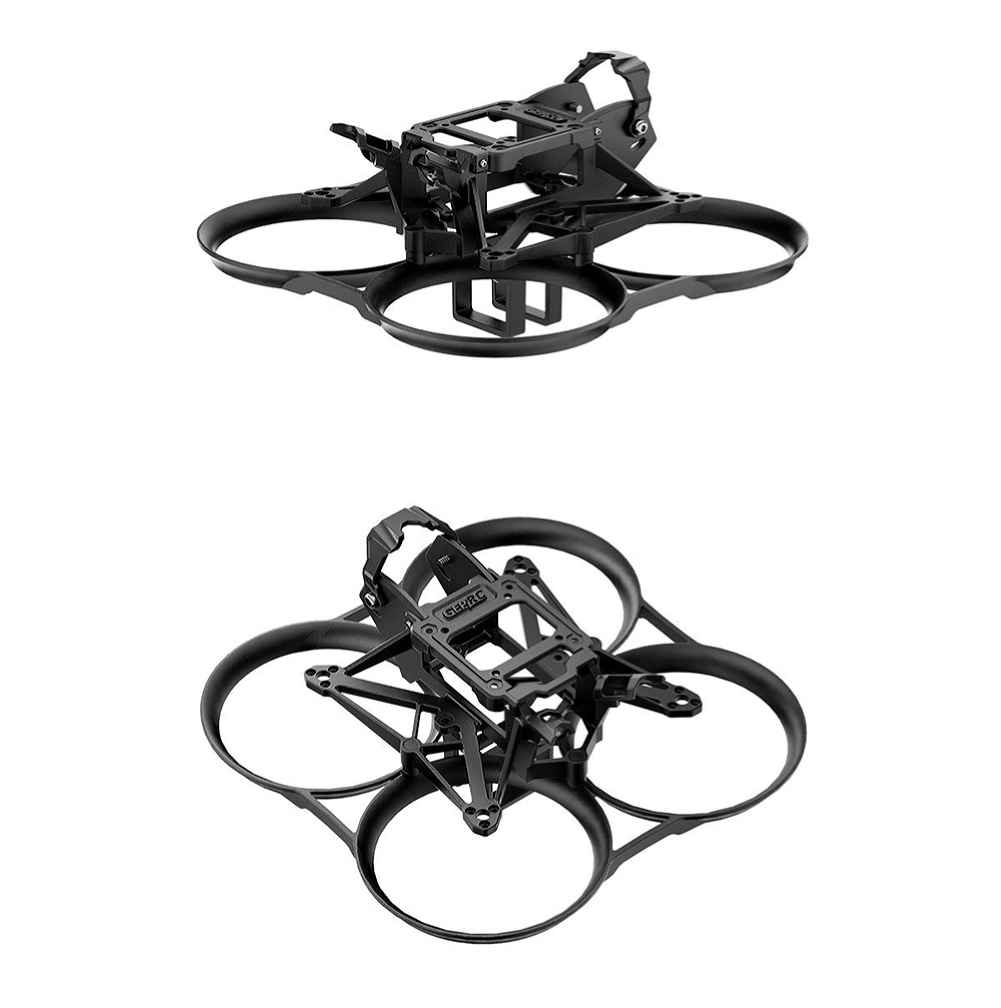

The Geprc DS20 is a lightweight 2-inch frame kit designed for FPV racing drones, compatible with DJI O3 Air Unit, Link, and analog video transmission. Constructed from high-quality materials, this frame offers both toughness and durability. It features a 90mm wheelbase and supports 1003/1102 motors with a three-hole base. The innovative design includes a multi-directional triangular support frame for enhanced rigidity and a modular structure for easy assembly. Available in five vibrant colors〞white, pink, gray, black, and blue〞the DS20 also includes a frame-type battery compartment for convenient battery installation and removal. The carefully designed antenna fixed shield combines practicality with aesthetics.

Summary

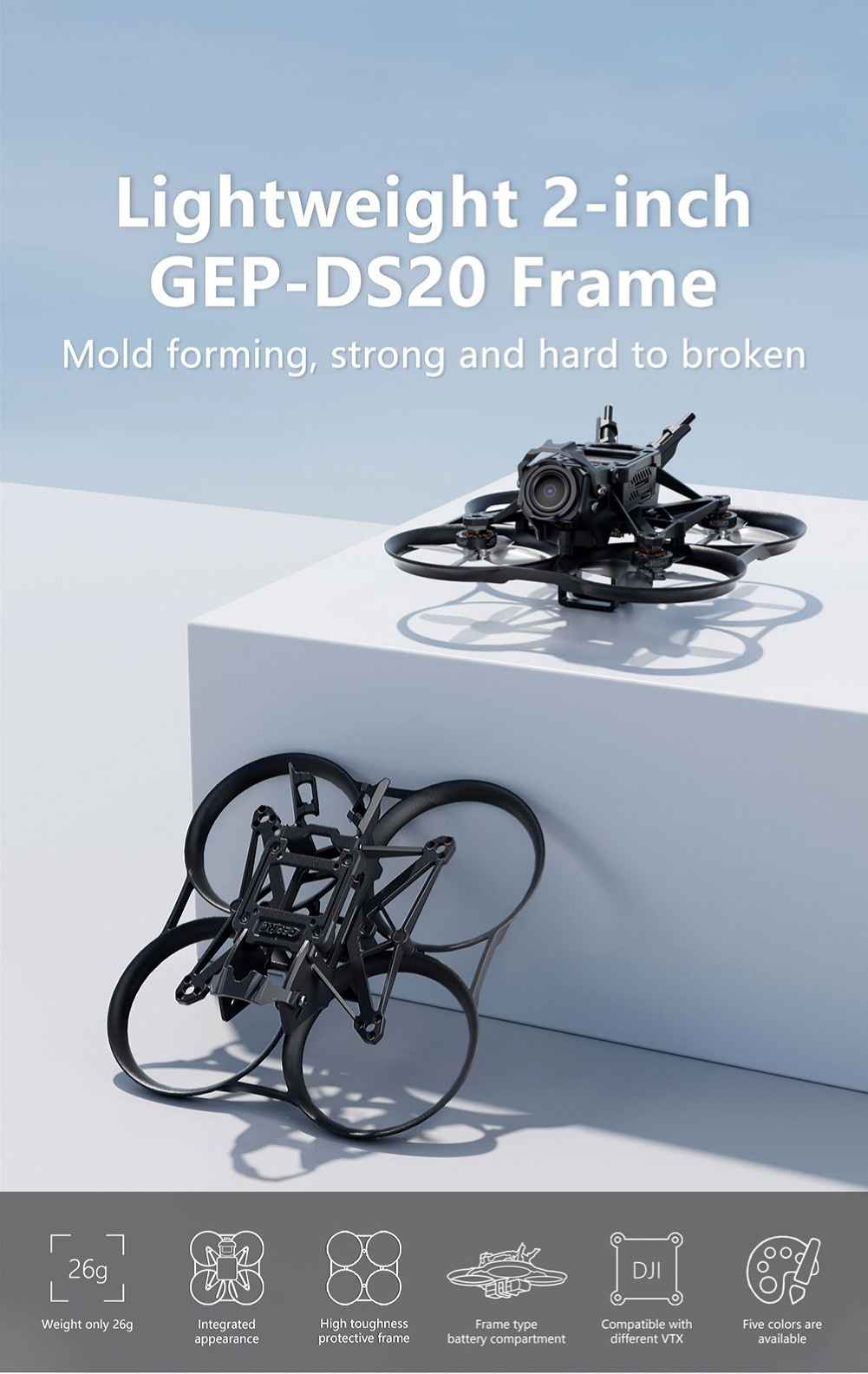

GEP-DS20 is a 2-inch lightweight frame compatible with DJI O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.
The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.

Feature

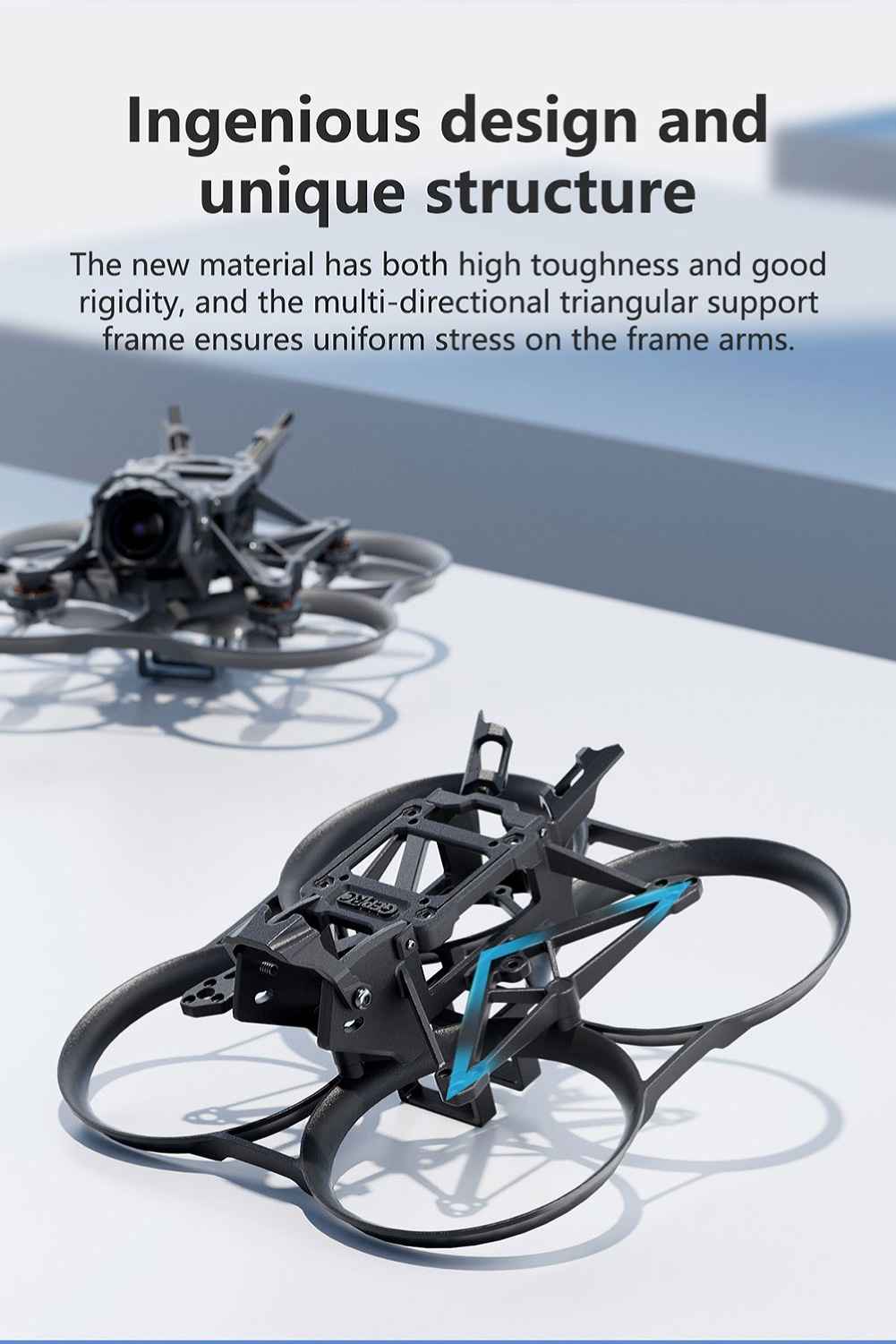

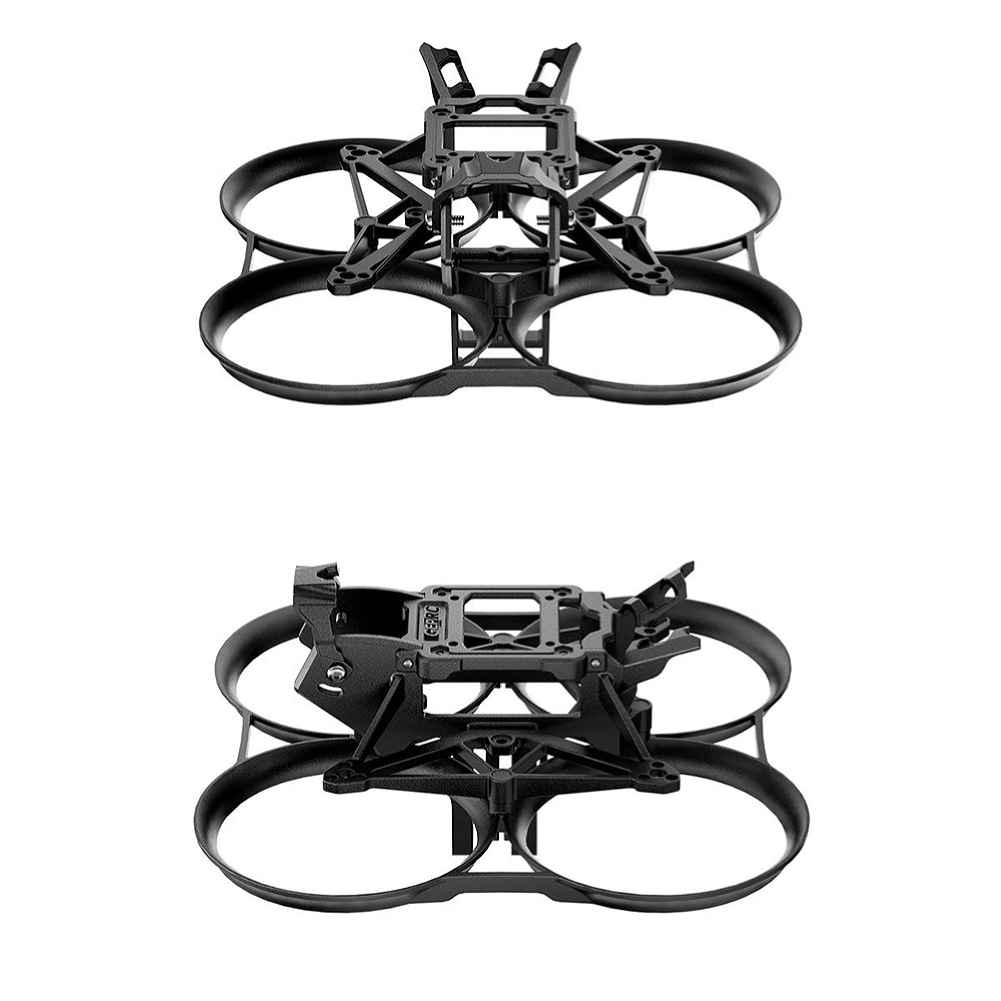

1. New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.

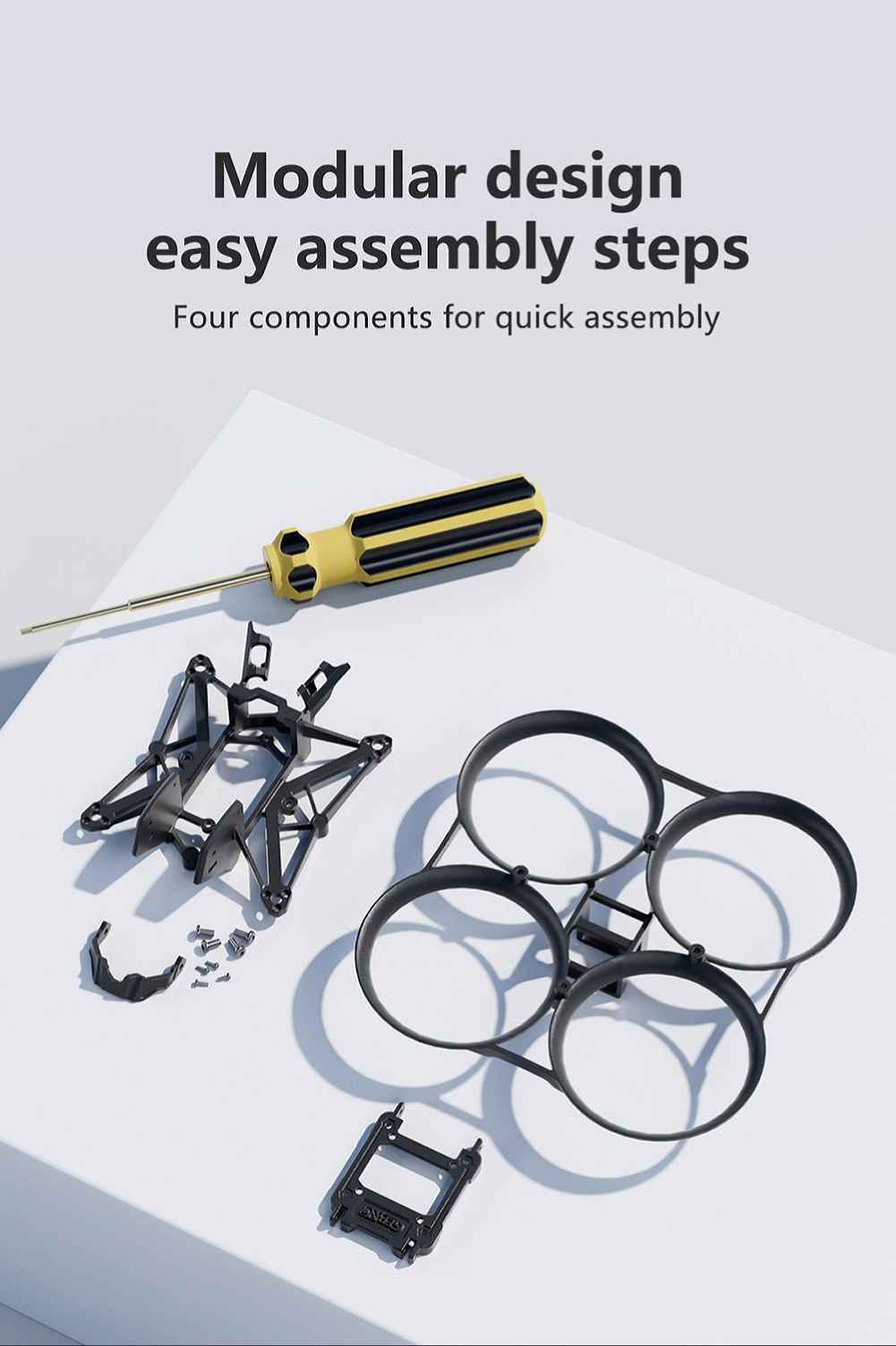

2. Modular structure, easy to assemble.

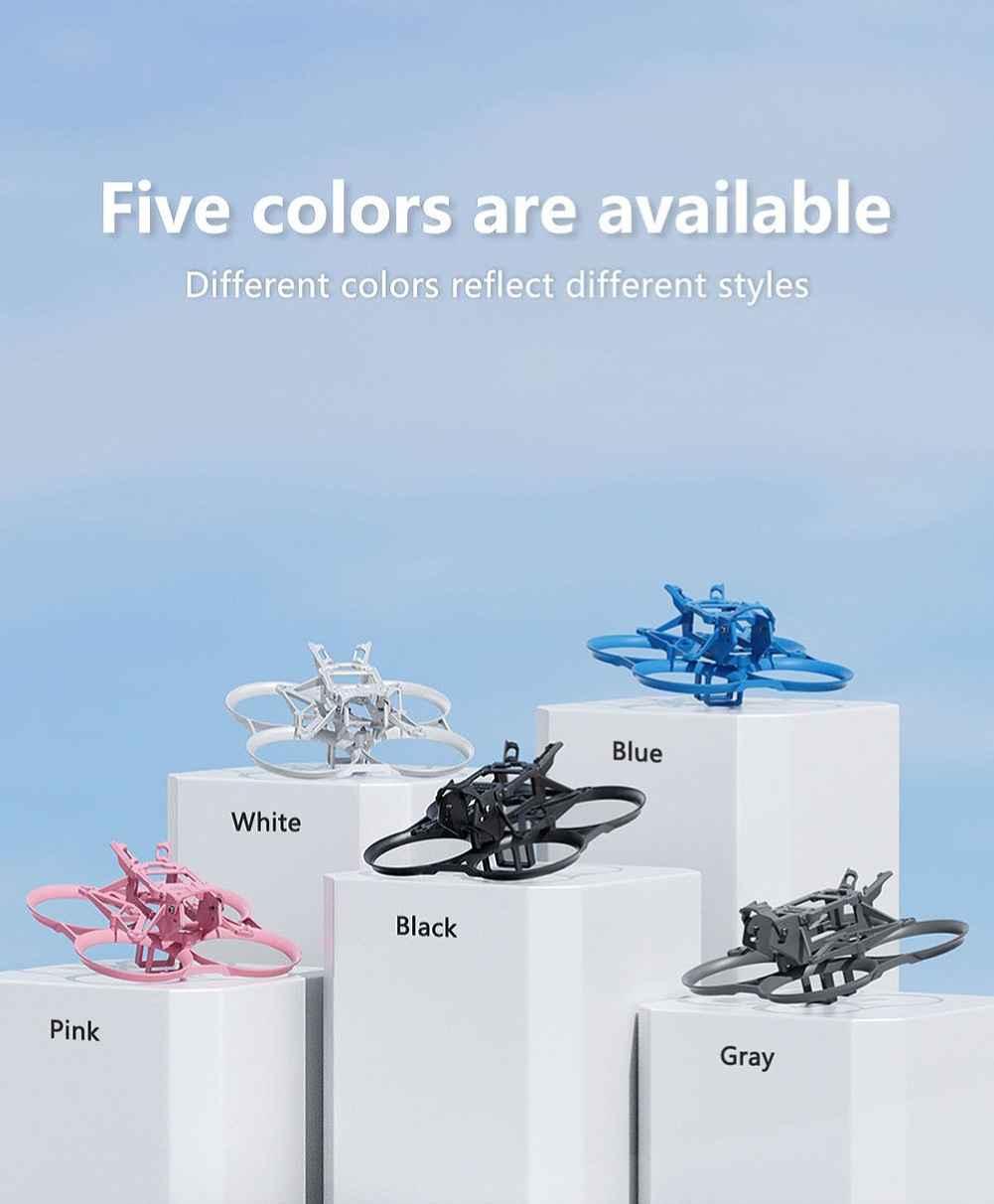

3. Five colors available: white, pink, gray, black, and blue.

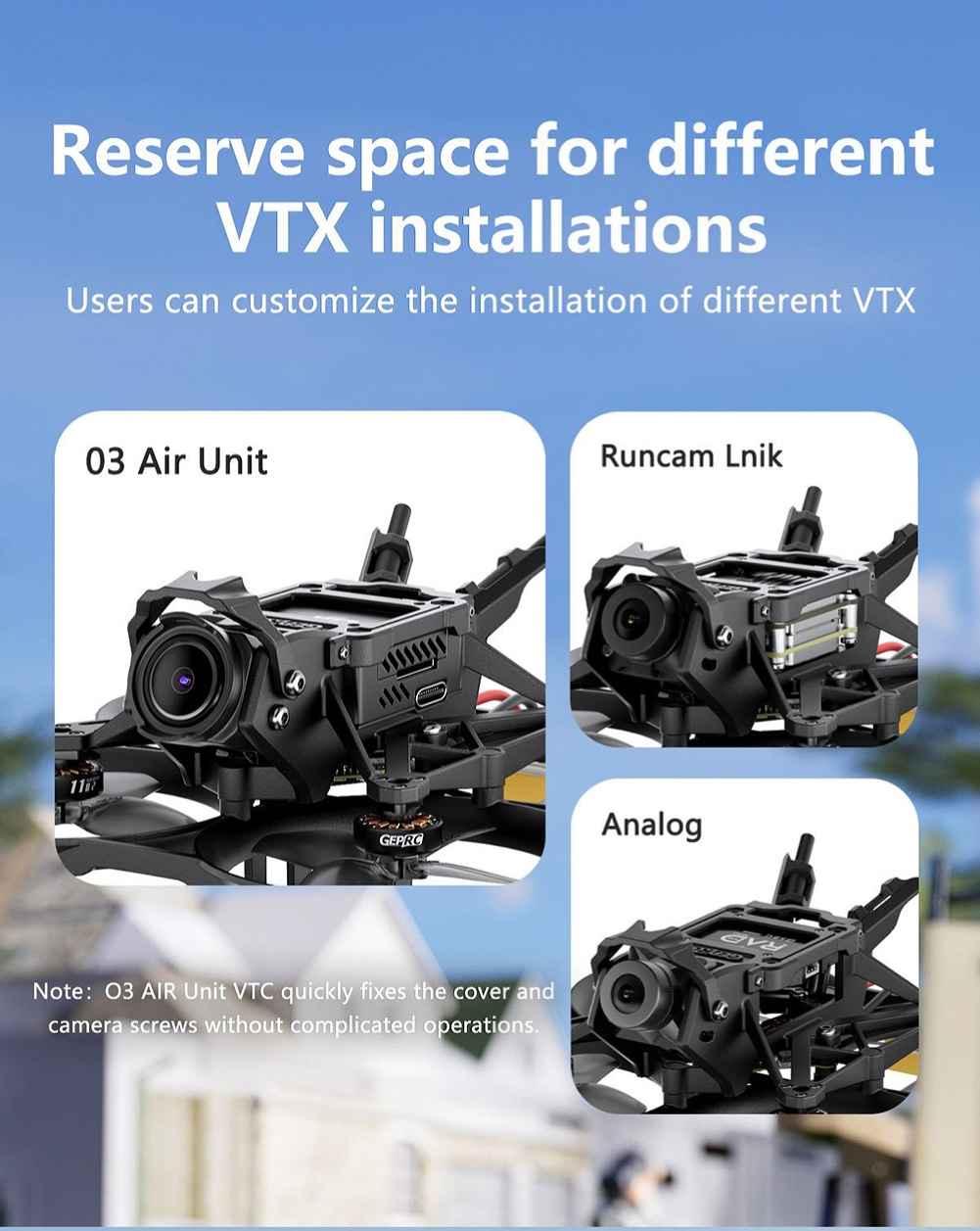

4. Support DJI O3 AIR Unit, Link, and analog image transmission.
5. Compatible with 1003 and 1102 motors.

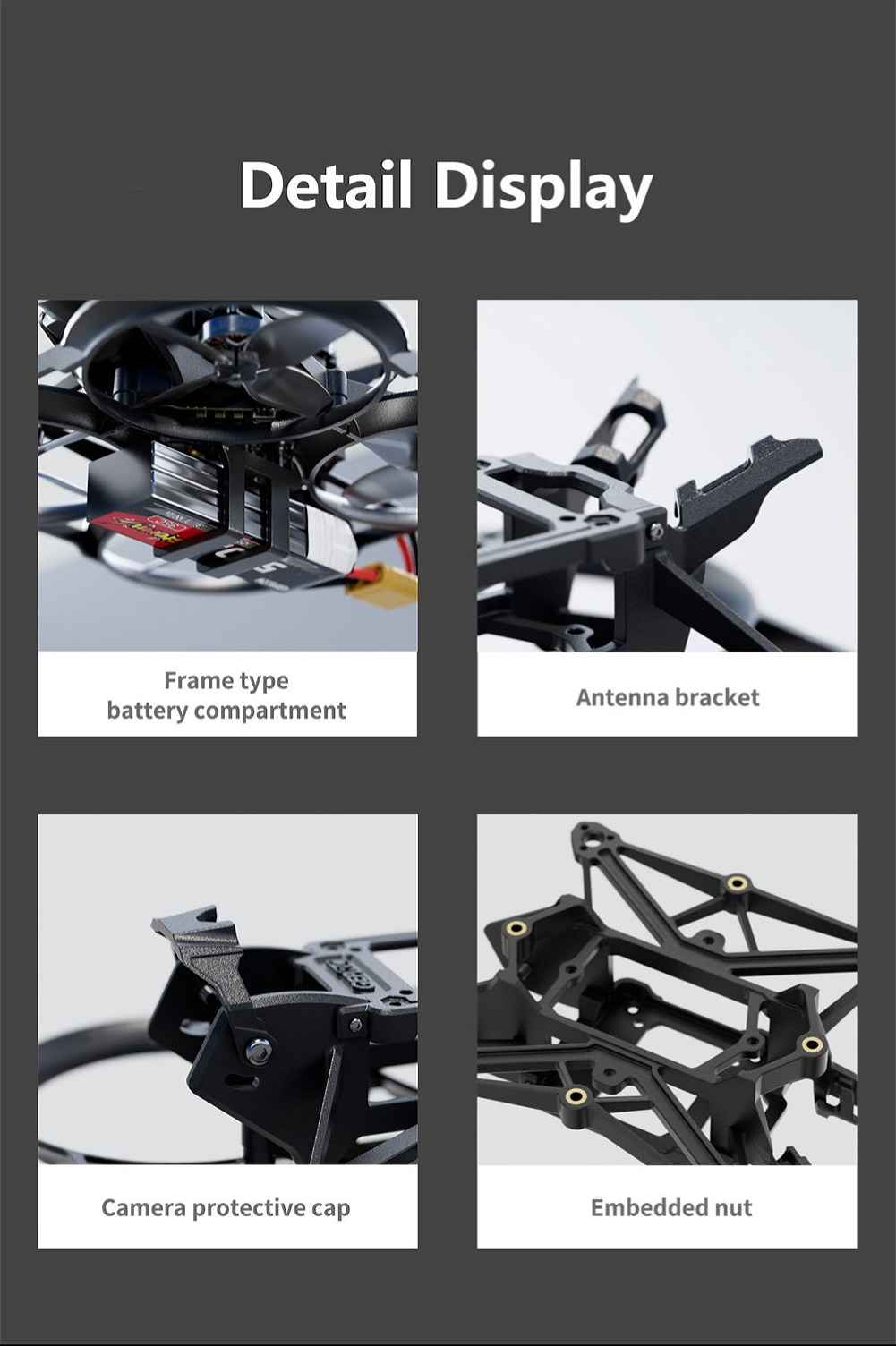

6. The antenna fixed shield is carefully designed to be both practical and beautiful.
7. Frame-type battery compartment makes it easier to disassemble and install batteries.

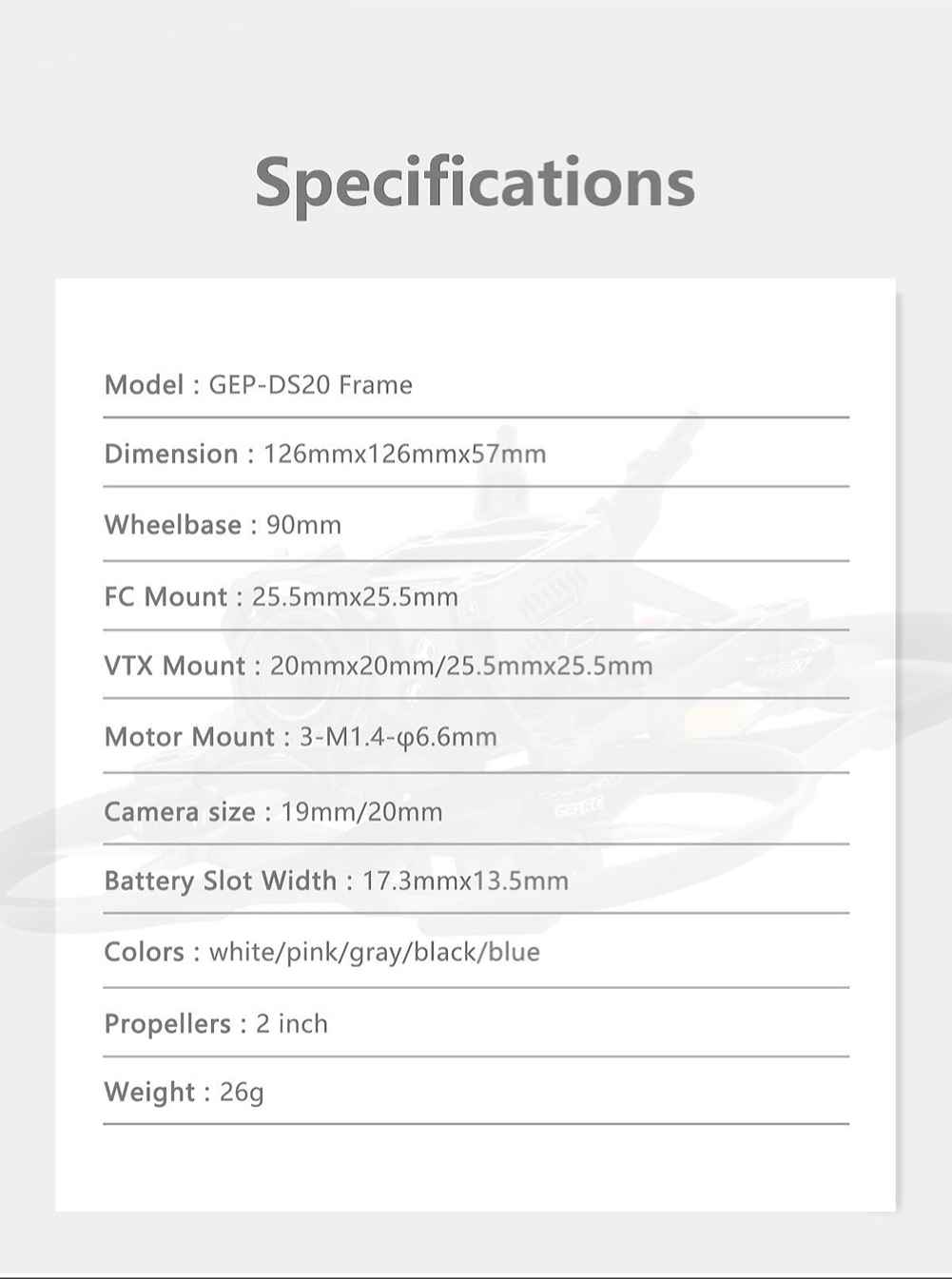

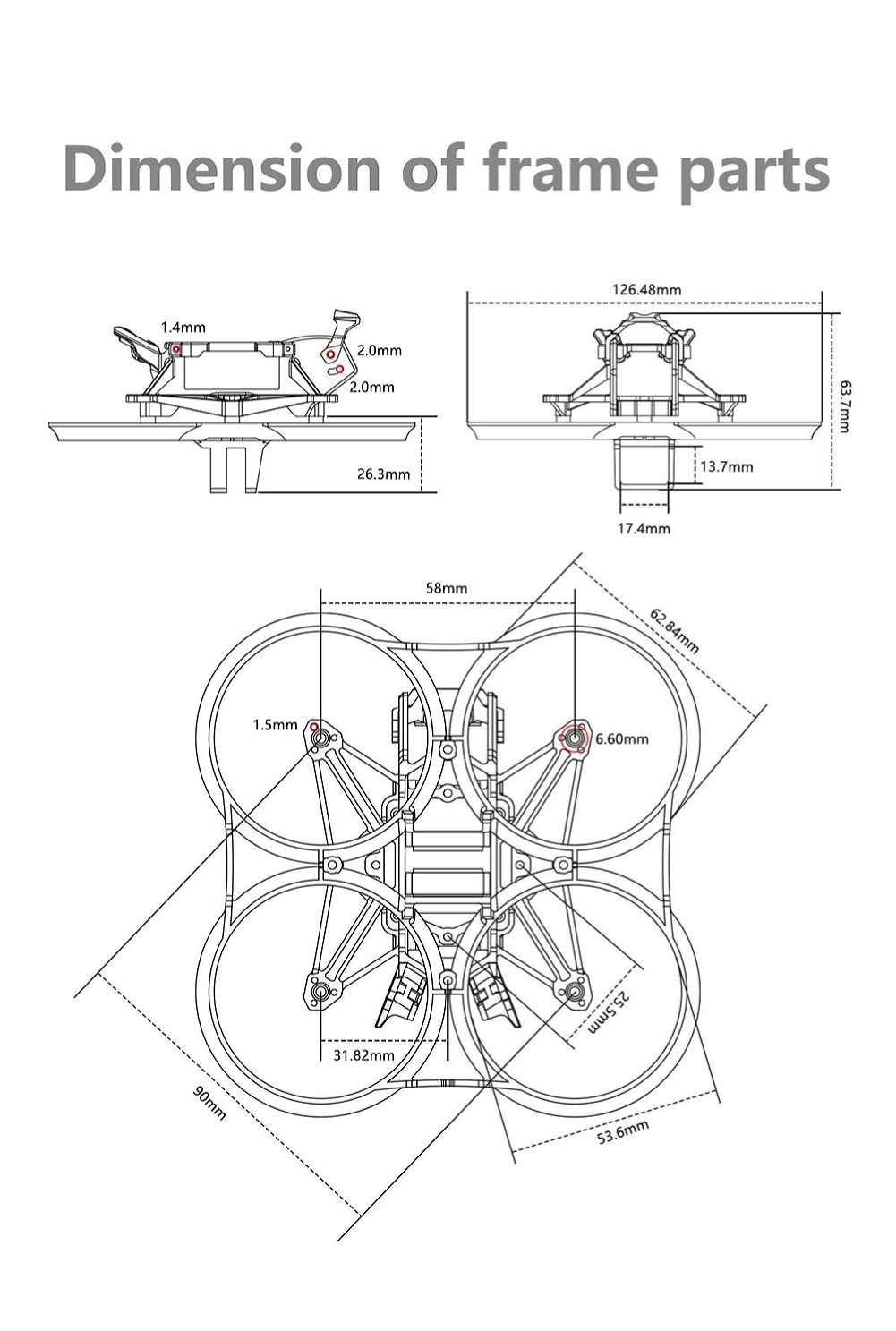

Specification

mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Model:GEP-DS20 Frame
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Dimension:126mm*126mm*57mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Wheelbase:90mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› FC Mount:25.5mm*25.5mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› VTX Mount:20mm*20mm/25.5mm*25.5mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Motor Mount:3-M1.4-嫉6.6mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Camera size:19mm/20mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Battery Slot Width:17.3mm*13.5mm
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Colors:white/pink/gray/black/blue
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Propellers:2 inch
mso-margin-top-alt:auto;text-indent:-18.0000pt;mso-pagination:widow-orphan;
mso-list:l0 level1 lfo1;’> å®› Weight:26g

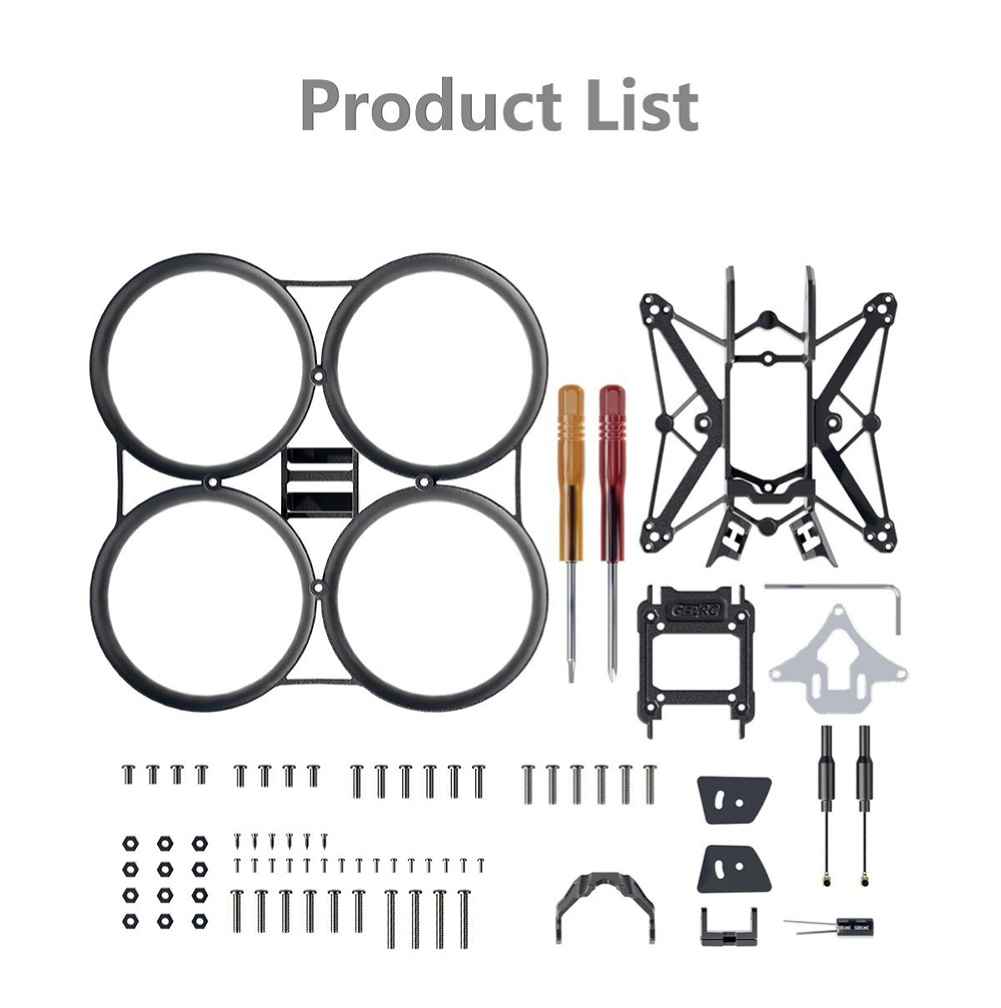

Includes

1 x Integrated Protective Frame
1 x Main Frame
1 x VTX Mounting Plate
1 x Camera Protective Cap
1 x Screw Pack
2 x VTX Antenna
1 x 1.5mm L-type Screwdriver
1 x Torx Screwdriver

Package Included:
1 x Integrated Protective Frame
1 x Main Frame
1 x VTX Mounting Plate
1 x Camera Protective Cap
1 x Screw Pack
2 x VTX Antenna
1 x 1.5mm L-type Screwdriver
1 x Torx Screwdriver
