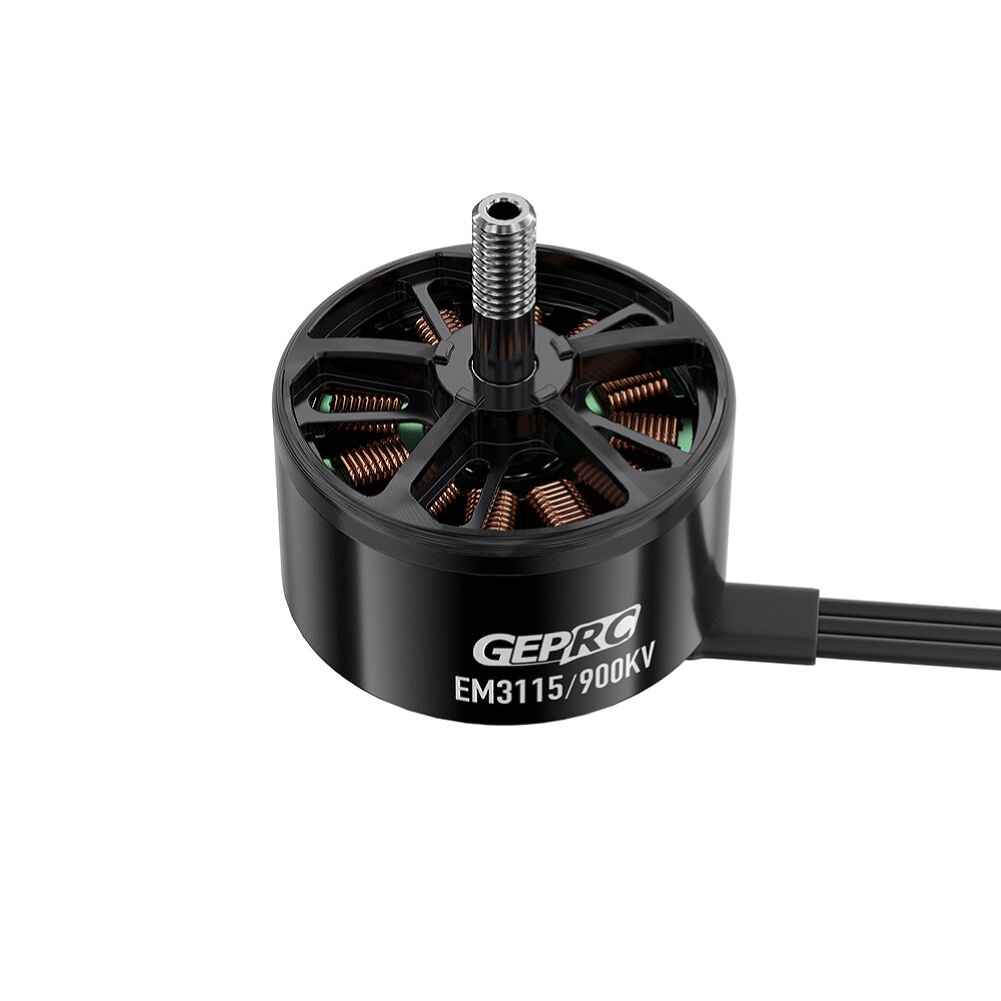

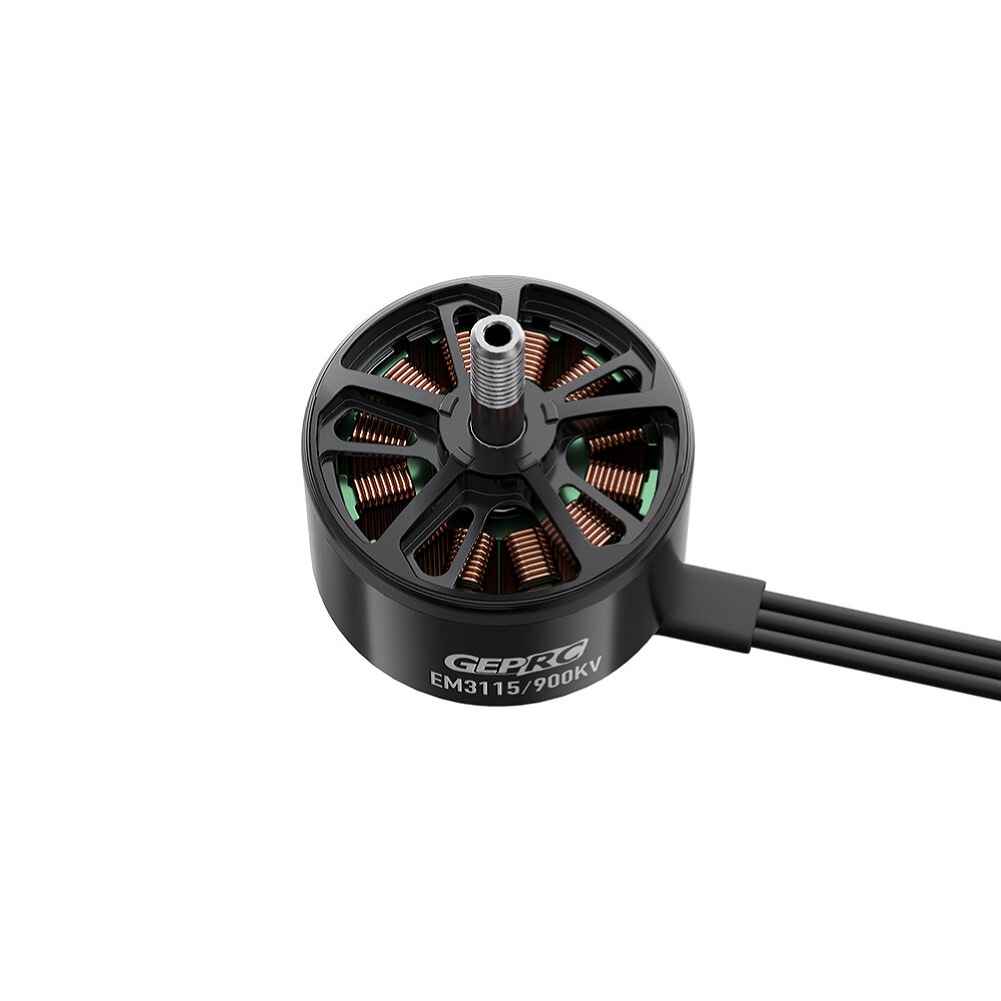

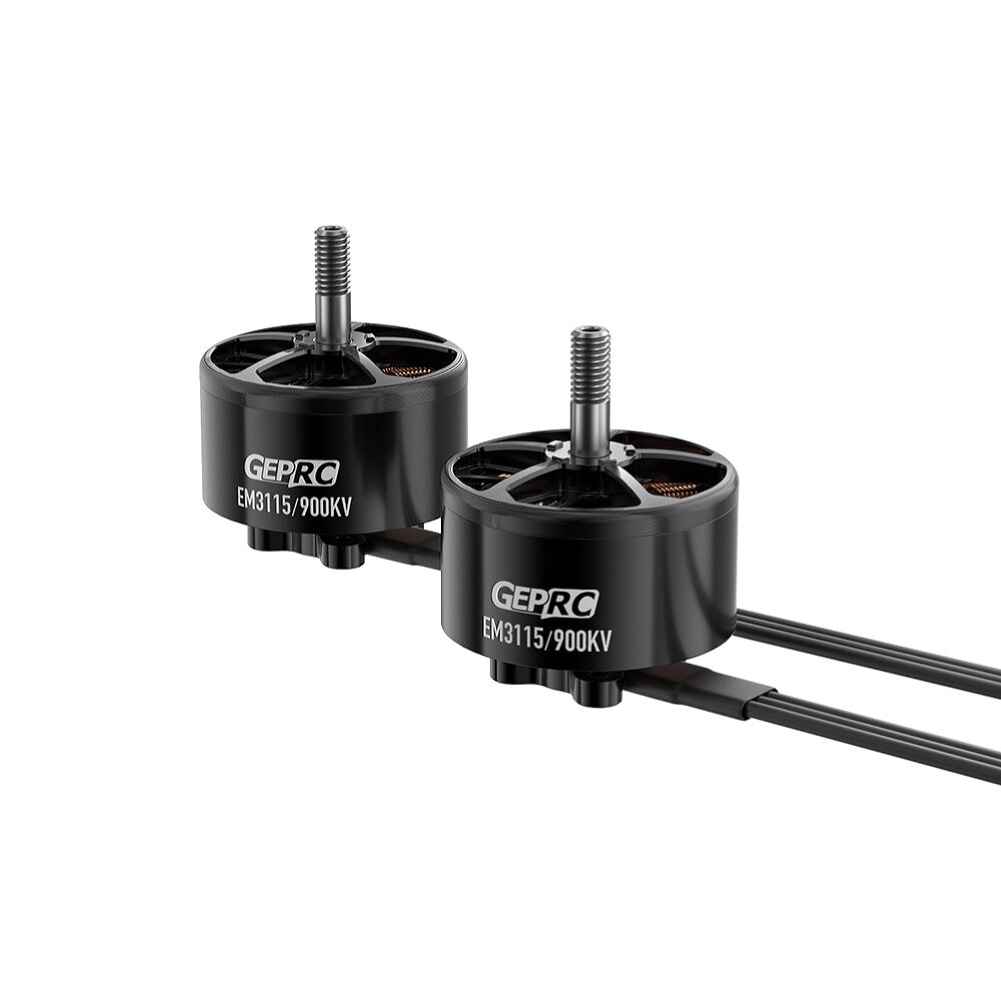

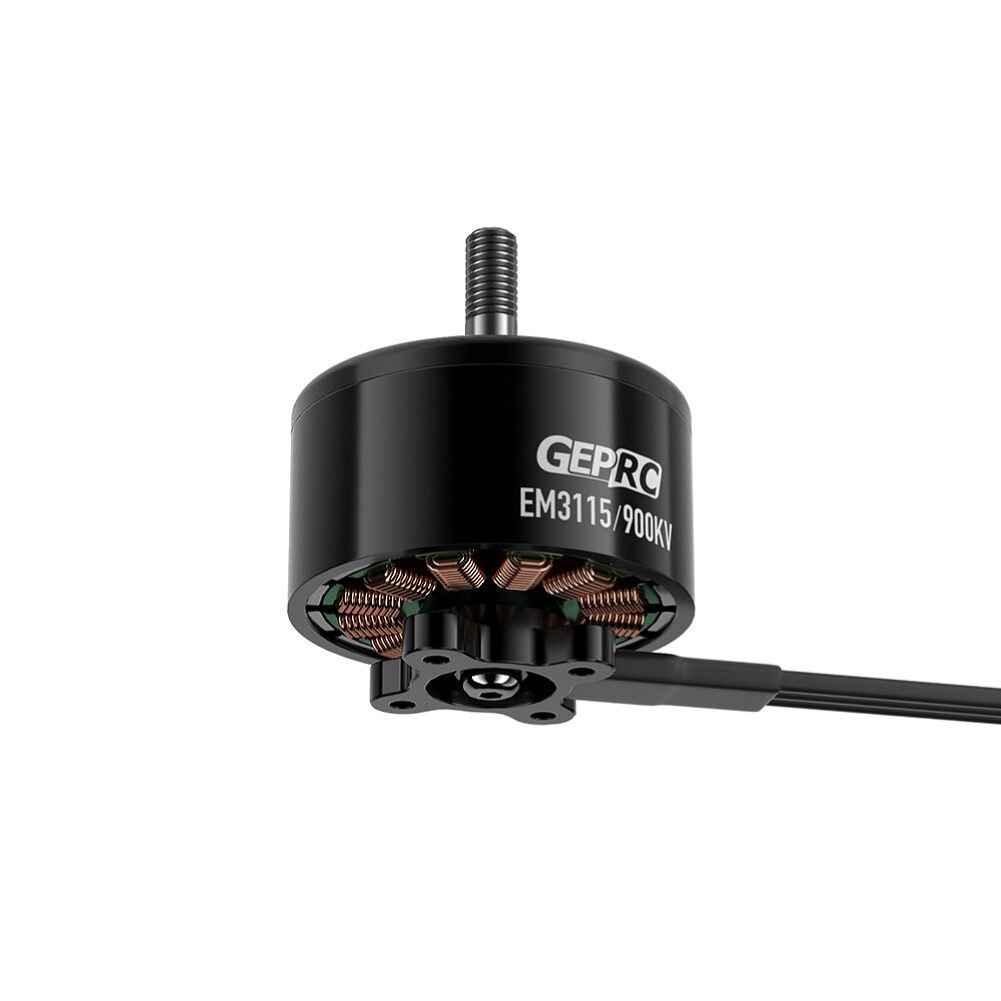

GEPRC EM3115 3115 900KV 6S Brushless Motor for 8-10 Inch Long Range FPV RC Racing Drone

Description

GEPRC EM3115 3115 900KV 6S Brushless Motor for 8 9 10 Inch Long Range FPV RC Racing Drone

The GEPRC EM3115 3115 900KV 6S Brushless Motor is expertly crafted for long-range FPV RC racing drones, specifically designed for 8 to 10-inch propellers. This motor boasts a high-strength M5 steel shaft and an advanced high torque magnetic circuit design, ensuring optimal performance and durability. It features a 19mm x 19mm base for easy mounting and includes a peak current of 65A with a maximum wattage of 1620W. The motor’s configuration of 12N14P and its N52H magnets enhance its efficiency, making it an ideal choice for drone enthusiasts seeking reliability and power. Weighing only 115g, including the wire, this motor is compatible with 60A-80A ESCs and operates at 25.2V (6S LiPo).

Features:
-New EM series motorsä½¾mainly designed for long range FPV.
-High-strength M5 steel shaft
-High torque magnetic circuit design
-19mmx19mm base
Specifications:
Brand: Geprc
Model: EM3115
Item Name: 3115 900KV Motor
Max Watt: 1620W
Peak current: 65A
Interphase resistance: 46m棒
Propeller: 8-10inch Propeller
Magnet: N52H
Bearing type: NSK/NMB
Configuration: 12N14P
Dimension: 嫉37.5mmx30mm
Shaft Diameter: 嫉5mm
Shaft Protruding Length: 16mm
Mounting holes: 19mmx19mm

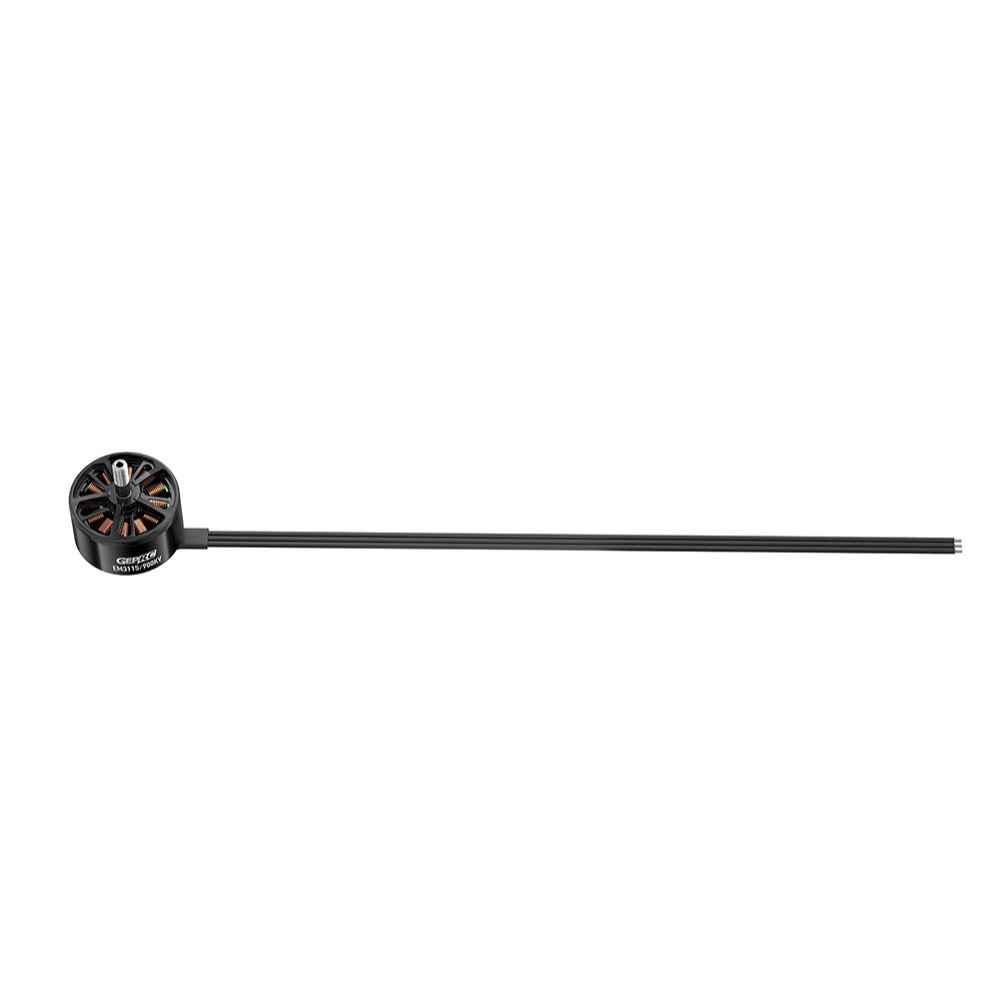

Lead: 310mm/18AWG
ESC: 60A-80A
Input Volts: 25.2V侈6S LiPo)
Winding: Single strand copper winding
Weight: 115g(included wire)
Suitable for :8-10 inch long range FPV
Includes:
1 x EM3115 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut

Package Included:
1 x EM3115 motor
4 x M3 9 round head screws
1 x M5 anti-slip nut
