GEPRC MARK5 5-Inch 6S WTFPV Drone, Compatible with DJI O4 Pro Air Unit, 225mm Wide X Frame, PNP BNF

Description

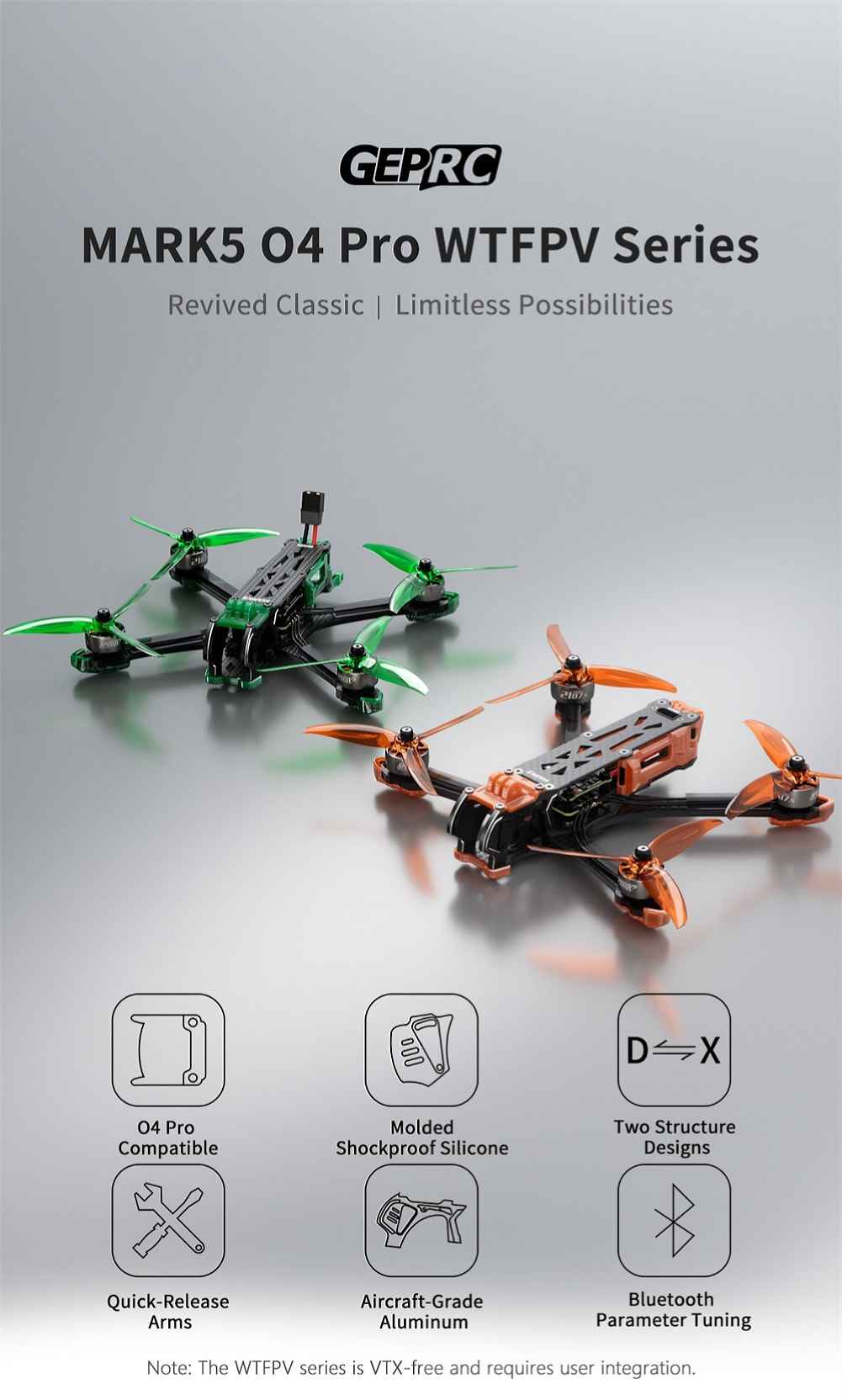

GEPRC MARK5 225mm 5 Inch 6S Wide X RC WTFPV Drone PNP BNF Compatible with DJI O4 Pro Air Unit Digital System

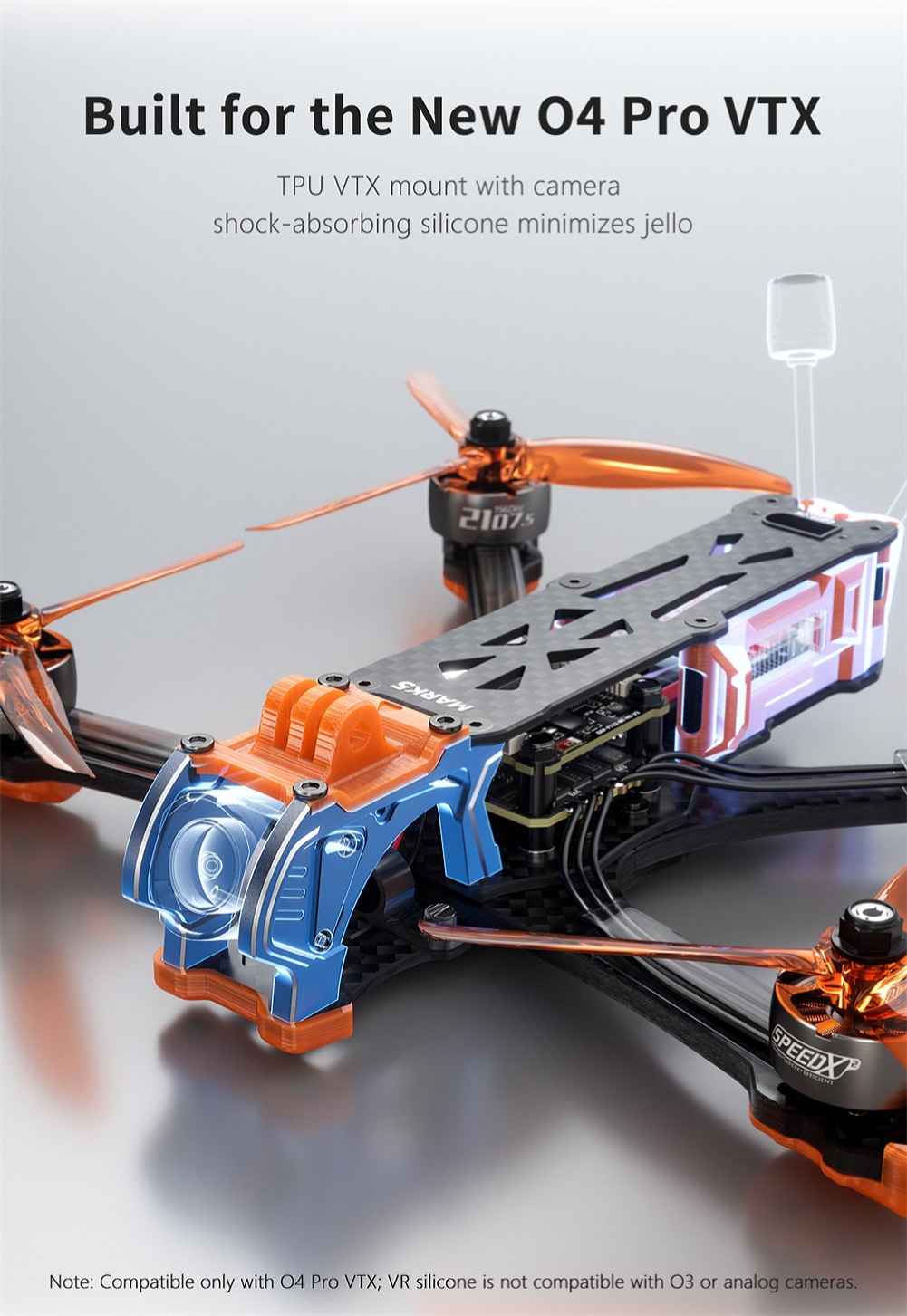

The GEPRC MARK5 O4 series drone is specifically designed for the DJI O4 Air Unit Pro VTX. It features a newly designed camera aluminum mount and custom shock-absorbing silicone, which enhance compatibility and reduce vibrations. These upgrades ensure stable and smooth footage, minimizing the impact of vibrations on the gyroscope during flight. The drone’s frame is crafted from 3K carbon fiber, making it lighter, stronger, and more durable. It includes quick-release arms for easy swapping, TPU camera mounts compatible with all action cameras, and separate compartments for the capacitor and buzzer to ensure stable performance. This drone is optimized for a variety of flying situations, making it a versatile choice for FPV racing enthusiasts.

Note:
– The WTFPV series is VTX-free and requires user integration.
– Dimensions and weight are for reference only; actual product may vary.
– Compatible only with DJI O4 Pro VTX; VR silicone is not compatible with DJI O3 or analog cameras.
Description:
The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminum mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations.These upgrades ensure stable, smooth footage while effectively minimizing the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.
Feature:
1. Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

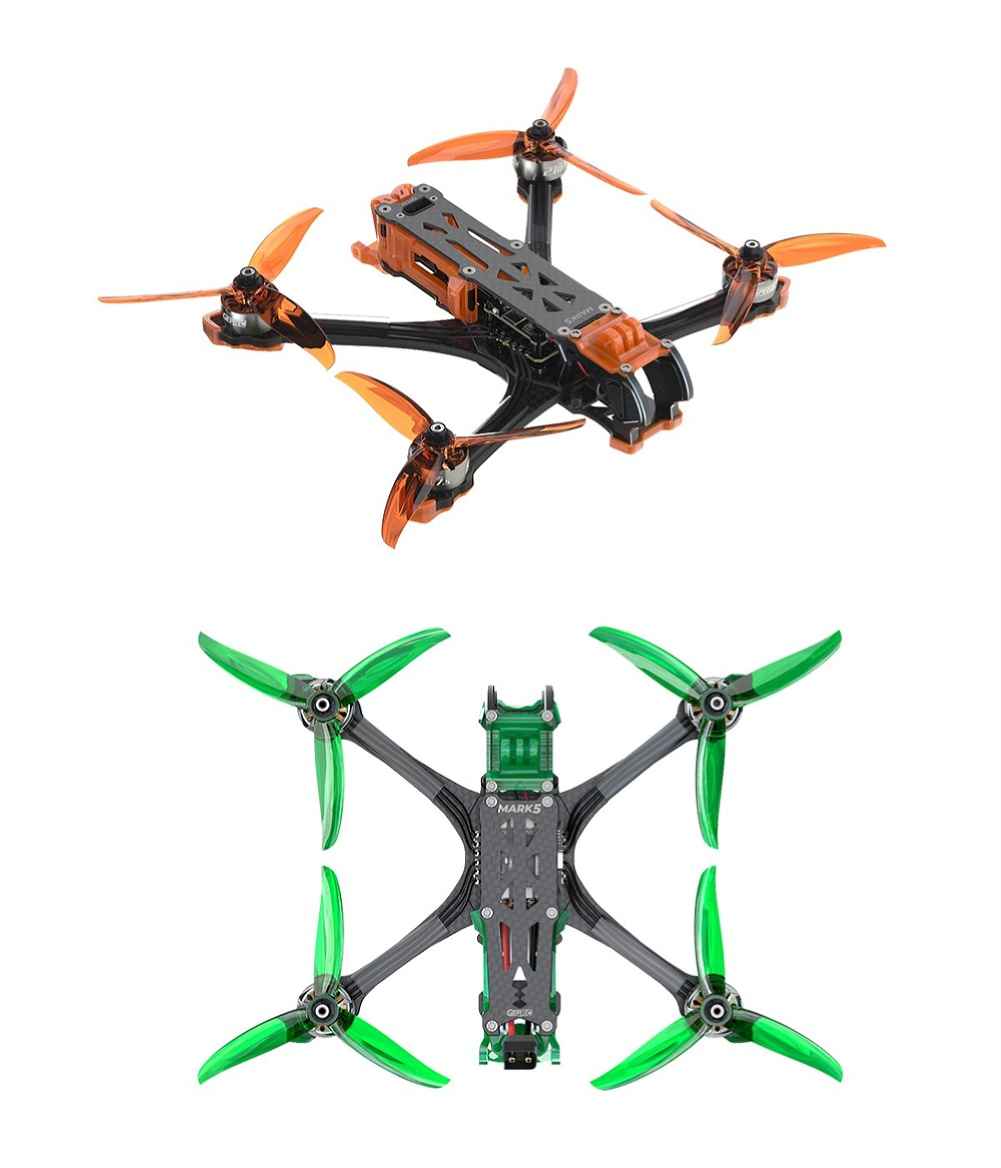

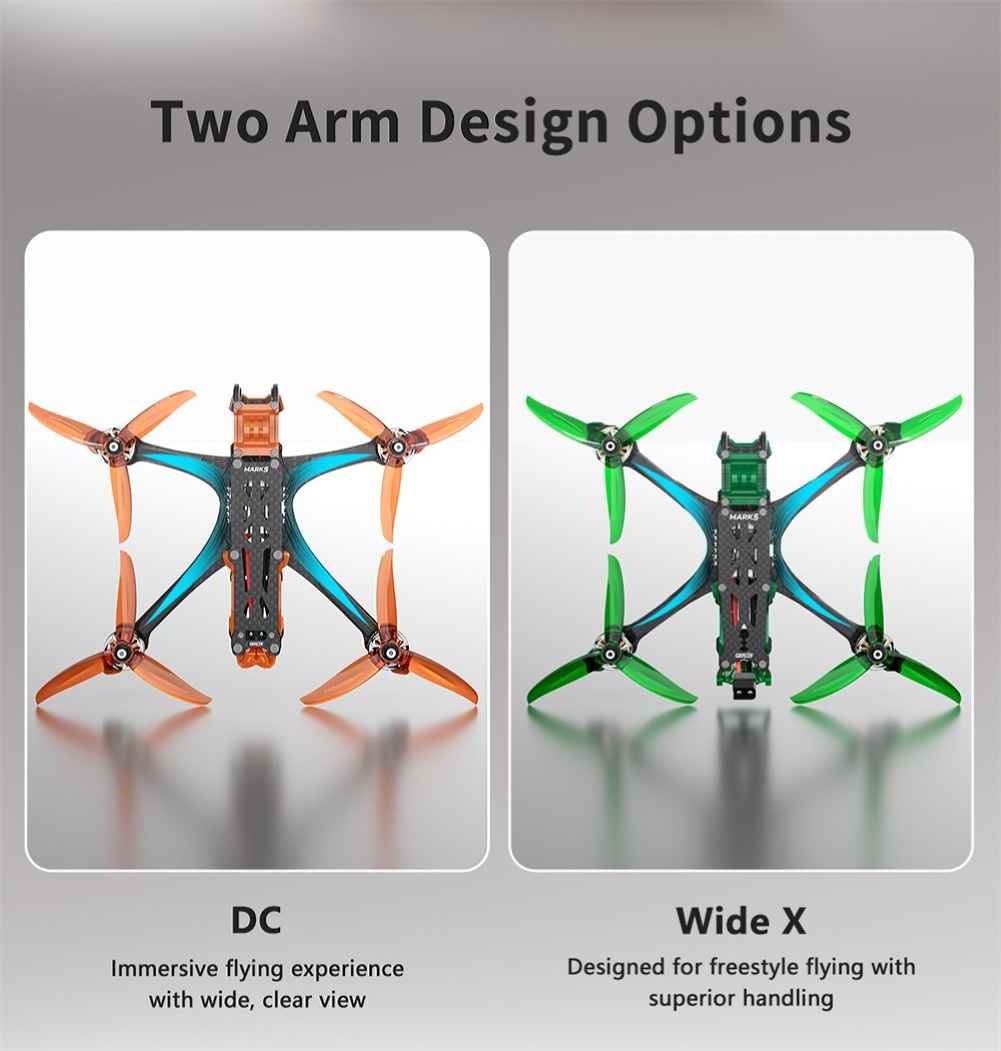

2. DC and wide X frames, fit for a variety of flying situations.
3. Two TPU camera mounts, compatible with all action cameras.
4. Quick-release arms with just two screws for easy swapping.
5. 3K carbon fiber frame that is lighter, stronger, and more durabl.
6. Separate capacitor and buzzer compartment for stable, jitter-free operation.
7. Vibration-dampening frame for stable electronics performance.

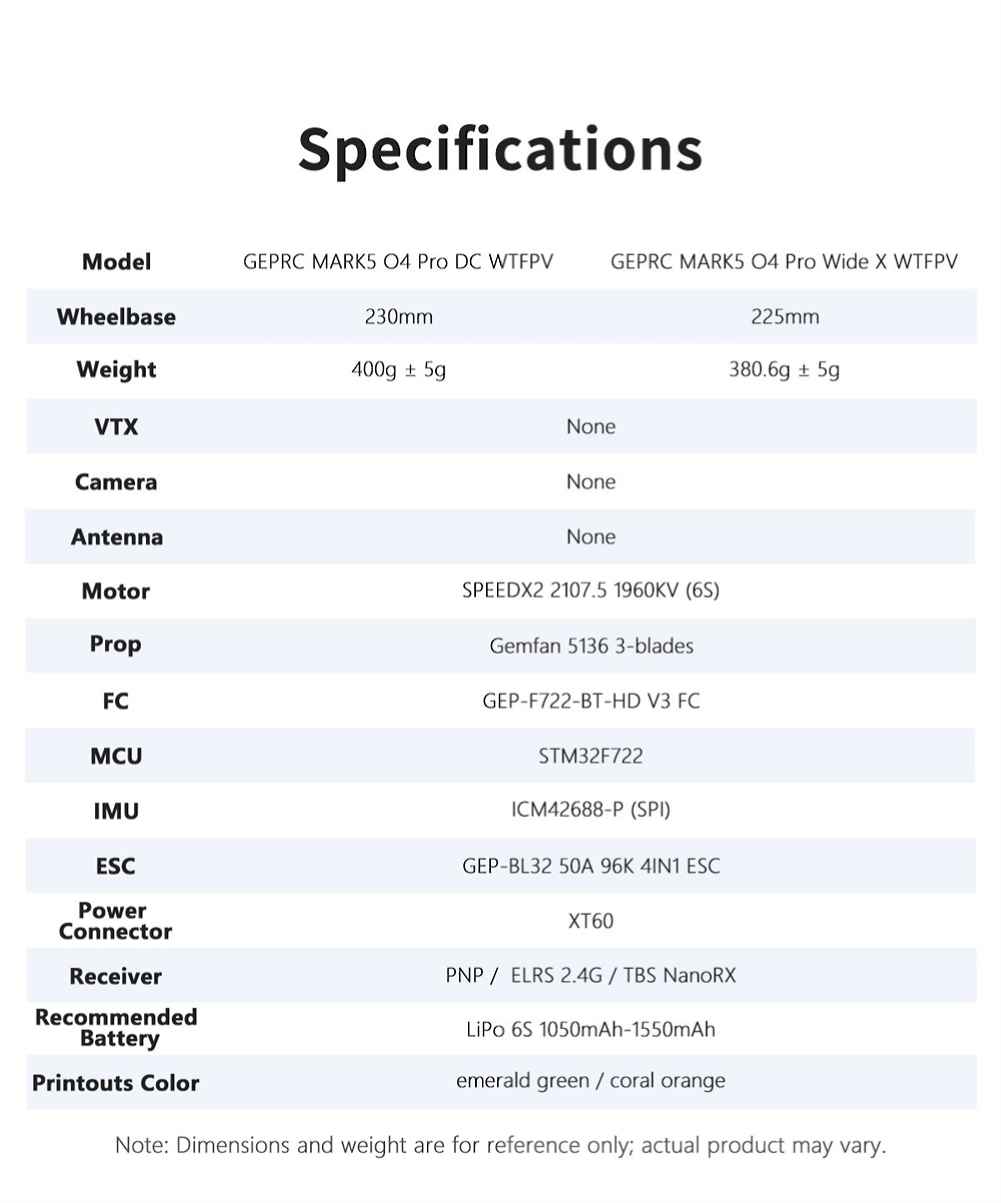

Specfication:
Brand: GEPRC
Model: MARK5
Item Name: 5 Inch 6S WTFPV Drone

Model:

MARK5 O4 Pro DC WTFPV FPV

Wheelbase:

225mm

Weight:

380.6g 呼 5g

VTX:

None

Camera:

None

Antenna:

None

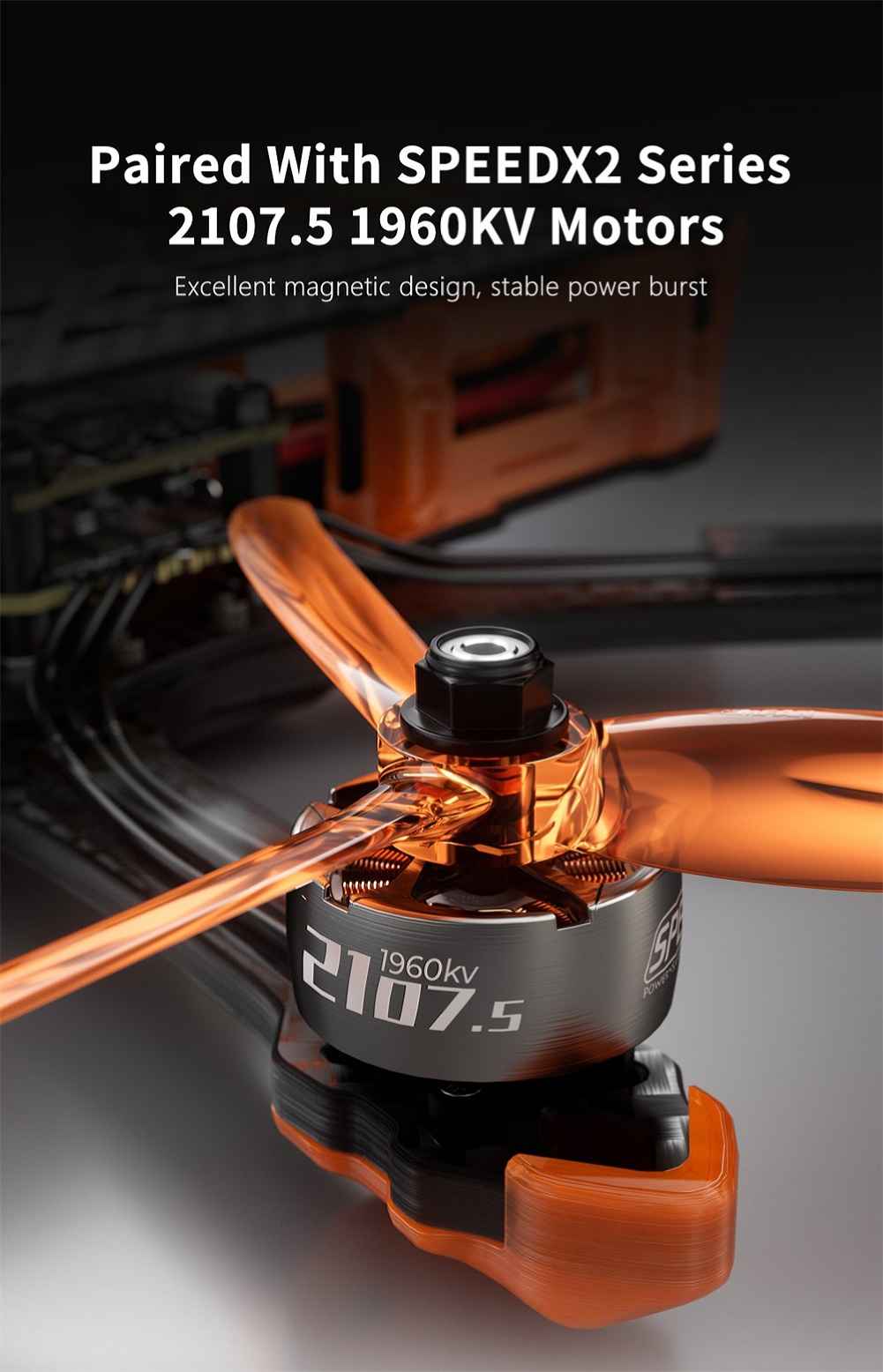

Motor:

SPEEDX2 2107.5 1960KV

Propeller:

Genfan 5136

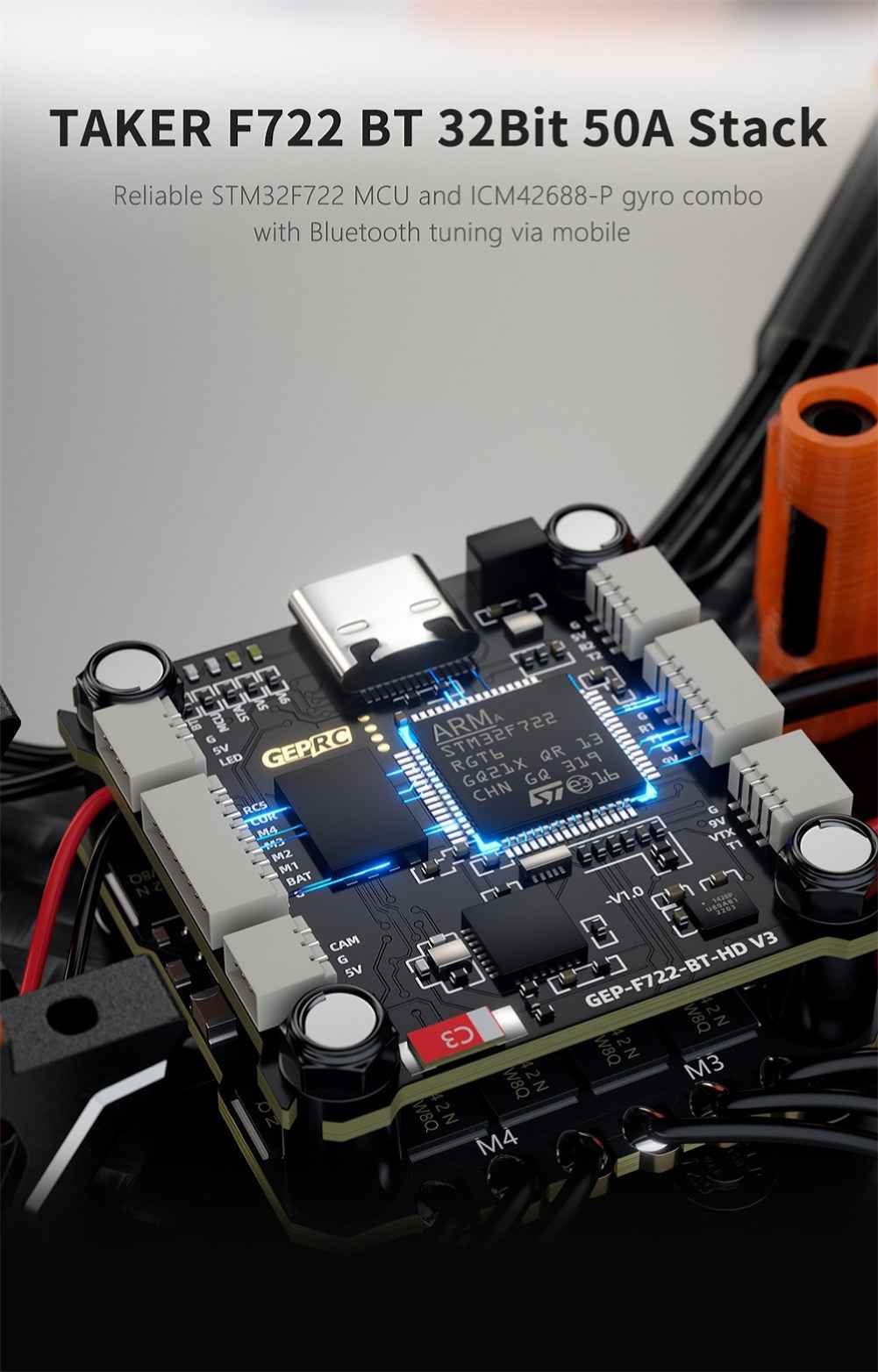

FC:

GEP-F722-BT-HD V3

MCU:

STM32F722

IMU:

ICM42688-P(SPI)

OSD:

BetaFlight OSD w / AT7456E chip

ESC:

GEP-BL32 50A 96K 4IN1 ESC

Power Connector:

XT60

Receiver:

PNP / ELRS 2.4G / TBS NanoRX

Recommended Battery(Not included):

LiPo 6S 1050mAh-1550mAh

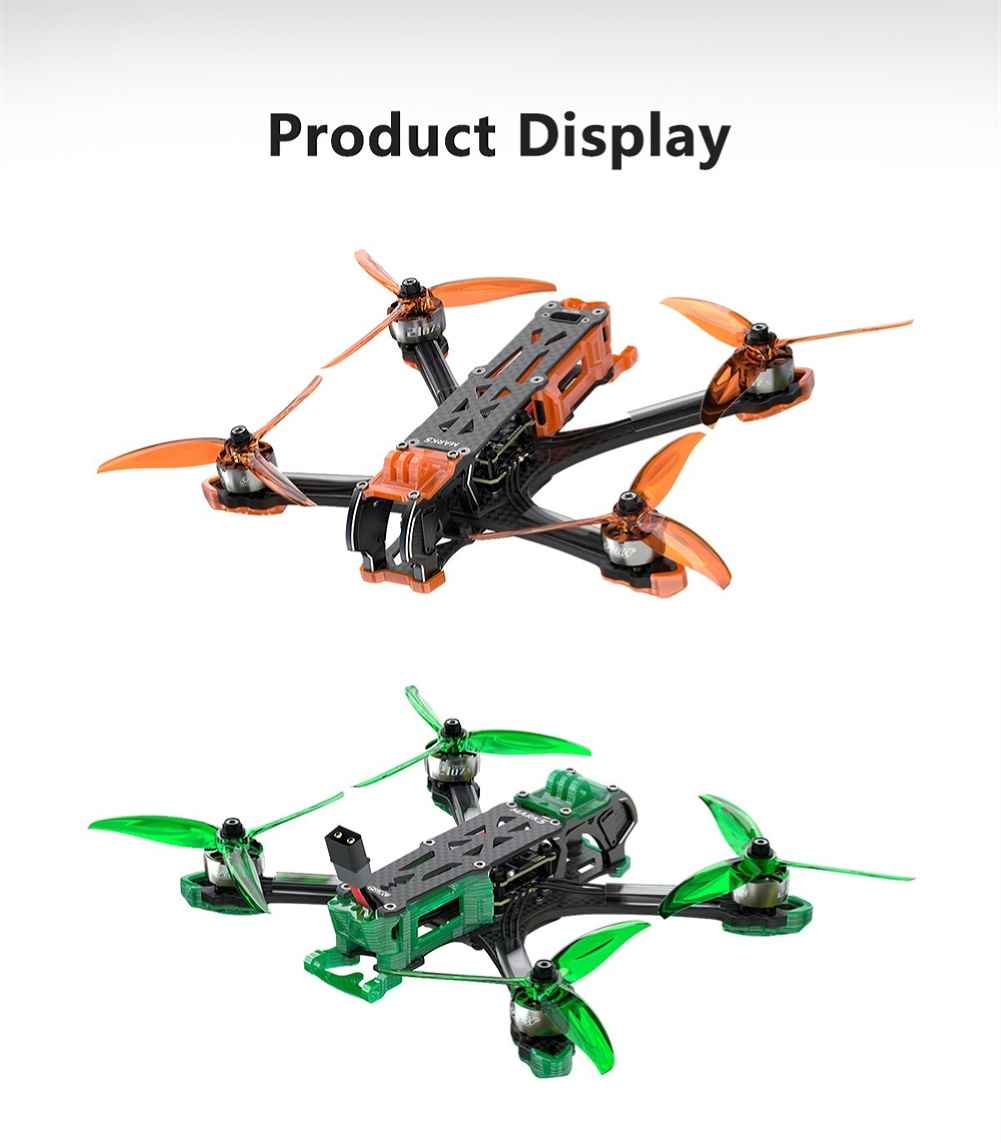

Printouts Color:

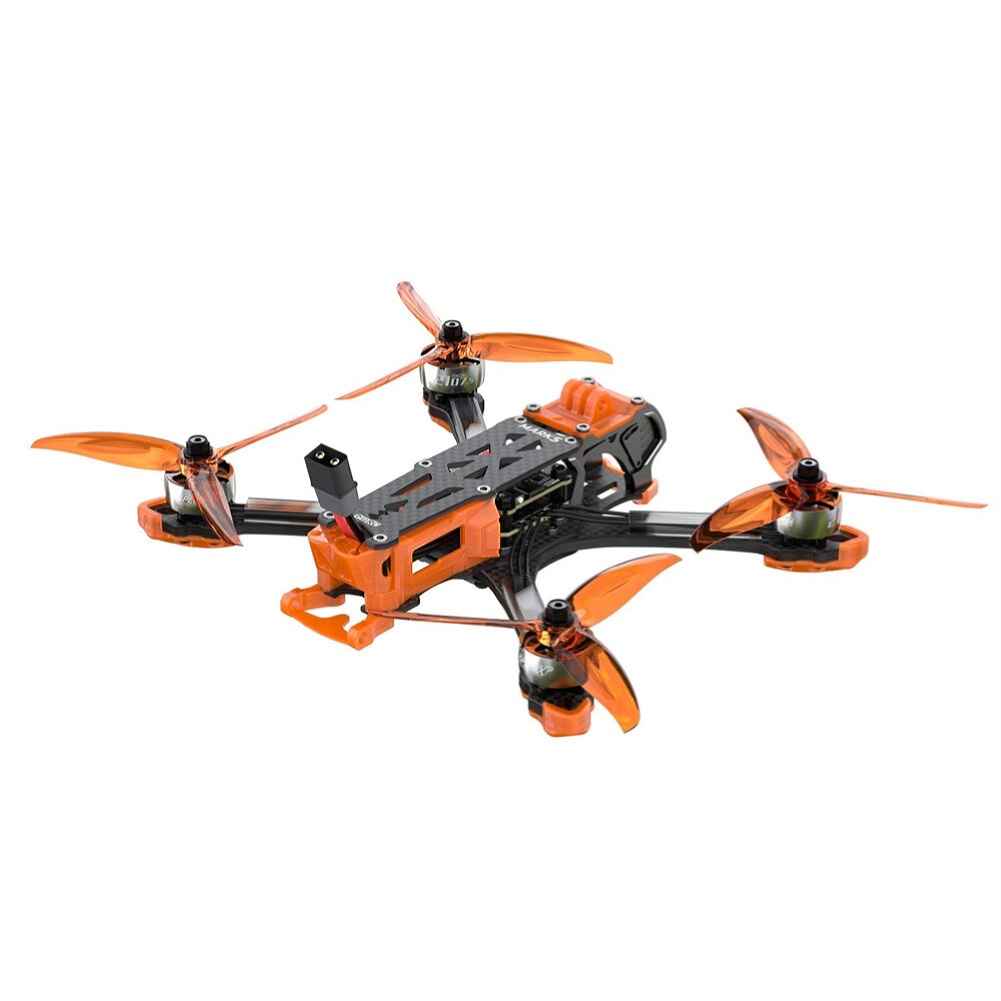

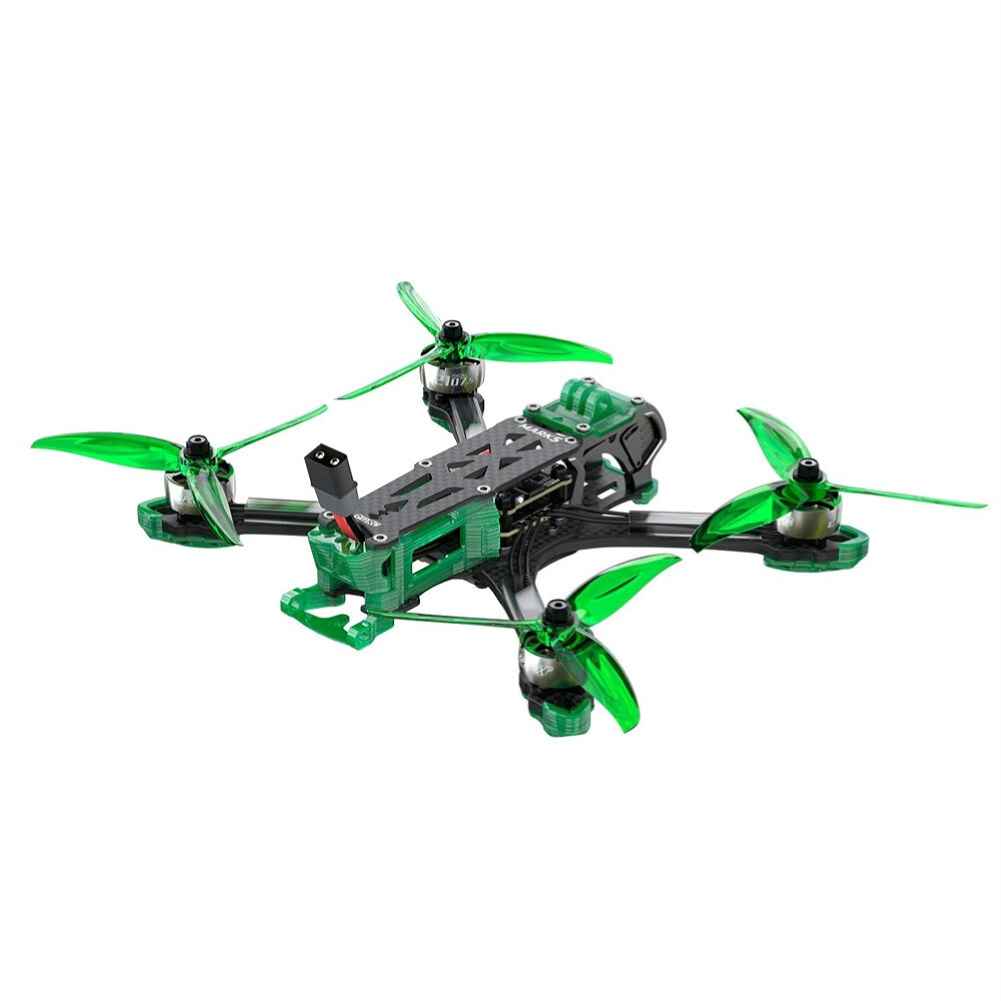

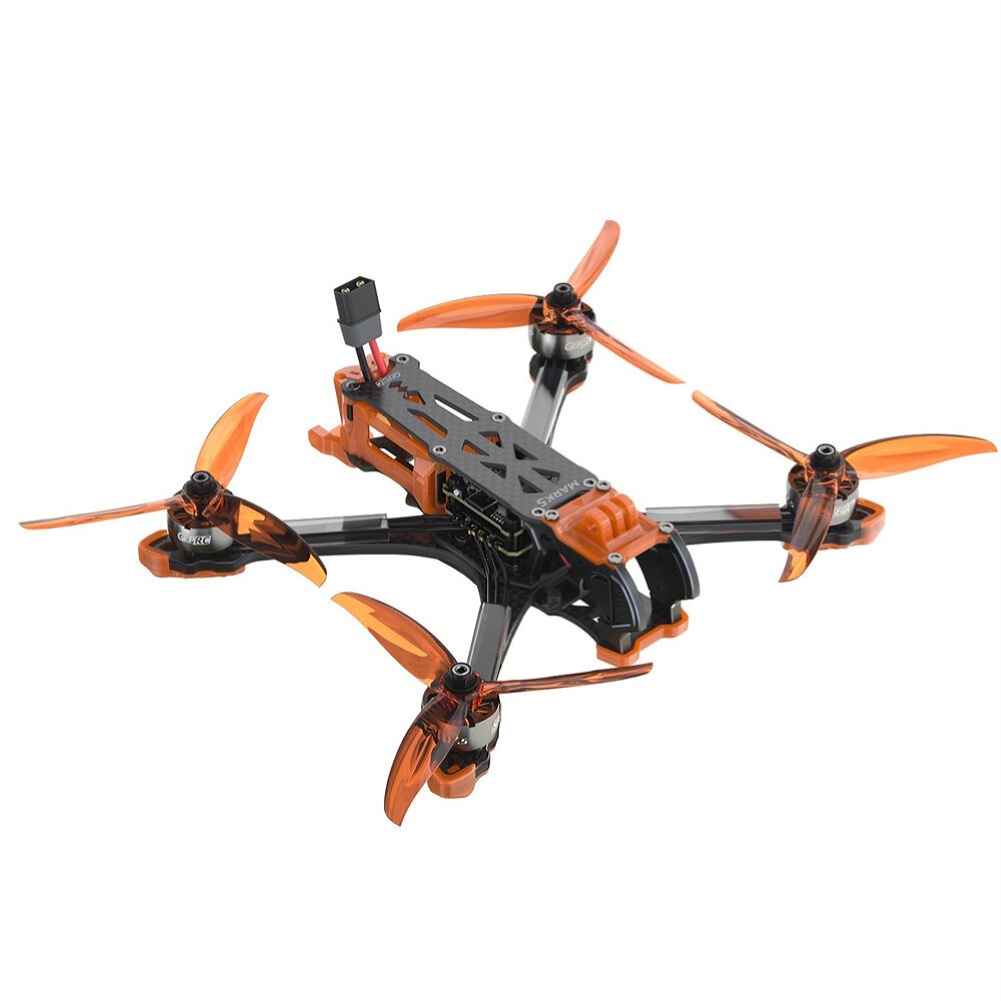

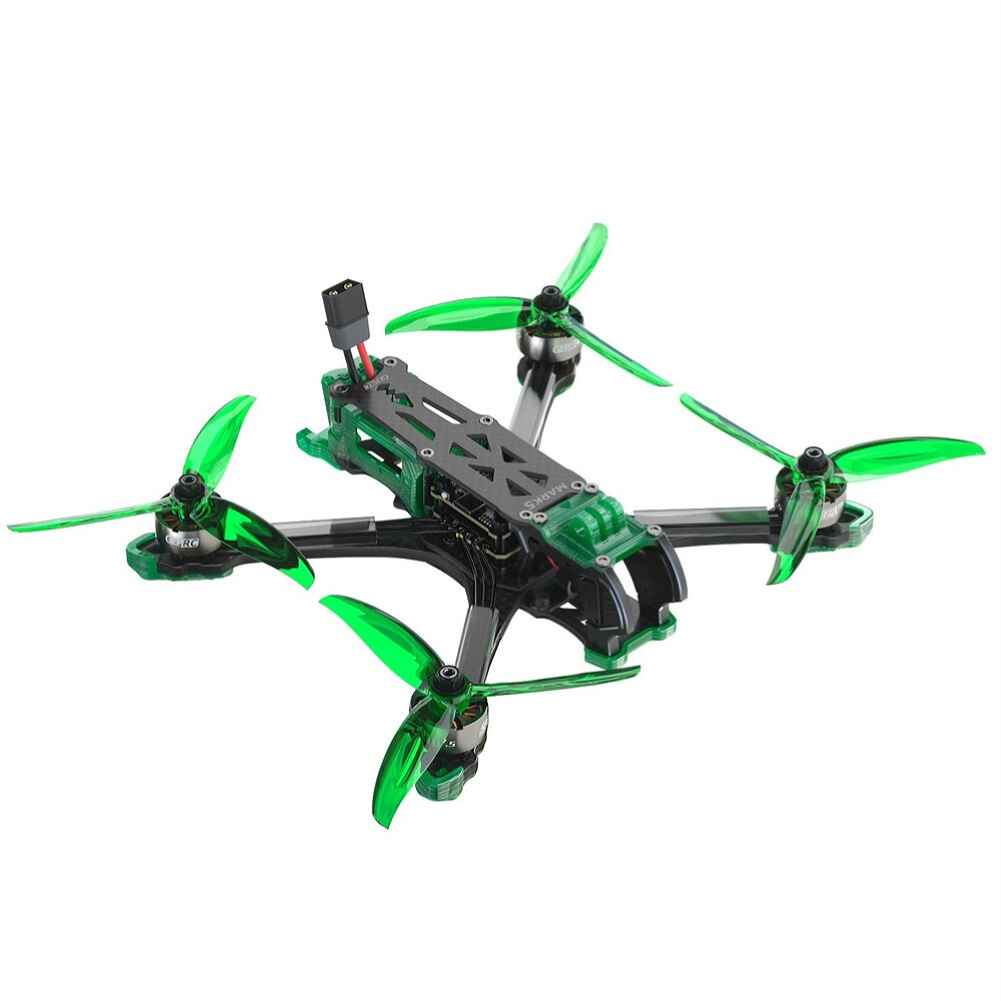

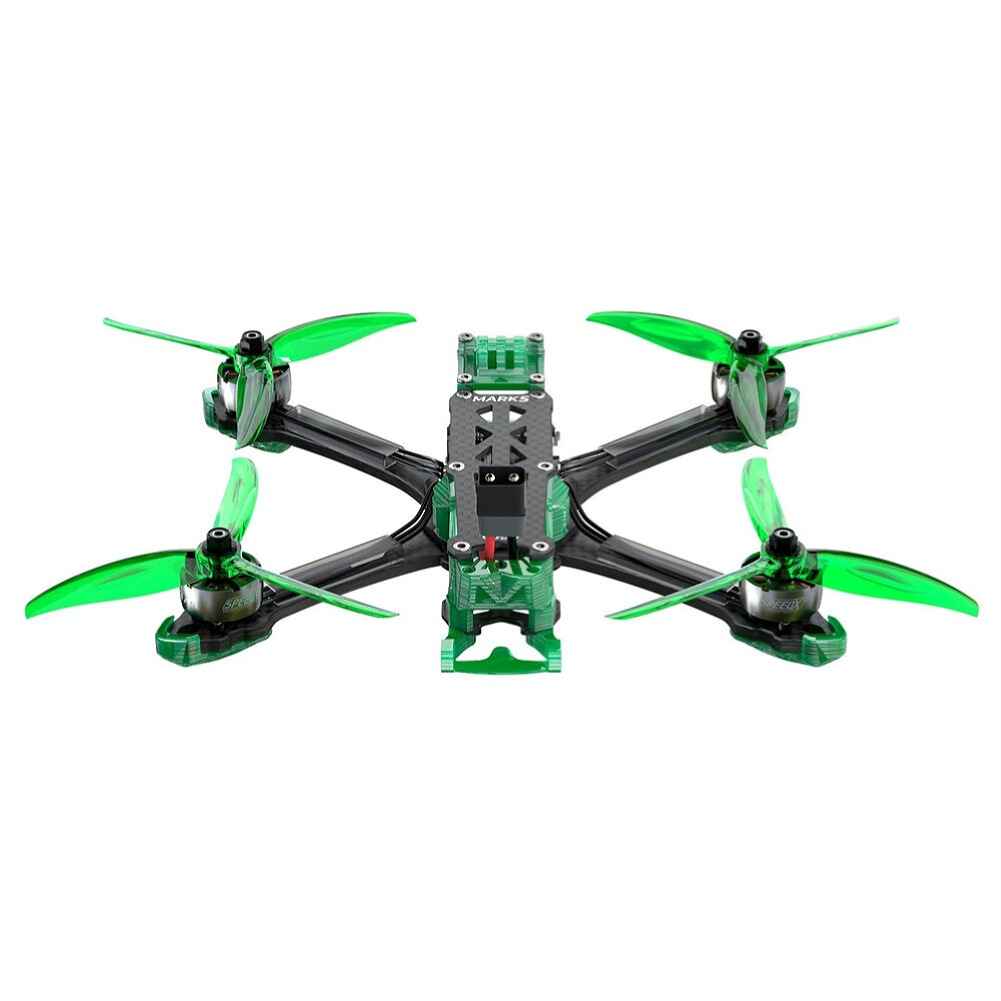

emerald green/coral orange (optional)

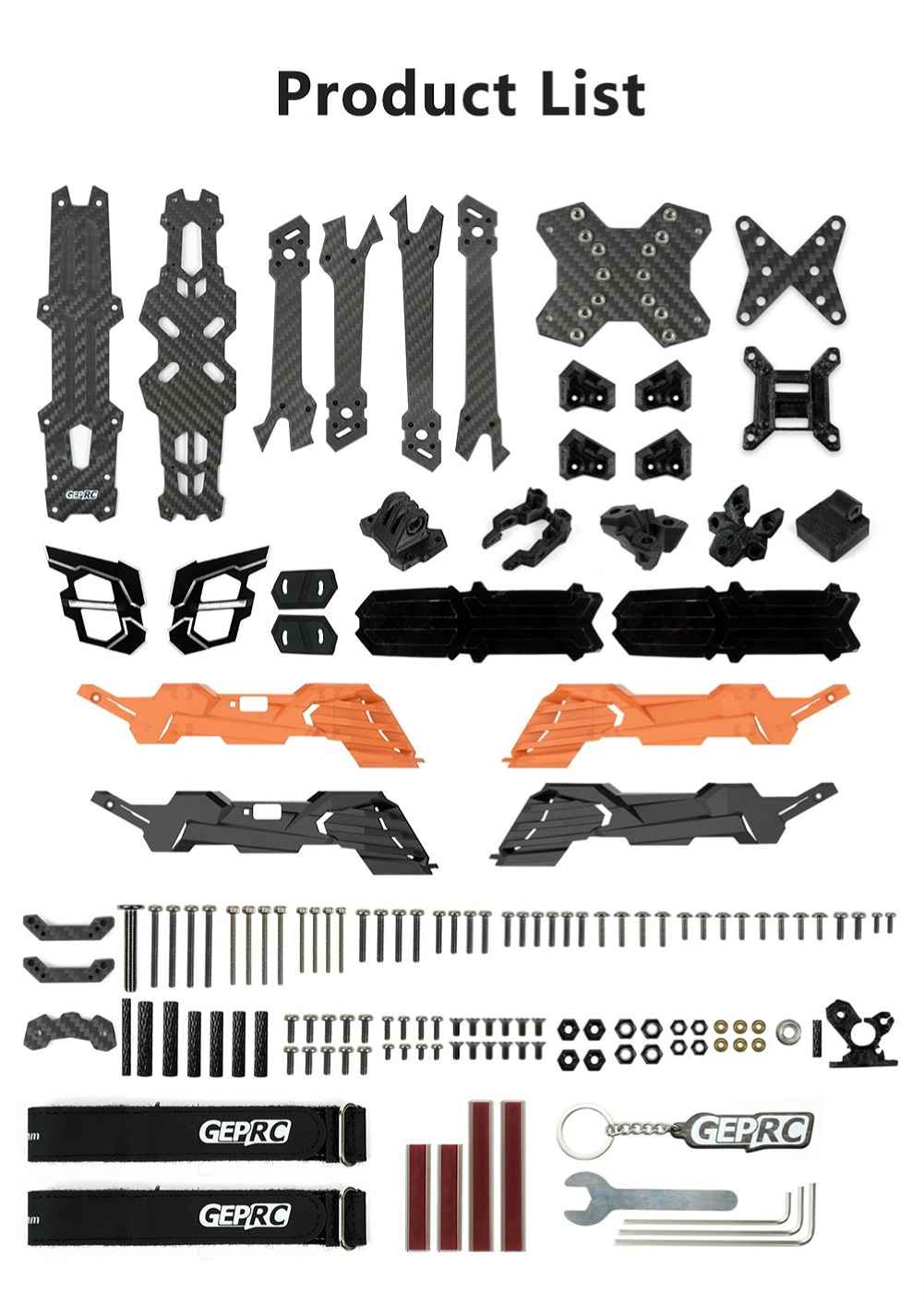

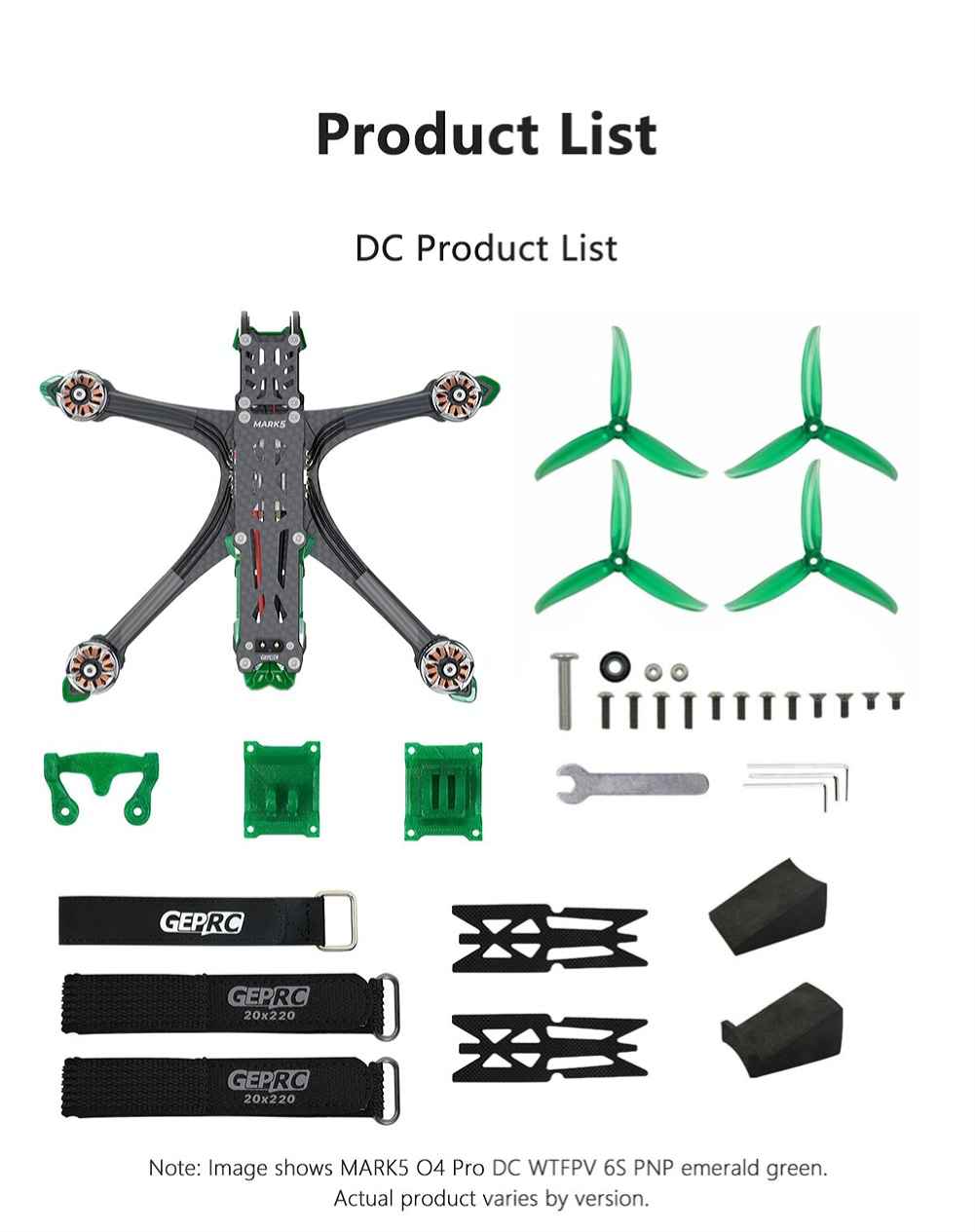

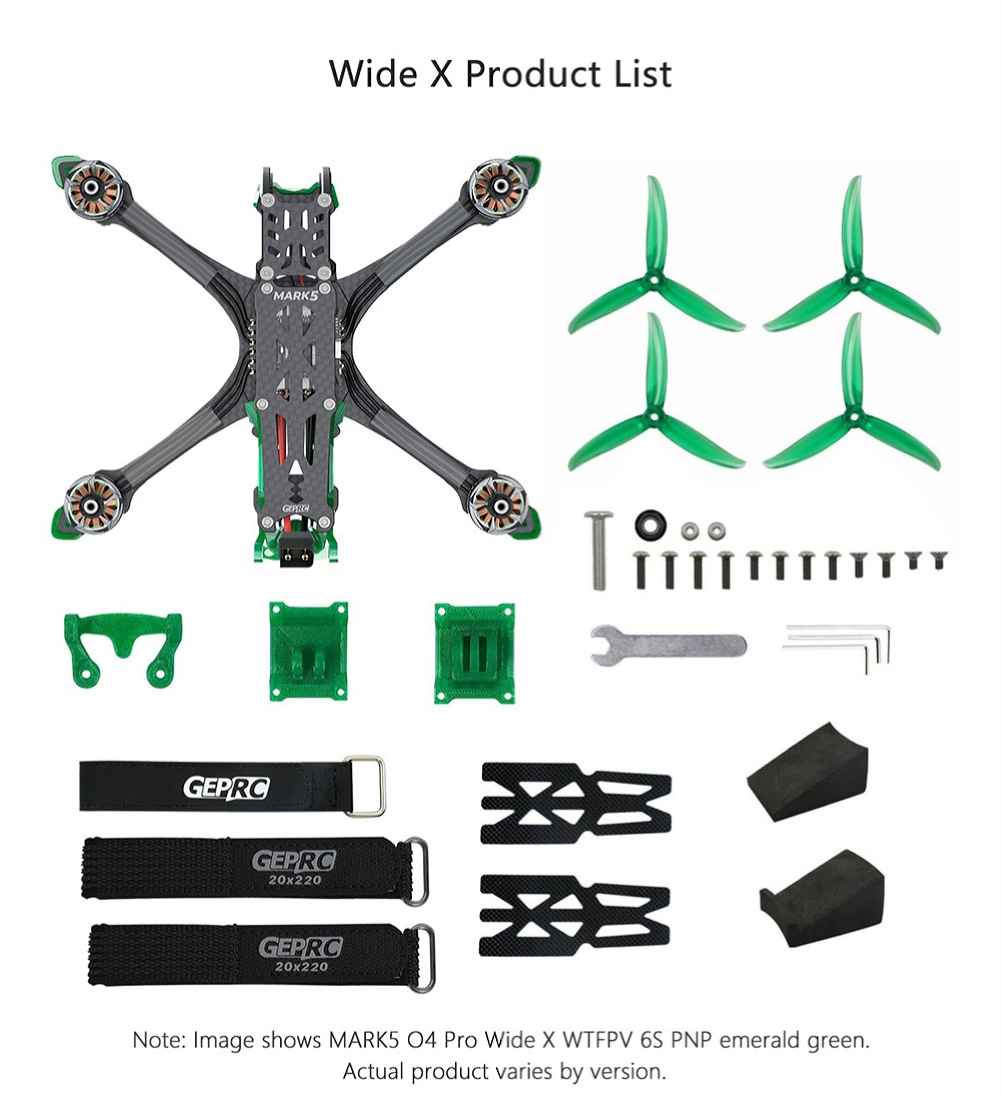

Package Included:
1 x MARK5 Wide X WTFPV Drone
1 x Gemfan 5136 (2CW 2CCW)
1 x 15 250mm Strap
2 x 20 250mm Straps
2 x Battery anti-slip pads
1 x 3D printouts pack

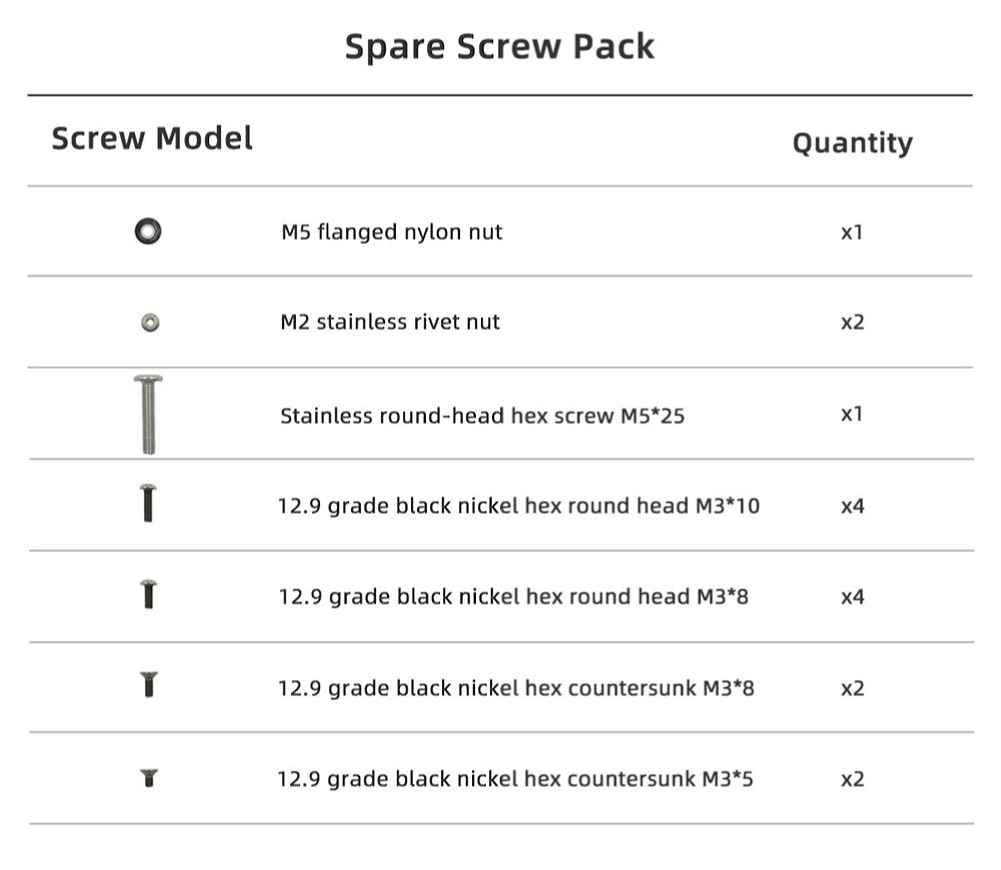

1 x Spare Screw Pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench
