GEPRC TAKER F405 HD V2 Flight Controller Stack, 30.5×30.5mm, 5V 9V BEC, 50A BL_S 3-6S 4in1 ESC, DJI Air Unit Compatible, RC Drone FPV Racing

Description

30.5×30.5mm GEPRC TAKER F405 HD V2 F4 OSD Flight Controller with 5V 9V BEC & 50A BL_S 3-6S 4in1 Brushless ESC Stack for RC Drone FPV Racing

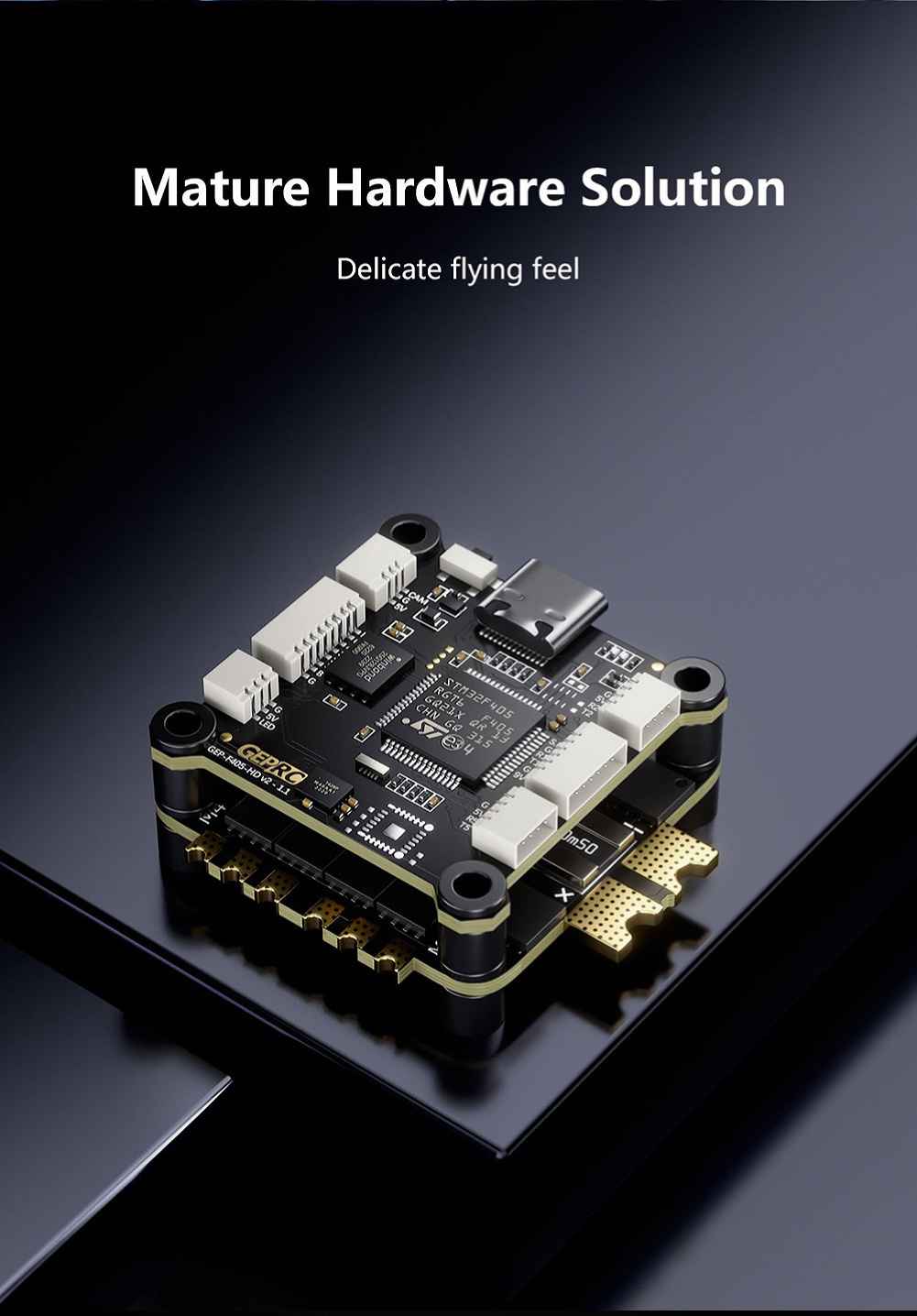

The GEPRC TAKER F405 HD V2 Flight Controller Stack offers a seamless plug-and-play experience, specifically designed for DJI Air Unit integration. It features the STM32F405 chip and ICM42688-P gyroscope, ensuring precise control and stability. The stack includes a 16M black box and GEP-BLS50A-4IN1 ESC, providing enhanced flight performance. With a Type-C USB connector, it offers improved durability and connectivity. The dual independent BECs, 9V 2.5A and 5V 3A, deliver stable power to external devices. This stack supports a range of protocols and ensures a smooth flying experience with its shock-absorbing design.

Summary:

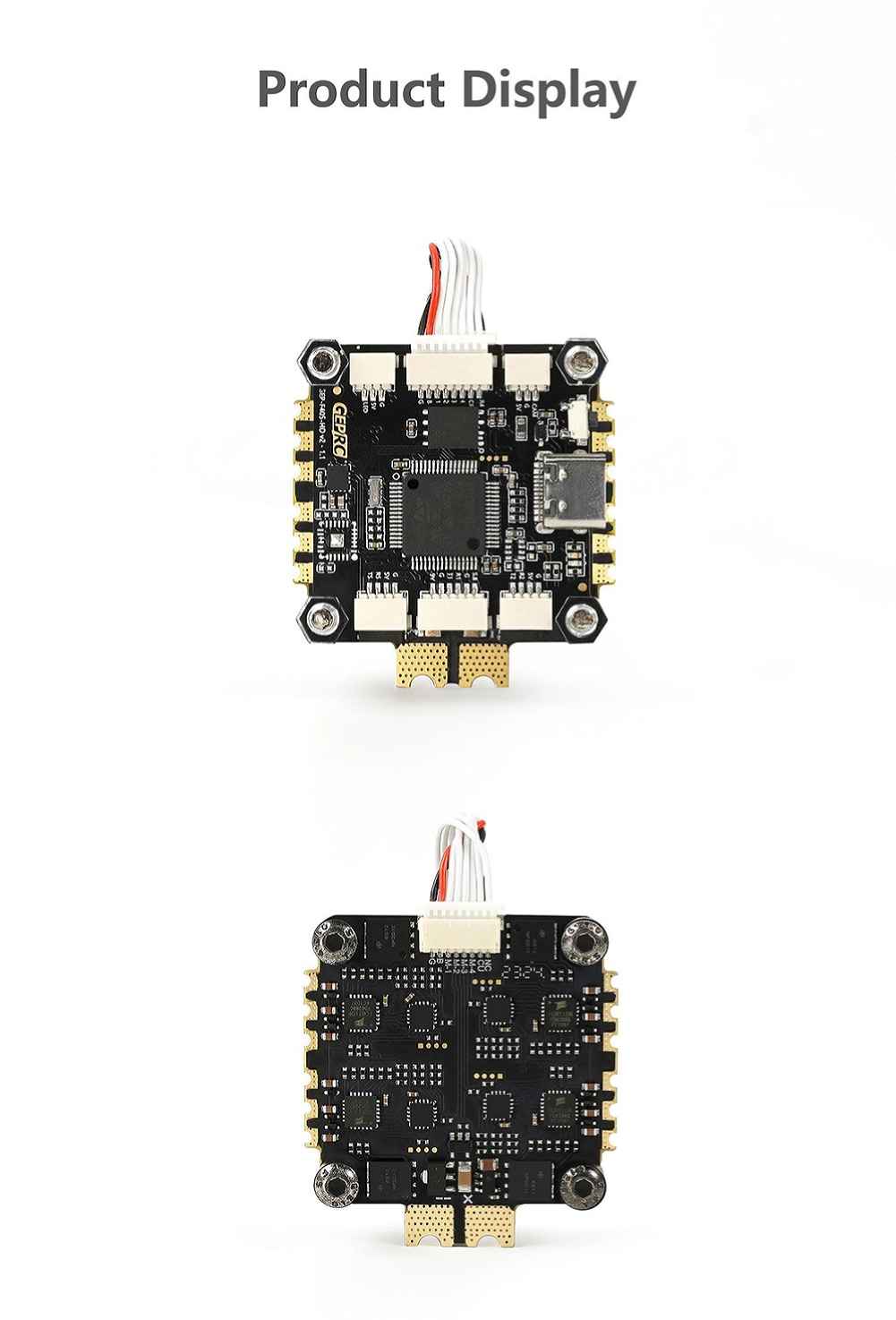

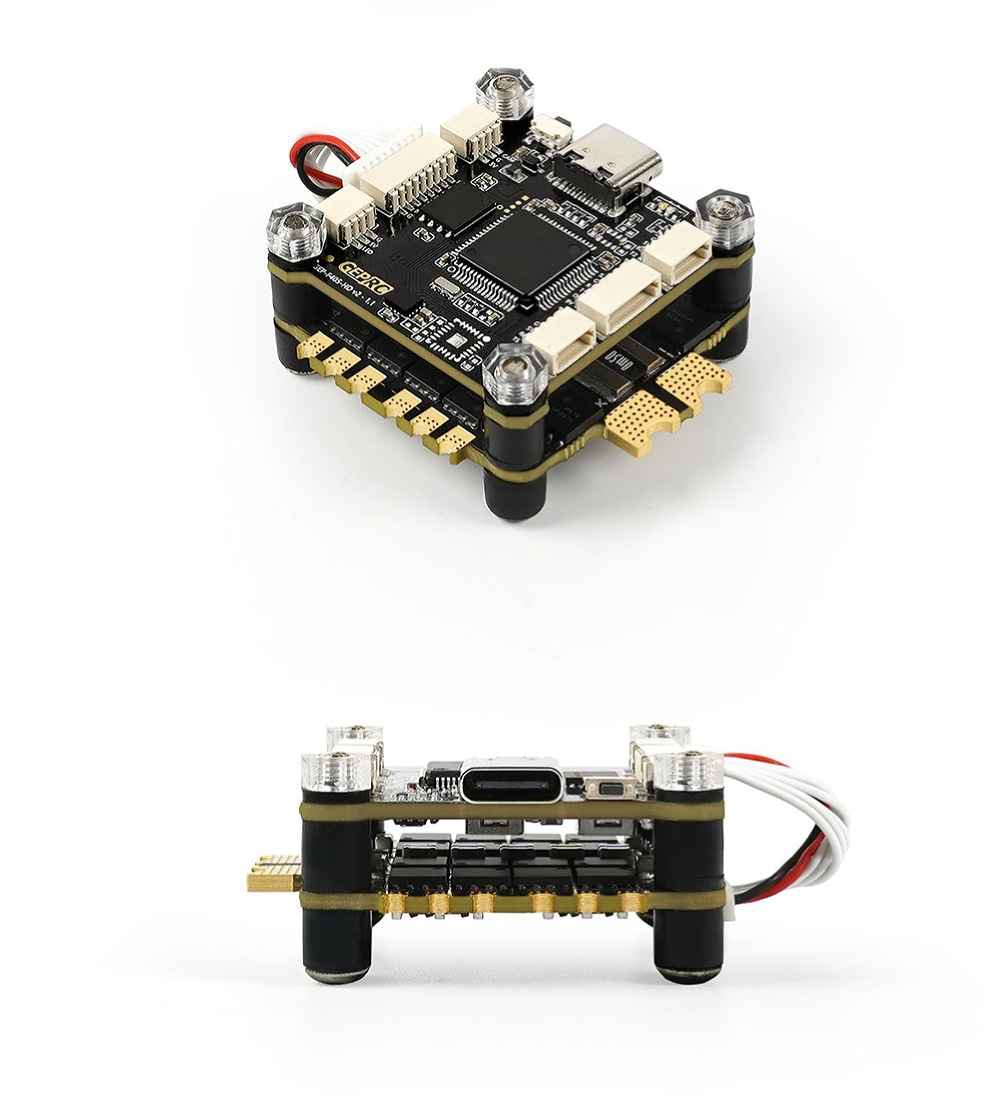

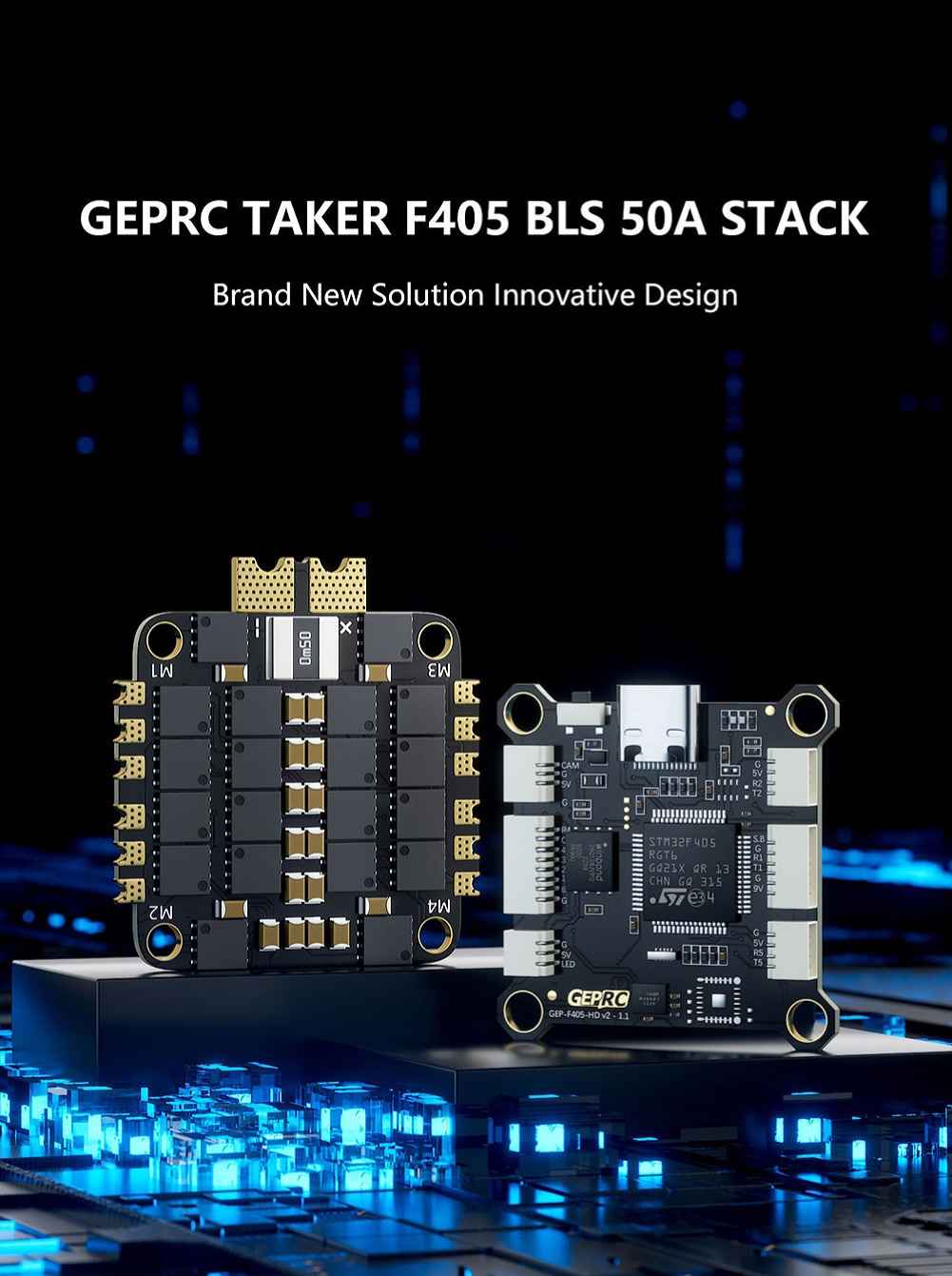

GEPRC TAKER F405 BLS 50A STACK is a plug-and-play stack system specially designed for DJI Air Unit. Use STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS50A-4IN1 ESC to have a more delicate hand feeling experience.
The GEPRC TAKER F405 BLS 50A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of soldering. Upgrade the type-C USB connector, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V 2.5A + 5V 3A dual independent BEC, more stable power supply for external devices.
Features:
Use mainstream STM32F405 chip

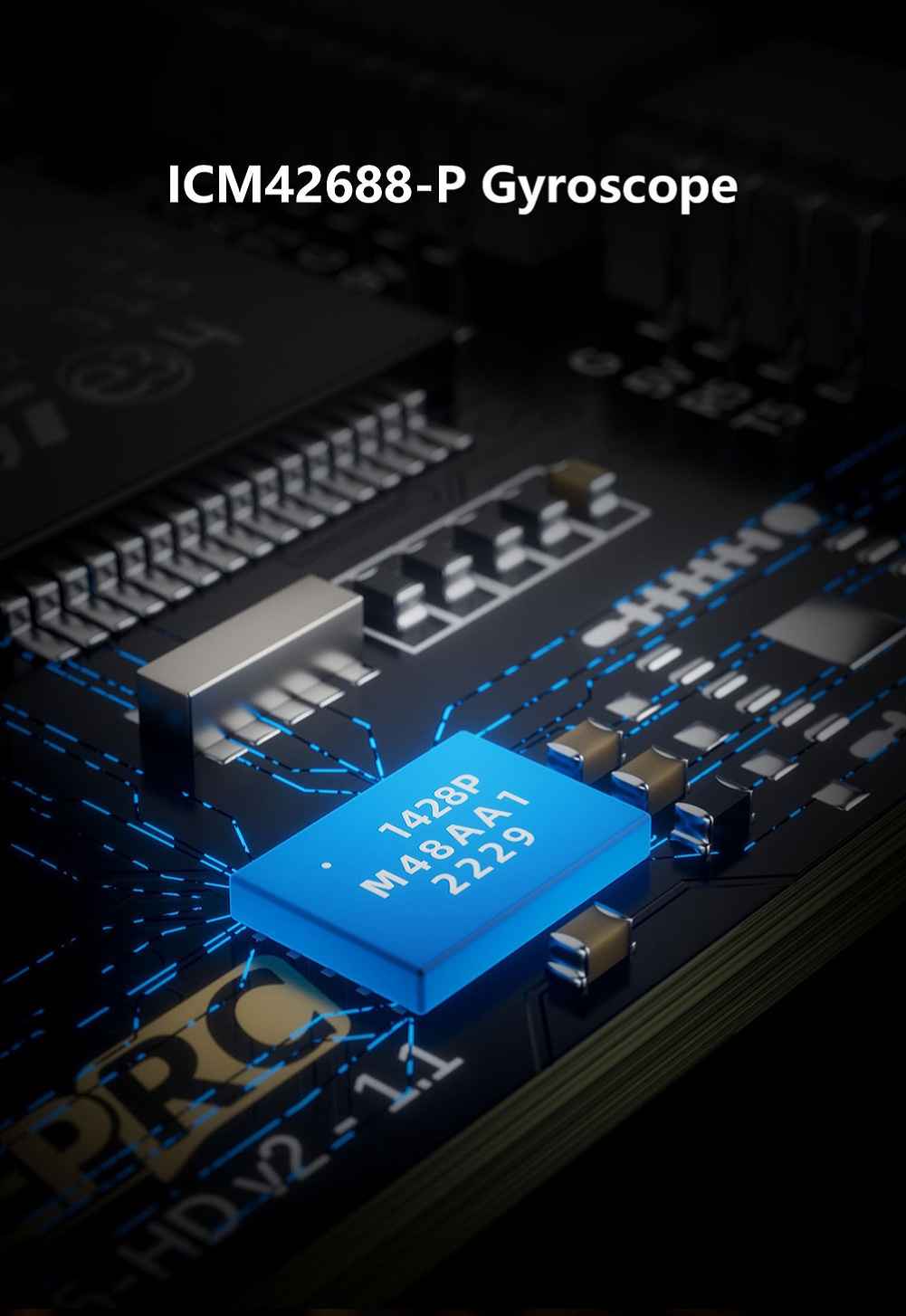

Equipped with the latest 42688-P gyroscope

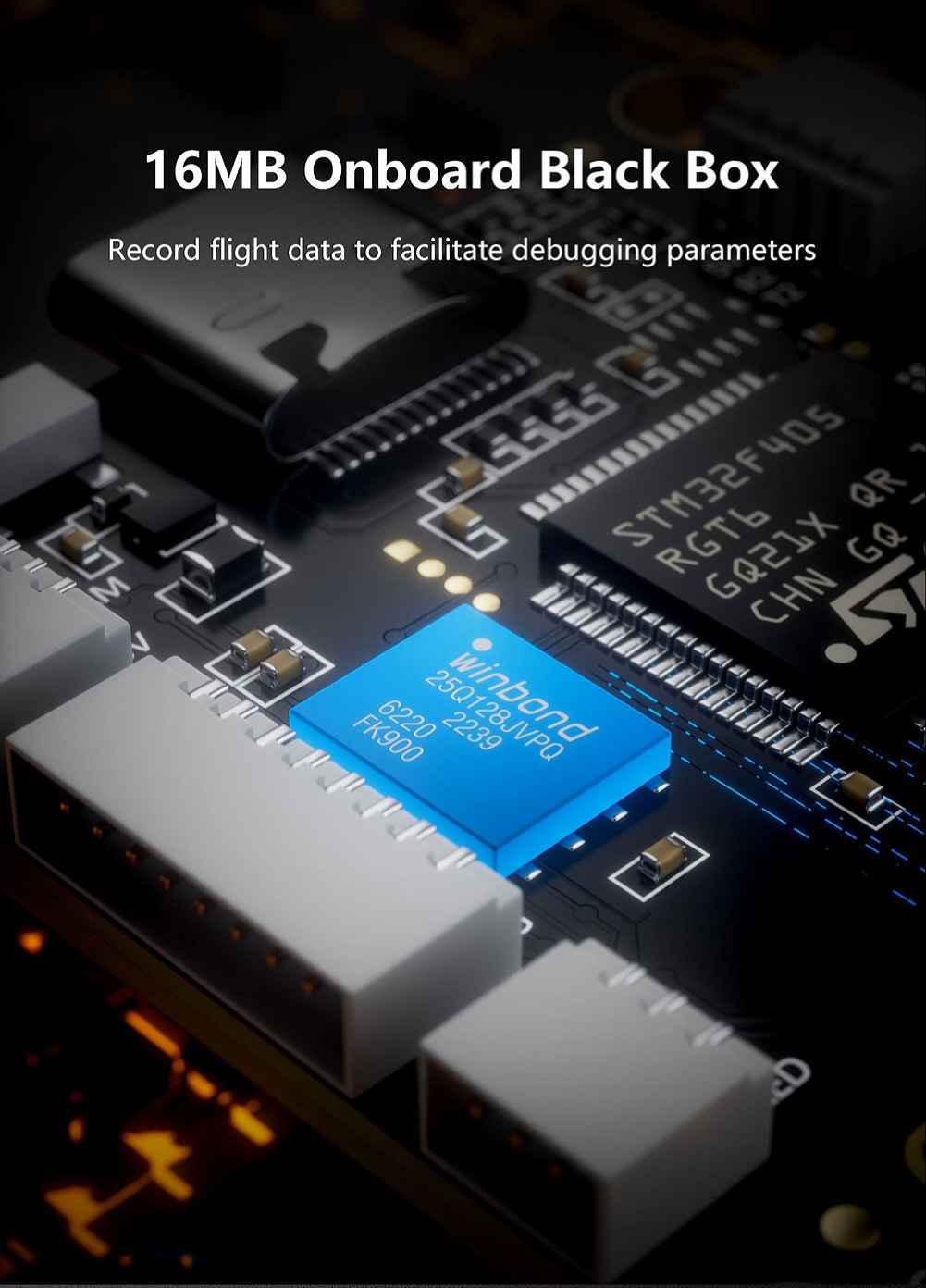

16M black box storage
Integrated LC filter
Upgrade type-C USB interface

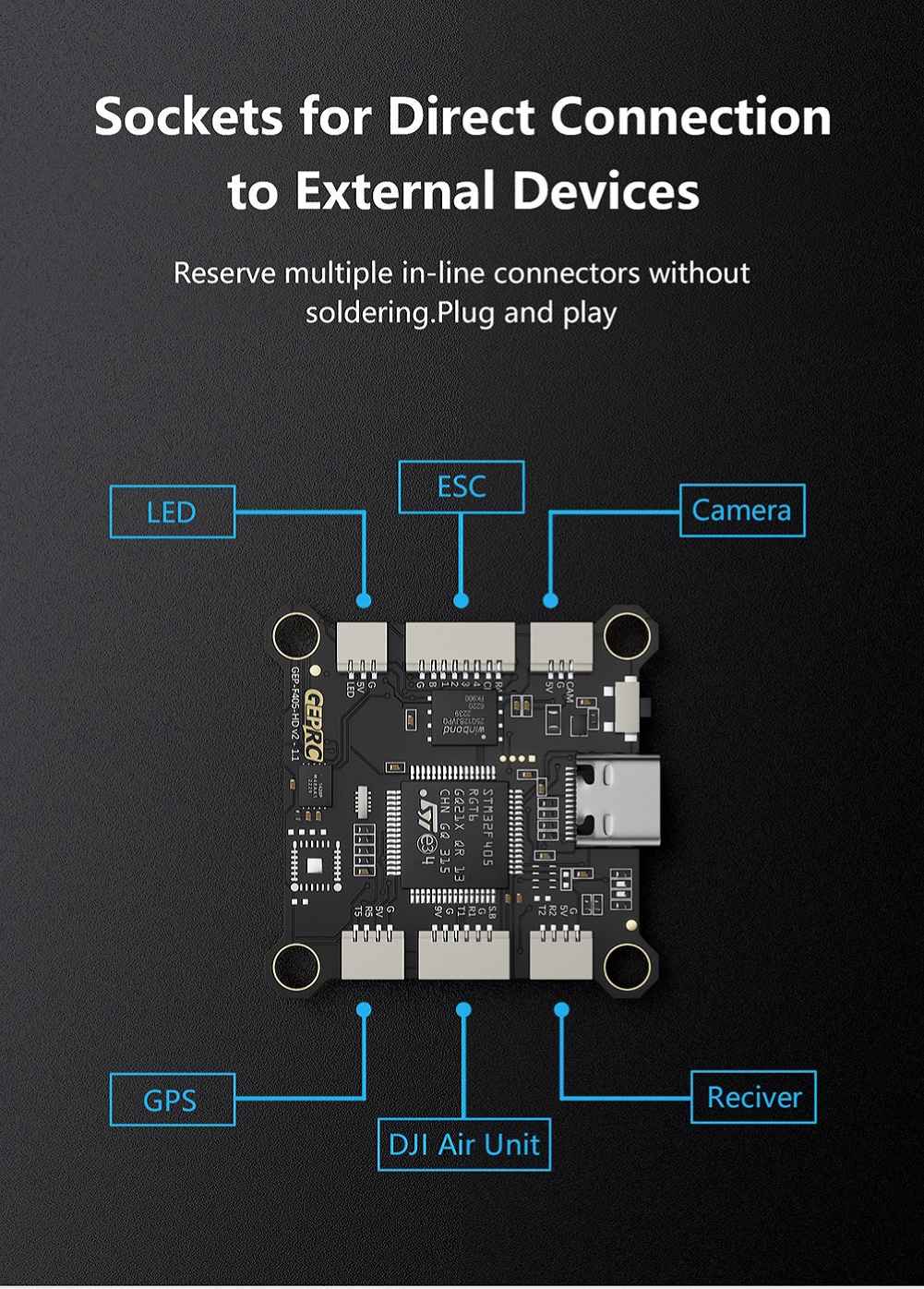

Directly plugged into the DJI Air Unit
With GEP-BLS50A-4IN1 ESC, the flying feel is silky
Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9V 2.5A + 5V 3A dual independent BEC

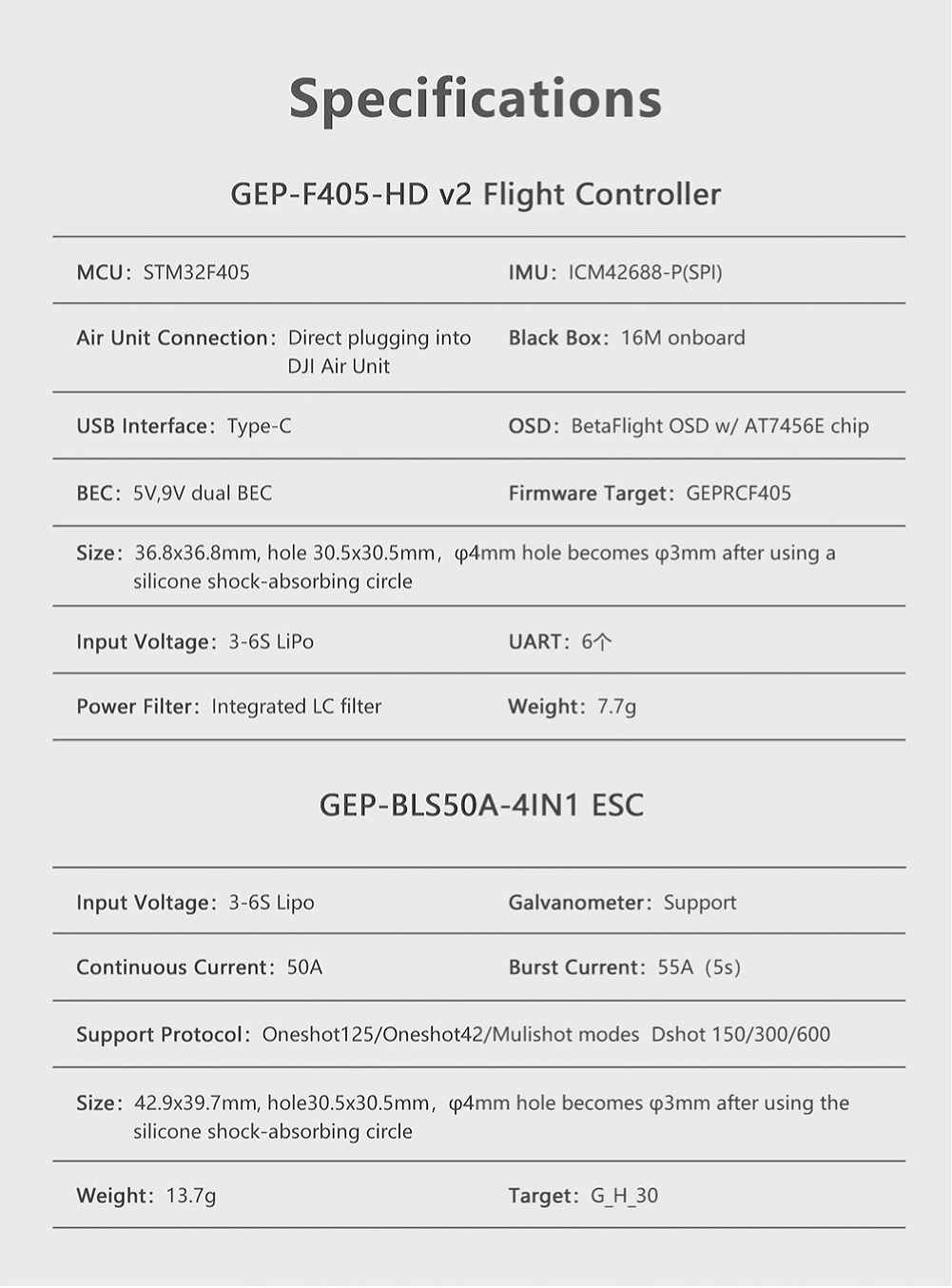

Specifications:
Brand: GeprcModel: TAKER F405 BLS 50A STACK

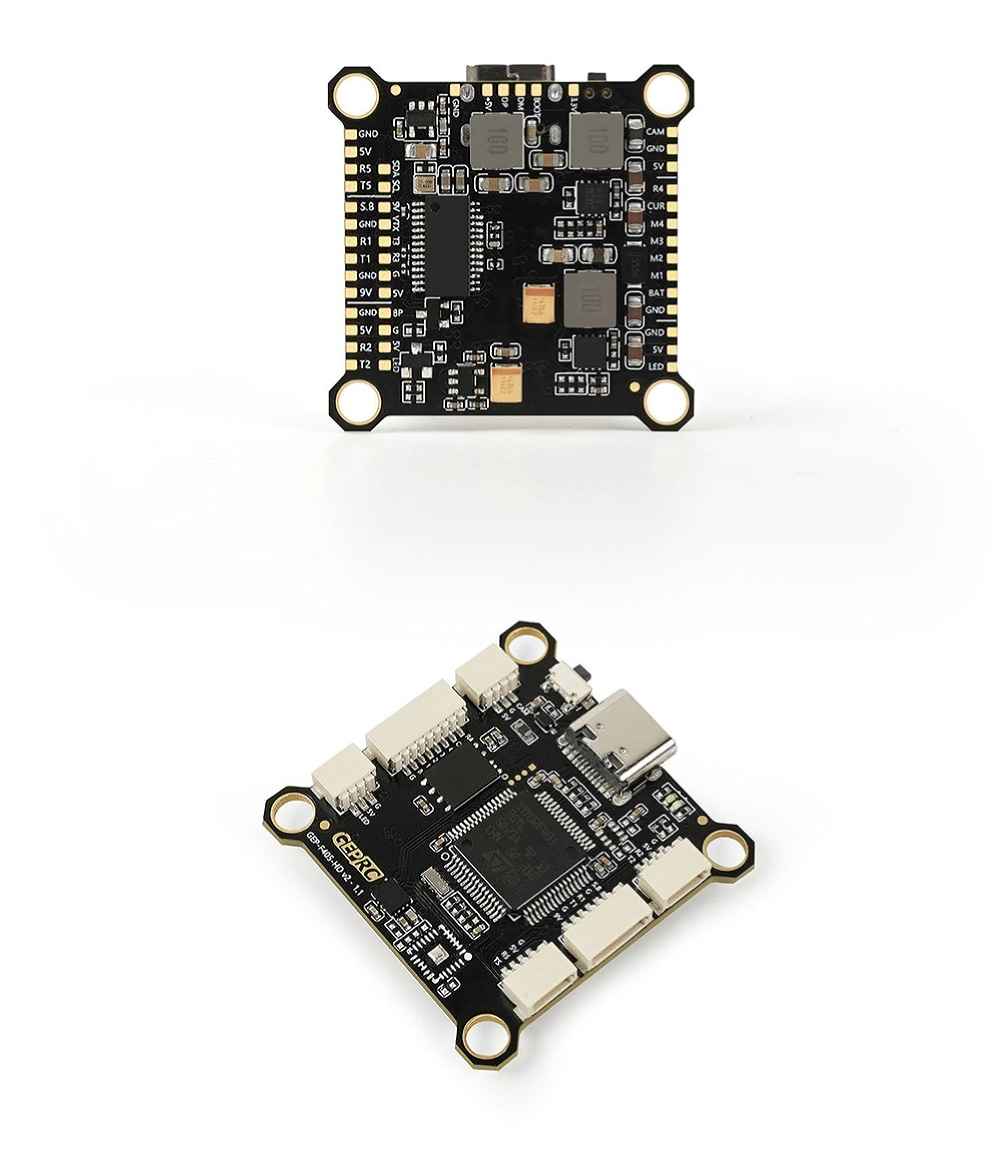

GEP F405 HD v2 Flight Controller

MCU: STM32F405
IMU: ICM42688-P(SPI)
Air Unit Connection: Direct plugging into DJI Air Unit
Black Box: 16M onboard
USB Connector: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V,9V dual BEC
Firmware Target: GEPRCF405

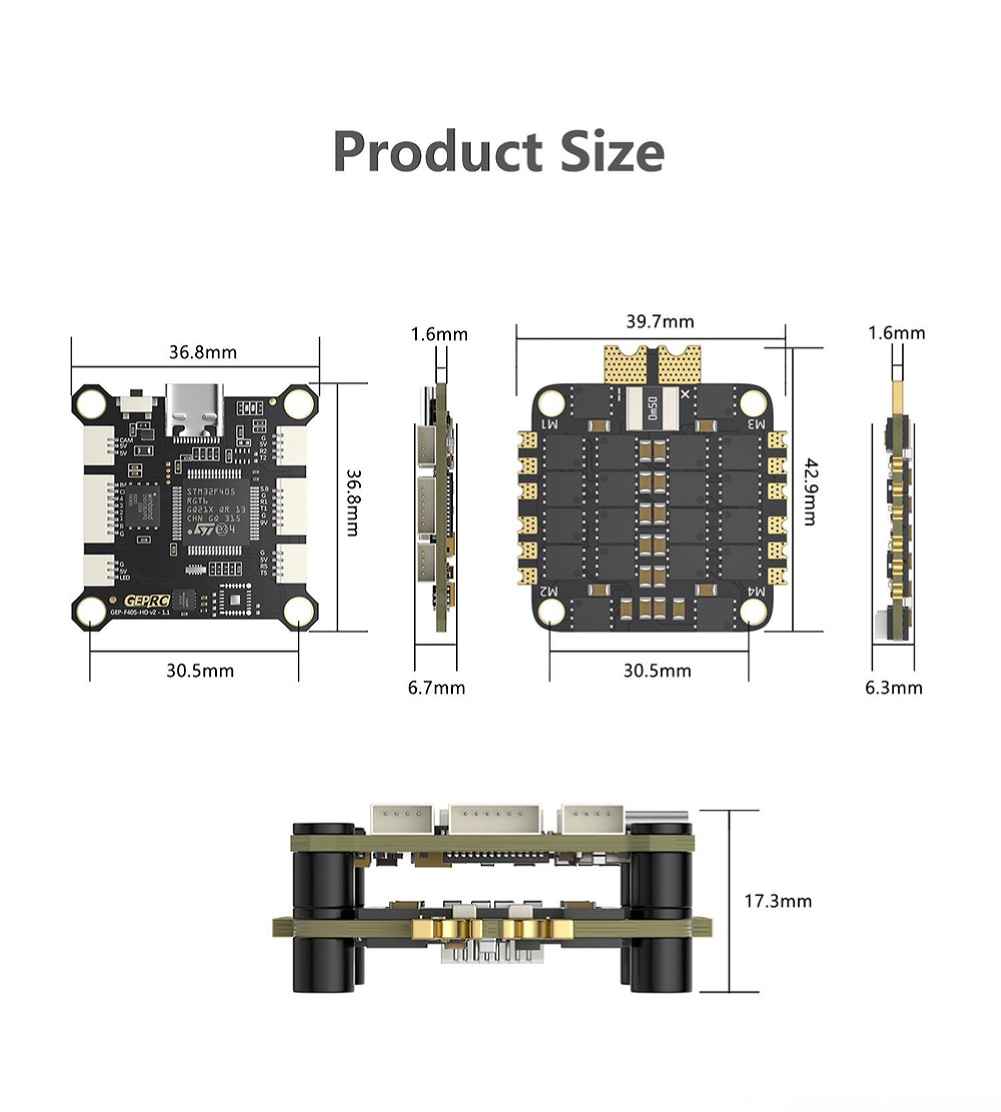

Size: 36.8沁36.8mm, hole 30.5沁30.5mm佾嫉4mm hole becomes 嫉3mm after using a silicone shock-absorbing circle.
Input Voltage: 3-6S LiPo
UART: 6
Power Filter: Integrated LC filter
Weight: 7.7g

GEP BLS50A 4IN1 ESC

Input Voltage: 3-6S Lipo
Galvanometer: Support
Continuous Current: 50A
Burst Current: 55A侈5s佩
Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
Size: 42.9沁39.7mm, hole30.5沁30.5mm佾嫉4mm hole becomes 嫉3mm after using the silicone shock-absorbing circle.
Weight:13.7g
Target: G_H_30

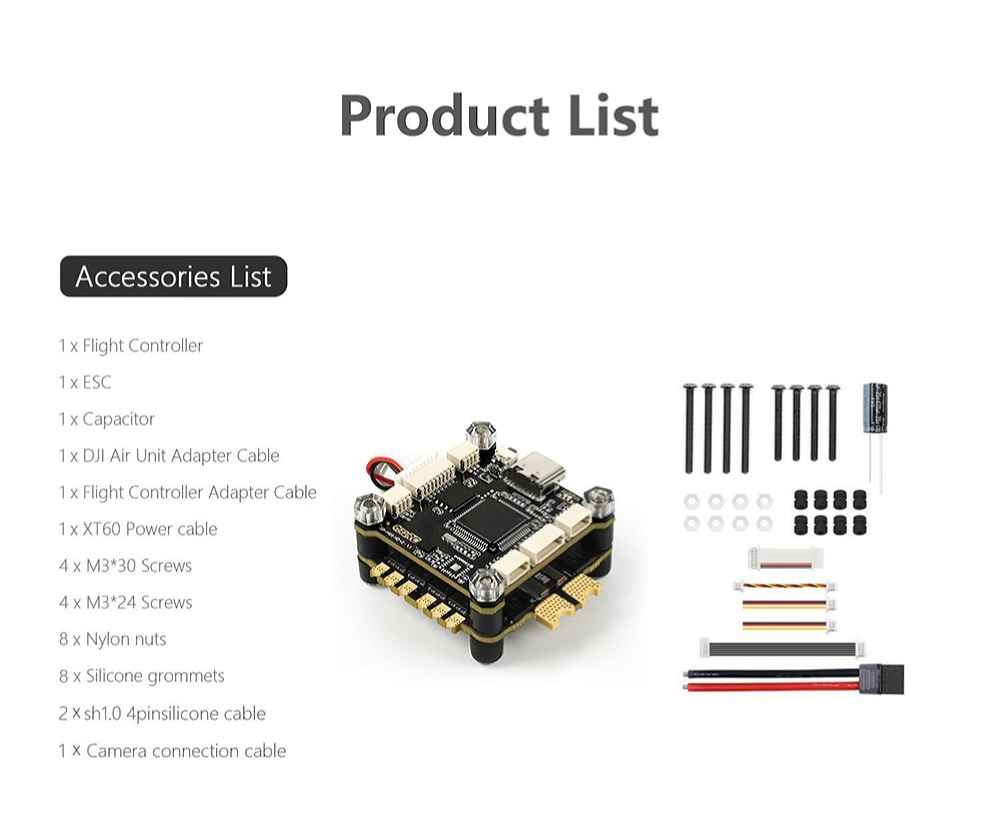

Package Included:
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power Cable
4 x M3 30 Screws
4 x M3 24 Screws
8 x Nylon Nuts
8 x Silicone Grommets
2 x SH1.0 4pin Silicone Cable
1 x Camera Connection Cable
