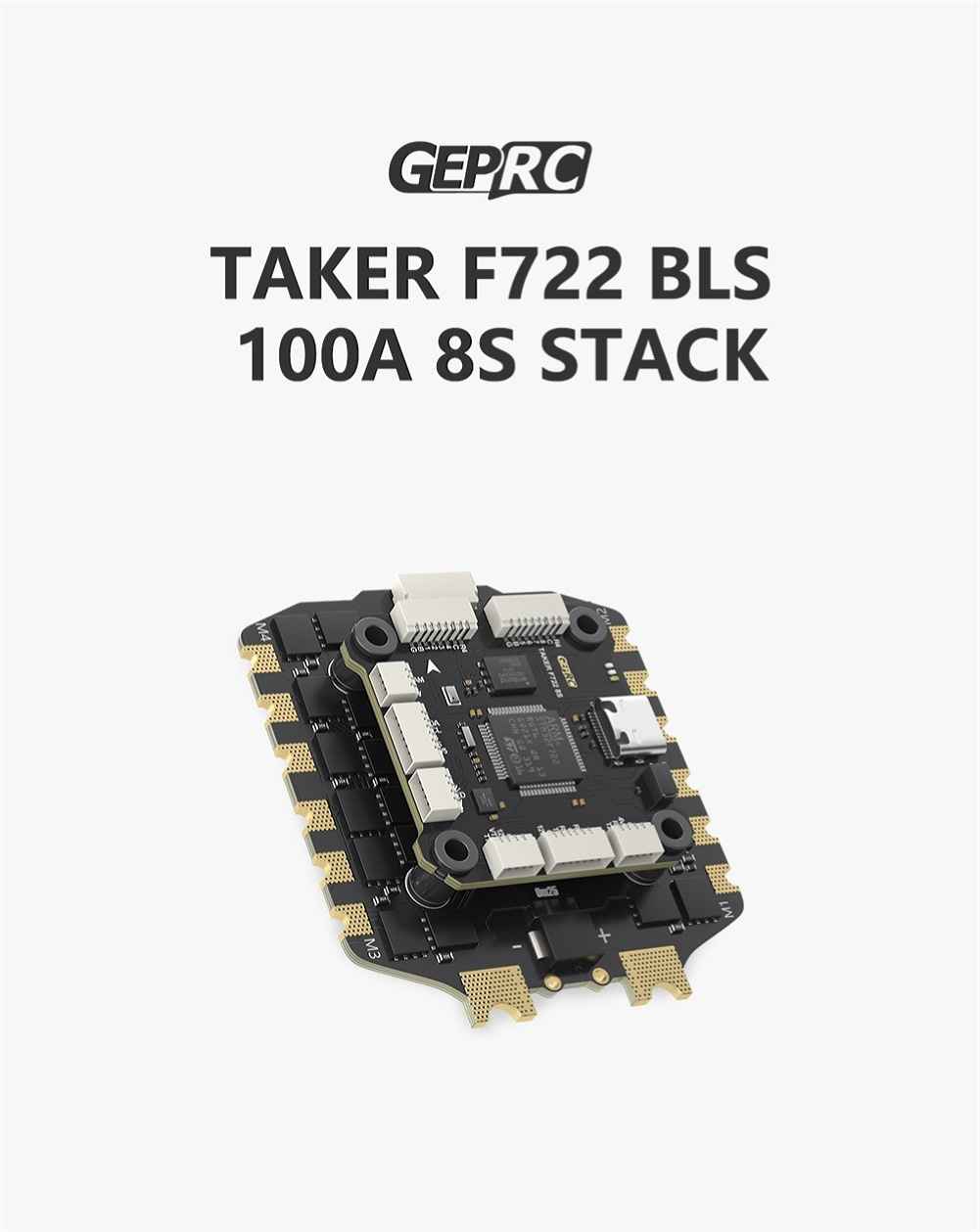

GEPRC TAKER F722 OSD Flight Controller with 5V 12V BEC & 100A 4in1 ESC, 3-8S RC FPV Racing Drone Stack

Description

30.530.5mm GEPRC TAKER F722 OSD Flight Controller with 5V 12V BEC & 100A BL_S 3-8S 4in1 Brushless Stack for RC FPV Racing Drones

The GEPRC TAKER F722 OSD Flight Controller is equipped with the STM32F722 chip and the latest 42688-P gyroscope, ensuring precise control for RC FPV racing drones. It features 16M onboard black box storage and an integrated LC filter for enhanced performance. The flight controller is designed for seamless connection with the DJI Air Unit and includes a Type-C USB interface for easy connectivity. It offers dual independent BECs with 12V@3A and 5V@3A outputs, supporting up to 8S LiPo batteries. The package includes the TAKER H100_8S_BLS 100A 4in1 ESC, providing a smooth and reliable flying experience. The installation is simplified with shock absorbers for stable gyroscope performance.

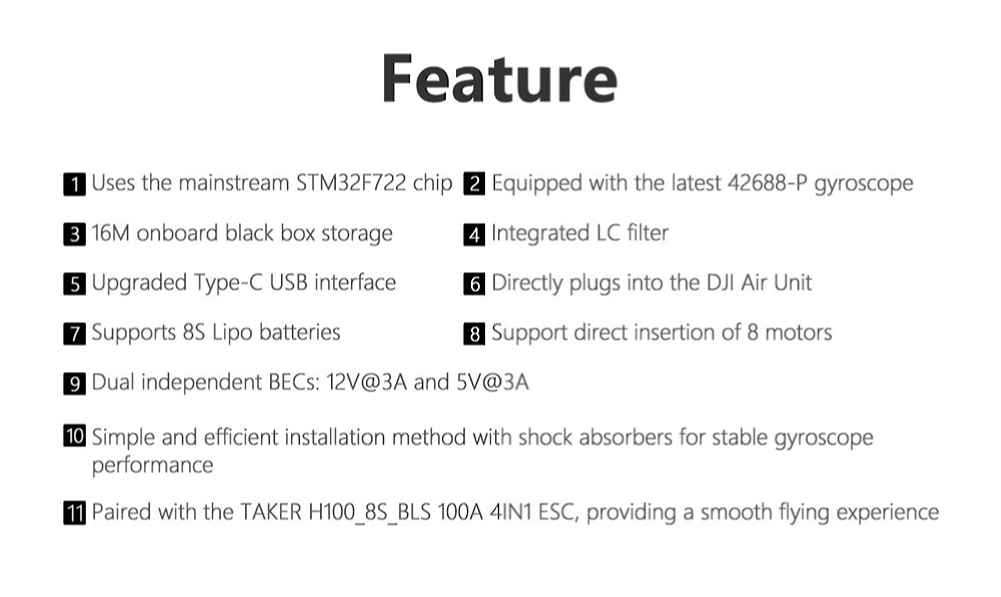

Feature:
1. Uses the mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M onboard black box storage
4. Integrated LC filter
5. Upgraded Type-C USB interface
6. Directly plugs into the DJI Air Unit
7. Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience
8. Simple and efficient installation method with shock absorbers for stable gyroscope performance
9. Dual independent BECs: 12V@3A and 5V@3A
10. Supports 8S Lipo batteries
11. Support direct insertion of 8 motors

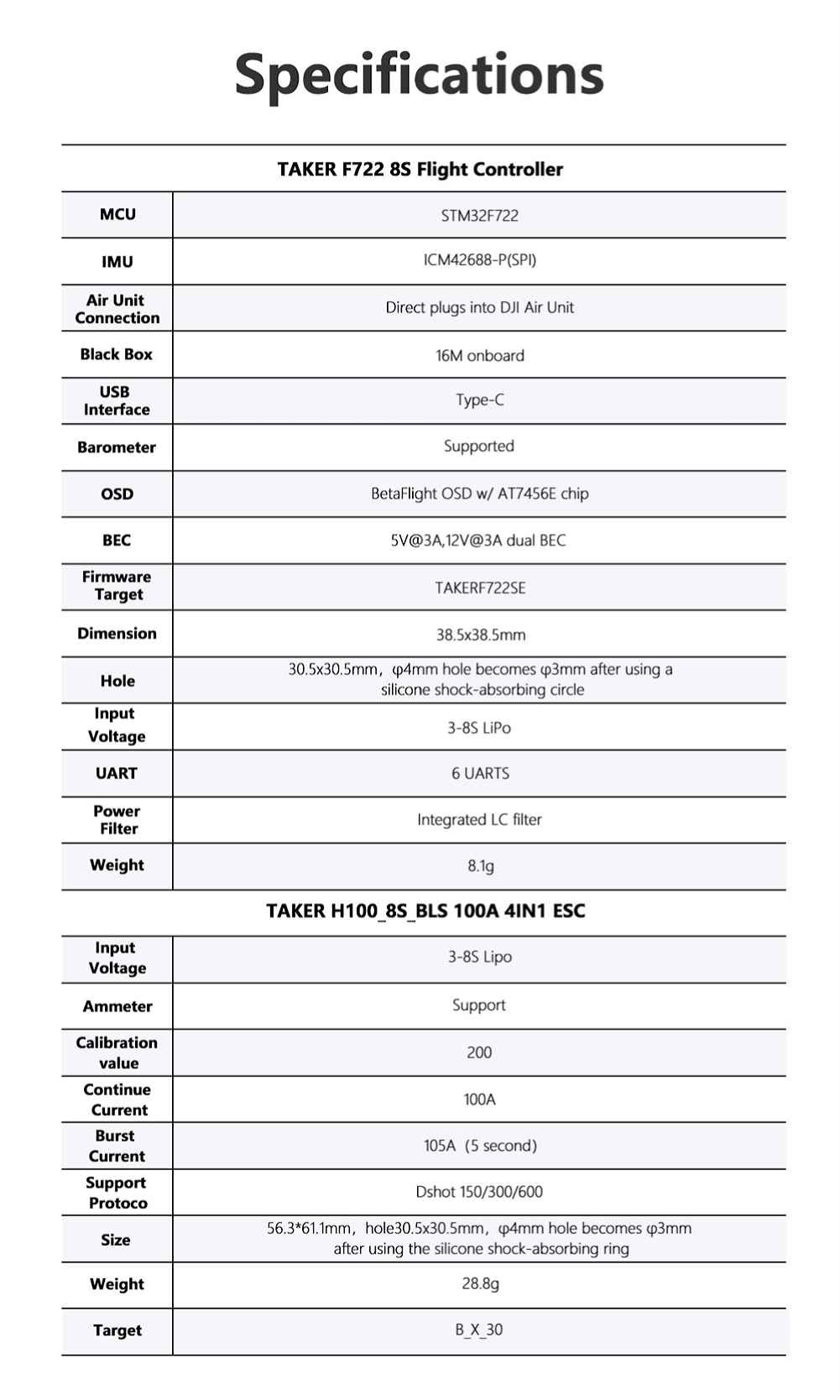

Specification:
Brand: GEPRC
Model: TAKER F722 BLS 100A 3-8S STACK

Model

Specification

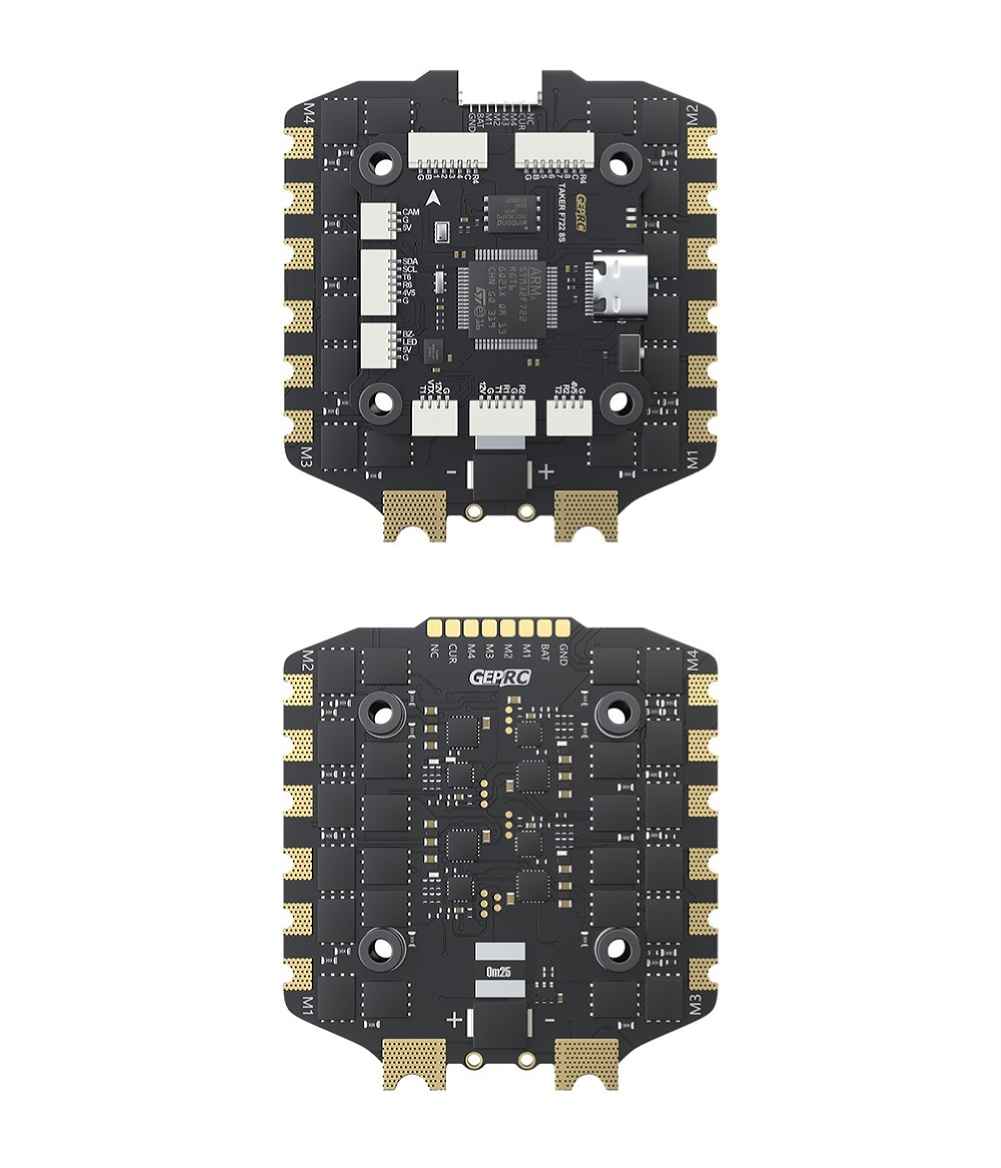

TAKER F722 8S Flight Controller

MCU: STM32F722
IMU: ICM42688-P(SPI)
Air Unit Connection: Direct plugs into DJI Air Unit
Black Box: 16M onboard
USB Interface: Type-C
Barometer: Supported
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A,12V@3A dual BEC
Firmware Target: TAKERF722SE
Dimension: 38.5沁38.5mm,
Mounfing Hole Size: 30.5沁30.5mm佾嫉4mm hole becomes 嫉3mm after using a silicone shock-absorbing circle
Input Voltage: 3-8S LiPo
UART: 6 UARTs
Power Filter: Integrated LC filter
Weight: 8.1g Includes

TAKER H100_8S_BLS 100A 4IN1 ESC

Input Voltage: 3-8S Lipo
Ammeter: Support
Calibration value: 200
Continue Current: 100A
Burst Current: 105A (5 seconds)
Support Protocol: Dshot 150/300/600
Size: 56.3*61.1 mm; hole: 30.5沁30.5 mm; 嫉4 mm hole becomes 嫉3mm after using the silicone shock-absorbing ring.
Weight: 28.8g
Target: B_X_30

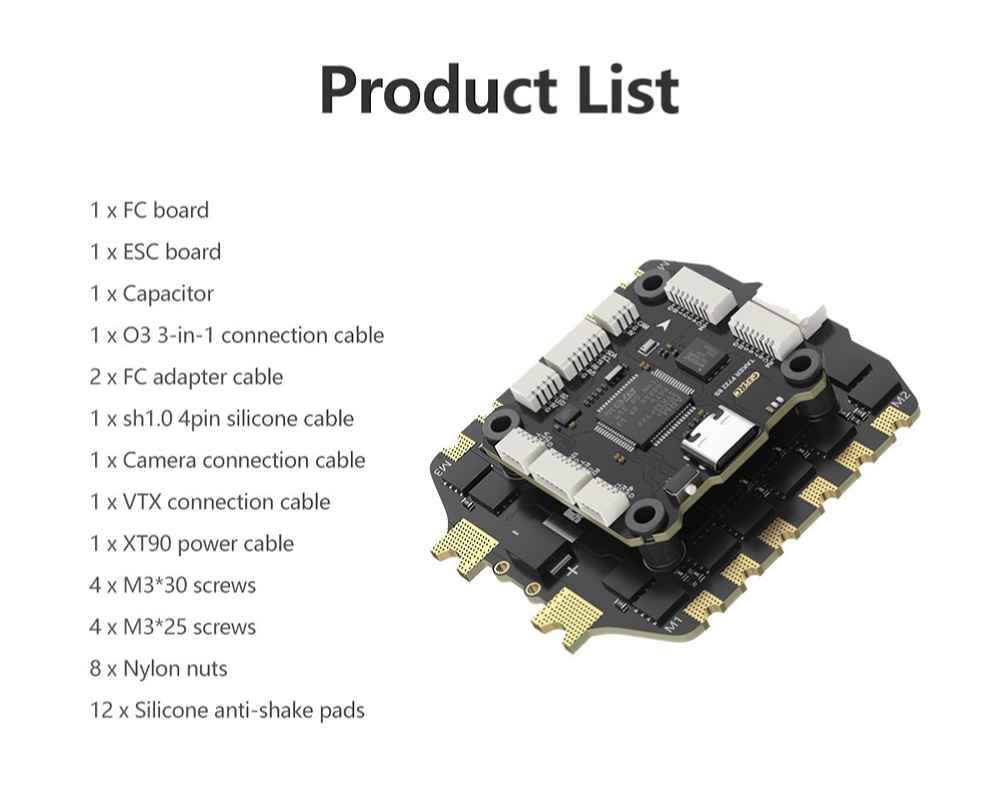

Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
2 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3 30 screws
4 x M3 25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
