GEPRC Vapor X5/X6 6S Frame Kit, 5/6 Inch, Compatible with DJI O4 Pro Air Unit, FPV Racing Drone Frame, High-Strength Carbon Fiber

Description

Geprc Vapor X5 230mm 5 Inch / X6 254.5mm 6 Inch 6S Frame Kit Compatible with DJI O4 Pro Air Unit for FPV Racing Drones

The GEPRC Vapor frame kit, available in X5 and X6 models, is engineered for FPV racing drones, offering compatibility with the DJI O4 Air Unit Pro. Constructed from high-strength carbon fiber, it ensures a lightweight yet durable structure. The frame features redesigned aluminum camera parts and vibration-damping silicone for enhanced stability. Its mech-inspired side panels provide a bold, sharp aesthetic, while the XH structure offers superior handling. The frame includes 5mm carbon fiber arms for rigidity and a quick-release design for easy maintenance. It also offers dual protection with camera guard side panels and a front lip design for impact resistance.

Note:
– Dimensions and weight are for reference only; actual product may vary.
Desription:

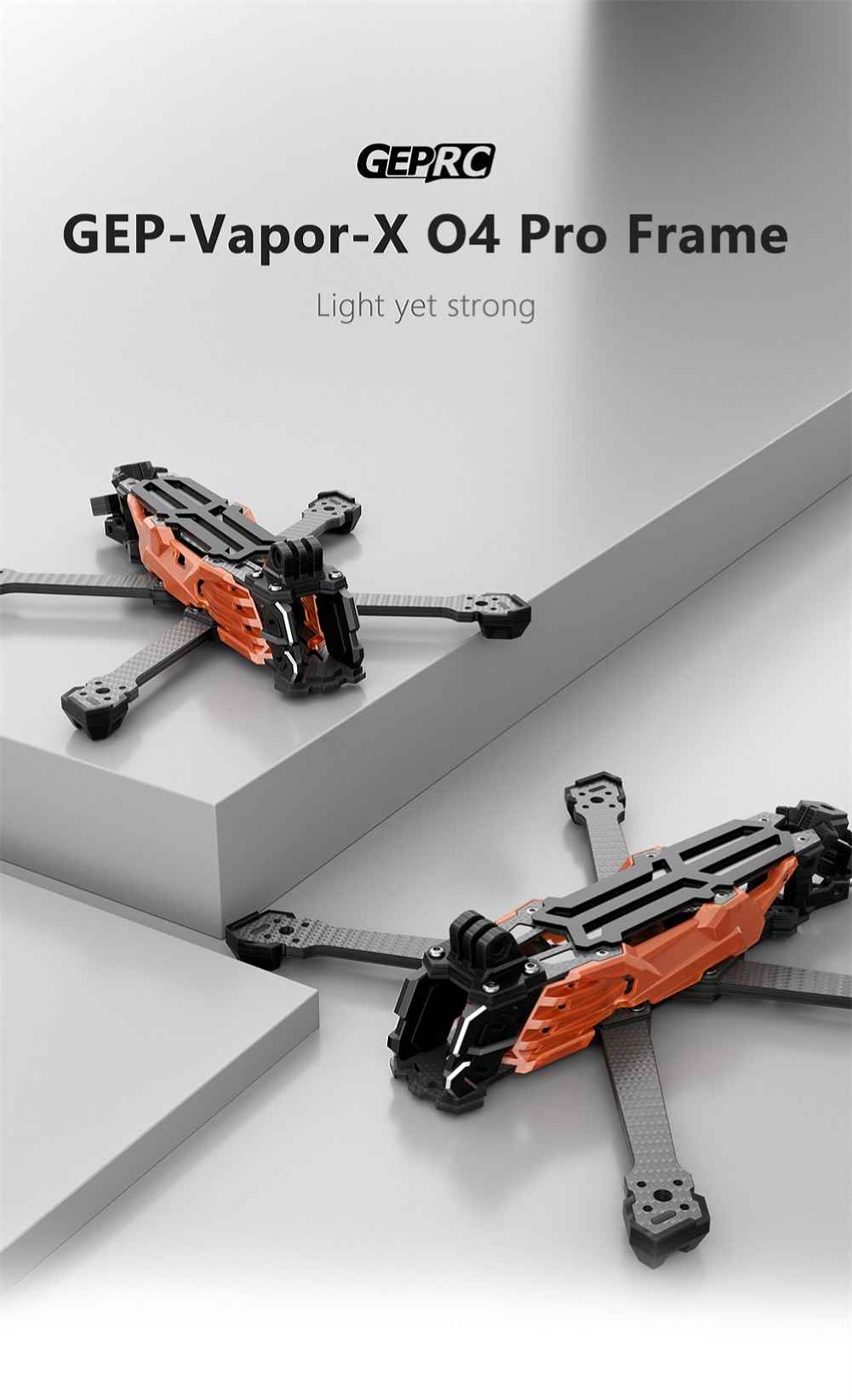

The GEPRC team presents the Vapor frame, designed specifically for the DJI O4 Air Unit Pro.
With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bolde, sharp look, enhancing the frameㄙs stylish design. Made from high-strength carbon fiber, itㄙs lightweight yet durabl, ensuring top-notch performance in any flight.
With its XH structure, the GEP-Vapor-X frame offers superior stability and precise handling.
Feature:
1. 5mm wide carbon fiber arms for better rigidity and durability.
2. Dual protection with camera guard side panels and a front lip design for better impact resistance.
3. Quick-release design for easy repairs and maintenance.

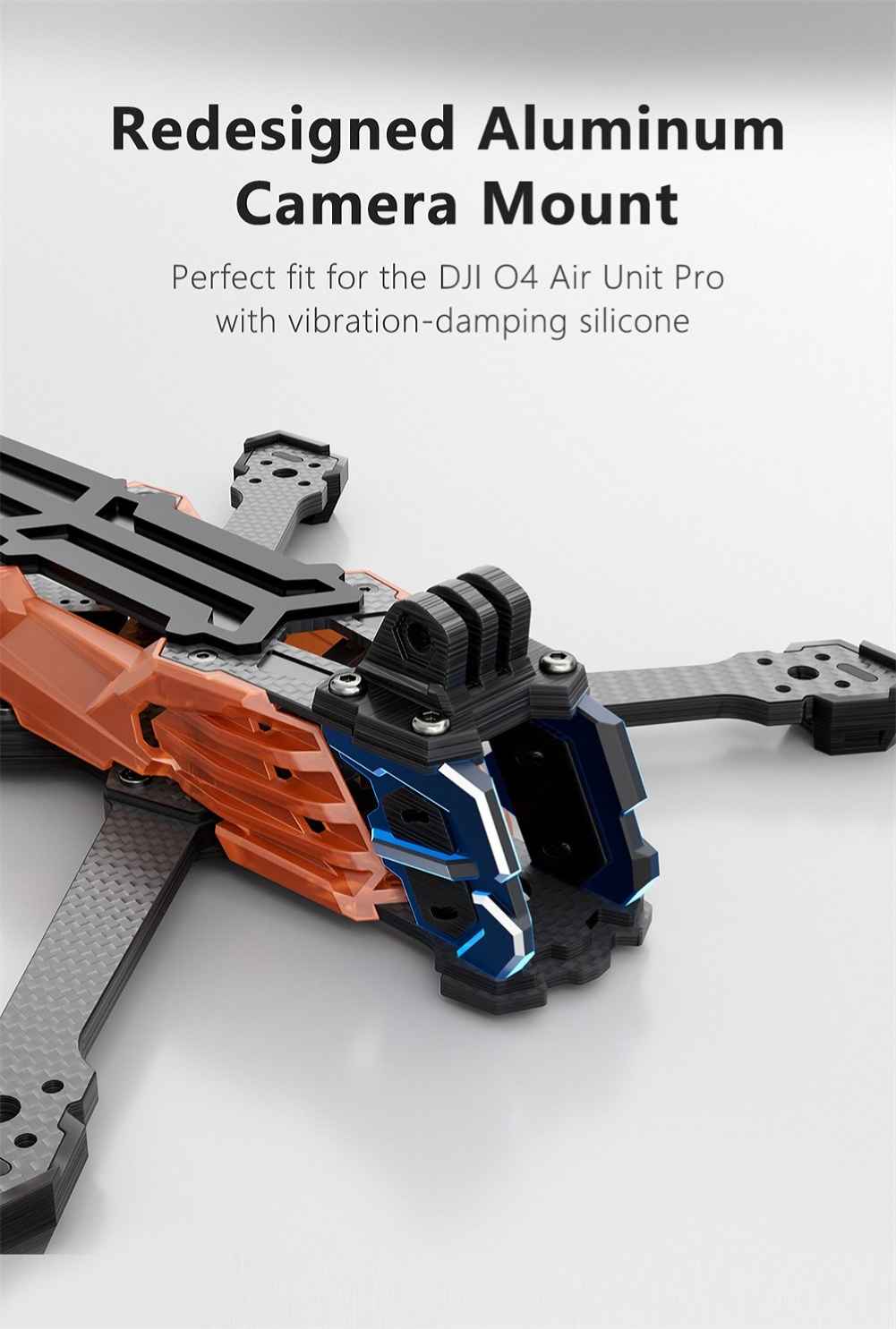

4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.

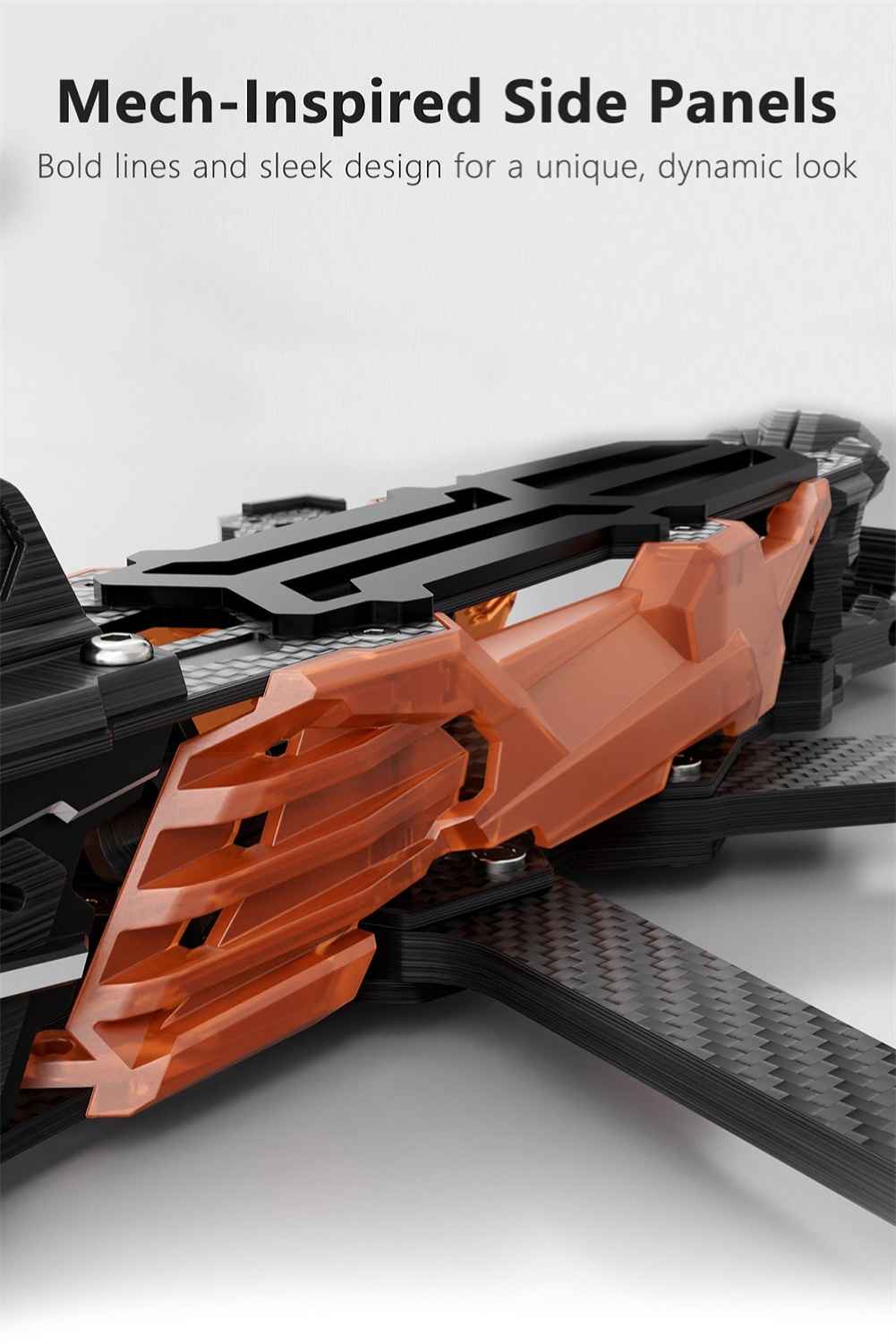

5. New mech-inspired side panels with a bolde, sharp design.
6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

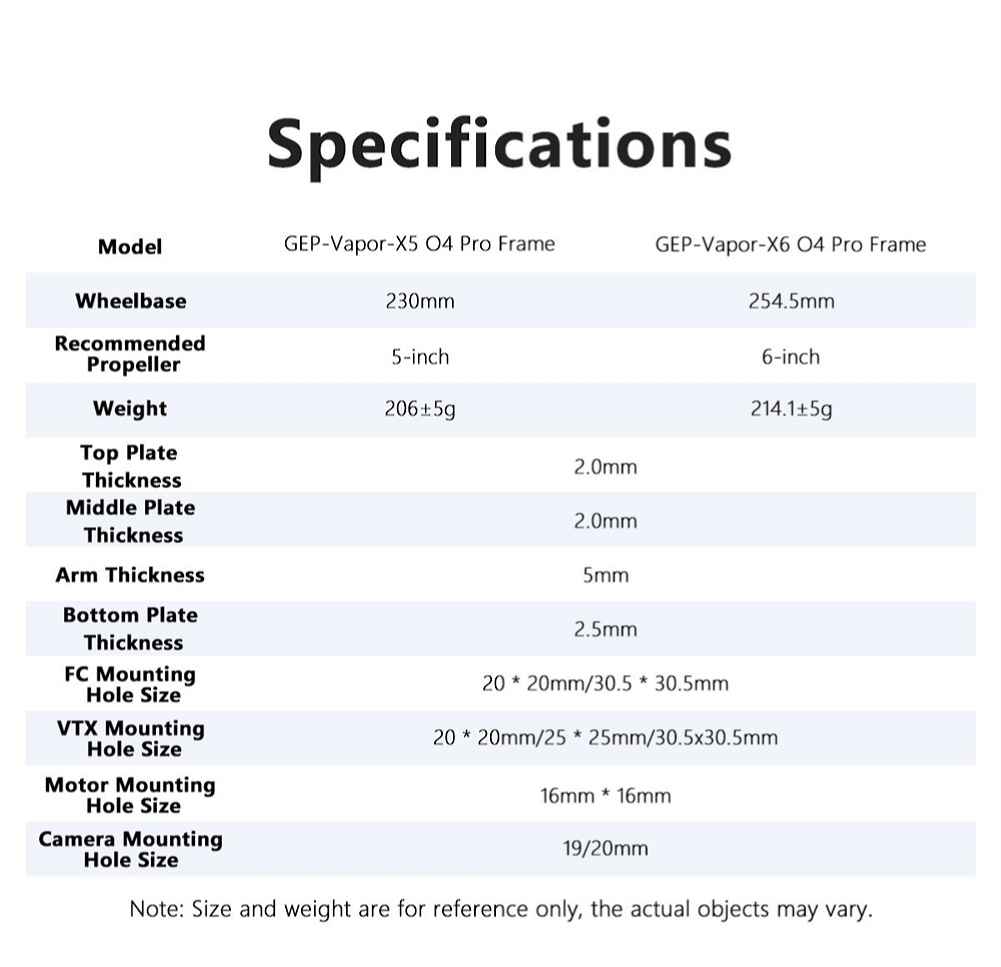

Specification:
Brand: GEPRC
Model: Vapor X5 / X6
Item Name: 5 Inch / 6 Inch 6S Frame Kit

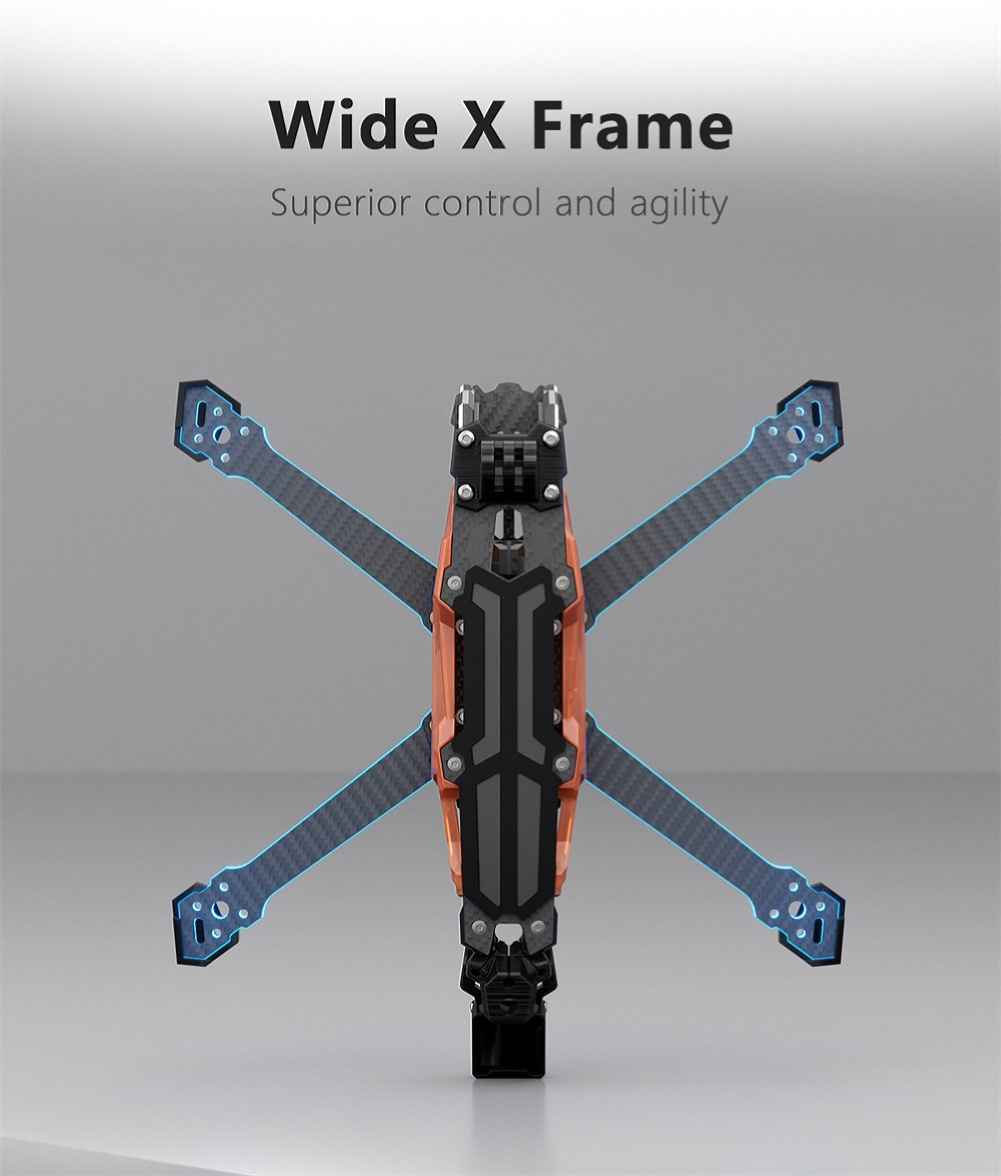

Type: Wide X

Model:

Vapor X5 Frame

Vapor X6 Frame

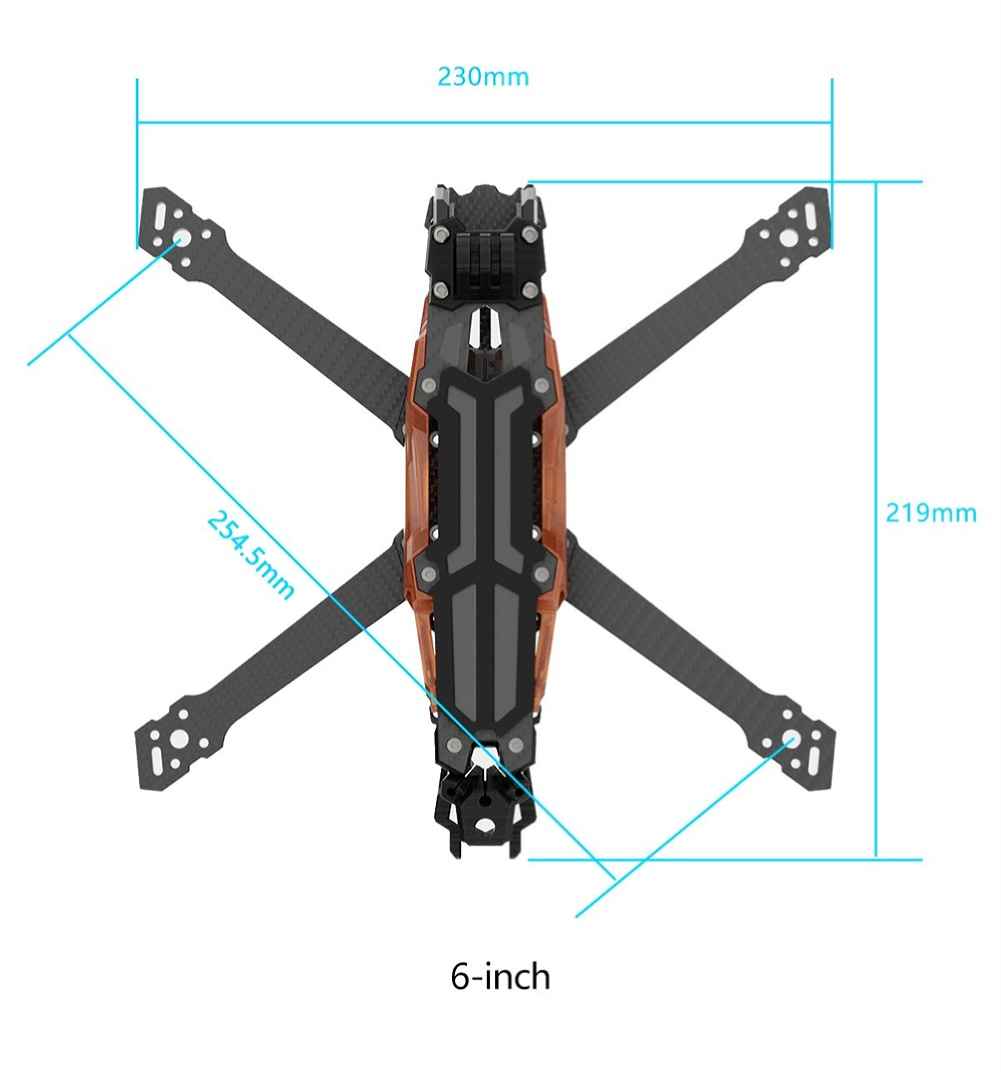

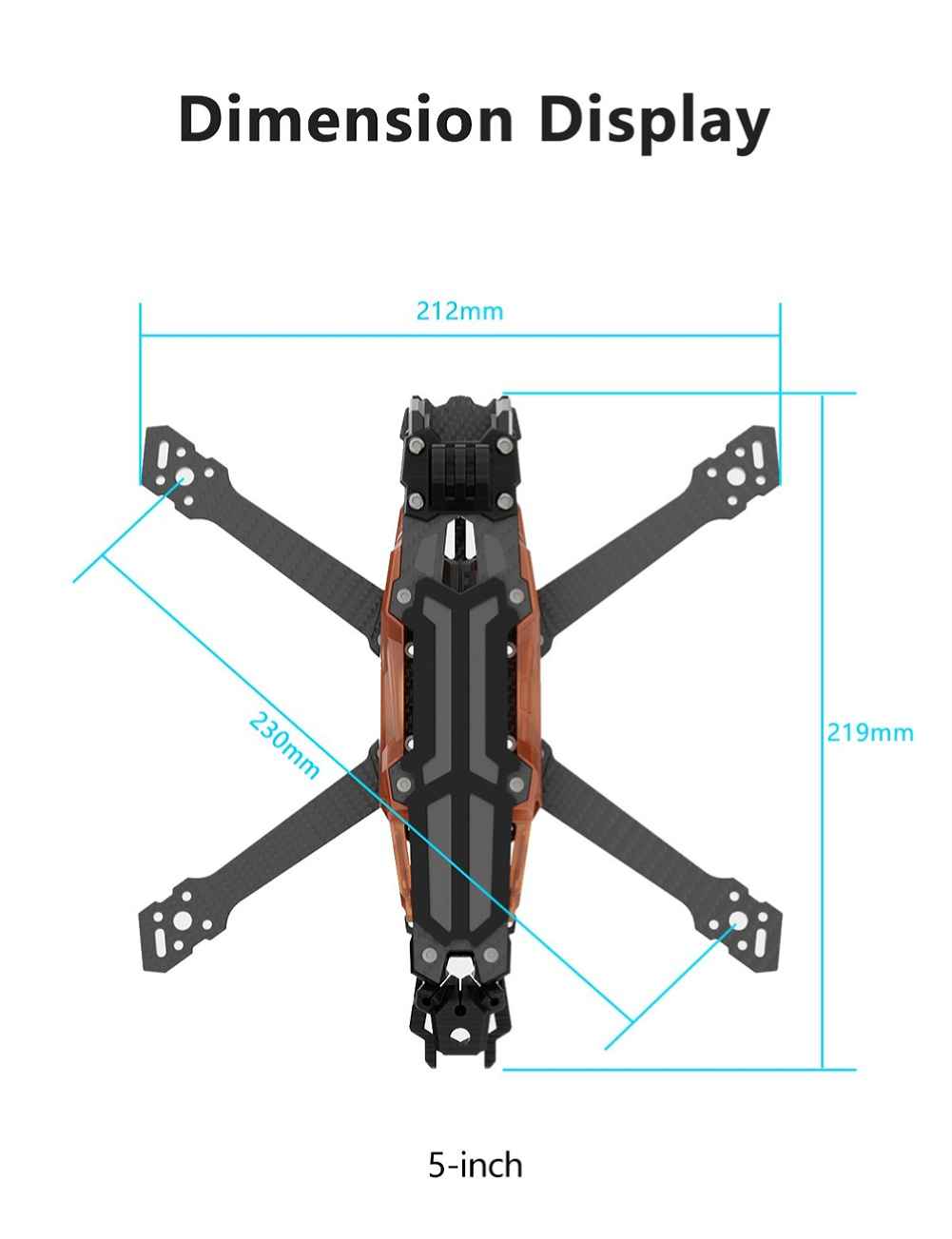

Wheelbase:

230mm

254.5mm

Recommended Propeller:

5 Inch

6 Inch

Weight:

206呼5g

214.1呼5g

Top Plate Thickness:

2.0mm

Middle Plate Thickness:

2.0mm

Arm Thickness:

5.0mm

Bottom Plate Thickness:

2.5mm

FC Mounting Hole Size:

20x20mm / 30.5沁30.5mm

VTX Mounting Hole Size:

20x20mm / 25x25mm / 30.5沁30.5mm

Motor Mounting Hole Size:

16x16mm

Camera Mounting Hole Size:

19mm / 20mm

Recommand Pars (Not Included):
FC&ESC: Geprc TAKER F722 BLS 60A V2 Stack
Camera&VTX: DJI O4 Air Unit PRO
Motor: GEPRC SPEEDX2 2207 1960KV / GEPRC SPEEDX2 2407E 1750KV
Propellers: GEMFAN 5136 / HQprop 6X3.5X3
Battery: GAONENG GNB 6S 22.8V 1300mAh / CNHL MiniStar 22.2V 1800mAh 120C 6S LiPo Battery / CNHL Black Series V2.0 6S 22.2V 1500mAh
GPS: GEP-M10 GPS

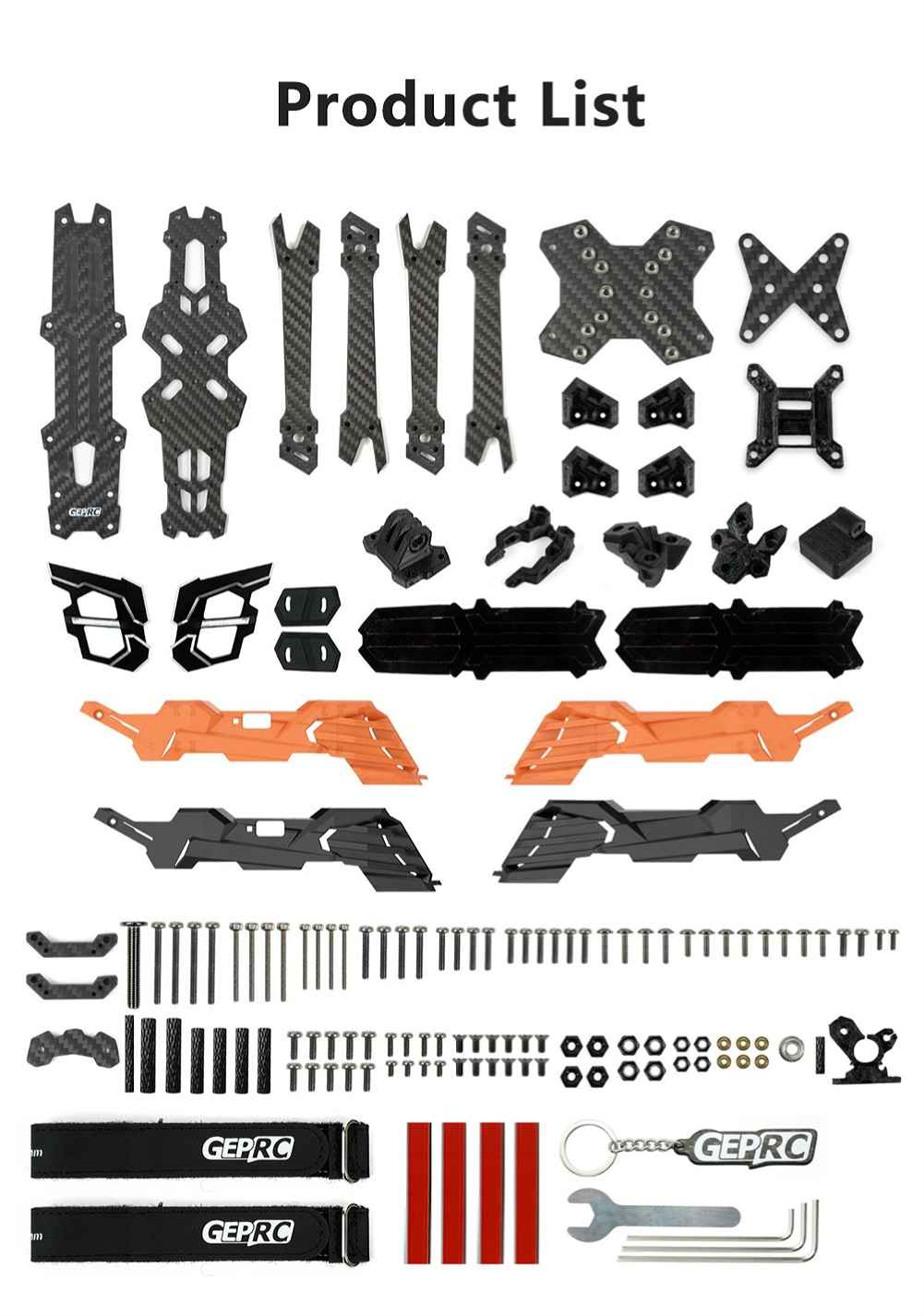

Package Included:
1 x Vapor X5 Frame
2 x M20 250mm Battery Straps
2 x Battery Silicone Pads
1 x Set of Screws
1 x Printout Package
1 x L-Shaped Screwdriver (1.5mm)
1 x L-Shaped Screwdriver (2mm)
1 x L-Shaped Screwdriver (3mm)
1 x M8 Wrench
1 x Vapor X6 Frame
2 x M20 250mm Battery Straps
2 x Battery Silicone Pads
1 x Set of Screws
1 x Printout Package
1 x L-Shaped Screwdriver (1.5mm)
1 x L-Shaped Screwdriver (2mm)
1 x L-Shaped Screwdriver (3mm)
1 x M8 Wrench
