Happymodel SuperX ELRS V2.0 AIO Flight Controller with 5A Blheli_S 4in1 ESC & 5.8G OpenVTX for FPV Racing Drone

Description

Happymodel SuperX ELRS V2.0 1S 5IN1 AIO Flight Controller Built-in 5A Blheli_S 4in1 ESC 5.8G OpenVTX for RC FPV Racing Drone

The Happymodel SuperX ELRS V2.0 AIO Flight Controller is a versatile 5-in-1 unit designed for FPV racing drones. It features an STM32F411CEU6 MCU and an ESP32-PICO-D4 sensor for enhanced performance. The flight controller supports a 1S battery input and includes a built-in 5A Blheli_S 4in1 ESC, Betaflight OSD, and 5.8G OpenVTX with MSP control. It also comes with a voltage and current meter sensor, ensuring precise power management. The integrated ExpressLRS receiver offers packet rates of 50Hz to 500Hz, compatible with ExpressLRS V3.x.x TX Module. This AIO unit is perfect for drone enthusiasts seeking reliable and efficient performance.

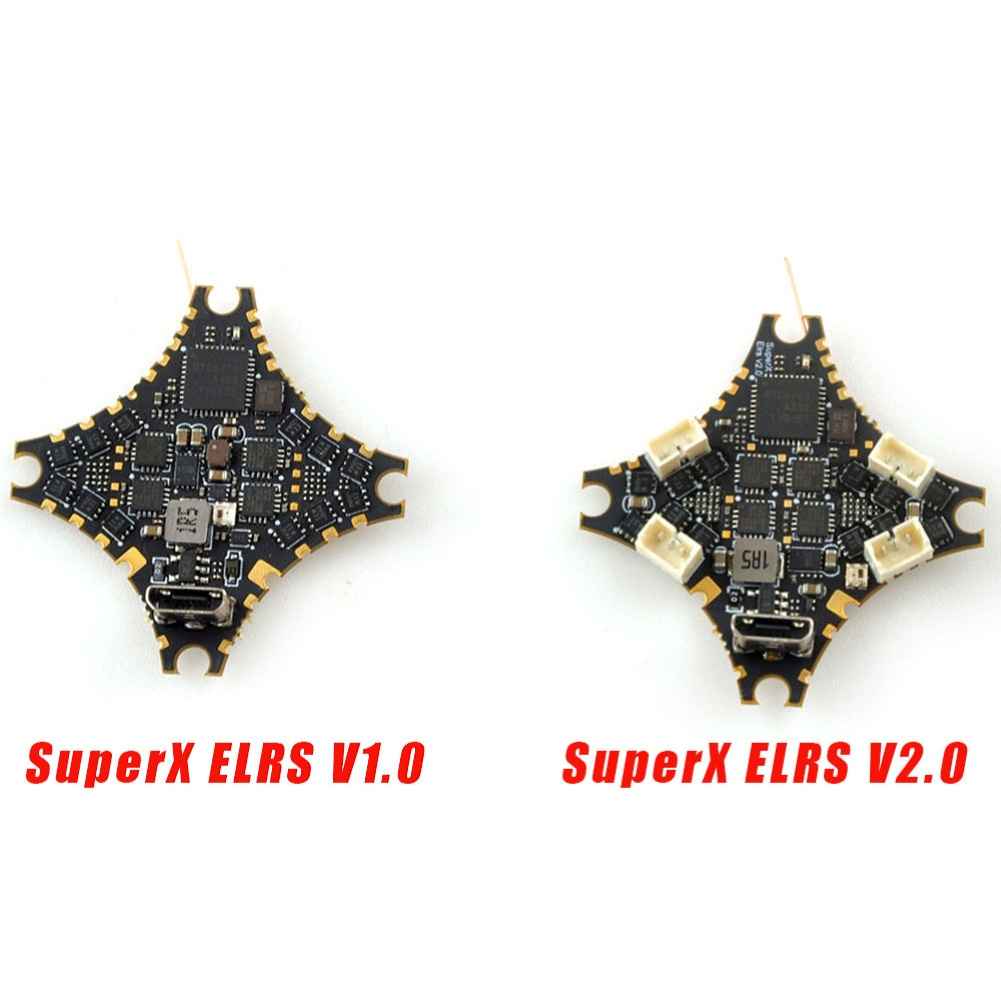

Notes: 1. This AIO is upgraded to V2.0, which comes with motor plug.
2. If you click save and reboot from ↗port∫ tab of betaflight configurator and found vtx device ready from video transmitter tab is ↗False∫, please donㄙt worry ,just power cycle for the flight controller , the vtx device ready status would be ↗true∫ again.
Specification:
Brand: Happymodel
Model: SuperX ELRS V2.0 AIO

Flight controller

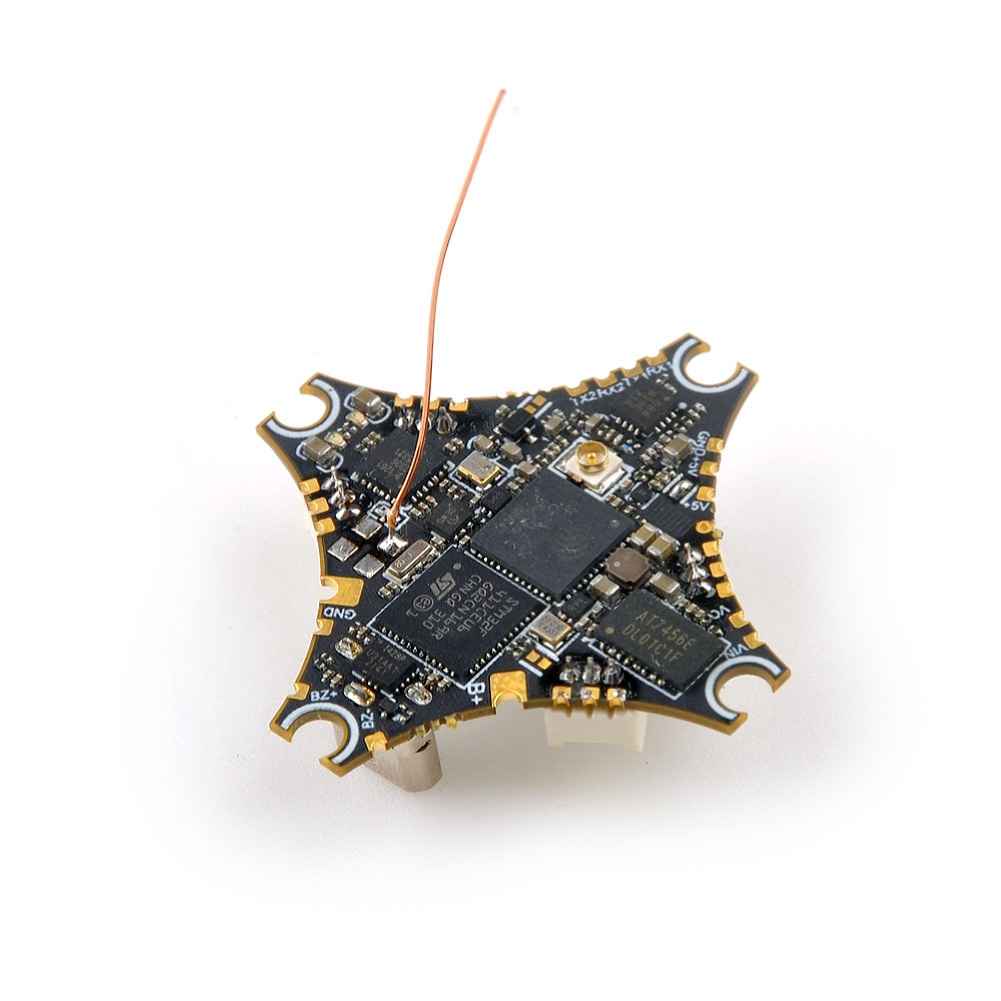

SuperX ELRS AIO 5-IN-1 Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
Sensor:BMI270(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
Built-in UART ExpressLRS v3.0.0
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 1175

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay v0.19.2
Default protocol: DSHOT300
Recommend ESC Startup power value to min1100/max1200
Firmware target: O-H-5 48KHZ

Onboard Serial ExpressLRS Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V3.0
RF Frequency: 2.4GHz
Antenna : Enameled copper wire antenna
Telemetry output Power: <12dBm
Receiver protocol: Serial_based CRSF
Compatible with ExpressLRS V3.x.x TX Module
Could flash single ELRS receiver firmware by Wifi
ExpressLRS firmware target: ExpressLRS firmware target:
HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
Available from Expresslrs version 3.4.0 RC2

Onboard 5.8g VTX

Firmware version: OPENVTX
MSP VTX
PIT Mode support
Channels:40ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Antenna connector: U.FL

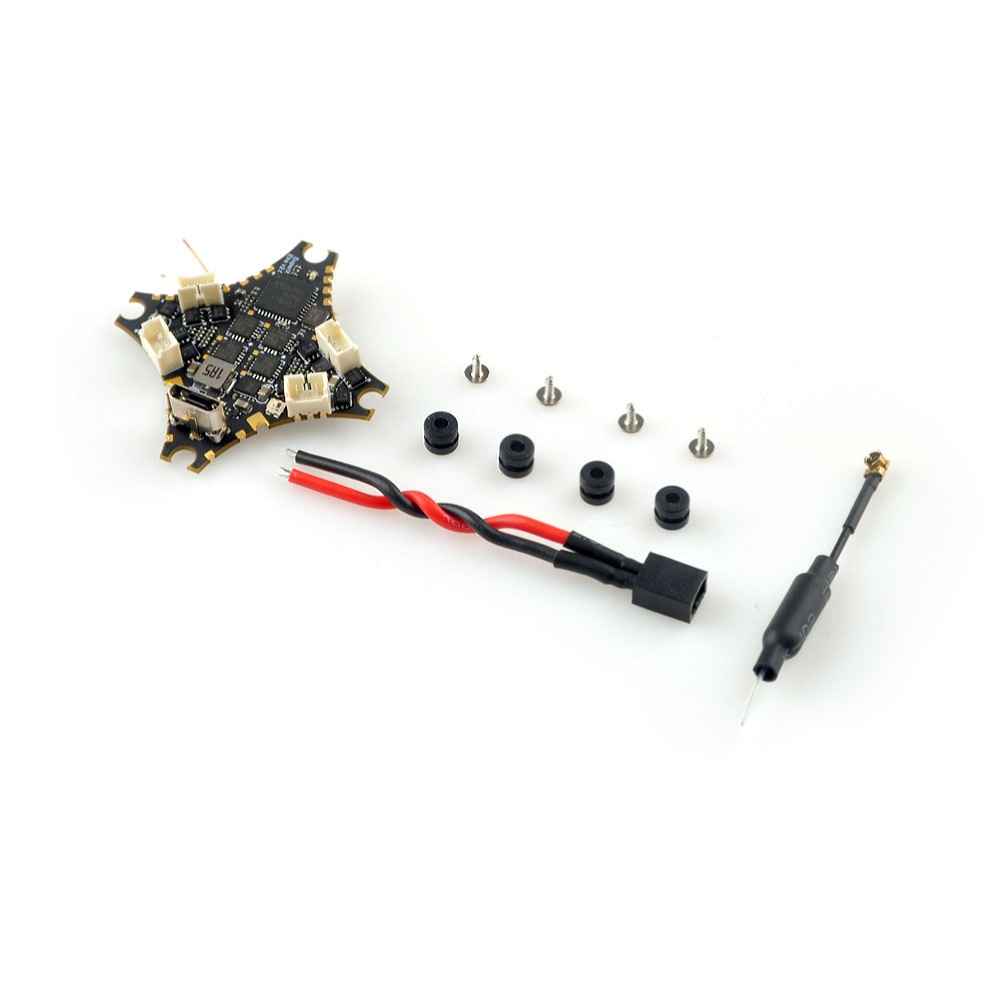

Package Included:
1 x SuperX ELRS V2.0 AIO
