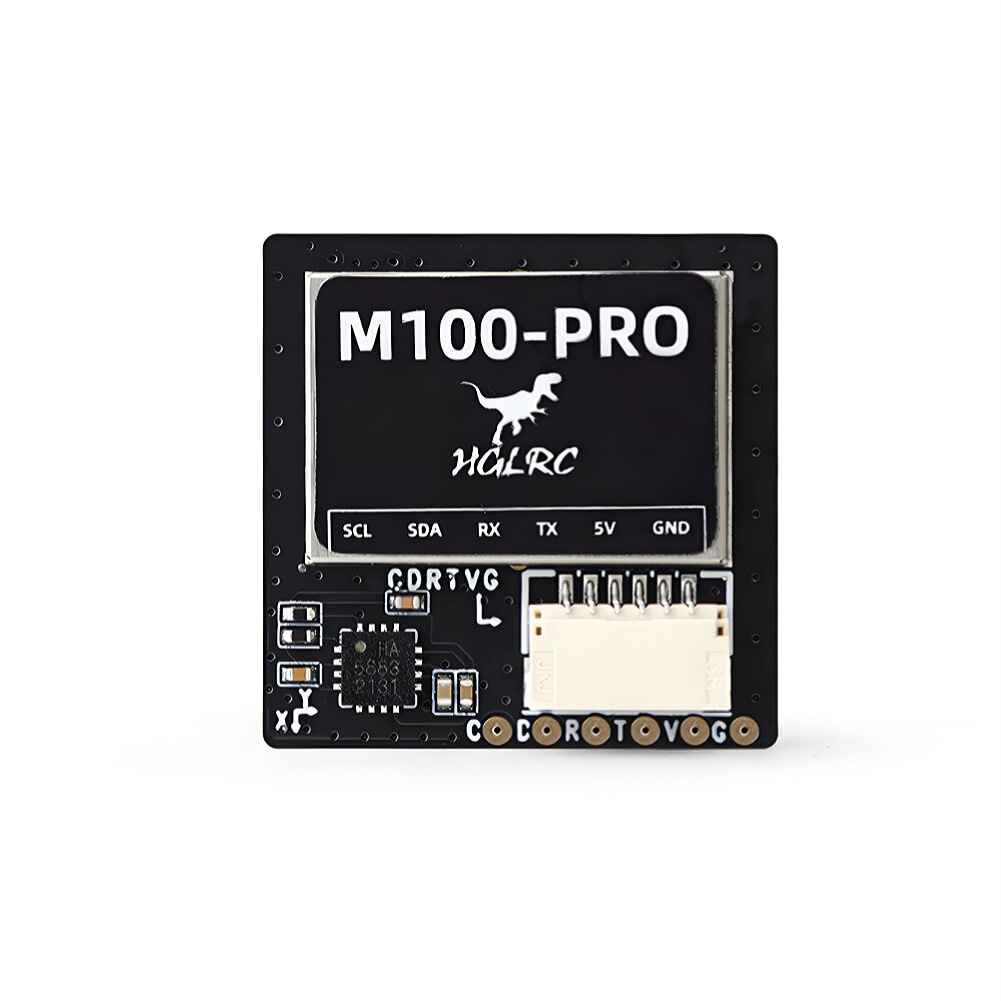

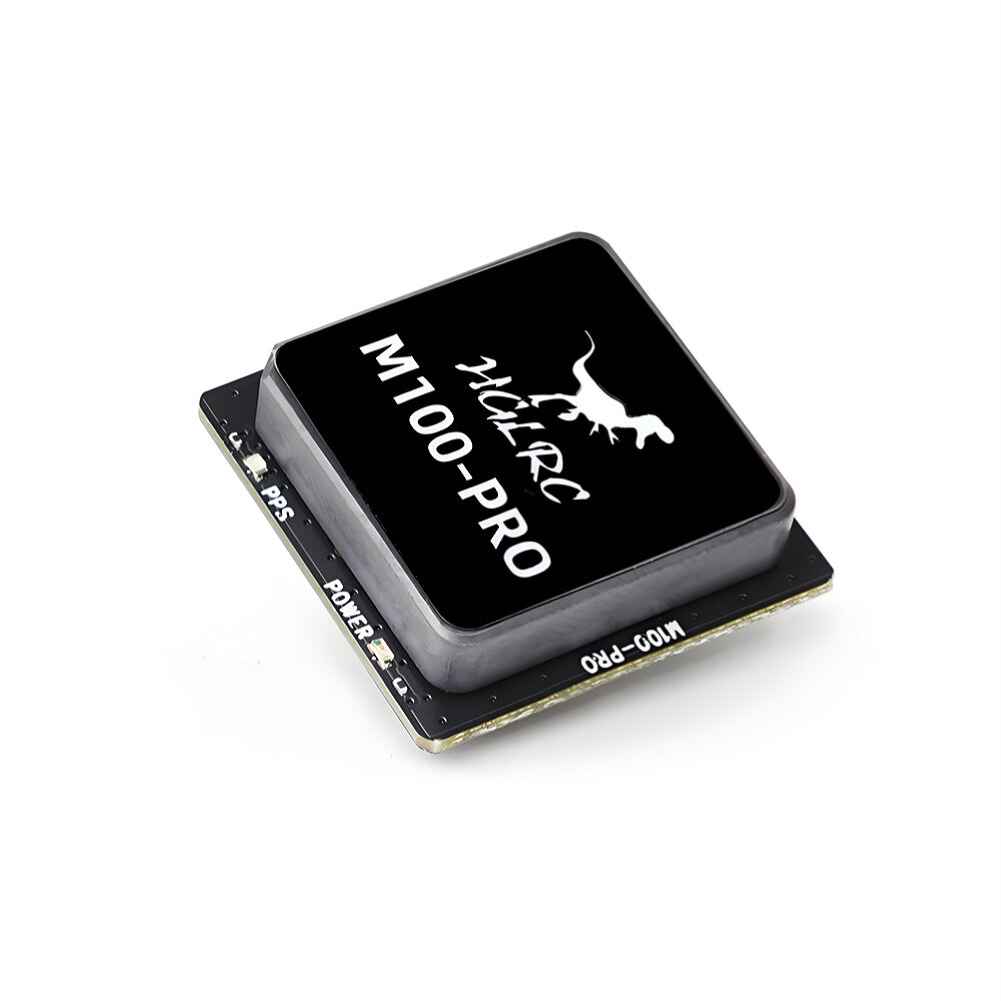

HGLRC M100 PRO GPS B101 Chip 120CH 10Hz Ceramic Antenna for FPV Racing Drone

Description

HGLRC M100 PRO GPS B101 Chip 120CH 10Hz Five-Mode Positioning Built-in Ceramic Atenna for FPV Racing Drone

The HGLRC M100 PRO GPS is designed for FPV racing drones, featuring a B101 10th generation chip that enhances satellite search capabilities with over 50 satellites. It offers exceptional accuracy with its QMC5883L compass and expands the receiving channel to 120CH for faster satellite acquisition. The device supports five-mode positioning, ensuring a strong and stable signal. It operates at a frequency of 10Hz and supports multiple global navigation systems, including GPS, GLONASS, BDS, GALILEO, QZSS, SBAS, and IRNSS. This compact and lightweight GPS module is equipped with a built-in ceramic antenna and is suitable for various environmental conditions, with an operating temperature range from -40⊥ to +85⊥.

Features:
– More accurate positioning/ more satellits to search/stronger signal
– Adopting the new 10th generation chip, the number of satellit searches is 50+
– QMC5883L compass, more accurate pointing
– The receiving channel is expanded to 120ch, and the satellits can search more and faster into the chip.
– Five-mode positioning, strong and stable signal to protect you.
Specification:
Brand: HGLRC
Models: M100 PRO GPS
Chip: B101 (10th generation chip)
Receiving Channel: 120CH
Baud Rate: 115200 Protocol: UBX
Antenna: Ceramic Antenna
Output Frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power Input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2沁21.2沁8.2mm
Operating Temperature: -40﹠~+85﹠
Storage Temperature: -40﹠~+105﹠

Package Included:
1 x HGLRC M100 PRO GPS
1 x Heat shrink tube (嫉18mm x 25mm)
1 x HGLRC sticker
1 x HGLRC manual
1 x SH1.0-6pin cable
