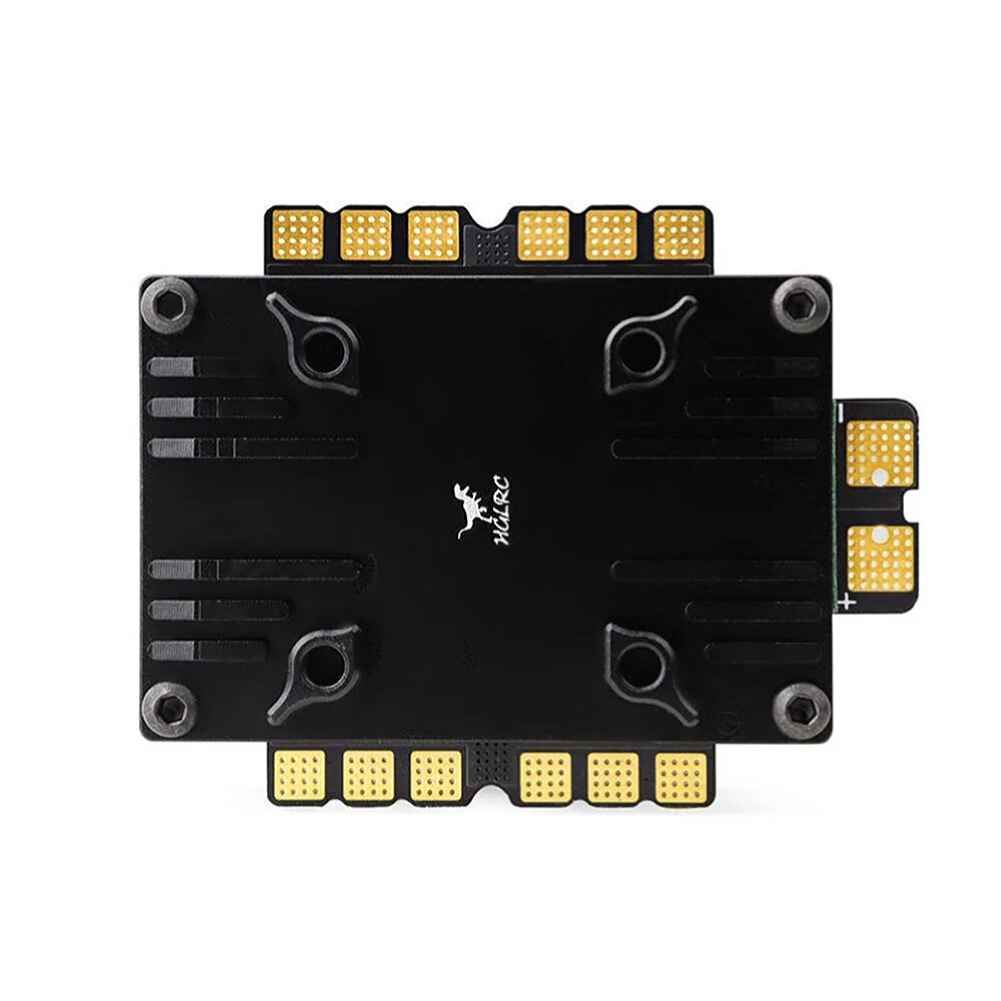

HGLRC SPECTER F760 BOX 20x20mm F7 Flight Controller with 60A BL32 4in1 ESC, Integrated Stack for FPV RC Racing Drones
Original price was: $271.98.$233.90Current price is: $233.90.
- Plug-and-play F7 flight controller with STM32F722 processor
- MPU6000 gyroscope for enhanced stability
- 16MB black box for detailed flight data recording
- Bluetooth adjustment via SPeedyBee APP
- Integrated 10V electronic switch to manage heat
You May Also Like
Description
HGLRC SPECTER F760 BOX Integrated Stack 20x20mm F7 Flight Controller with 10V 5V BEC AIO 60A BL32 4in1 ESC for DIY FPV RC Racing Drone
The HGLRC SPECTER F760 BOX is an integrated stack designed for FPV RC racing drones, simplifying installation and enhancing flight performance. Featuring a plug-and-play F7 flight controller with a high-performance STM32F722 processor, it ensures smooth control and fast response. The MPU6000 gyroscope enhances stability, while the CNC heat sink shell prevents debris intrusion. Equipped with a 16MB black box for comprehensive flight data recording, it also offers Bluetooth parameter adjustment via the SPeedyBee APP. The stack includes a 10V electronic switch to manage heat during extended power-on periods. With built-in suspension damping and preset filters, it delivers an outstanding flying experience.
In order to reduce the difficulty of installation to a large extent and allow model friends to easily get the fun of flying, we specially designed and developed this integrated stack. The flight control is a full module plug-in type, and only needs to weld the ESC power supply and motor wires. It is used, and the stack is equipped with suspended shock absorption and built-in capacitors. With the factory-preset filter parameters, the flight is even more outstanding!
Features:
1. The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216MHz, providing smoother control, better hand feel, and faster response speed.

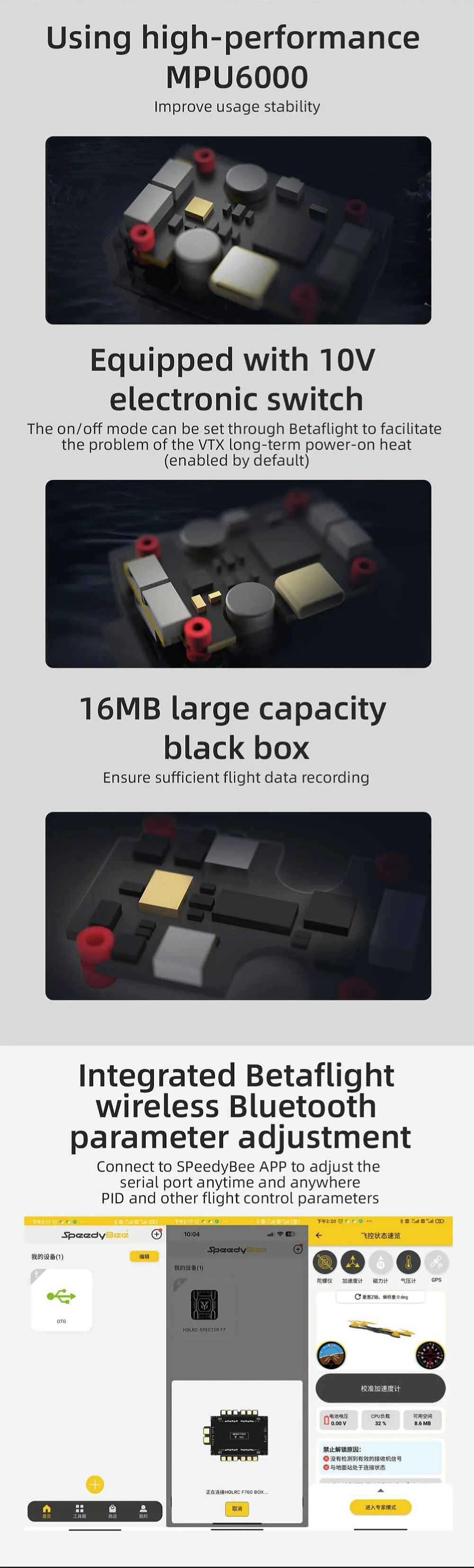

2. The flight control gyroscope uses high-performance MPU6000 to improve the stability of use.
3. Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.

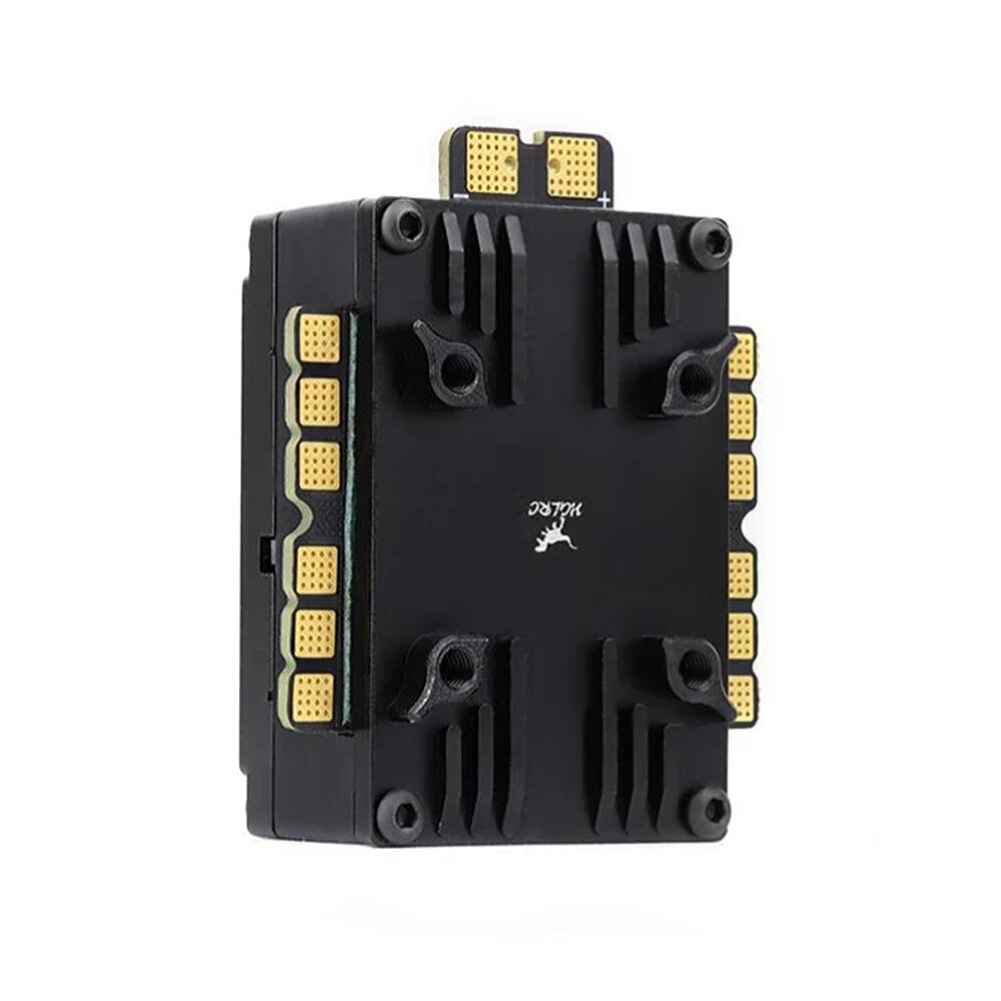

4. Personalized CNC heat sink shell to prevent debris from entering the interior of the flight control and improve usage efficiency.
5. 16MB large-capacity black box to ensure adequate recording of flight data.
6. Integrated BF wireless Bluetooth parameter adjustment, connect to SPeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.
7. Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the problem of heat transmission during long-term power-on.
8. Built-in suspension damping system + preset filter parameters.
9. Built-in capacitor, no need to solder external capacitor.

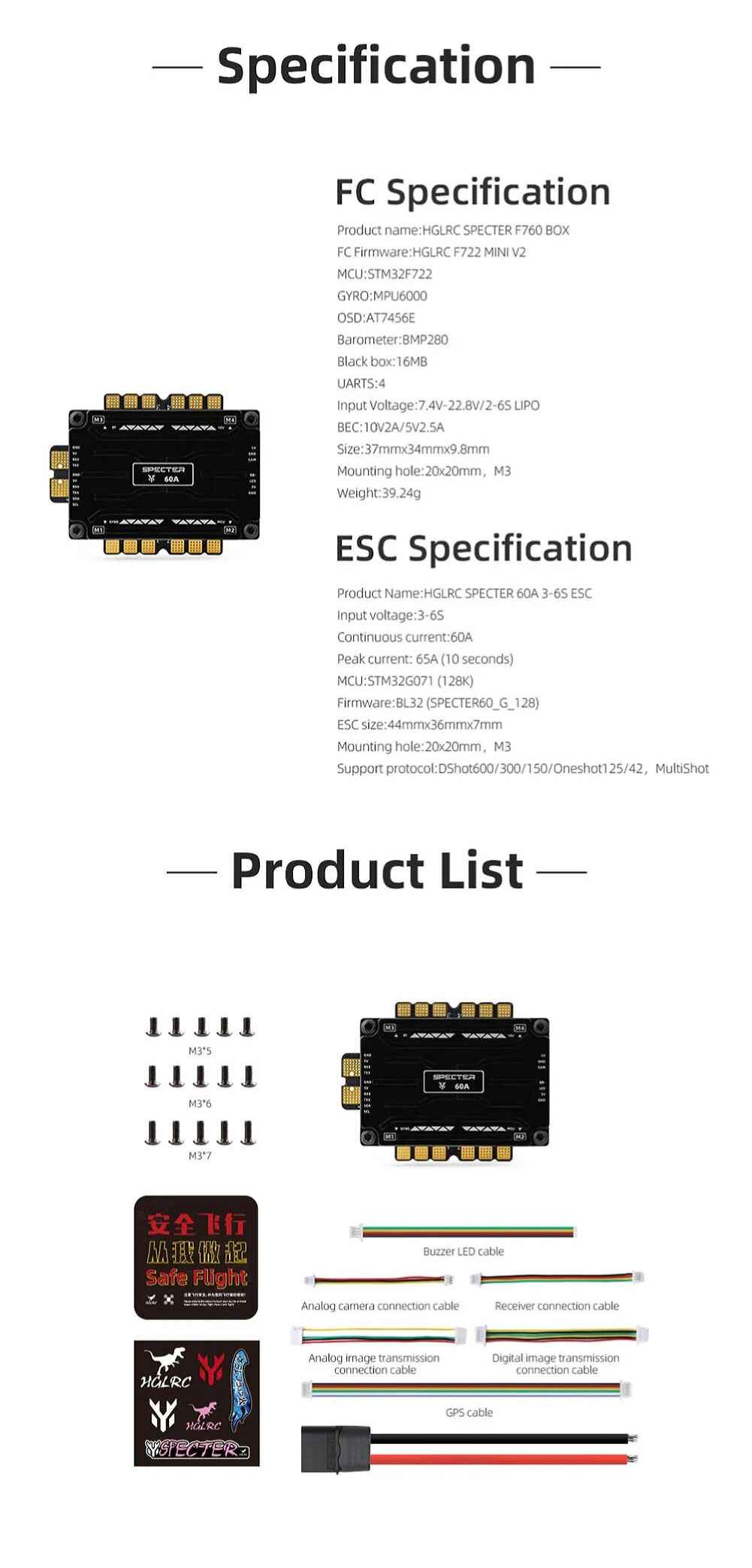

Specifications:
Brand: HGLRC
Model: SPECTER F760 BOX
Product name: 20x20mm F7 Flight Controller 60A ESC Integrated
Stack size: 44.2mmx30mmx21.15mm
Installation hole position: 20x20mm, M3

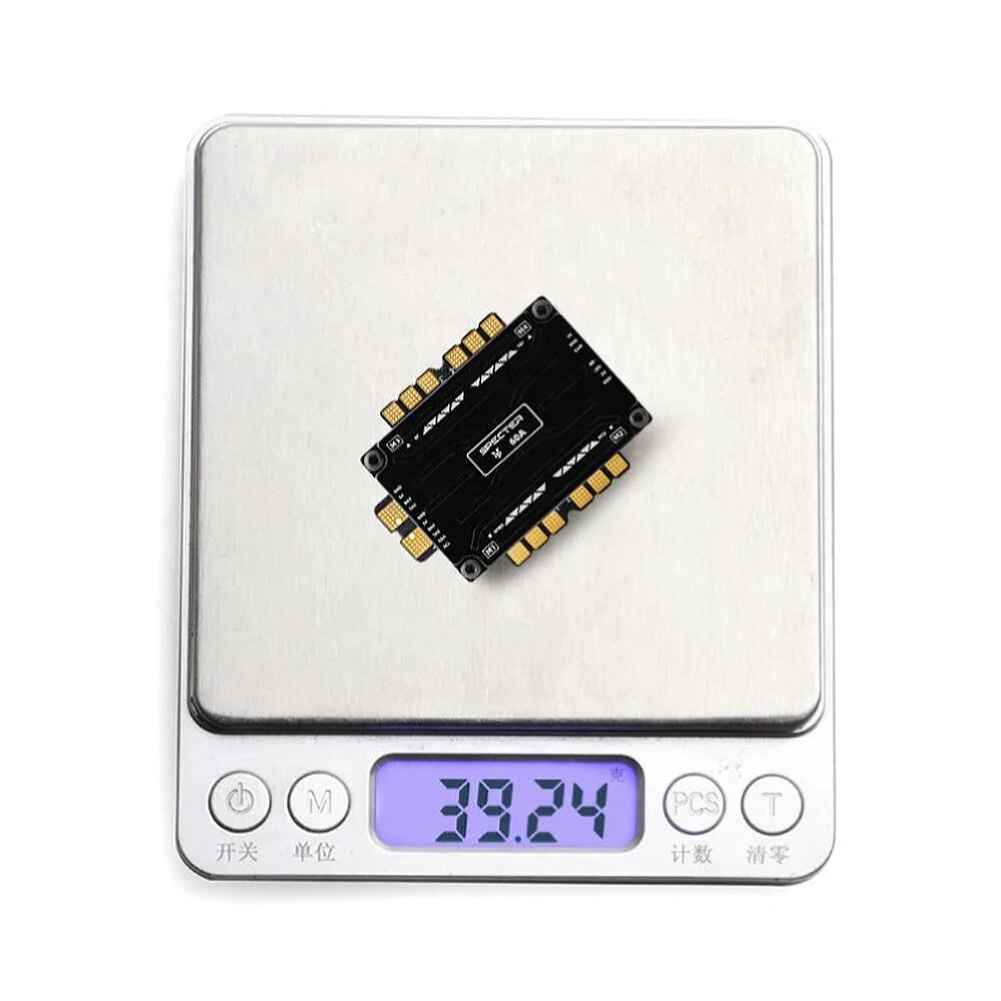

Weight: about 39g
Packaging size: 70x70x44mm
Package Included:
1 x HGLRC SPECTER F722 BOX stack
1 x 30AWG 70mm SH1.0-7P to SH1.0-6P DJI cable
1 x 30AWG 70mm SH1.0-7P to GH1.25-6P VTX cable
1 x 30AWG 60mm SH1.0-3P to 1.25-3P camera cable
1 x 30AWG 70mm SH1.0-4P receiver cable
1 x 30AWG 100mm SH1.0-4P LED soter cable
1 x 30AWG 140mm SH1.0-6P to SH1.0-6P GPS cable
1 x 14AWG 70mm red and black power cord
5 x M3 5 hexagon socket screws
5 x M3 6 hexagon socket screws
5 x M3 7 hexagon socket screws
