Hobbywing SkyWalker V2 120A UBEC Brushless ESC with Reverse Brake for RC Airplane, 3-8S LiPo Compatible

Description

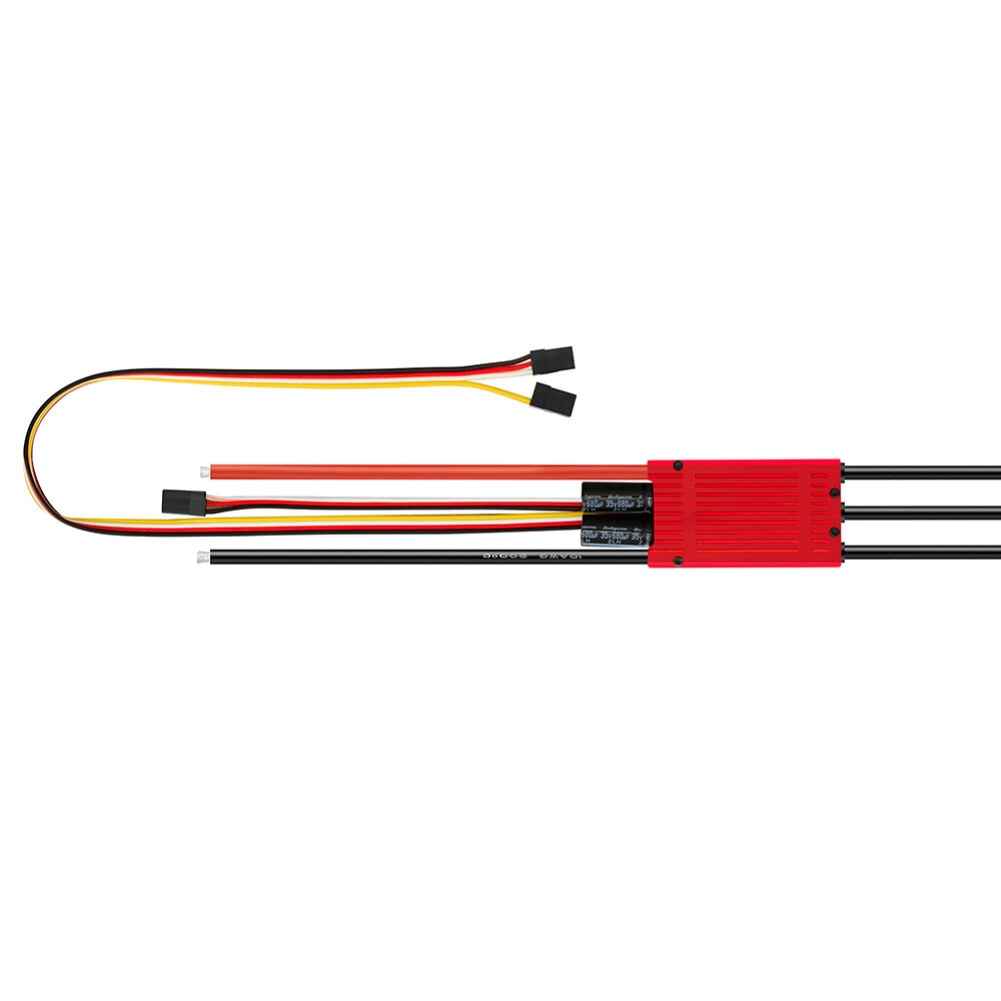

Hobbywing SkyWalker V2 120A UBEC Brushless ESC With Reverse Brake 3-8S For RC Airplane Fixed Wing

The Hobbywing SkyWalker V2 120A UBEC Brushless ESC is designed for RC airplane enthusiasts seeking reliable and efficient performance. This brushless ESC supports 3-8S LiPo batteries and offers continuous and peak currents of 120A and 150A, respectively. It features programmable settings, allowing users to tailor the ESC to their specific requirements. The ESC provides fast and smooth throttle response, enhancing stability and flexibility during flight. Equipped with Reverse Brake and Linear Reverse Brakes modes, it effectively shortens landing distances, simulating real aircraft landings. Built-in protection features, such as abnormal input voltage and low voltage cutoff, help prolong the ESC’s lifespan.

Specifications:
Brand Name: Hobbywing
Product Name: Skywalker 120A V2
Product Number: 30205450
Brushed/Brushless: BL
High Voltage/Regular: Regular
Cont./Peak Current: 120A/150A
Input: 3-8S LiPo
BEC Output: Switch Mode:5V/6V/7.4V/8.4V,10A/30A
Input Wires: Red-10AWG-150MMx1, Black-10AWG-150MMx1
Output Wires: Black-12AWG-100MMx3
Input Connectors: NO
Output Connecotors: 4.0 Gold Connectors (Female)
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire Firmware
Firmware Upgrade: Not Supported
Size: 83x35x22mm
Weight: 117g
Features:
– Brushless ESC provides efficient and reliable performance for fixed wing aircrafts.
– It offers a wide range of programmable settings, allowing users to customize the ESC to their specific needs.
– Fast and smooth throttle response, better stability and flexibility during flight.
– With Reverse Brake and Linear Reverse Brakes mode enabled can effectively shorten the landing distanceof the aircraft to simulate the landing of a real aircraft.
– Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the life of the ESC.
English Manual, Click Here

Package Included:
1 x HobbyWing SkyWalker 120A-V2-UBEC Brushless ESC
