HSKRC MAK5 225mm 3K Carbon Fiber Freestyle Frame Kit for FPV Racing Drones, Compatible with DJI Air Unit
Price range: $45.13 through $55.12
- 225mm wheelbase for stable and flexible flights
- Durable 3K carbon fiber construction
- Compatible with DJI Air Unit and analog VTX systems
- 19-20mm camera mounting width
- Includes TPU mounting base for GoPro
You May Also Like
Description
HSKRC MAK5 225mm Wheelbase 3K Carbon Fiber 5 Inch Freestyle Frame Kit Support DJI Air Unit Digital System for RC Drone FPV Racing
The HSKRC MAK5 Frame Kit is a high-performance 225mm wheelbase frame designed for FPV drone racing enthusiasts. Constructed from durable 3K carbon fiber, it ensures stability and flexibility with its X Frame Arm design. The frame is compatible with both DJI Air Unit digital systems and analog VTX, offering versatile options for your racing needs. It features a 19-20mm camera mounting width and supports 16x16mm and 19x19mm motor mounting holes. Additionally, the frame includes a TPU mounting base for GoPro cameras, making it an ideal choice for capturing stunning aerial footage. With precise mounting specifications for flight controllers and VTX, this frame kit is perfect for building a robust and agile racing drone.
Features:
– 7075 Aluminum alloy Side Plate, more durable and Pretect FPV Camera more effectively
– X Frame Arm design, flying more stable and flexible
– Compatible with DJI / Vista HD digital System and Analog VTX
– 19-20mm Camera Mounting Width
– Support 16x16mm and 19x19mm Motor Mounting Hole
– With TPU Mounting Base for Gopro
Specification:
Brand: HSKRC
Model: MAK5
Item Name: 225mm Wheelbase 5 Inch Frame Kit
Wheelbase: 225mm
Material: 3K Carbon Fiber
Upper Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Plate Thickness: 5mm
Weight: 170g approxi. ( include 3D Printing Parts)

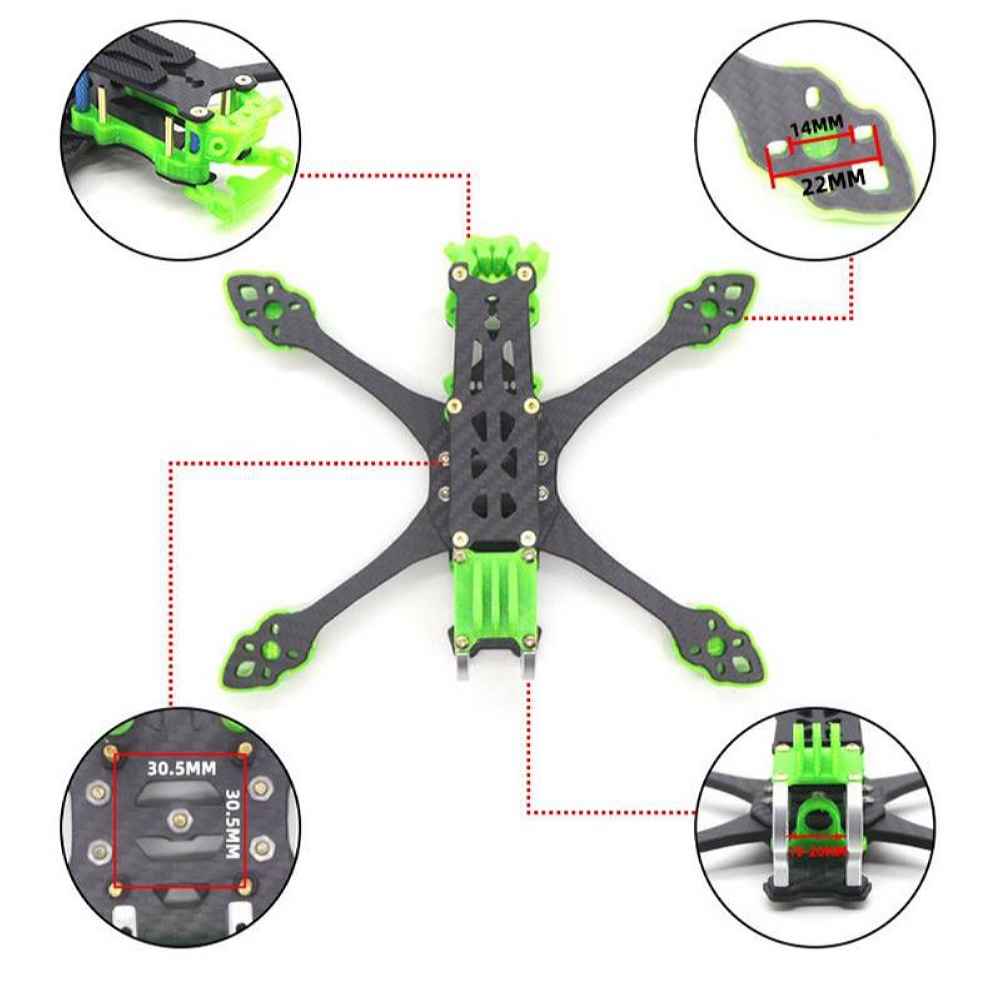

Flight Controller Mounting Hole: 30.5×30.5mm
VTX Mounting Hole: 30.5×30.5mm, 20x20mm
Motor Mounting Hole: 16x16mm, 19x19mm
Camera Mounting Hole: 19-20mm
Inner Height: 25mm

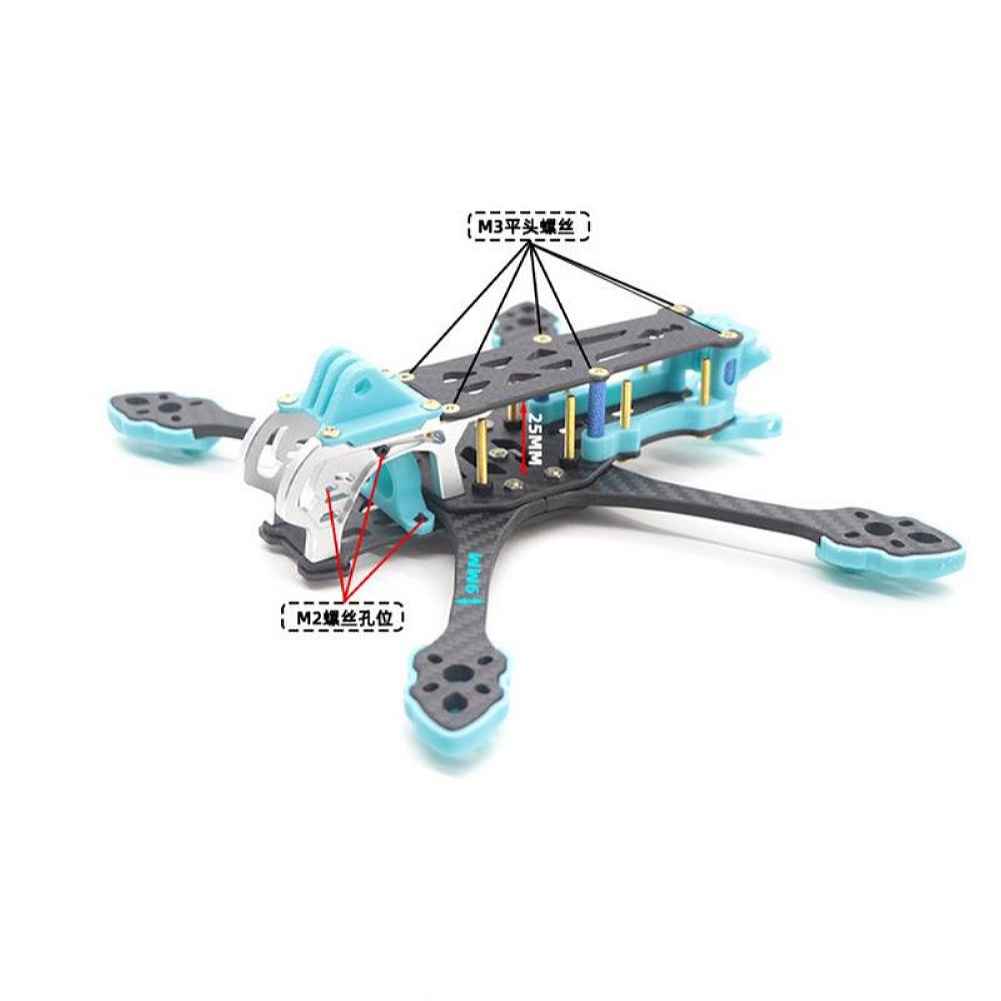

Screw Size: M2 and M3
Recommend Parts: ( NOT Included)
Package Included:
1 x HSKRC MAK5 Frame Kit
