iFlight Chimera CX10 ECO 10″ 452mm Wheelbase Frame Kit for DIY RC Drone FPV Racing, Compatible with DJI O3 and Caddx Digital FPV Systems
Original price was: $211.98.$174.88Current price is: $174.88.
- 10-inch quadcopter frame with 452mm wheelbase
- Compatible with DJI O3 Air Unit and Caddx Digital FPV systems
- Durable construction with 6mm arm thickness
- Supports multiple flight stack and VTX mounting options
- Includes essential components for assembly
You May Also Like
Description

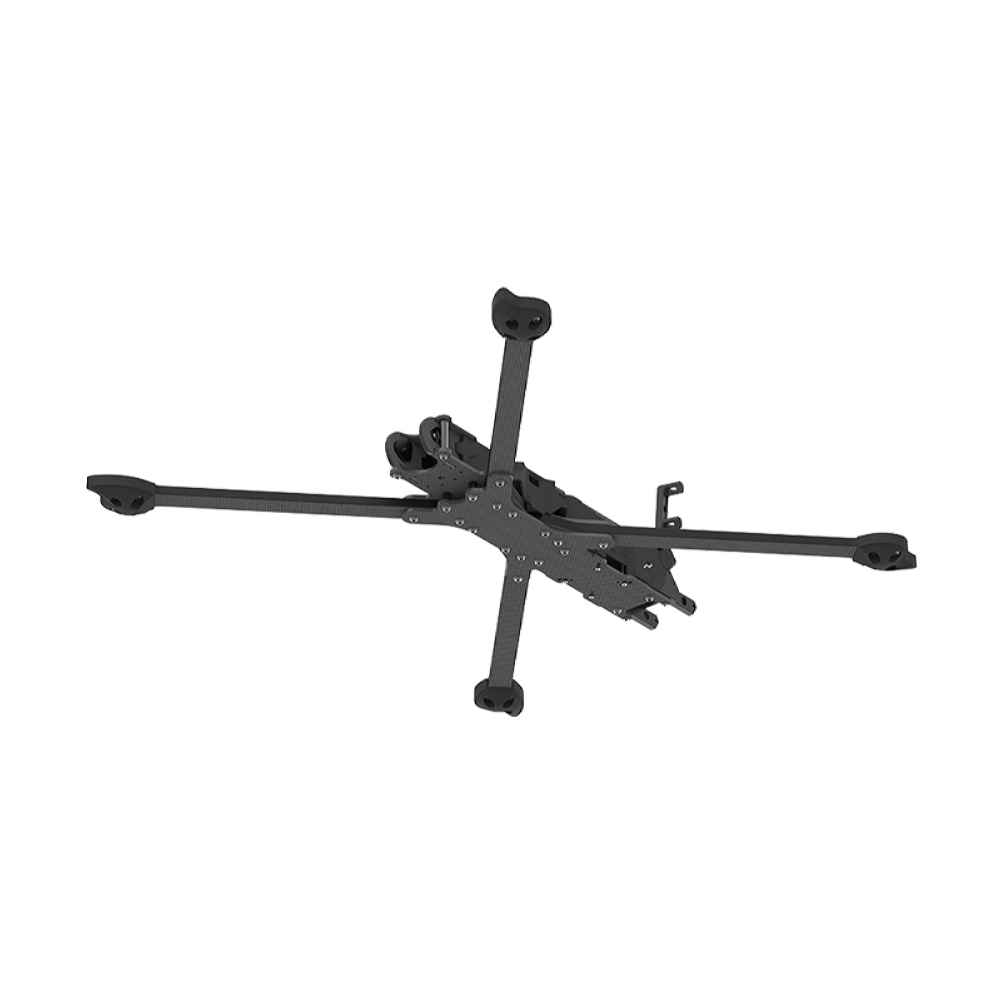

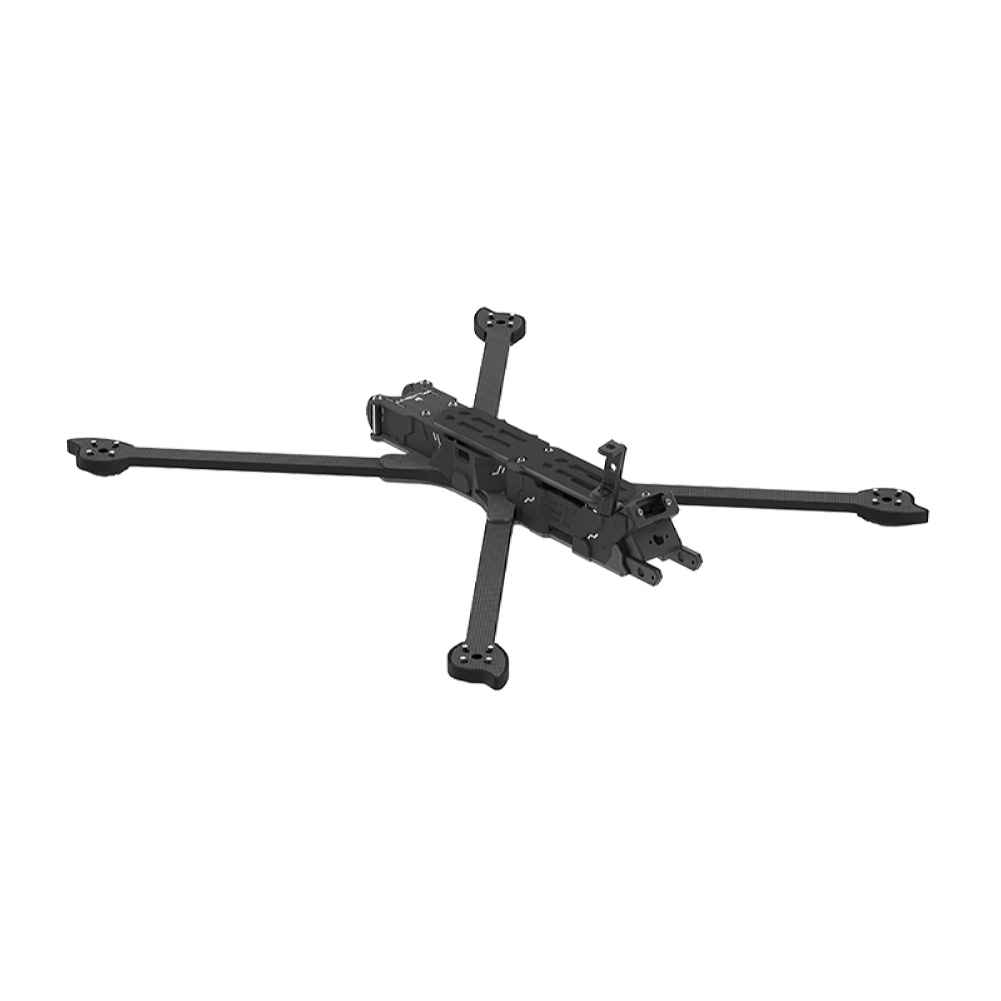

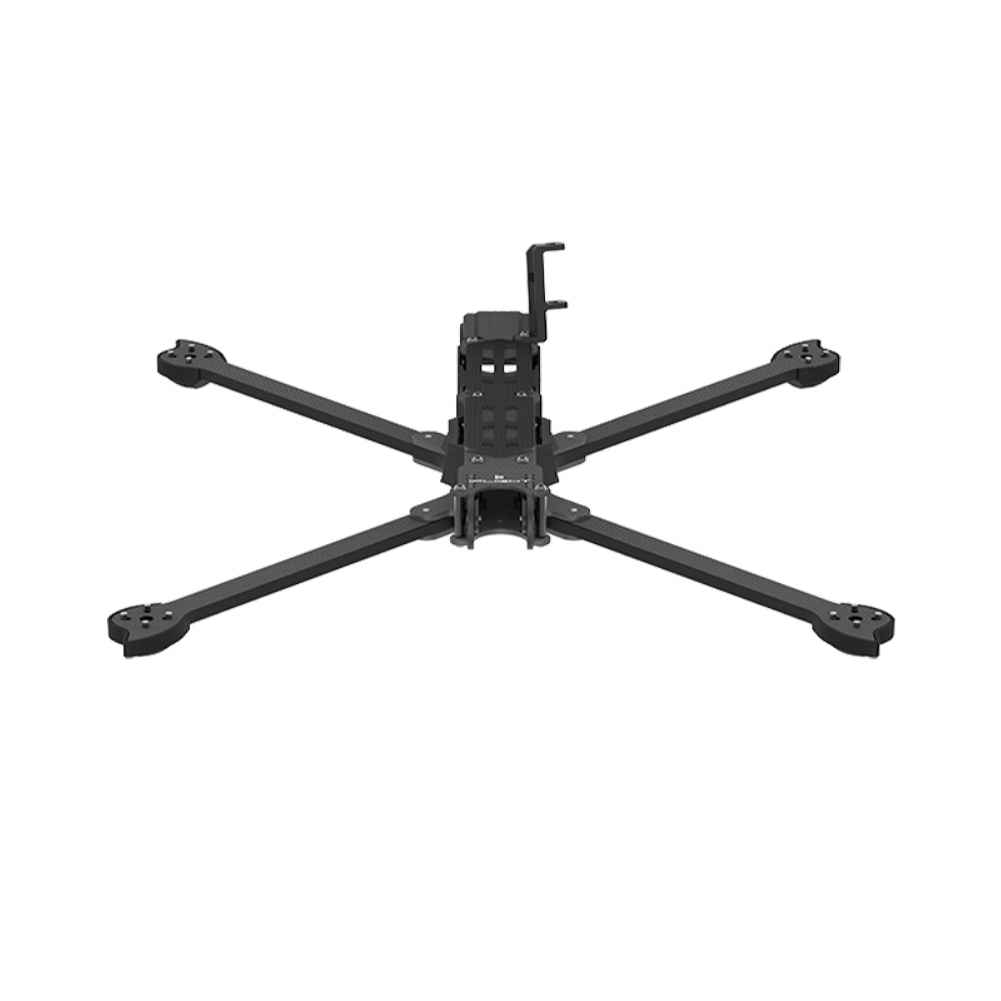

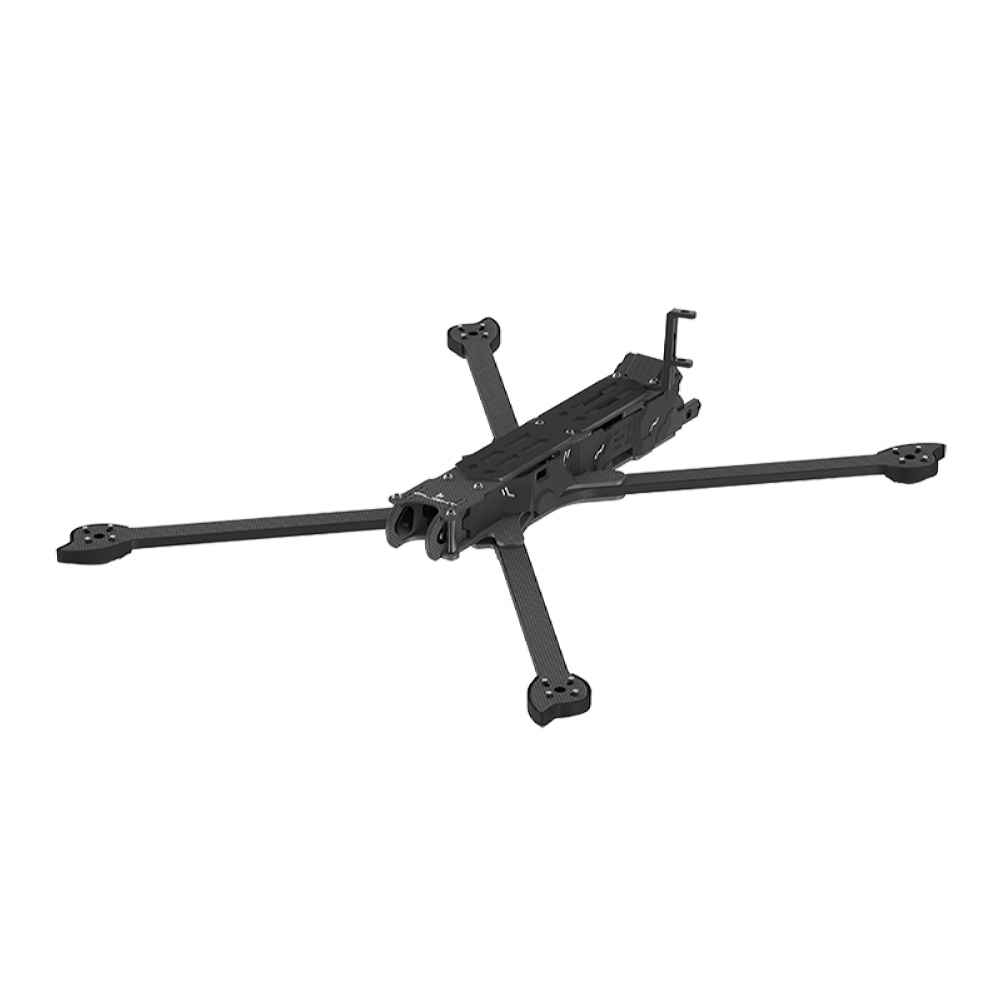

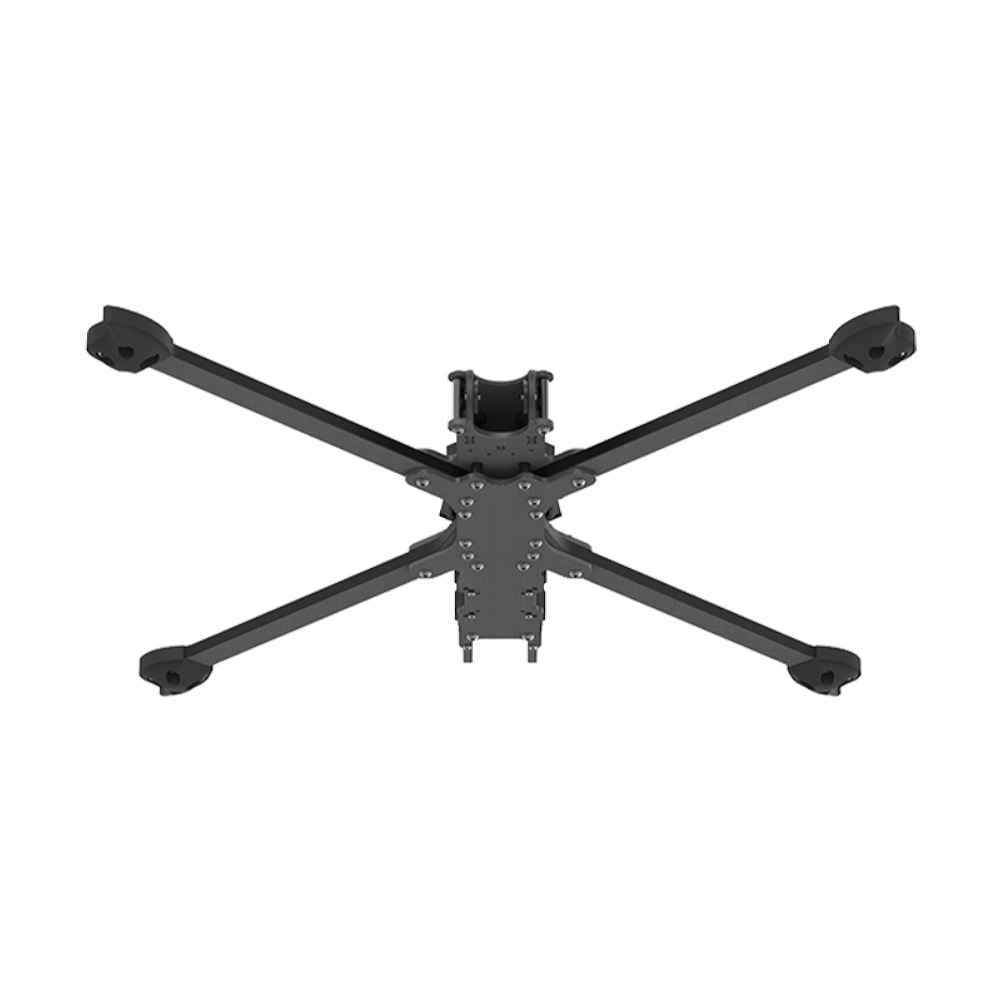

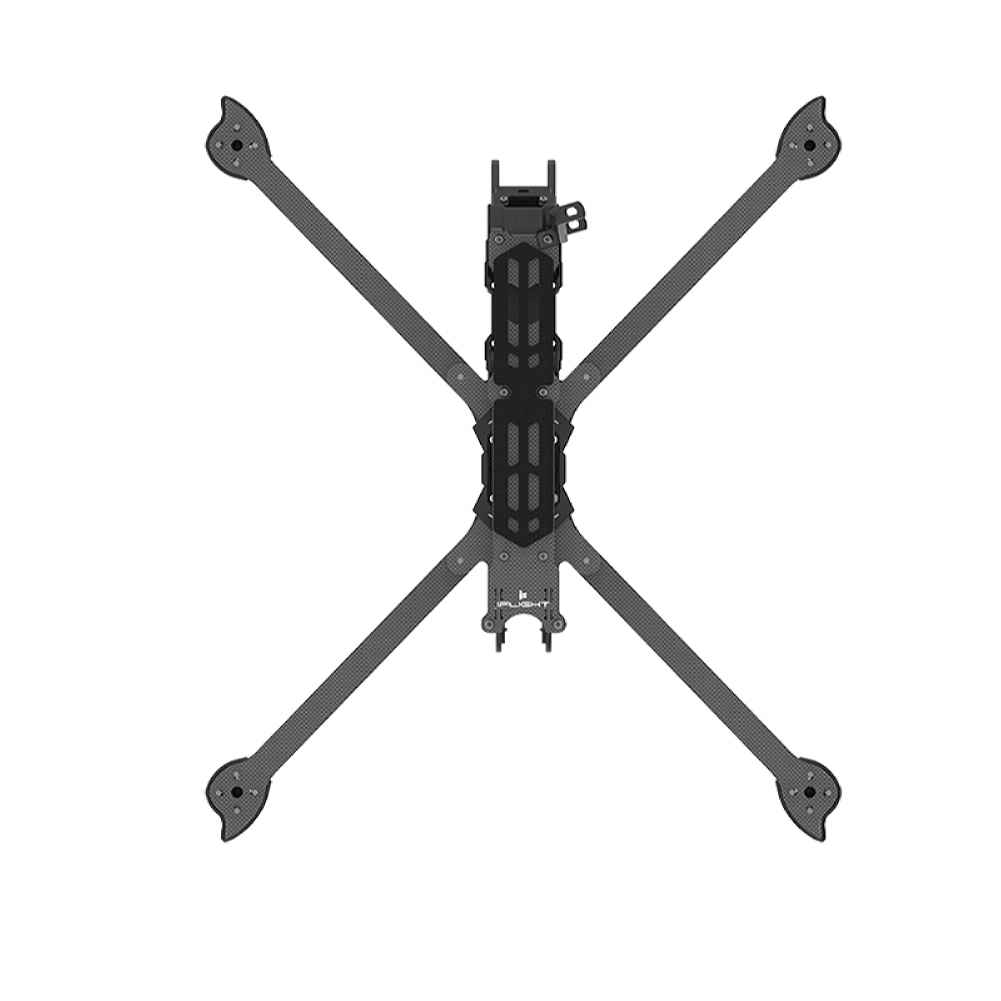

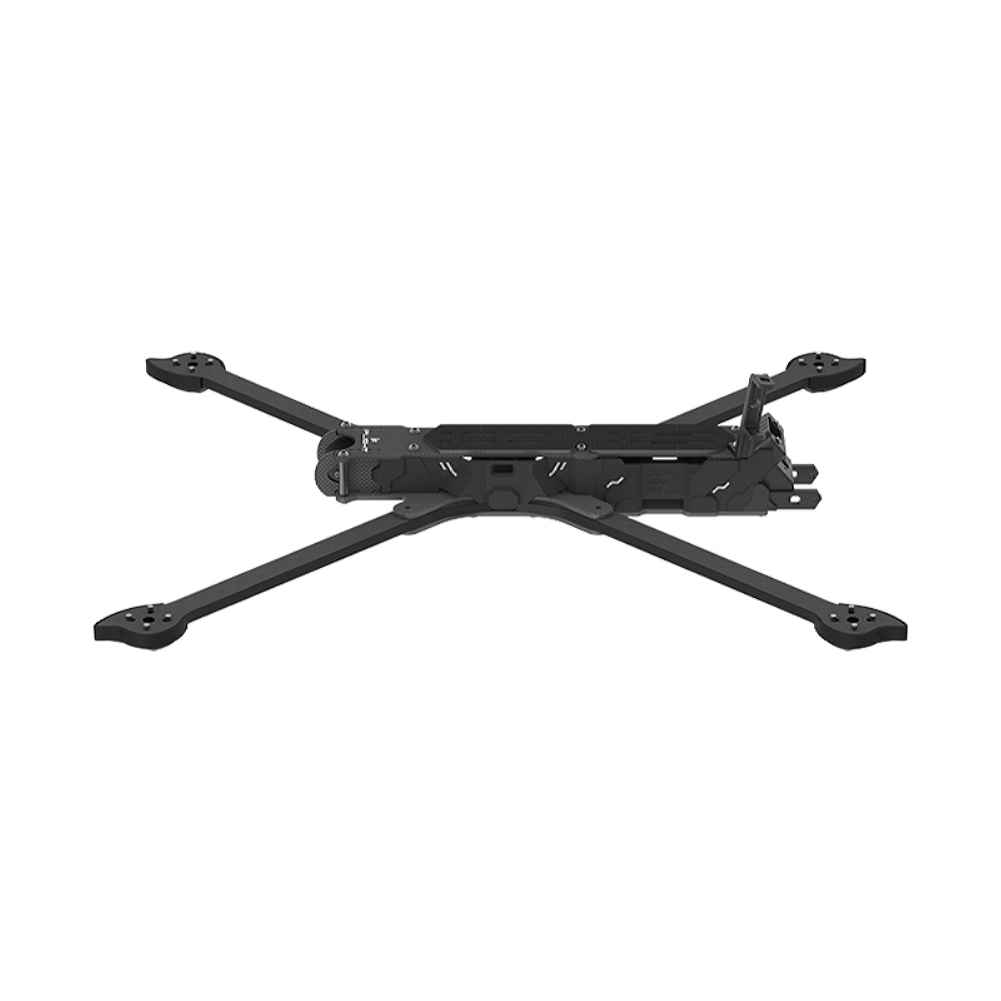

iFlight Chimera CX10 ECO 10 Inch 452mm Wheelbase Long Range Frame Kit for DIY RC Drone FPV Racing
The iFlight Chimera CX10 ECO is a 10-inch quadcopter frame kit designed for DIY RC drone enthusiasts and FPV racing. With a 452mm wheelbase, it is compatible with the DJI O3 Air Unit and Caddx Digital FPV systems. This frame kit features a robust structure with a 6mm arm thickness and includes a bottom plate, top plate, and upper plate of varying thicknesses to ensure durability. The frame supports a maximum flight stack height of 21mm and multiple VTX mounting options. Ideal for long-range flights, the Chimera CX10 ECO offers flexibility for various motor and propeller configurations, making it a versatile choice for hobbyists.
Description:
It’s proud to announce the release of the CX10 ECo Frames, CX10 is a 10′ size quadcopter, fit for the DJI O3 Air Unit system and Caddx Digital FPV system on it.
Specifications:
Brand: iFlight
Model: Chimera CX10 ECO
Product Name:452mm Wheelbase 10 inch Frame Kit
Wheelbase: 452mm
Frame Dimension: L338*W299*H34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Maximum Flight Stack Height: 21mm
Max VTX Height: 30mm
Flight Stack Mounting: 30.5*30.5mm 嫉3mm
VTX Mounting券20*20 ?2mm/ 25.5*25.5 ?1.6mm/ 30.5*30.5 ?3mm
Motor Mounting券16x16mm/19x19mm ?3mm
Weight: 383g
Recommend Parts: ( NOT Included)
FC & ESC: 30.5×30.5mm iFlight BLITZ ATF435 FC & E55S 55A BL_S 4IN1 ESC Stack
Brushless Motor: iFlight XING-E 3110 900KV Brushless Motor
Propeller: HQProp MQ10x5x3 1050 10 Inch Carbon Nylon 3-Blade Propeller
Analog VTX: iFlight BLITZ 5.8GHz PIT/25mW/400mW/1000mW/2500mW MMCX VTX
Lipo Battery: iFlight Fullsend 22.2V 8000mAh 6S Li-ion Battery XT60 Plug
Packing Included:
1 x CX10 ECO Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
2 x Battery straps
4 x AMASS MR30 Plugs
NOTE:
The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.
Package Included:
1 x CX10 ECO Frame
1 x Screw Bag
1 x TPU Set
1 x Battery anti-slip mat
2 x Battery straps
4 x AMASS MR30 Plugs
