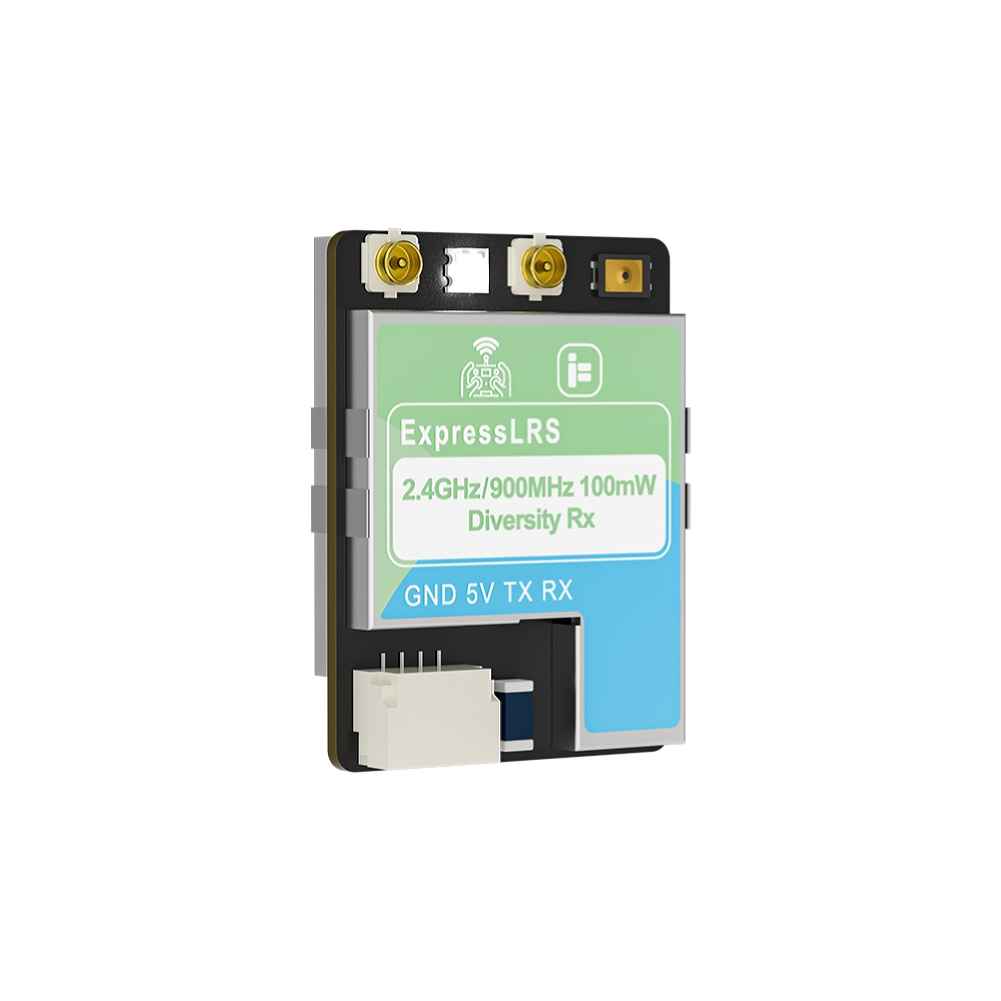

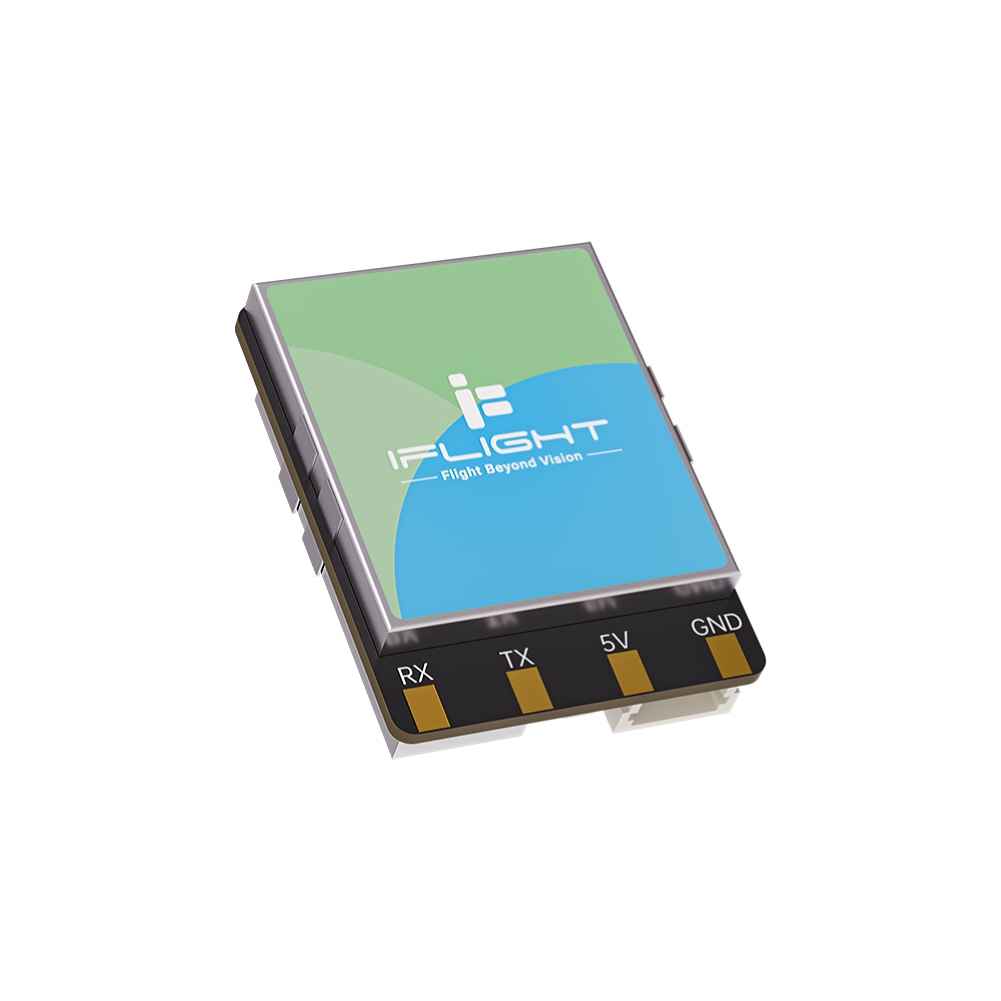

iFlight ExpressLRS 2.4GHz/900MHz Dual-Band RX Receiver, True Diversity, Dual Antenna, FPV RC Drones

Description

iFlight ExpressLRS 2.4GHz/900MHz ELRS 100mW Dual-Band True Diversity RX Receiver with Dual Antenna Support Gemini / True Diversity / Gemini Xrossband for FPV RC Drones

The iFlight ExpressLRS Receiver offers exceptional reliability with its dual-band technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Equipped with a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in diverse environments. Users can select between single or dual-antenna configurations to enhance compatibility and signal strength, making it ideal for long-range flights, aerial photography, and FPV freestyle. With advanced diversity modes like GemX, Gemini, and True Diversity, this receiver provides superior interference resistance and reception. Experience unmatched precision and reliability for all your flying needs with iFlight.

iFlight ExpressLRS 2.4GHz/900MHz ELRS 100mW Dual-Band True Diversity RX Receiver with Dual Antenna Support Gemini / True Diversity / Gemini Xrossband for FPV RC Drones
Description:
The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Choose between single or dual-antenna configurations for enhanced compatibility and signal strength. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.
Feature:

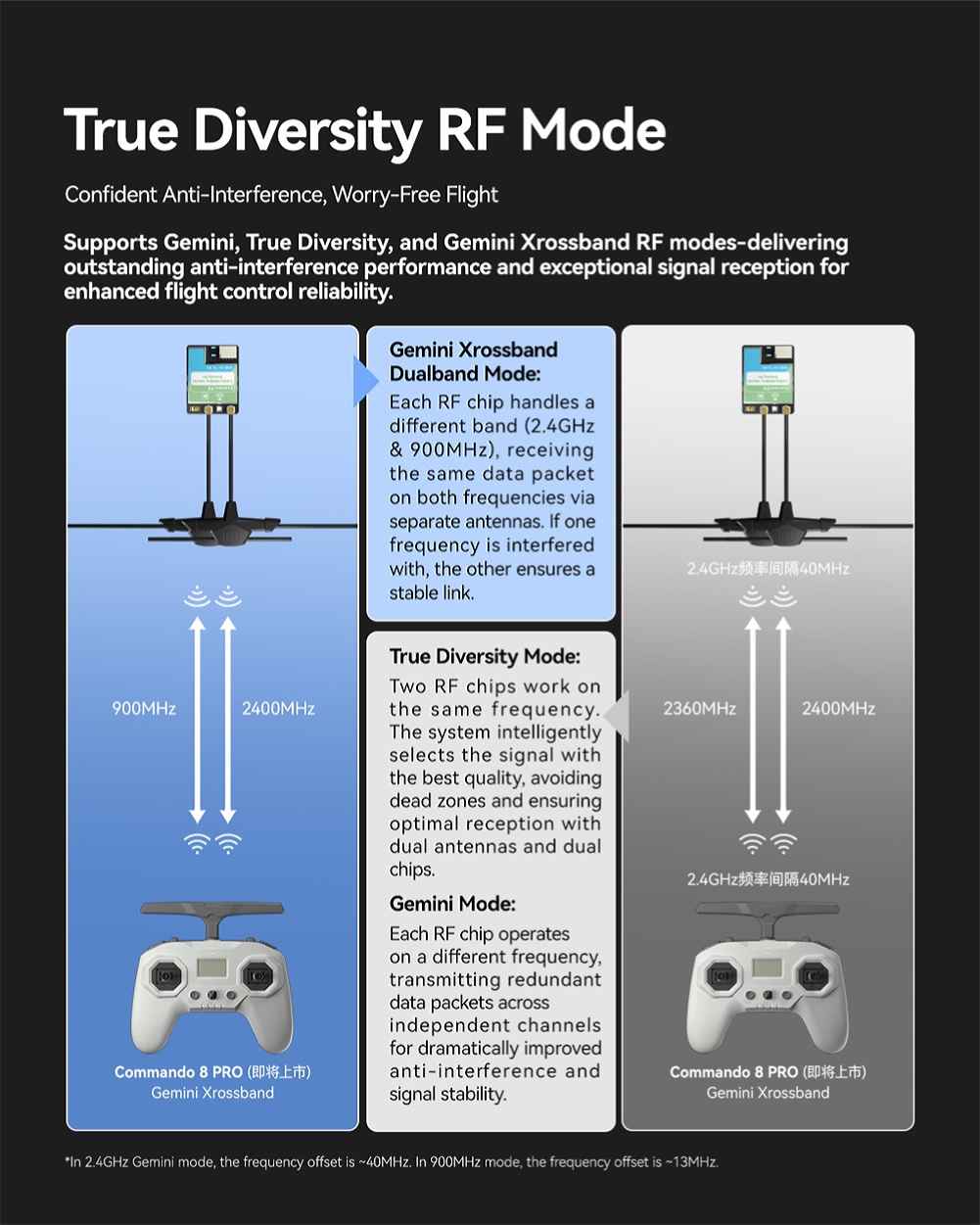

– Advanced Diversity Modes: Supports GemX, Gemini, and True Diversity RF modes for superior interference resistance and reception (Note: To use GemX, a high-frequency transmitter module that supports GemX mode is required).

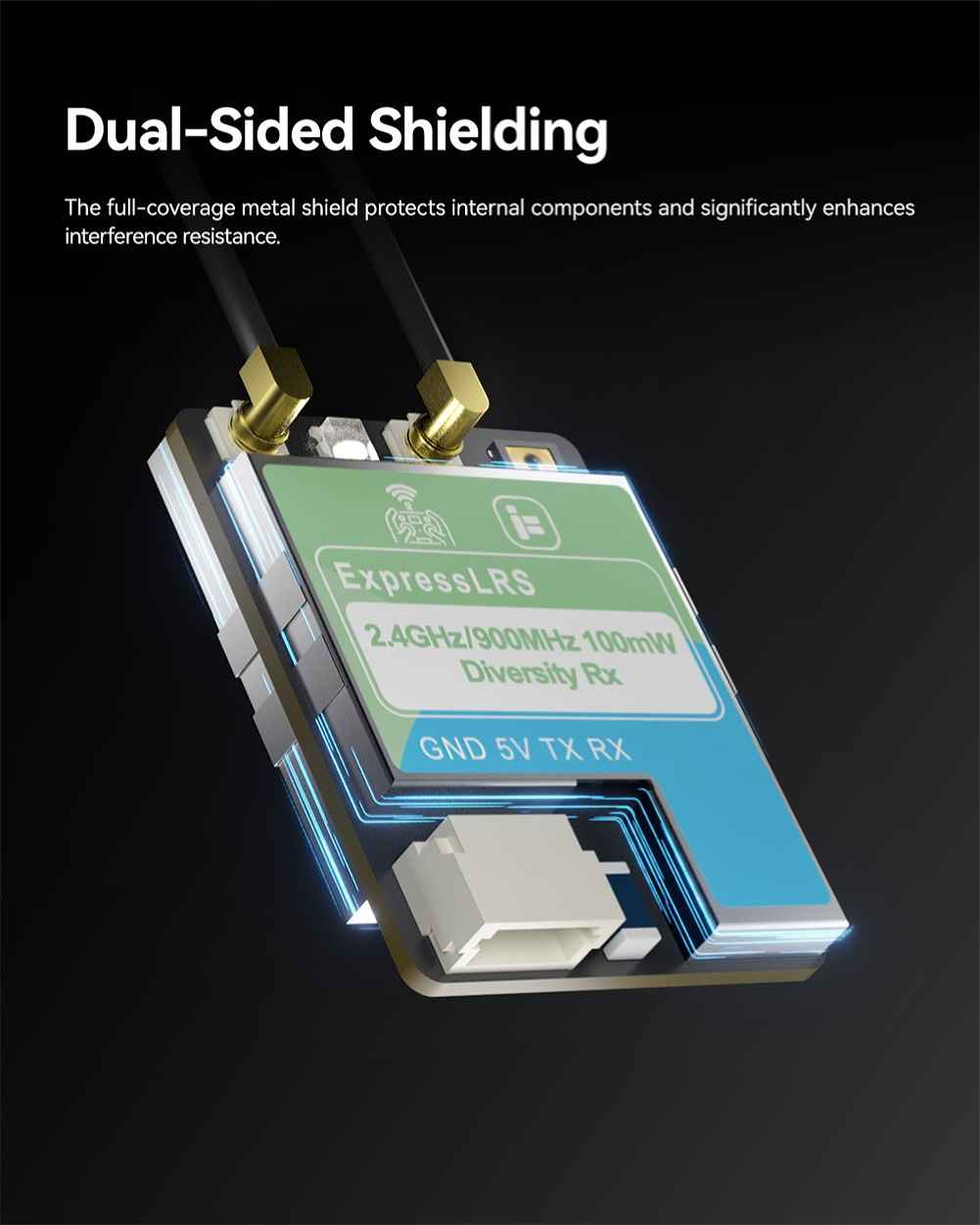

– Shielded Design: Protects electronics and improves interference resistance.
– SH1.0 Connector: Ensures easy and reliable installation.

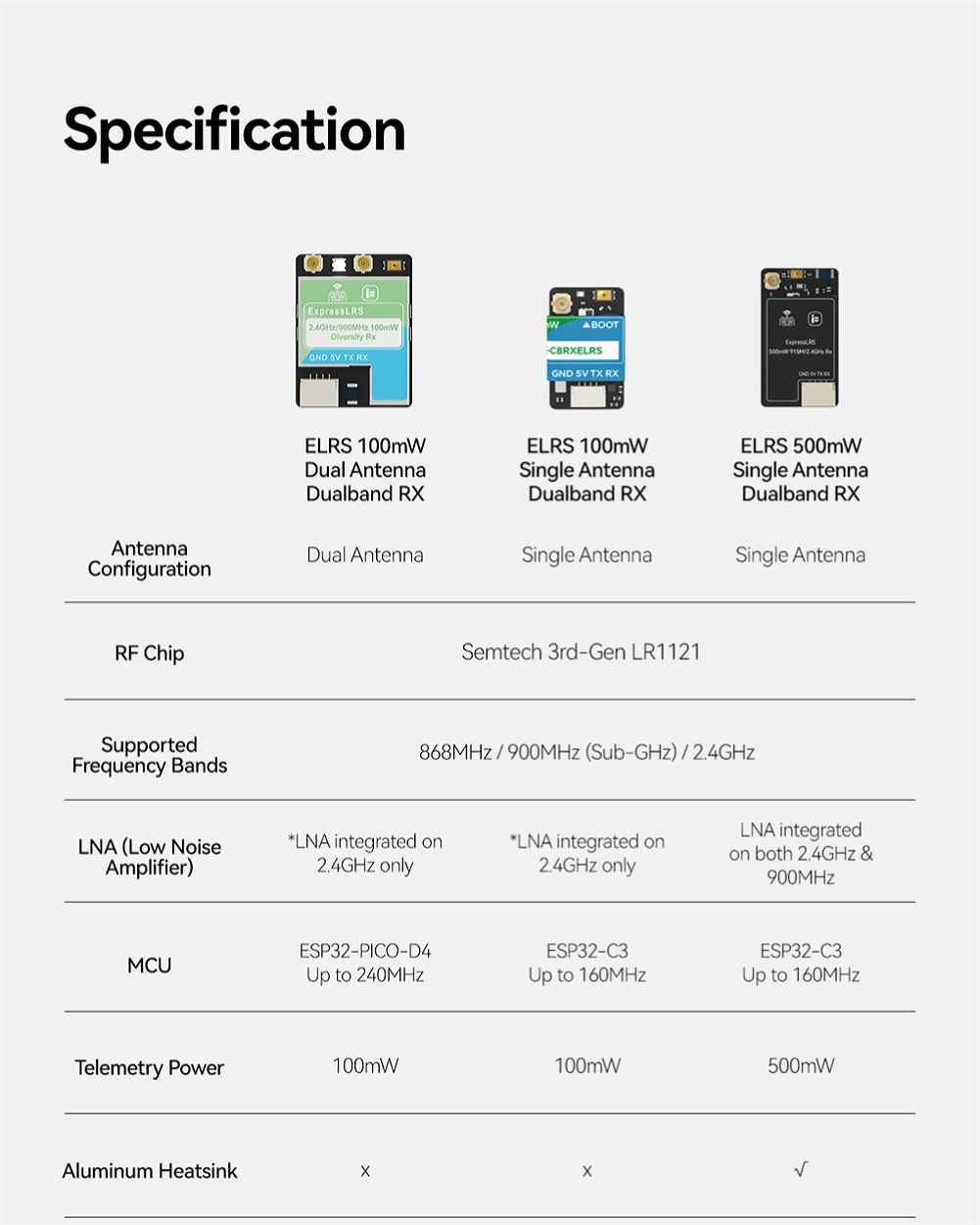

Specification:
Brand: iFlight
Model: ELRS 100mW Dual-band Diversity RX
MCU: ESP32-Pico D4

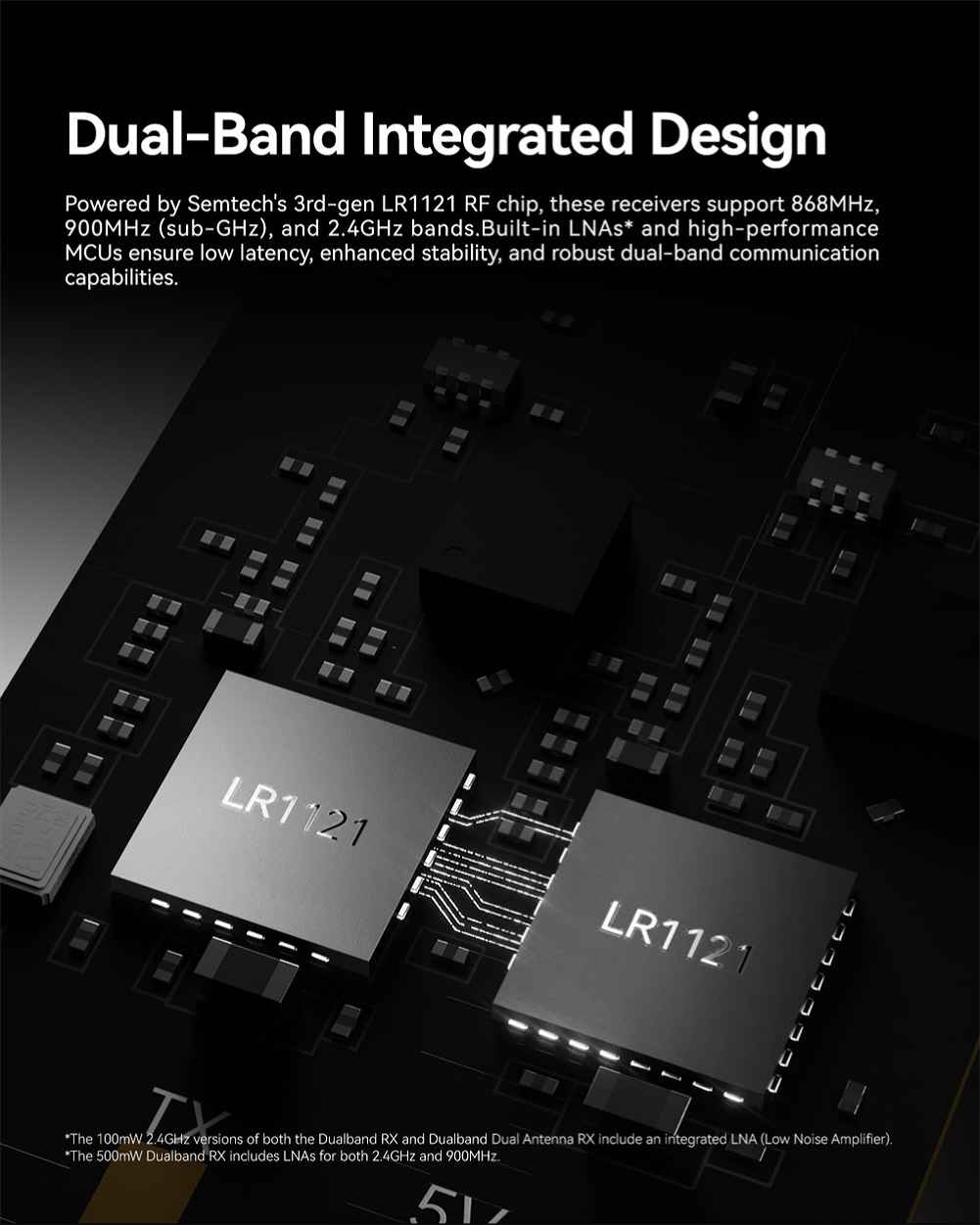

RF: LR1121
Receiver Type: GemX
Telemetry power: 100mW (20dBm)
LNA: N/A(868/900MHz) / YES (2.4G)
Dimension:24.3*18.5*6.5mm(呼0.5佩
Weight: 4.9g(呼0.5g佩
Lua Script: iF GemX 100mW RX
TCXO: Yes
Firmware Version: ELRS 3.5.3

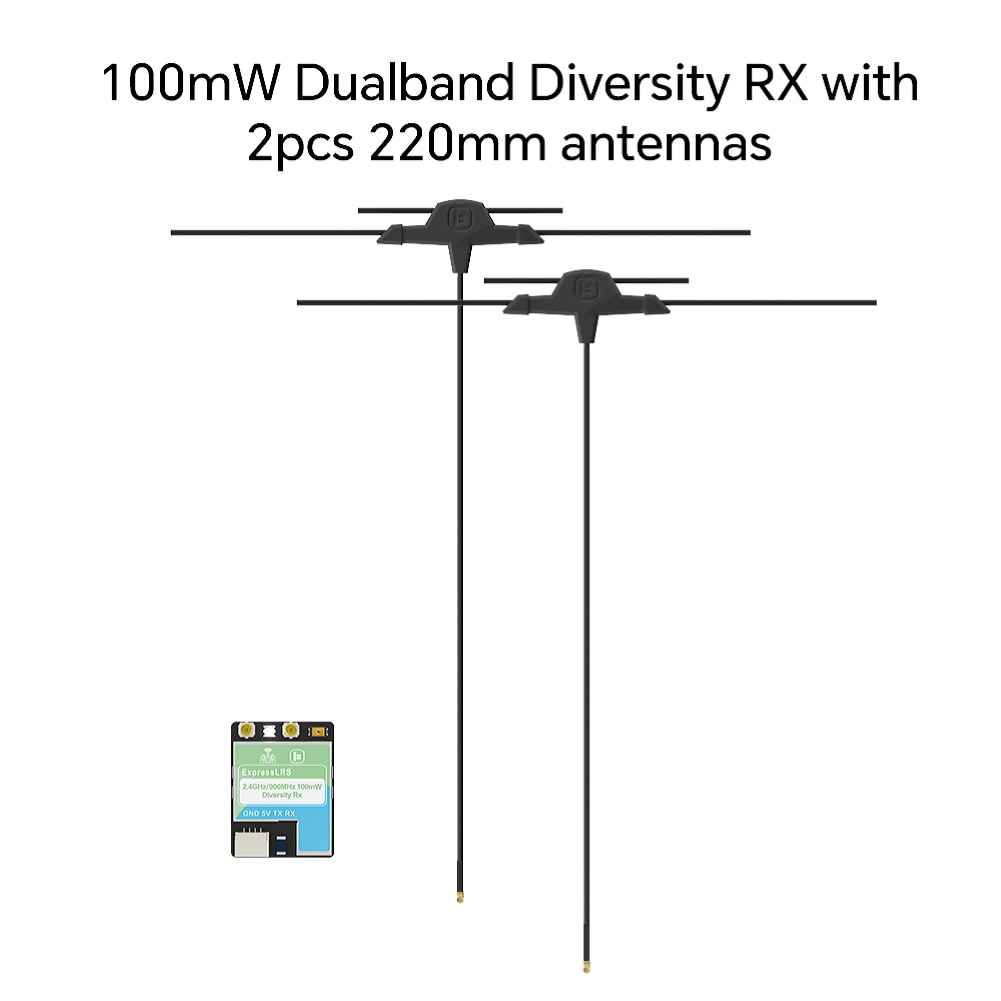

Package Included:

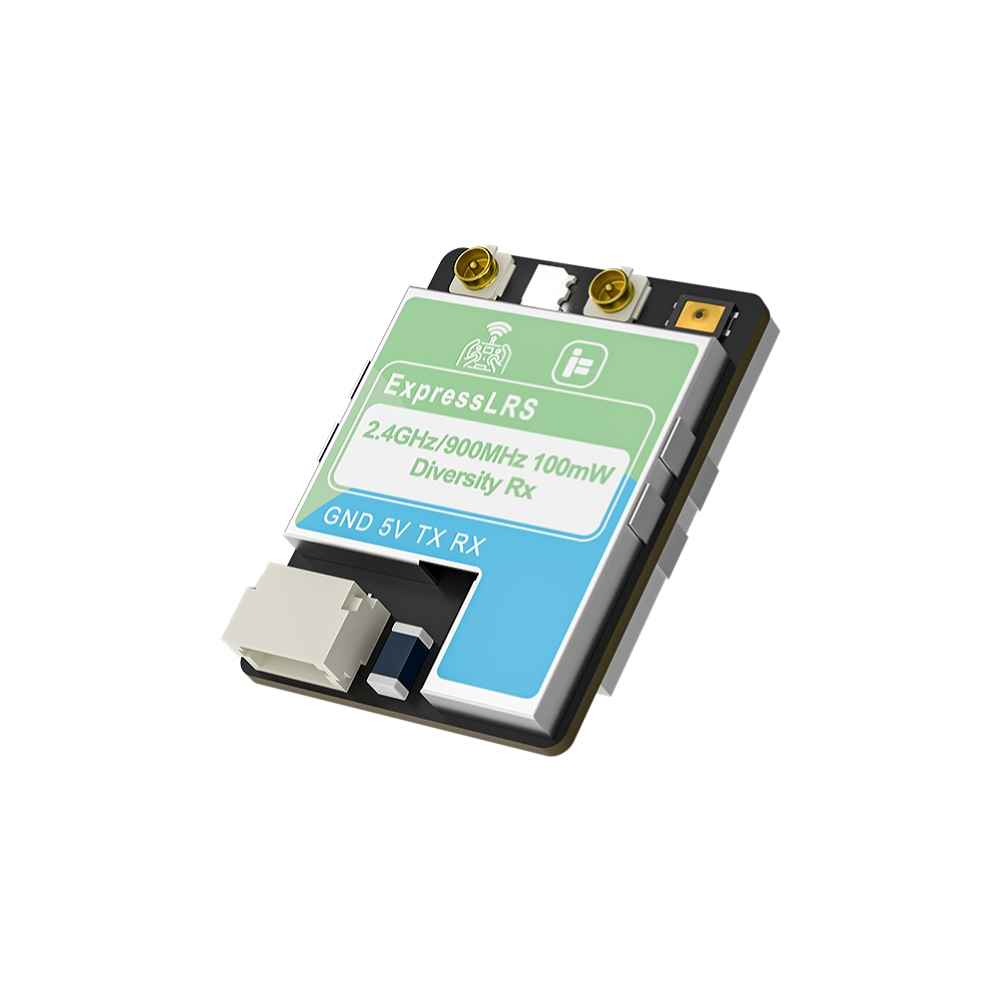

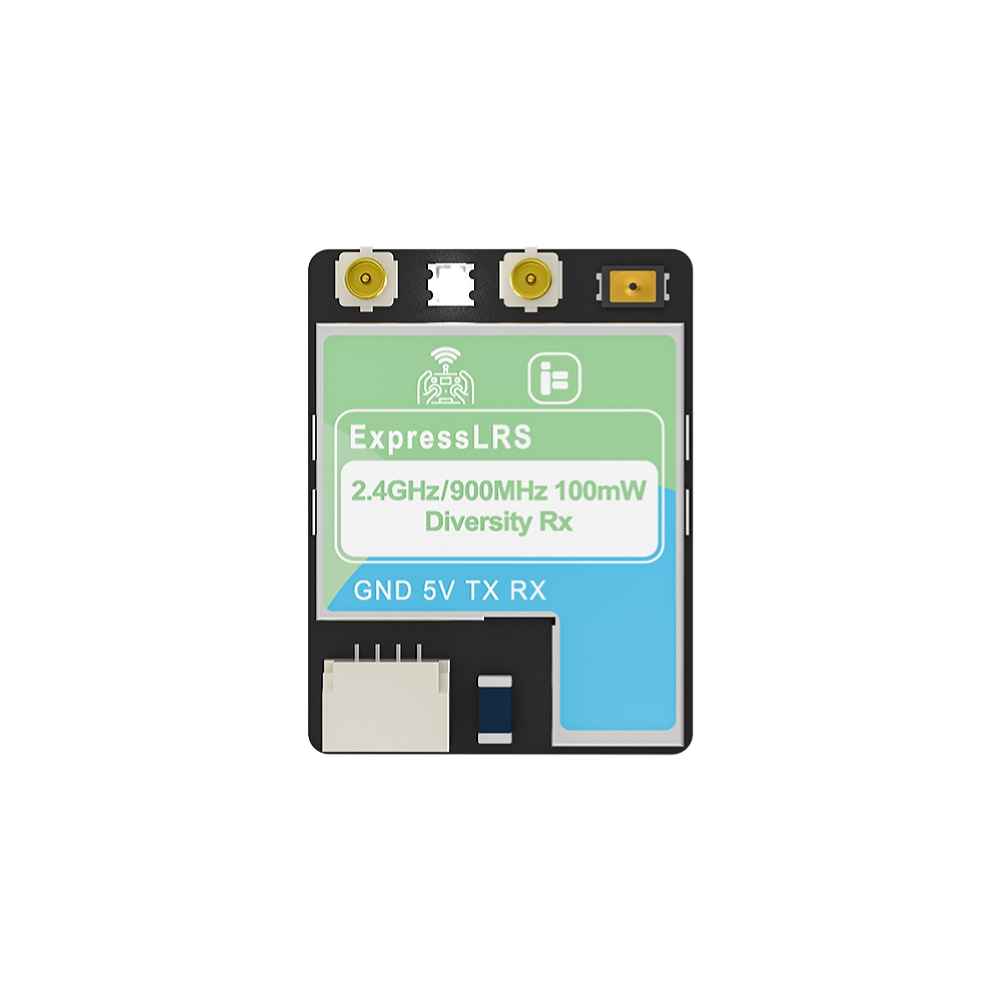

1 x ELRS 100mW Dual-band Diversity RX
2 x Antenna
