iFlight ExpressLRS 2.4GHz/900MHz ELRS Dual-Band RX Receiver, 100mW/500mW, Single Antenna for FPV Racer Drone

Description

iFlight ExpressLRS 2.4GHz/900MHz ELRS 100mW/500mW Dual-band RX Receiver Single Antenna for FPV Racer Drone

The iFlight ExpressLRS Receiver offers exceptional reliability with its dual-band technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Equipped with a temperature-compensated crystal oscillator (TCXO), it ensures stable performance across various environments. Users can choose between single or dual-antenna configurations to enhance compatibility and signal strength. Ideal for long-range flights, aerial photography, and FPV freestyle, this receiver provides unmatched precision and reliability for your flying adventures. Experience superior performance with iFlight’s advanced technology.

iFlight ExpressLRS 2.4GHz/900MHz ELRS 100mW/500mW Dual-band RX Receiver Single Antenna for FPV Racer Drone
Description:
The iFlight ELRS Receiver redefines reliability with its dualband technology, supporting 2.4GHz, 868MHz, and 900MHz frequencies. Featuring a temperature-compensated crystal oscillator (TCXO), it ensures stable performance in any environment. Choose between single or dual-antenna configurations for enhanced compatibility and signal strength. Perfect for long-range flights, aerial photography, and FPV freestyle, this receiver delivers unmatched precision and reliability for all your flying needs. Elevate your experience with iFlight.
Features:
– TCXO Technology: Minimizes frequency deviation for precise and stable performance.
– Multi-Frequency Support: Compatible with 2.4GHz, 868MHz, and 900MHz for versatile use.
– Compact Design: Space-saving and lightweight for easy integration.

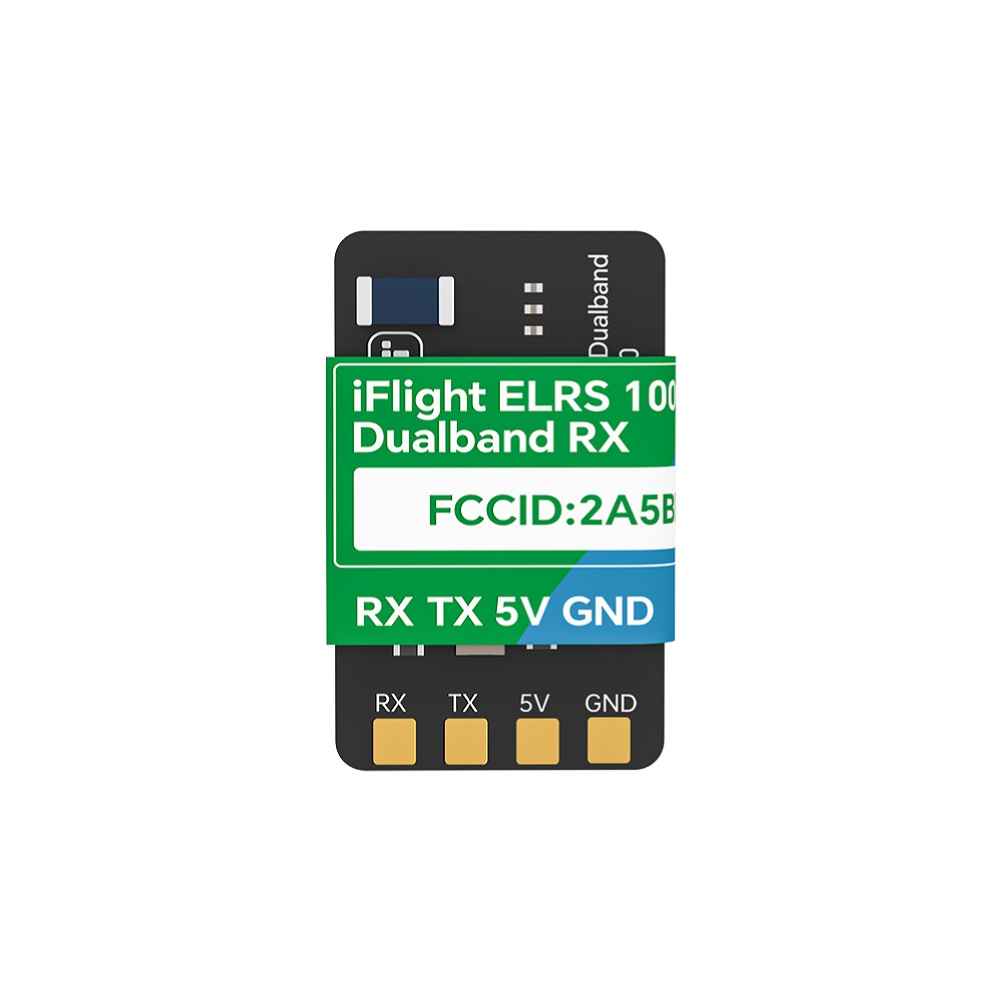

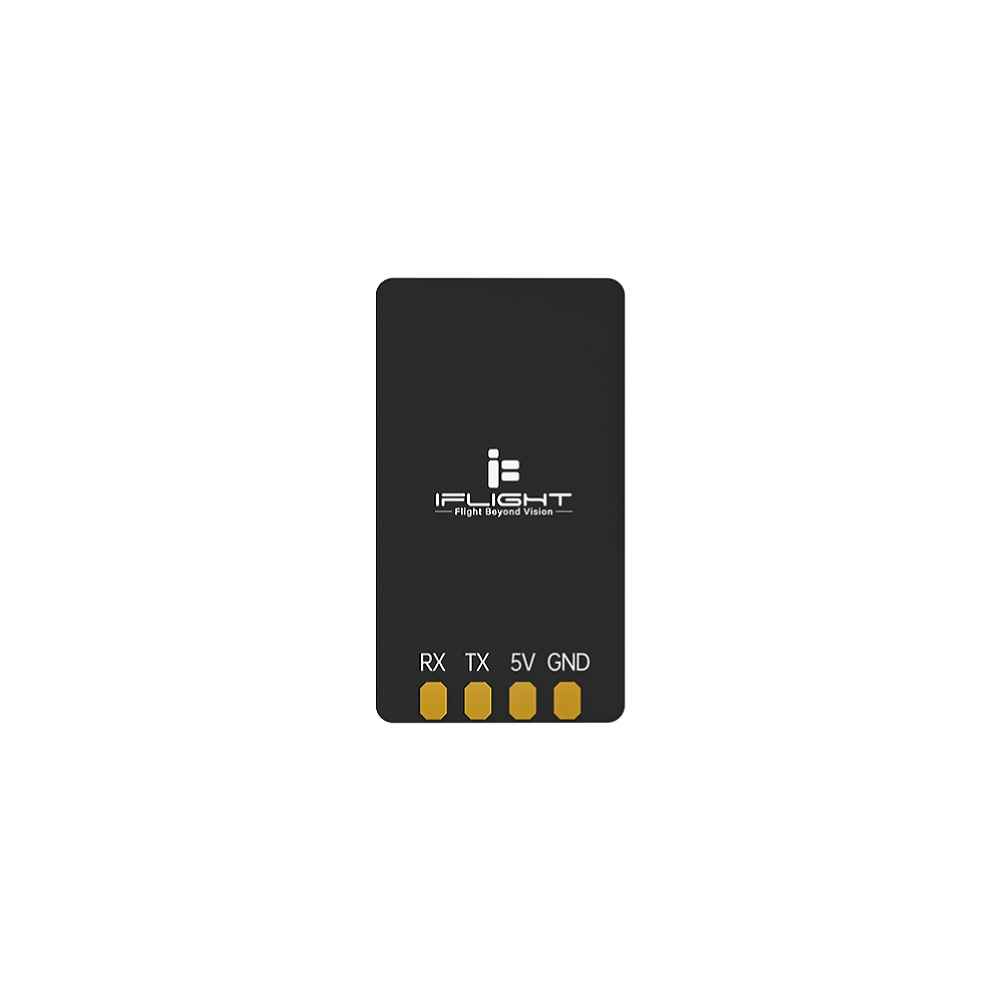

100mW Dualband Receiver Only:
– Ultra-Lightweight: Weighs only 0.5g, saving space and reducing aircraft weight.
– SUR 0.8 Connector: Simplifies installation and setup.

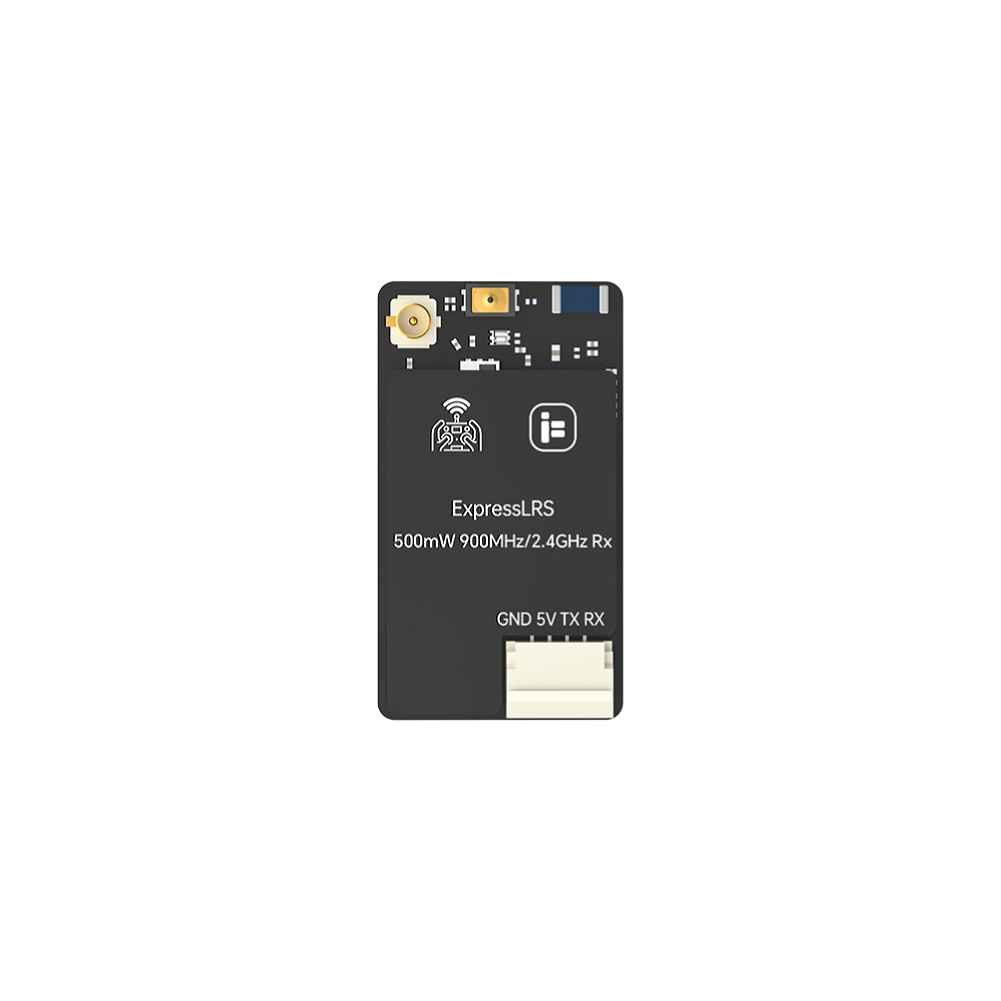

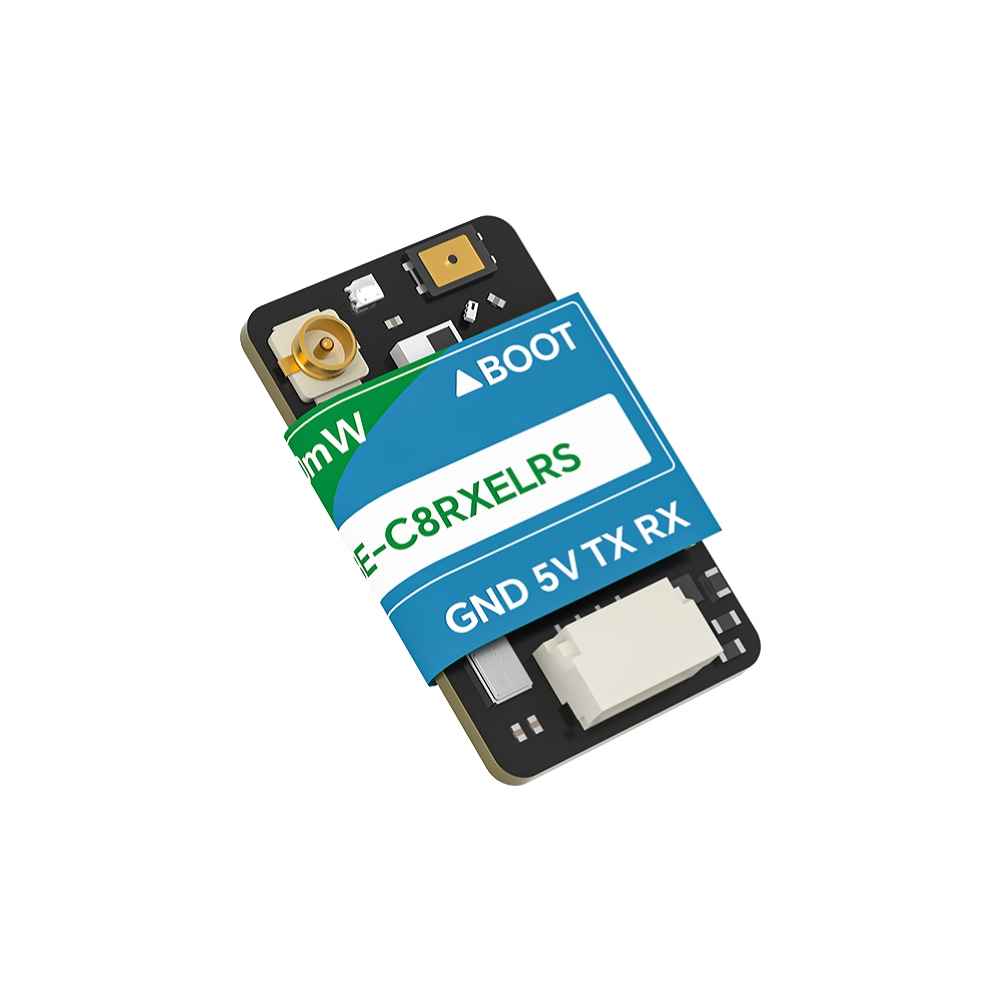

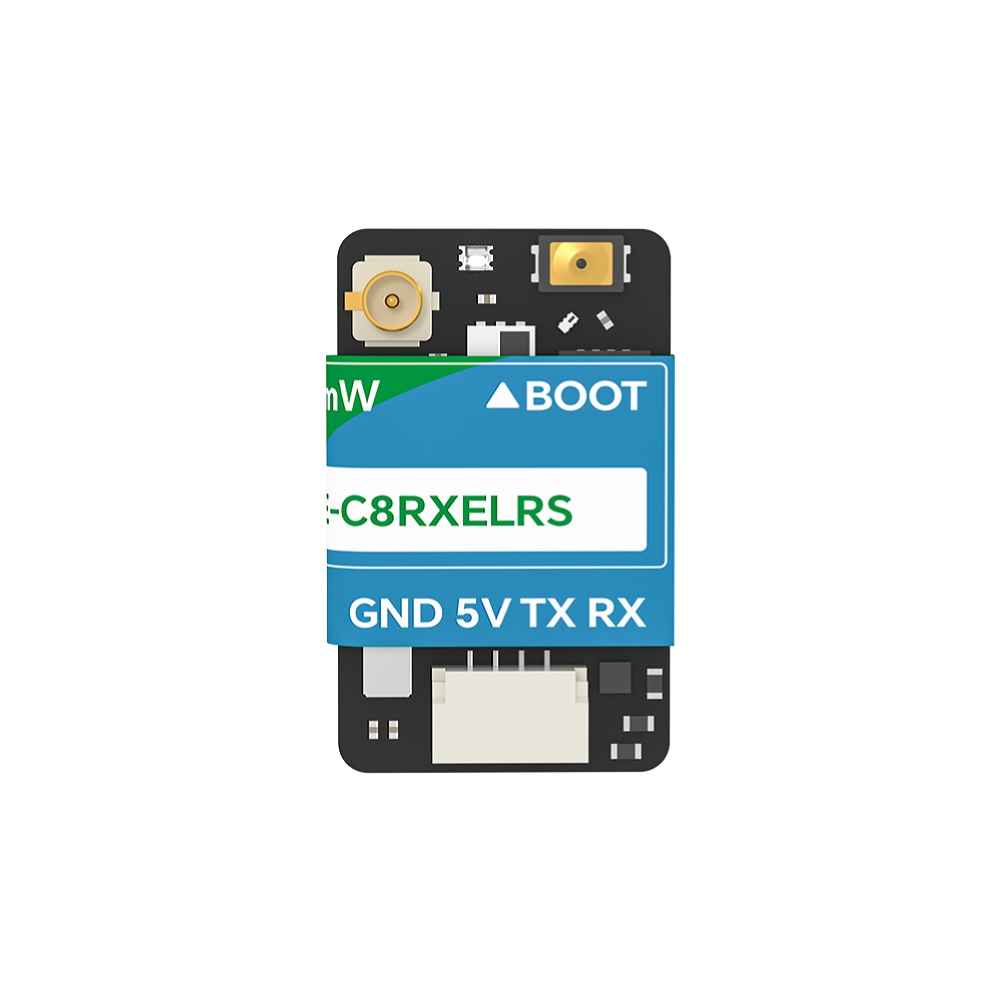

500mW Dualband Receiver Only:
– Single-Sided Components: Optimizes space efficiency.
– nAluminum Heat Sink: Protects electronics and enhances interference resistance.
– SH1.0 Connector: Easy installation with robust connectivity.
– High-Power Telemetry: Supports 500mW telemetry return for stronger signals and reduced telemetry loss.
Specification:
Brand: iFlight
Model: ELRS 100mW Dual-band RX
MCU: ESP32 C3
RF: LR1121
Frequency Bands: 2.4GHz宜868MHz宜900MHz
Receiver Type: Single antenna
Telemetry power: 100mW (20dBm)
LNA: N/A(868/900MHz) / YES (2.4G)
Dimension:18*11mm(呼0.2佩
Weight: 0.8g(呼0.5g)
Lua Script: iF DB 100mW RX
TCXO: Yes
Firmware Version: ELRS 3.5.3
Model: ELRS 500mW Dualband RX
MCU: ESP32 C3
RF: LR1121
Frequency Bands: 2.4GHz宜868MHz宜900MHz
Receiver Type: Single antenna
Telemetry power: 100-500mW (20-27dBm)
LNA: YES
Dimension:14*25*4.3mm(呼0.5佩
Weight: 1.9g(呼0.5g)
Lua Script: iF DB 500mW RX
TCXO: Yes
Firmware Version: ELRS 3.5.3

Package Included:
1 x ELRS 100mW/500mW Dual-band RX (Optional)
1 x Antenna
