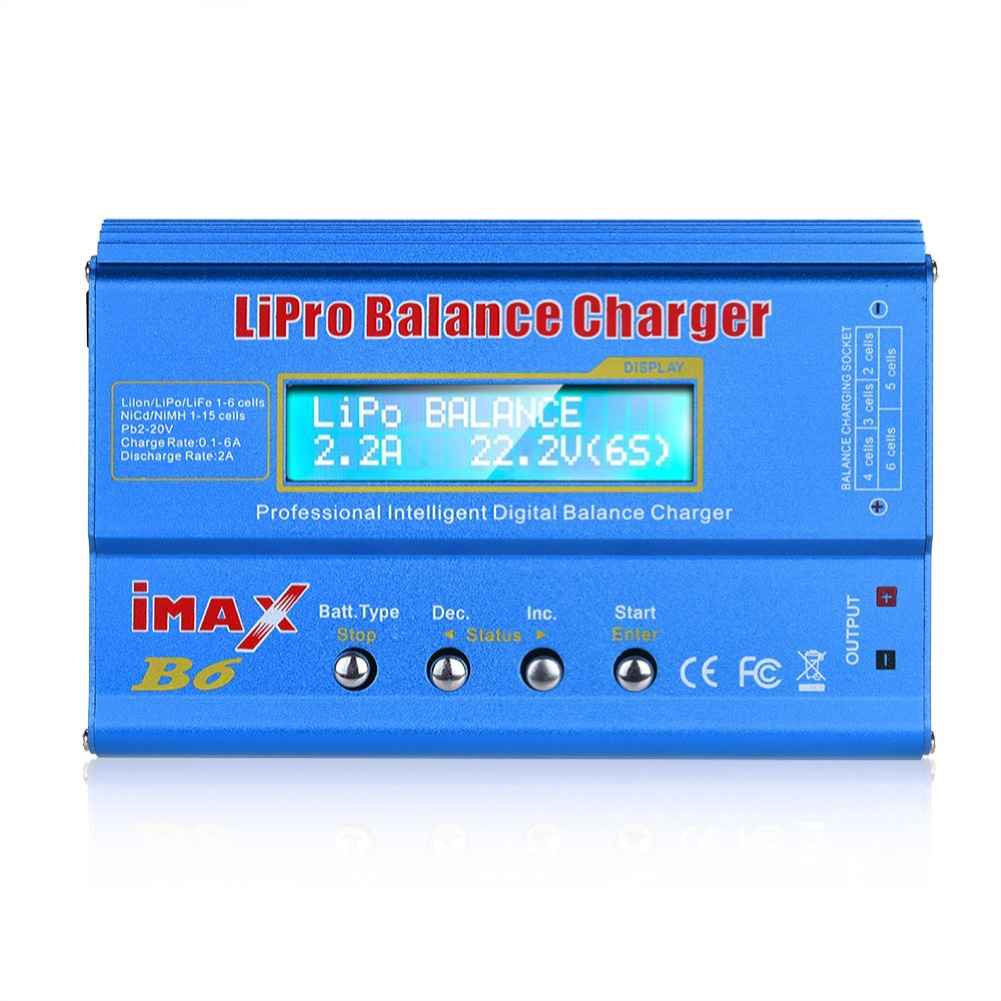

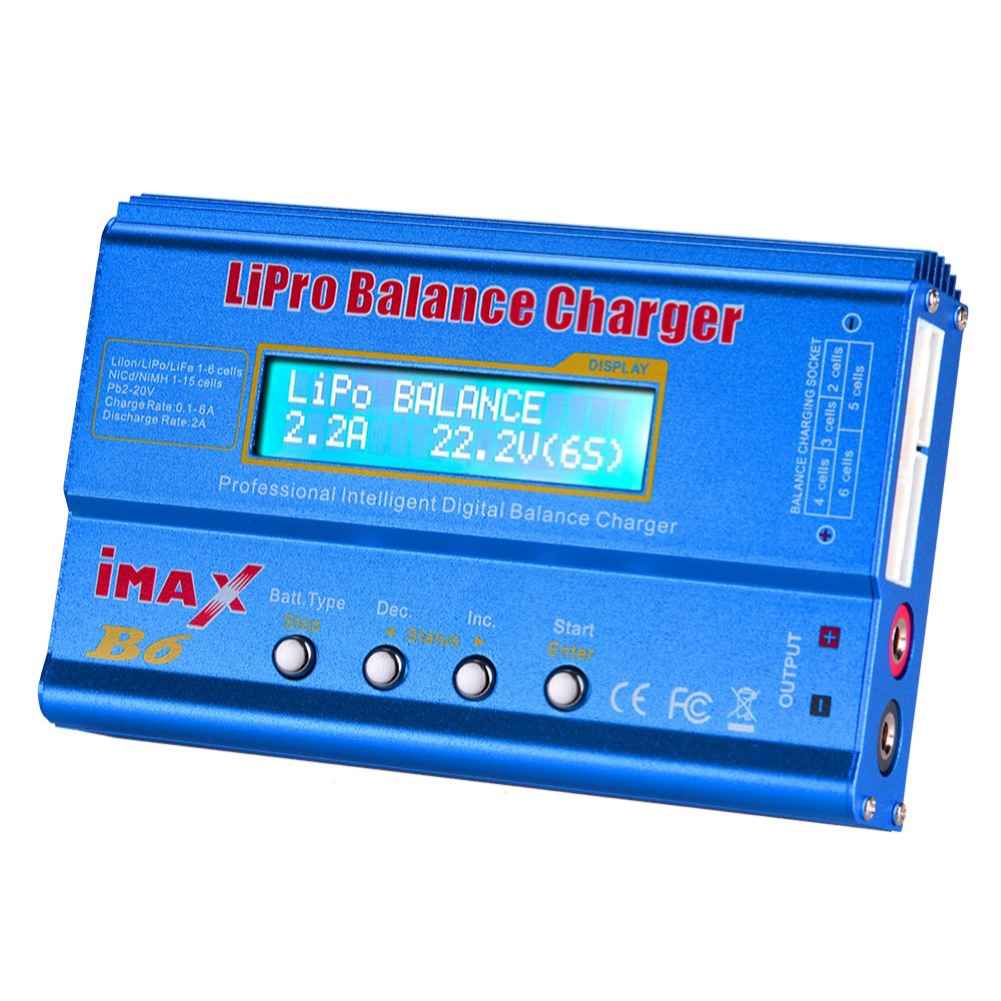

iMAX B6 80W 6A Lipo Battery Balance Charger with XT60 Plug and Power Supply Adapter

Description

iMAX B6 80W 6A Lipo Battery Balance Charger XT60 Plug with Power Supply Adapter

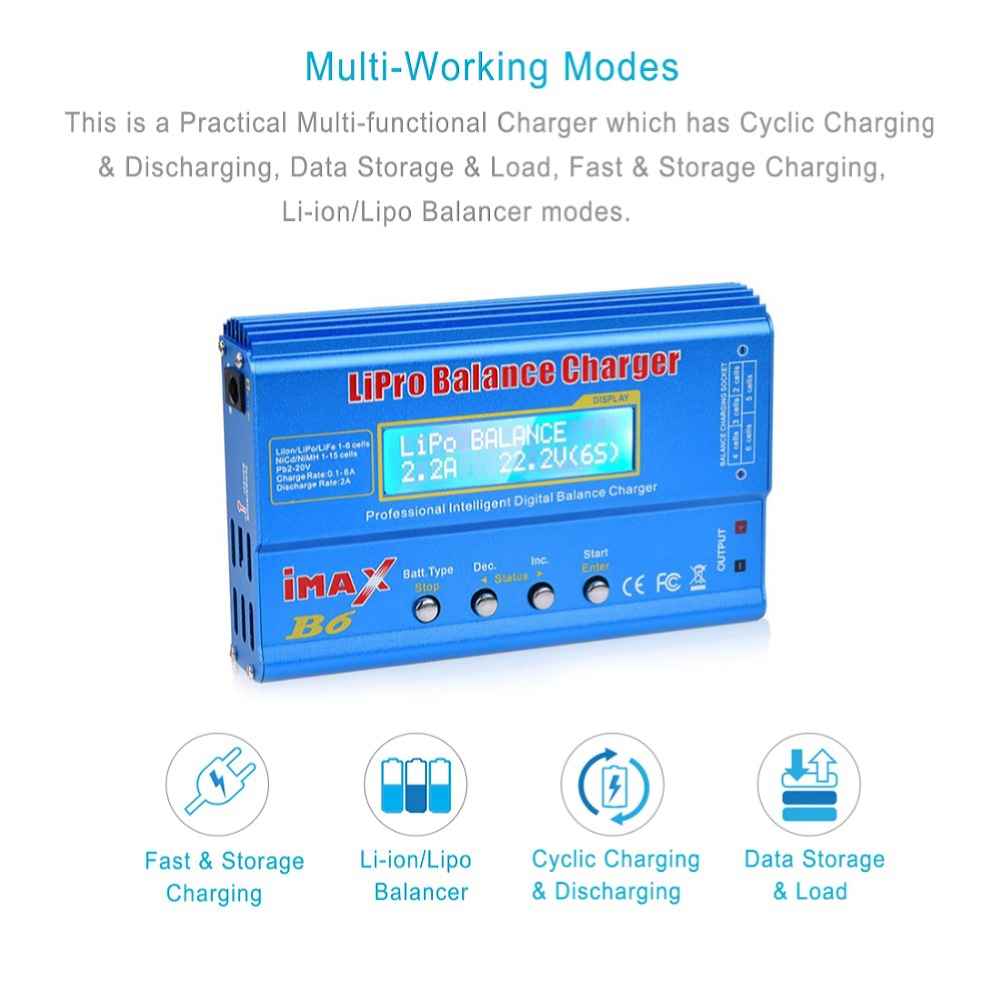

The iMAX B6 80W 6A Lipo Battery Balance Charger is a microprocessor-controlled device designed for peak sensitivity and individual cell balancing. It supports multiple battery types, including Li-ion, LiPo, LiFe, Ni-Cd, and NiMH. This charger features a broad range of charge currents and a store function for safe storage. It includes a time limit function, input voltage monitoring to protect car batteries, and data storage for up to five packs. The charger is also equipped with a battery break-in and cycling feature, supporting the new generation LiFe battery system. Its compact design measures approximately 5.2″ x 3.3″ x 1.0″ and includes an EU/UK/AU/US plug adapter.

Features:
1. Microprocessor controlled peak sensitivity
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation system (LiFe) battery
Specification:
Color: Blue
Size: 5.2′ x 3.3′ x 1.0′ / 13.4cm x 8.6cm x 2.7cm (approx)

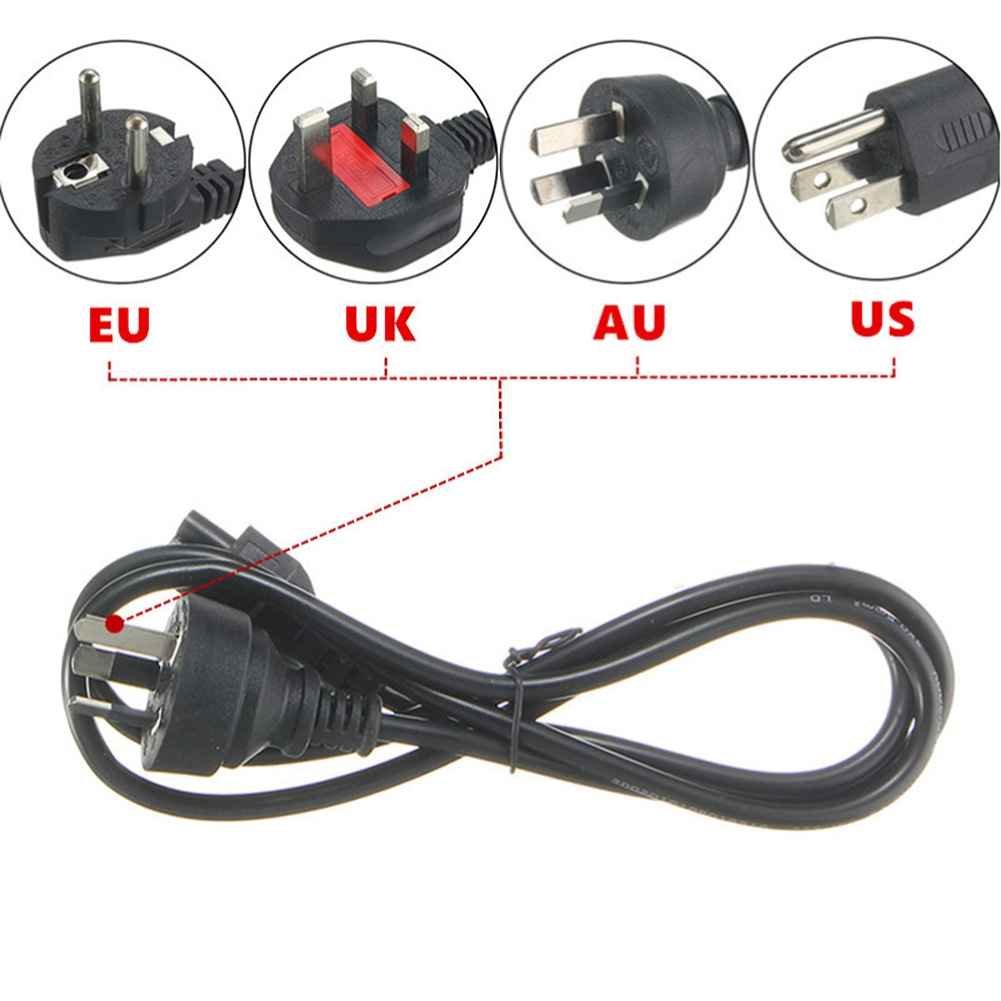

Plug: EU/UK/AU/US Plug
AC Adapter:Input:100-240V, 50/60Hz.
Output: 15V 6A

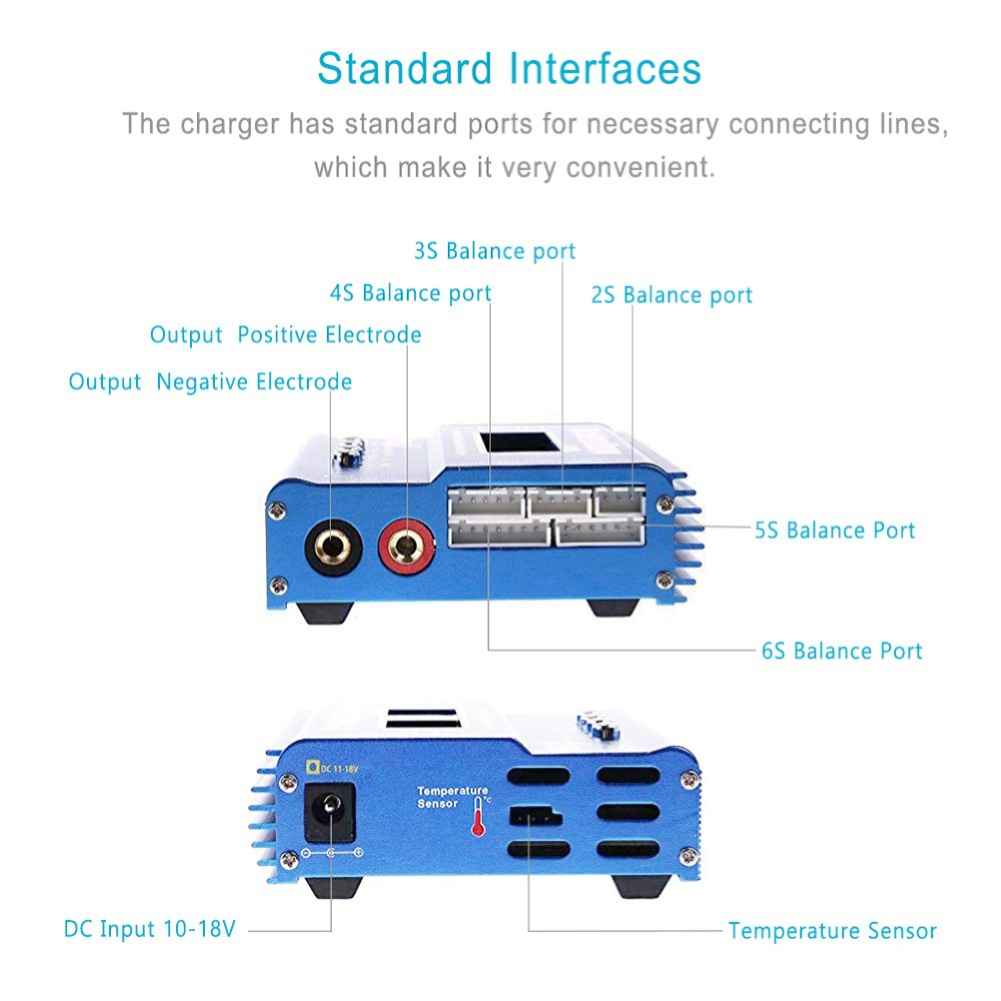

Operating voltage range: DC 10.0 – 20.0 Volt AC to DC adaptor (DC 10.0-20.0V/6A)
Circuit power: Max . charge power 80W
Charge current range: 0.1 – 6.0A
Discharge current range: 0.1 – 2.0A
Current drain for balancing Li-po: 300mAh/cell
NiCd/NiMH Battery cell count : 1-15cell
Li – ion / Polymer cell count: 1 -6 series
Pb battery voltage: 2v – 20v

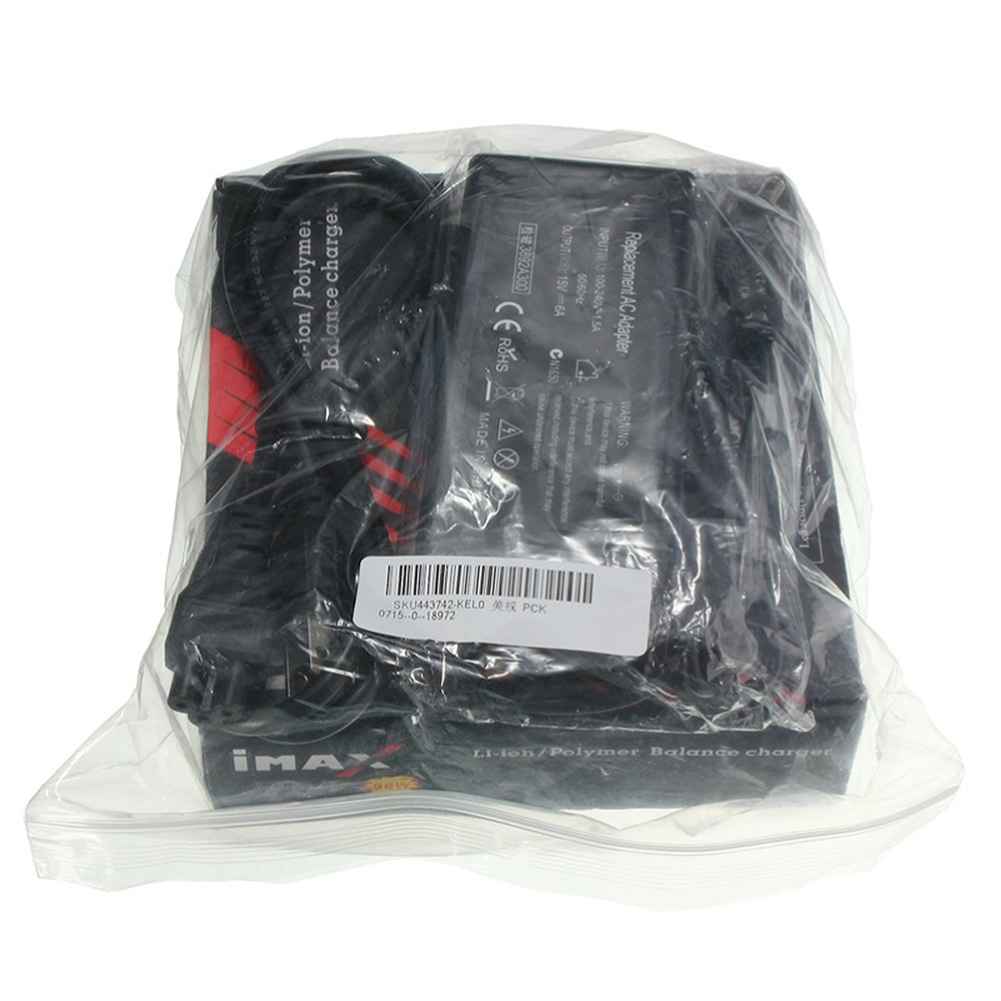

Package Included:
1 x iMAX-B6 Lipo Intelligent Digital Balance Charger 6 x Charging cables 1 x User manual 1 x Set of plug adapter
