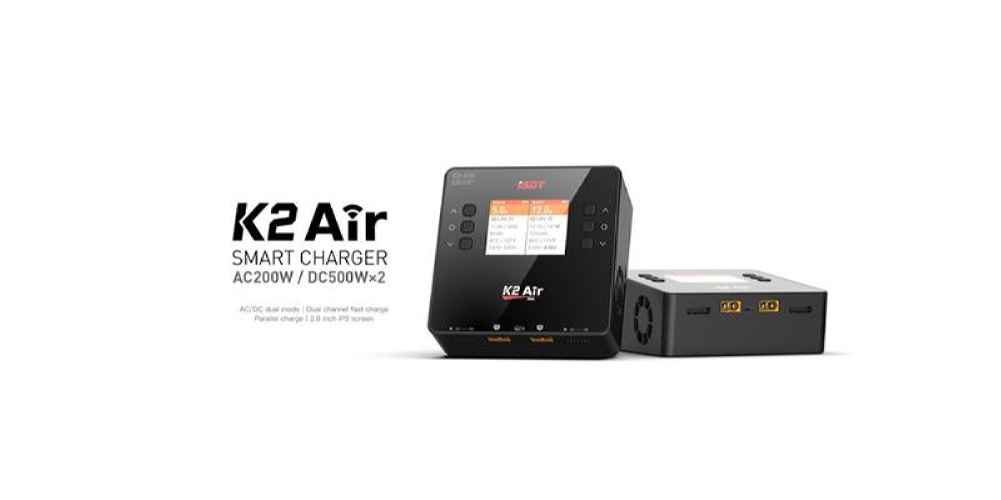

ISDT K2 Air Dual Channel Balance Charger Discharger, AC 200W DC 500Wx2, 20A for Lipo NiMh Pb Battery

Description

ISDT K2 Air AC 200W DC 500Wx2 20A Dual Channel Balance Lipo Charger Discharger for Lipo NiMh Pb Battery

The ISDT K2 Air is a versatile dual-channel balance charger and discharger designed for a variety of battery types including LiFe, Lilon, LiPo, LiHv, Pb, and NiMH/Cd. With an input voltage range of AC 100~240V and DC 10~30V, it offers a maximum charging power of AC 200W and DC 500W per channel. The device supports parallel charging with a power of 800W and a current of 35A, making it efficient for high-capacity battery packs. Safety features include abnormal voltage and incorrect cell count alarms. The compact design measures 135x135x64mm and weighs approximately 700g, making it portable and easy to handle. Note that UK and AU plug versions are shipped with appropriate adapters.

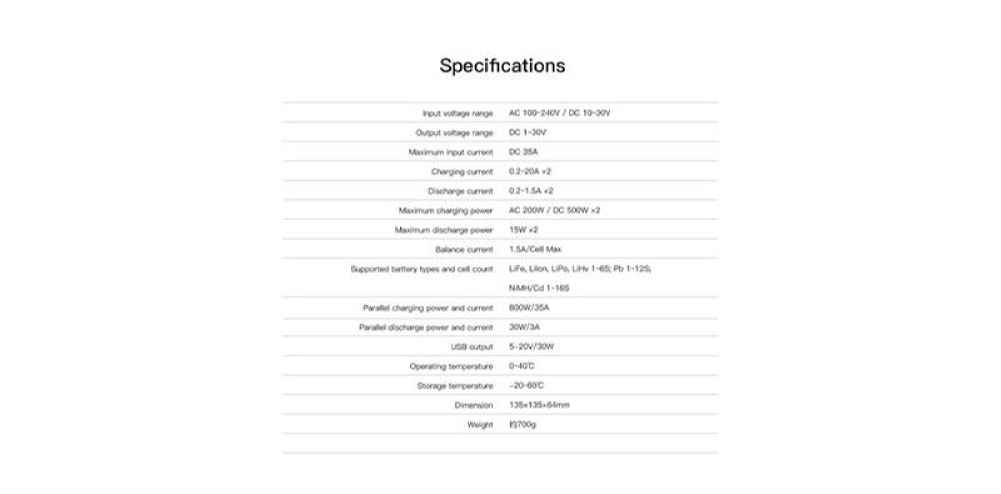

Specifications:
Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~30V
Max. input current: DC 35A
Charging current:0.2~20A x2
Discharging current: 0.2~1.5A x2
Balance current: 1.5A/Cell Max
Max. discharging power: 15W x2
Max. charging power:AC 200W / DC 500W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S
Parallel charging power and current: 800W/35A
Parallel discharge power and current: 30W/3A

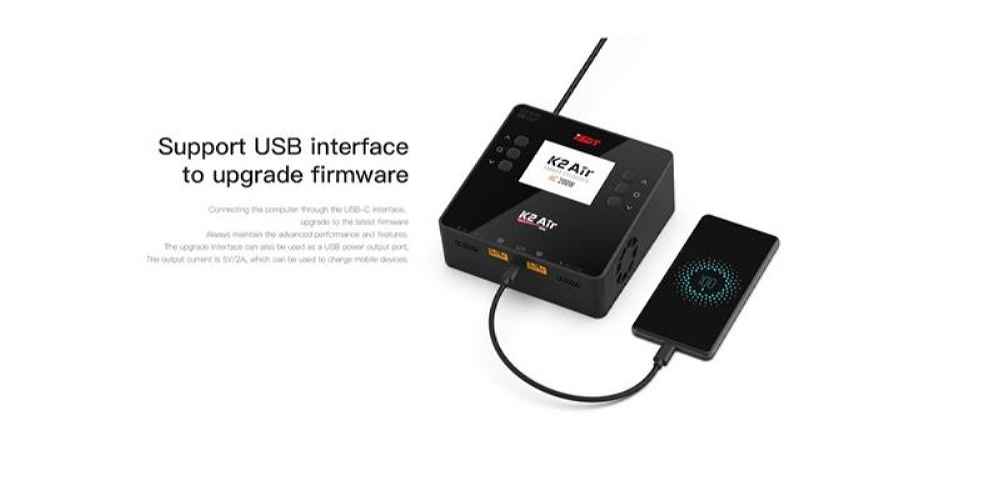

USB Output: 5-20V/30W
Operating temperature:0~40⊥
Storage temperature:-20⊥~60⊥
Dimension: 135x135x64mm
Weight:About 700g
Cautionã„©The UK and AU plug versions are actually EU plugs, but we will ship with UK or AU adapters.
Packaging included:
1X ISDT K2 Air Charger
or
The UK and AU plug versions are actually EU plugs, but we will ship with UK or AU adapters

Package Included:
1 x ISDT K2 Air Charger
