JX CLS-12V7346 46KG 12V HV High Precision Steel Gear Digital Coreless Servo for RC Robots

Description

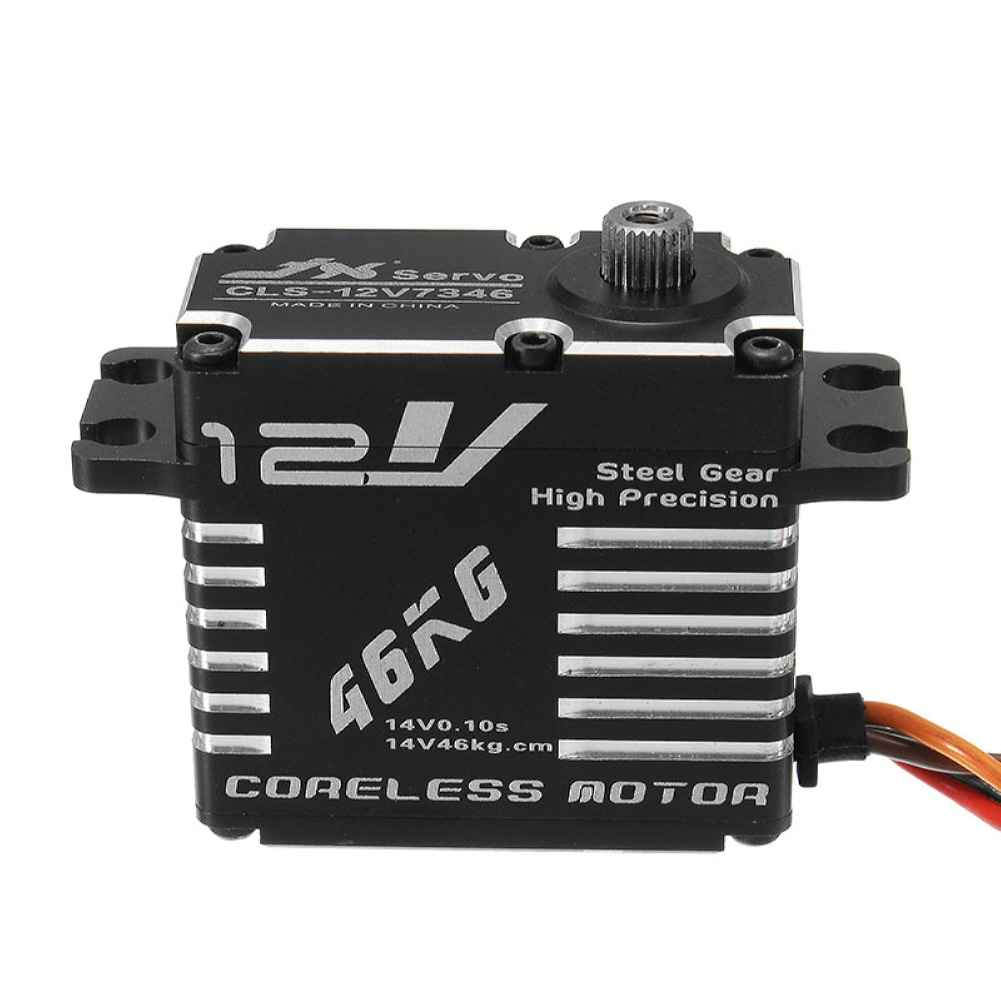

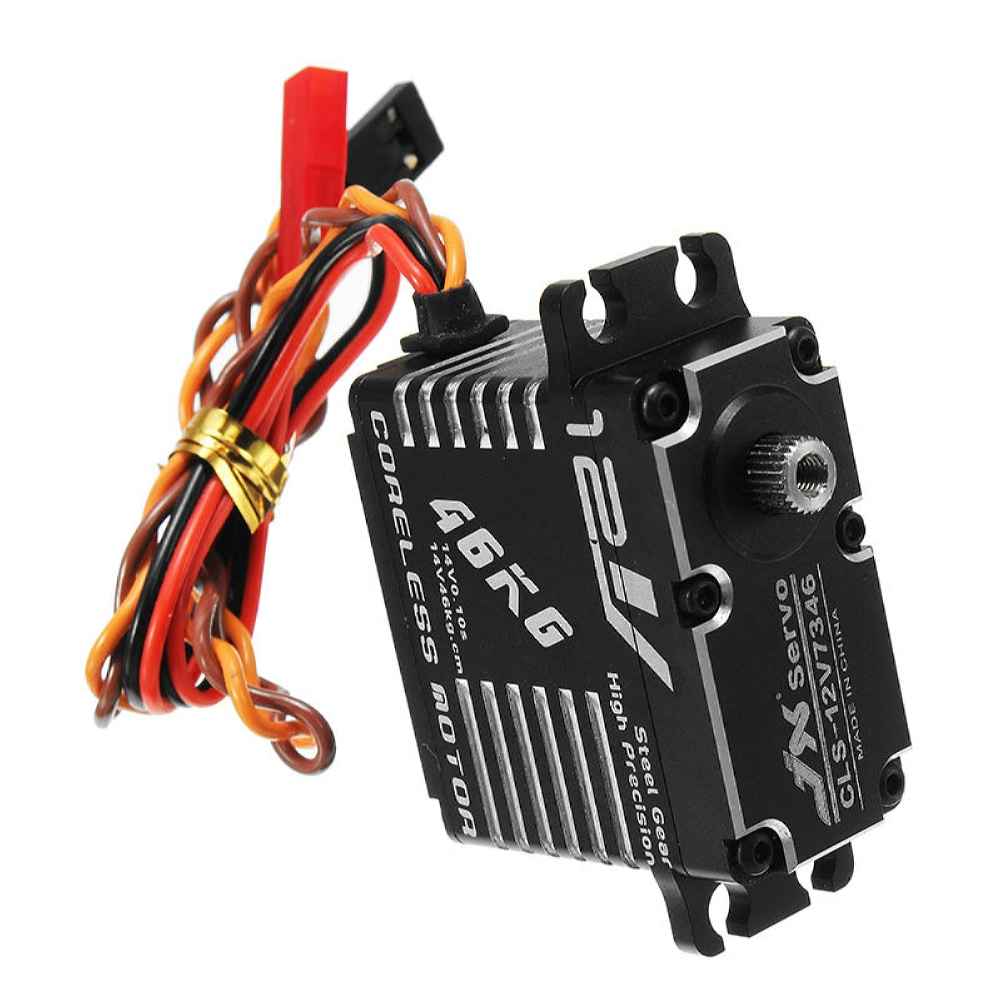

JX CLS-12V7346 46KG 12V 180 Degrees HV High Precision Steel Gear Digital Coreless Servo For RC Robot

The JX CLS-12V7346 Servo is a high-performance digital coreless motor designed specifically for RC robots. It operates at 12V high voltage, providing exceptional precision with Taiwan-made steel gears and a durable full CNC aluminum shell. The servo features dual ball bearings and waterproof construction, ensuring reliability and longevity. It offers fast operating speeds of 0.12 sec/60° at 11.1V and 0.10 sec/60° at 14V, with impressive stall torque of 38 kg.cm and 47 kg.cm, respectively. The compact design, with dimensions of 40X20X37mm and a weight of 73g, makes it an ideal choice for hobbyists seeking high performance.

Specification:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (11.1V): 0.12 sec/60°
Operating Speed (14V): 0.10sec/60°
Stall Torque (11.1V): 38 kg.cm
Stall Torque (14V): 47 kg.cm
Dimensions: 40X20X37mm
Weight: 73 g

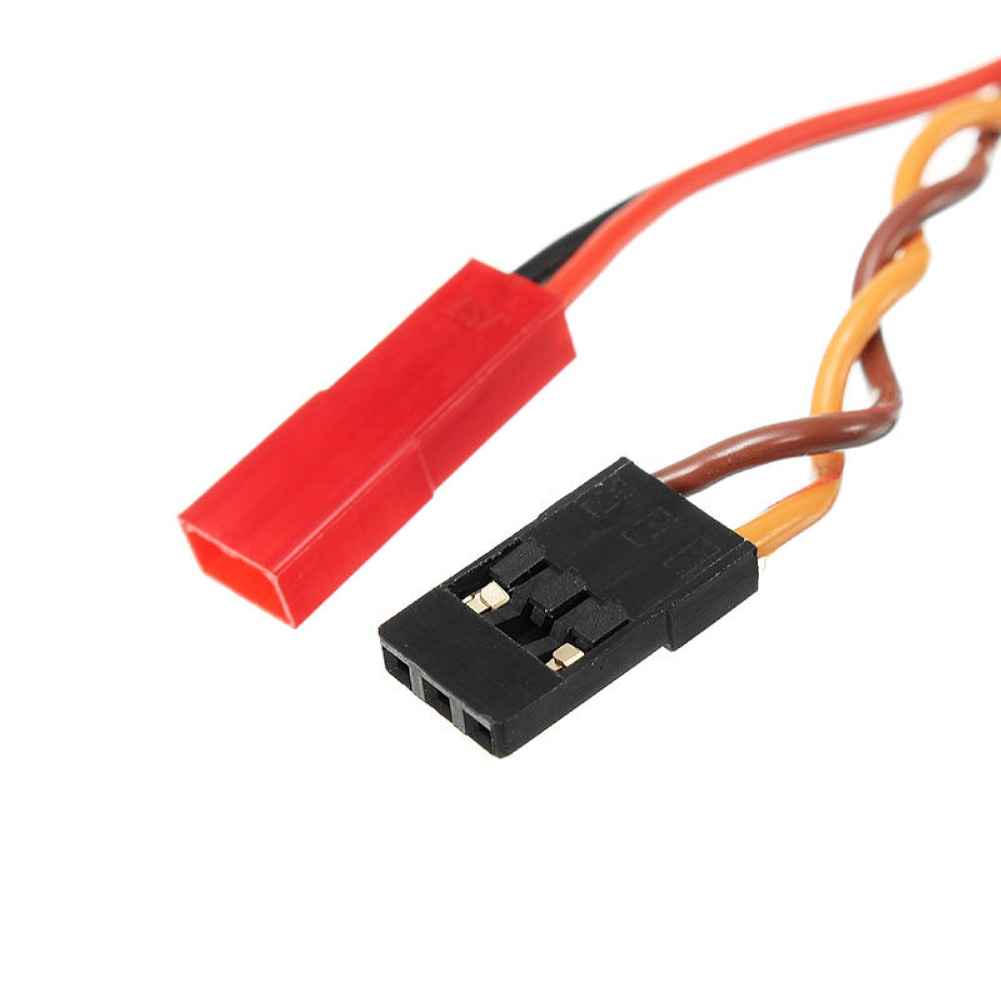

Connector Wire Length: JR 265 mm
Bearing: 2BB
Feature:
– 12V High voltage
– High performance programmable digital brushless standard servo
– High-precision Taiwan-made steel gears with hard anodizing
– Full CNC aluminium Shell structure
– Dual ball bearings
– Waterproof

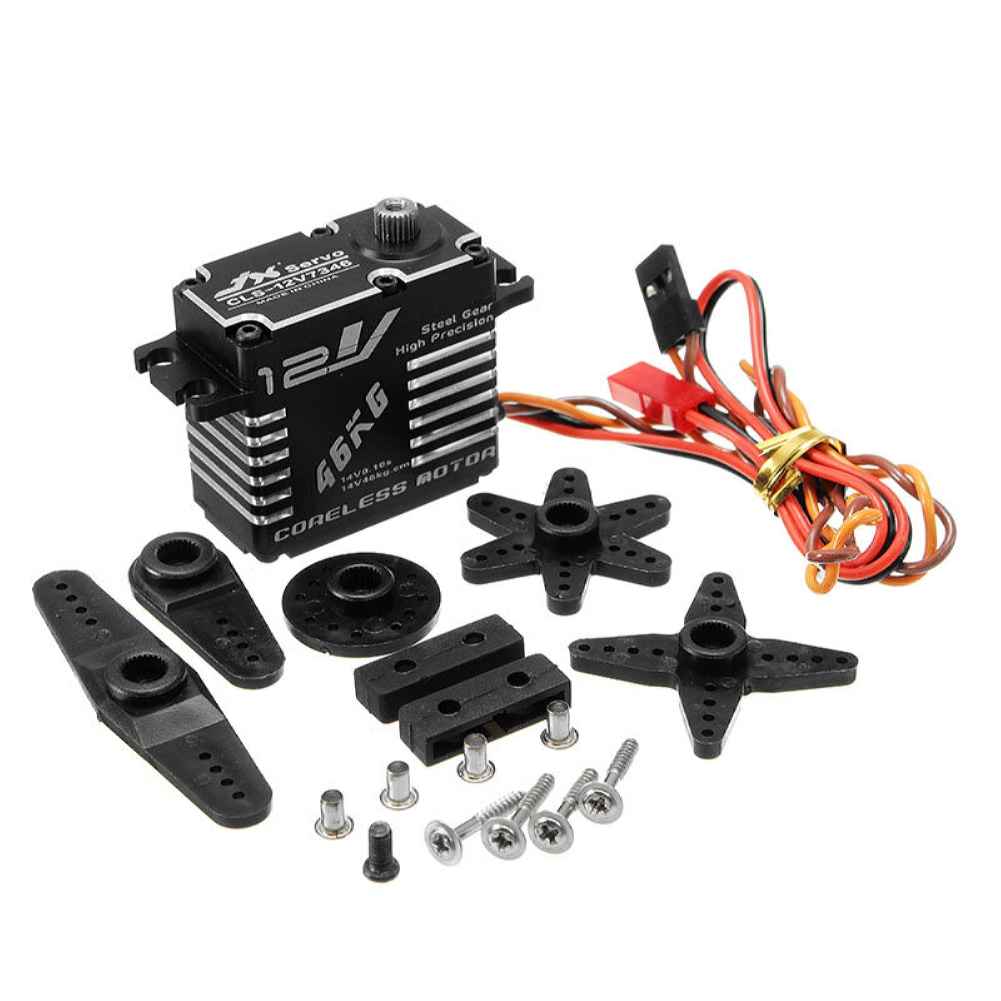

Package Included:
1 x JX CLS-12V7346 46KG Servo
