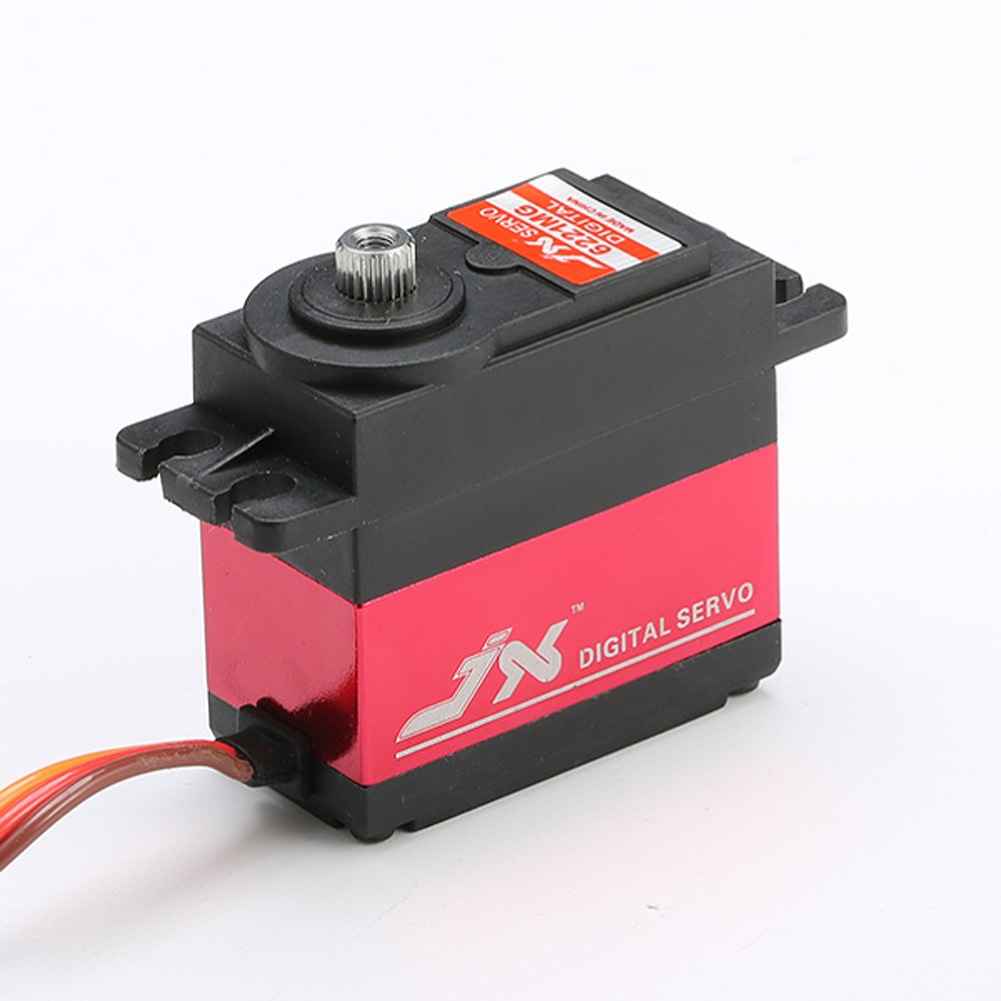

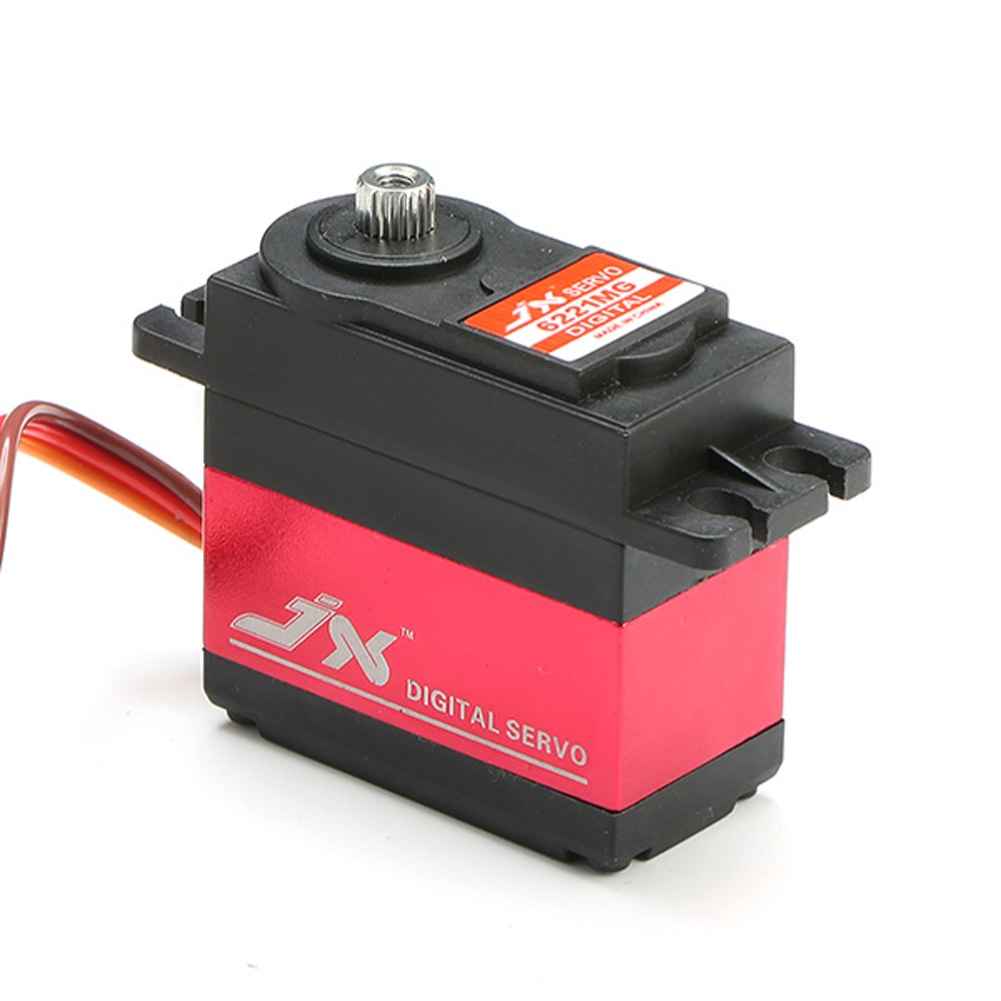

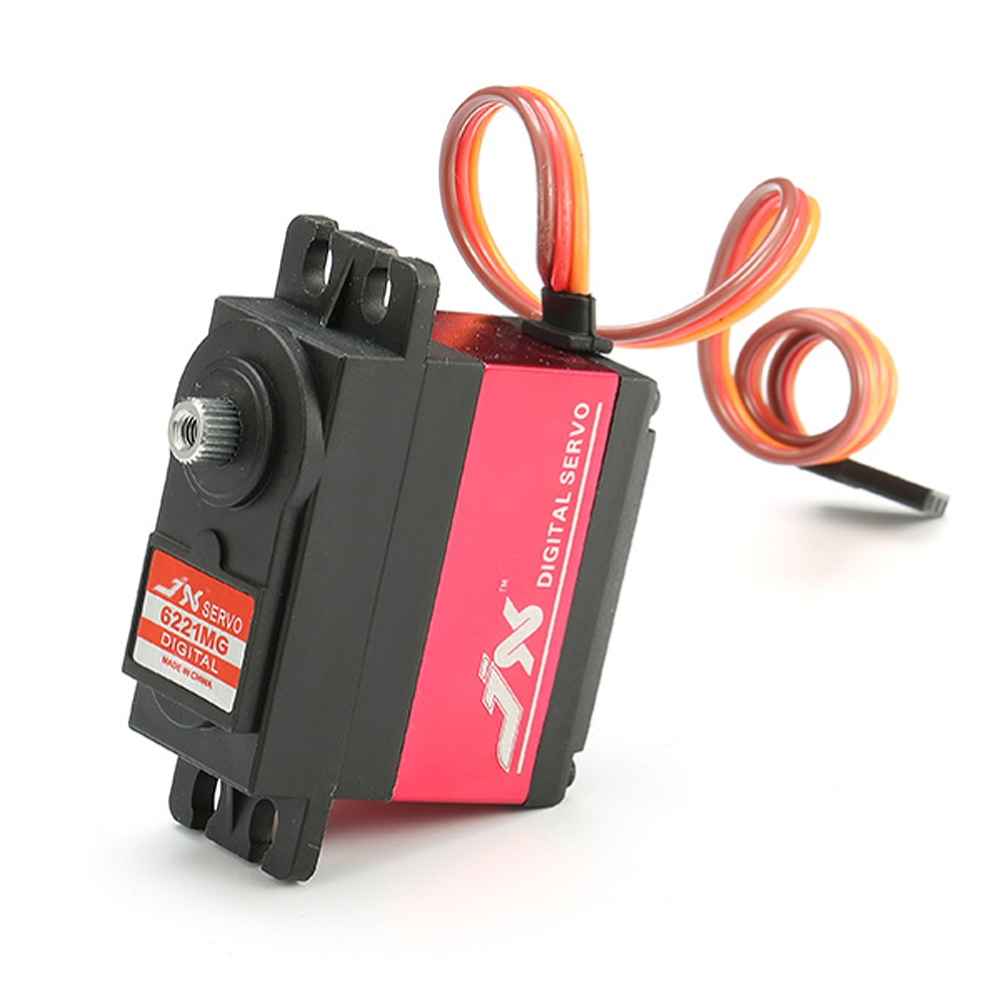

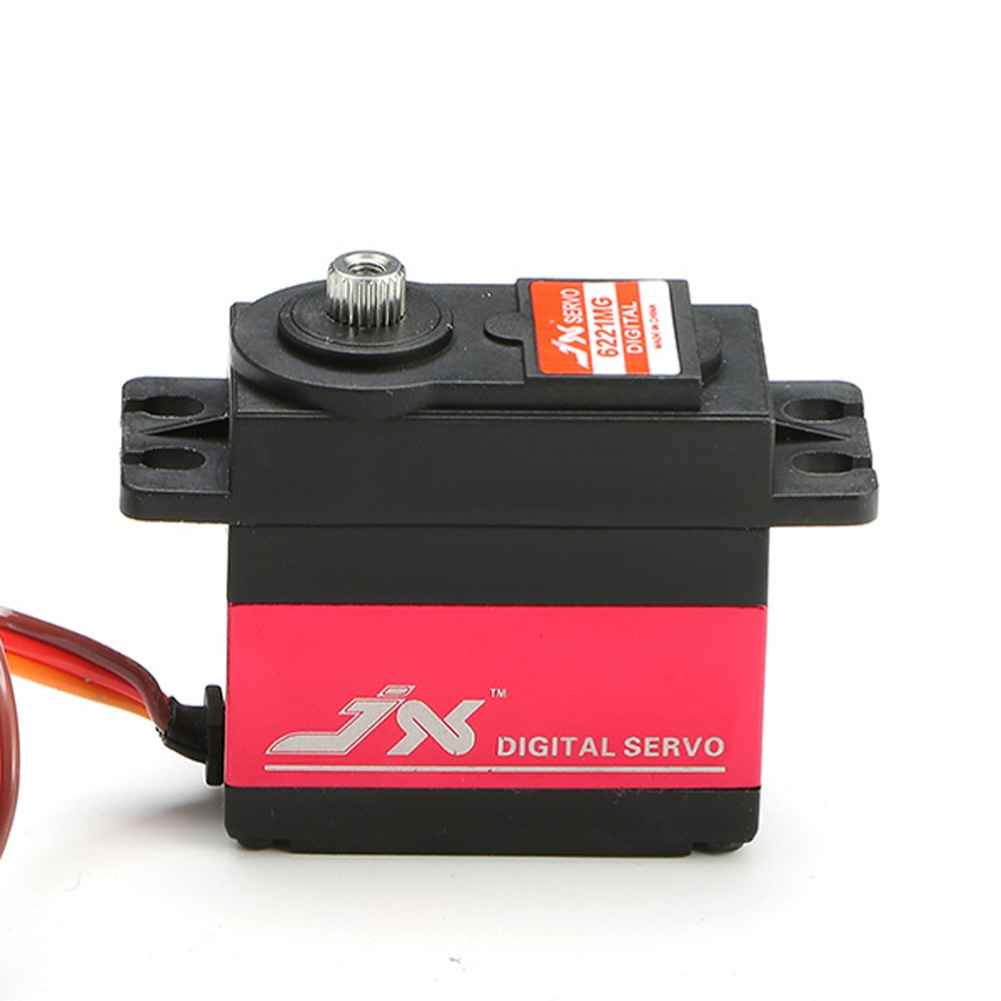

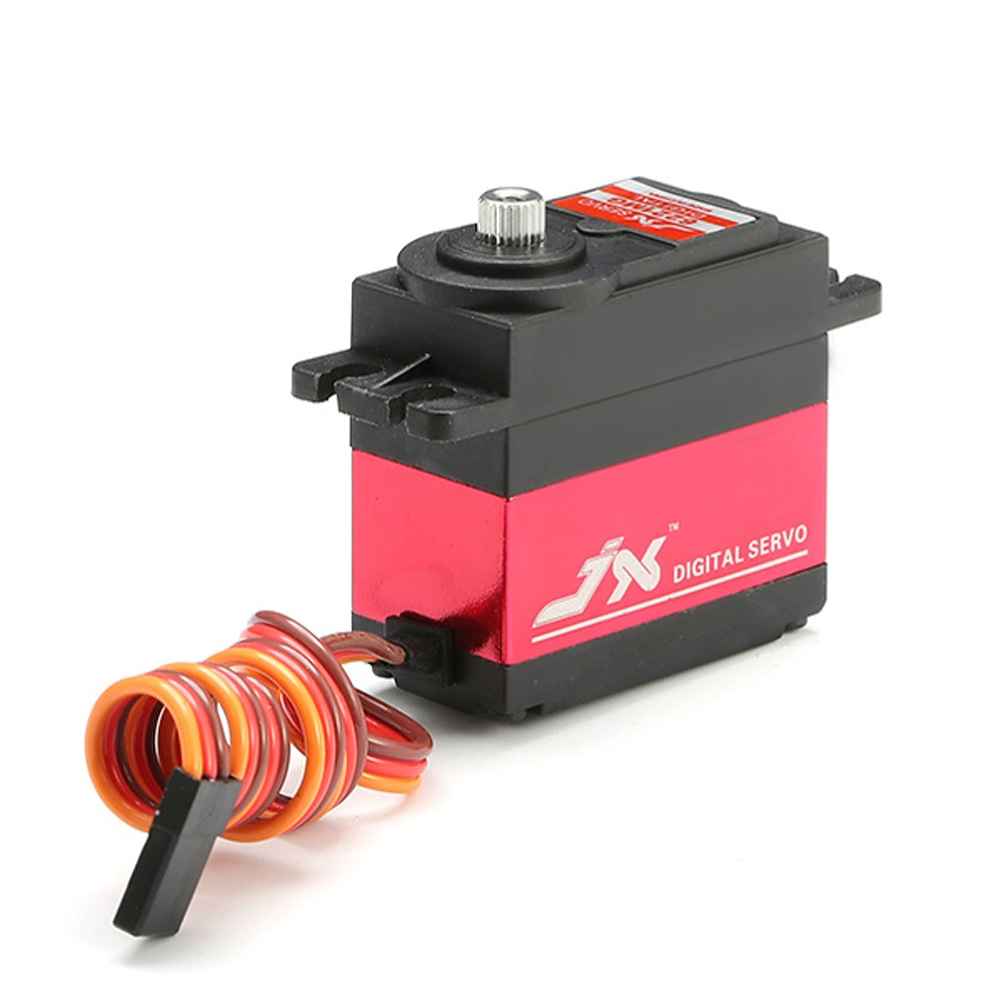

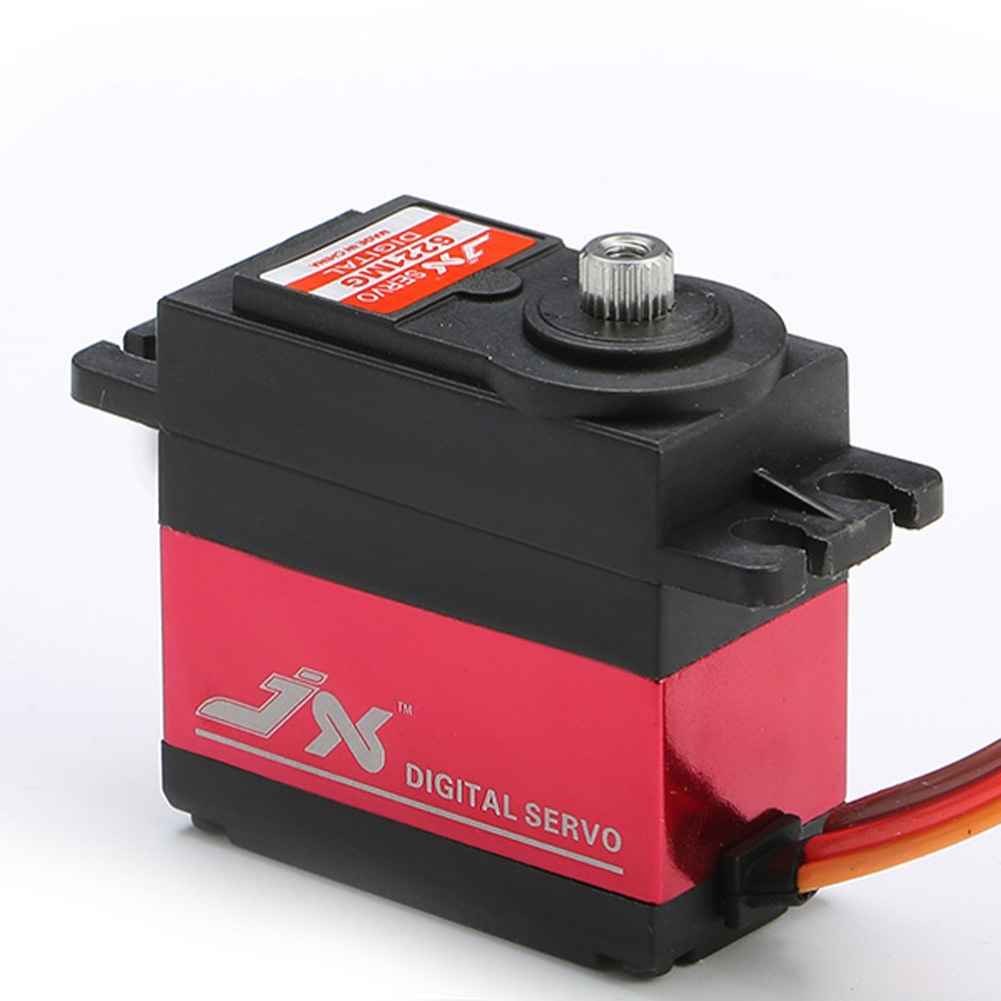

JX PDI-6221MG 20KG Large Torque Digital Servo, 180 Degree, 2-Pack, High-Precision Aluminum Gears, Dual Ball Bearings

Description

JX PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree 2pcs

The JX PDI-6221MG is a high-performance digital standard servo designed for RC enthusiasts. It features a large torque capacity of 20KG and offers a 180-degree rotation range. The servo is equipped with high-precision aluminum gears with hard anodizing, ensuring durability and reliability. It operates at a frequency of 500渭s/2500Hz, with an operating speed of 0.18 sec/85掳 at 4.8V and 0.16 sec/85掳 at 6V. With stall torque ratings of 17.25 kg.cm at 4.8V and 20.32 kg.cm at 6V, this servo is built for powerful performance. The CNC aluminum middle shell and dual ball bearings enhance its precision and smooth operation. Weighing 62g, it is compact with dimensions of 40.5×20.2x38mm.

JX PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree 2pcs
Description:
Brand:JX
Item: PDI-6221MG 20KG Large Torque Digital Standard Servo
Degree: 180°
Dead band: 2μs
Working frequence: 500μs /2500hz
Angle Range: 172±2°
Operating Speed (4.8V): 0.18 sec/85°
Operating Speed (6V): 0.16 sec/85°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Features:
– High performance digital standard servo
– High-precision aluminium gears with hard anodizing
– CNC aluminium middle Shel
– Dual ball bearings

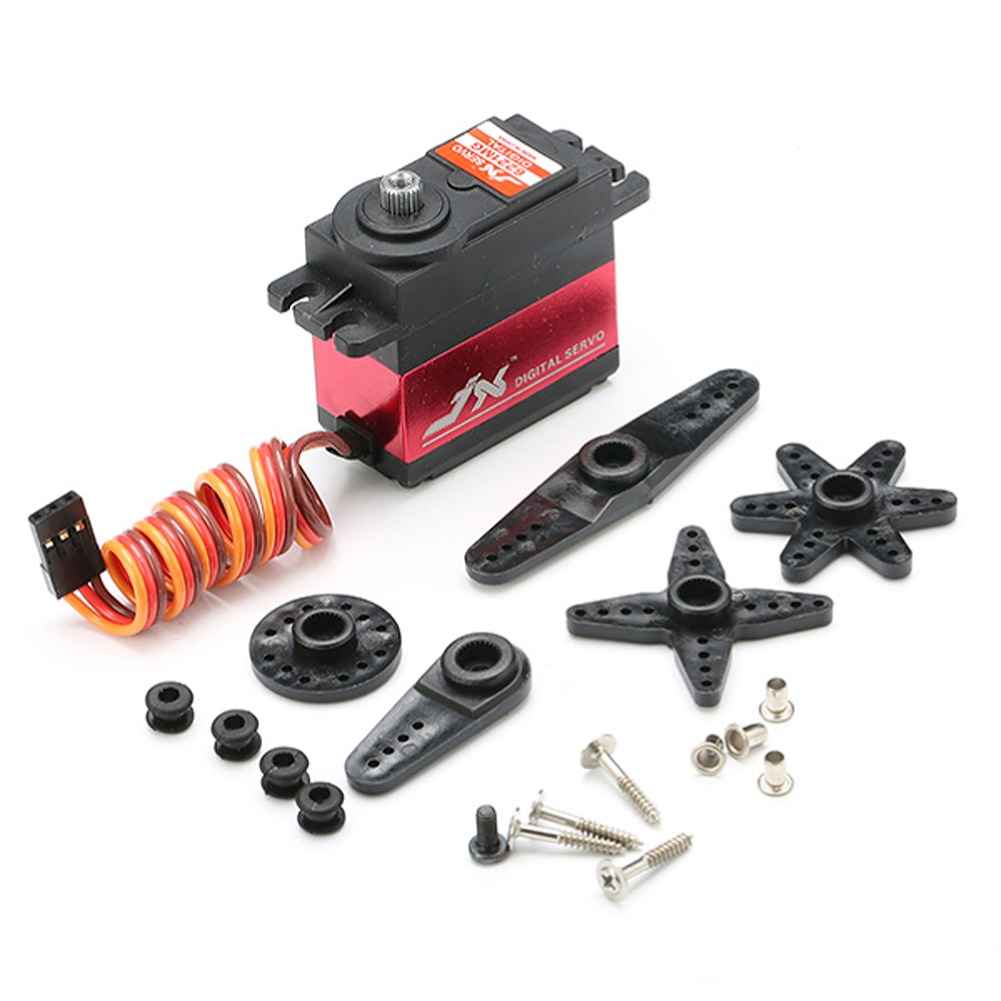

Package Included:
2 x PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree
