JX Servo DHV56MG 5.6g Digital Coreless Metal Gear HV Servo, 1.2kg Torque, 0.10sec Speed, for RC Airplanes

Description

2pcs JX Servo DHV56MG 5.6g DS Digital Coreless MG Metal Gear HV Servo 1.2kg 0.10sec

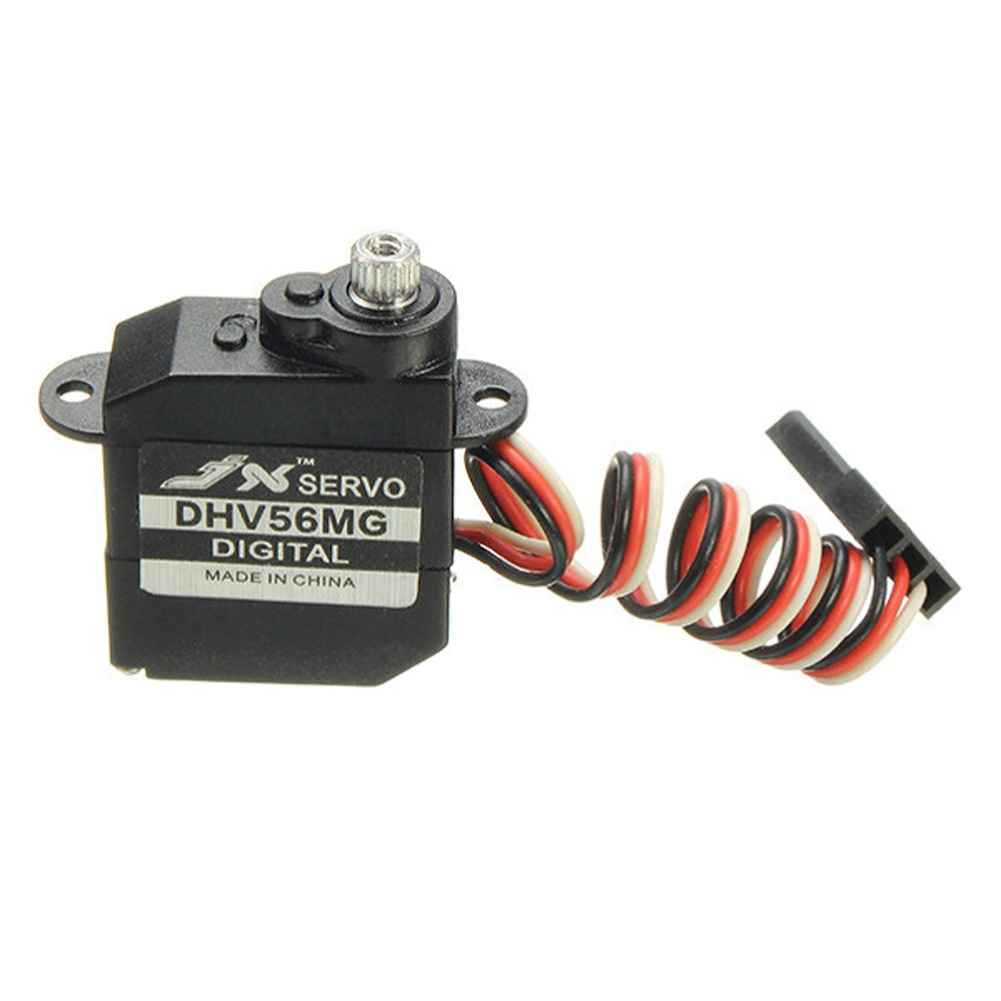

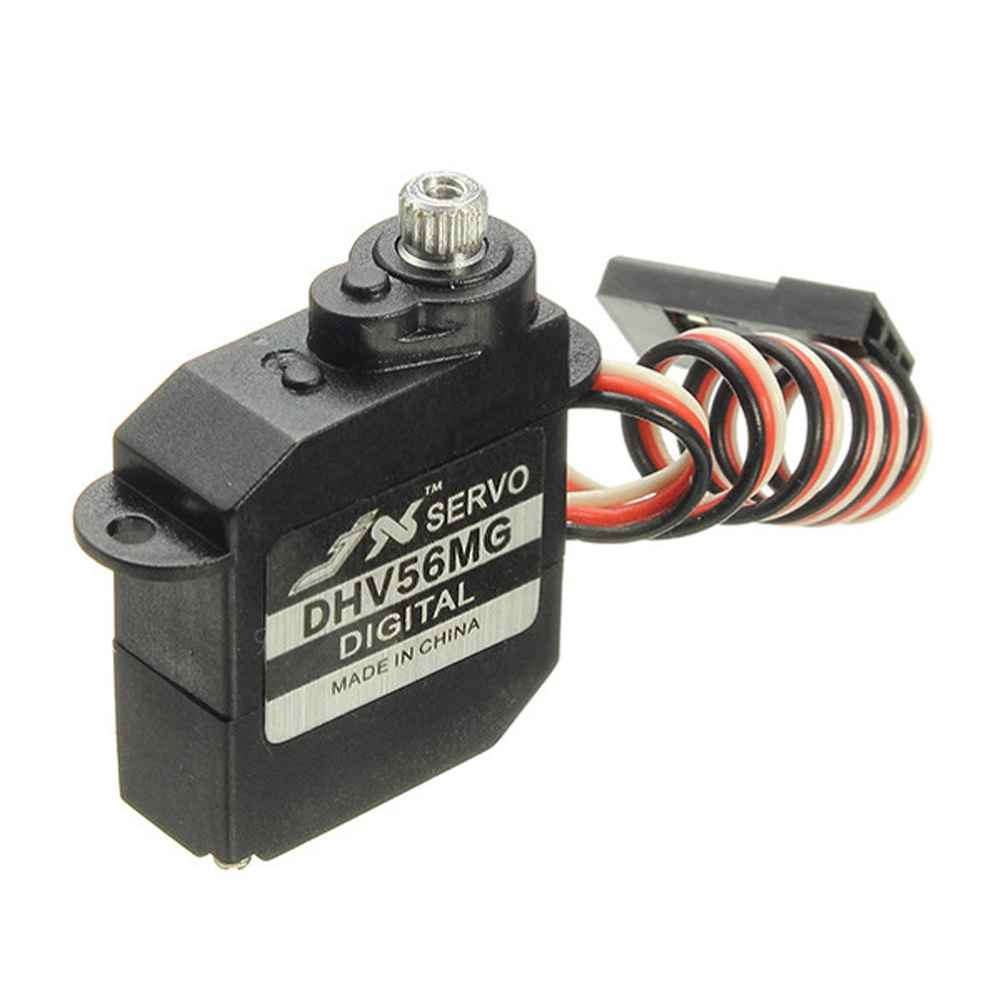

The JX Servo DHV56MG is a high-voltage digital coreless servo, weighing just 5.6g. It features a robust metal gear train, making it ideal for small gliders, DLGs, and other mini airplanes. With a stall torque of up to 1.2kg/cm at 7.4V and an impressive operating speed of 0.10 seconds per 60 degrees, this servo ensures precision and reliability. The servo operates on a voltage range of 4.8 to 7.4V DC, and its coreless motor offers excellent holding power. It comes with a 150mm servo lead and JR plug, designed for use with single cell LiPoly batteries.

Description:Brand: JX ServoItem: DHV56MG Servo (high voltage version)Weight: 5.6gDimension: 19.8×8.2×21.5mmStall torque: 0.85kg/cm (4.8V),1.05kg/cm (6V),1.2kg/cm (7.4V)Operating speed: 0.14sec/60degree(4.8v),0.12sec/60degree(6V),0.1sec/60degree(7.4V)Operating voltage: 4.8~7.4V DCServo lead: 150mm lengthServo plug: JR

Weight(g)

5.6

A(mm)

27

B(mm)

20

C(mm)

24

D(mm)

8.2

E(mm)

28

F(mm)

16

Features:
The JX D56MG servo is great for small gliders and DLGs or just about any other mini airplane using single cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
The coreless motor provides excellent holding power and precision at a great price.

Package Included:
2 x JX Servo DHV56MG 5.6g Coreless Servo
