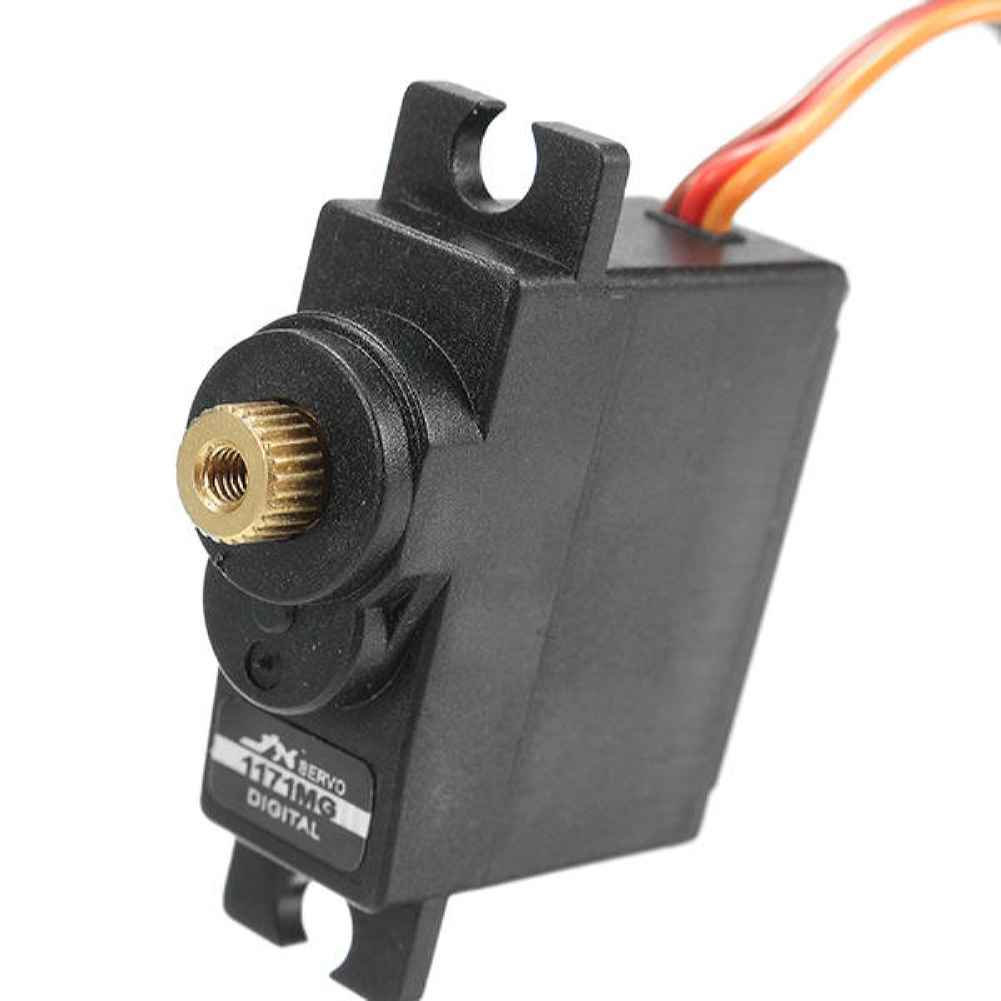

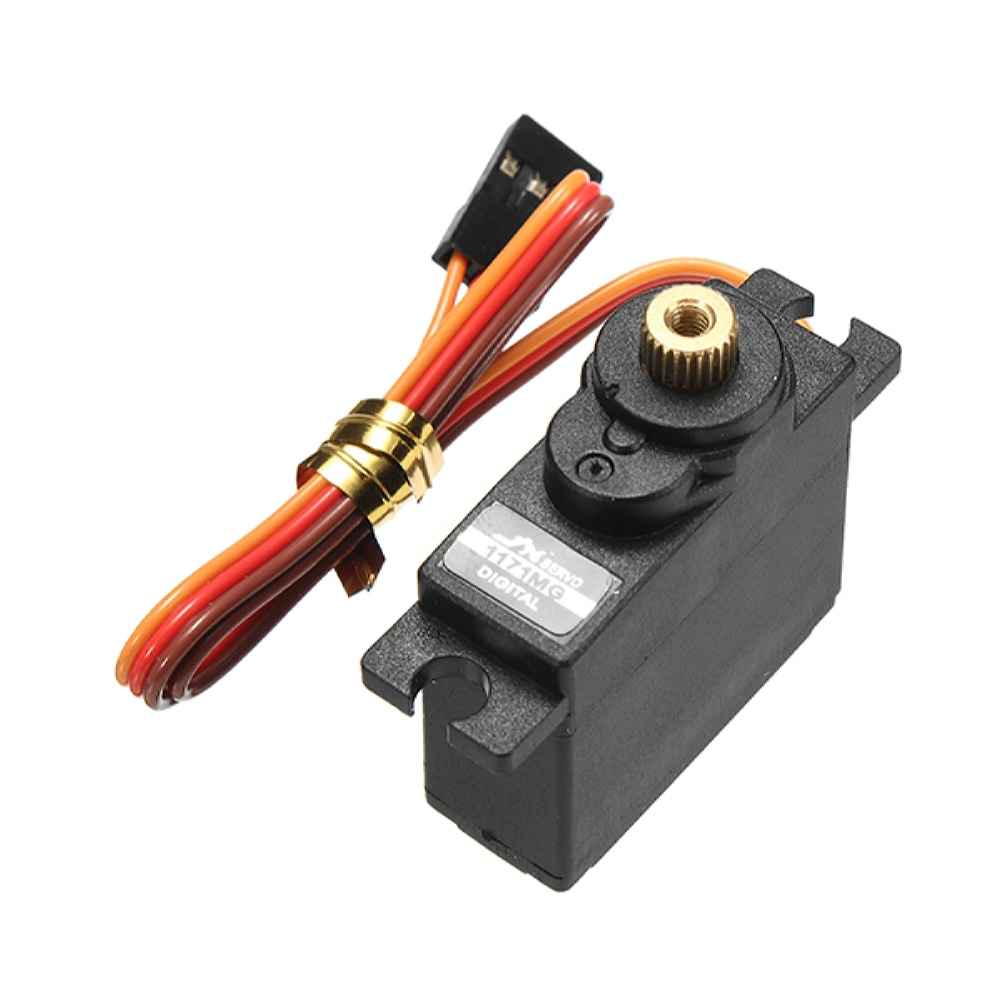

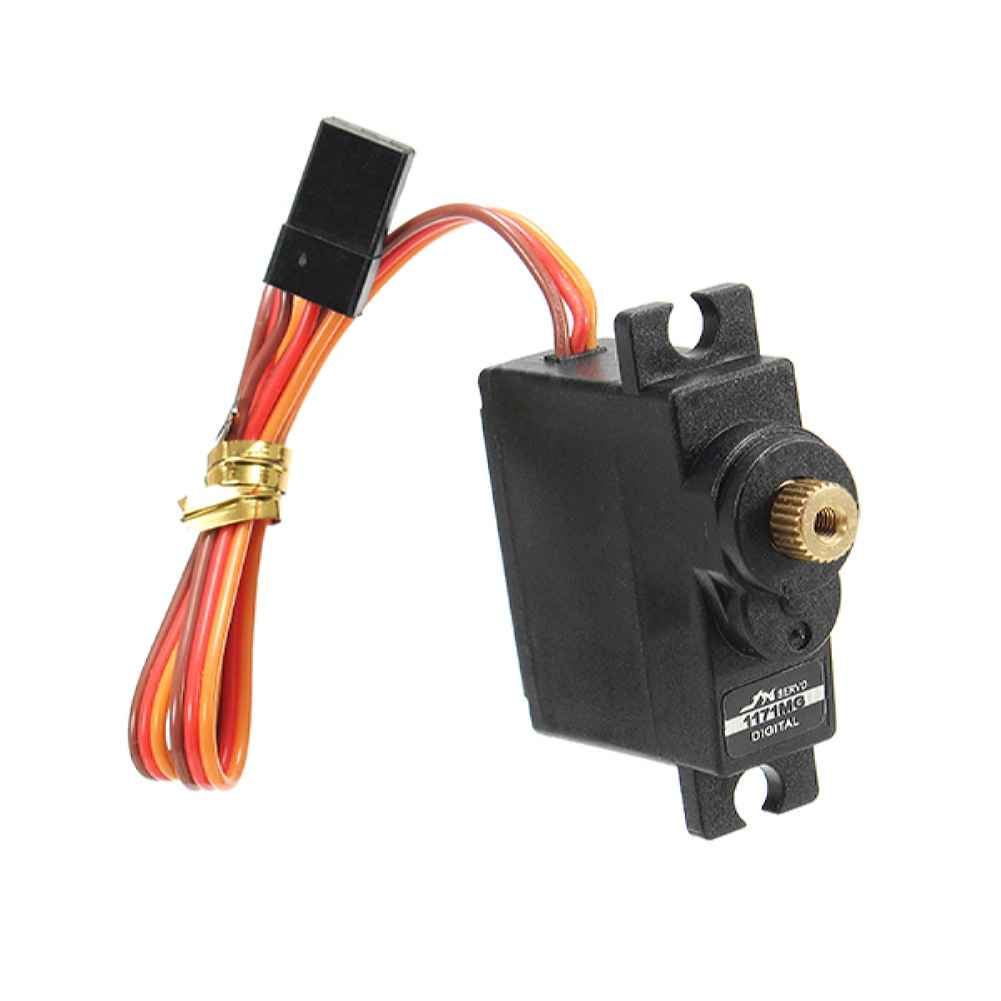

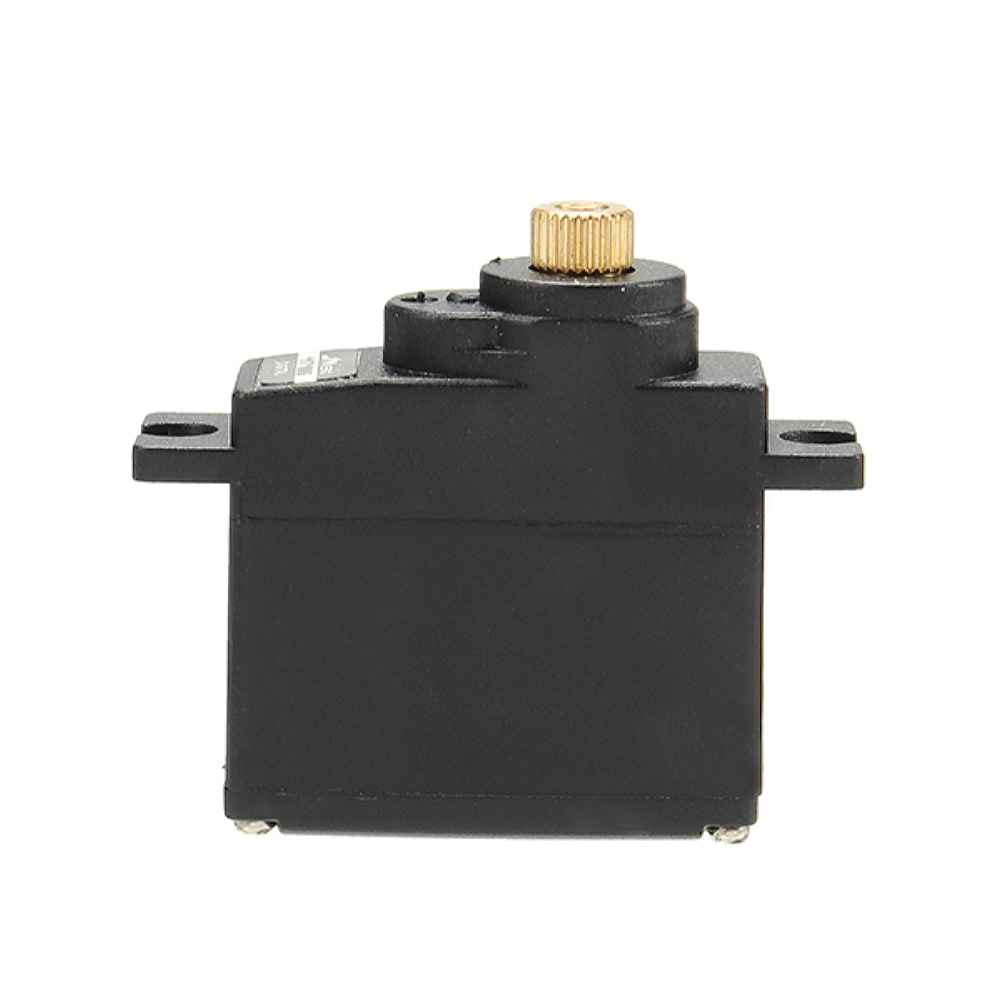

JX Servo PDI-1171MG 17g Metal Gear Core Motor Micro Digital Servo for RC Models, 4 Pack

Description

4 PCS JX PDI-1171MG 17g Metal Gear Core Motor Micro Digital Servo for RC Models

The JX Servo PDI-1171MG is a high-quality micro digital servo designed for RC models, featuring a core motor and high-precision metal gears. With an operating voltage of DC 4.8 to 6.0 volts, it delivers a swift operating speed of 0.13 sec/60° at 4.8V and 0.11 sec/60° at 6V. The servo provides a stall torque of 3.0 kg.cm at 4.8V and 3.5 kg.cm at 6V, making it a reliable choice for precise control. Its compact dimensions of 30x12x31.7cm and lightweight design at 17.5g ensure easy integration into your RC models. The JR connector wire length is 180mm, offering flexibility in installation.

Description:
Brand:JX Servo
Item:PDI-1171MG
Dead band: 1μs
Working frequence: 1520μs / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm (42 oz/in)
Stall Torque (6V): 3.5 kg.cm (49 oz/in)
Dimensions:30x12x31.7cm
Weight: 17.5 g (0.61oz)
Connector Wire Length: JR 180 mm (7.08in)
Usage:for RC Models
Features:
High quality servo for RC Models
High precision metal gear
Mini size Analog servo

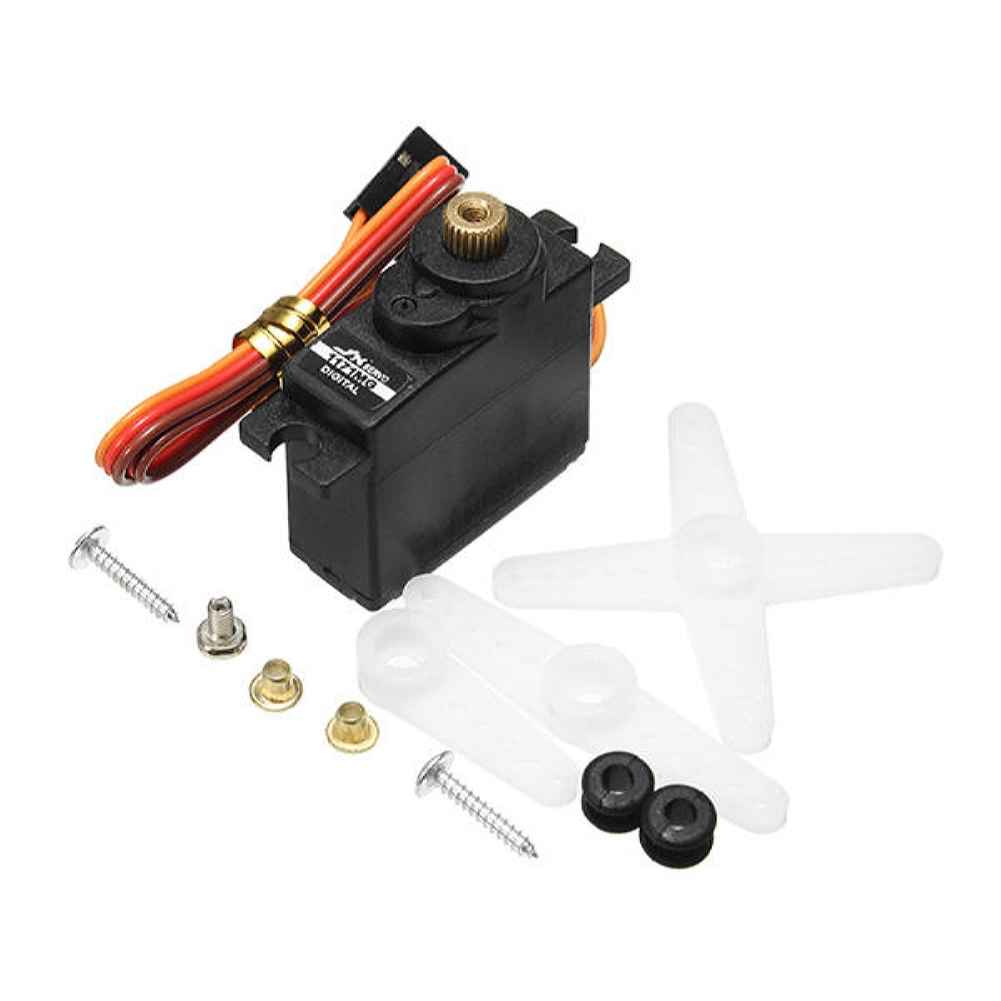

Package Included:

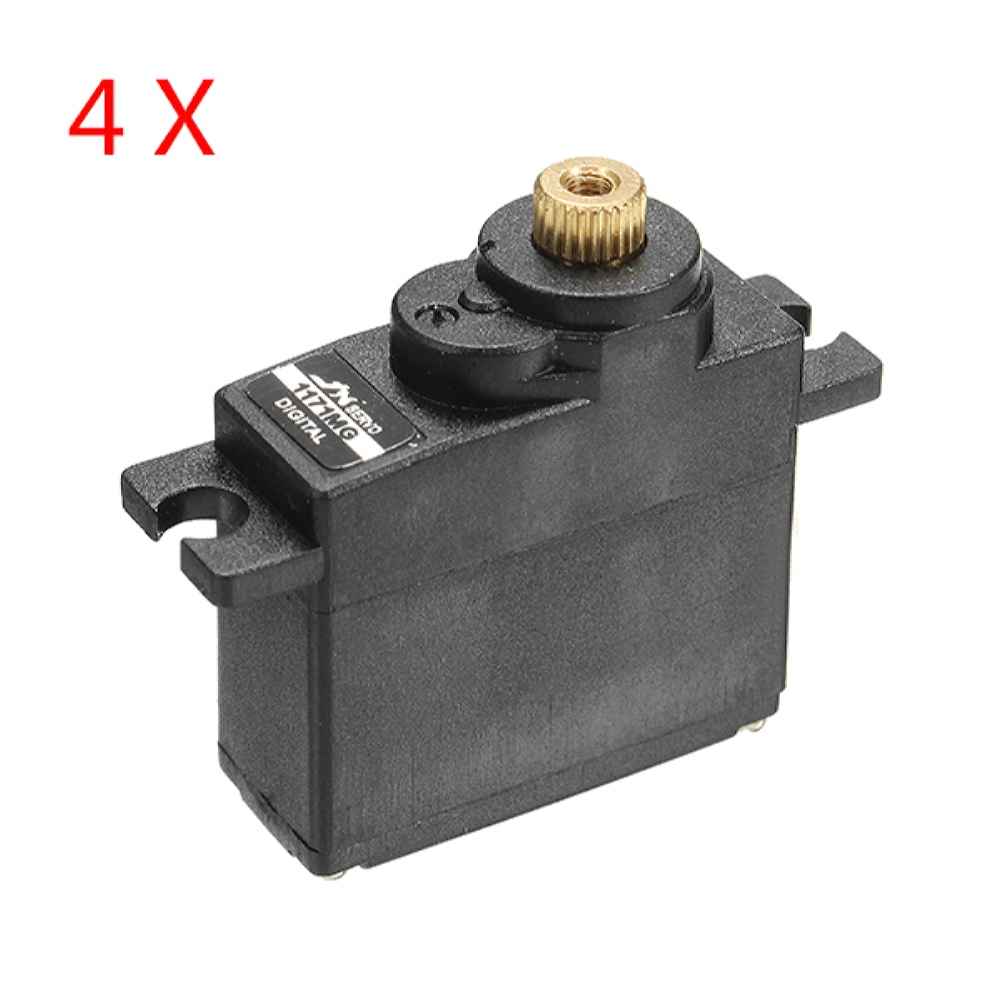

4 x JX Servo PDI-1171MG 17g Metal Gear Core Motor Digital Servo
