JX Servo PDI-4409MG Digital Servo, 9kg Torque, 180 Degree, High-Precision Metal Gear, Dual Ball Bearing, 4 Pack

Description

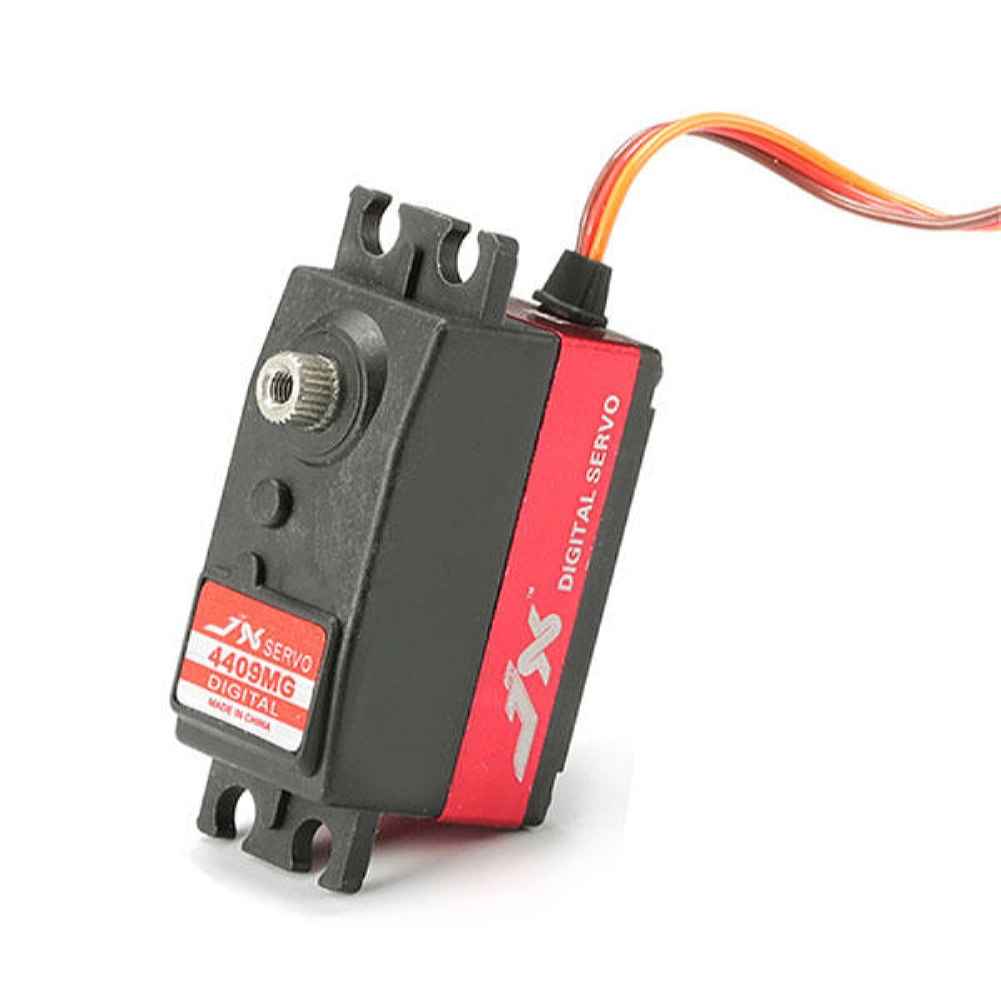

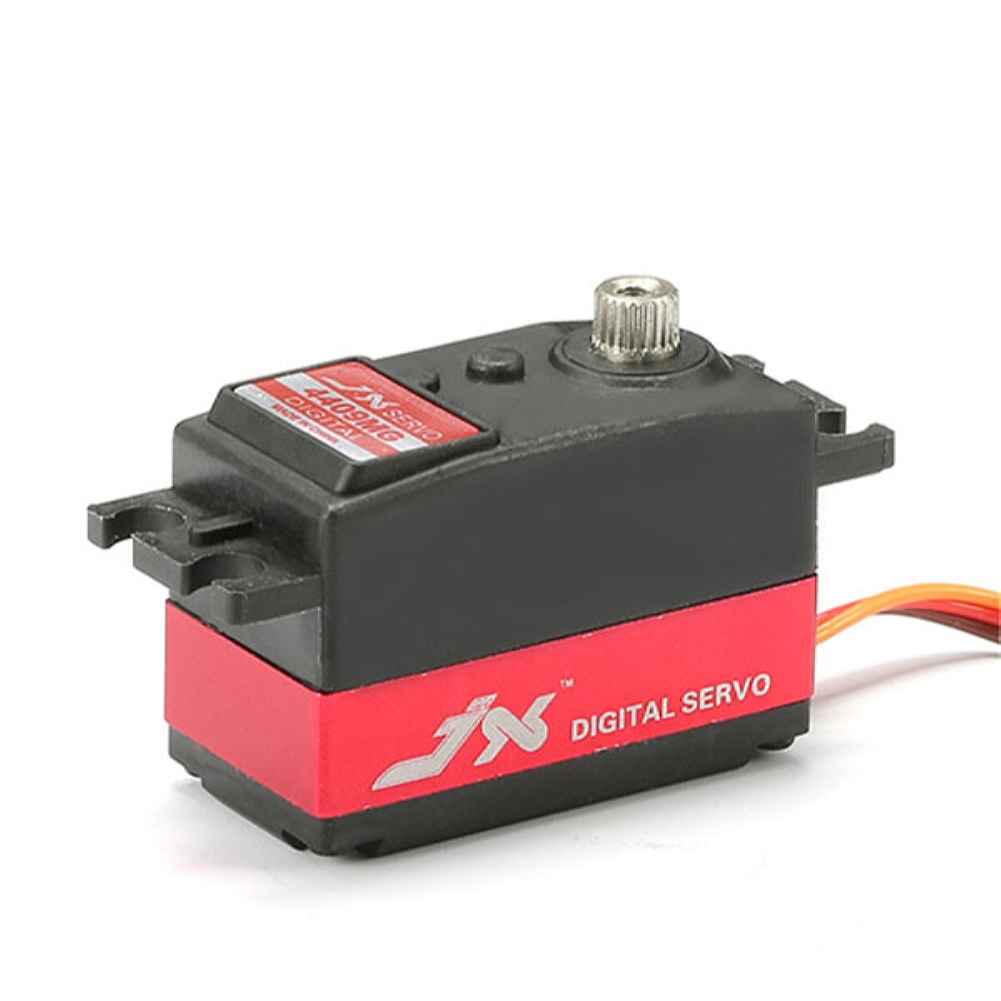

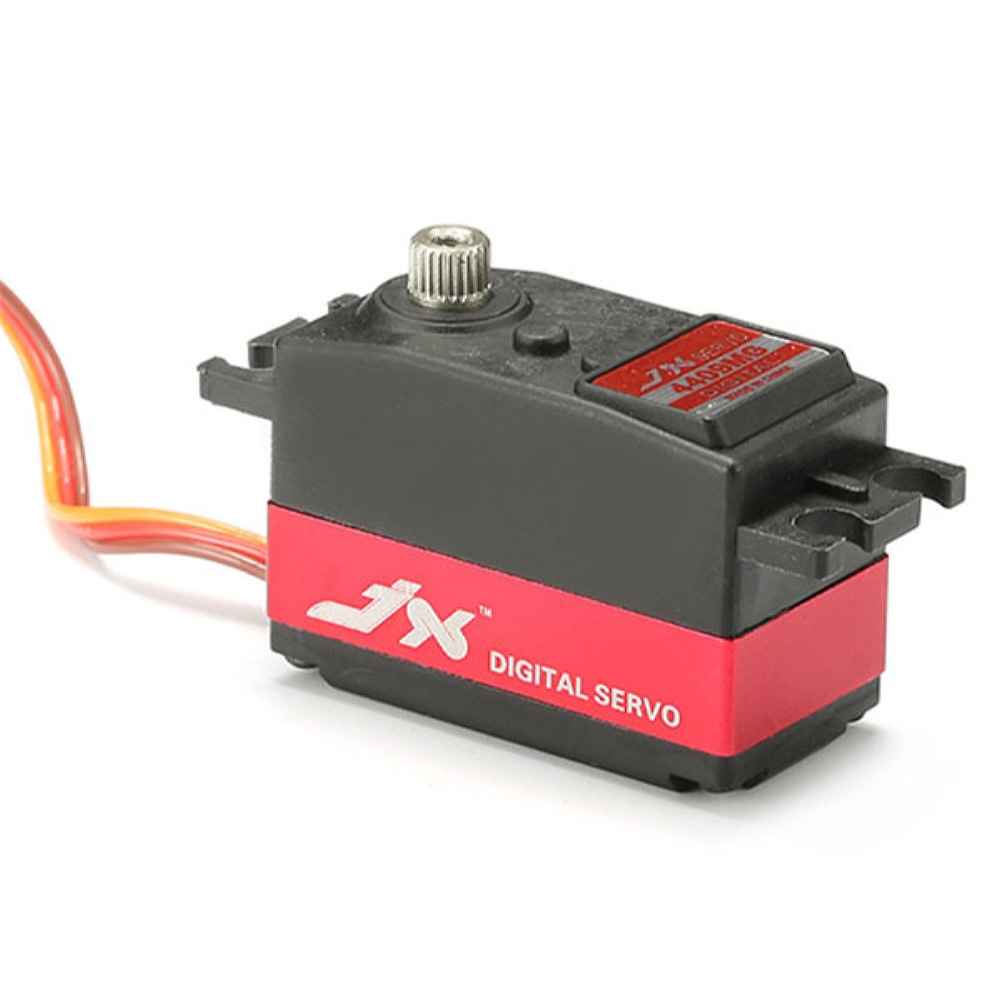

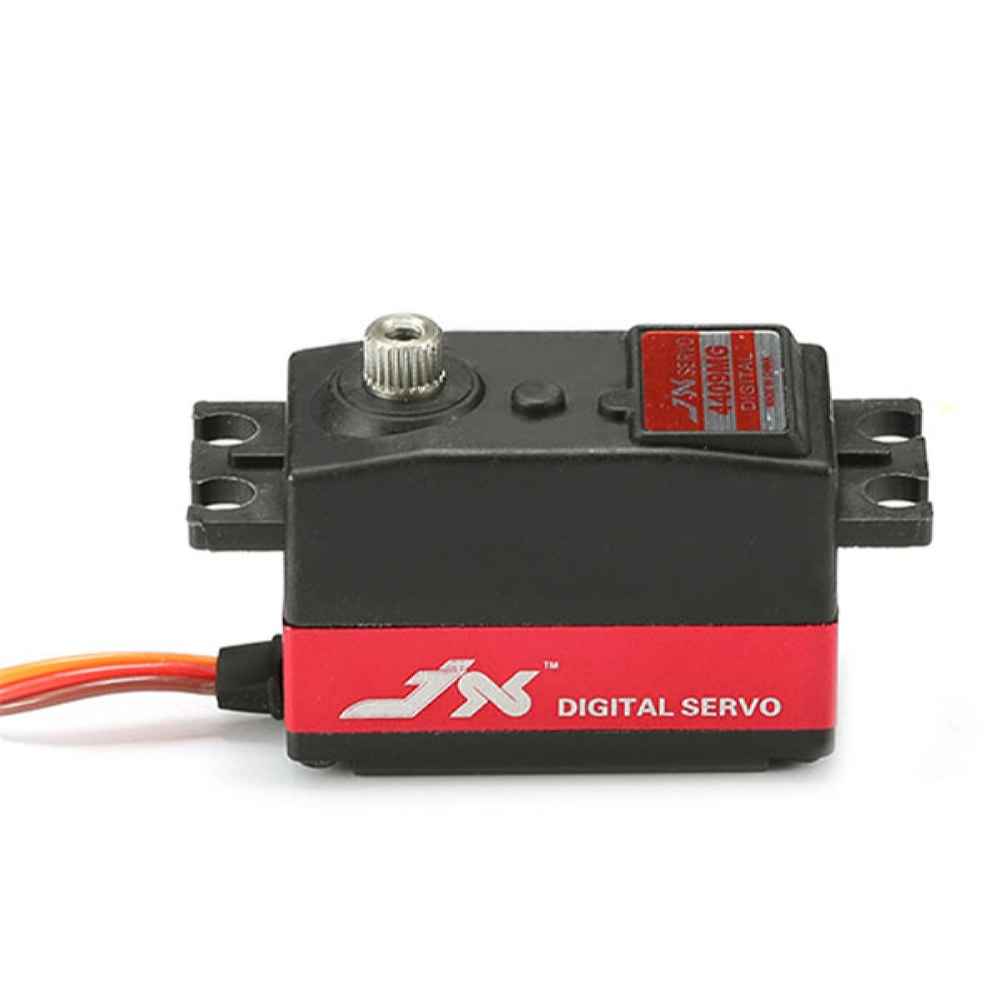

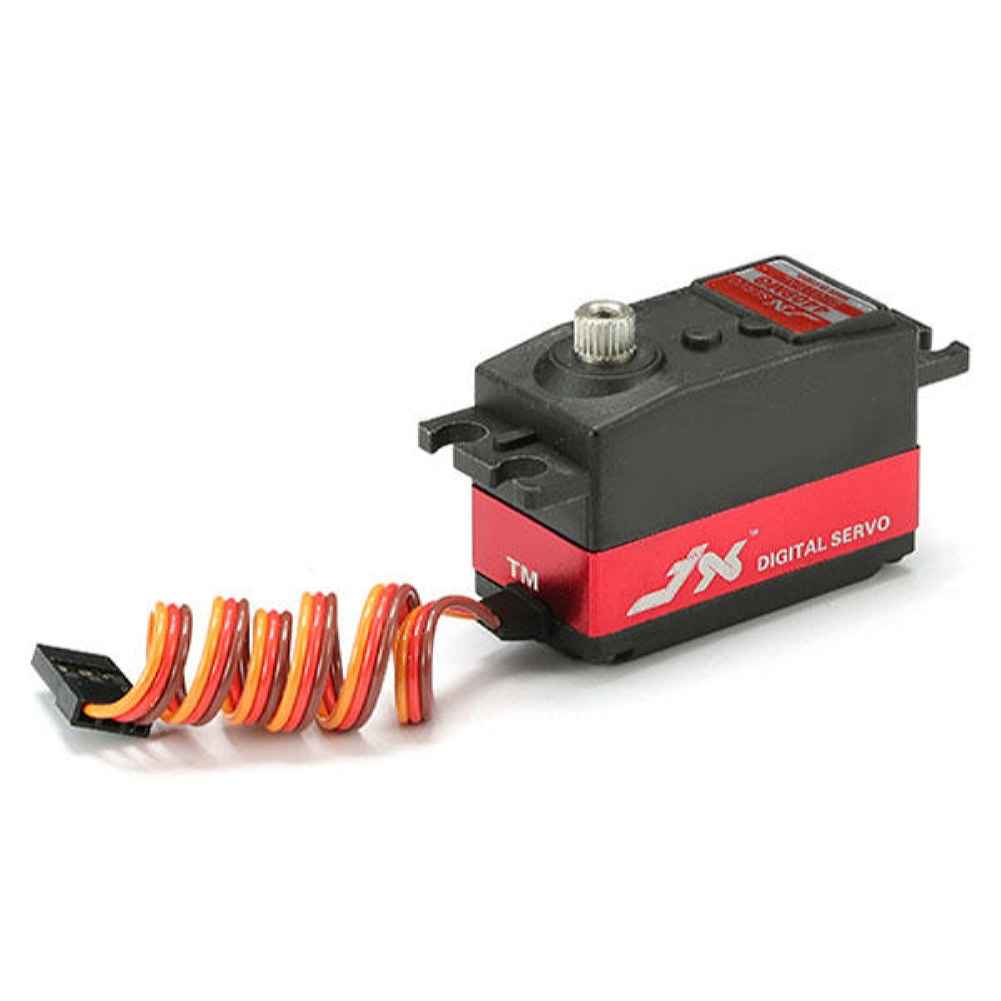

4x JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo

The JX Servo PDI-4409MG is a high-performance digital servo designed for precision and reliability. With a maximum torque of 9.2 kg.cm at 6.0V and a swift operating speed of 0.11 sec/60°, this servo ensures efficient and responsive control. The servo features a high-quality core motor and dual ball bearings for smooth operation. Its high-precision metal gears and 180-degree rotation make it ideal for a variety of RC and robotic applications. The servo operates at a voltage range of DC 4.8~6.0 V, with a sturdy build measuring 40.5X20.3X28mm and weighing just 44.5g. The package includes four servos, each with a 265mm JR connector wire.

Description:
Brand: JX Servo
Item: PDI-4409MG
Max pulse width: 500-2500us
Max angle: 180°
Dead band:2μs
Working frequence:1520μs / 330hz
Motor:high quality core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed: (4.8V) 0.13 sec/60°
Operating Speed: (6.0V) 0.11 sec/60°
Stall Torque: (4.8V) 7.8 kg.cm
Stall Torque: (6.0V) 9.2 kg.cm
Dimensions: 40.5X20.3X28mm
Weight: 44.5g
Bearing: 2BB
Connector Wire Length: JR 265mm
Gear: 25T
Fearture:
High-performance standard digital servo
High-precision metal gear
High-quality brushed motor
Dual ball bearing

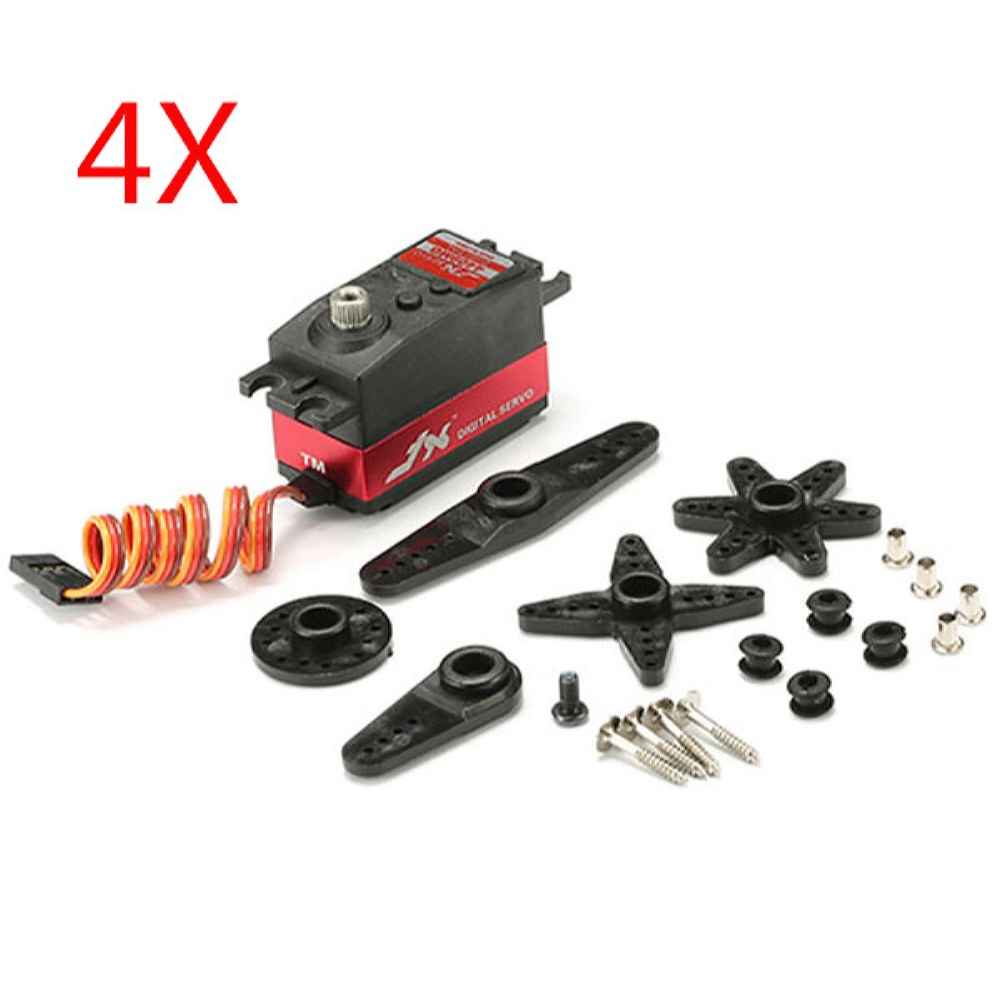

Package Included:
4 x JX Servo PDI-4409MG Servo
