JX Servo PDI-4409MG 9kg Large Torque Digital Servo, 180 Degree, High-Precision Metal Gear, RC Parts

Description

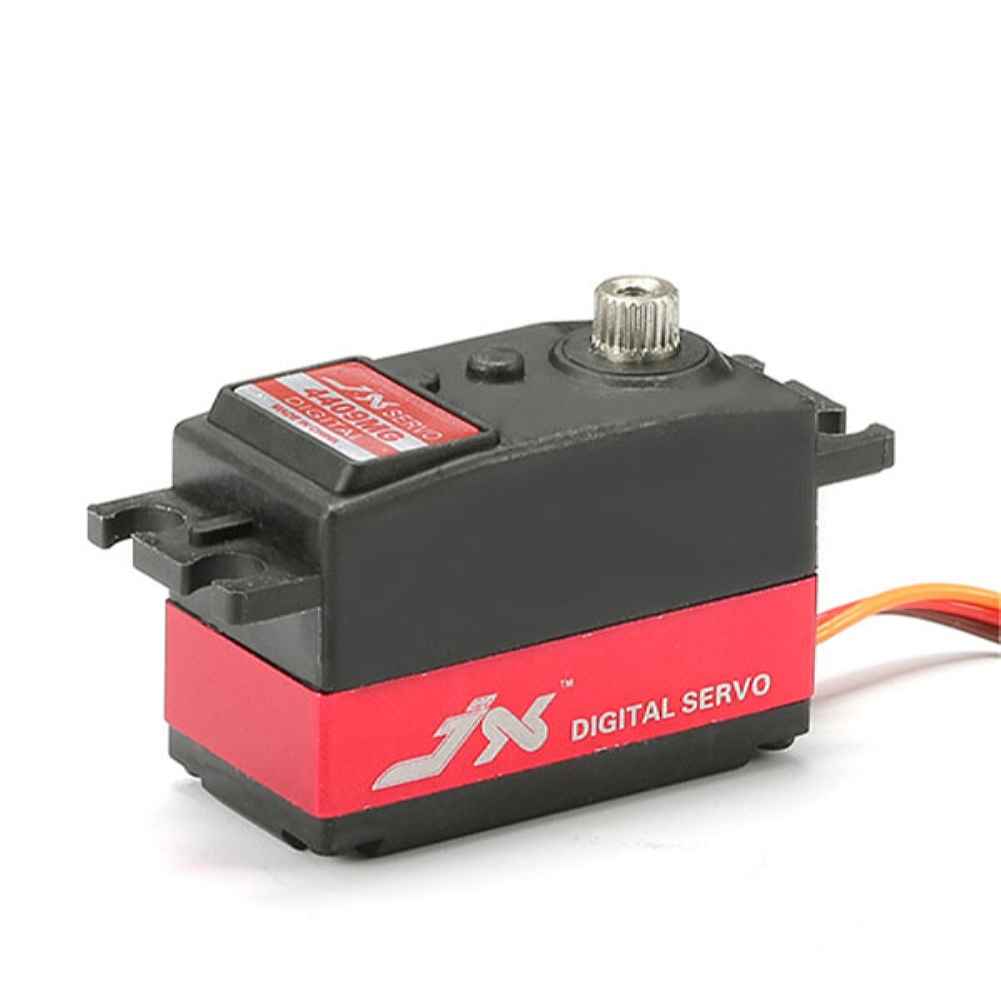

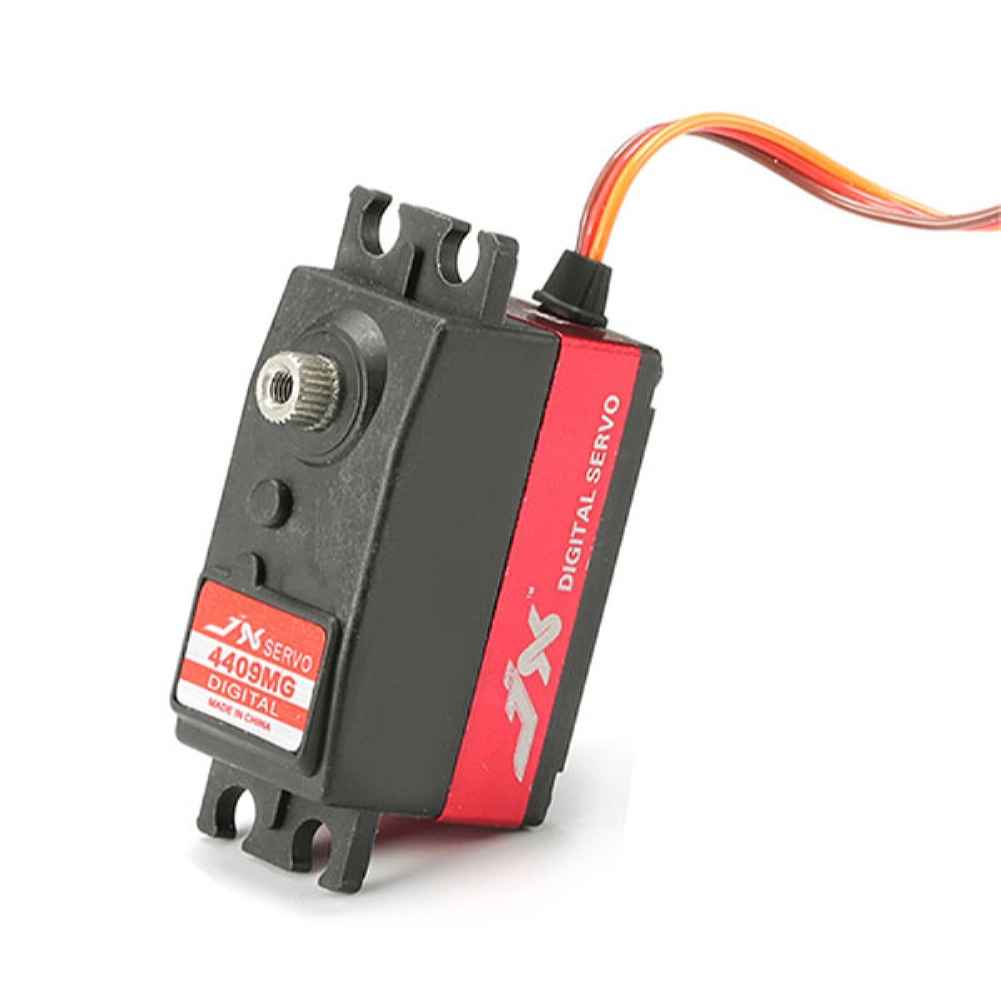

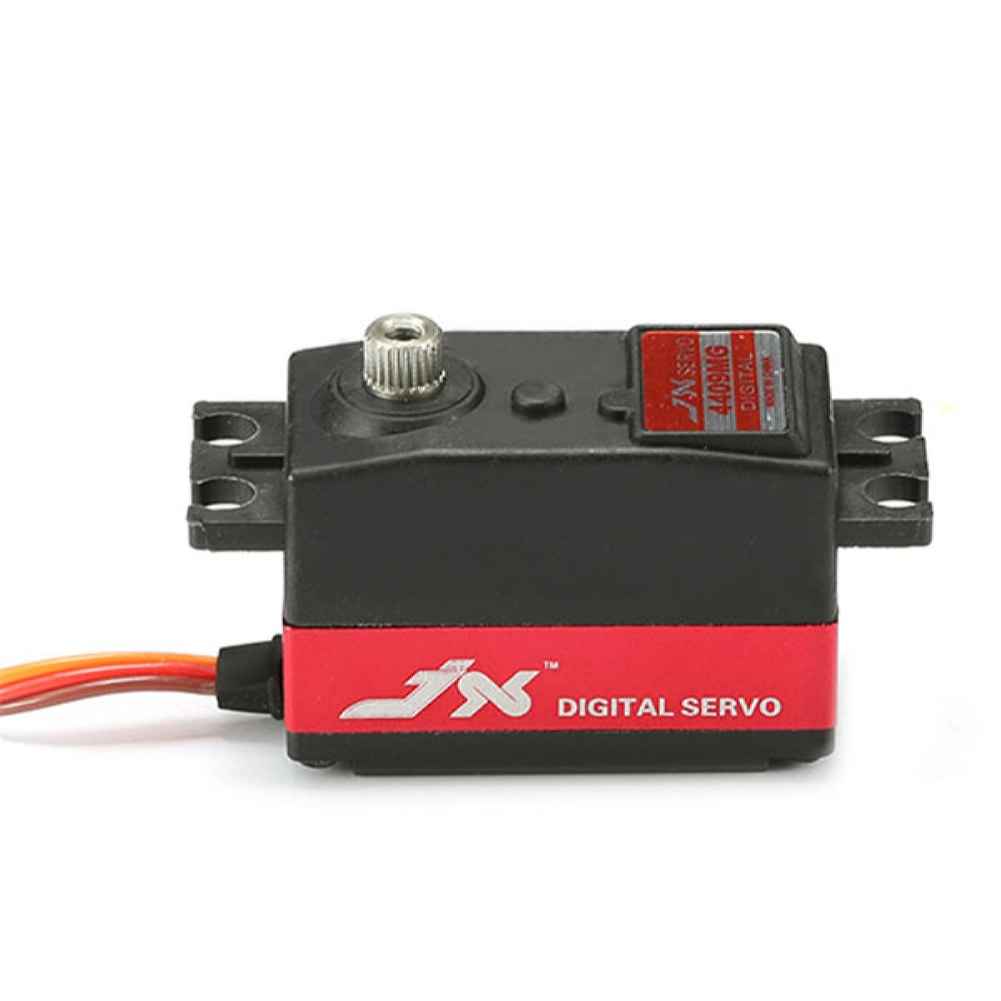

JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo

The JX Servo PDI-4409MG is a high-performance digital servo, ideal for RC enthusiasts. It offers a large torque of 9kg and a maximum angle of 180 degrees, ensuring precise control. Equipped with high-precision metal gears and a high-quality brushed core motor, this servo delivers reliable performance. It operates efficiently within a voltage range of DC 4.8 to 6.0 V, with varying operating speeds depending on the voltage. The servo features dual ball bearings for smooth operation and a 25T gear. Its compact dimensions and lightweight design make it a perfect fit for various RC applications.

JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
Description:
Brand: JX Servo
Item: PDI-4409MG
Max pulse width: 500-2500us
Max angle: 180°
Dead band:2μs
Working frequence:1520μs / 330hz
Motor:high quality core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed: (4.8V) 0.13 sec/60°
Operating Speed: (6.0V) 0.11 sec/60°
Stall Torque: (4.8V) 7.8 kg.cm
Stall Torque: (6.0V) 9.2 kg.cm
Dimensions: 40.5X20.3X28mm
Weight: 44.5g
Bearing: 2BB
Connector Wire Length: JR 265mm
Gear: 25T
Fearture:
High-performance standard digital servo
High-precision metal gear
High-quality brushed motor
Dual ball bearing

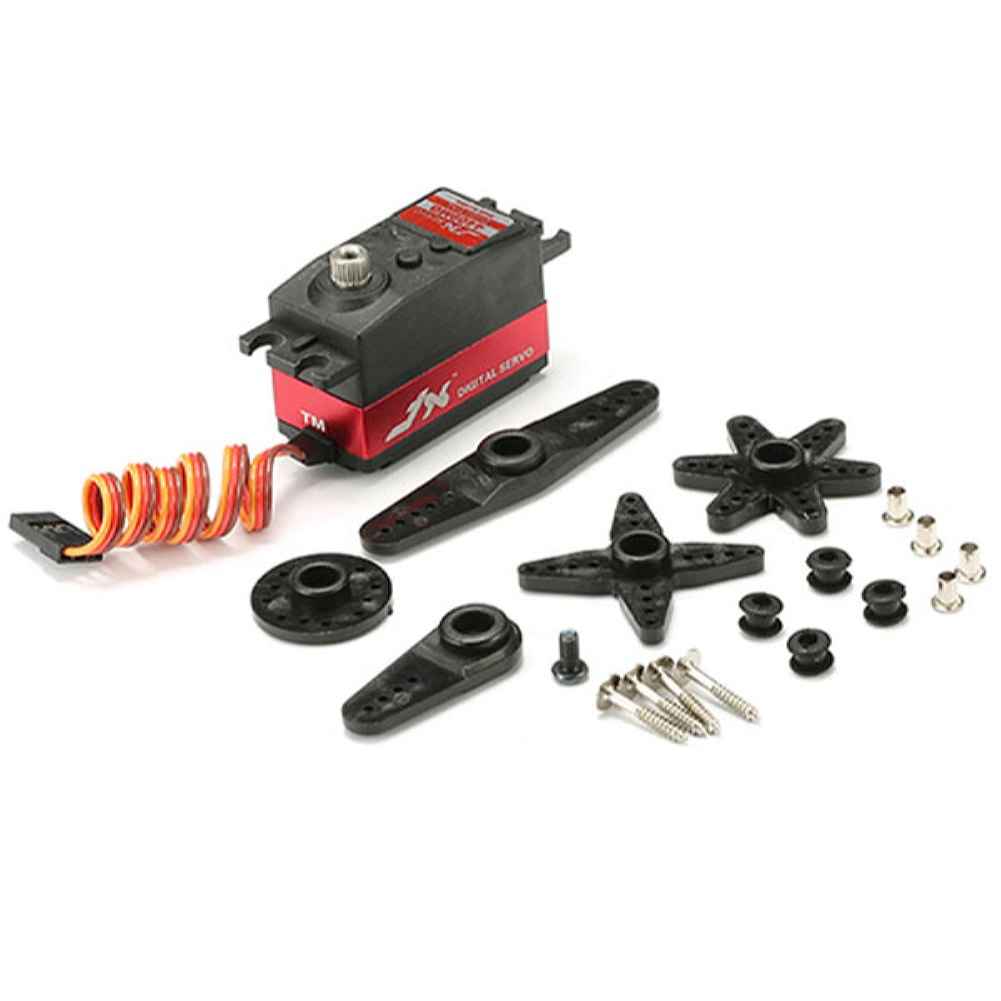

Package Included:
1 x JX Servo PDI-4409MG Servo
