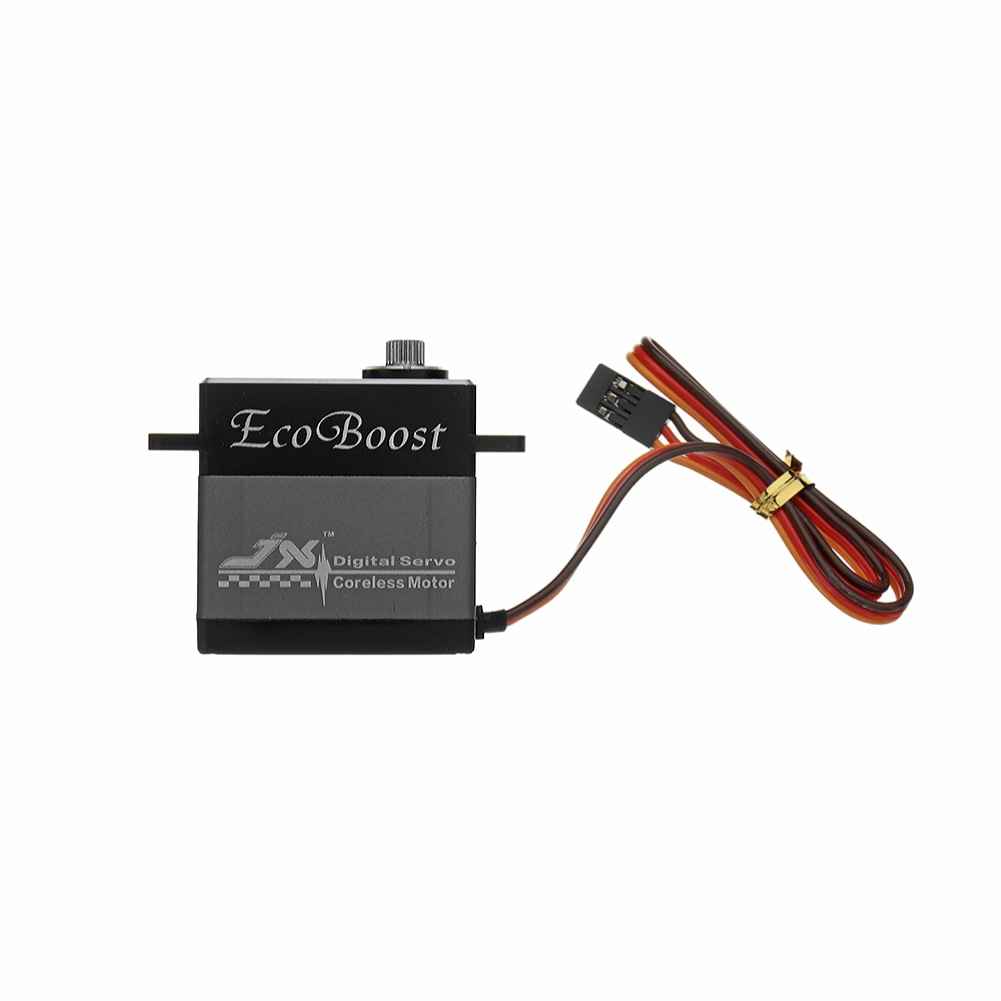

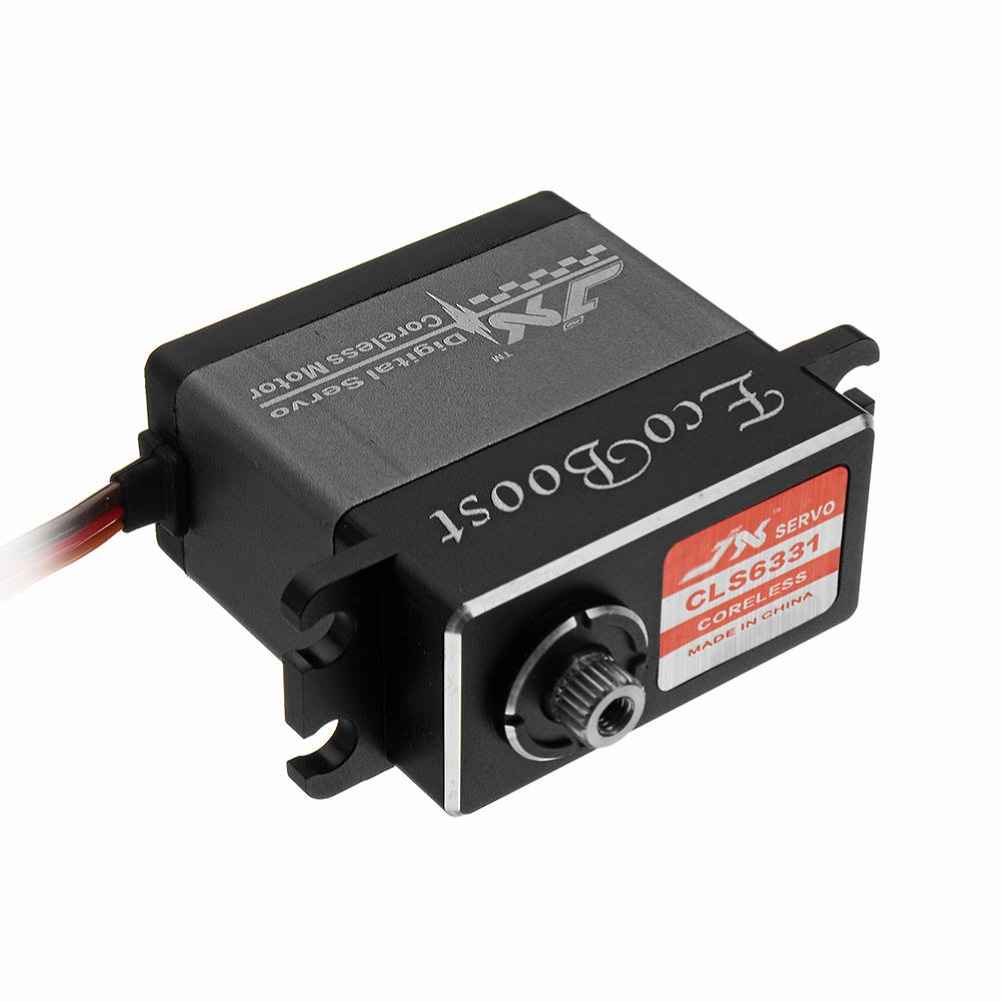

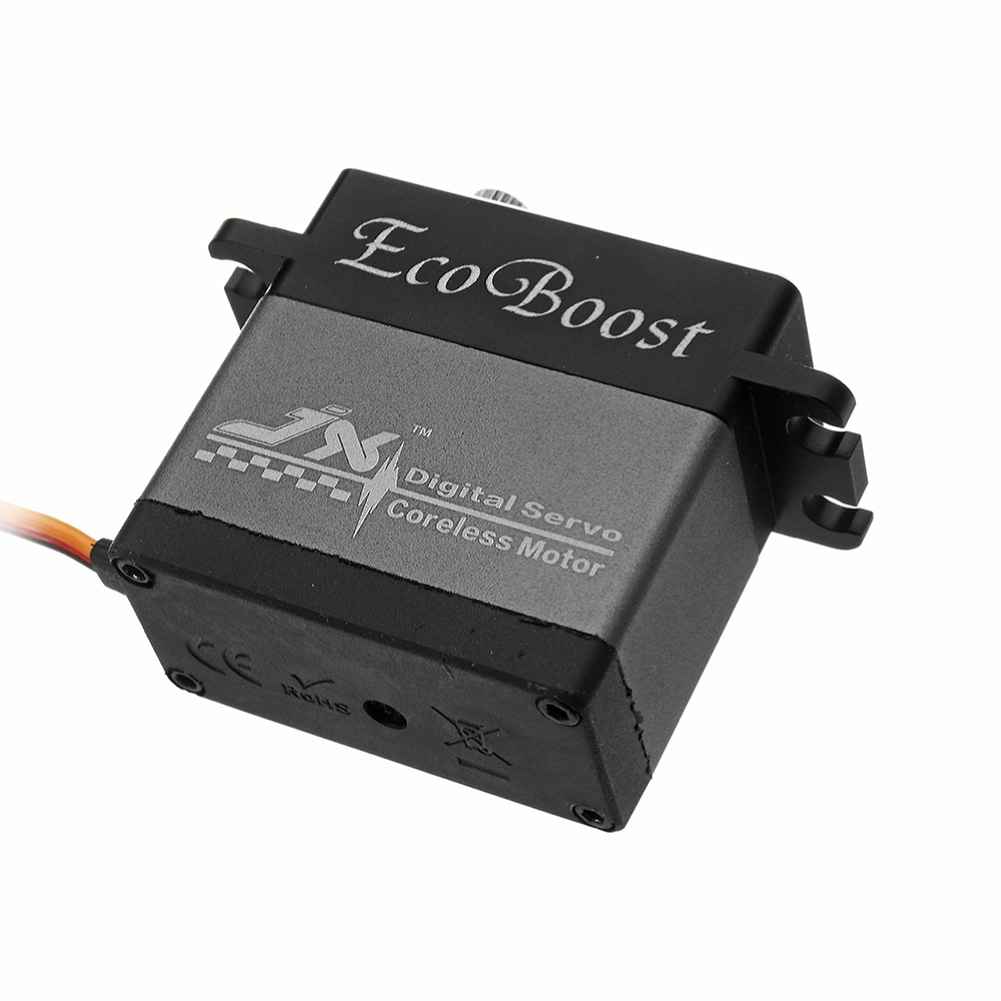

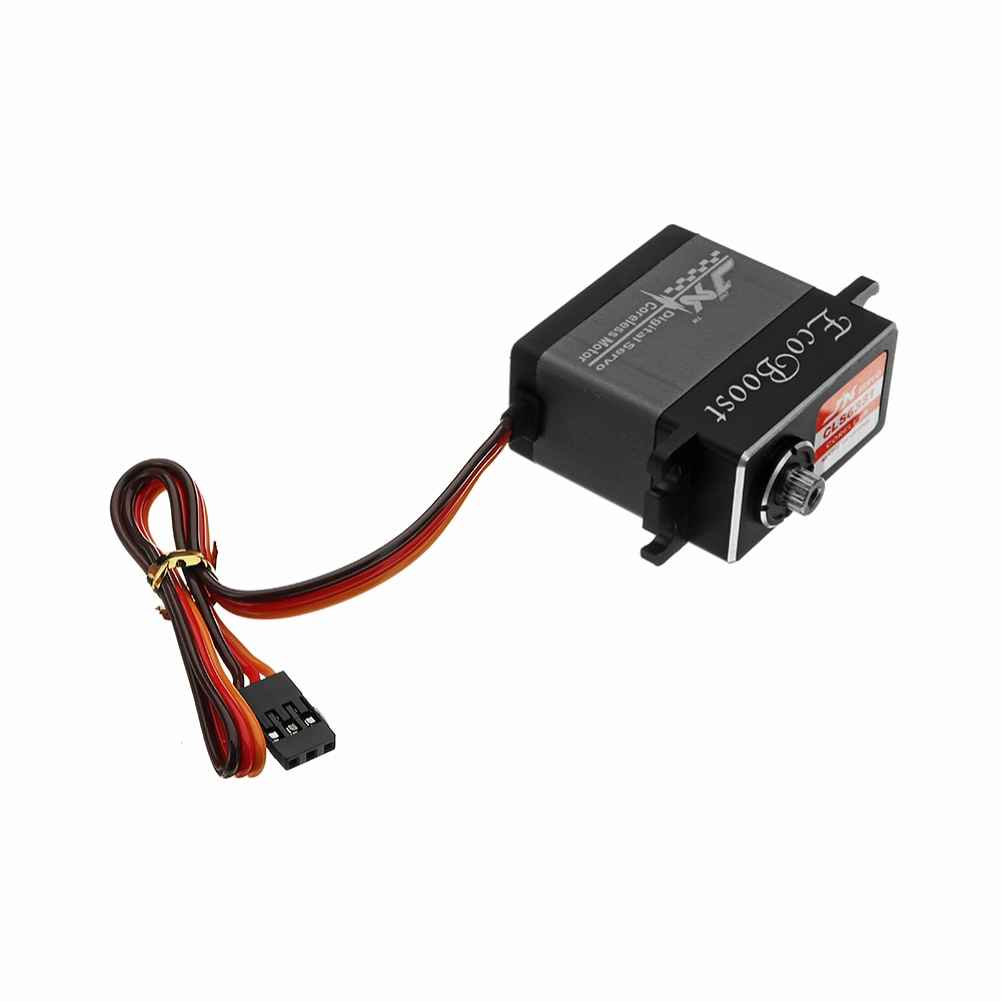

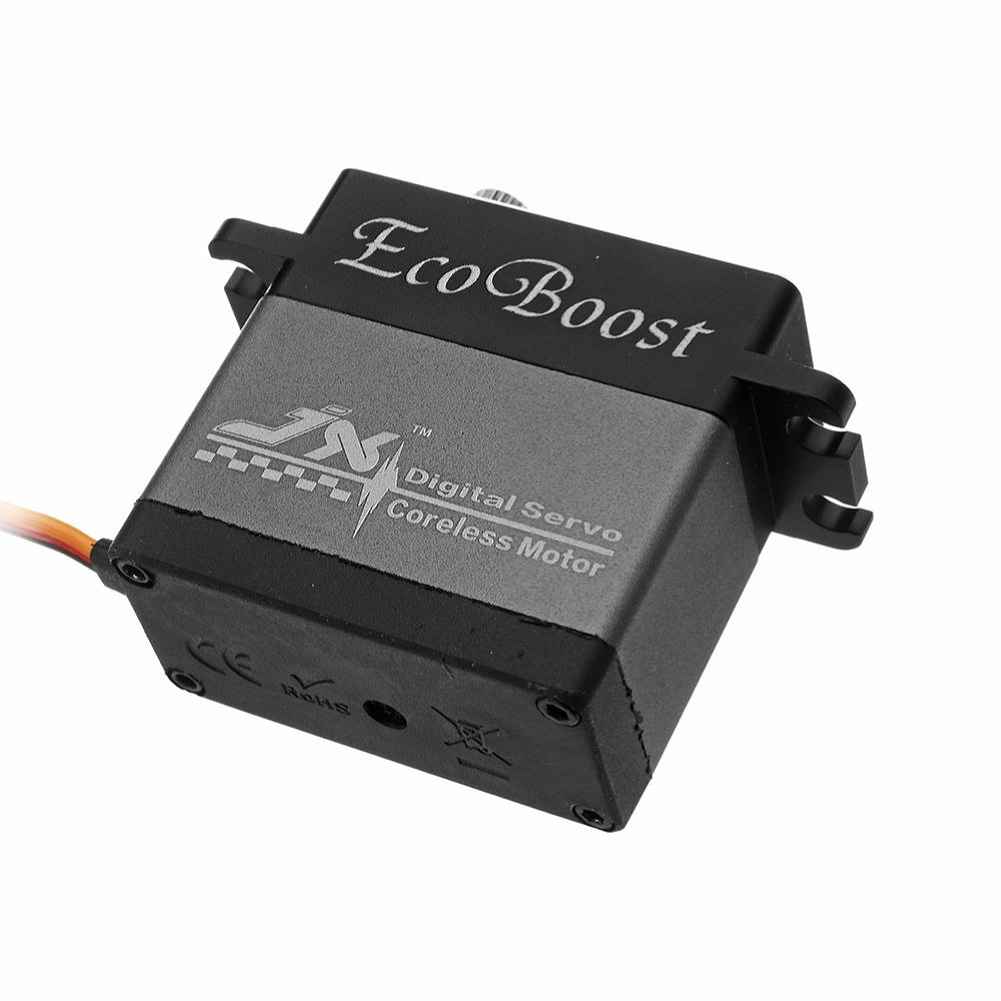

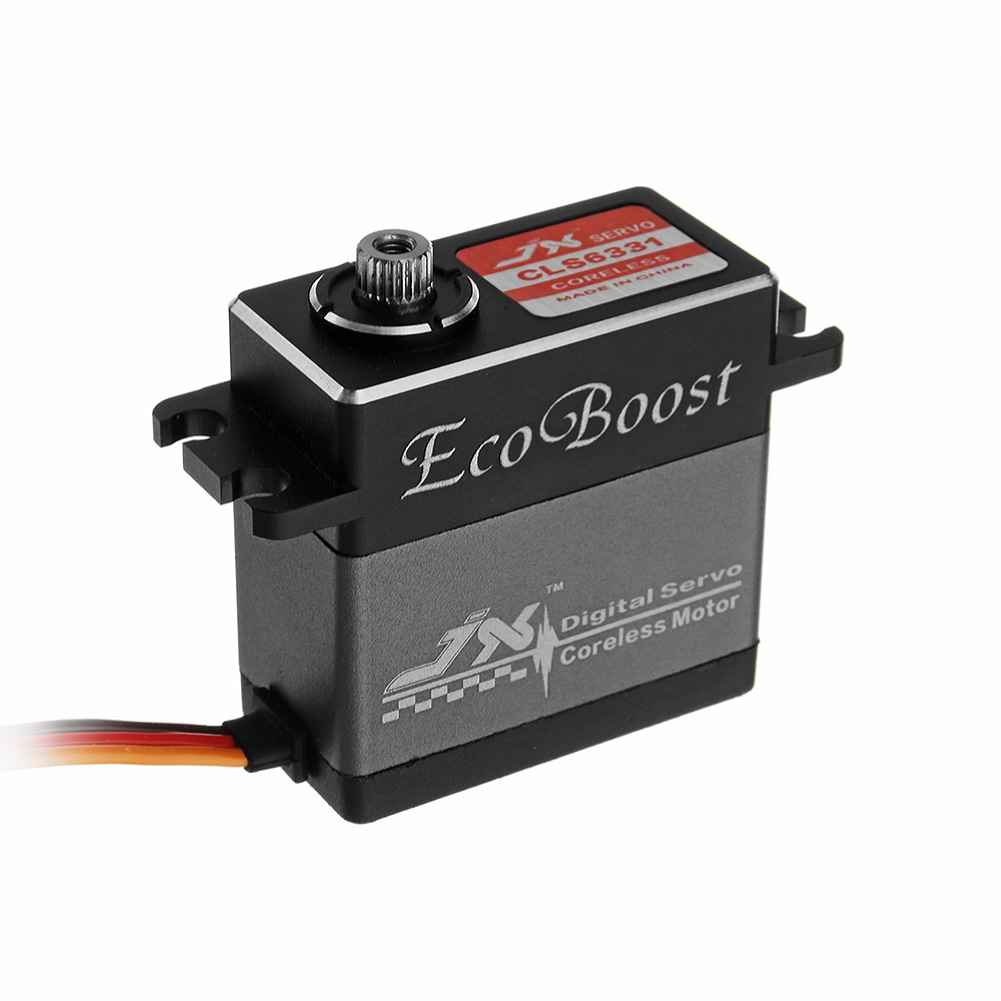

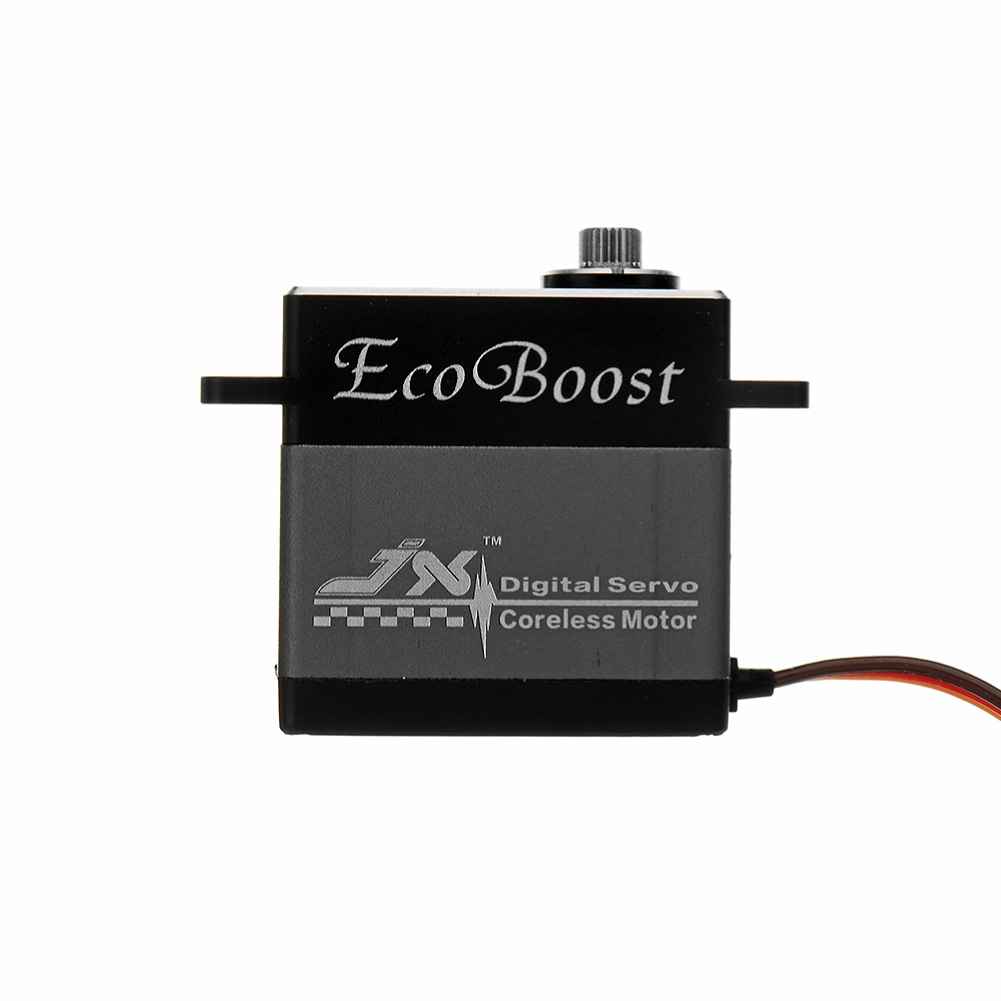

JX Ecoboost CLS6331 High Torque 30KG 180° Aluminium Metal Gear Coreless Digital Servo for RC Robots

Description

JX Ecoboost CLS6331 30KG High Torque 180 Degree Aluminium Shell Metal Gear Coreless Digital Servo

The JX Ecoboost CLS6331 is a high-performance digital servo designed for RC robots, offering a robust 30KG stall torque. Featuring a coreless motor, it delivers rapid operating speeds of 0.15sec/60° at 4.8V and 0.12sec/60° at 6.6V. The servo is housed in a durable aluminum shell with CNC metal covering, ensuring longevity and reliability. Its precision-engineered aluminum gears, crafted in Taiwan and hard anodized, provide exceptional strength and efficiency. The servo’s dimensions are 40.5×20.5x40mm, and it weighs only 63g, making it a compact yet powerful choice for various robotic applications. Equipped with a JR connector and 265mm wire length, it ensures easy integration into your projects.

Specification:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.15sec/60°
Operating Speed (6.6V): 0.12sec/60°
Stall Torque (4.8V): 23.26 kg.cm (322.99oz/in)
Stall Torque (6.6V): 30.64kg.cm (425.51oz/in)
Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in
Weight: 63g (2.22oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 3BB
Feature:
1.CNC metal on the cover in the shell.
2.High percision Taiwan-made aluminum gear with hard anodizing
3.High voltage coreless digital servo.

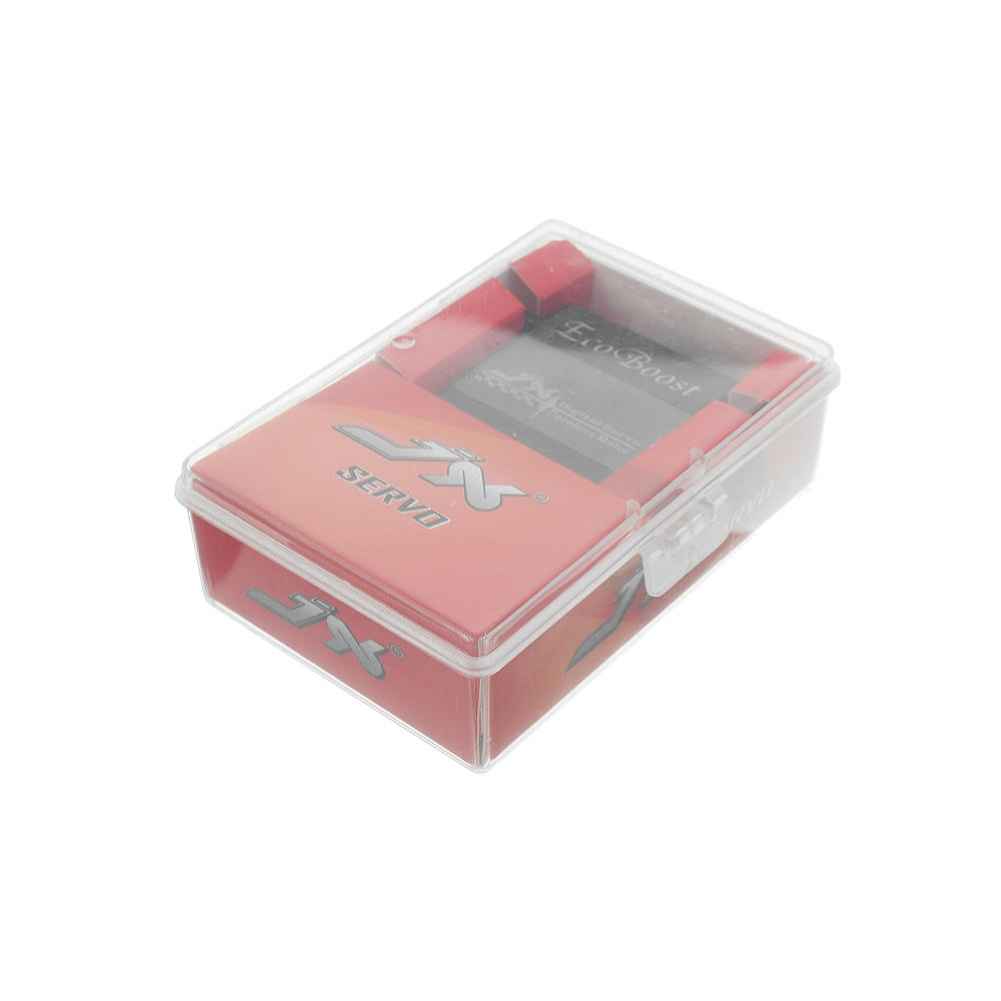

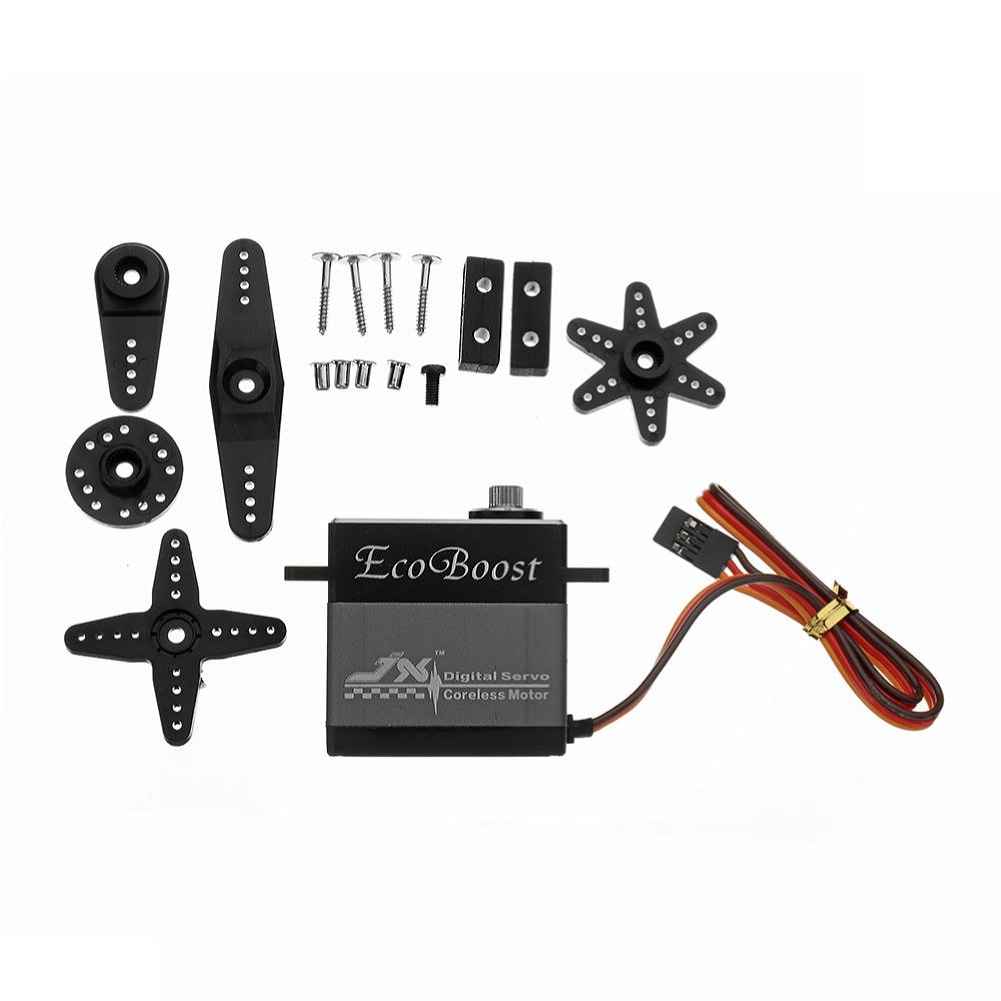

Packaging Included:
1X JX CLS6331 Coreless Digital Servo

Package Included:
1 x JX CLS6331 Coreless Digital Servo
