JX Servo PDI-HV0903MG 9.4g High Torque Digital Servo for RC Models, 4 Pack

Description

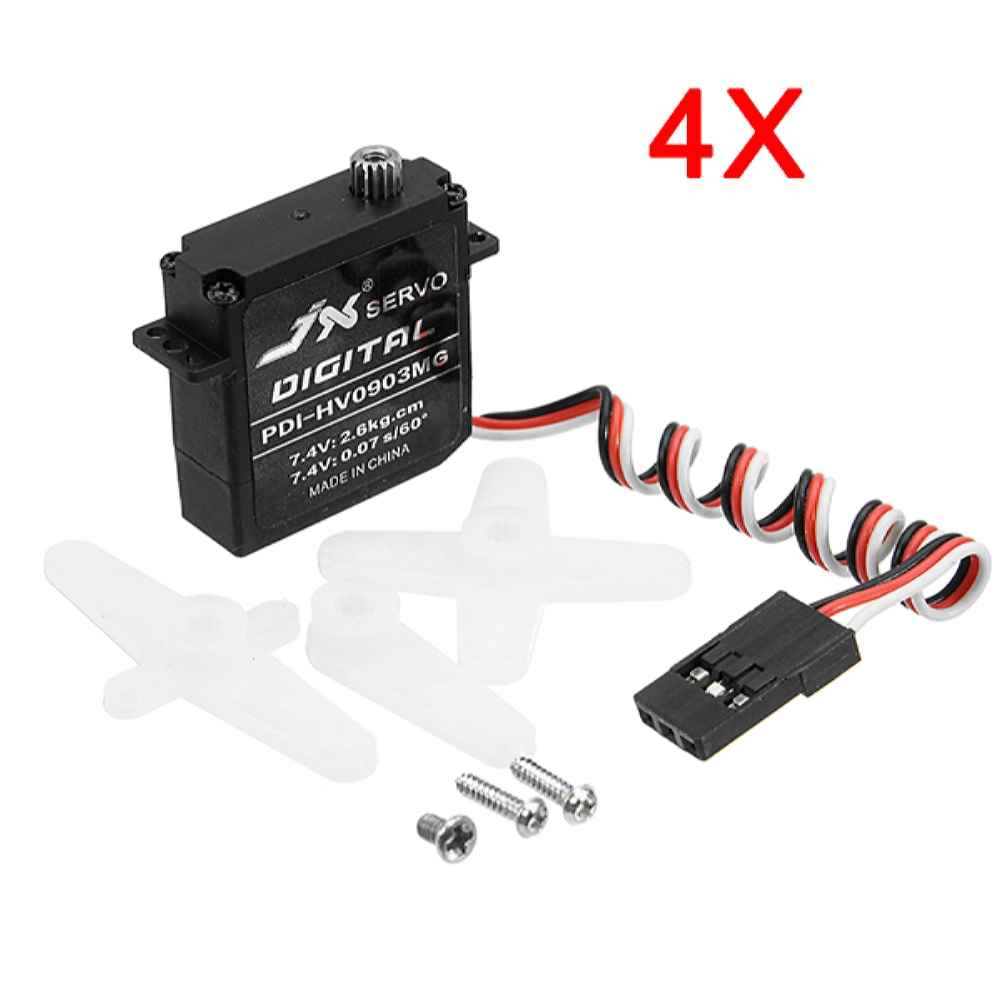

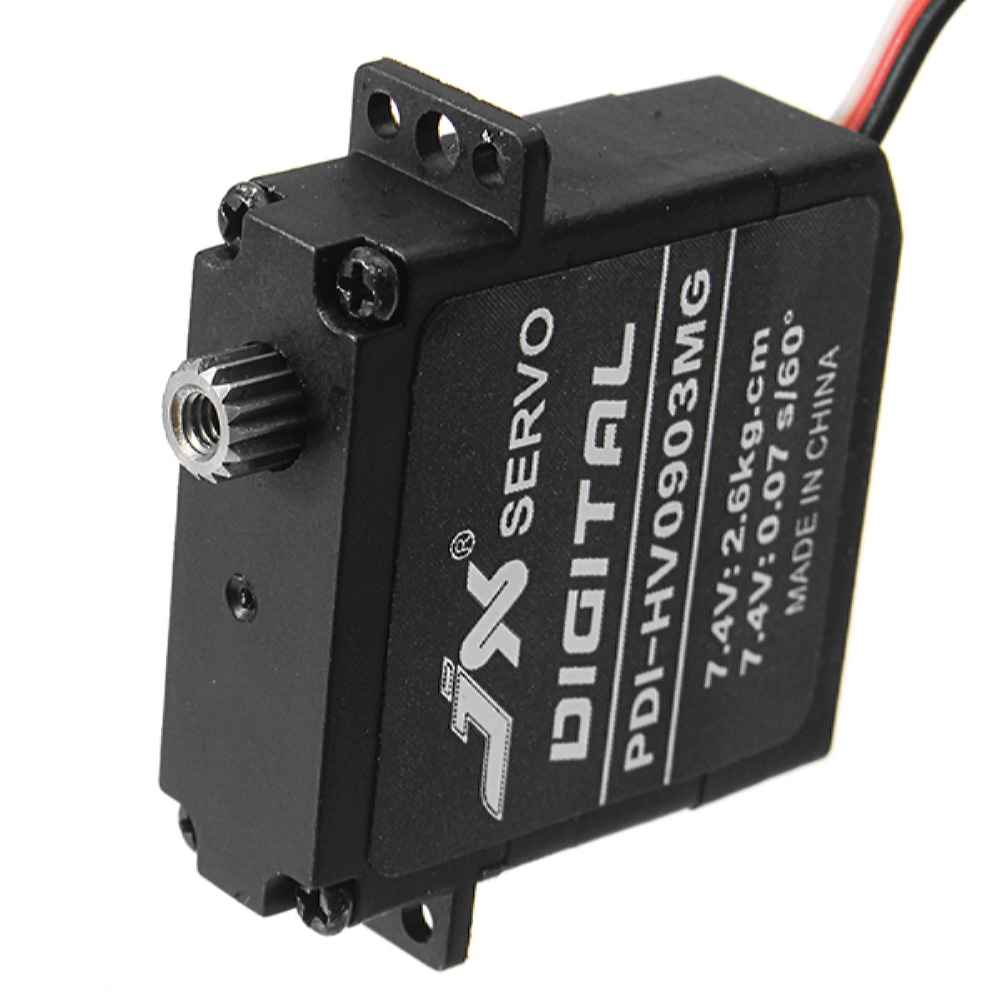

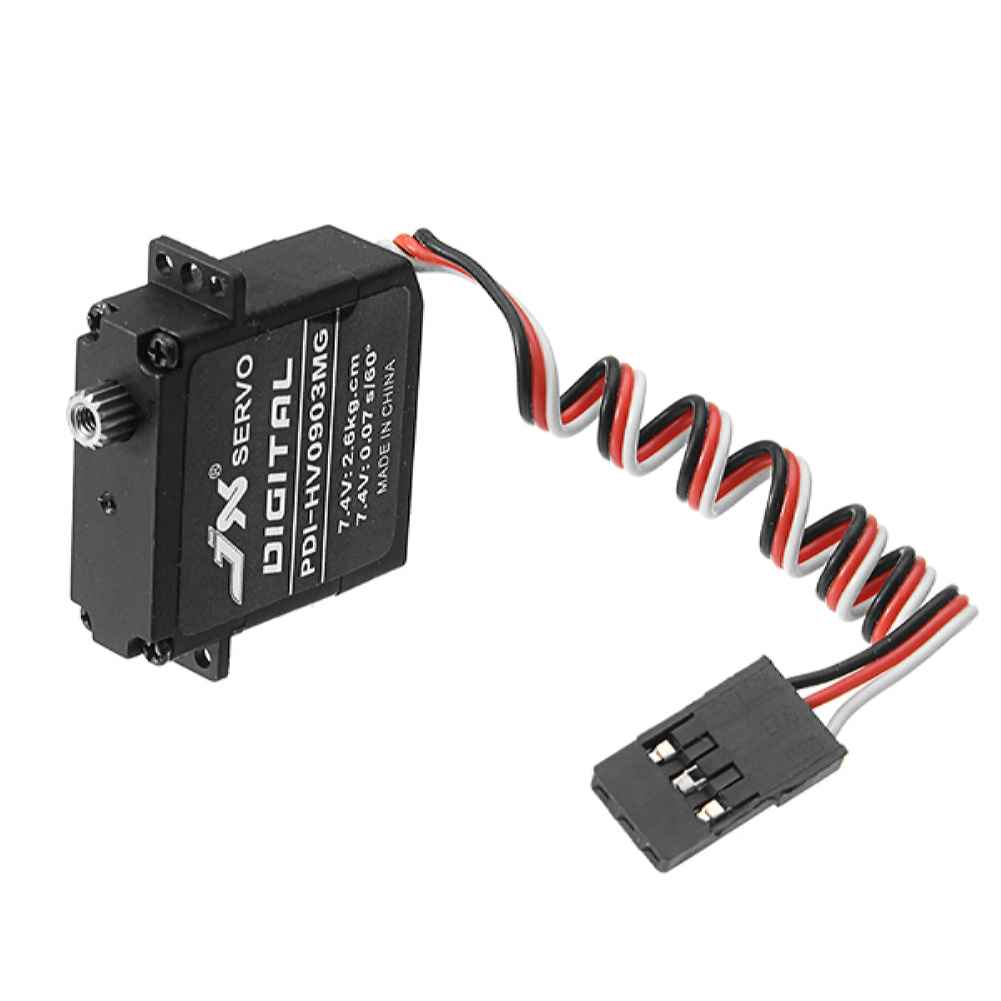

4X JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model

The JX Servo PDI-HV0903MG is a high-performance digital servo designed for RC models. It features a high torque of 2kg.cm at 6V and 2.6kg.cm at 7.4V, ensuring powerful performance. With a compact size of 23.5x8x24mm and lightweight design at just 9.4g, this servo is perfect for RC airplane applications. It operates within a voltage range of DC6~7.4V and maintains optimal performance in temperatures from -10 to +60°C. The servo’s fast operating speeds of 0.09sec/60° at 6V and 0.07sec/60° at 7.4V, along with a direct drive potentiometer, ensure precise control. The package includes four servos, each equipped with a JR/Futaba 150mm connector wire and 2BB bearings for smooth operation.

4X JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model
Description:
Brand name: JX
Item number: PDI-HV0903MG 9.4g High Torque Digital Standard Servo
Dead band: 2μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 2kg.cm
Stall Torque (7.4V): 2.6kg.cm
Potentiometer Drive: Direct Drive
Dimensions: 23.5X8X24mm
Weight: 9.4g (0.33oz)
Connector Wire Length: JR/Futaba 150 mm
Bearing: 2BB

Package Included:
4 x JX PDI-HV0903MG 9.4g High Torque Digital Standard Servo
