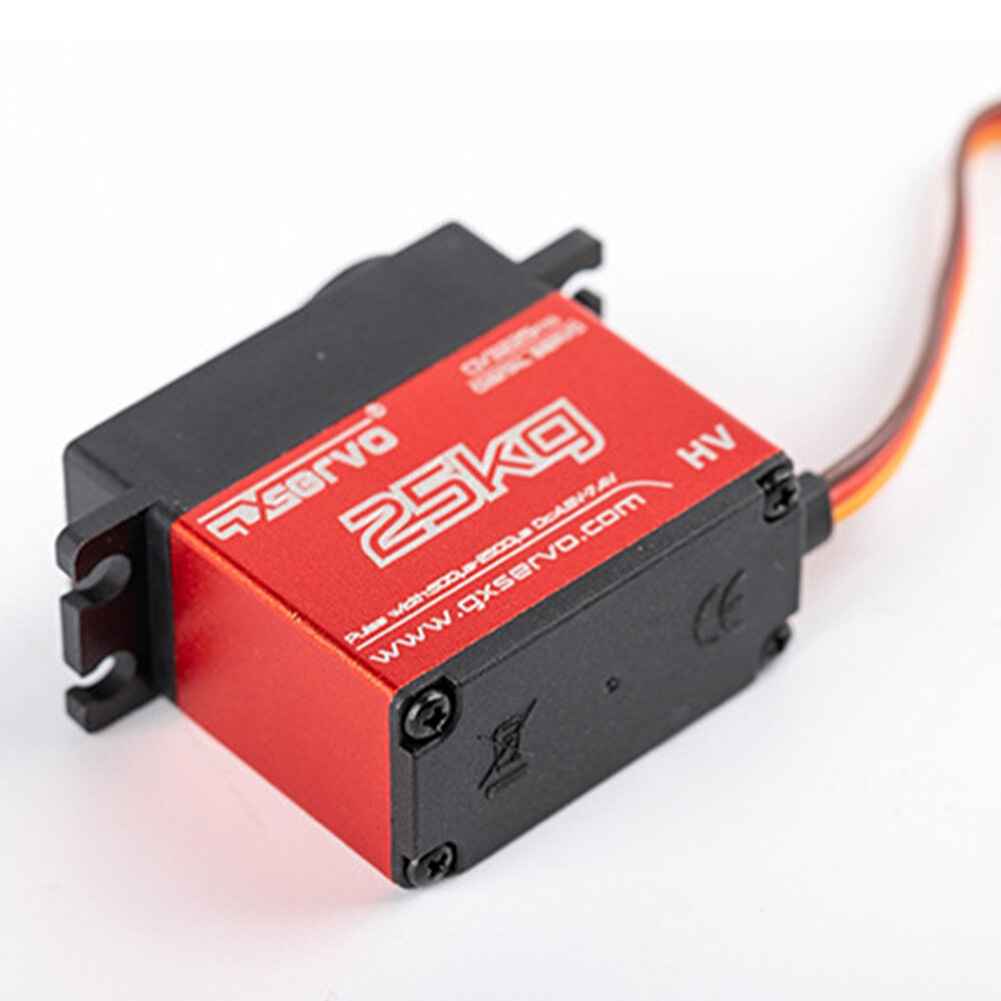

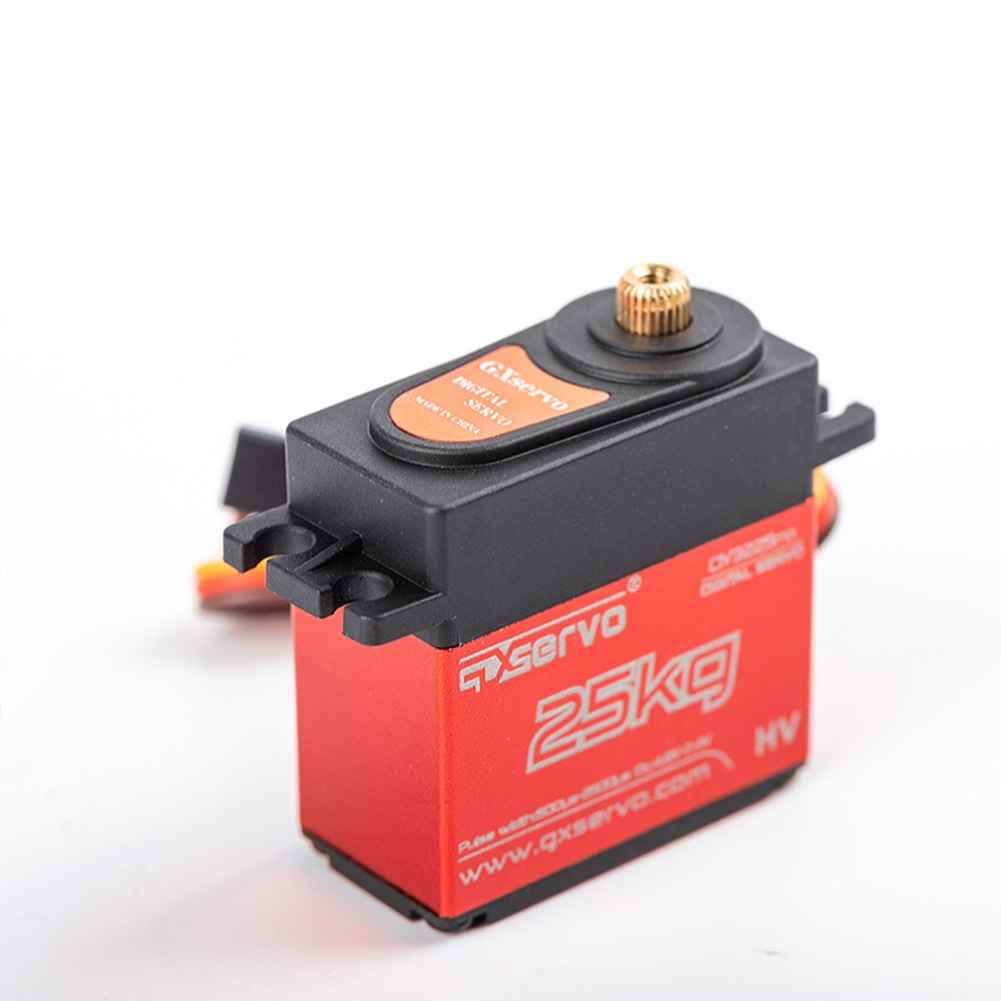

GXservo QY3225MG 25kg High Torque Digital Servo for DIY Robotic RC Cars

Description

GXservo 25kg QY3225MG High Torque Digital Servo Steering Gear Robotic Steering Gear for DIY Robotic RC Car

The GXservo QY3225MG is a high-performance digital servo designed for DIY robotic RC cars, offering impressive torque capabilities of 22KG.CM at 6.0V and 25KG.CM at 7.4V. This servo features a PWM control system, ensuring precise and reliable operation within a temperature range of -20°C to +60°C. It operates at speeds of 0.2s/60° and 0.18s/60°, with a robust iron core motor and double ball bearings for enhanced durability. The servo’s compact size of 40x20x39mm and lightweight build of 60g make it an ideal choice for various RC applications. With a field effect transistor drive and imported copper steel gears, this servo delivers superior performance and longevity.

Specifications:
Brand: GXservo
Control system: PWM control system
Temperature range: -20⊥ – +60⊥
Voltage range: 6.0V – 7.4V
Test voltage: AT 6.0V / AT 7.4V
Torque: 22KG.CM / 25KG.CM
Speed: 0.2s/60～, 0.18s/60～
No-load current: 300MA/450MA
Load current: 180OMA/2400MA
Dead zone width: 2 microseconds
Cycle: >15000 TIMES
Working angle: 90～㊣5～
Direction: Counterclockwise Pulse 1500 TO 2500 USEC
Drive mode: field effect transistor drive
Motor type: Iron core motor 1723
Potentiometer: indirect transmission
Amplifier Type: Digital
Size: 40*20*39MM
Weight: 60G (excluding accessories)
Ball Bearing: Double Ball Bearing

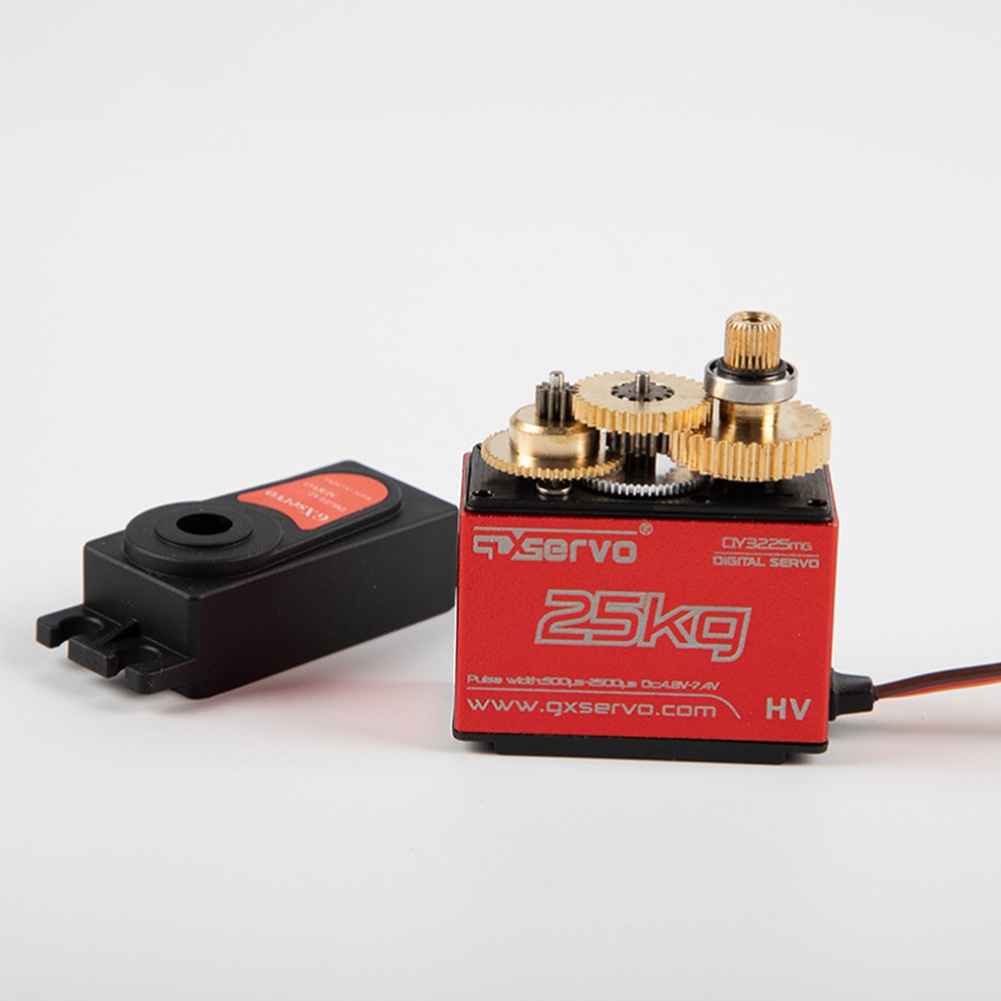

Gear material: imported copper steel material
Packing includedã„©
1x Digital Servo
1x Arm
1x set of Accessories
Note:
(1) Under the static working current, servo is energized, but there is no movement.
(2) In the case of no-load current operation, servos move under no-load conditions.
(3) The current of servo when outputting the maximum torque under the condition of locked rotor current
(4) The baud rate can be modified to 500K, 250K, 128000, 115200, 76800, 57600, 38400
(5) The maximum number of available bus nodes depends on the power supply capacity and the allowable current specifications of the cable.
(6) The stall torque is the maximum stall torque of the steering gear. The actual working torque is selected from 1 / 3- -1/5 of this value as suitable for the operating point.

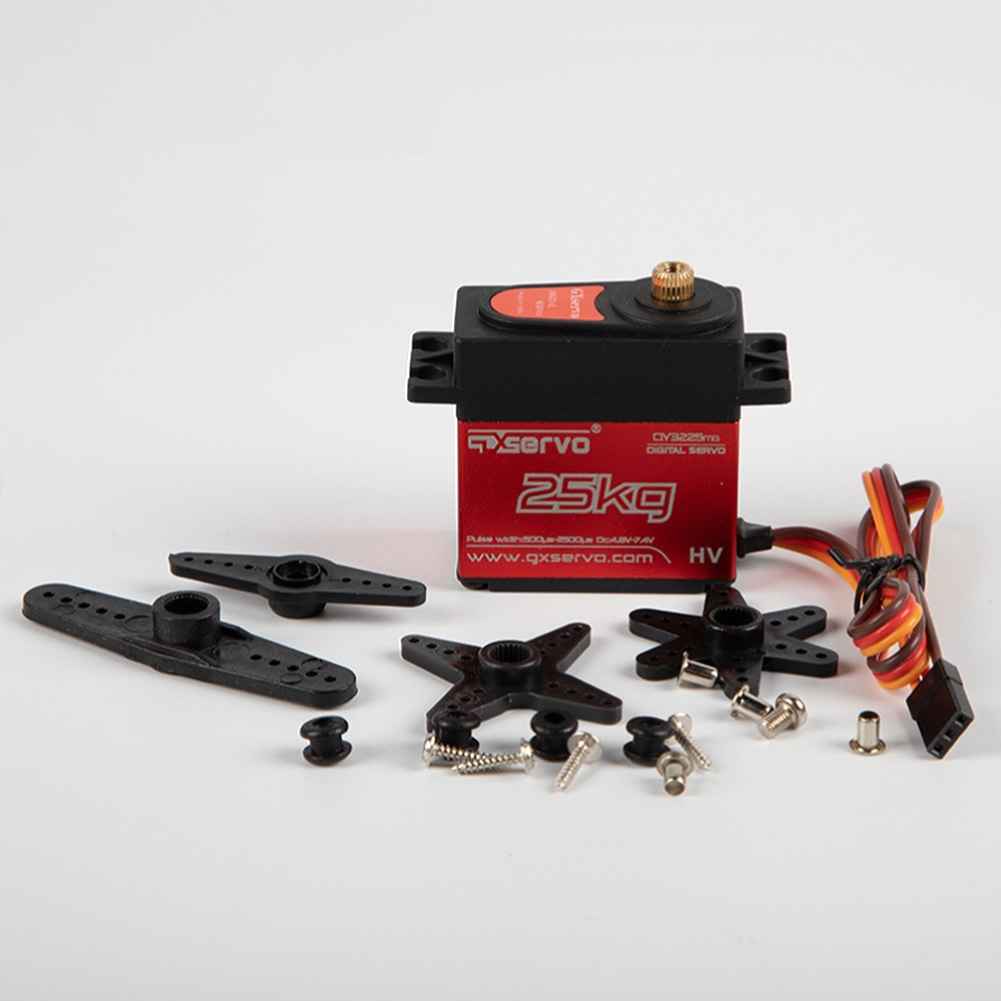

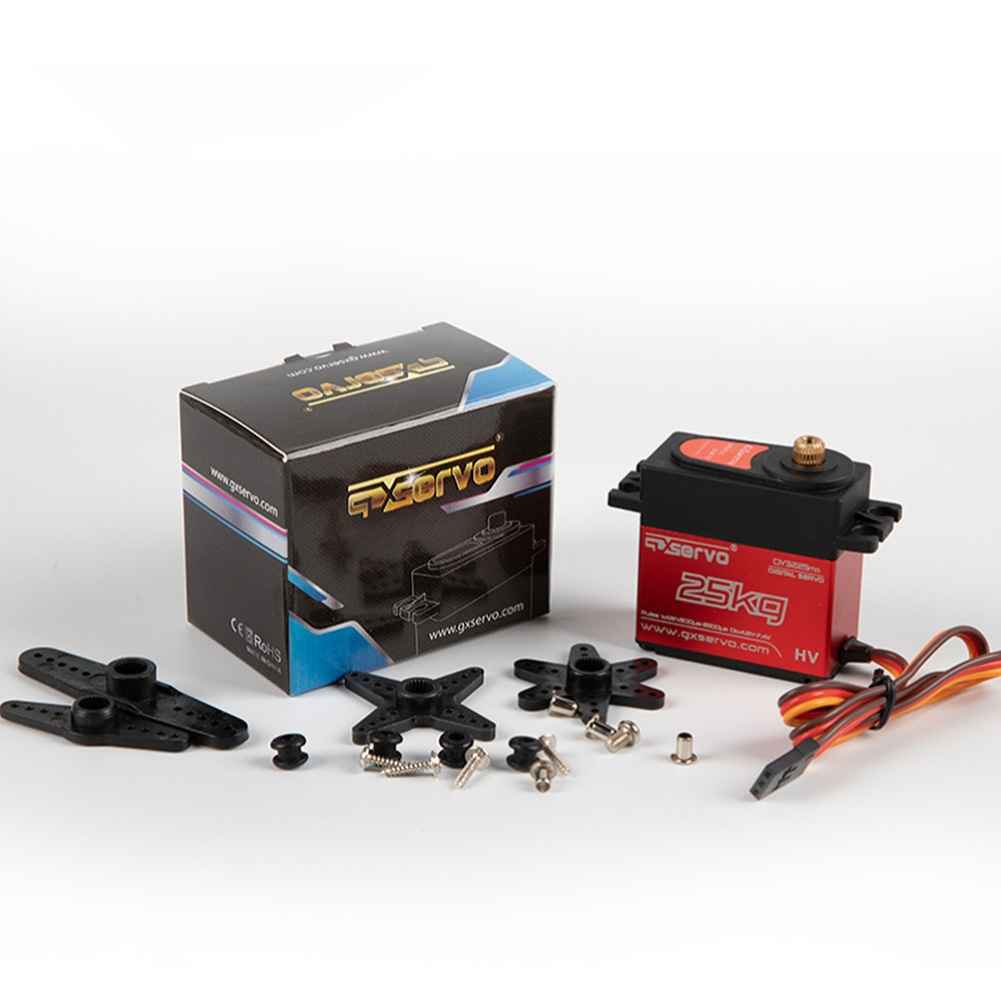

Package Included:
1 x Digital Servo
1 x Arm
1 x set of Accessories
