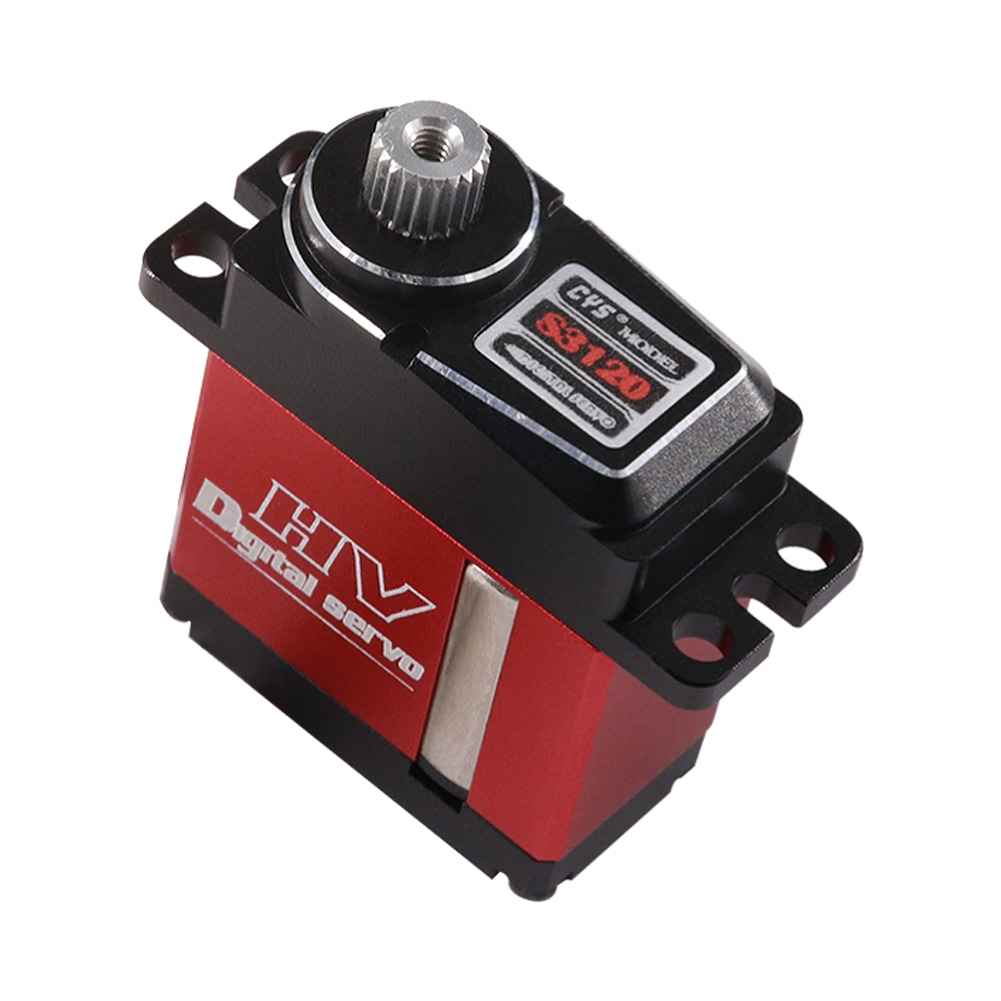

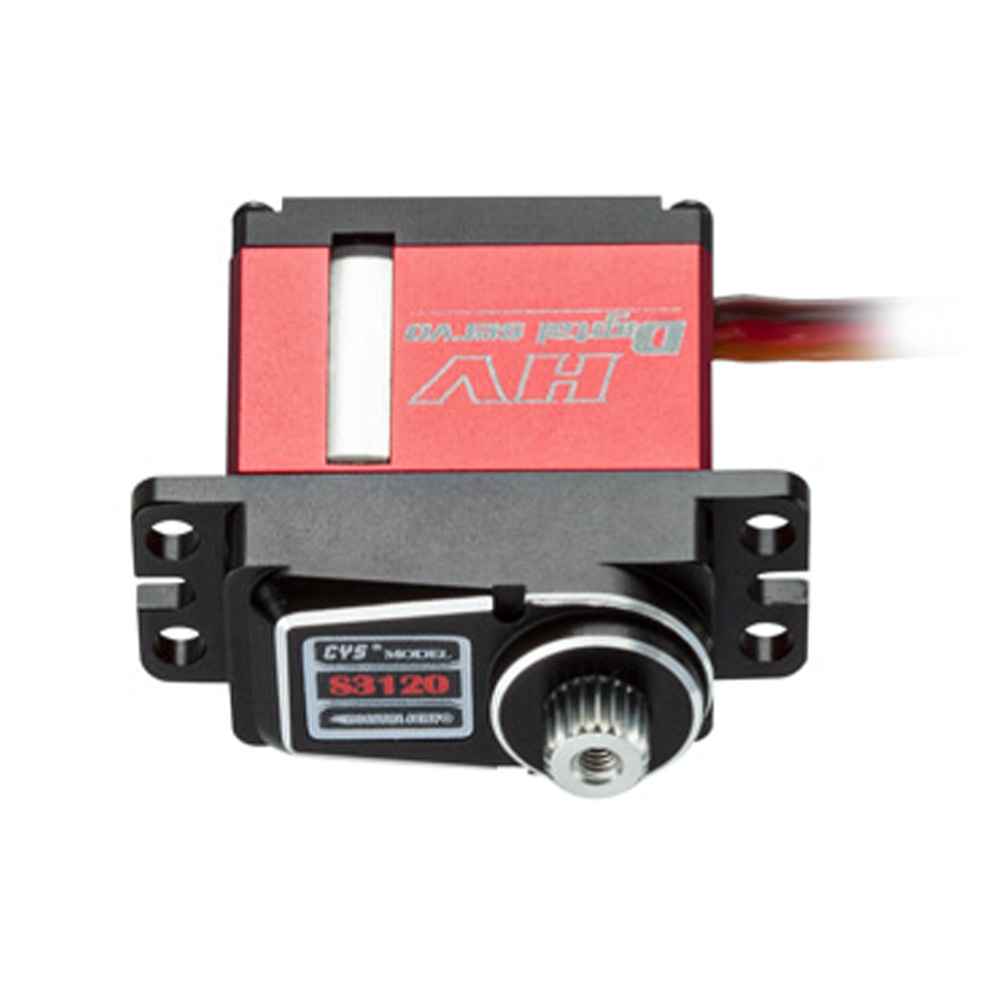

CYS-S3120 Digital Servo 4.5kg Torque for 450 Helicopter, Fixed Wing, Model Car

Description

CYS-S3120 4.5kg Torque Digital Servo for 450 Helicopter Fixed Wing Model Car

The CYS-S3120 Digital Servo is designed for precision control in RC models, including 450 helicopters, fixed wing aircraft, and model cars. It features a robust metal gear construction and operates efficiently within a voltage range of 4.8 to 7.4 DC volts. With a torque of 3.0kg.cm at 6.0V and 4.0kg.cm at 7.4V, this servo delivers reliable performance. Its quick operating speeds of 0.075sec/60簞 at 6.0V and 0.06sec/60簞 at 7.4V ensure smooth and responsive movements. The servo is compact, weighing approximately 20g and measuring 23x12x28.5mm. It functions effectively in temperatures ranging from -20 to +60 degrees Celsius.

Description:
Item Number:CYS-S3120
Item Name:Servo
Color:Red

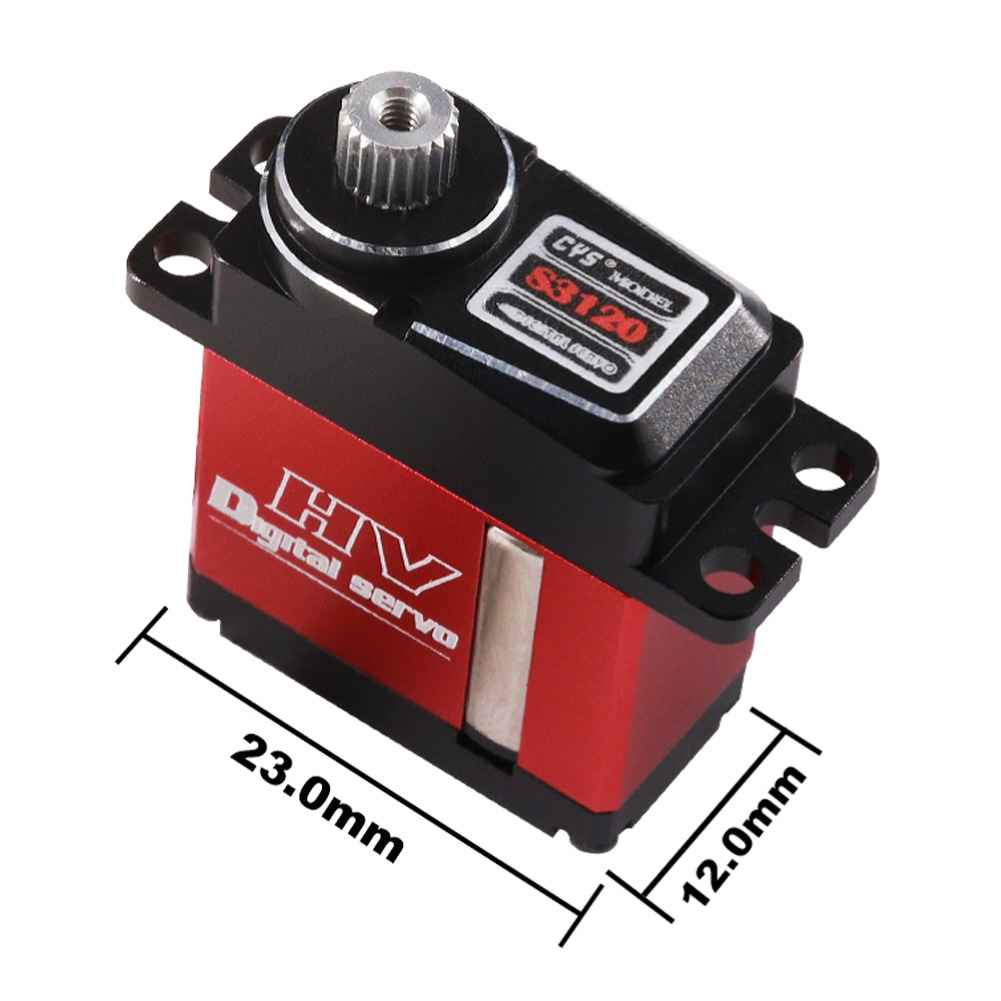

Product Size:23*12*28.5MM
Product Weight:About 20g
Fit For
450 Helicopter , Fixed Wing ,Model Car
Specification:
Torque (6.0V):3.0kg.cm
Torque (7.4V):4.0kg.cm
Operating Speed: (6.0V) 0.075sec/60‵at no load | (7.4V)0.06sec/60‵at no load
Operating Voltage:4.8 ~ 7.4 DC Volts
Gear Type:Metal
Operating Temperature: (-)20 to +60 degree C

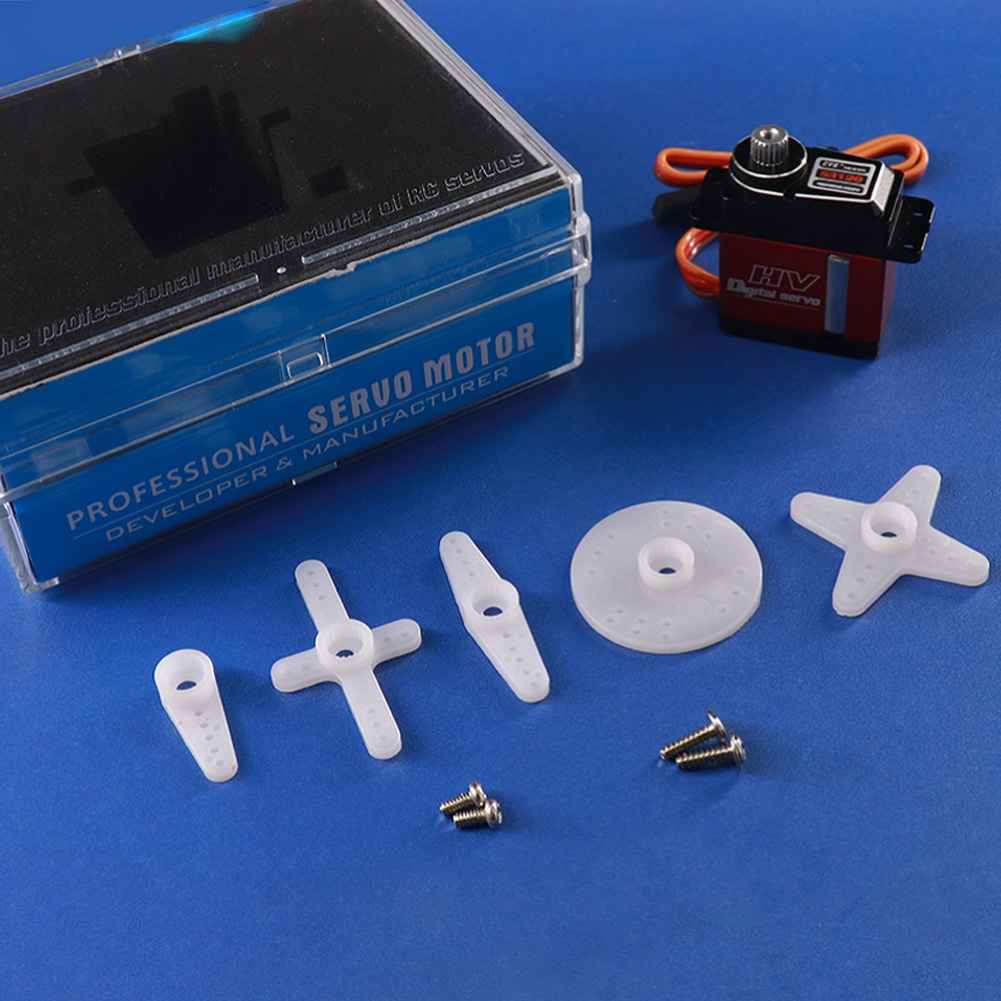

Package Included:
1 x CYS-S3120 Digital Servo
