Multi Protocol Long Range Receiver with Dual 12A BLHeli ESC & BEC for Flysky i6 i6X Wfly Microzone Radiomaster

Description

Multi Protocol Long Range Receiver Built-in Dual 12A BLHeli Brushless ESC with BEC for Flysky i6 i6X Wfly Microzone Radiomaster 4in1 Radio Transmitter

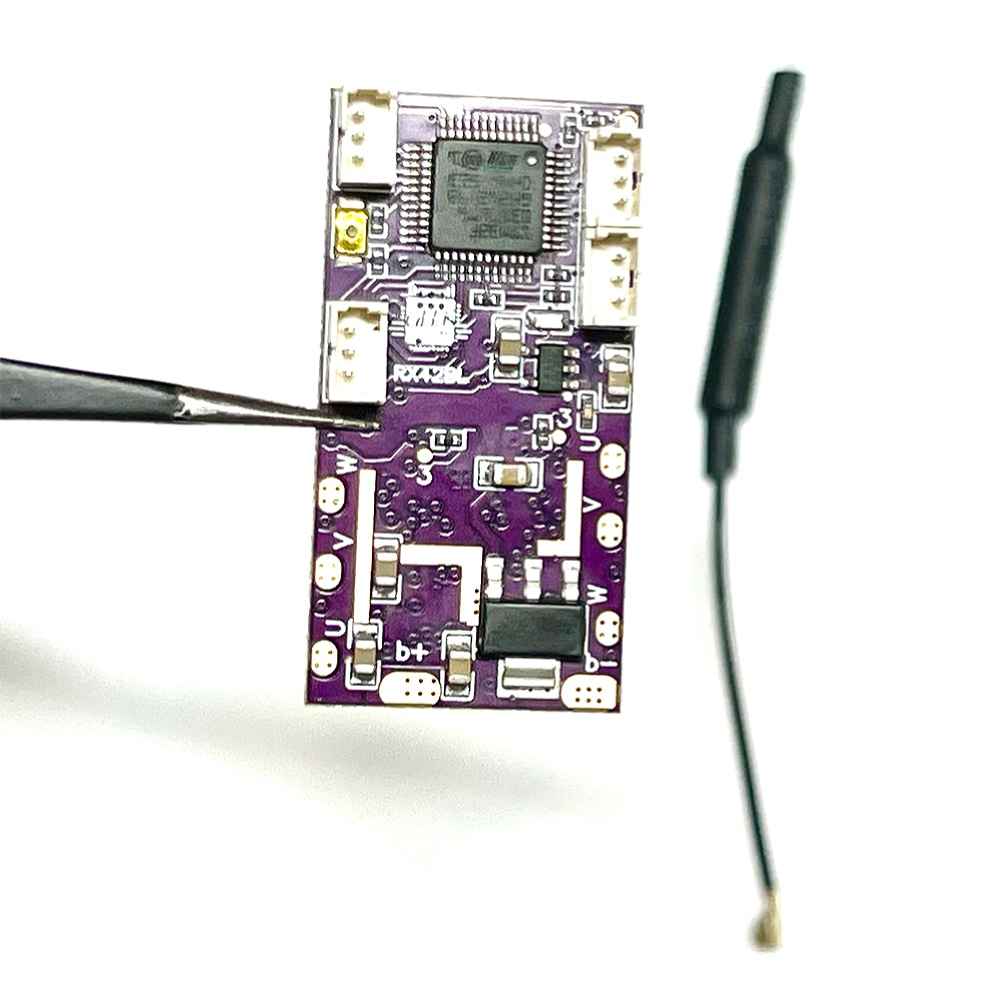

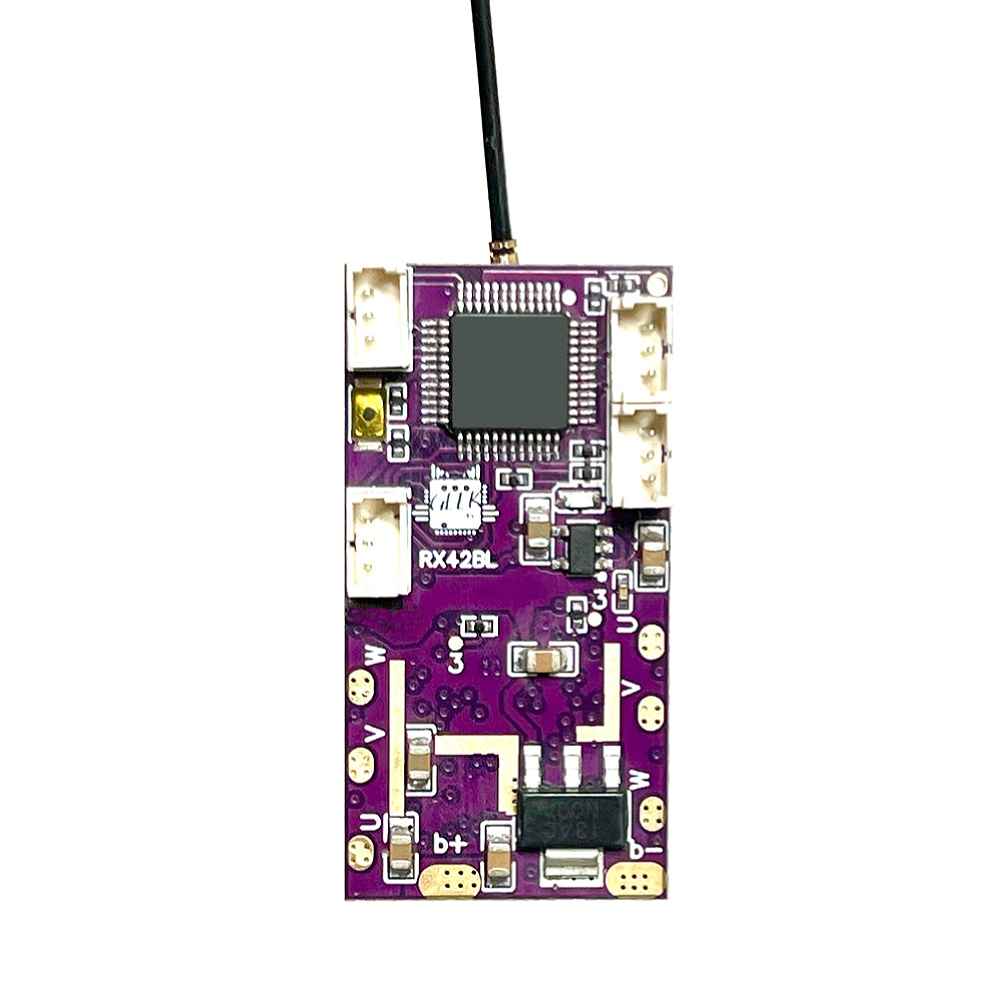

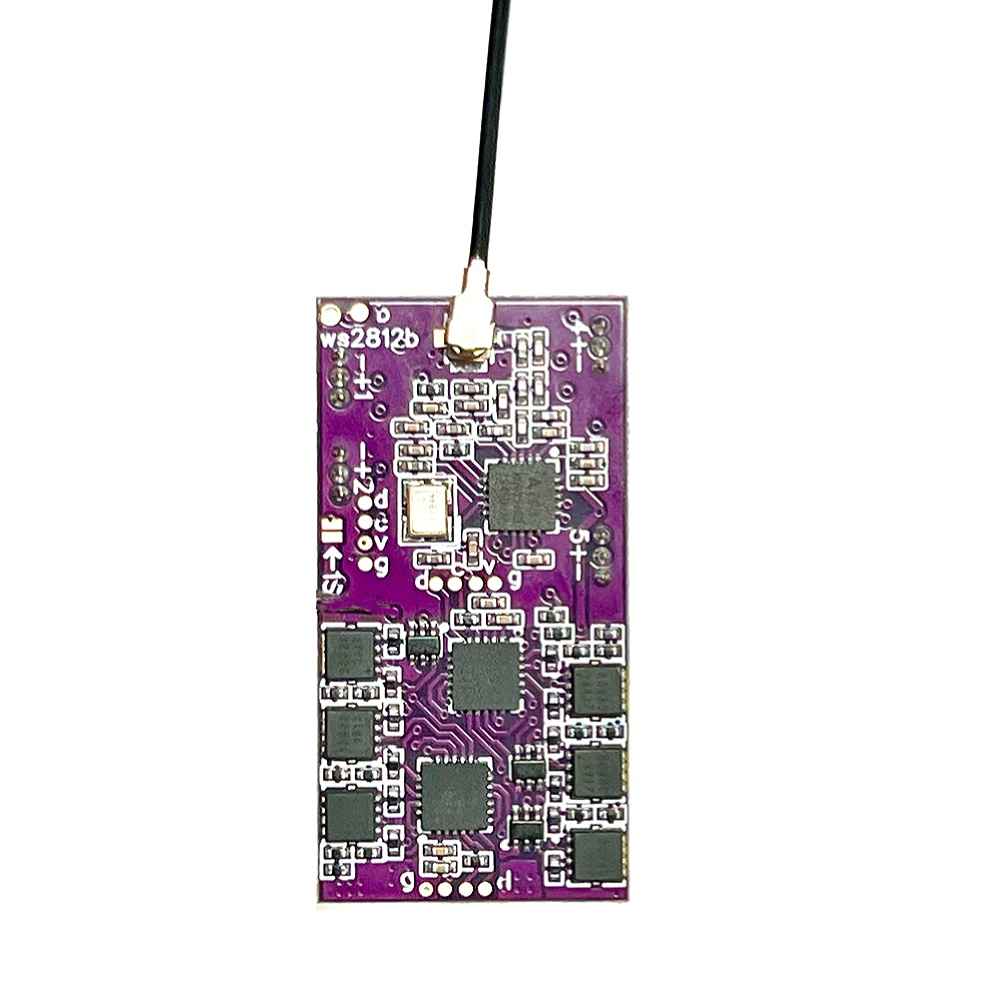

The Multi Protocol Long Range Receiver is designed for Flysky i6, i6X, Wfly, Microzone, and Radiomaster 4in1 radio transmitters. It features a built-in dual 12A BLHeli brushless ESC with BEC, supporting a working voltage of 3.7-8.6V for 1-2s. This ultra-light receiver weighs only 3.7g with the antenna and supports a variety of motors, including 1103, 1104, 1105, 1106, and 1806. It offers an impressive control distance of up to 400m on the ground and over 800m in the air. The receiver includes three working modes, providing versatile functionality for remote control aircraft, cars, and boats. The integrated BEC and lighting controller enhance the receiver’s capabilities, making it a reliable choice for hobbyists.

Multi Protocol Long Range Receiver Built-in Dual 12A BLHeli Brushless ESC with BEC for Flysky i6 i6X Wfly Microzone Radiomaster 4in1 Radio Transmitter
Specifications:
Working Voltage: 3.7-8.6V, 1-2s
Control Distance: Used mc6c remote control ,400m (ground), >800m (aerial)
ESC Output: 12A x2, BLHeli firmware
BEC Output: 1.5A, 5V
Weight: 3.7g with antenna, 2.8g without antenna
Dimensions: 18℅35mm
Firmware: Blheli
Supported Motors: 1103, 1104, 1105, 1106, 1806, etc.
Antenna: 10cm copper tube, ipex1 interface, replaceable
3 Working Modes:
Mode 1: 5 channels + light
Mode 2: 5 channels + light, 3 and 4 differential
Mode 3: sbus + ppm
Features:
1.Ultra Light & Compact: Weighs only 3.7g with antenna, ensuring minimal impact on your model’s performance.
2.Versatile Compatibility: Ideal for remote control aircraft, cars, and boats, supporting a variety of motors.
3.Integrated BEC & Lighting Controller: Includes BEC output and lighting control for enhanced functionality.
4.Enhanced Range: Provides a control distance of up to 400m on the ground and over 800m in the air.
5.Multiple Work Modes: Offers 3 work modes, including 5-channel with lighting and differential settings.
Multi Protocol Receiver manual, click here

Package Included:
1 x Multi Protocol Receiver
