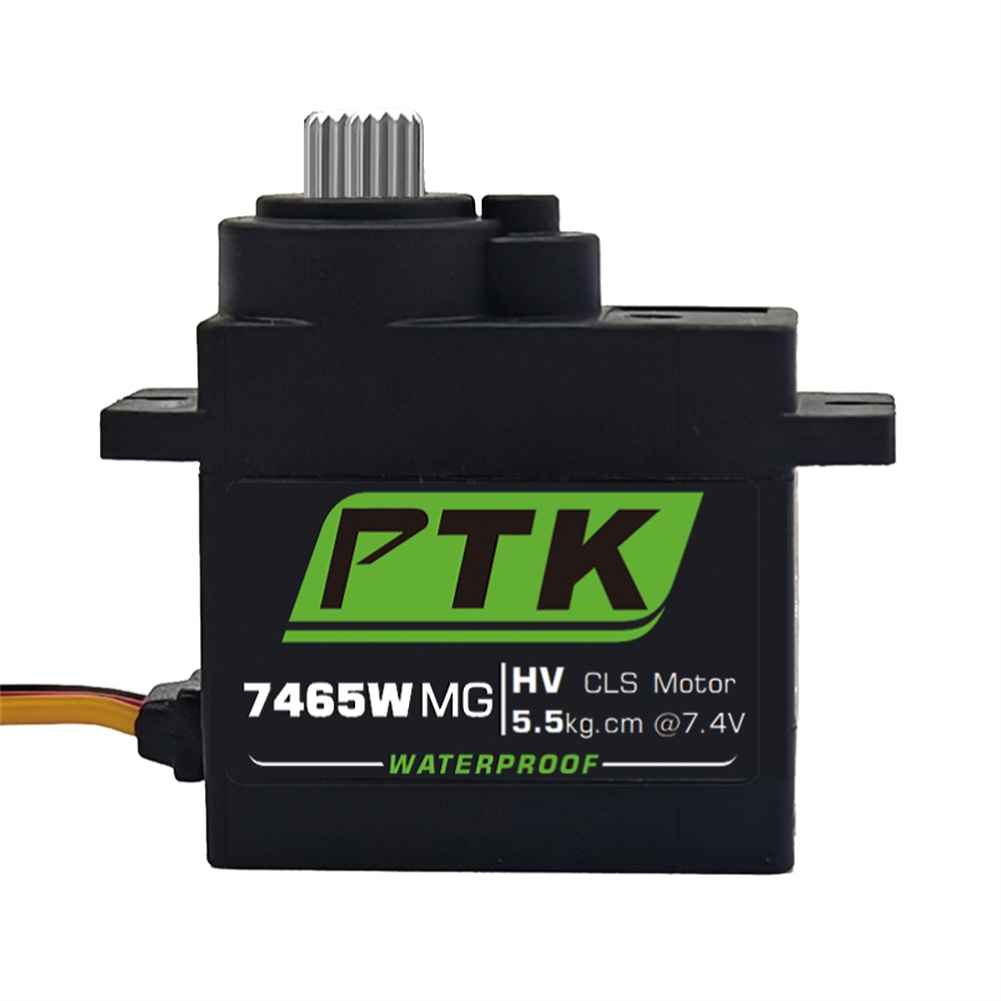

PTK 7465W MG 25T Aluminum Gear 9g Digital Waterproof RC Servo for Robots, Cars, and Aircraft Models

Description

PTK 7465W MG 25T Aluminum Gear 180 9g Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model

The PTK 7465W MG 25T is a robust 9g digital waterproof RC servo designed for use in robots, fixed-wing aircraft, and car models. It operates on a control signal of PWM with a working frequency of 1520å¼®s/333Hz and supports a voltage range from 4.8V to 8.4V. This servo offers a stall torque ranging from 3.8 Kg.cm to 5.8 Kg.cm and a no-load speed from 0.11 sec/60ç°ž to 0.07 sec/60ç°ž. It features a coreless motor and aluminum 7075 gear material, ensuring durability and high performance. The servo’s dimensions are 23.9 x 12 x 26.6 mm, and it weighs just 12g. The 245mm servo lead length provides ample reach for various applications.

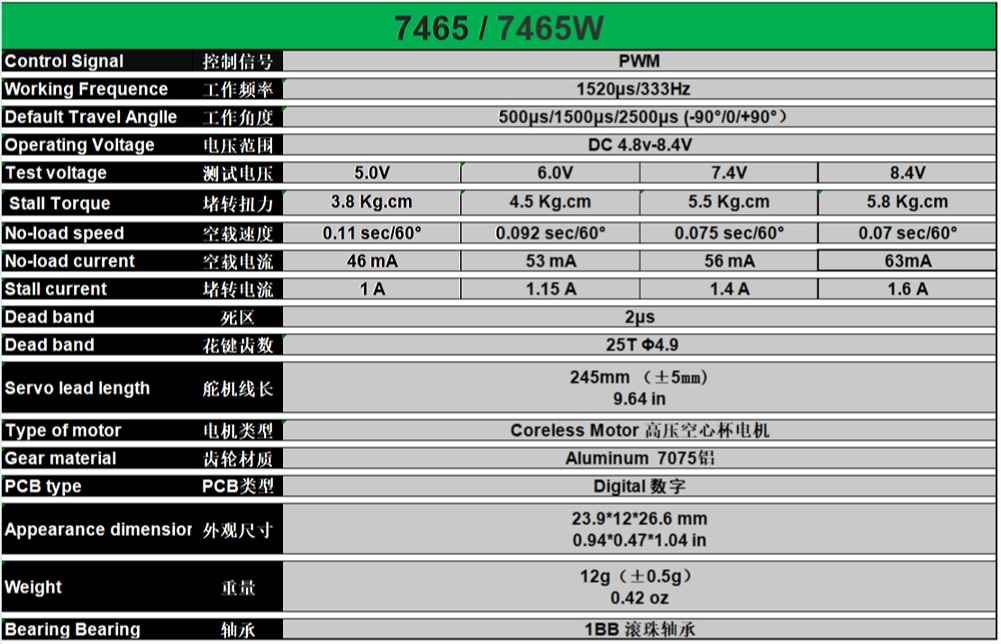

Specifications:
Control Signal: PWM
Working Frequence: 1520è­™s/333Hz
Default Travel Angle: 500譙s/1500譙s/2500譙s (-90‵/0‵/+90‵)
Operating Voltage: DC 4.8V-8.4V
Test Voltage: 5.0V / 6.0V / 7.4V / 8.4V
Stall Torque: 3.8 Kg.cm / 4.5 Kg.cm / 5.5 Kg.cm / 5.8 Kg.cm
No-load speed: 0.11 sec/60‵ / 0.092 sec/60‵ / 0.075 sec/60‵ / 0.07 sec/60‵
No-load current: 46 mA / 53 mA / 56 mA / 63 mA
Stall current: 1 A / 1.15 A / 1.4 A / 1.6 A
Dead band: 2è­™s
Dead band: 25T ?4.9

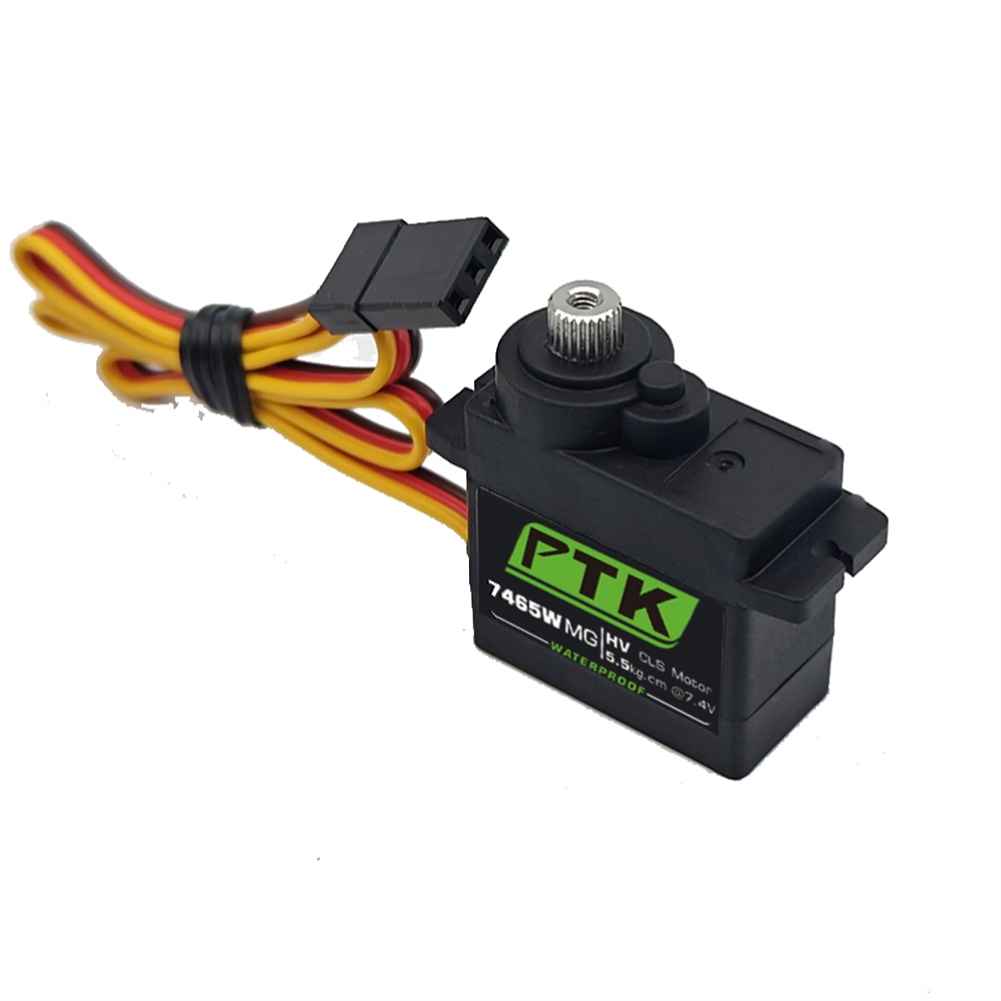

Servo lead length: 245mm (呼5mm)佾9.64 in
Type of motor: Coreless Motor

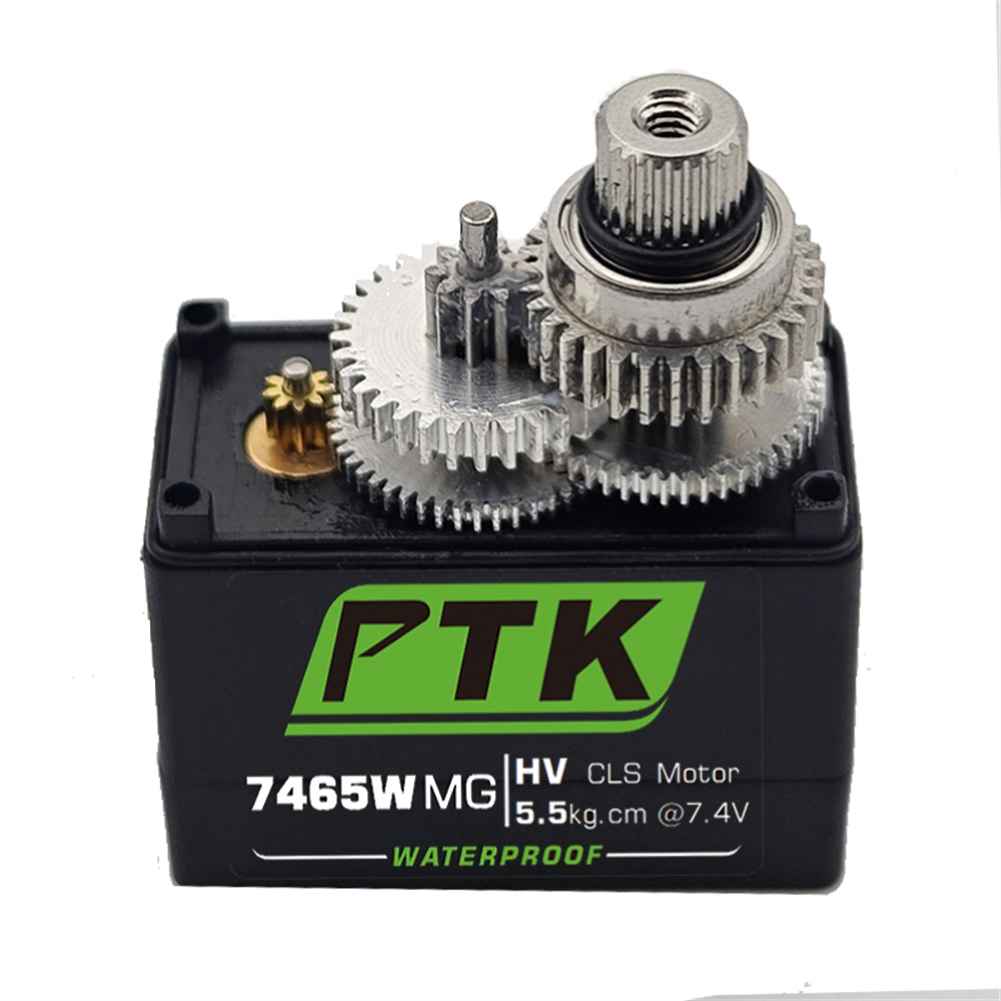

Gear material: Aluminum 7075
PCB type: Digital
Appearance dimension: 23.9*12*26.6 mmä½¾ 0.94*0.47*1.04 in
Weight: 12g (呼0.5g)佾0.42 oz
Bearing: 1BB

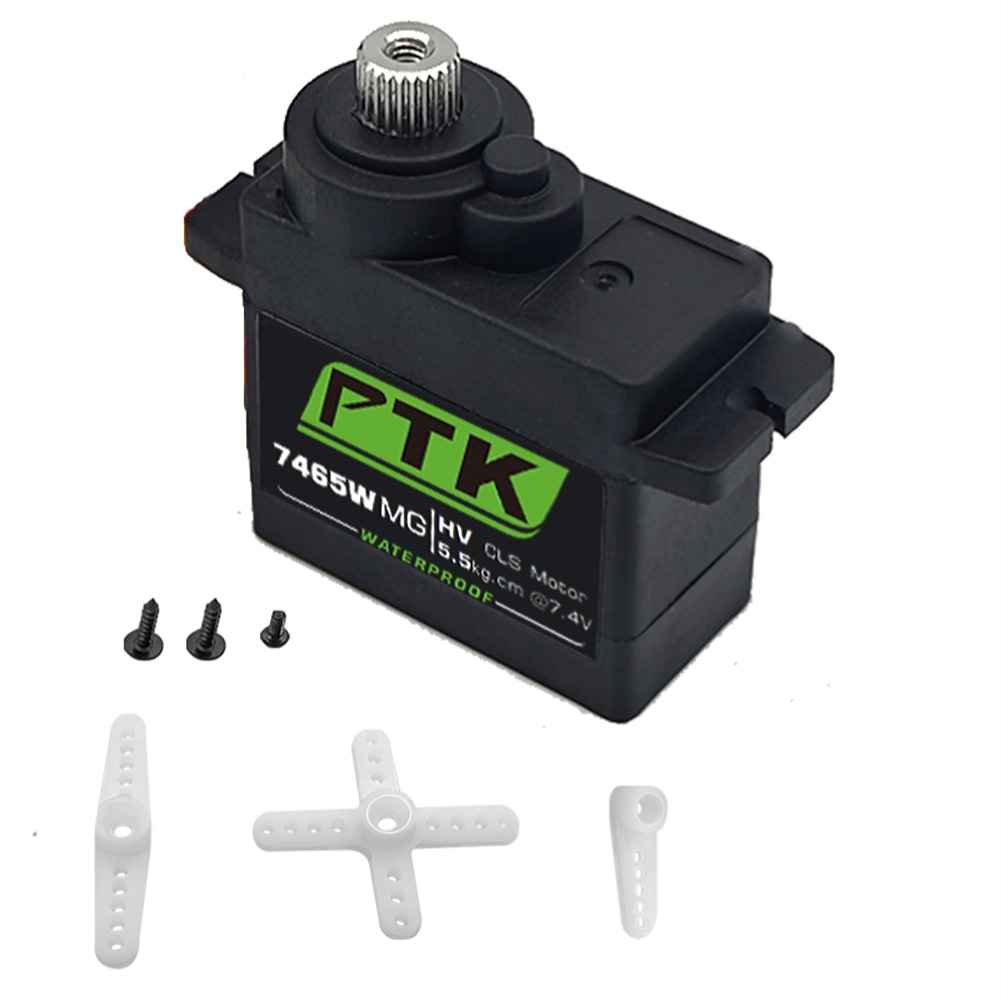

Package Included:
1 x 9g Digital Waterproof RC Servo
