PTK 9490 MG-D 12KG High Torque Waterproof Coreless Digital RC Servo for Fixed Wing Cars and Aircraft Models

Description

PTK 9490 MG-D 9g 12KG High Torque Stainless Steel Gear Waterproof Coreless Digital RC Servo for Fixed Wing Car and Aircraft Model

The PTK 9490 MG-D is a high-performance digital RC servo designed for fixed wing cars and aircraft models. It features a robust stainless steel gear and a durable middle aluminum case, ensuring reliability and longevity. The servo operates efficiently at temperatures ranging from -15ç°žC to +70ç°žC and supports a wide operating voltage of 4.8V to 8.4V. With a coreless motor and double ball bearings, it delivers a stall torque of up to 12 Kg-Cm and an operating speed as fast as 0.062 Sec/60ç°ž at 8.4V. The servo’s 180ç°ž operating travel and programmable settings make it versatile for various RC applications. Weighing just 21g, it is lightweight yet powerful.

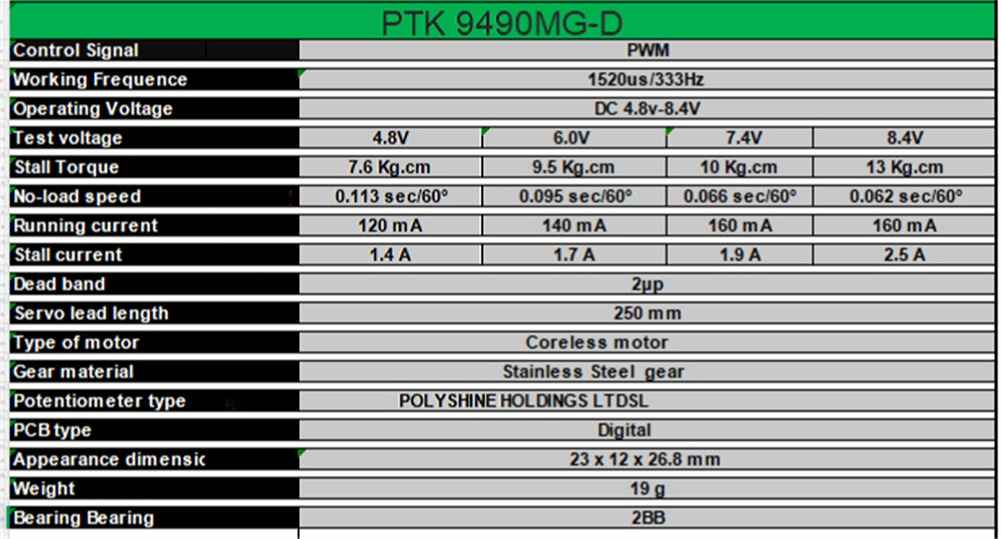

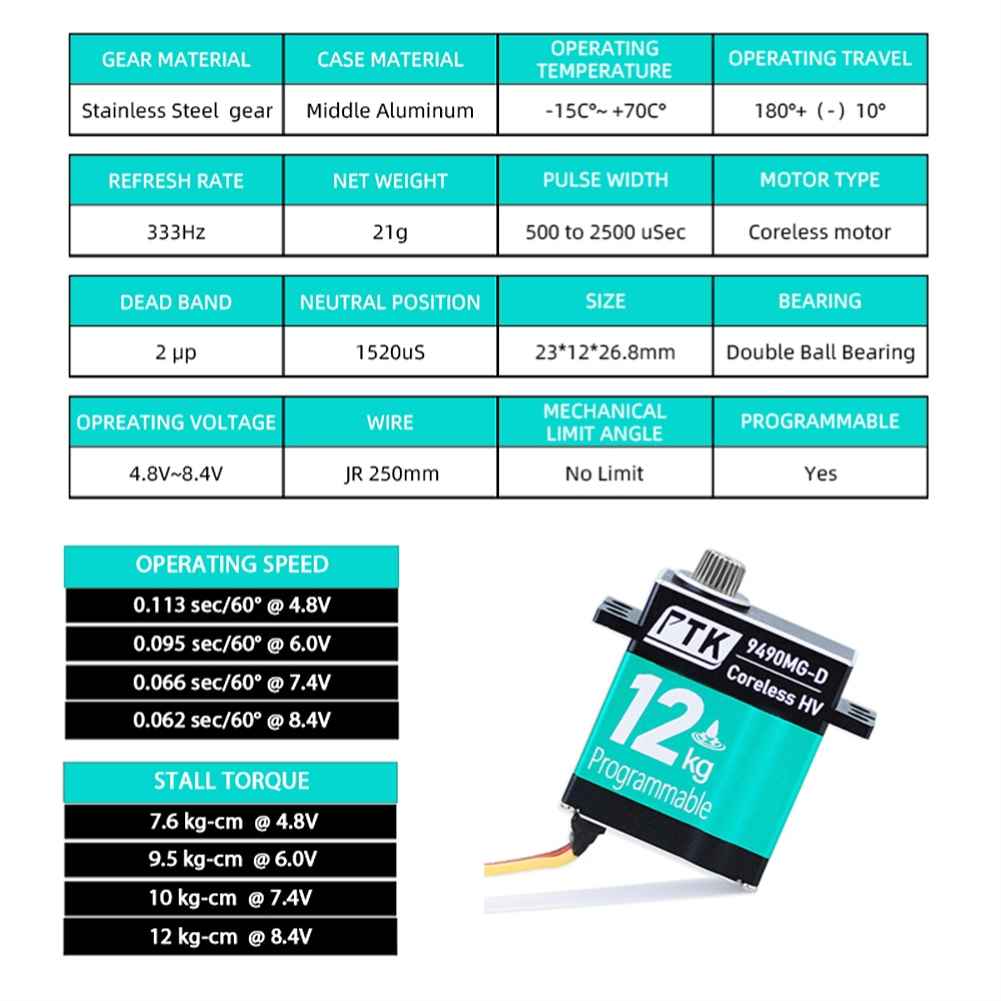

Specification:
Model: PTK 9490 MG-D 12KG RC Servo

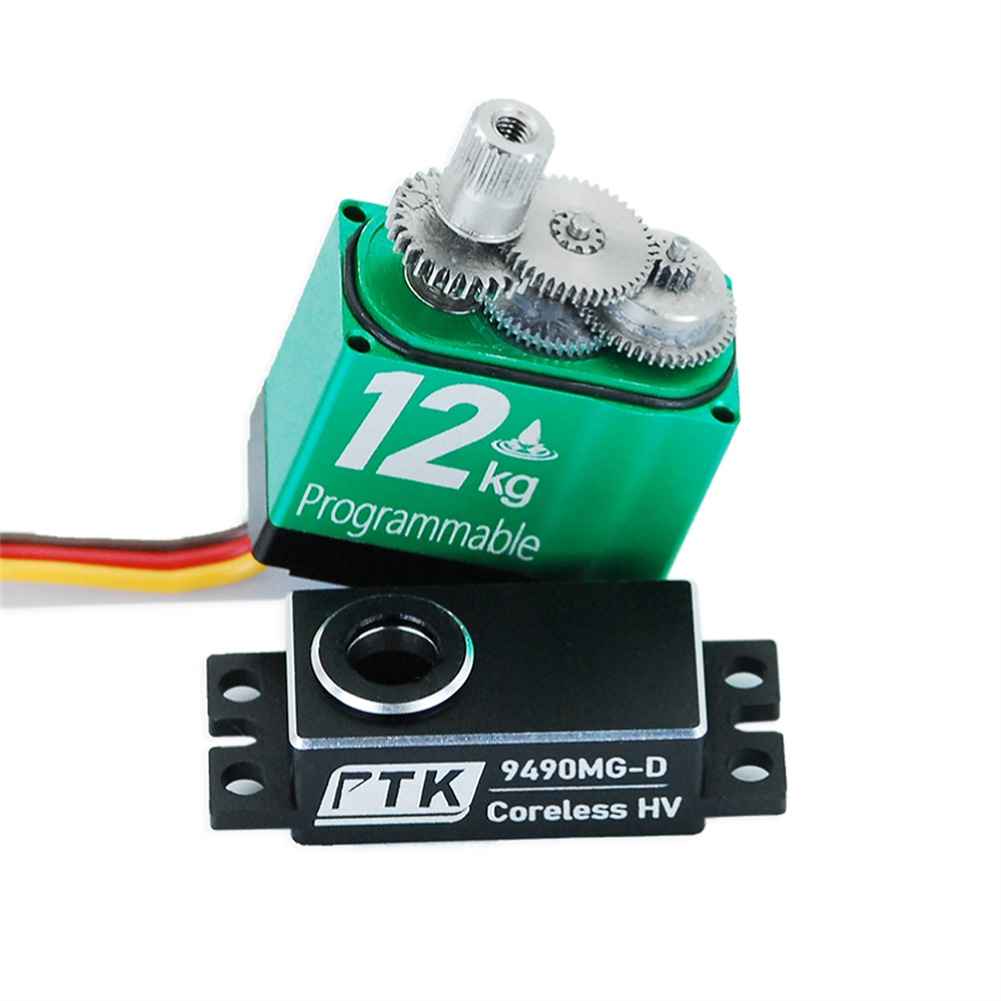

Gear Material: Stainless Steel
Case Material: Middle Aluminum
Operating Temperature: -15‵C~+70‵C
Operating Travel: 180‵ 呼 10‵
Refresh Rate: 333Hz
Net Weight: 21g
Pulse Width: 500 To 2500 è­™Sec
Motor Type: Coreless Motor
Dead Band: 2è­™
Neutral Position: 1520è­™S
Size: 23*12*26.8mm
Bearing: Double Ball Bearing
Operating Voltage: 4.8V~8.4V
Wire: JR 250mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed @4.8V: 0.113 Sec/60‵
Operating Speed @6.0V: 0.095 Sec/60‵
Operating Speed @7.4V: 0.066 Sec/60‵
Operating Speed @8.4V: 0.062 Sec/60‵
Stall Torque @4.8V: 7.6 Kg-Cm
Stall Torque @6.0V: 9.5 Kg-Cm
Stall Torque @7.4V: 10 Kg-Cm
Stall Torque @8.4V: 12 Kg-Cm

Package Included:
1 x RC Servo
