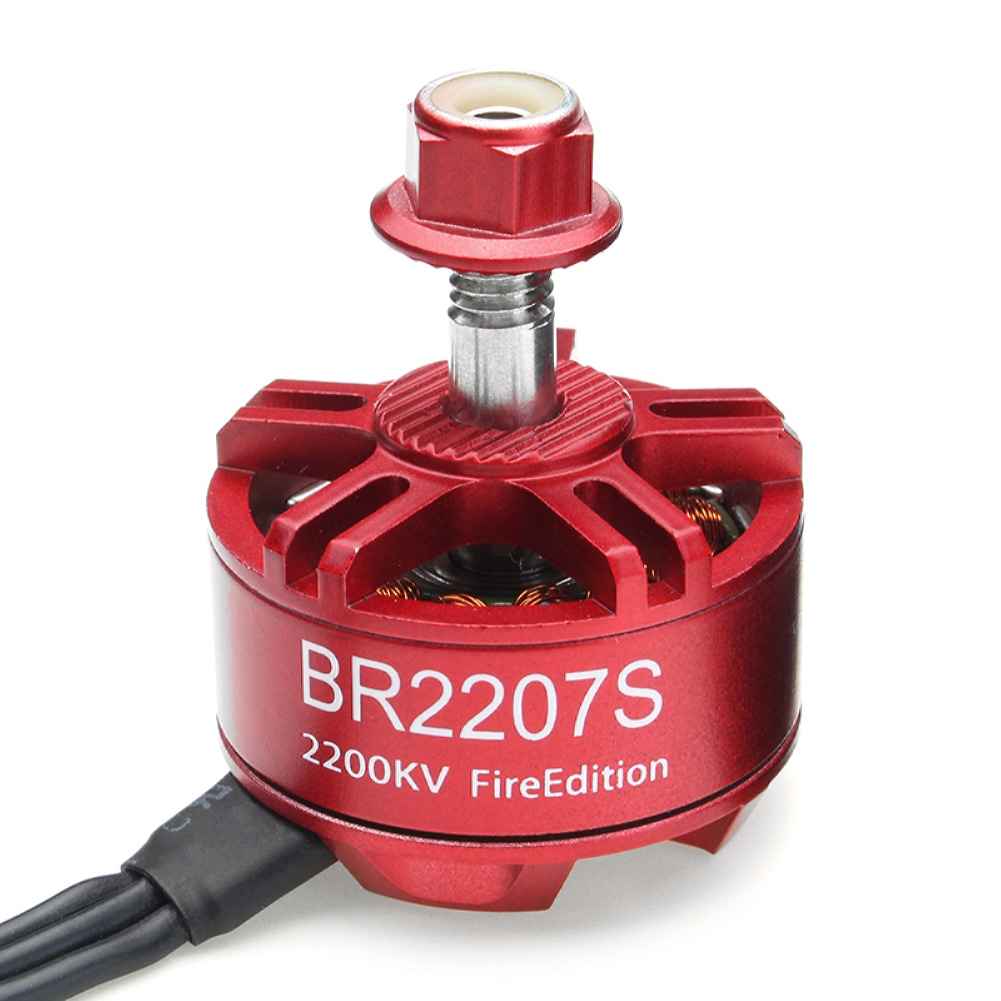

Racerstar 2207 BR2207S Fire Edition Brushless Motor 1600KV/2200KV/2500KV for 200-300mm RC Drone FPV Racing

Description

Racerstar 2207 BR2207S Fire Edition 1600KV 2200KV 2500KV 3-6S Brushless Motor For RC Drone Frame Kit

The Racerstar 2207 BR2207S Fire Edition Brushless Motor is designed for 200-300mm RC drone FPV racing frame kits. It offers three RPM options??600KV, 2200KV, and 2500KV?roviding flexibility for different racing needs. Constructed with a CNC machined aluminum case and a stainless steel motor shaft, this motor ensures durability and high performance. The motor features long-life Japanese NMB ball bearings and oxygen-free copper wire for enhanced efficiency. It operates on a voltage range of 11.1-22.2V, compatible with 3-6S lipo batteries, and is recommended to be used with a 45A ESC. The unique wiring method and patented balance techniques further optimize its performance.

Racerstar 2207 BR2207S Fire Edition 1600KV 2200KV 2500KV 3-6S Brushless Motor For 200-300mm RC Drone FPV Racing Frame Kit
Description:
Brand: Racerstar
Item name: Fire Edition BR2207S brushless motor
RPM/V: optional 1600KV / 2200KV / 2500KV

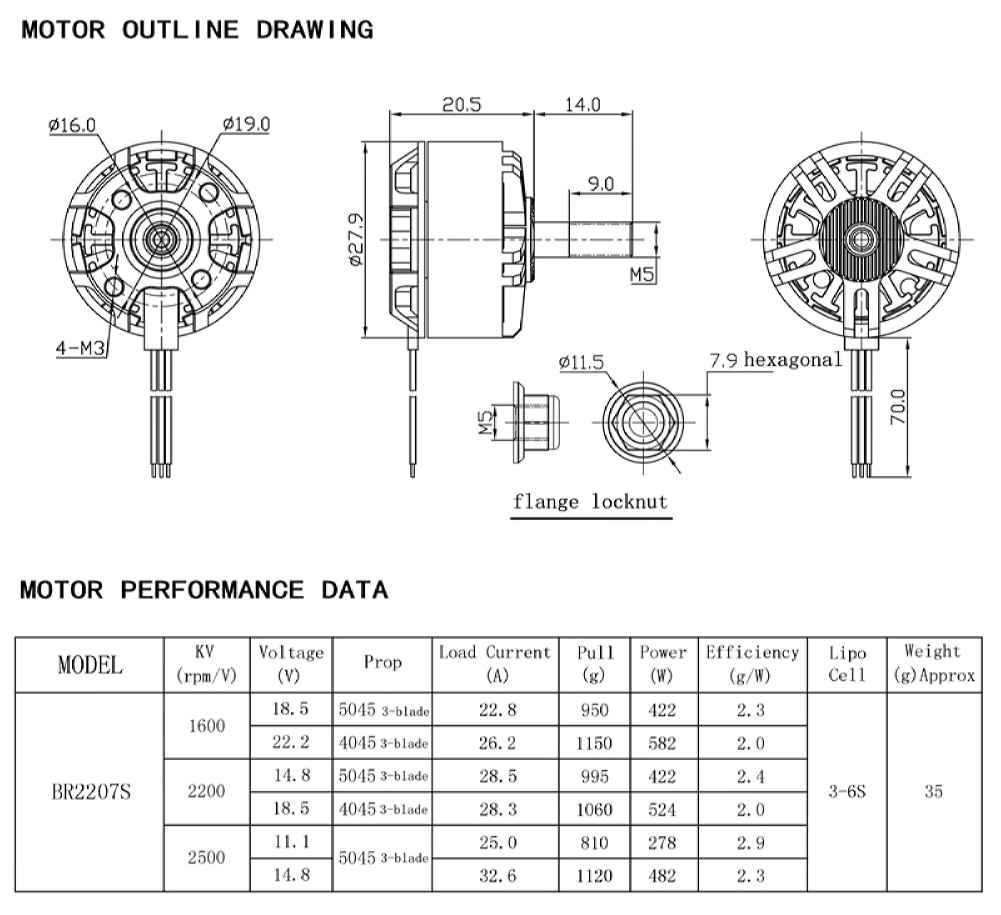

Height: 20.5mm
Width: φ27.9mm
Shaft diameter: φ5mm
Motor mount hole size: M3
Screw thread: clockwise (CW)
Weight: 35 grams
Voltage: 11.1-22.2V
Battery: 3-6S lipo battery
Recommend ESC: 45A
Usage: for 200-300mm RC drone FPV racing frame kit
Features:
Stainless steel motor shaft
Long life Japanese NMB ball bearings
Oxygen free copper wire
CNC machined aluminum case
Patented balance techniques
Unique wiring method

Package Included:

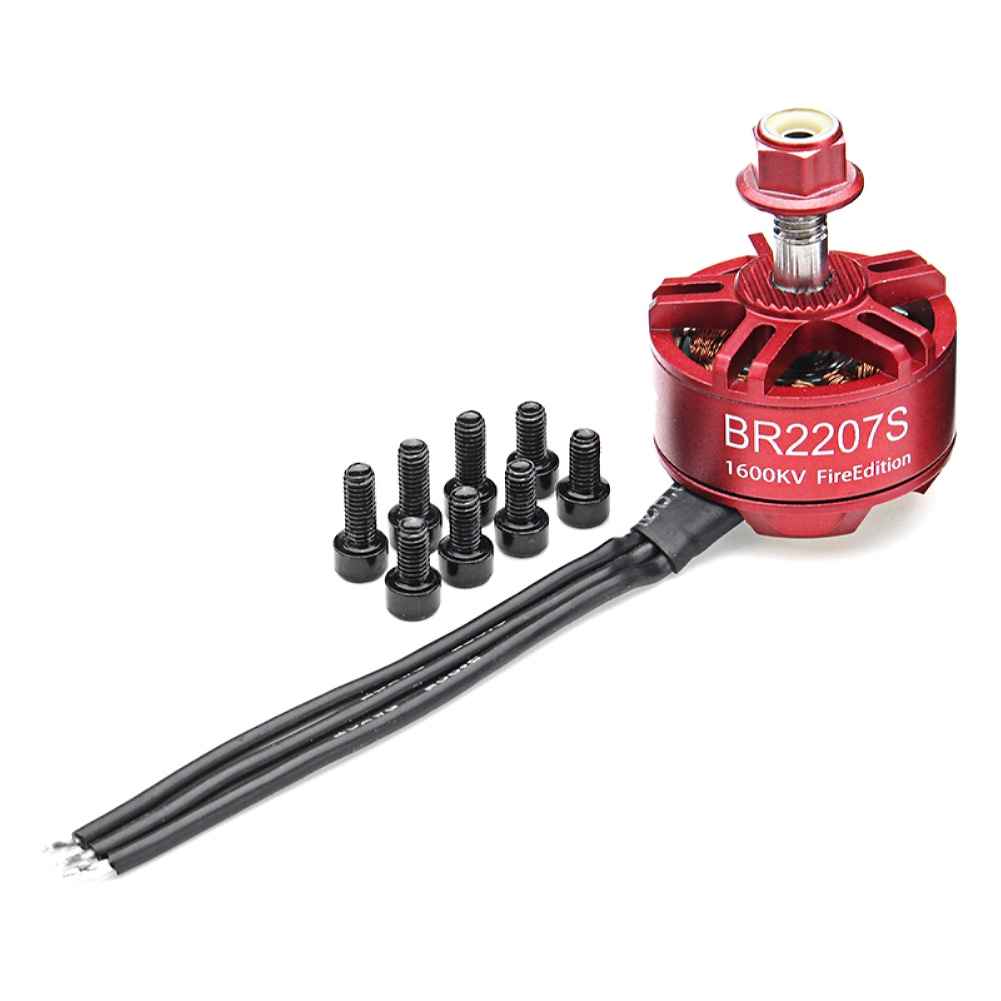

1 x Fire Edition BR2207S brushless motor
