Racerstar BR2216 810KV Brushless Motor for 350-450 RC Drones, FPV Racing, 2-4S Compatible

Description

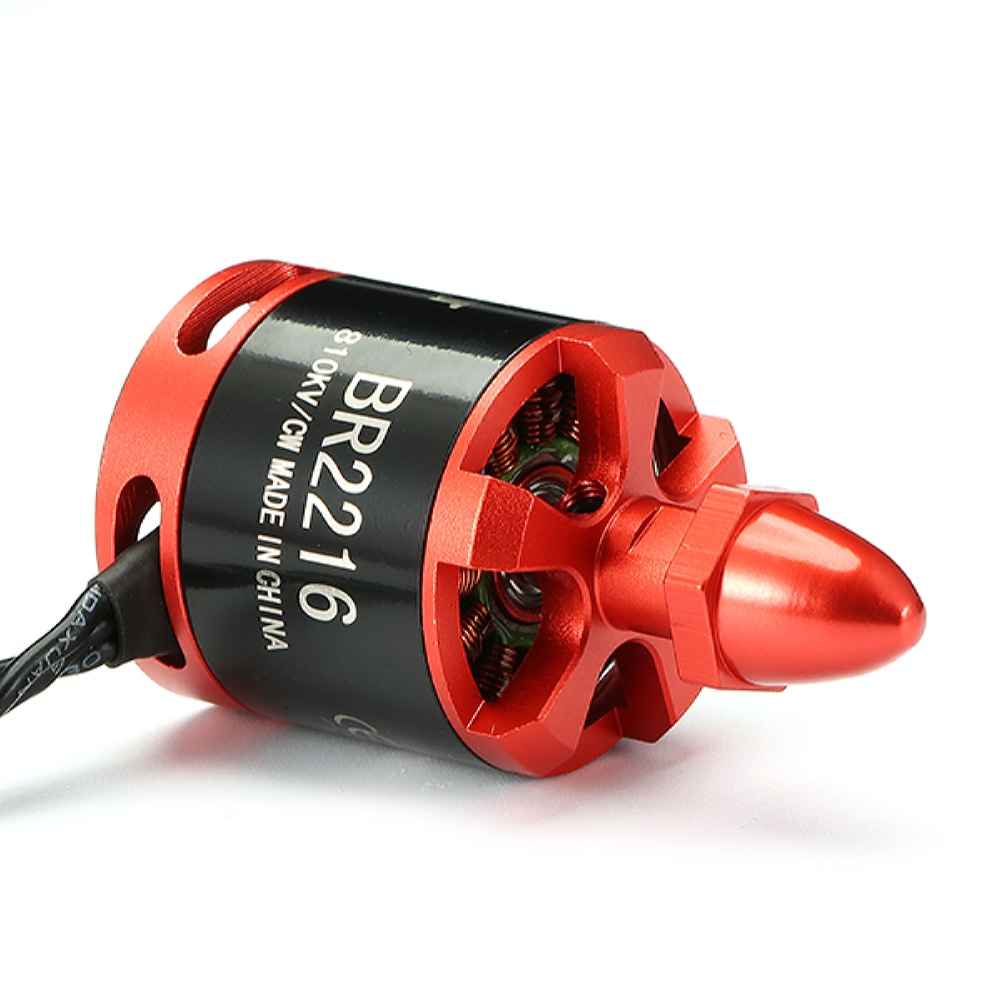

Racerstar Racing Edition 2216 BR2216 810KV 2-4S Brushless Motor For 350 380 400 450 RC Drone FPV Racing

The Racerstar BR2216 810KV Brushless Motor is designed for optimal performance in 350 to 450 frame kits, making it ideal for RC drone FPV racing. Featuring a compact design with a height of 45mm and width of 27.7mm, this motor weighs approximately 66g. It operates efficiently on a 2-4S lipo battery with a voltage range of 7.4-14.8V. The motor is equipped with high-quality Japanese NMB ball bearings and a Japanese Kawaaki stator steel for enhanced durability. With rare earth magnets and oxygen-free pure copper wires, the motor ensures stable performance. It also includes a CNC machined aluminum case and silicone wire leads for reliability. The motor comes with a CW screw thread and a red cap, while the CCW version features a black cap.

Racerstar Racing Edition 2216 BR2216 810KV 2-4S Brushless Motor For 350 380 400 450 Frame Kit
Description:
Brand: Racerstar
Item No: BR2216 810KV Brushless Motor

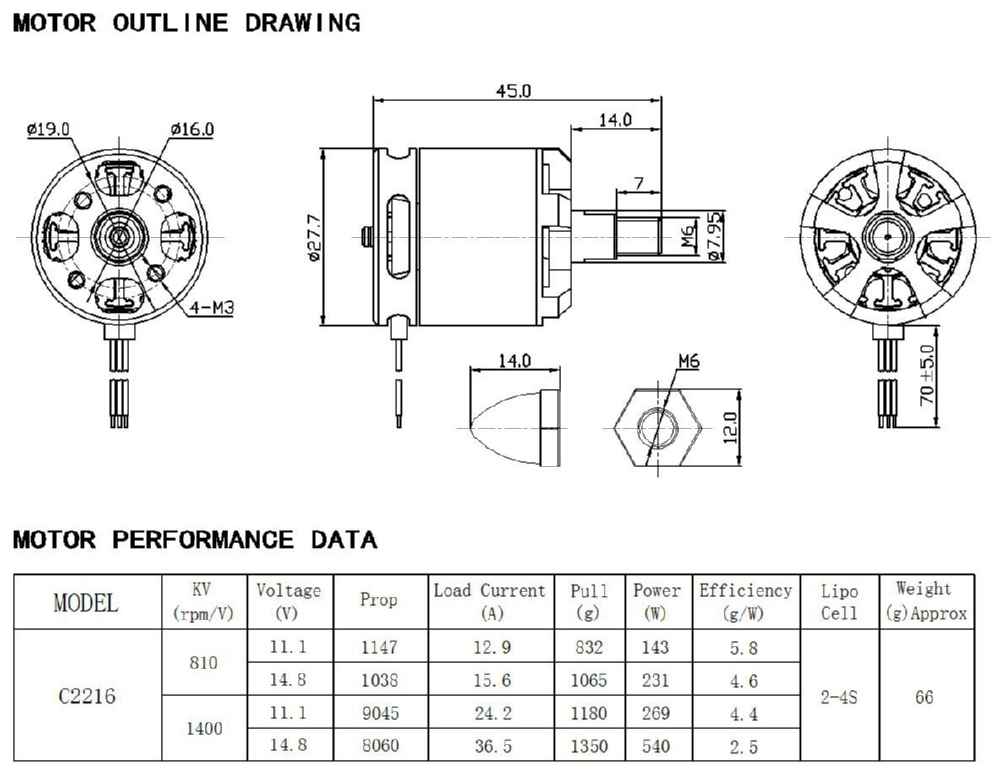

Height: 45mm
Width: 27.7mm
Weight: about 66g
Shaft: 6mm
Shaft length: 7.95mm
KV (rpm/V): 810
Voltage: 7.4-14.8V
Battery: 2-4S lipo battery
Tested wiht 14.8V voltage and 1038 prop:
Load current: 15.6A
Pull: 1065g
Power: 231W
Efficiency: 4.6 (g/W)

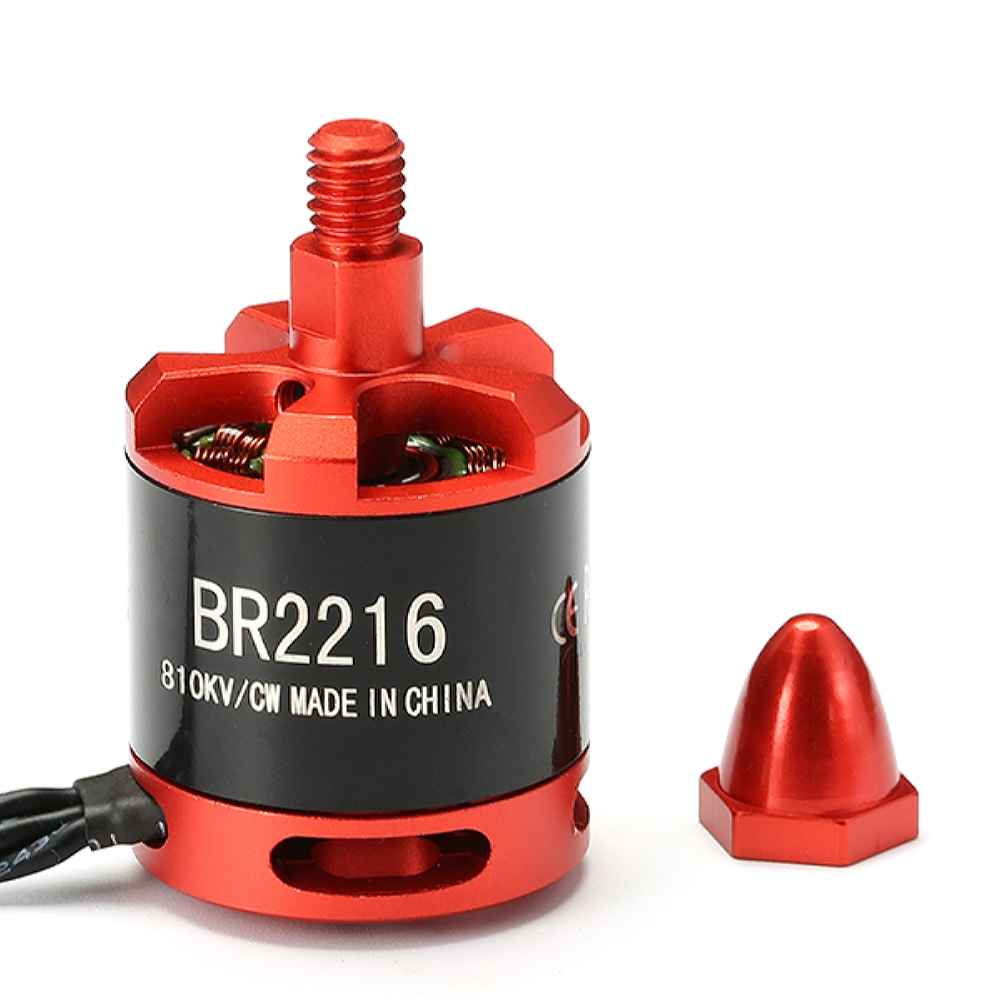

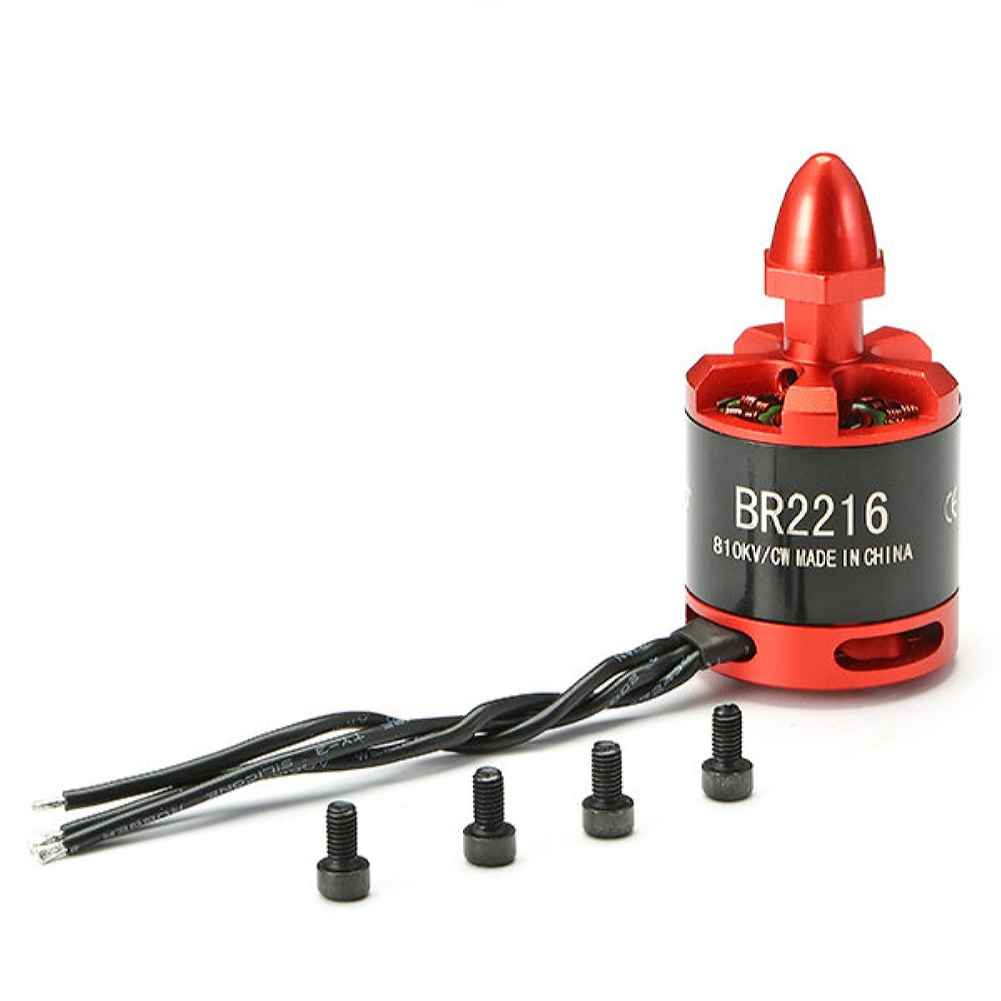

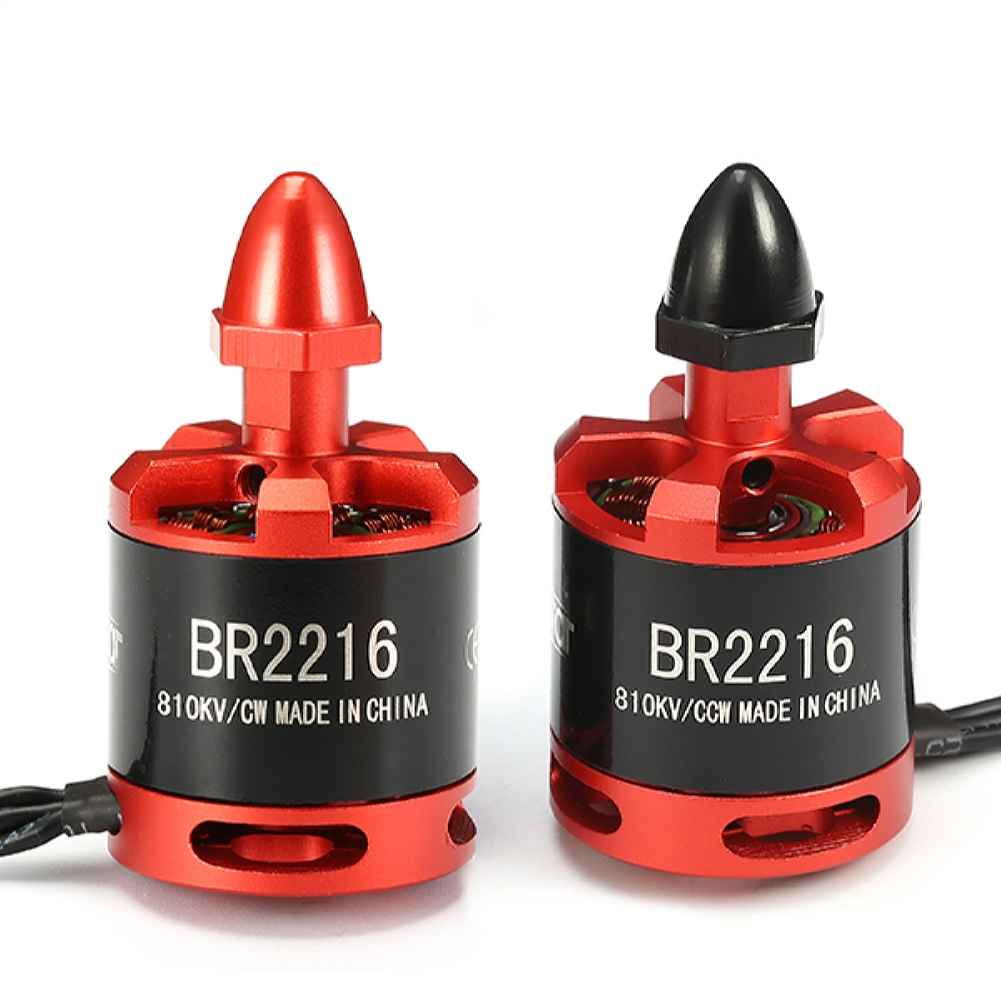

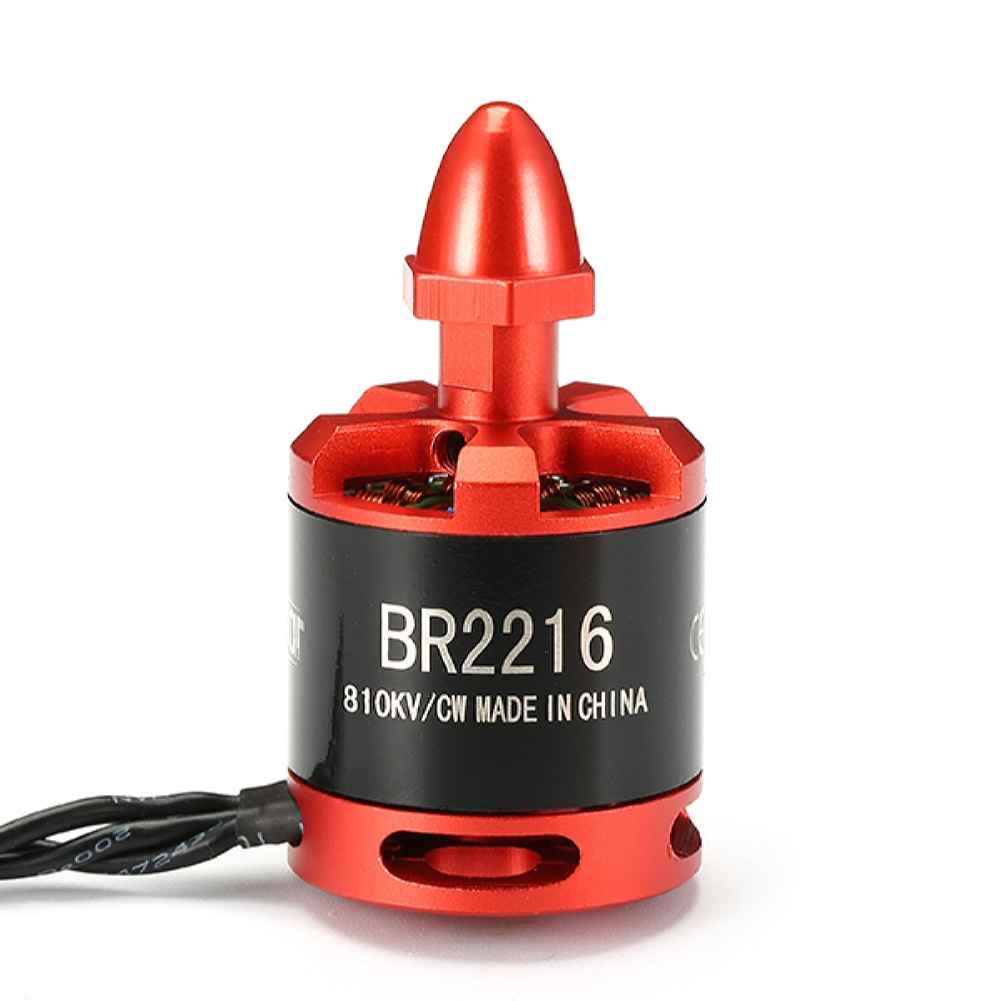

CW screw thread motor comes with red cap

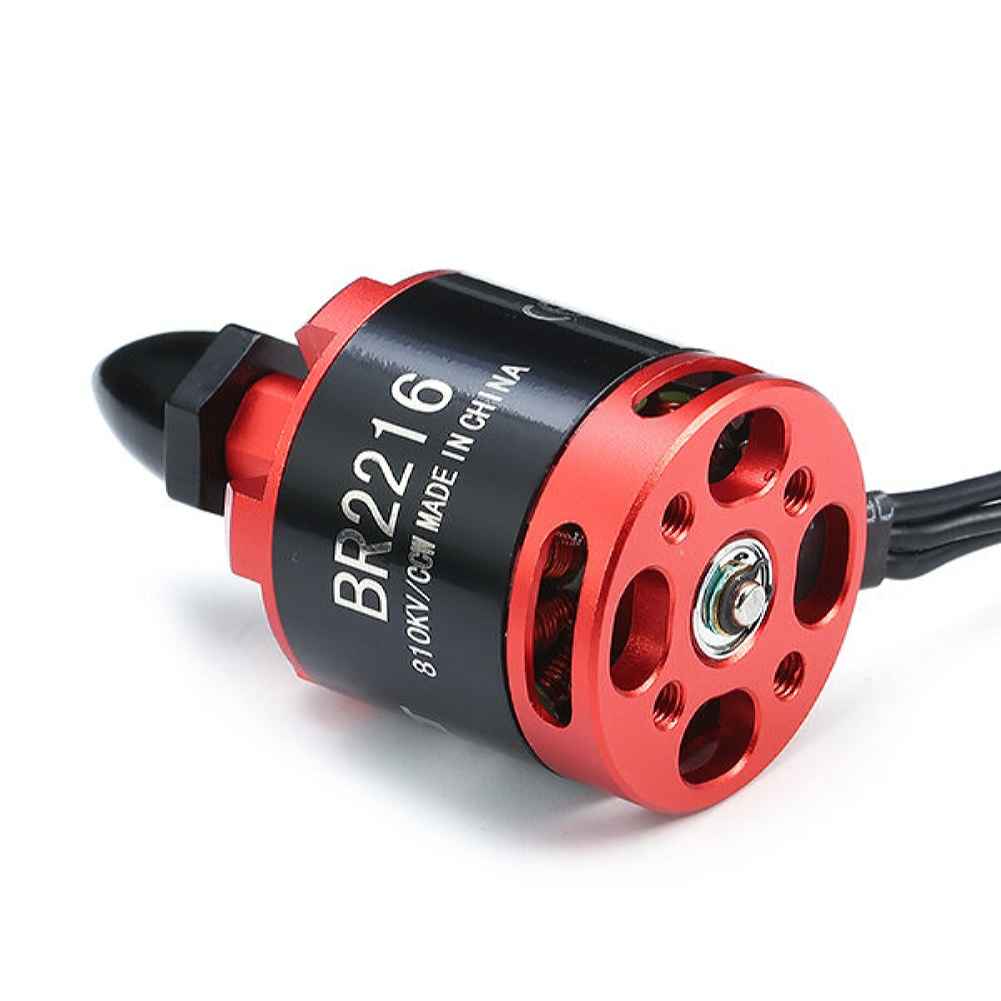

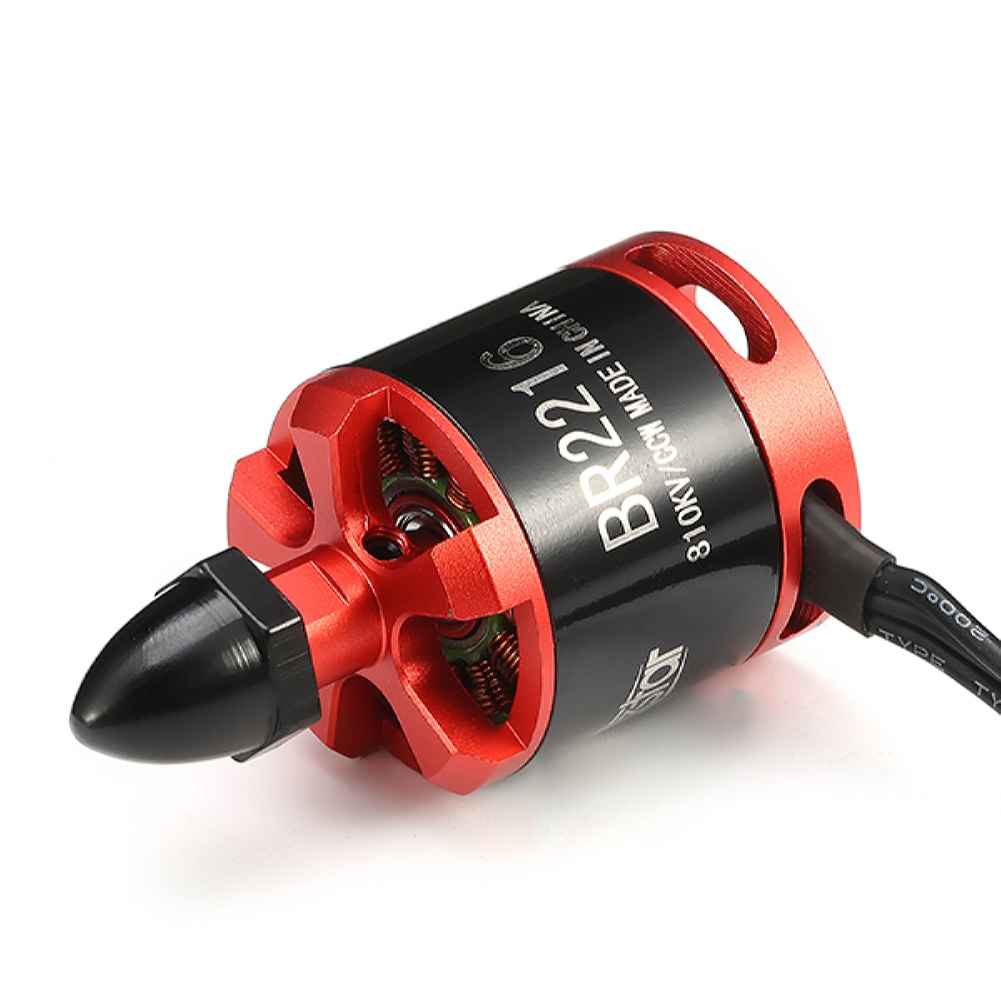

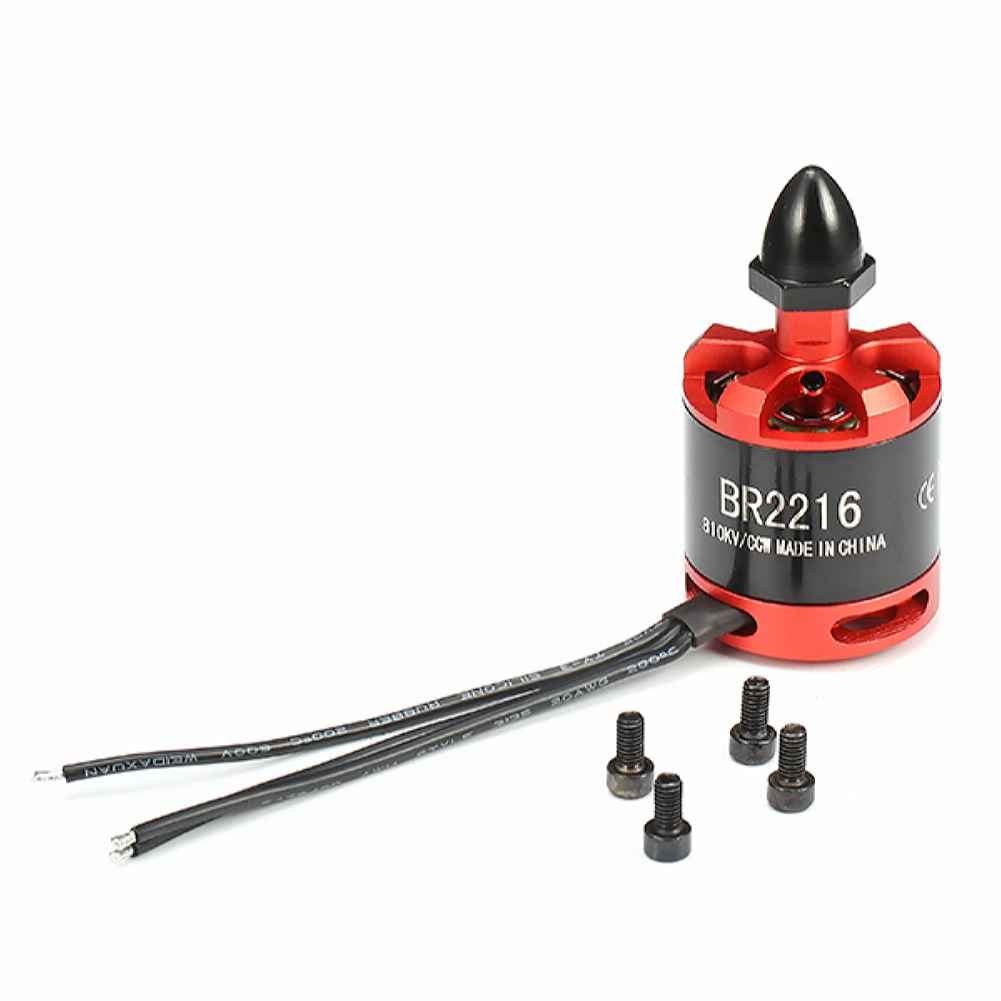

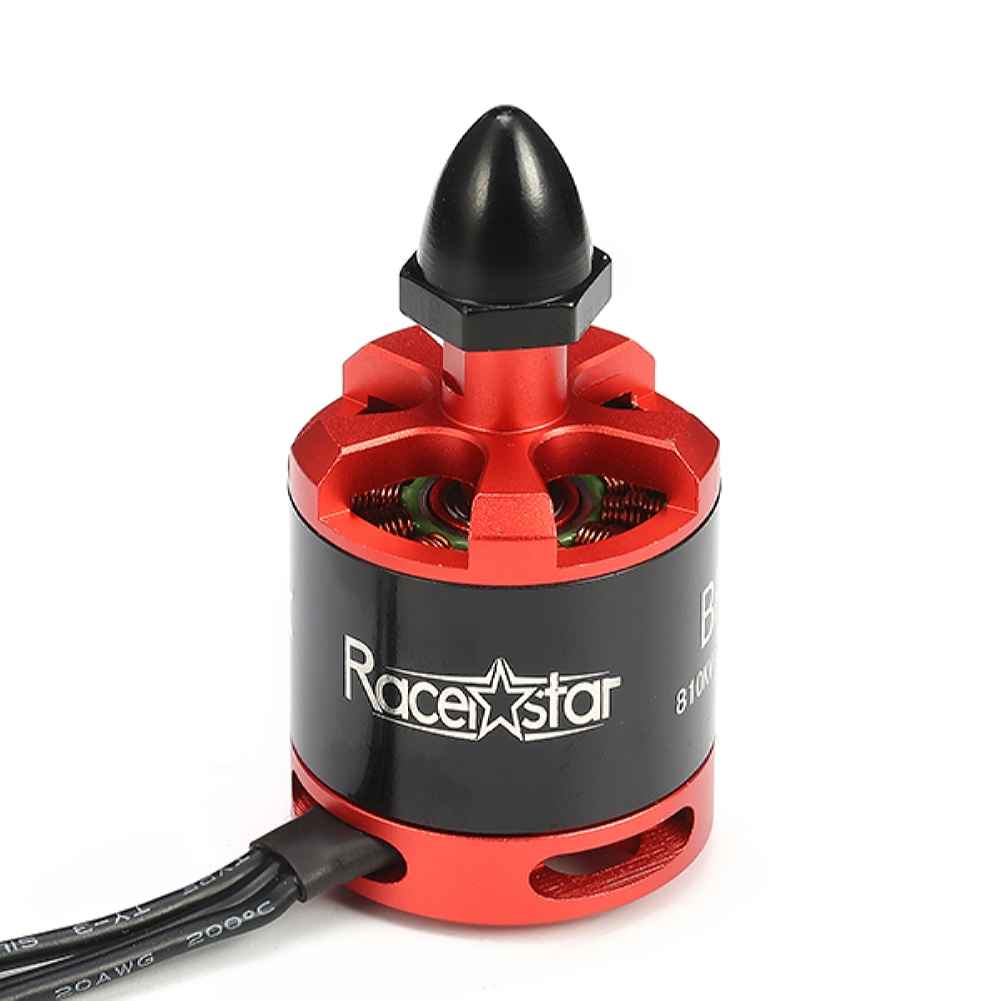

CCW screw thread motor comes with black cap
Features:
Long life Japanese NMB ball bearings
Efficient Japanese Kawaaki stator steel
Rare earth magnets stable up to 180
Oxygen free pure commer wires
CNC machined aluminum case
Silicone wire leads
Patented balance techniques
Unique wiring method

Package Included:
1 x Racerstar BR2216 810KV Brushless Motor
