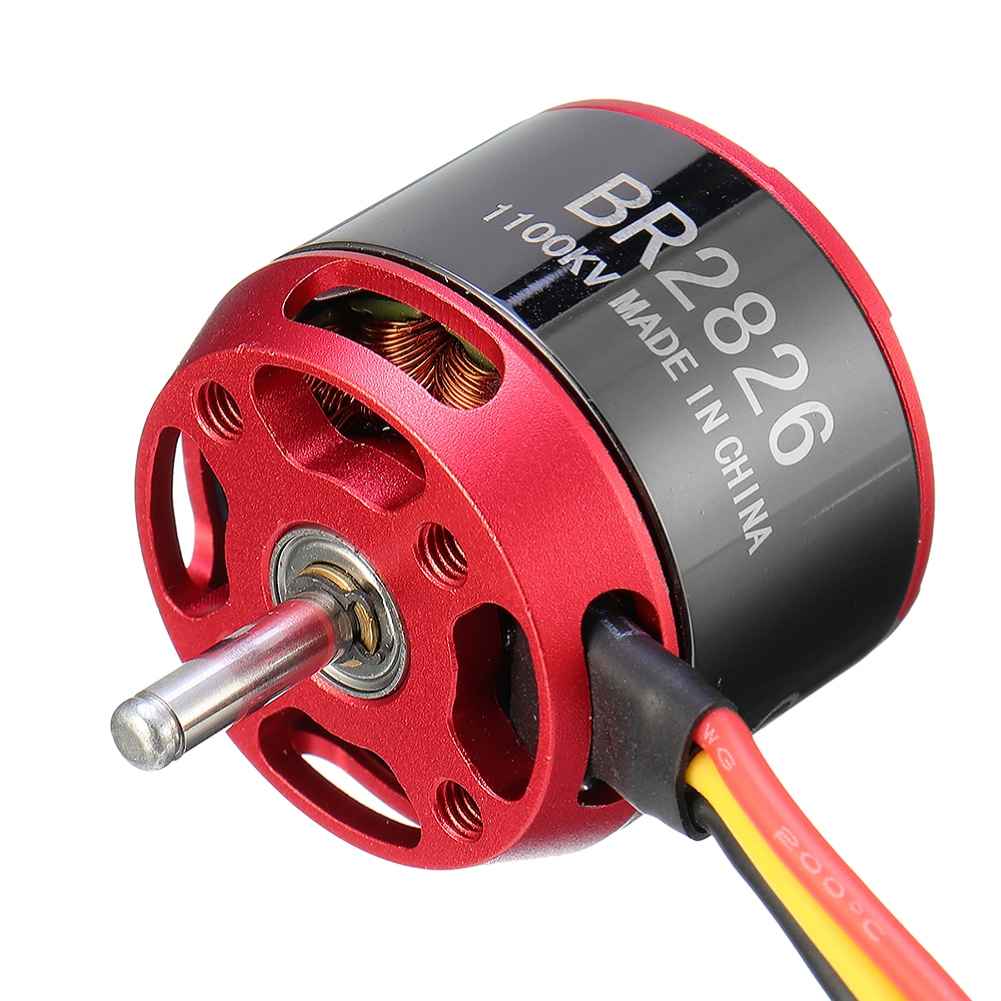

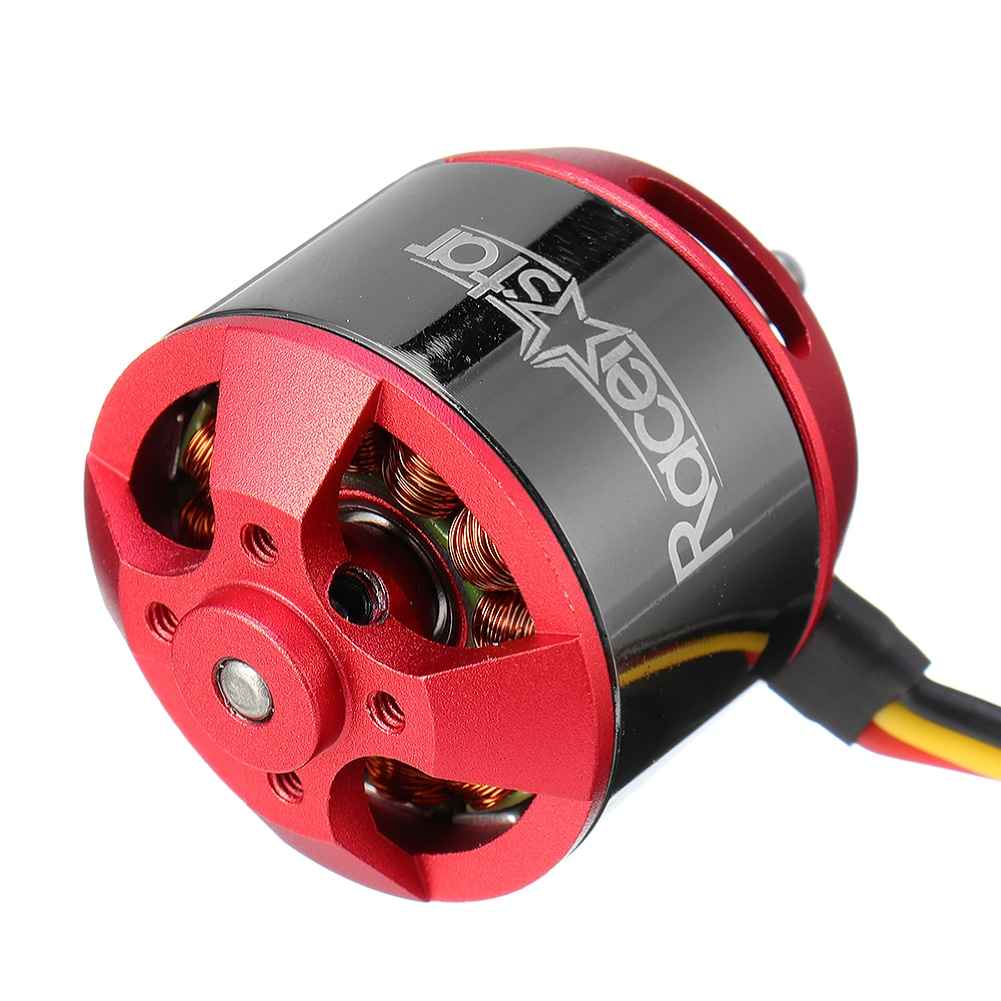

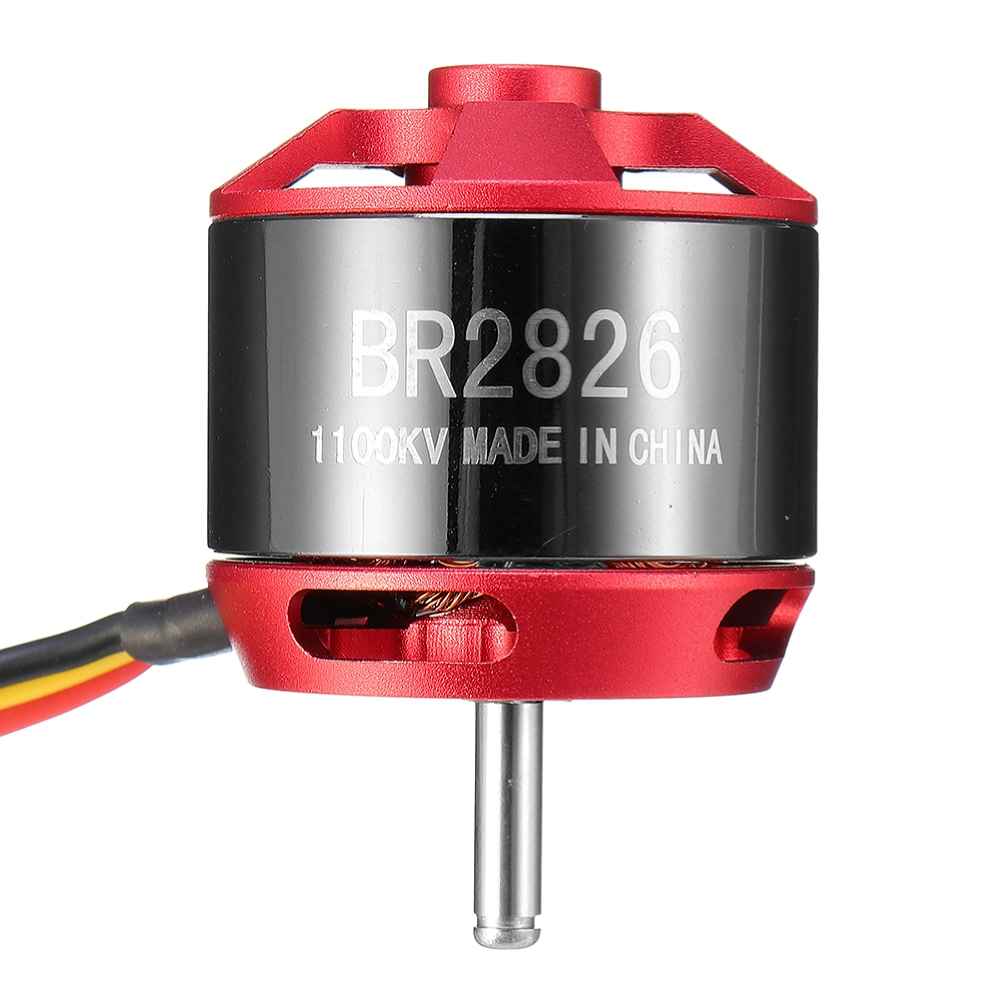

Racerstar BR2826 1100KV Brushless Motor for 2-4S FPV RC Airplane Models

Description

Racerstar BR2826 1100KV 2-4S Brushless Motor for FPV RC Airplane Model

The Racerstar BR2826 1100KV Brushless Motor is designed for FPV RC airplane enthusiasts seeking reliable performance. With a KV rating of 1100RPM/V, this motor is compatible with 2-4S LiPo batteries, providing optimal power and efficiency. It features a compact design with a height of 62mm, width of 27.7mm, and a shaft diameter of M5. The motor mount hole size is M3, and it weighs just 58 grams, making it lightweight yet powerful. Capable of handling a maximum current of 9.5A and delivering up to 105W of power, it ensures high performance for your RC aircraft.

Description:Brand name: RacerstarItem name: BR2826 1100KV Brushless MotorRPM/V: 1100KV
Height: 62mm
Width: 27.7mm
Shaft diameter: M5
Motor mount hole size: M3
Weight: 58grams
Voltage: 3S
Battery: 2-4S lipo battery
Max.current: 9.5A
Max.power: 105W
Performance Data

Model

KV(rpm/V)

Volatage(V)

Prop

Load Current (A)

Pull (g)

Power (W)

Efficiency (g/w)

Lipo Cell

Weight (g) Approx

BR2826

1100

11.1

8045

7.3

465

81

5.7

2-4S

58

1045

9.5

642

105

6.1

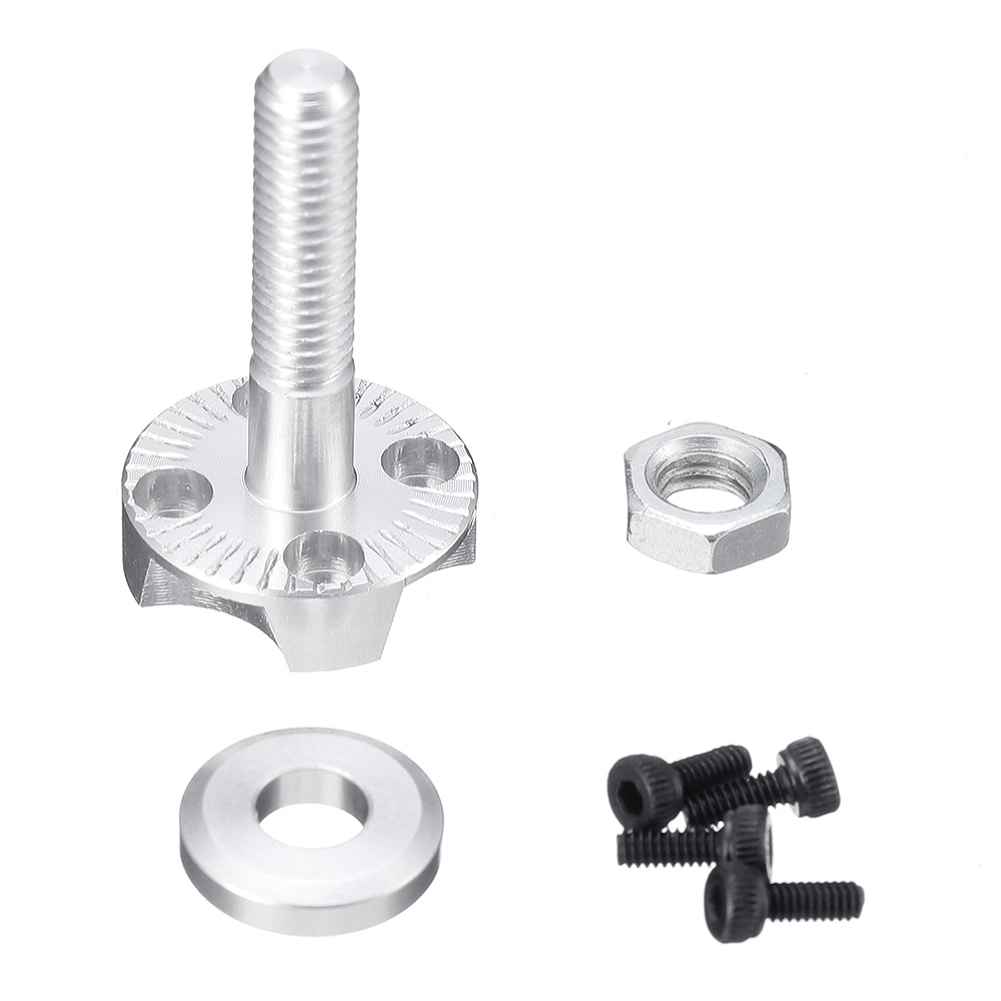

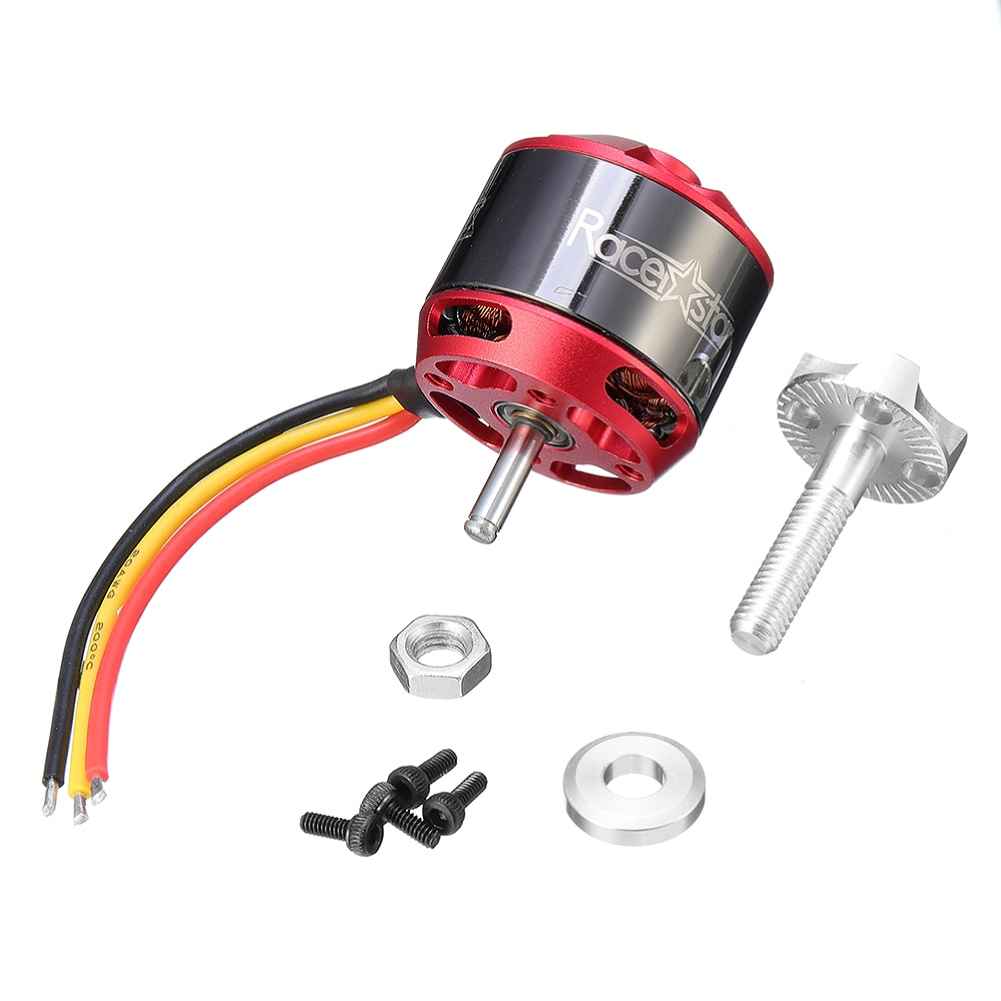

Package Included:
1 x Racerstar BR2826 1100KV 2-4S Brushless Motor
