Description

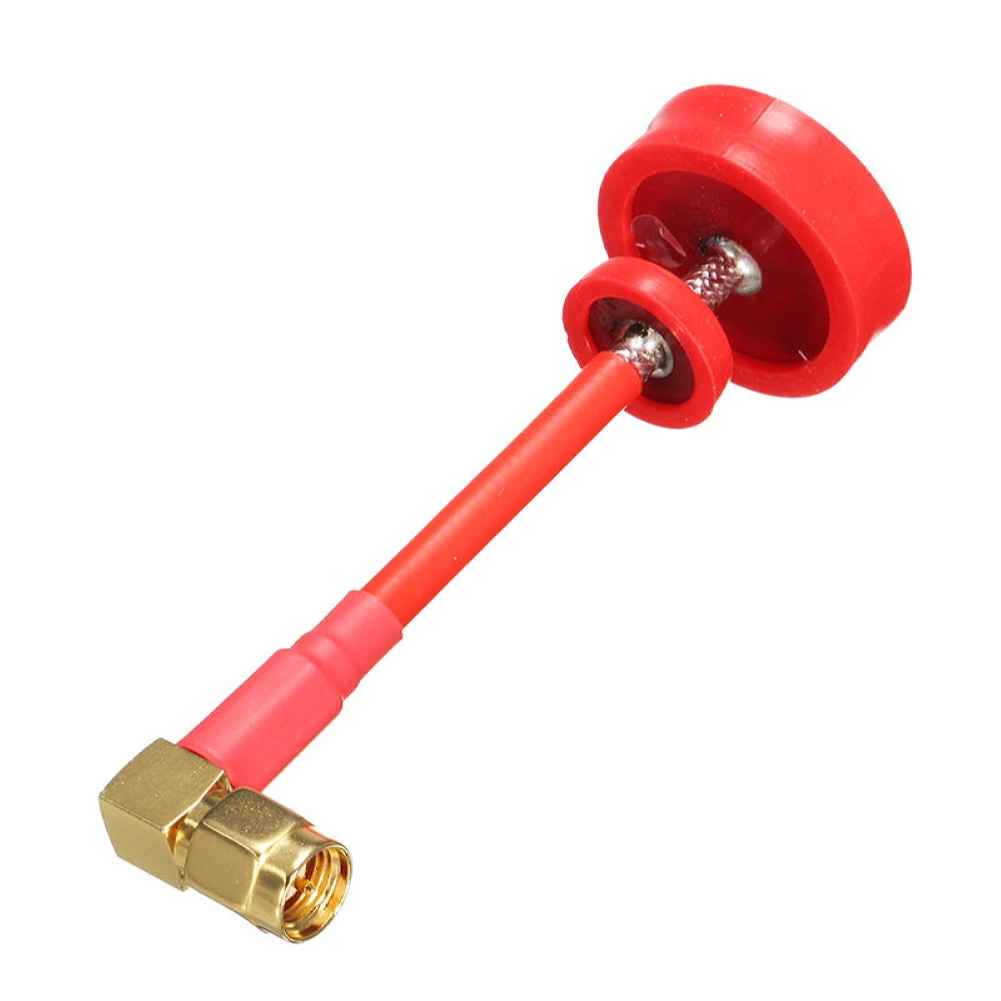

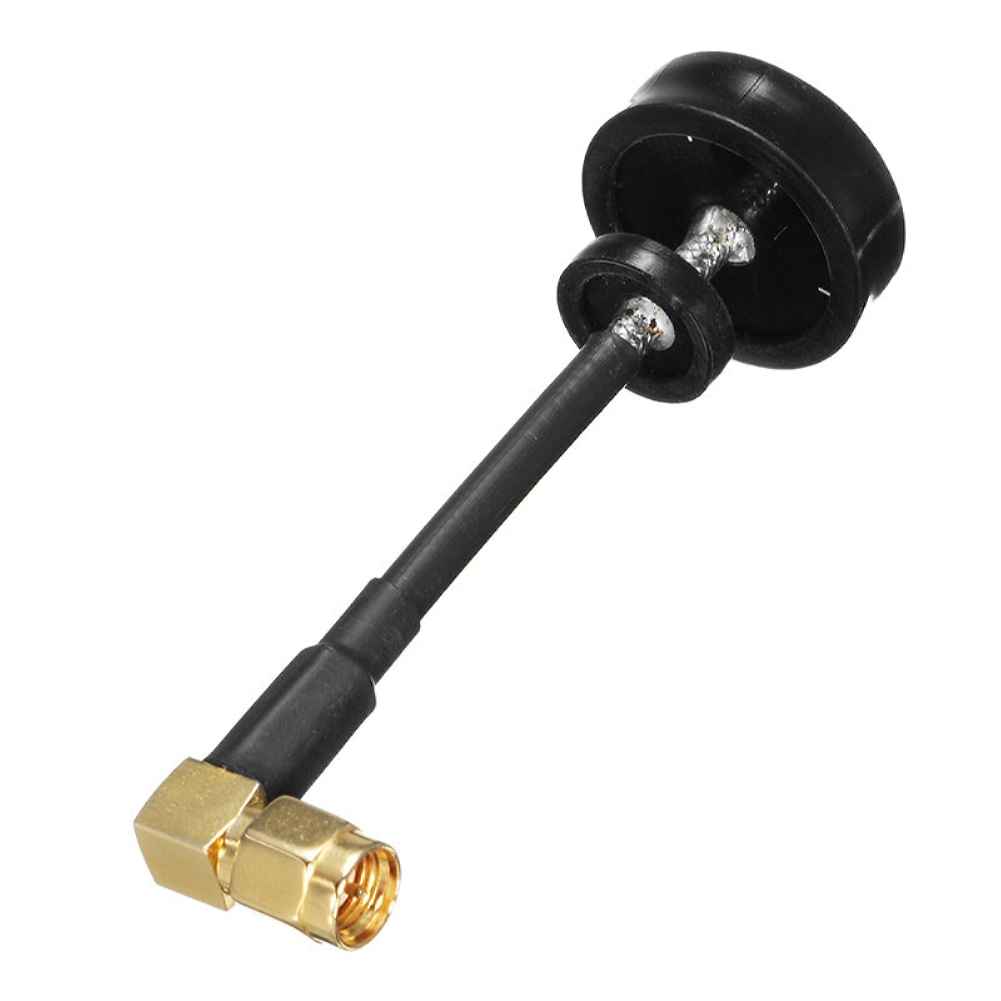

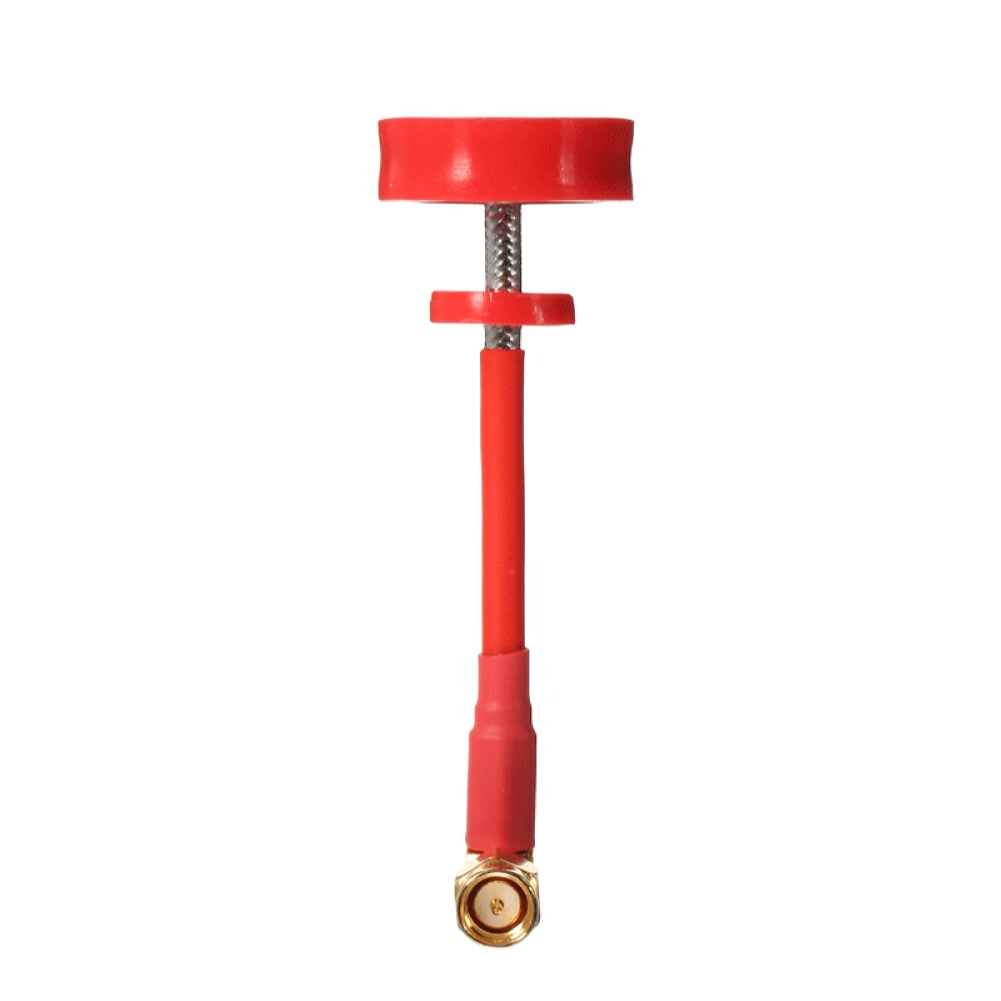

Realacc Pagoda Antenna LHCP Right Angle 5.8G 5dBi 50W Omni FPV Antenna SMA/RP-SMA For RC Drone
The Realacc Pagoda Antenna is designed for RC drones, offering a 5.8G frequency and 5dBi gain for superior performance. With a maximum power of 50W, this antenna ensures a strong and stable signal. It features a circular polarized radiation pattern, providing omnidirectional coverage without dead corners. The antenna is compatible with both RP-SMA and SMA connectors and comes in black, red, and white colors. Lightweight at just 8.6g, its compact design measures 78mm in length with a maximum diameter of 22.4mm. This antenna is ideal for enhancing your FPV system’s signal strength and stability.
Description :
Brand Name : Realacc
Item Name : Omnidirectional Antenna
Gain : 5dBi
Max. Power : 50w

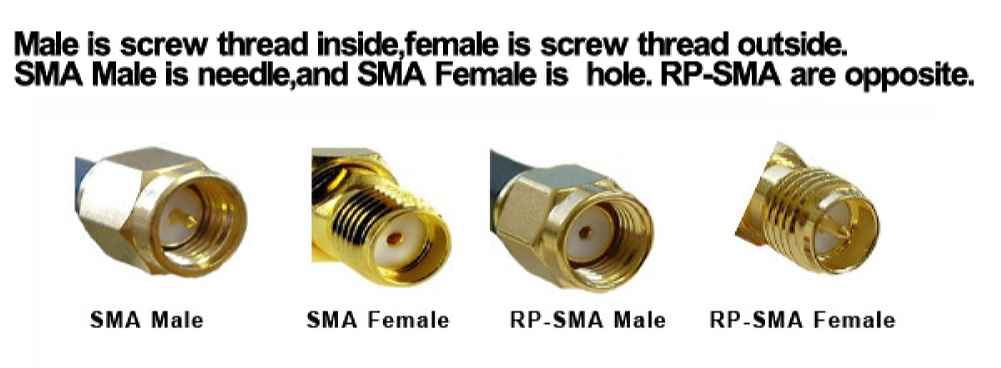

Connector : RP-SMA,SMA
Color : Black, Red, White
Weight : 8.6g
Length : 78呼3mm
Max. Dia. : 22.4呼1mm
Min. Dia. : 11.8呼1mm
Specification :
Frequency : 5.8G
Impedance : 50棒
VSWR : <1.5:1
Polarization : Circular Polarized
Radiation : Omni
Features :
Omni-directional, no dead corner
High gain, more stable.
Less flash, stonger siginal
Package Included:
1 x Antenna
