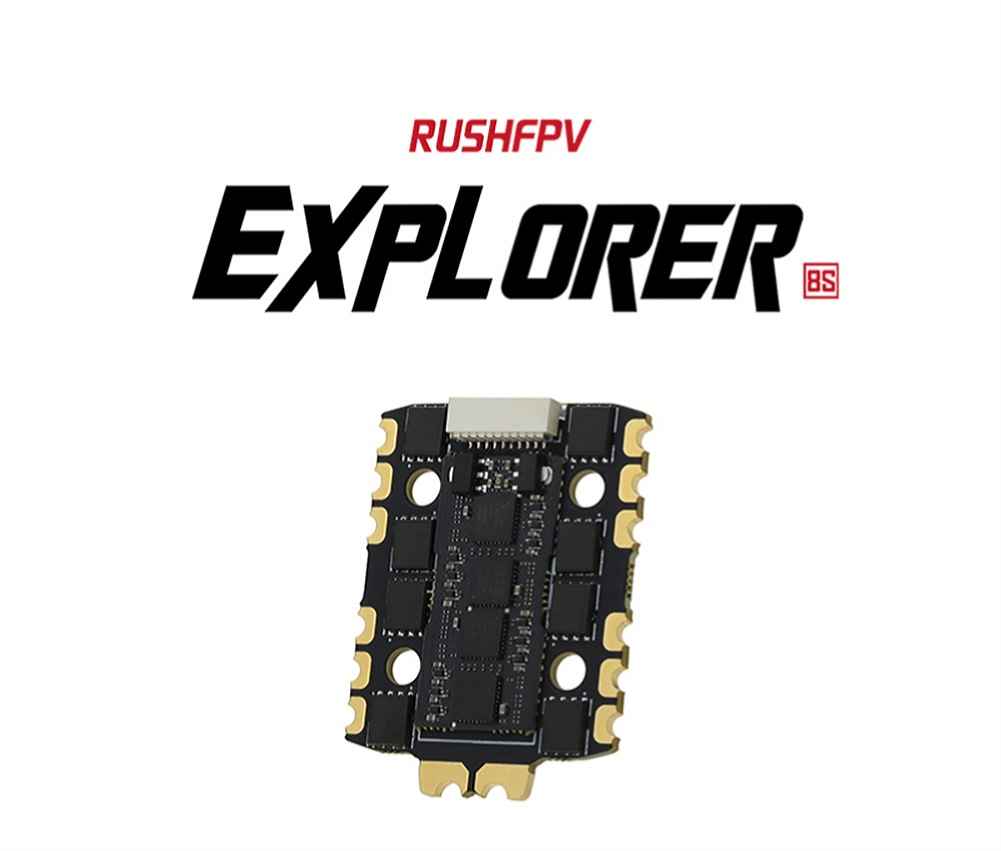

RUSHFPV EXPLORER 60A 3-8S 4in1 Brushless ESC BLHeli32 for RC FPV Racing Drones

Description

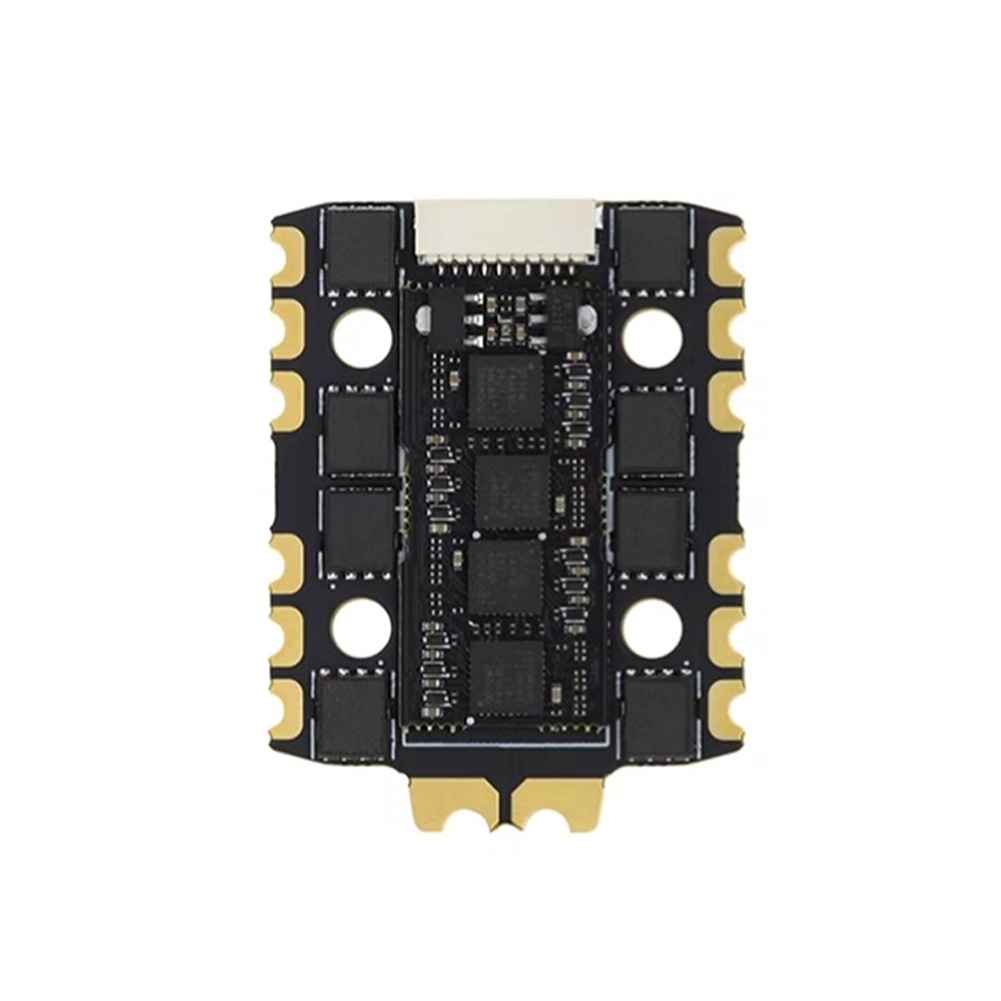

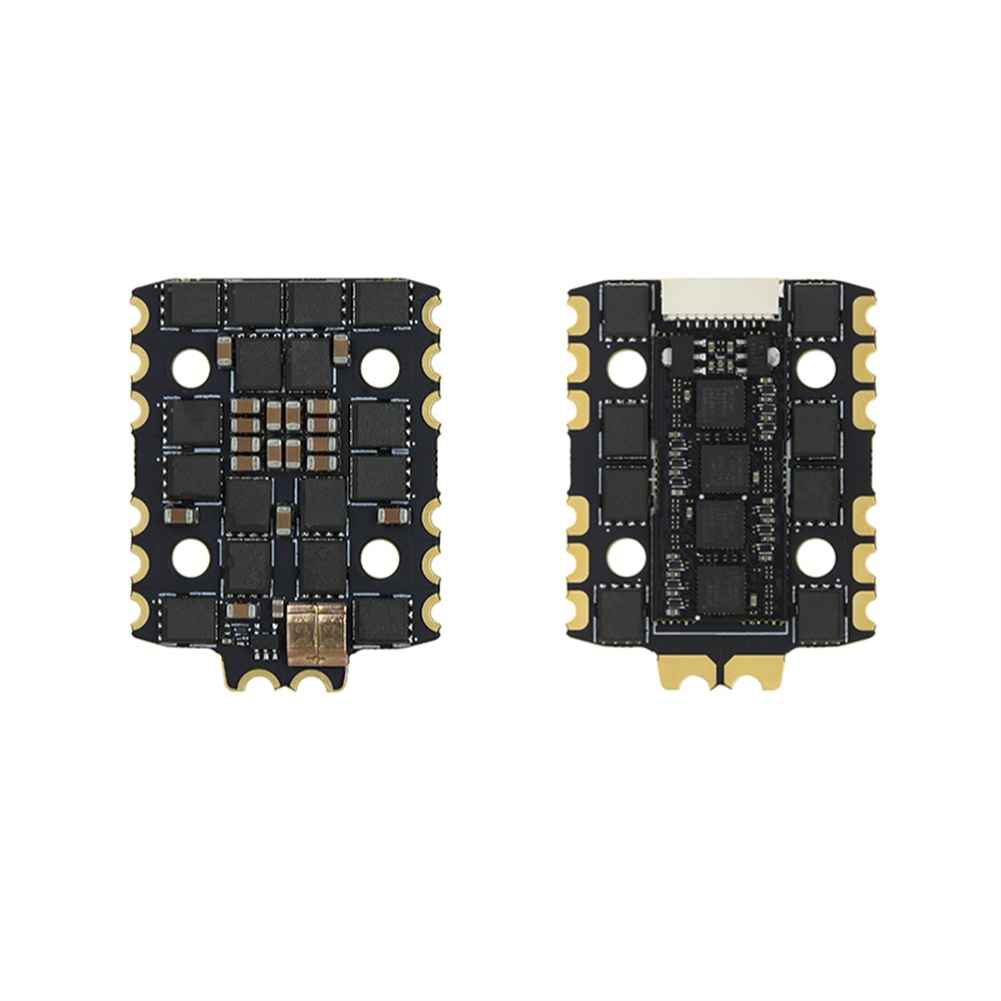

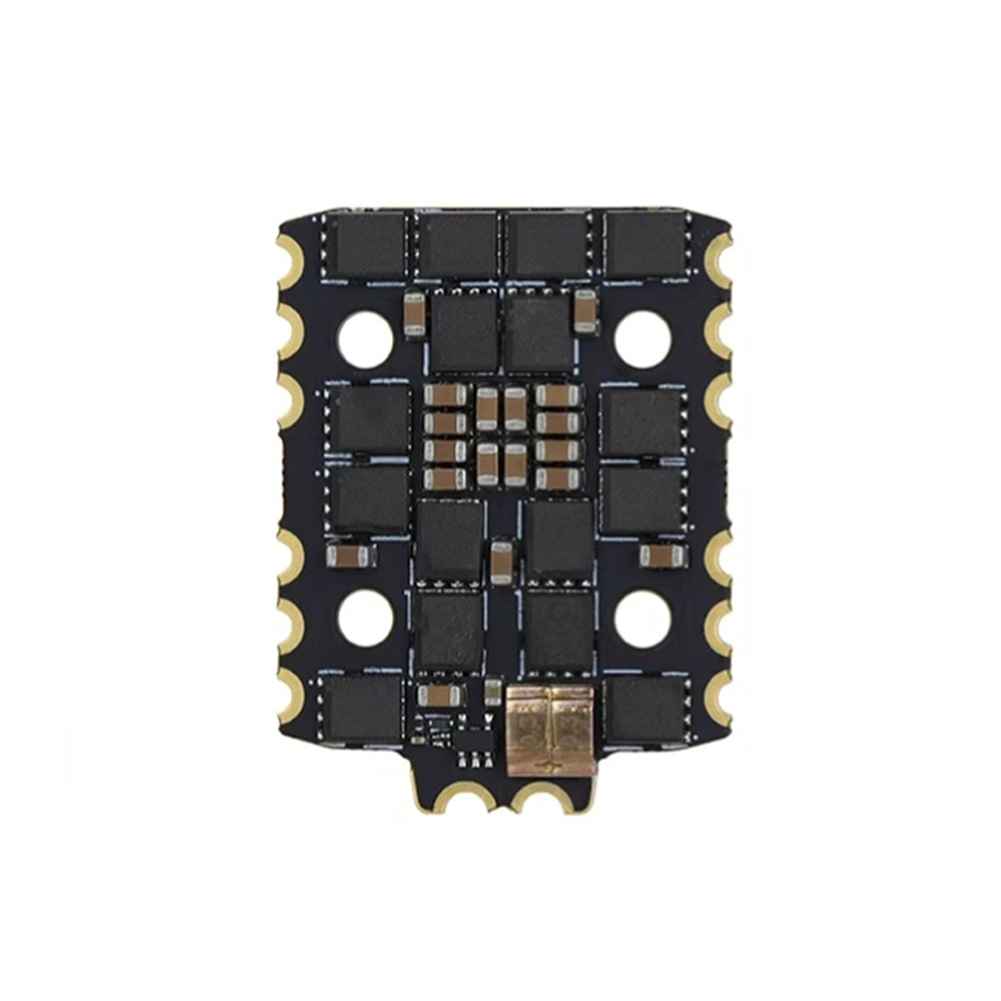

20mm*20mm RUSHFPV EXPLORER 60A 3-8S 4in1 Brushless ESC BLHeli32 for DIY RC FPV Racing Drone

The RUSHFPV EXPLORER 60A 4in1 Brushless ESC is designed for DIY RC FPV racing drones, offering robust performance with its BLHeli32 firmware. It supports a continuous current of 60A and a peak current of 70A, compatible with 3-8S Lipo batteries. The ESC operates efficiently with a PWM refresh rate of 16-48KHz and is capable of maintaining optimal performance in temperatures ranging from -20簞C to +50簞C. Compact in design, it measures 43.5 x 33 x 6.4mm and weighs just 14g, making it an ideal choice for enhancing your racing drone’s capabilities.

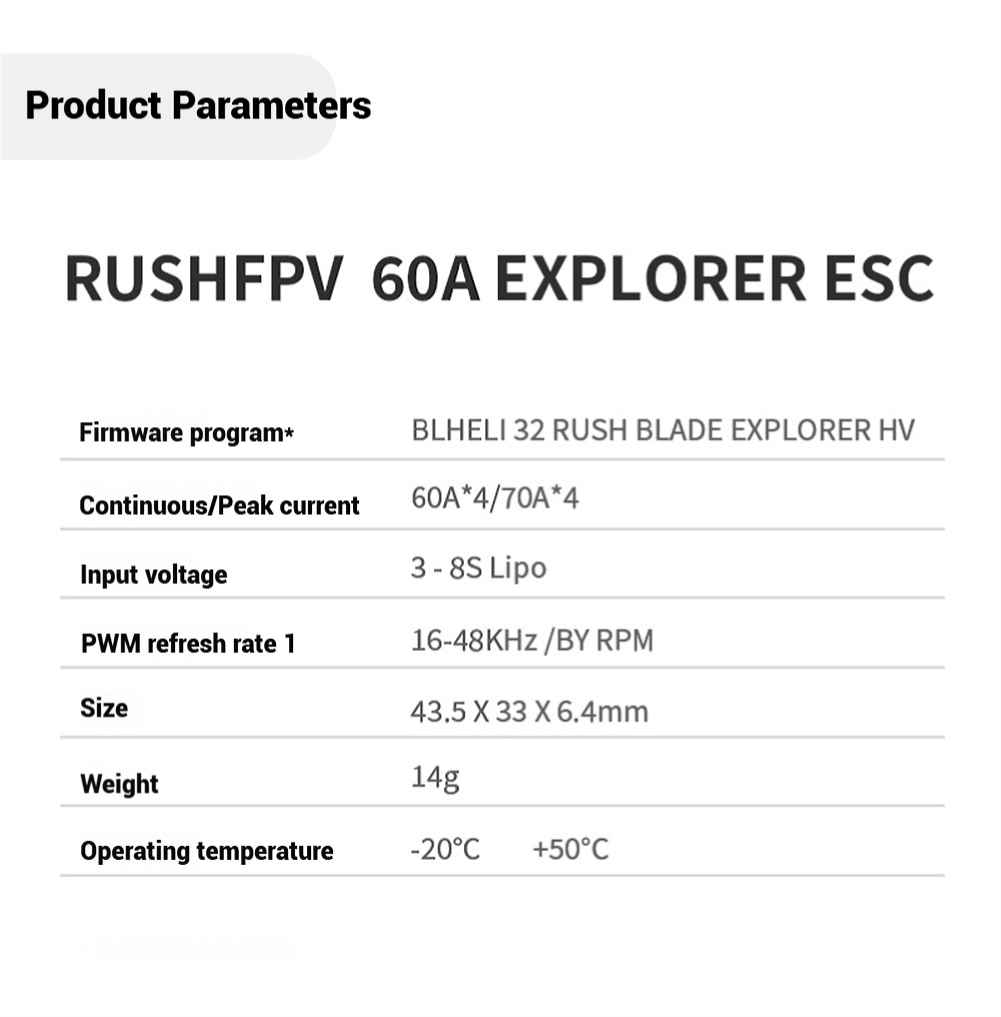

Specification:
Brand: RUSHFPV
Model: EXPLORER
Firmware: BLHeli 32 Rush Blade Explorer HV
Continuous/Peak Current: 60A*4 / 70A*4
Input Voltage: 3-8S Lipo
PWM Refresh Rate: 16-48KHz / By RPM
Operating Temperature: -20‵C to +50‵C
Dimensions: 43.5 X 33 X 6.4mm
Weight: 14g

Package Included:
1 x ESC
