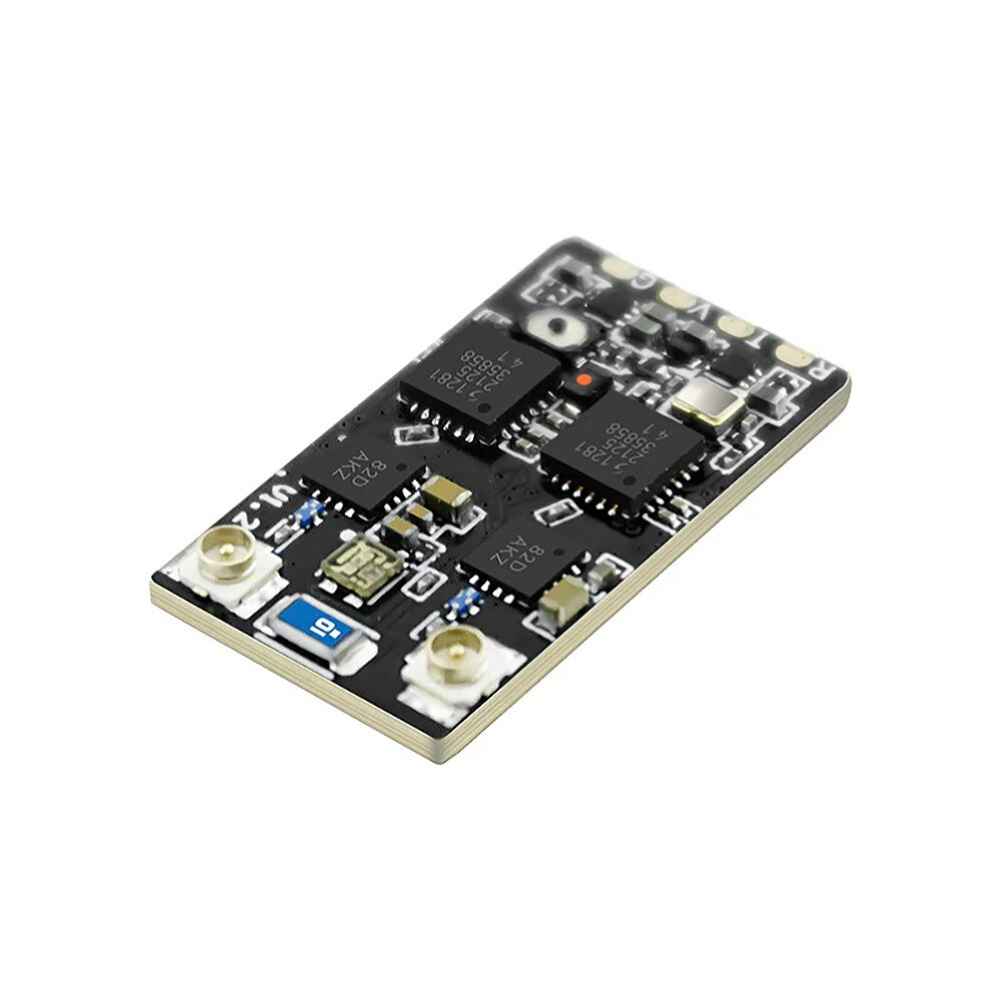

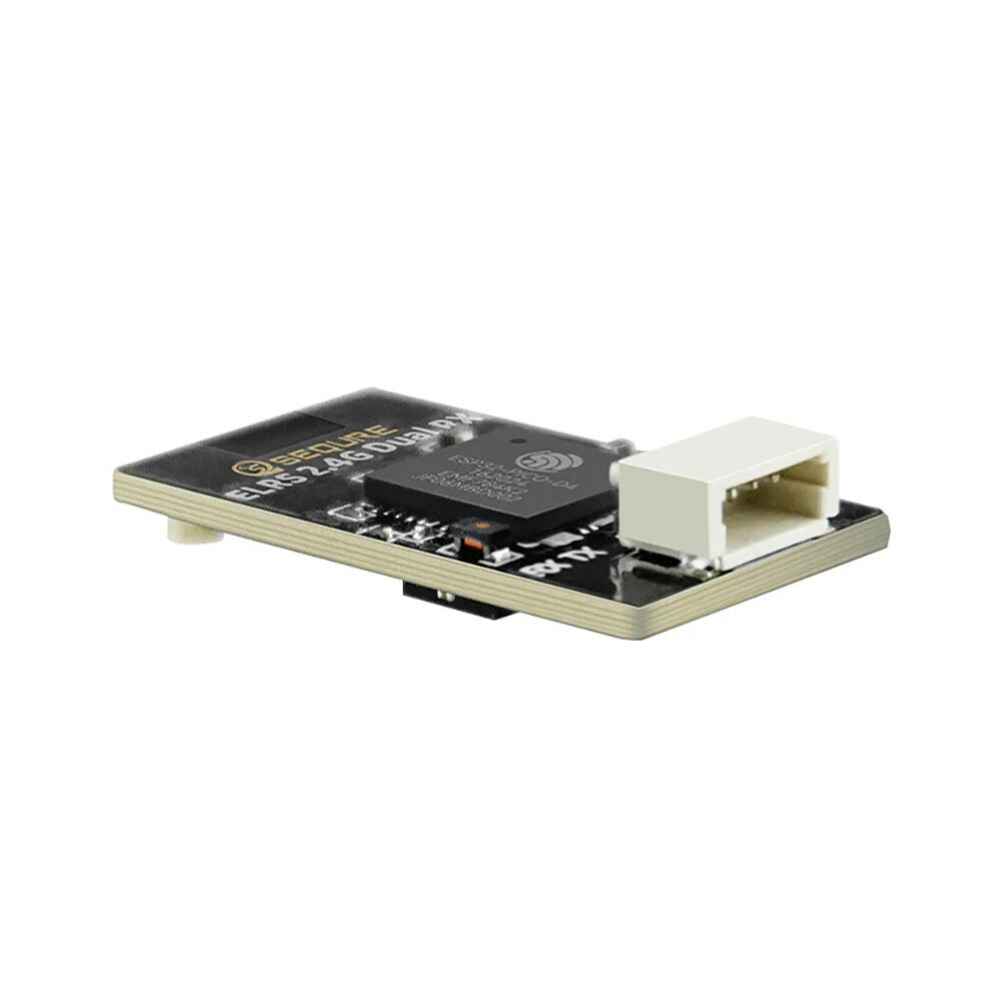

SEQURE ELRS 2.4GHz Dual RX Receiver, True Diversity Dual Antenna, High Refresh Rate for FPV Racing Drone

Description

SEQURE 2.4GHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone Fixed Wing

The SEQURE ELRS 2.4GHz Dual RX Receiver is engineered for FPV racing drones and fixed-wing aircraft, offering exceptional performance with its ESP32-PICO-D4 master control and SX1281 dual-frequency chip. It features true diversity dual antennas for enhanced signal penetration and high-frequency anti-interference. With support for ultra-high refresh rates of F1000Hz and F500Hz, it ensures low latency data transmission, crucial for racing enthusiasts. The integrated temperature-compensated crystal oscillator maintains stable operation regardless of environmental conditions. Additionally, the receiver is equipped with a dual-channel high-power PA+LNA low-noise amplifier and a 100mW telemetry return for stable flight data. The onboard RGB indicator allows quick identification of working status, and it supports SH1.0-4P socket and 2.54-4P pad connections.

SEQURE 2.4GHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone Fixed Wing
Features:
(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1281 chip, true diversity dual antenna receiver.

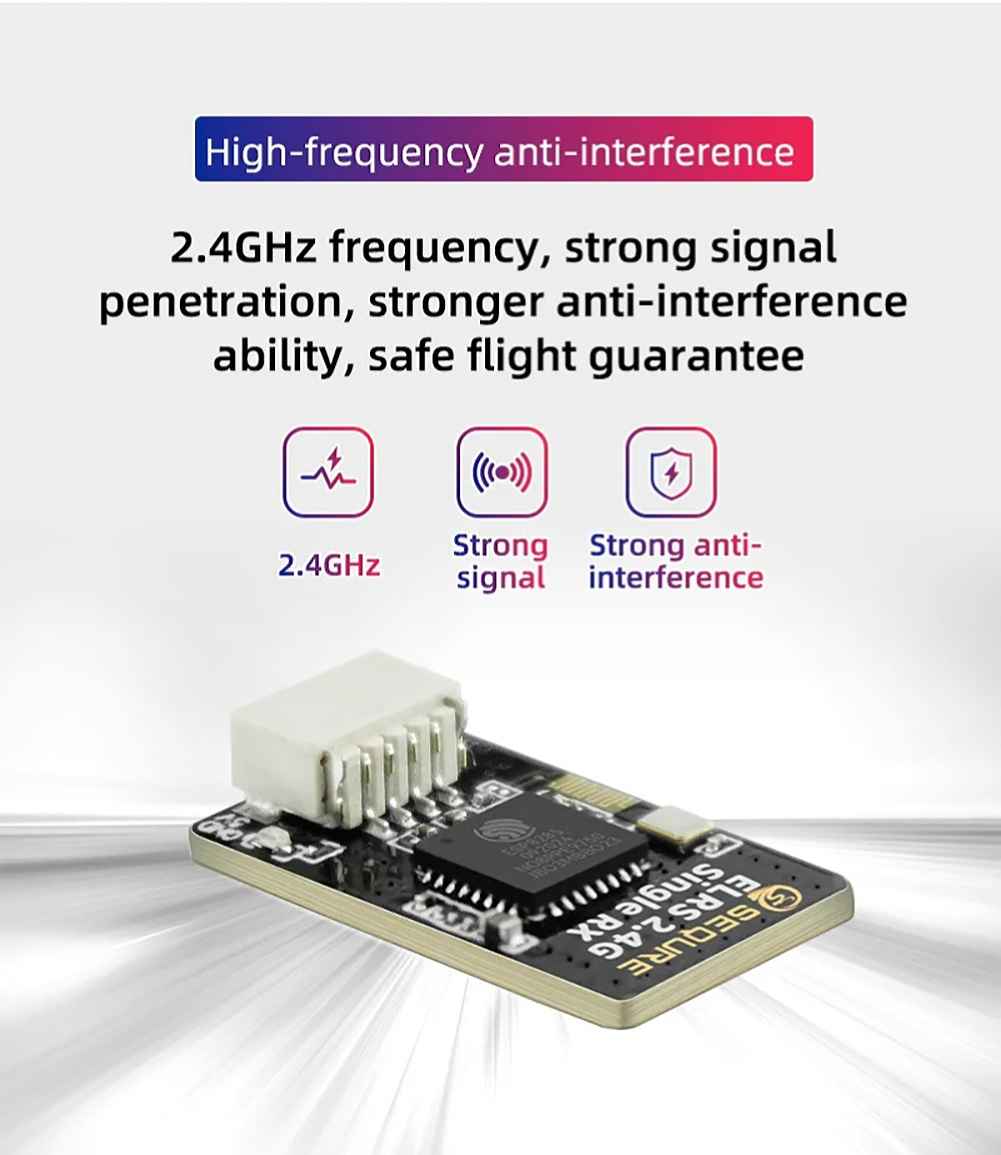

(2) High-frequency anti-interference, 2.4GHz frequency, strong signal penetration.

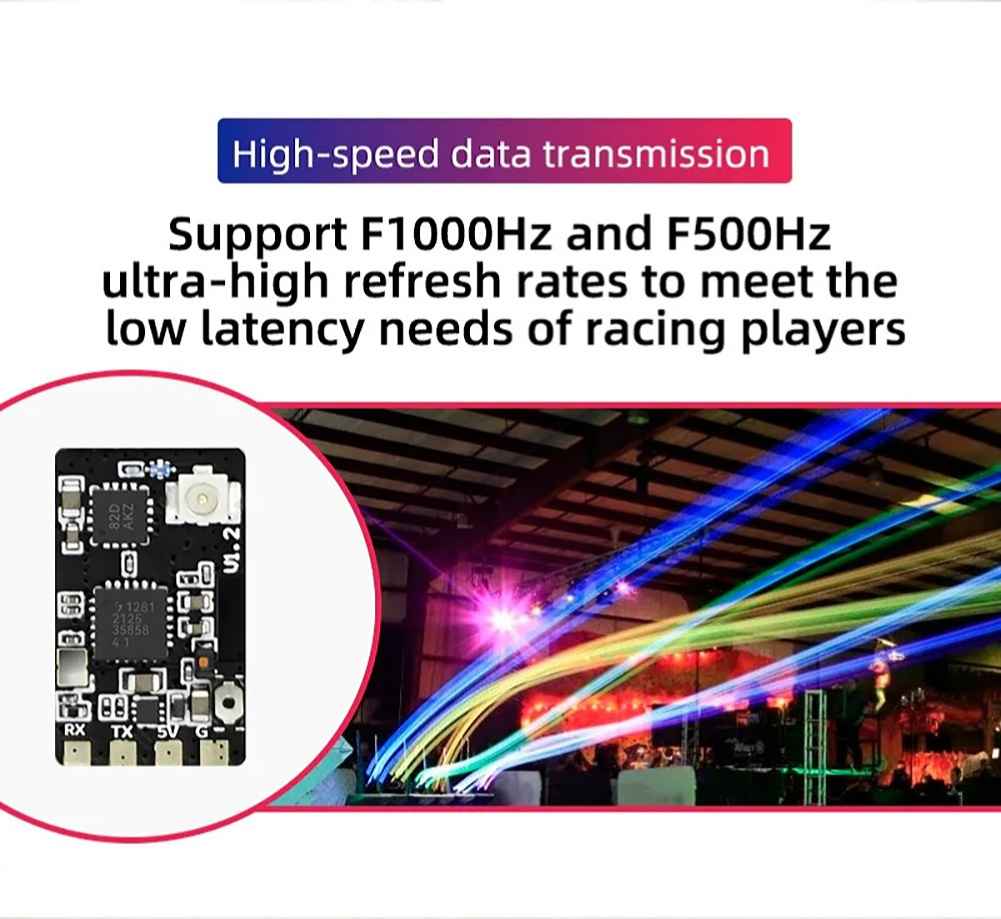

(3) High-speed data transmission, support F1000Hz and F500Hz ultra-high refresh rates, meet the low latency requirements of racing players.
(4) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
(5) Integrated with dual-channel high-power PA+LNA low-noise amplifier and 100mW (20dBm)*2 telemetry return, the return of flight data is more stable.
(6) Onboard RGB color indicator, quickly identify different working status.

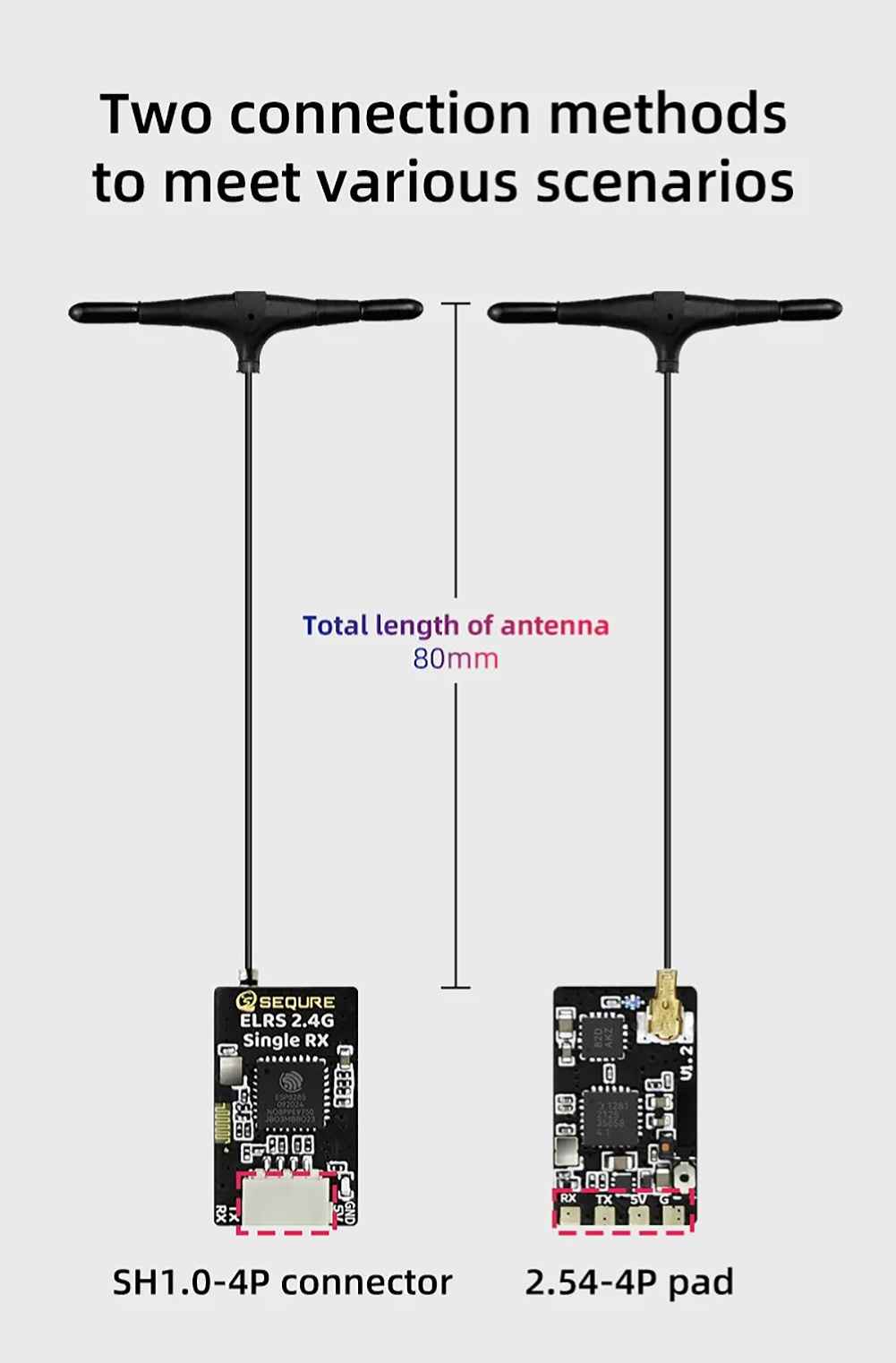

(7) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Description:
Brand: SEQURE
Model: ELRS 2.4GHz Dual RX
Factory Firmware: SEQURE 2.4GHz Dual RX_3.4.0
MCU: ESP32-PICO-D4
RF Chip: SX1281
Crystal Oscillator Type: Temperature Compensated Crystal Oscillator侈TCXO佩
PA Power (Telemetry Power): 100mW侈20dBm佩* 2
LNA: YES
Indicator Light: Colorful RGB Light
Frequency Band: 2.4GHz ISM

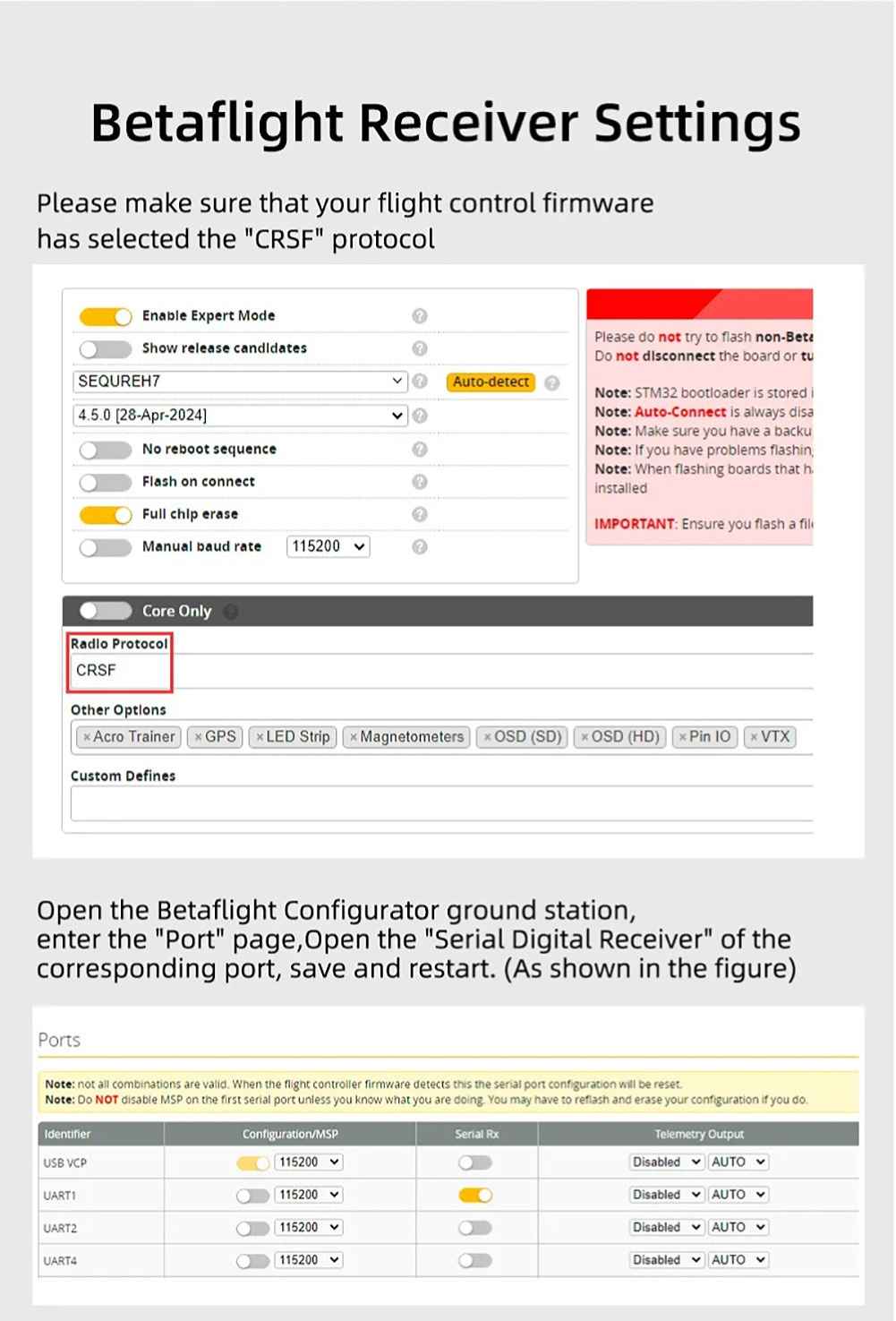

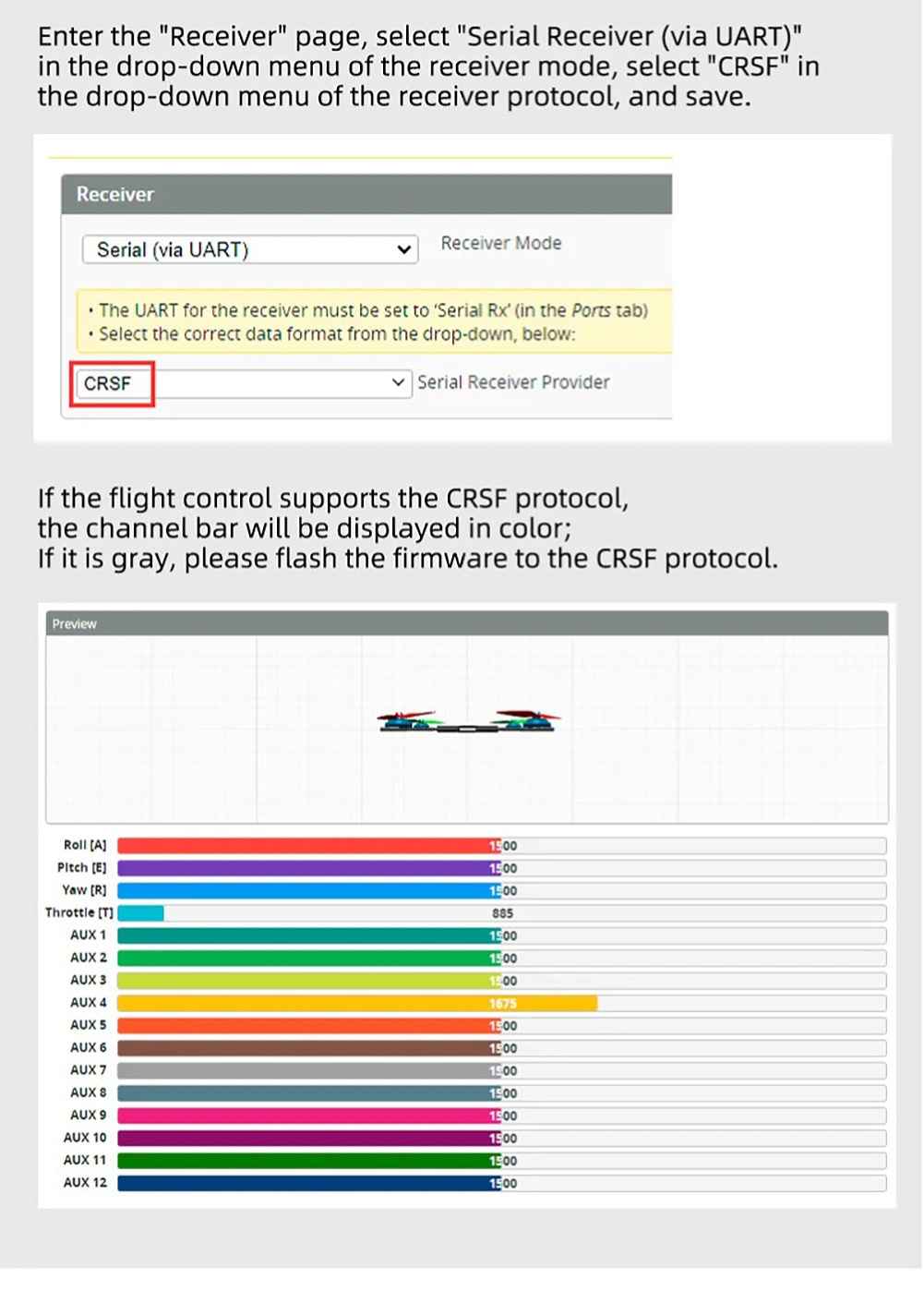

Protocol: CRSF
RF Mode: Dual /True Diversity/True diversity dual antenna
Antenna Interface: Ipex1

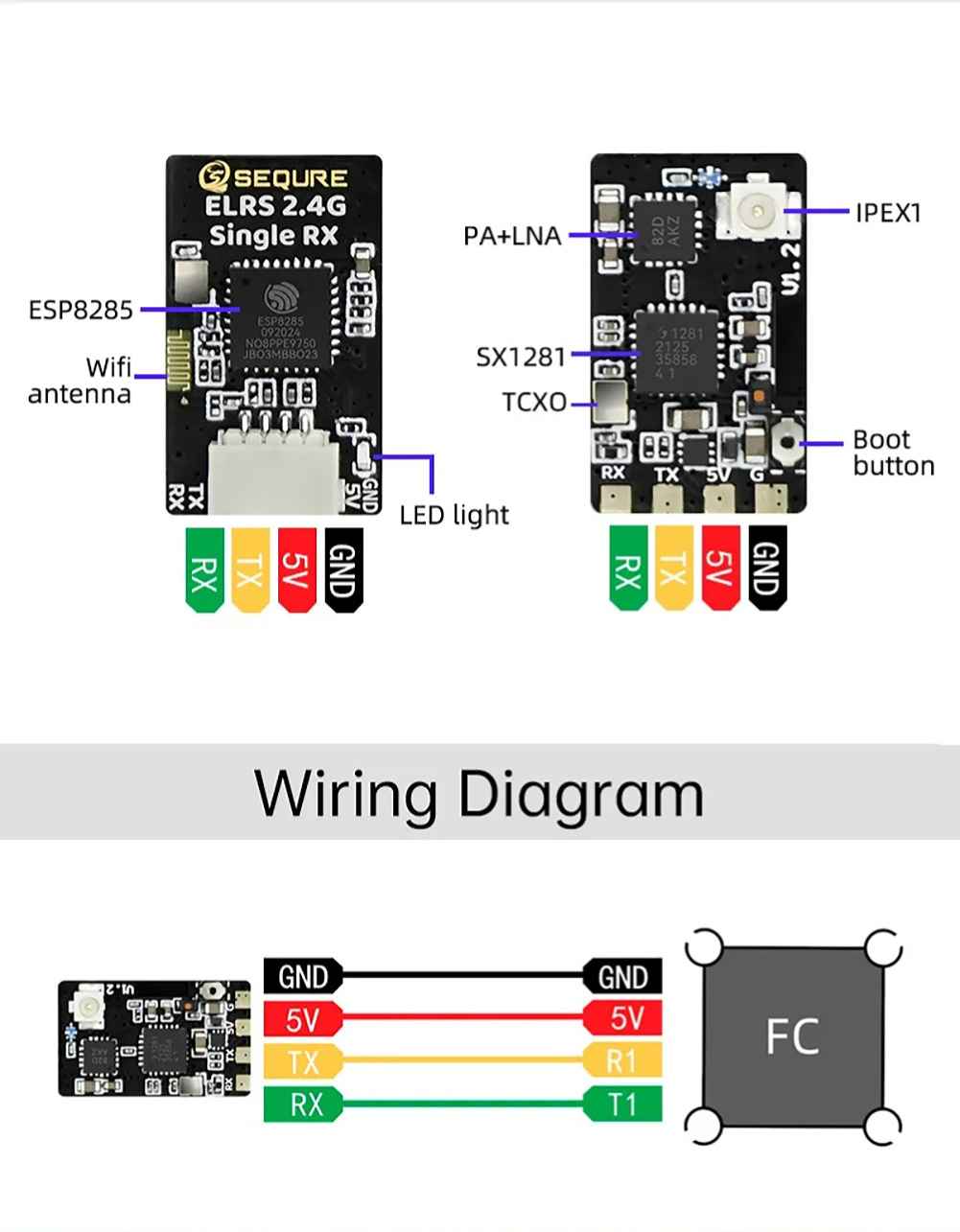

Receiver Interface: SH1.0-4P connector, 2.54-4P pad
Working voltage: 5V

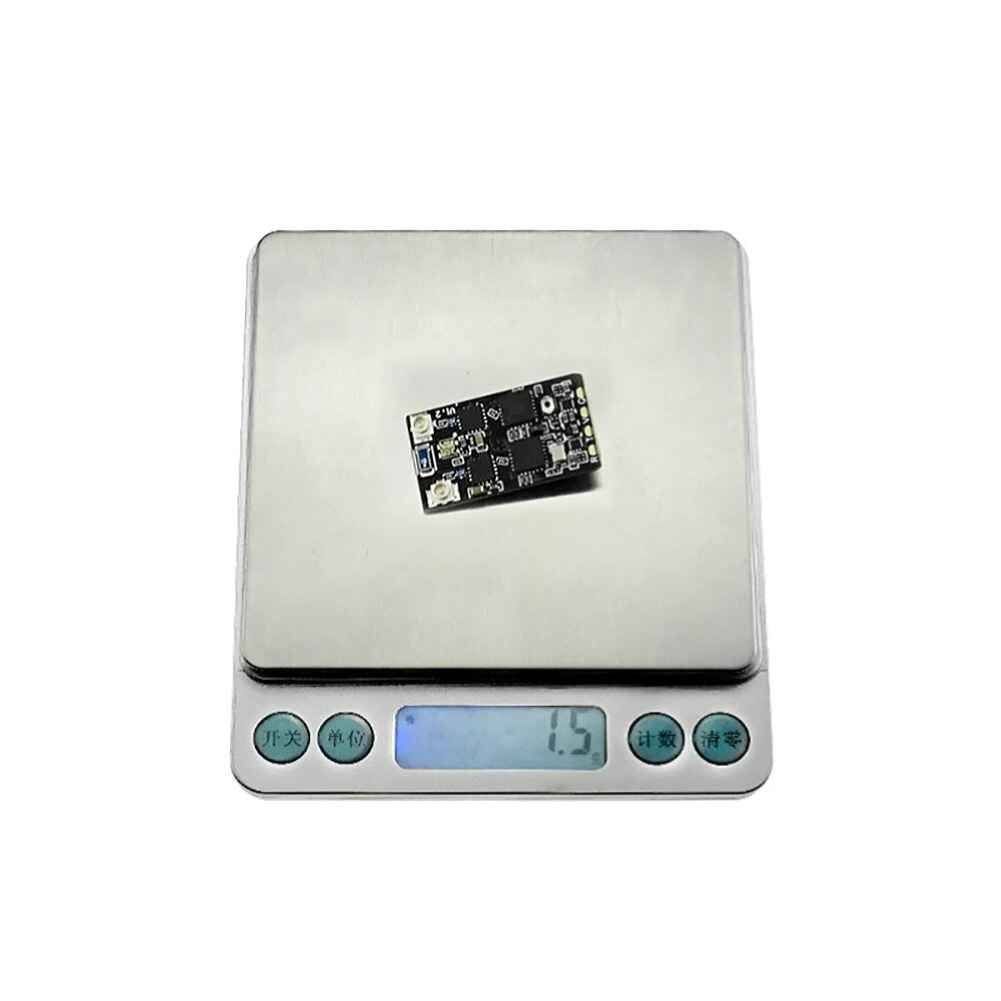

Weight: 1.5g
Size: 23*12.8*5mm
Package Size: 150*100*15mm
Packing Weight: 11.5g

Package Included:
1x SEQURE ELRS 2.4GHz Dual RX
2x 2.4G antenna
1x 30AWG 100mm single-end SH1.0-4P cable
2x 12 30mm heat shrink tube
