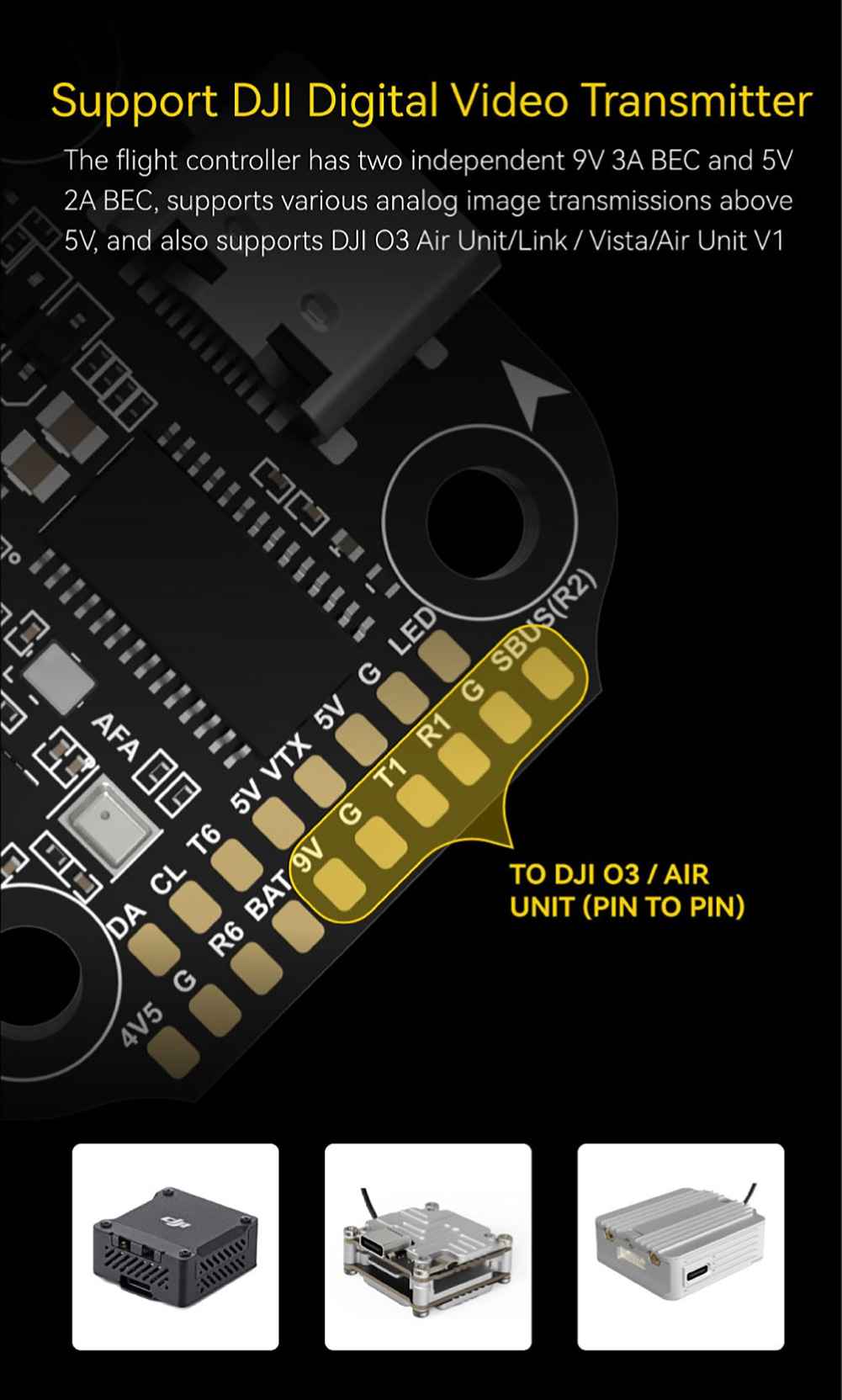

  • 5V and 9V BEC output for versatile power needs
  • Supports DSHOT300/600 ESC protocol
  • Bluetooth configuration via SpeedyBee App
  • Compatible with DJI O3 Vista for FPV racing drones

Shipping fast worldwide

  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkout

trust pay

You May Also Like

Sale! Aocoda-RC F4100 V4 AM32 Stack with F405 V4 Flight Controller & 100A 3-8S ESC for FPV Racing Drones

Aocoda-RC F4100 V4 AM32 Stack with F405 V4 Flight Controller & 100A 3-8S ESC for FPV Racing Drones

Original price was: $219.98.Current price is: $167.18.
Select options
This product has multiple variants. The options may be chosen on the product page
Sale! Flywoo GOKU GN405 Nano HD 20A Stack V3 with TCXO ELRS 2.4GHz, Compatible with DJI O4, FPV Racing Drone

Flywoo GOKU GN405 Nano HD 20A Stack V3 with TCXO ELRS 2.4GHz, Compatible with DJI O4, FPV Racing Drone

Price range: $59.18 through $112.89
Select options
This product has multiple variants. The options may be chosen on the product page
Sale! TEARCKEP F405 V3S PLUS Flight Controller with 5V 9V BEC Output and 50A 60A 4in1 ESC Stack for RC FPV Racing Drones

TEARCKEP F405 V3S PLUS Flight Controller with 5V 9V BEC Output and 50A 60A 4in1 ESC Stack for RC FPV Racing Drones

Price range: $36.72 through $71.70
Select options
This product has multiple variants. The options may be chosen on the product page
Sale! SEQURE H743 & E70 G2 Stack Flight Controller and 4in1 ESC, 30.5mm x 30.5mm, 70A, 4-8S, for FPV Racing Drone

SEQURE H743 & E70 G2 Stack Flight Controller and 4in1 ESC, 30.5mm x 30.5mm, 70A, 4-8S, for FPV Racing Drone

Price range: $214.06 through $219.62
Select options
This product has multiple variants. The options may be chosen on the product page
Sale! Axisflying Argus ECO F405 Flight Controller 4-8S with 5V 12V BEC, BIheli-S 60A ESC Stack for FPV Racing Drone

Axisflying Argus ECO F405 Flight Controller 4-8S with 5V 12V BEC, BIheli-S 60A ESC Stack for FPV Racing Drone

Original price was: $151.98.Current price is: $125.38.
Select options
This product has multiple variants. The options may be chosen on the product page
Sale! Aocoda-RC F465 V4 Flight Controller & 65A 3-8S ESC Stack for FPV Racing Drone, 30.5x30.5mm, 5V/9V BEC Output

Aocoda-RC F465 V4 Flight Controller & 65A 3-8S ESC Stack for FPV Racing Drone, 30.5×30.5mm, 5V/9V BEC Output

Original price was: $119.98.Current price is: $89.99.
Select options
This product has multiple variants. The options may be chosen on the product page

Description

20x20mm SpeedyBee F405 Mini F4 Flight Controller with 5V 9V BEC Output & 35A BL_S 4IN1 ESC Stack Support DJI O3 Vista for FPV Racing Drone

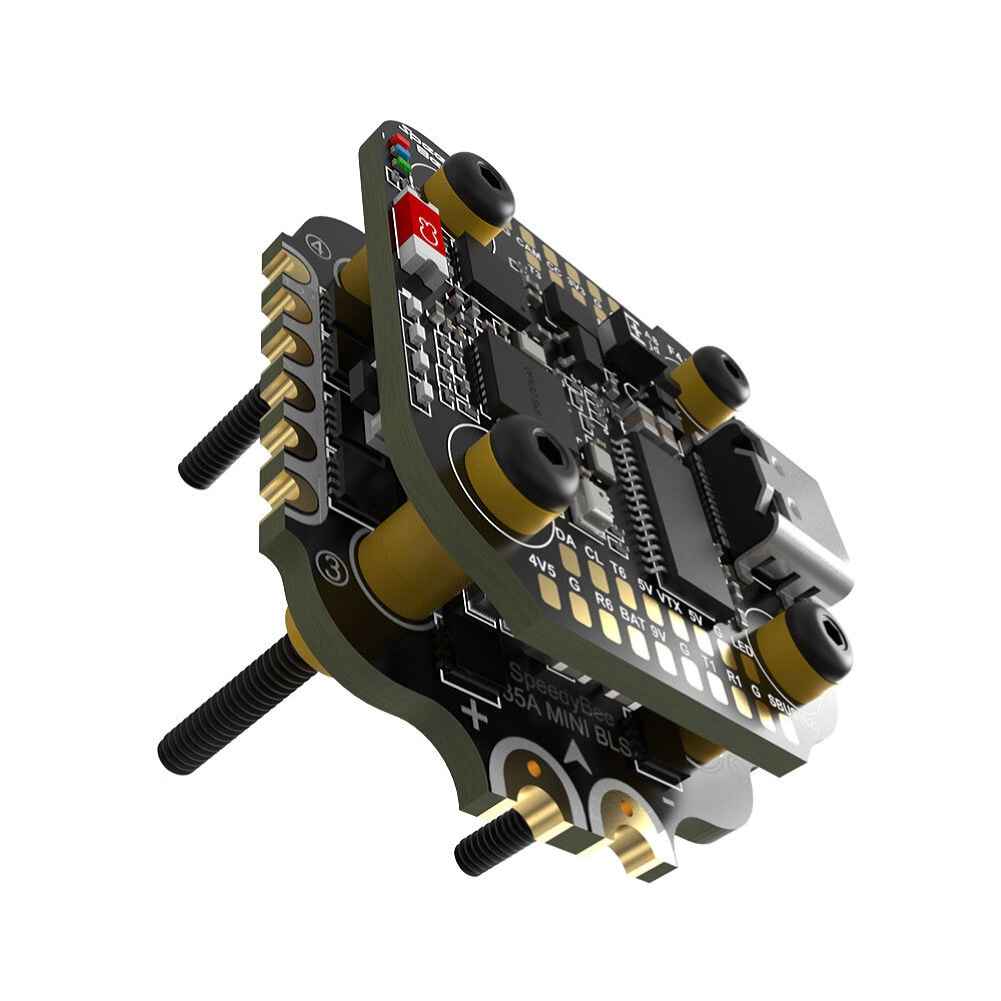

The SpeedyBee F405 Mini F4 Flight Controller with 35A BL_S 4-in-1 ESC Stack is designed for FPV racing drones. Featuring a 20x20mm mounting size, it supports both M2 and M3 screws with silicone grommets. This stack includes a 5V and 9V BEC output and is compatible with 3-6S LiPo power input. It supports DSHOT300/600 ESC protocol and has a continuous current of 35A with a burst current of 45A for 5 seconds. The SpeedyBee App allows for easy configuration of flight controller and ESC parameters via Bluetooth, but note that WiFi and wireless firmware flashing are not supported. Ensure the MSP switch on UART 4 is set correctly for Bluetooth functionality.

Specification:

Product Name

SpeedyBee F405 Mini BLS 35A 20×20 Stack

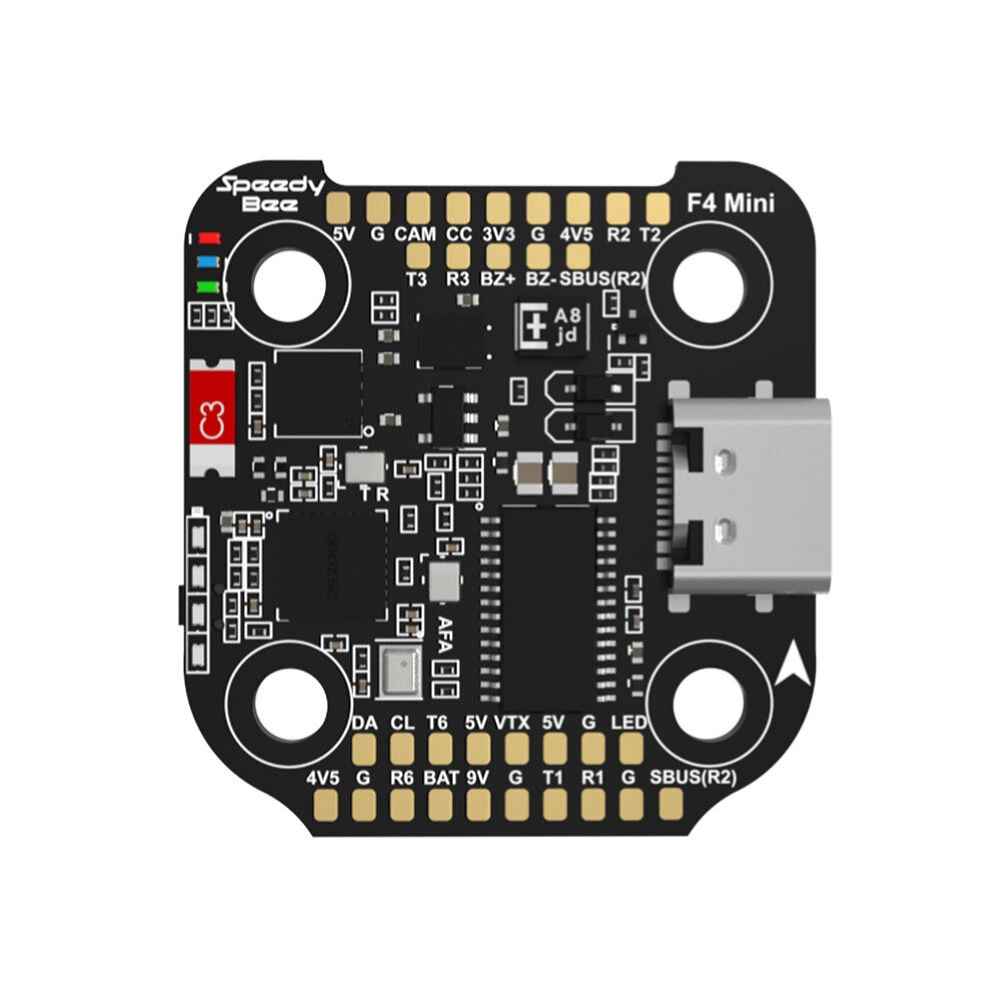

Flight Controller

SpeedyBee F405 Min

ESC

SpeedyBee BLS 35A Mini V2 4-in-1 ESC

Bluetooth

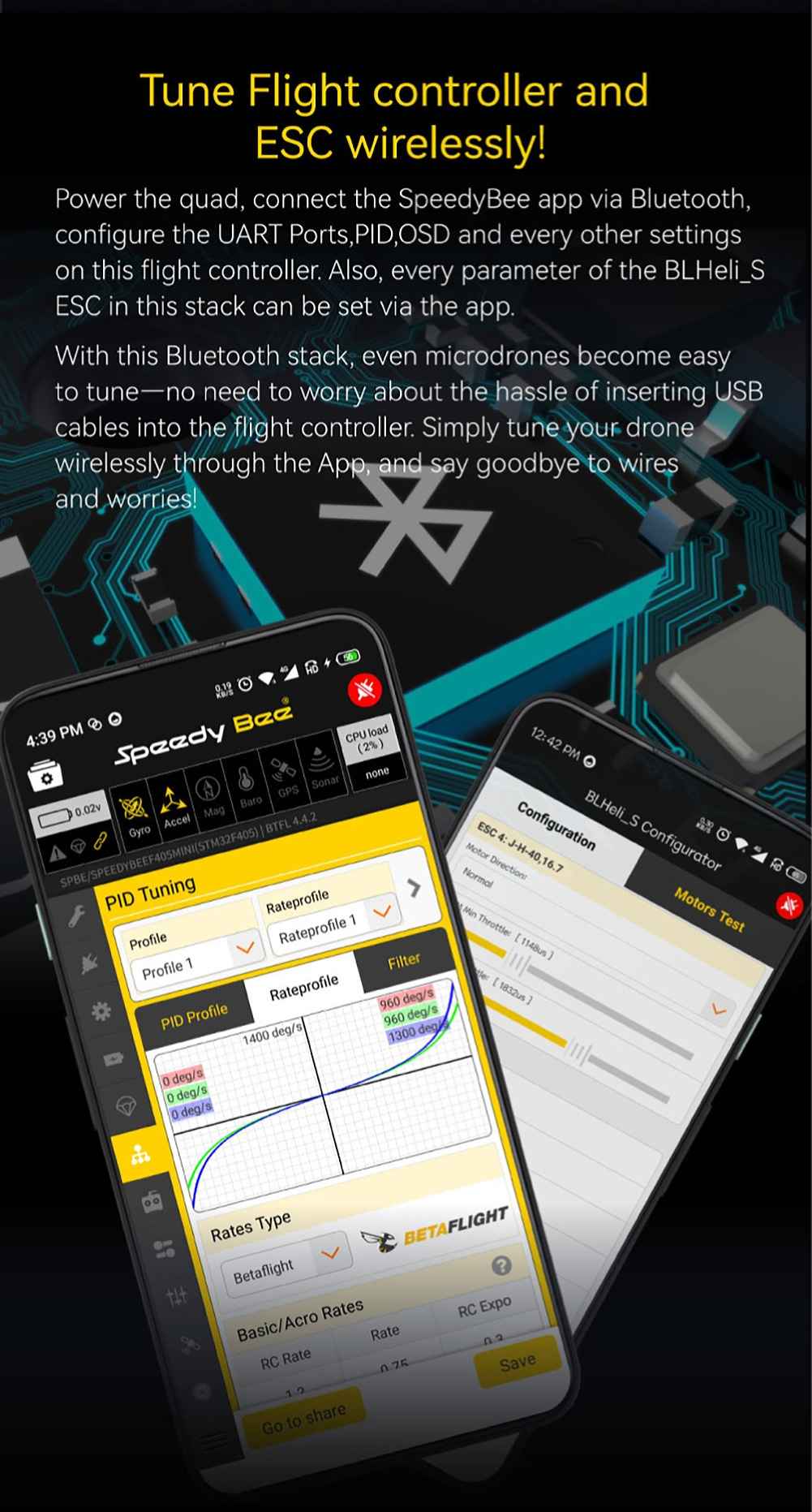

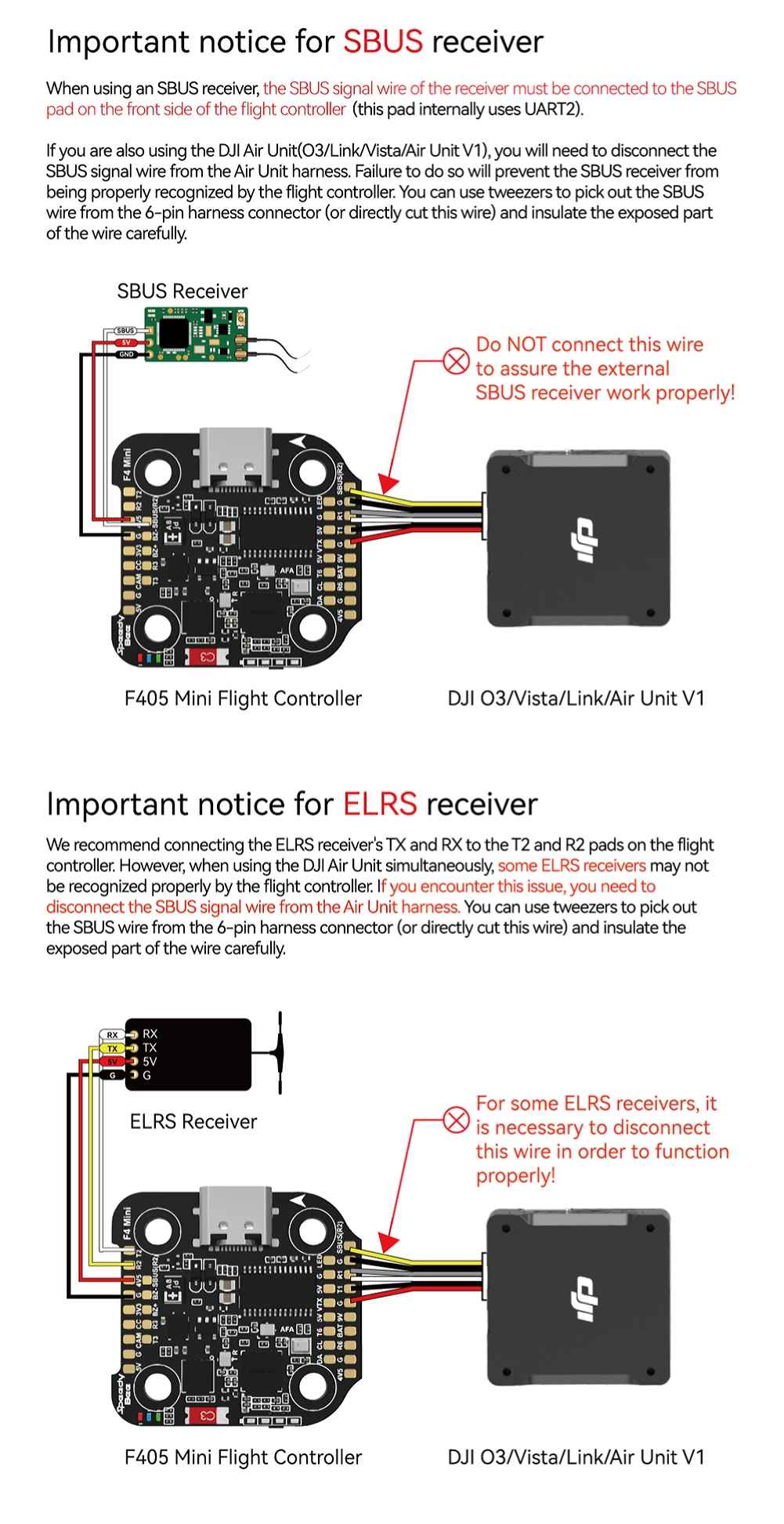

Supported. Used to connect with the SpeedyBee App for flight controller and ESC parameter configuration. Please make sure the MSP switch on UART 4 is turned on and set to a baud rate of 115200, otherwise Bluetooth functionality will not be available.

WiFi

NOT Supported

Wireless FC Firmware Flashing

NOT Supported

Wireless Blackbox Dwonload & Analysis

NOT Supported

Power Input

3-6S LiPo

Mounting

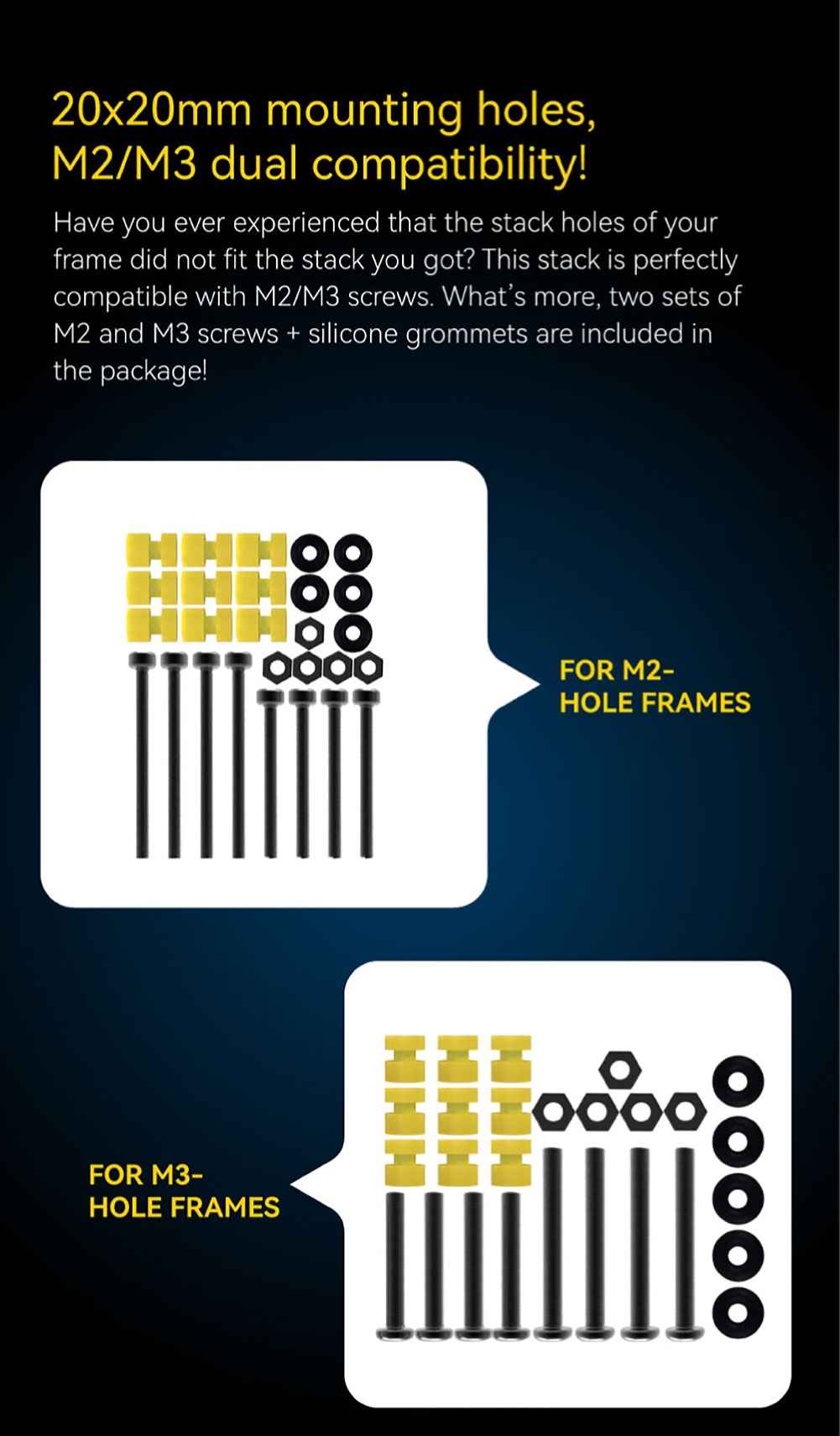

20 x 20mm 3.5mm hole sizeä½¾Compatible with M2 and M3 screws/Silicone grommets

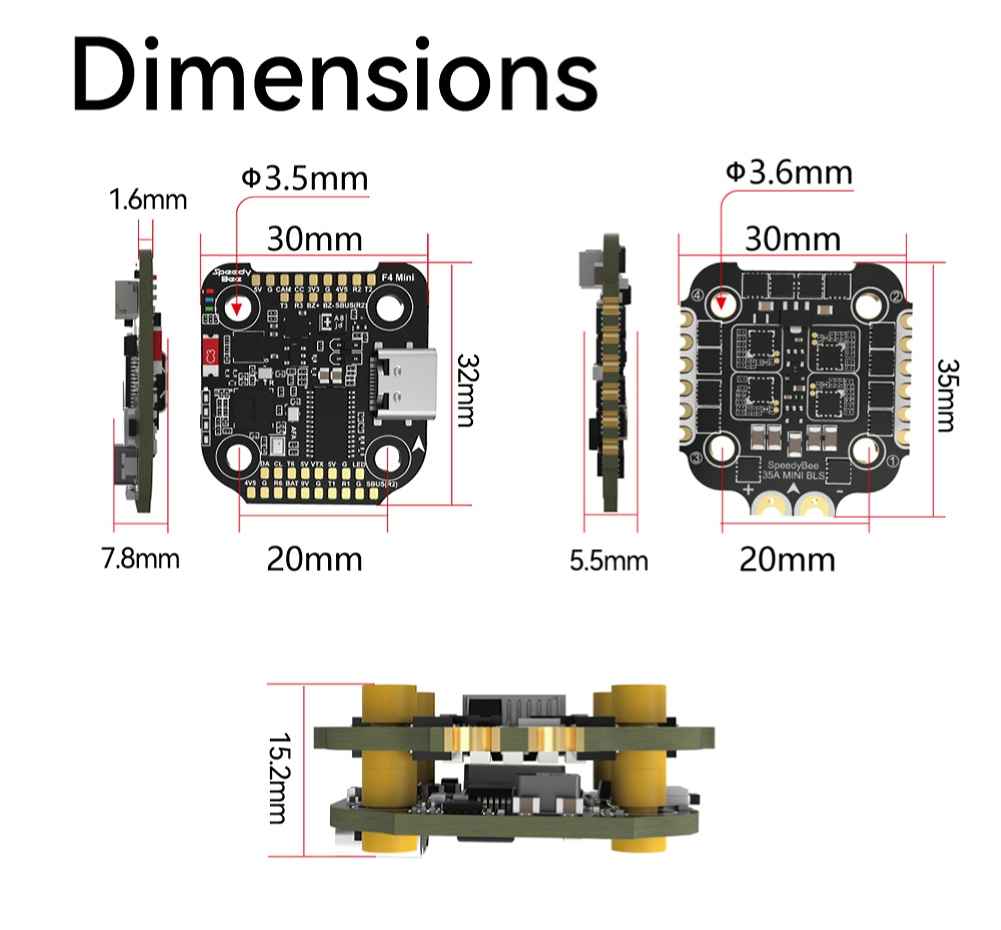

Dimension

32mm(L) x 35mm(W) x 14.2mm(H)

Weight

13.5g

ProductName

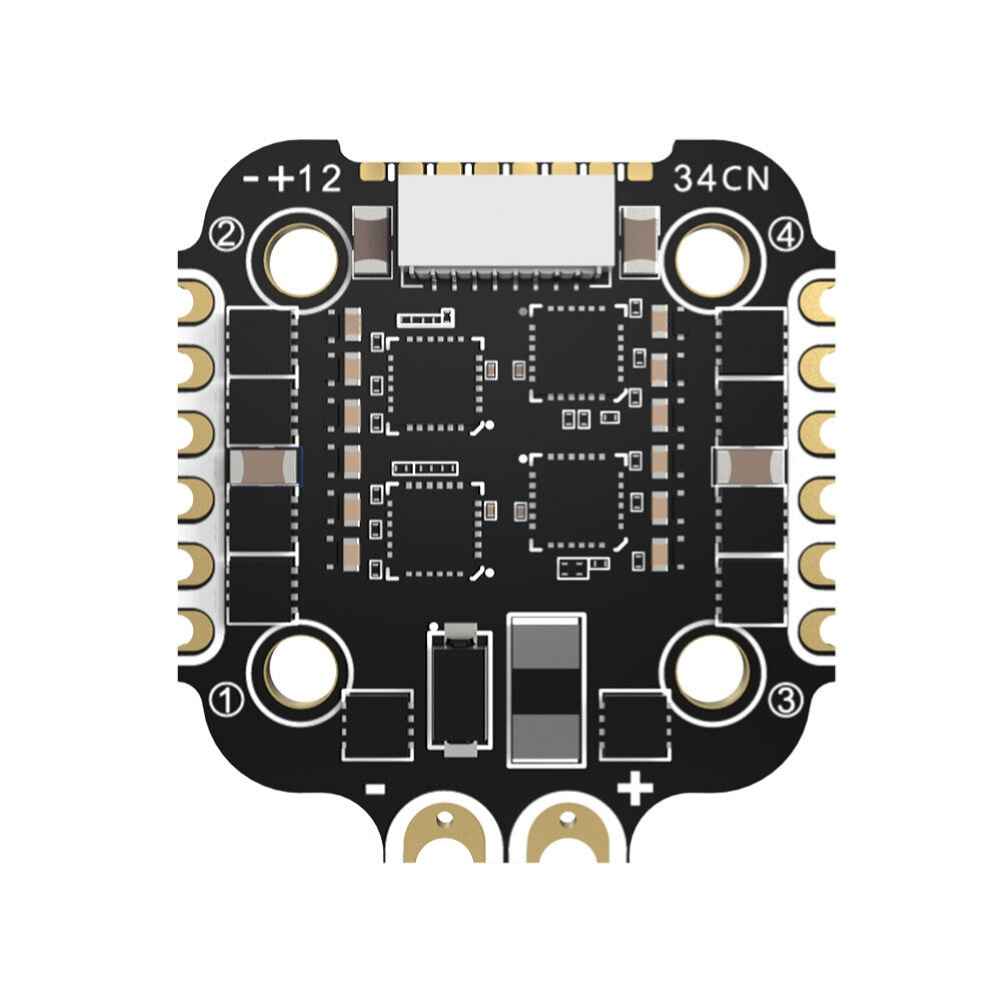

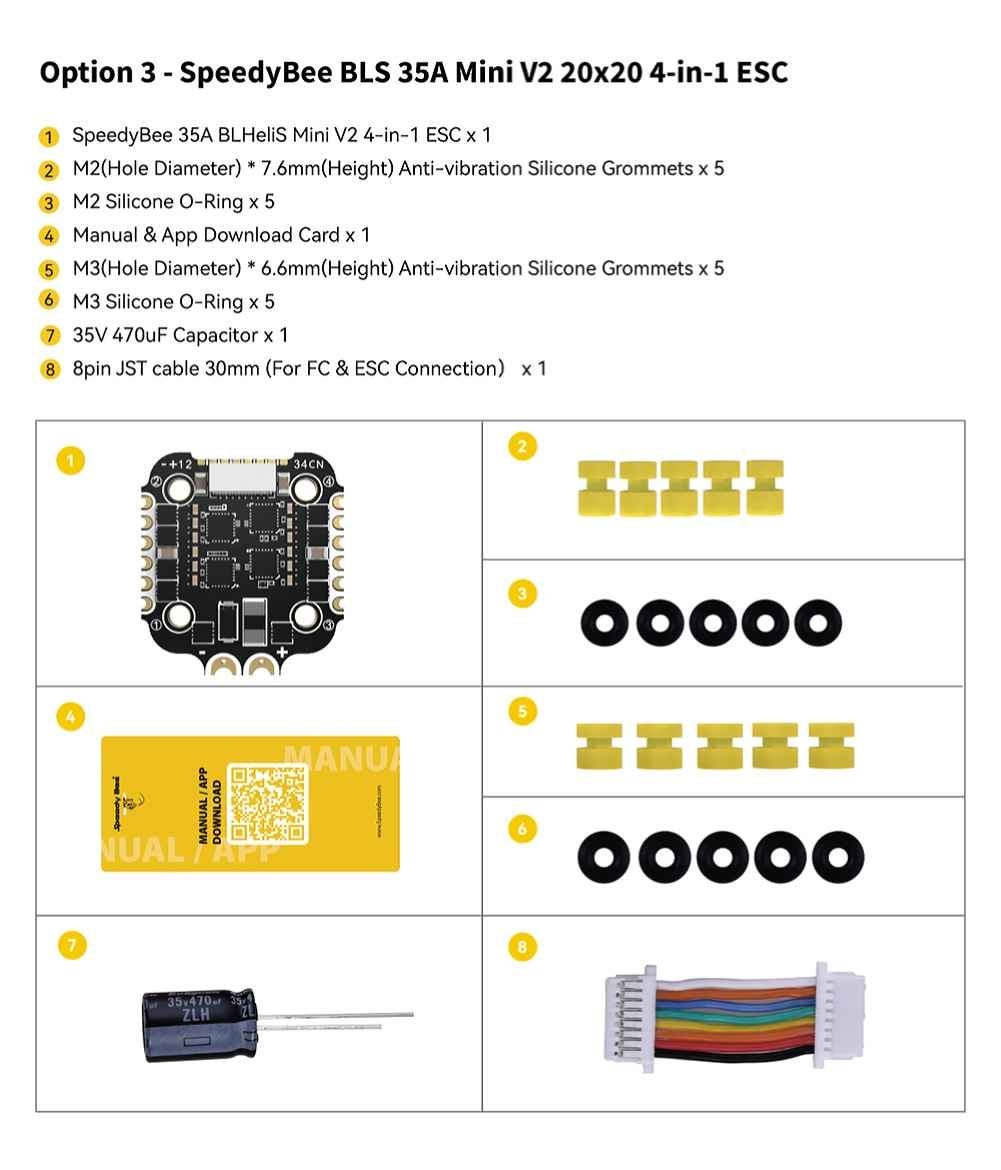

SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC

Firmware

BLHeli_S J-H-40

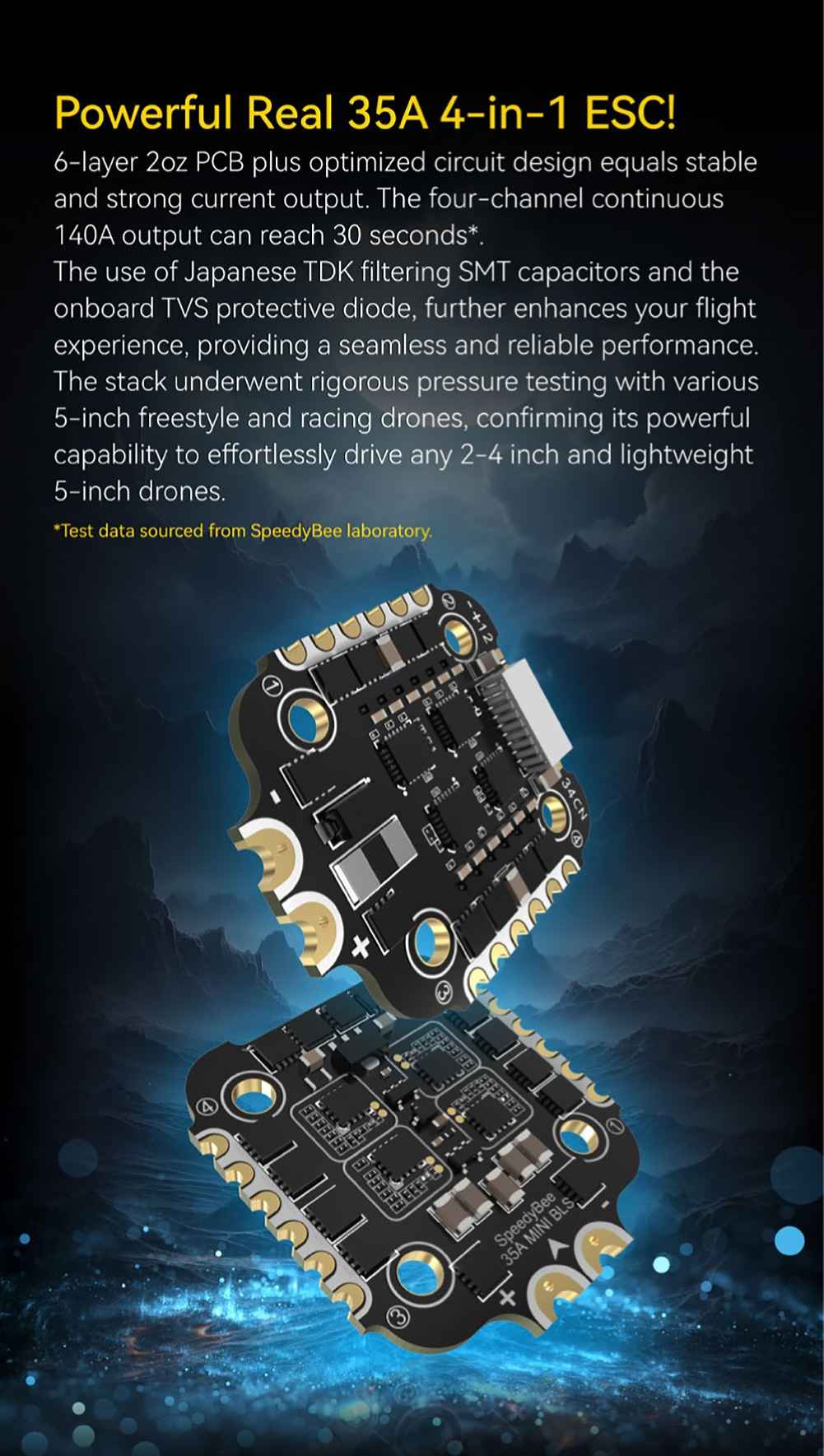

Continuous Current

35A * 4

Burst Current

45A(5seconds)

ESC Protocol

DSHOT300/600

Power Input

3-6S LiPo

Power Output

VBAT(Battery voltage, used to power the flight controller)

Current Sensor

Support (Scale=250 Offset=-500)

Mounting

20x20mm 3.5mm hole sizeä½¾compatible with M2 and M3 screws/Silicone grommets.

Dimension

35x35x5.5mm

Weight

7.2g

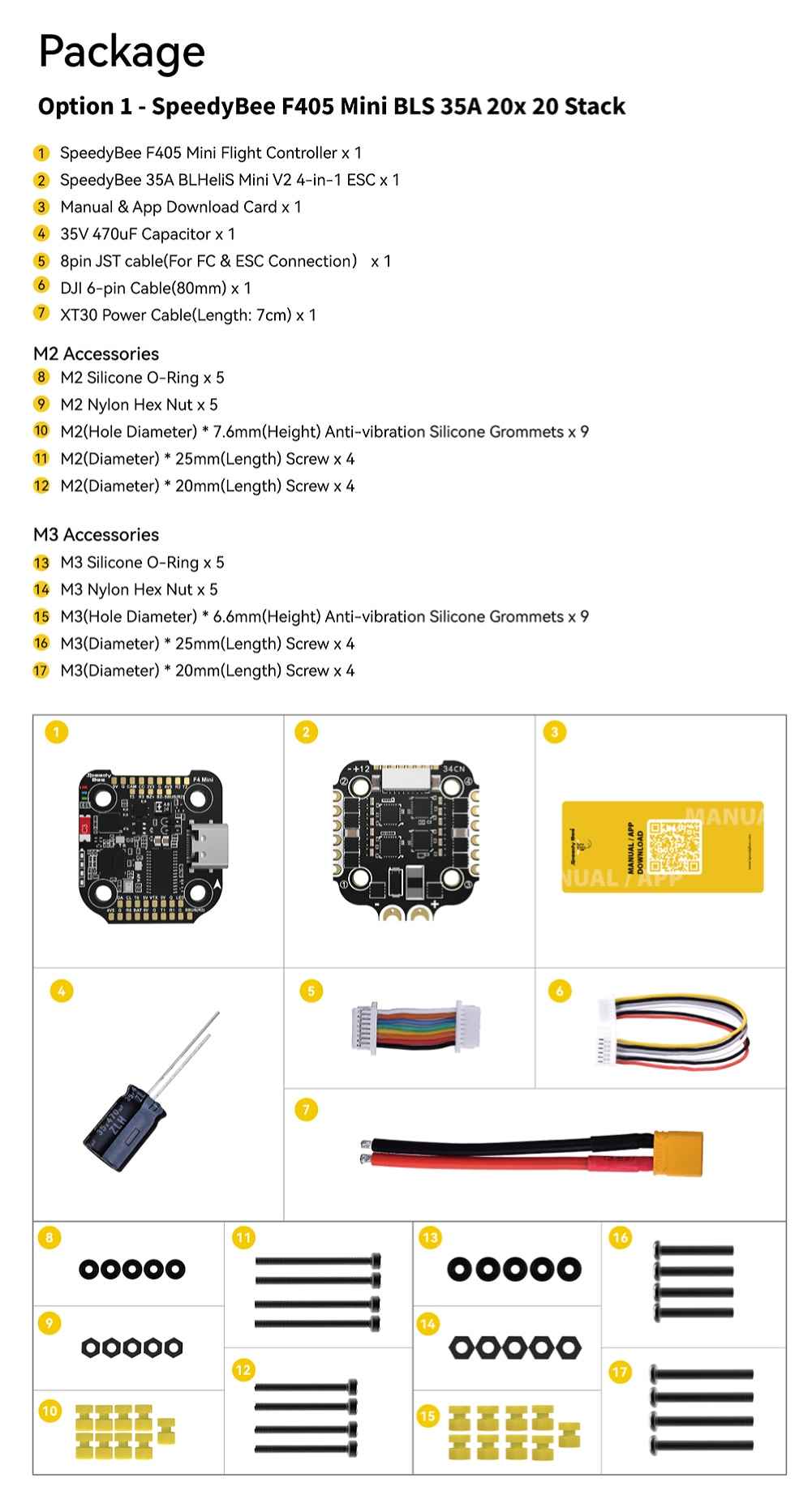

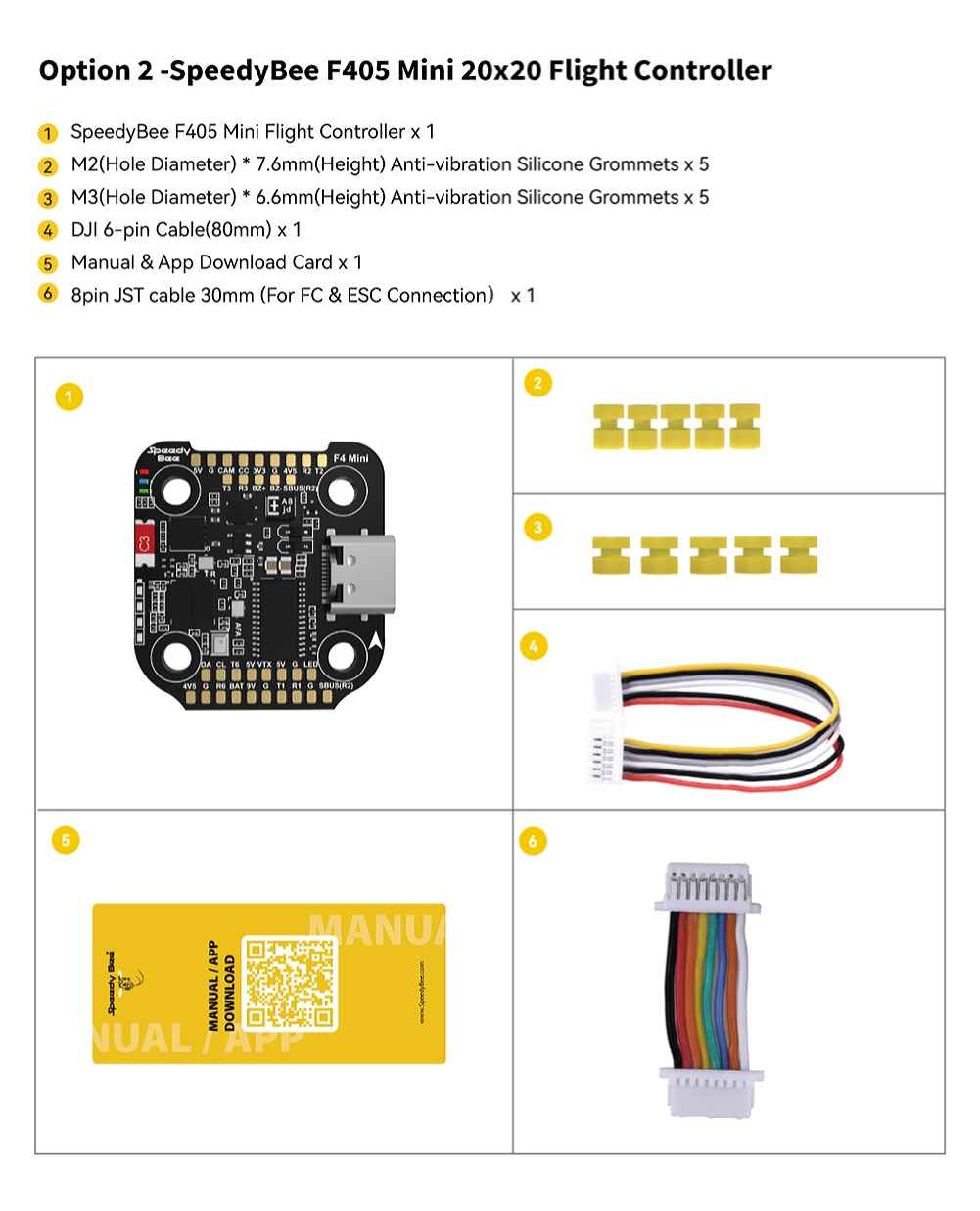

Package Included:
1 x SpeedyBee F405 Mini F4 Flight Controller 1 x SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
